Owner's Manual
CIR-UB6000-G
Light Commercial Upright Bike
Install Date: _________________________ Serial Number: ________________________
Light Commercial

www.GreenSeriesFitness.com ©June 2015 Call Toll free at [phone]
CIR-UB6000-G Revision 1.1
1
TABLE OF CONTENTS
SAFETY PRECAUTIONS …………………………………………………………….. …..2-3
Important voltage information, grounding instructions, how often you exercise,
how hard you exercise, how long you exercise, beginner treadmill program,
target heart rate zone.
TECHNICAL SPECIFICATIONS …………………………………………………………….4
UNPACKING & ASSEMBLY ……………………………………………………… ……...5-9
Parts, hardware kit and assembly drawing
WARM UP & COOL DOWN …………………………………………………………………10
EQUIPMENT
ADJUSTMENT………………………………………………………………………………..14
PANEL CONTROL & PROGRAM ……………………………………………….……..15-18
Control panel function and programs
OPERATION…………………………………………………………………………………..19
CARE & MAINTENANCE ………………………………………………………….........20-22
WARRANTY ………………………………………………………………….…………..23-26

www.GreenSeriesFitness.com ©June 2015 Call Toll free at [phone]
CIR-UB6000-G Revision 1.1
2
SAFETY PRECAUTIONS
Dear Customer,
Thank you for your purchasing our products. This product has been designed and manufactured for full
commercial use, even though we go to great efforts to ensure the quality of each product, occasional
error, and/or omissions do occur. In any event should you find this product to be defective or missing
parts please contact us.
IMPORTANT: Read all instructions and warnings before assembly and operation.
‧
‧‧
‧ Only one person at a time should use this equipment. If dizziness, nausea, chest pains, or any
other abnormal symptoms are experienced while using this elliptical, stop the workout at once.
‧
‧‧
‧ Warning: incorrect/ excessive training can cause health injuries. Stop using the elliptical when
feeling uncomfortable.
‧
‧‧
‧ Consult your physician before starting a workout or training program. Have your doctor review your
training and diet programs to advise you of a workout routine you should adopt.
‧
‧‧
‧ Always use this upright bike on a clear and level surface. Do not use outdoors or near water.
‧
‧‧
‧ Don't insert any object into any openings.
‧
‧‧
‧ Before using this equipment to exercise, always do stretching exercises to properly warm up.
‧
‧‧
‧ Replace defective components immediately and keep the equipment out of use until repair.
‧
‧‧
‧ This product is designed for adults. Please ensure that children only use it under the supervision of
an adult.
‧
‧‧
‧ Make sure that all bolts and nuts are tightened when equipment is in use. Periodic maintenance is
required on all exercise equipment to keep it in good condition.
‧
‧‧
‧ Close supervision is necessary when this appliance is used by, on, or near children,
invalids, or disabled persons.
‧
‧‧
‧ Use this appliance only for its intended use as described in this manual. Do not use attachments,
not recommended by the manufacture.
‧
‧‧
‧ Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair,
and the like.
‧
‧‧
‧ Never drop or insert any object into any opening.
‧
‧‧
‧ Do not use outdoors.
‧
‧‧
‧ The appliance is intended for commercial use.
‧
‧‧
‧ Maximum user weight: 500Ibs (227 kg).

www.GreenSeriesFitness.com ©June 2015 Call Toll free at [phone]
CIR-UB6000-G Revision 1.1
3
SAFETY PRECAUTIONS
CONSULT A PHYSICIAN IMMEDIATELY
Warning:
before starting any exercise program consult your physician. This is especially
important for individuals over the age of 35 or persons with preexisting health problems. Read
all instructions before using any fitness equipment. We assume no responsibility for personal
injury damage sustained by or through the use of this treadmill.
U How often you exercise:
You should exercise three to four times a week to improve your cardiovascular and muscle fitness.
U How hard you exercise:
Intensity of exercise is reflected in your heart rate. Exercise must be sufficiently rigorous to strengthen
your heart muscle and condition your cardiovascular system.
Only your doctor can prescribe the target training heart range for you. Before starting any exercise
program consult your physician.
U How long you exercise:
Sustained exercise conditions your heart, lungs and muscles. The longer you are able to sustain
exercise within your target heart range, the greater the aerobic benefits. To begin maintain 2~3
minutes of steady, rhythmic exercise, then check your heart rate.

www.GreenSeriesFitness.com ©June 2015 Call Toll free at [phone]
CIR-UB6000-G Revision 1.1
4
TECHNICAL SPECIFICATIONS
SPECIFICATIONS:
Length: 39” (100cm)
Width: 24” (69cm)
Height: 58” (147cm)
Weight of product: 88lbs (40kg)
Program：6 preset programs , Fitness Test ,HRC*4
Standard features: 8x16dot matrix HR receive
Resistance System：PMS(Perment Magnet System)
Power source：Built-in generator & rechargeable battery 12V-1.2AH

www.GreenSeriesFitness.com ©June 2015 Call Toll free at [phone]
CIR-UB6000-G Revision 1.1
5

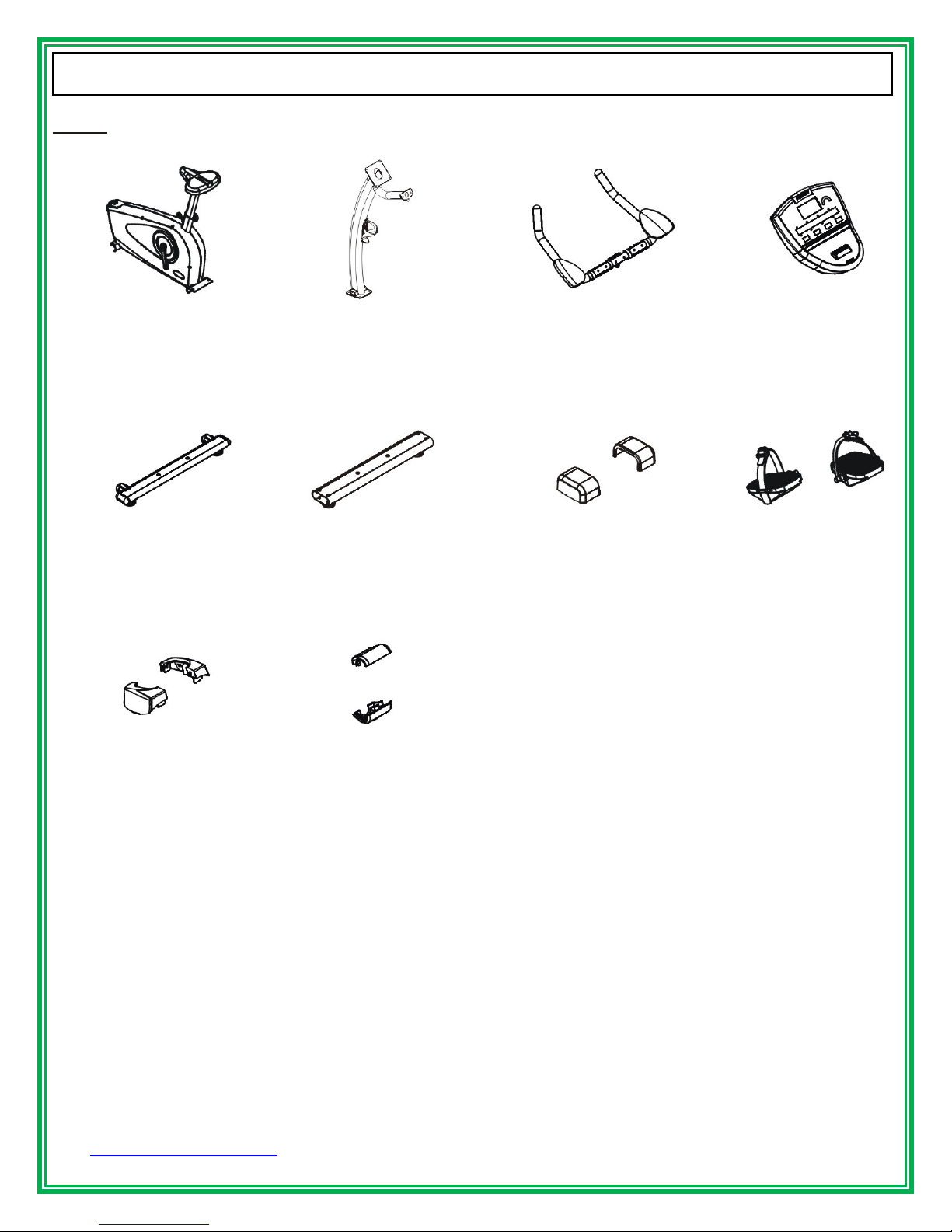

UNPACKING & ASSEMBLY
Parts
#3-10
#3-12
#3-1 #3-3
Main frame / 1pc
Console upright Tube
/
1
pc
Handlebar / 1pc
Console set/ 1pc
Front stabilizer / 1pc
R
ear st
abilizer
/
1
pc
Pedal set / 1set
#2-1 #4-9 #4-1
#4-1 #4-2 #4-7 #4-8
#4-6 #4-12
#4-18
#4-5
#4-13
Rear stabilizer cover /
1set
Upright tube cover, right
/ left / 1 set
Arms cover /1 set

www.GreenSeriesFitness.com ©June 2015 Call Toll free at [phone]
CIR-UB6000-G Revision 1.1
6
UNPACKING & ASSEMBLY

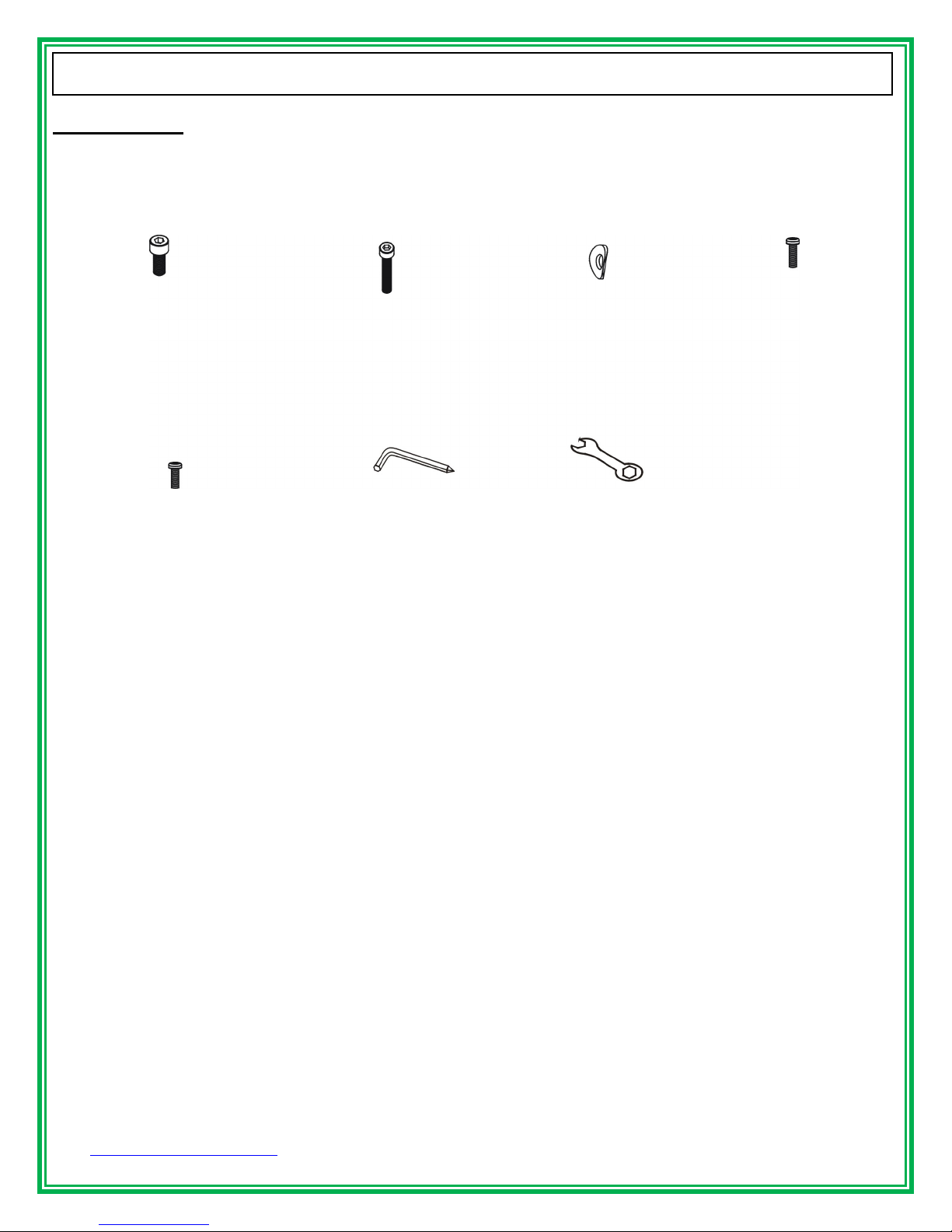

Hardware kit
X 6
(Arms cover& Rear
stabilizer)
M4x12mm
X 1
Allen wrench (6mm) M15/M15
M4x20mm
X 2
(Arms cover)
#4-14
#4-17
X 1
M8x20mm
X 1
(handlebar)
#4-3
M8x65mm
X 2
(handlebar)
#4-10
M8 curve
X 2
(handlebar)
#4-11

www.GreenSeriesFitness.com ©June 2015 Call Toll free at [phone]
CIR-UB6000-G Revision 1.1
7
UNPACKING & ASSEMBLY
Unpacking your bike where will be using it. Being careful not to damage. Place your bike on a level flat
surface. It is recommended that you place a protective covering on your floor.
Step1: assembly Front、
、、
、Rear Stabilizer with main frame.
1). Using (4) M4x12mm screw, fixing rear stabilizer with rear stabilizer cover.
2). Using (2) M8x20mm screw and Washer, fixing front stabilizer with main frame.
3). Using (2) M8x20mm screw and washer, fixing rear stabilizer with main frame.
X1
X1
X 1set
M8x20mm
X 4
#4-1
#4-2
#4-18
#4-3
X 4
X 4
M4x12mm
#4-4
#4-17
M8

www.GreenSeriesFitness.com ©June 2015 Call Toll free at [phone]
CIR-UB6000-G Revision 1.1
8
UNPACKING & ASSEMBLY
Step2: Assembly upright tube cover, right / left with handle bar post
1). Using wrench, fixing pedal set with crank set.
X1 set
#4-7 #4-8

www.GreenSeriesFitness.com ©June 2015 Call Toll free at [phone]
CIR-UB6000-G Revision 1.1
9
UNPACKING & ASSEMBLY

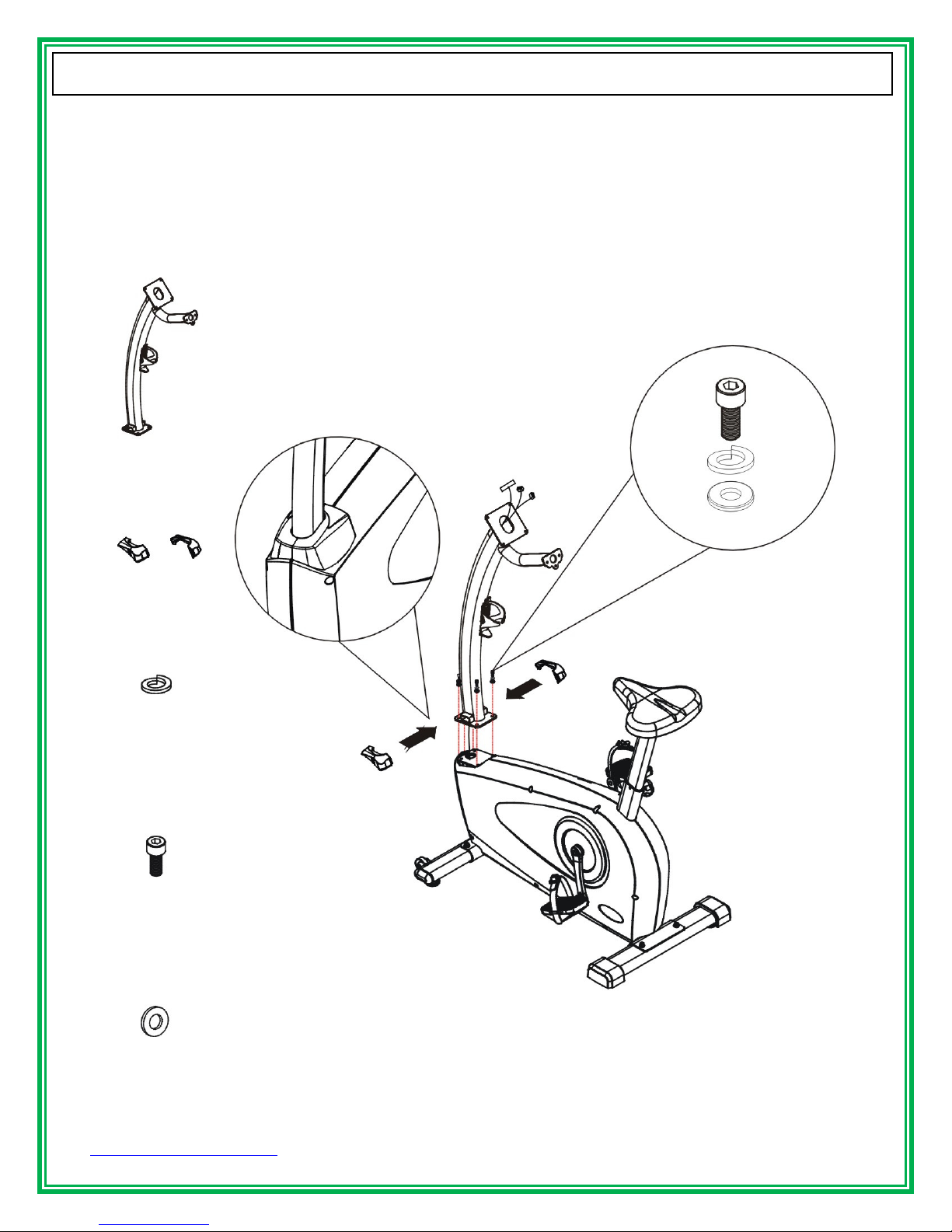

Step3: Assembly console mast with main frame
1). Put handle bar post into main frame, connected upper console wire and lower console wire.
2). Using (4) M8x20mm screw, washer and S washer, fixing handle bar post and main frame.
3). Put left and right upright tube cover into main frame.
X1
X1set
M8x20mm
#2-1
#4-6 #4-5
#4-3
#4-19
#4-4
M8 M8
X 4
X 4
X 4

www.GreenSeriesFitness.com ©June 2015 Call Toll free at [phone]
CIR-UB6000-G Revision 1.1
10
UNPACKING & ASSEMBLY

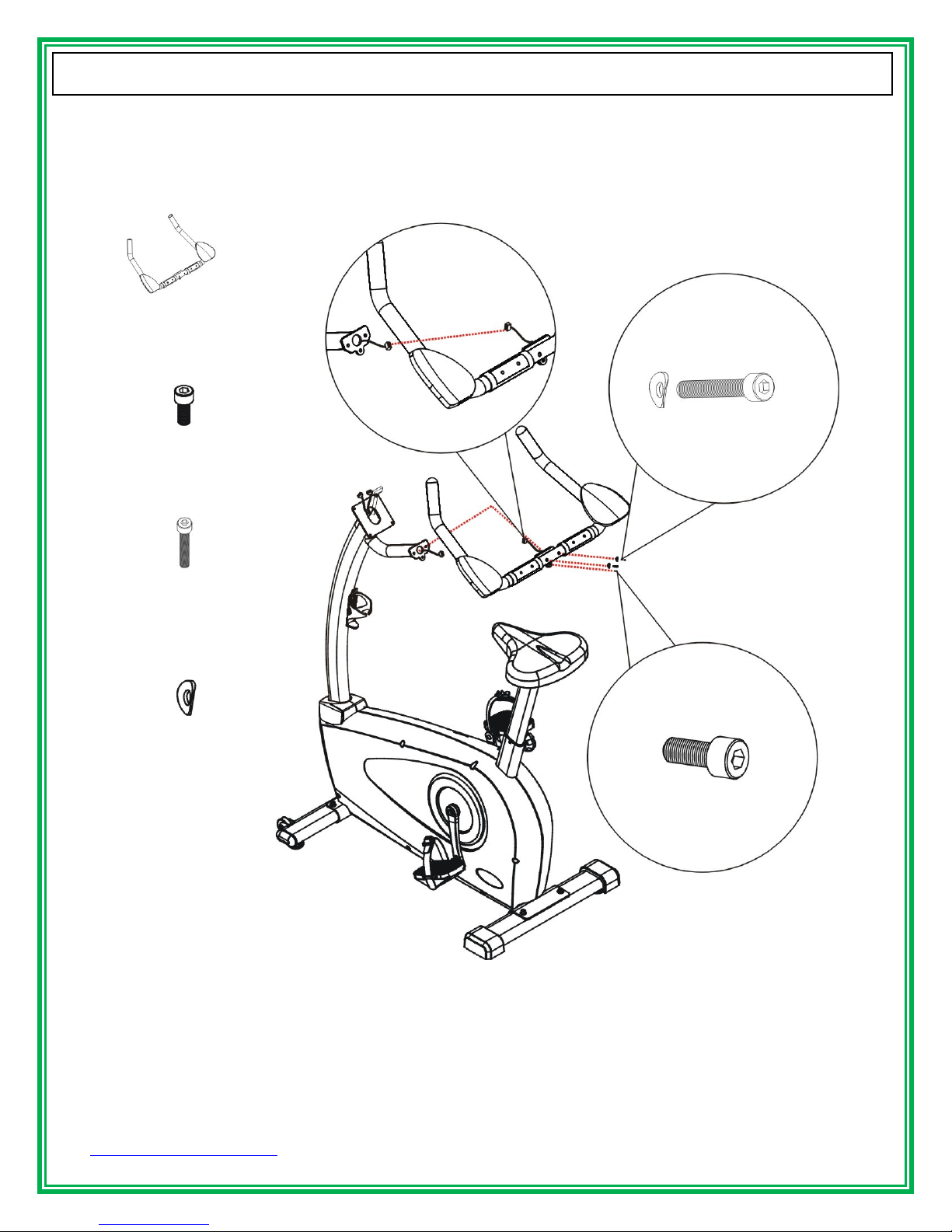

Step4: Assembly handle bar set with console mast
1) Put handle bar into handle bar post, using (1) M8x20mm and (2) M8x65mm screw, fixing
handle bar with handle bar post.
X 1
M8x20mm
X 1
X 2
M8x65mm
X 2
M8 curve
#4-9
#4-3
#4-10
#4-11

www.GreenSeriesFitness.com ©June 2015 Call Toll free at [phone]
CIR-UB6000-G Revision 1.1
11
UNPACKING & ASSEMBLY

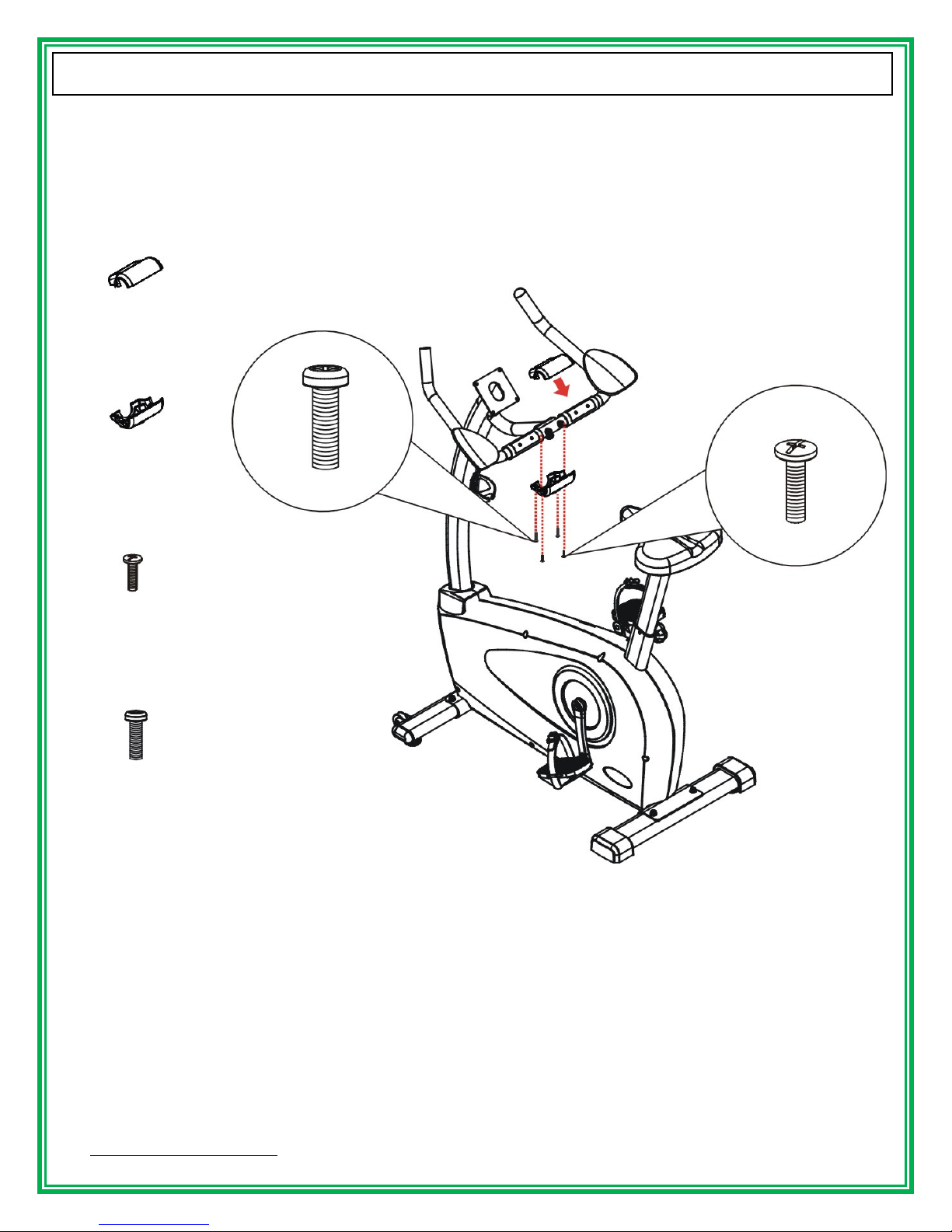

Step5: Assembly arms cover with handle bar.
1). Using (2) M4x12mm and M4x20mm screw, fixing the arms under cover on the handle bar
2). Fixing the armrest cover on the handle bar.
X 2
M4x12mm
X 1
X 1
X 2
M4x20mm
#4-12
#4-13
#4-14
#4-17

www.GreenSeriesFitness.com ©June 2015 Call Toll free at [phone]
CIR-UB6000-G Revision 1.1
12
UNPACKING & ASSEMBLY

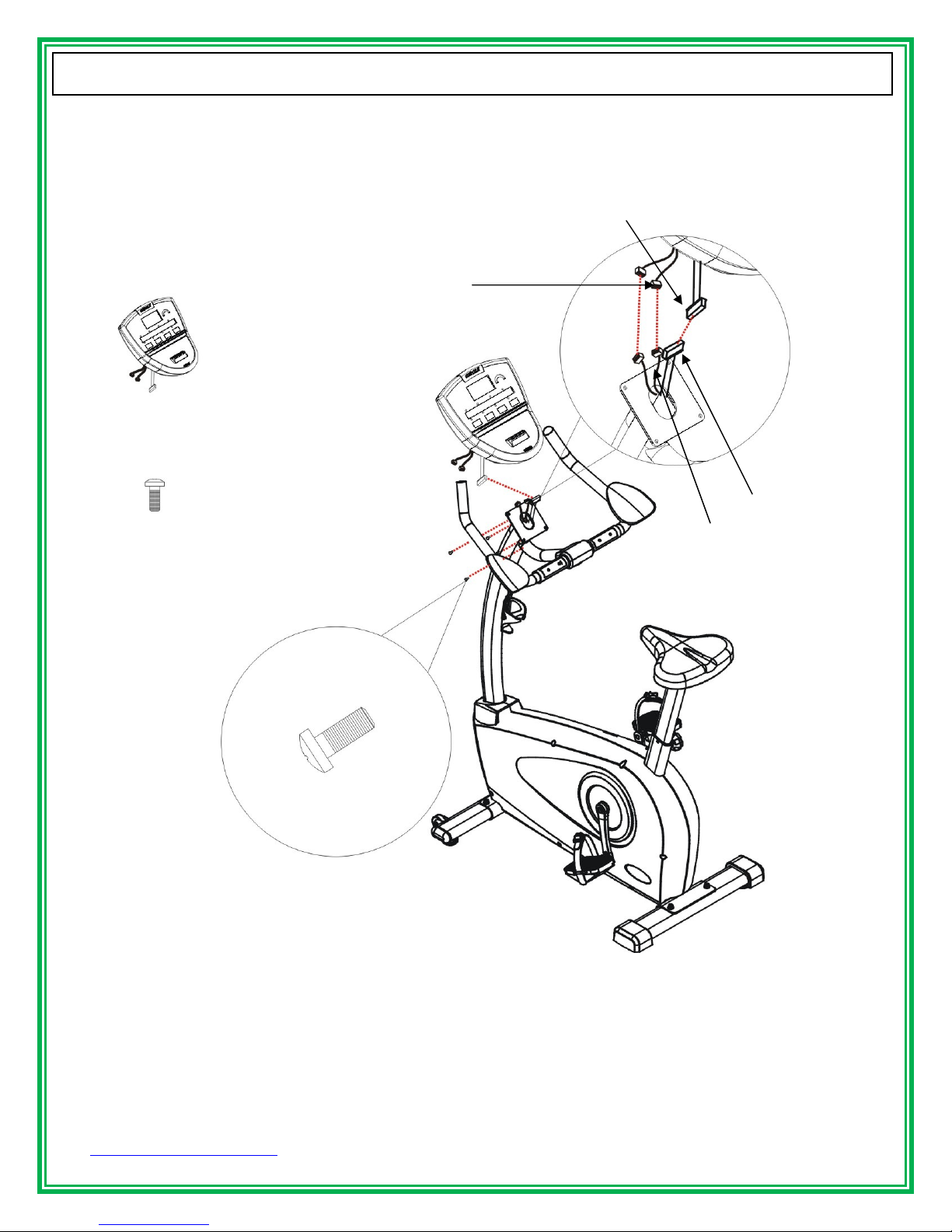

Step6: Assembly console with handle bar post
1). Put the console into handle bar post, connected upper console wire with lower console wire.
2). Using (4) M5x15mm screw, tighten all screws.
X 4
M5x15mm
X 1
Upper handle pulse wire
Upper console wire
Lower console
wire
Lower handle pulse wire
#4-16
#4-15

www.GreenSeriesFitness.com ©June 2015 Call Toll free at [phone]
CIR-UB6000-G Revision 1.1
13

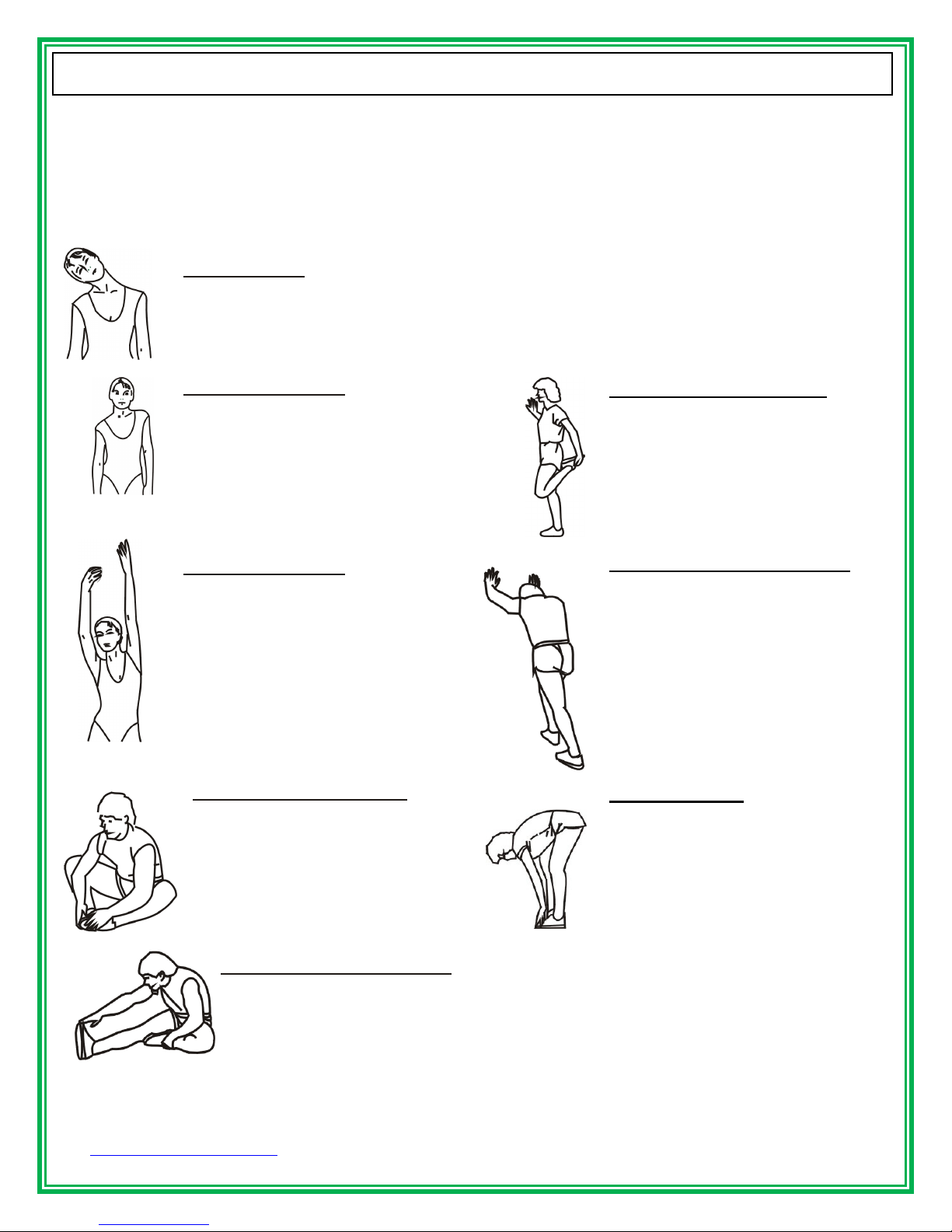

WARM UP & COOL DOWN
A successful exercise program consists of a warm up, aerobic exercise and a cool down. Warming up
is an important part of your workout, and should begin every session. It prepares your body for more
strenuous exercise by heating up and stretching out your muscles. At the end of your workout, repeat
these exercises to reduce sore muscle problems. We suggest the following warm-up and cool-down
exercises:
HEAD ROLLS
Rotate your head to the right for one count, feeling the stretch up the left side of your neck. Next
rotate your head back for one count, stretching your chin to the ceiling and letting your mouth open.
Rotate your head to the left for one count, and finally, drop your head to your chest for one count.
Repeat this action for several times.
SHOULDER LIFTS
Lift your right shoulder up
toward your ear for one count.
Then lift your left shoulder up
for one count as you lower
your right shoulder.
Repeat this action for several times.
SIDE STRETCHES
Open your arms to the side and
continue lifting them until they
are over your head. Reach your
right arm as far upward toward
the ceiling as you can for one
count. Feel the stretch up your
right side. Repeat this action with
your left arm.
INNER THIGH STRETCH
Sit with the soles of your feet
together with your knees pointing
outward. Pull your feet as close
into your groin as possible. Gently
push your knees toward the floor.
Hold for 15 seconds.
Repeat this action 3-5 times.
HAMSTRING STRETCHES
Keep your right leg straight and the left foot on the floor; try to stretch your right hand toward
the toe, hold this posture for 15 seconds. Relax, and then repeat the action for left leg.
QUADRICEPS STRETCH
With one hand against a wall for
balance, reach behind you and pull
your right foot up. Bring your heel
as close to your buttocks as
possible. Hold for 15 seconds and
repeat with left foot up.
CALF/ACHILLES STRETCH
Step your right foot in front of your
body. Lean against a wall with
your arms and stretch your left
foot backward your body. Bend
forwards your right foot, and
slightly push your buttock toward
to the wall for 15 seconds.
Repeat the action with front left
foot and rear right foot for another
15 seconds.
TOE TOUCHES
Slowly bend forward from
your waist, letting your back
and shoulder relax as you
stretch toward your toes.
Reach down as far as you
can and hold for 15 seconds.

www.GreenSeriesFitness.com ©June 2015 Call Toll free at [phone]
CIR-UB6000-G Revision 1.1
14
EQUIPMENT ADJUSTMENT
A. After assembly, the rear stabilizer can be adjusted to accommodate slightly uneven ground. Turn
the adjustment knobs on the ends of the rear foot caps to level the rear stabilizer to the floor.
B. The transportation wheels on the front foot caps allow for easy maneuvering. Simply pull back on
the handle bars until the wheels touch the floor. Then roll the unit to a desired location.
Draw
C. According to personal preferences to adjust seat pillars from 1 to 12. Loosen the seat
pillar fixed tube. Re-tighten the fixing tube.

www.GreenSeriesFitness.com ©June 2015 Call Toll free at [phone]
CIR-UB6000-G Revision 1.1
15
Display & Keys
Dot-matrix, display program profiles & message
Message window
PANEL CO
NTROL

www.GreenSeriesFitness.com ©June 2015 Call Toll free at [phone]
CIR-UB6000-G Revision 1.1
16
Display function
Display Definition
Time
Displays time remaining or total time.
Calories
Displays calories burned.
Heart Rate
Displays hand grip and wireless Heart Rate reading.
Distance
Displays total distance KM/Mi.
RPM
Displays pedaling RPM.
Watts
Displays consuming watt.
Mets
Displays the multiple of rest.
Level
Displays current resistance level L1~L16
※ Calories & Heart Rate for reference only.
Key function
Key Function
Start Quick start or program start.
▲Adjust workload up. Adjust value when program setting.
Select program
▼Adjust workload down. Adjust value when program setting.
Select program
Display RPM←→Watt Calories←→Distance
Time←→Mets Level←→Heart Rate
Enter Confirm value entered.
Rest Reset back to idle mode while pause
Program Select program directly
Keypad Set value
PANEL CONTROL

www.GreenSeriesFitness.com ©June 2015 Call Toll free at [phone]
CIR-UB6000-G Revision 1.1
17
PROGRAMS DESCRIPTION
1. QUICK START
1.1 To pedal over 30 rpm to wake up and initial the system to idle mode, press『START』to quick
start.
1.2 Press shift UP or DOWN to exercise level by 1 level or press quick Level Key to change level.
1.3 Stop pedaling will pause the system, stop pedaling over 30 seconds system will auto shut down.
2. Target
2.1.Press『Target』key to enter the program.
2.1.1. Set time：use shift up or down device to set time then press『ENTER』to next settings.
2.1.2. Set weight: use shift up or down device to set weight then press『ENTER』to next settings.
2.1.3. Set age: use shift up or down device to set age then press『ENTER』to next settings.
2.1.4. Set distance: use shift up or down device to set distance then press『ENTER』to next
settings.
2.1.5. Set calories: use shift up or down device to set calories then press『START』to begin
workout.
2.2.Beginning the workout:
2.2.1. If either, Time, Distance and Calories are set the program will count down. Once the
preset value reaches 0 the program will end. If no goal is set the program will not end
unless manually stopped.
3. Preset program：
3.1.There are 5 preset programs, ROLLING, VALLEY, FAT BURN, INTERVAL, RANDOM. Press the
program key to enter the program.
3.1.1. Set time：use shift up or down device to set time then press『ENTER』to next settings.
3.1.2. Set weight: use shift up or down device to set weight then press『ENTER』to next settings.
3.1.3. Set age: use shift up or down device to set age then press『ENTER』to next settings.
3.1.4. Set workout level: use shift up or down device to set level 1~5(For RANDOM program will
change the profile randomly. Press 『START』to begin workout.
3.2.Beginning the workout:
3.2.1. The resistance level will change automatically according to the program settings, the
resistance level will change every 2 minutes per segment if the time is in count up mode,
if time is entered during setup then the segment time=set time / 16. You can use any
speed or incline key to change speed or incline during your workout.
3.2.2. The program will end when the counter reaches 0.
3.2.3. Preset program profiles:
P1=ROLLING、P2=VALLEY、P3=FAT BURN、P4=INTERVAL、P5= RANDOM
PROGRAM

www.GreenSeriesFitness.com ©June 2015 Call Toll free at [phone]
CIR-UB6000-G Revision 1.1
18
P SEG 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
P1
LEVEL 1 4 6 8 8 6 4 4 6 8 8 6 4 4 6 8 6
LEVEL 2 5 6 8 9 9 8 6 6 7 9 8 7 6 6 7 8
LEVEL 3 7 8 9 10 10 8 8 6 8 10 10 9 8 6 8 10
LEVEL4 9 10 11 13 10 8 11 13 10 9 8 10 11 13 10 9
LEVEL5 11 13 15 15 13 11 11 13 15 15 13 11 11 13 15 12
P2
LEVEL 1 8 8 6 6 4 4 2 2 2 2 4 4 6 6 8 8
LEVEL 2 9 6 5 4 3 2 2 4 6 6 7 10 10 11 11 12
LEVEL 3 11 10 10 8 7 6 5 4 3 3 5 5 7 10 10 13
LEVEL4 13 12 12 10 9 8 6 6 6 7 8 9 10 12 12 14
LEVEL5 15 15 12 12 10 10 8 8 8 8 10 10 12 12 15 15
P3
LEVEL 1 2 2 4 4 6 6 8 8 8 8 6 6 4 4 2 2
LEVEL 2 3 5 5 7 8 9 10 10 11 12 10 10 7 6 3 3
LEVEL 3 5 6 7 7 9 10 10 12 12 12 10 10 8 8 5 5
LEVEL4 6 6 8 8 11 11 13 14 14 12 10 10 9 8 6 6
LEVEL5 8 8 10 10 12 12 15 15 15 15 12 12 10 10 8 8
P4
LEVEL 1 2 4 8 4 2 2 4 8 4 2 2 4 8 4 2 2
LEVEL 2 3 5 8 6 1 1 5 7 6 3 3 3 6 6 4 3
LEVEL 3 5 7 9 9 6 5 4 4 4 6 7 8 10 8 6 6
LEVEL4 7 8 10 10 12 12 10 10 8 8 10 12 12 10 8 8
LEVEL5 8 10 15 10 8 8 10 15 10 8 8 10 15 10 8 8

www.GreenSeriesFitness.com ©June 2015 Call Toll free at [phone]
CIR-UB6000-G Revision 1.1
19
4. HRC(Heart Rate Control)
4.1.Press『H.R.C』key to enter the program.
4.2.Set time：use shift up or down device to set time then press『ENTER』to next settings.
4.3.Set weight: use shift up or down device to set weight then press『ENTER』to next settings.
4.4.Set age: use shift up or down device to set age then press『ENTER』to next settings.
4.5.Set workout mode: There are 3 types of HRC mode.『WEIGHT LOSS MODE』,『AEROBIC
MODE』,『TARGET MODE』, use shift up or down device to select the desired HRC type then
press『ENTER』to next settings.
4.6.Set target heart rate: use shift up or down device to set Target Heart Rate(WEIGHT LOSS
MODE default value=MHR 70%, setting range=MHR 66%~75%. AEROBIC MODE default
value=MHR 80%, setting range=MHR 76%~85%, TARGET HEART RATE default value=130,
setting range=100~180) then press『ENTER』to next settings.
4.7.Set begin resistance level: use shift up or down device to set LEVEL then press『START』to
begin workout.
4.8.Beginning the workout:
4.8.1 The program will compare the real time and preset target heart rate every 30 seconds
to adjust resistance level until the actual heart rate is reaches with in + or – 5 beats of
the preset target heart rate.
4.8.2 During the program, if the actual pulse rate ≦target workout heart rate minus 5, the
resistance level will be increased one level every 30 seconds until the max. level.
4.8.3 During the program, if the actual pulse rate ≧target workout heart rate plus 5, the
resistance level will be decreased one level every 30 seconds until the min. level.
4.8.4 You can use any resistance level key or device to change the resistance level during
your workout.
4.8.5 The program will end when the counter reaches 0.
PROGRAM
