Green VOR-IC6000-G User manual

www.GreenSeriesFitness.com © June 2015 Call Toll free at [phone]
VOR-IC6000-G Revision 1.1
Owner's Manual
VOR-IC6000-G
Light Commercial Indoor Cycle
Install Date: _________________________ Serial Number: ________________________

www.GreenSeriesFitness.com ©June 2015 Call Toll free at 800-269-7130
VOR-IC6000-G Revision 1.1
1
2B T BLE OF CONTENTS
SAFETY PRECAUTIONS …………………………………………………………….. 2-3
Important information, how often you exercise, how hard you exercise, how long you
exercise, target heart rate zone.
TECHNICAL SPECIFICATIONS ……………………………………………………….. 4
ASSEMBLY ……………………………………………………………………………...5-8
EXPLODED DRAWING………. ………………………………………………………… 9
PARTS LIST ………………………………………………………………………………10
INSTRUCTIONS FOR USE……………………………………………………………...11
WARRANTY …………………………………………………………………………..12-15

www.GreenSeriesFitness.com ©June 2015 Call Toll free at 800-269-7130
VOR-IC6000-G Revision 1.1
2
IMPORT NT S FETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THIS EXERCISE EQUIPMENT.
* Keep children off your bike at all times.
* When the bike is in use, young children and pets should be kept at least 10 feet away.
* Use this bike only for its intended use as described in the manual.
* Keep your hands away from all moving parts; Never turn the pedal crank arms by hand.
* Do not remove your feet from the pedals while the pedals are in motion.
* After exercising, push down on the tension knob or turn the tension knob in a clockwise direction to
slow the flywheel down to decrease the potential for injury.
* Do not dismount the bike until both the pedals and flywheel have come to a complete stop.
* Do not attempt to use this bike at high speeds or in standing positions until you have practiced and
are comfortable at lower speeds.
* Rotate the tension knob clockwise to add resistance to the flywheel prior to standing on the pedals.
* Never drop or insert any object into any opening on this bike.
** Do not use without proper footwear.
To ensure that the safety level of this bike is maintained, examine components for wear and tear on a
regular basis. Components that are worn excessively or inoperable should be replaced immediately or
the bike should be put out of service until the unit is repaired.
Caution:
If you experience chest pains, nausea, dizziness or shortness of breath, stop exercising
Immediately and consult your physician before continuing.

www.GreenSeriesFitness.com ©June 2015 Call Toll free at 800-269-7130
VOR-IC6000-G Revision 1.1
3

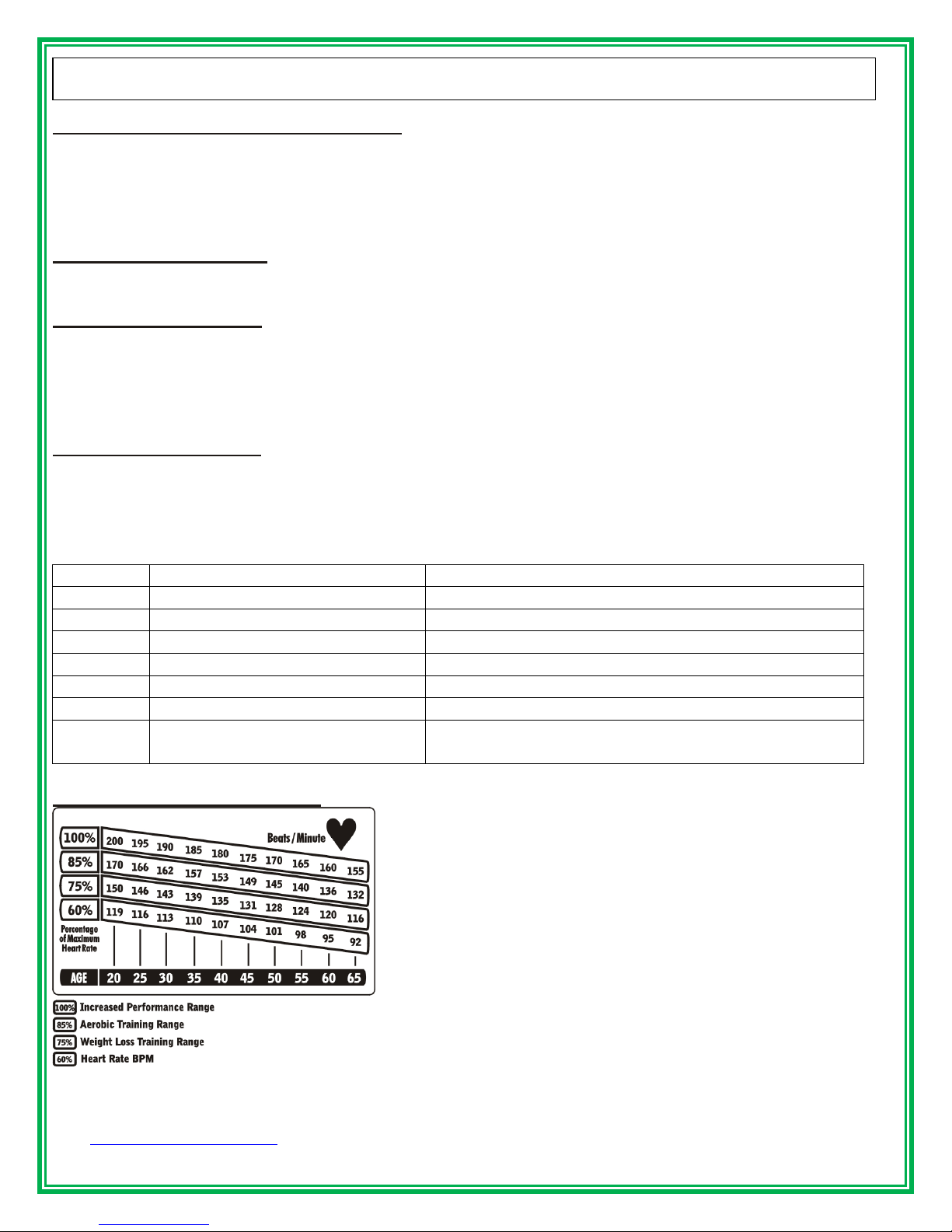

SAFETY PRECAUTIONS
CONSULT A PHYSICIAN IMMEDIATELY
Warning: before starting any exercise program consult yo
ur physician. This is especially
important for individuals over the age of 35 or persons with preexisting health problems. Read
all instructions before using any fitness equipment. We assume no responsibility for personal
injury damage sustained by or through the use of this treadmill.
How often you exercise:
You should exercise three to four times a week to improve your cardiovascular and muscle fitness.
How hard you exercise:
Intensity of exercise is reflected in your heart rate. Exercise must be sufficiently rigorous to strengthen
your heart muscle and condition your cardiovascular system.
Only your doctor can prescribe the target training heart range for you. Before starting any exercise
program consult your physician.
How long you exercise:
Sustained exercise conditions your heart, lungs and muscles. The longer you are able to sustain
exercise within your target heart range, the greater the aerobic benefits. To begin maintain 2~3
minutes of steady, rhythmic exercise, then check your heart rate.
BEGINNER TREADMILL PROGRAM
EXERTION LEVEL
DURATION
WEEK 1 Easy 6~12 minutes
WEEK 2 Easy 10~16 minutes
WEEK 3 Moderate 14~20 minutes
WEEK 4 Moderate 18~24 minutes
WEEK 5 Moderate 22~28 minutes
WEEK 6 Slightly higher or slightly lower 20 minutes
WEEK 7 Add interval training 3 minutes at moderate exertion with 3 minutes at
higher exertion for 24 minutes
TARGET HEART RATE ZONE
220-your age = maximum heart zone
You do not want to workout at your
maximum heart rate. The recommended
Heart Rate Zone is a percentage of your
maximum heart rate. Between 65% and
85% of your maximum heart rate.
* Lower limit of Target Heart Rate Zone
=maximum heart rate X 0.6
* Upper limit of Target Heart Rate Zone
=Maximum heart rate X 0.75
(This is recommended by American Heart
Association. Before starting exercise
program, please consult your physician
to understand your physical situation)

www.GreenSeriesFitness.com ©June 2015 Call Toll free at 800-269-7130
VOR-IC6000-G Revision 1.1
4

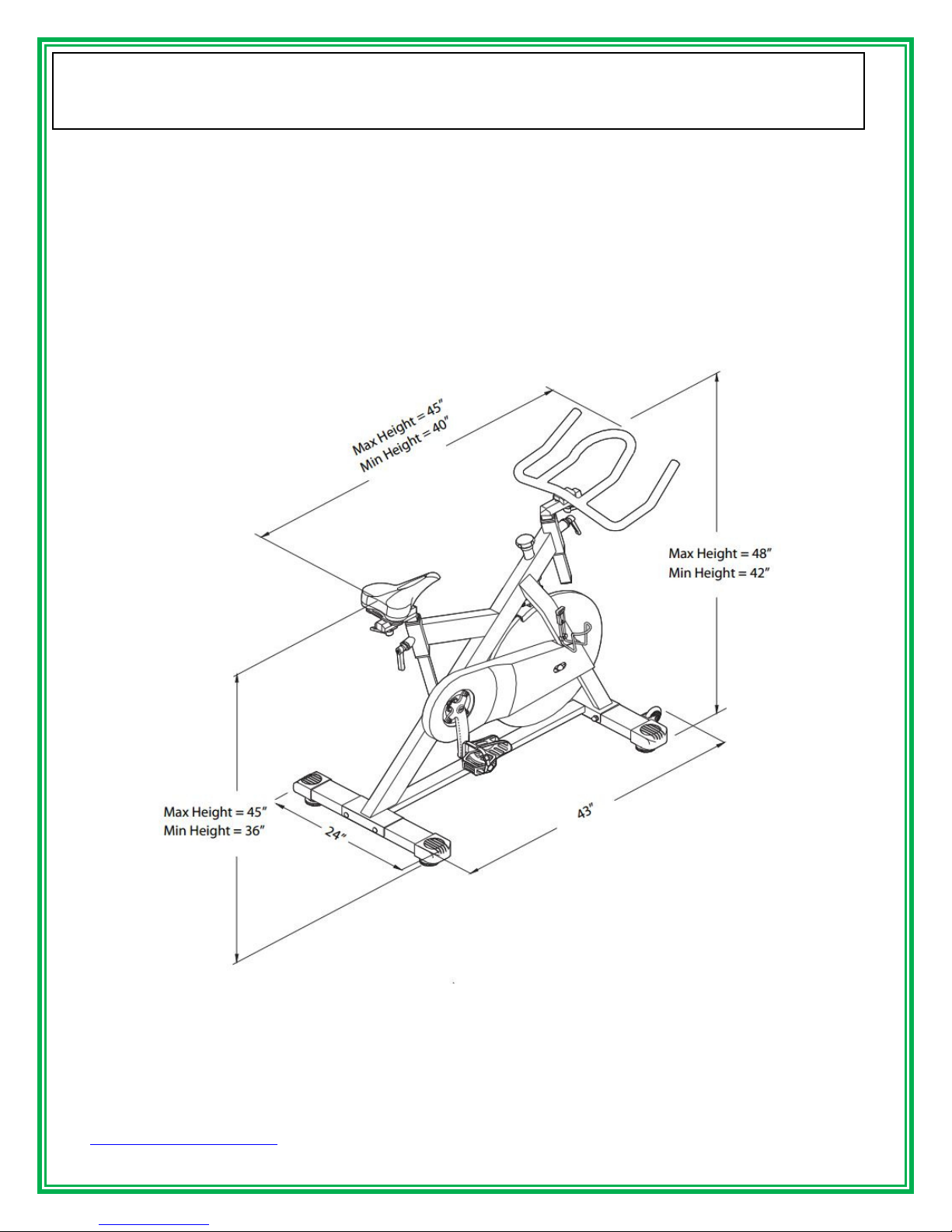

TECHNICAL SPECIFICATIONS
VOR-IC6000-G
Length: 43” (109 cm)
Width: 24” (61cm)
Height: 47” (119cm)
Weight of product: 127 lbs. (55 kg)

www.GreenSeriesFitness.com ©June 2015 Call Toll free at 800-269-7130
VOR-IC6000-G Revision 1.1
5

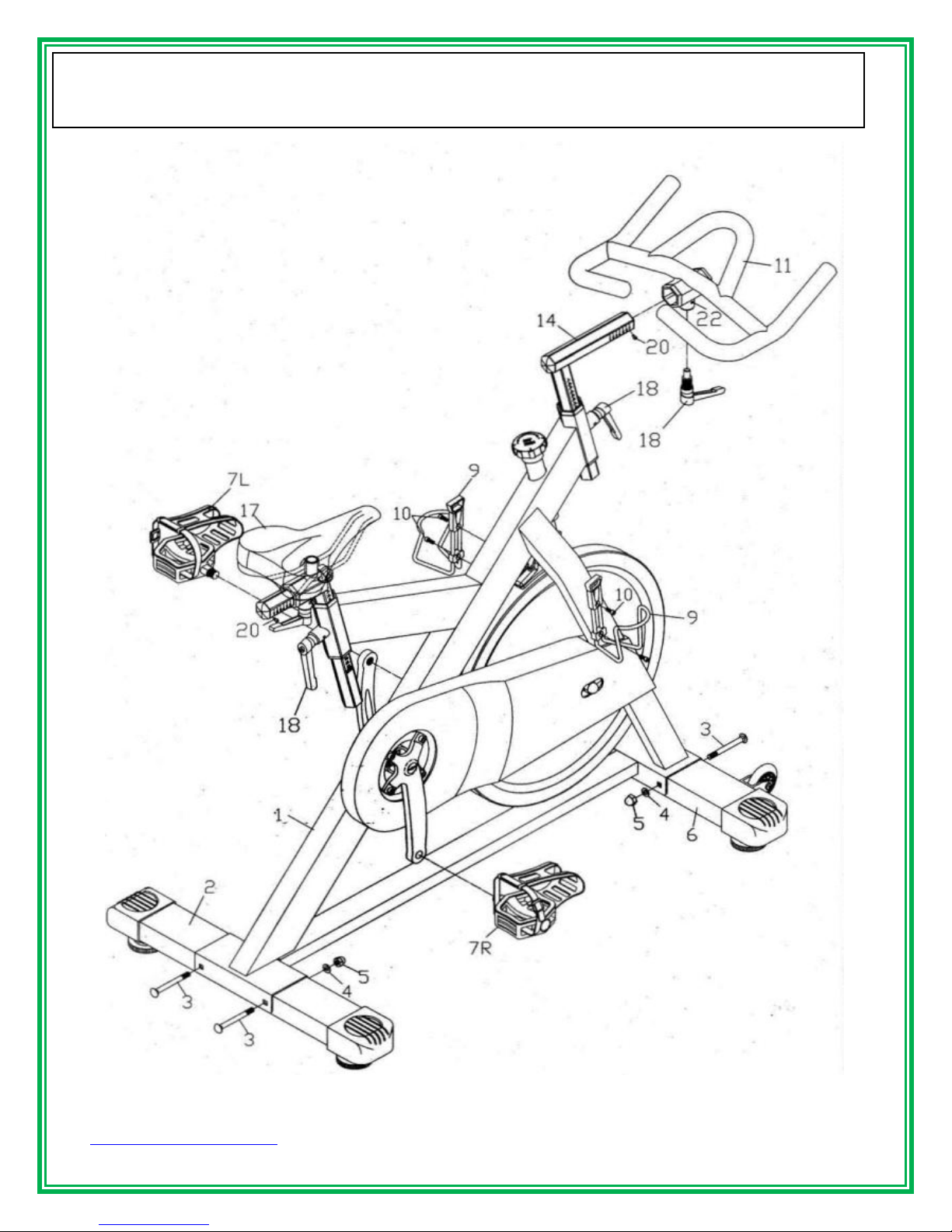

UNPACKING & ASSEMBLY
VOR-IC6000-G

www.GreenSeriesFitness.com ©June 2015 Call Toll free at 800-269-7130
VOR-IC6000-G Revision 1.1
6
ASSEMBLY
VOR-IC6000-G

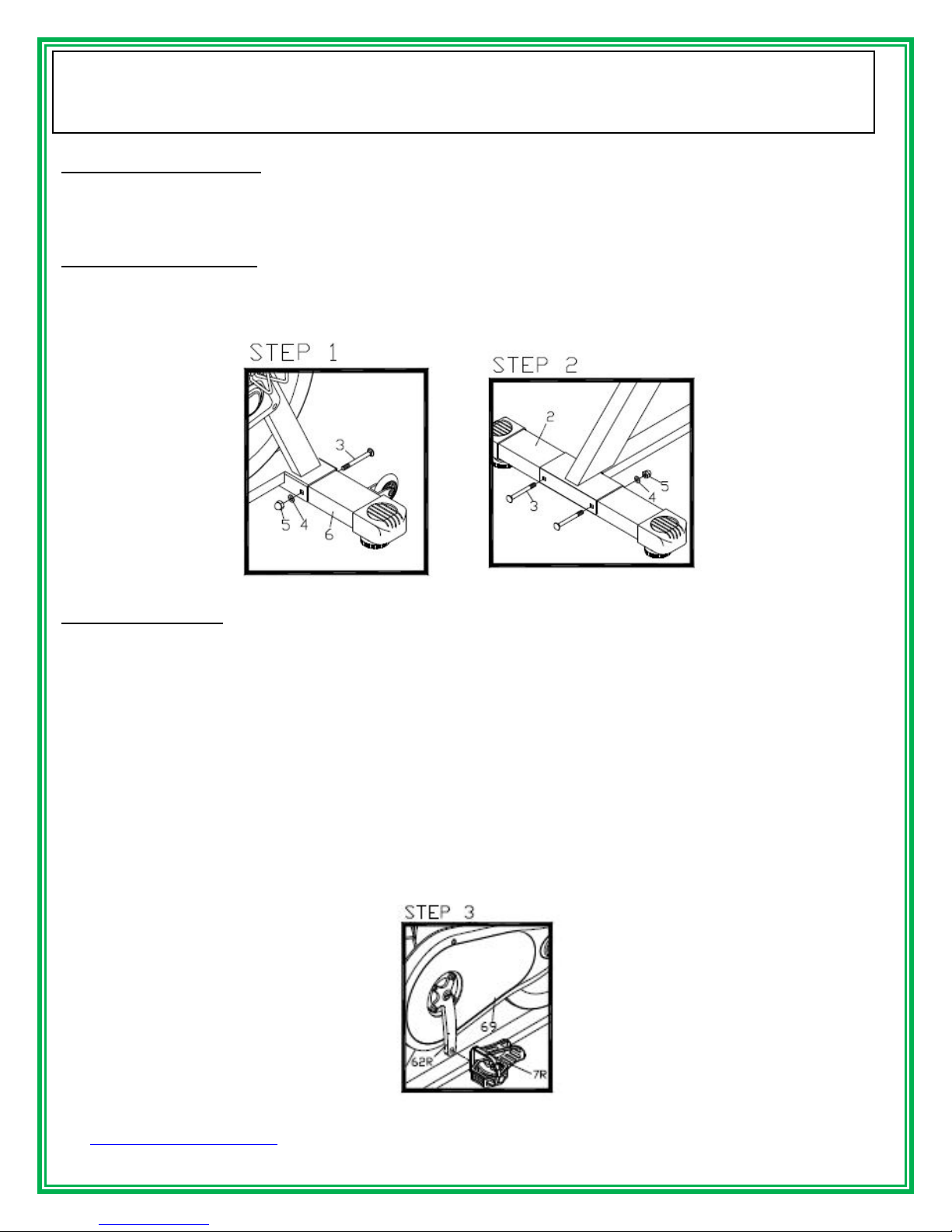

Step 1: Front Foot
Attach the front foot tube (#6) with the frame using (2) bolts (#3), (2) washers (#4) and (2) nuts
(#5) as illustrated in the diagram and then tighten the bolts.
Step 2: Rear Foot
Attach the rear foot tube (#2) with frame then assemble (2) bolts (#3), (2) washers (#4) and (2)
nuts (#5) as illustrated in the diagram and then tighten the bolts.
Step 3: Pedals
1. Attach the pedals (#70R/#70L) into the crank arms (#62R/#62L). Each pedal is marked with
the letter R (right) or L (left) to denote the side of the bike they are to be installed.
NOTE: The right hand crank is on the same side as the chain cover (#71).
Be careful to align the threads correctly to avoid any damage. Apply LocTite Threadlocker
Blue-242 on the thread and tighten using a 15mm wrench.
- Pedal marked R installed on right crank (clockwise),
- Pedal marked L installed on left crank (counterclockwise).
- Pedals must be fastened with significant force to avoid loosening during use of the
indoor cycle. (25-30 lbs. ft. torque)

www.GreenSeriesFitness.com ©June 2015 Call Toll free at 800-269-7130
VOR-IC6000-G Revision 1.1
7

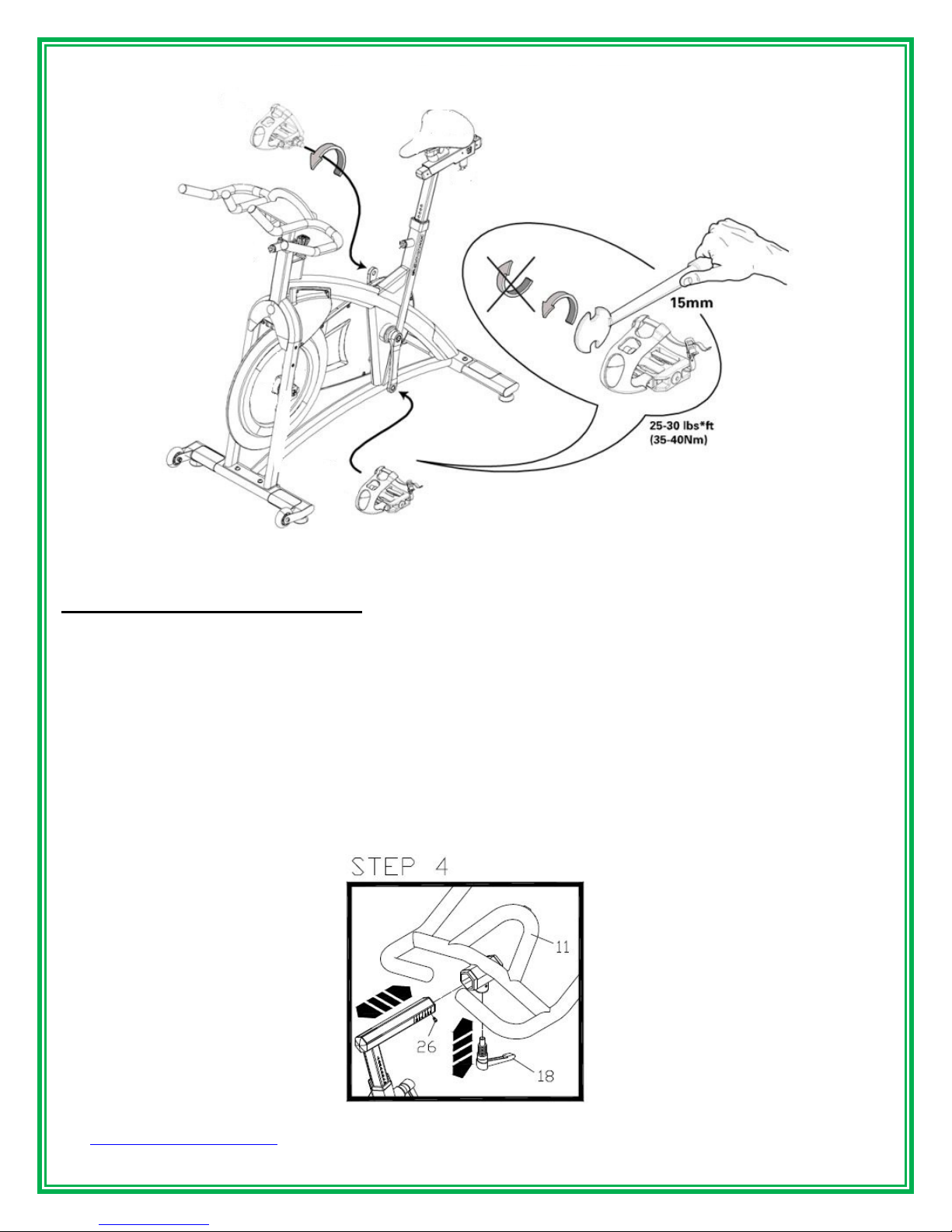

Step 4: Handlebar & Stem
1. Insert stem (#14) into frame head tube and fix stem's height at a proper position then use
(#18) lock lever to tighten.
2. Open safety screw (#26) from the stem's (#14) extension tube and insert handlebar (#11)
into stem extension tube then screw back the safety screw (#26).
3. Adjust the handlebar (#11) position to your required position then tighten lock lever (#18) to
secure.
NOTE: Do not arise above safety line
Example of pedal installation

www.GreenSeriesFitness.com ©June 2015 Call Toll free at 800-269-7130
VOR-IC6000-G Revision 1.1
8

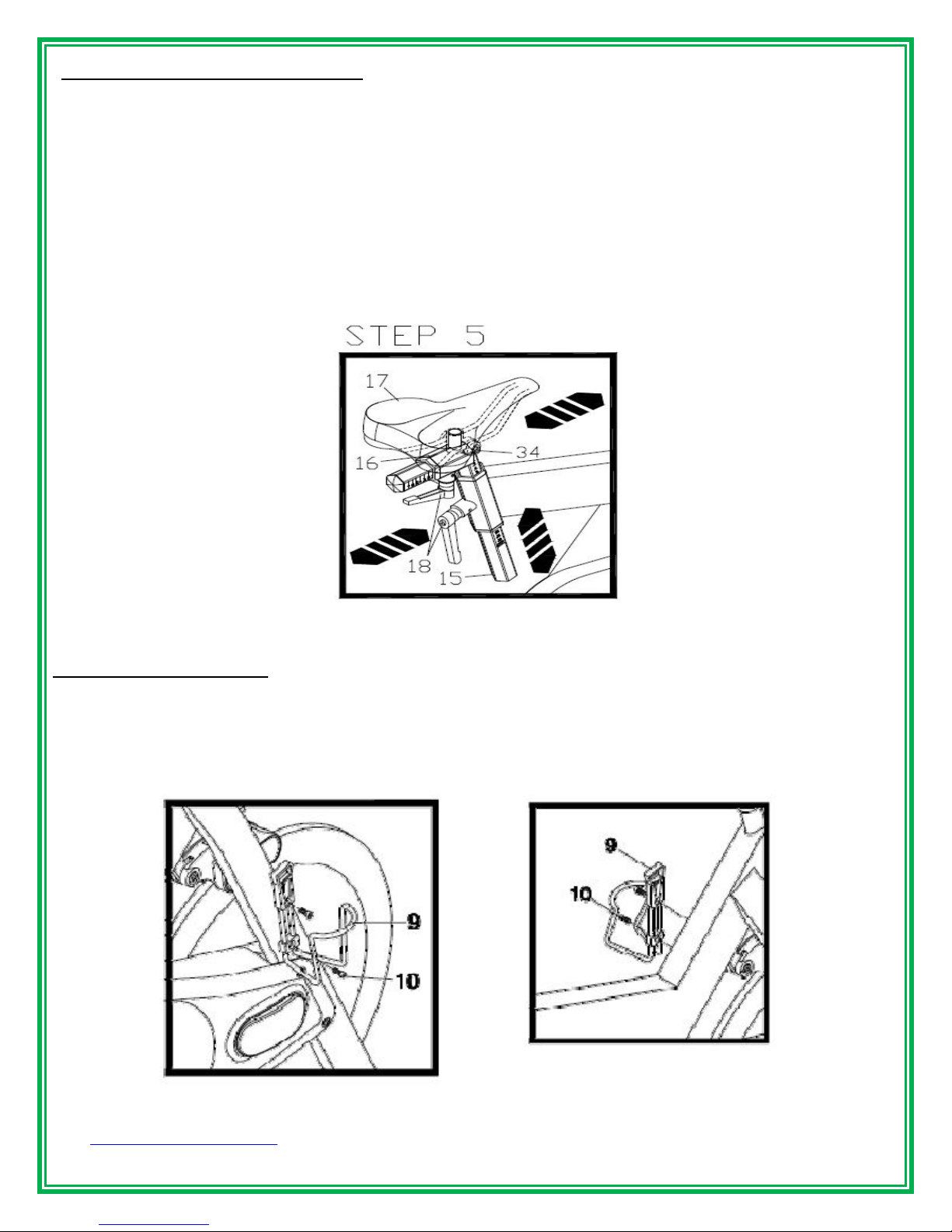

Step 5: Saddle & Seat Post
1. Insert the Seat Post (#15) into the Rear Tube of Bike (#1). Adjust the height according to
your personal height above the SAFETY LINE, and tighten by Lock Lever (#18).
Note: Pull lever of Lock Lever (#18) backward and then release to adjust the angle of Lever.
2. Remove the pre-installed V-Lock fixed Screw (#20) on rear of Stainless Steel Seat Post
(#15) and slide the Seat Sliding Housing (#16) onto the Stainless Steel Seat Post (#15),
tighten by Lock Lever (#18). Re-insert the V-Lock fixed screw and tighten.
NOTE: Do not arise above safety line.
Step 6: Bottle Cage
Attach a Bottle Cage (#9) to each side of the front forks and
secure using the (2) Bottle Cage Fixed Screws (#10) for each Bottle Cage.

www.GreenSeriesFitness.com ©June 2015 Call Toll free at 800-269-7130
VOR-IC6000-G Revision 1.1
9

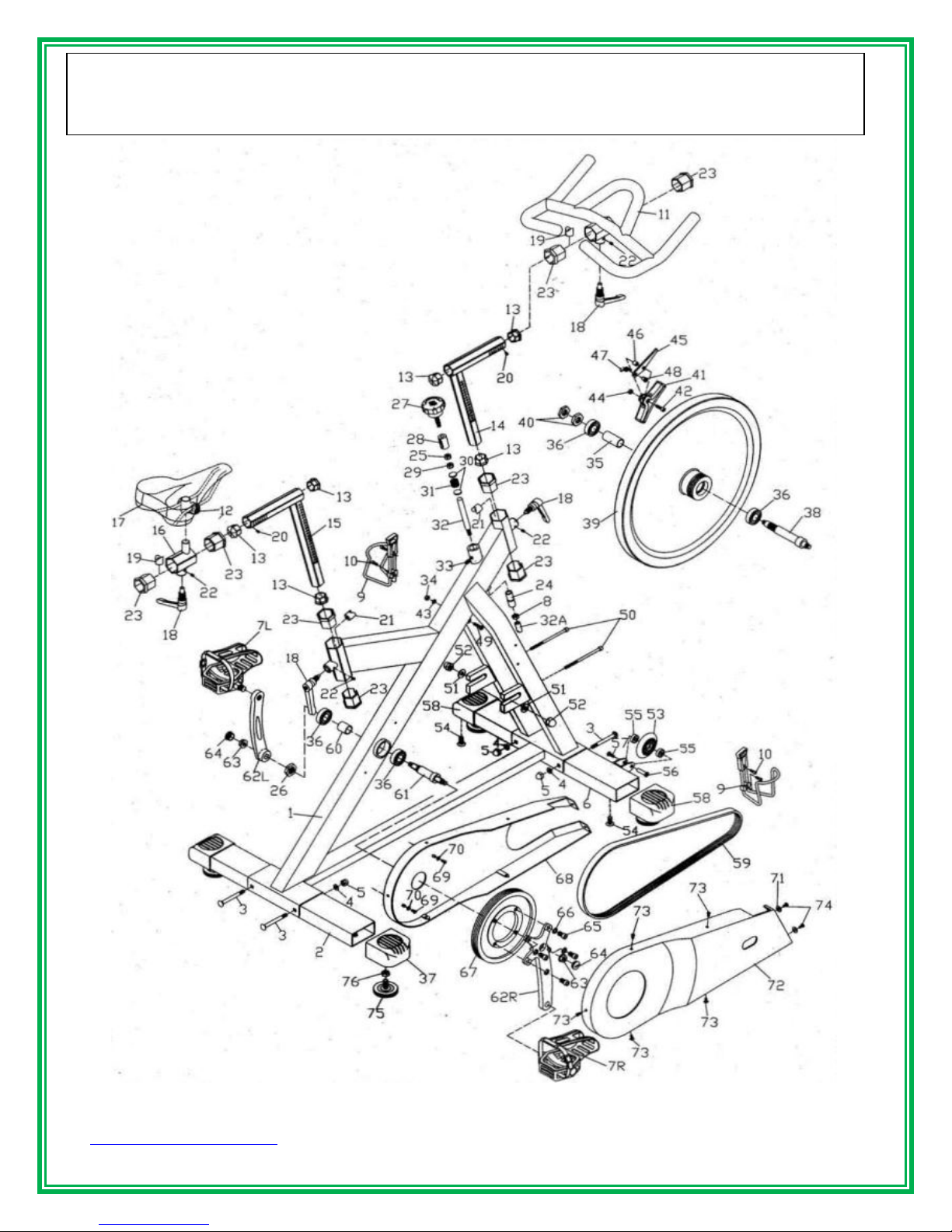

Exploded Diagram
VOR-IC6000-G

www.GreenSeriesFitness.com ©June 2015 Call Toll free at 800-269-7130
VOR-IC6000-G Revision 1.1
10
Parts List
VOR-IC6000-G
part no. description q'ty part no. description q'ty
1Main Frame 1 47 Screw M5*P0.8*6L 2
2Rear Ground Tube 1 48 Sleeve8mm*15L 1
3Groung Tube Fixed Bolt 4 49 Screw M5*P0.8*15L 8
4Washer 4 50 Screw M8*P1.25*8L 1
5Nut 4 51 Left Inner Cover 1
6Front Ground Tube 1 52 Left Out Cover 1
7 R/L Pedal 1 53 PU Moving Wheel 2
8V Block 2 54 Front Ground Tubes End Cap 2
9Bottle Cage 2 55 Bearing 608ZZ 4
10 Bottle cages fixed screw 4 56 Nut 8*30L W/M6*P1.0 2
11 Handle Bar 1 57 Nut M6*P1.0*12L 2
12 Belt 1 58 Rear Ground Tubes End Cap 2
13 scres for handlebar and seat post 2 59 BB Axles Bearing SKF 6004ZZ 2
14 Stem 1 60 Sleeve 24OD*20.1ID*27L 1
15 Seat Post 1 61 B.B Axle 25mm*20mm*128L 1
16 Saddles Slider 1 62L Left Crank 175L 1
17 Saddle 1 62R Right Crank 175L 1
18 Lock Lever 4 63 Flange Nut 2
19 Set Screw M6*P1.0*8L 2 64 Dusty Cover 2
20 Plastic Seal cover 2 65 Lock Nut M20*P1.0 1
21 Axles Adjust ScrewM6*P1.0*95L 2 66 Spring Washer 4
22 POP Cover 2 67 Bolt M10*P1.5*15L 4
23 Plastic Sleeve 4 68 Pulley 265mm*5PK*21T 1
24 Stem & Seat Post End Cap 4 69 Right Out Cover 1
25 Handlebar/ saddle slider set screw 2 70 Right Inner Cover 1
26 Safety Bolt 2 71 Screw M5*P0.8*10L 2
27 Adjust Knob 1 72 Out Alloy Ring of Fly Wheel 1
28 Moving Part 20 OD*34L 1 73 Inner Cast Iron Fly Wheel 1
29 Lock Nut 3/8" *16t*6T 1 74 Sleeve For BB Axle 22mm*18mm*56L 1
30 Nut 2 75 Bearing for Fly Wheel SKF 6203ZZ 2
31 Washer18mm*8.5mm*1.5t 2 76 Nut M17*P1.0*8t 2
32 Spring 18mm*2mmD*65L* 9 Coils 1 77 Fly Wheels Axle 1
33 Stud 12.7mm*160L 1 78 Screw M5*P0.8*6L 5
34 Saddle clamp 1 79 Nut M12*P1.25 2
35 Nut 1 80 Washer 27mm*13mm*3t 2
36 Brake set adjuster 1 81 Nut3/8"*16t*6T 2
37 screw M6*P1.0*8L 1 82 Rear Ground Stablize Adjuster 2
38 Brake set Fix Bracket 1 81 Nut3/8"*16t*6T 2
39 Washer 2 82 Rear Ground Stablize Adjuster 2
40 Screw M6*P1.0*15L 2 83
washerφ16×φ8.5×1.5t
2
41 Magnetic Side Cover 2 84 plastic cone on handlebar slider 2
42 Magnet 6 85 screw M8×P1.25×15L 1
43 Plastic Brake Bass 1 86 washerφ16×φ5×1.5t 1
44 Bolt M8*P1.25*20L 1 87 nut M8×P1.25 1
45 Sleeve 8mm*11mm*12L 1 88 steel plate φ20×3t 1
46 Nut M8*P1.25 1

www.GreenSeriesFitness.com ©June 2015 Call Toll free at 800-269-7130
VOR-IC6000-G Revision 1.1
11
INSTRUCTIONS FOR USE
VOR-IC6000-G
1) The VOR-IC6000-G is designed to be used as an "indoor cycling" cycle in fitness studios and health
clubs. It has a fixed wheel driven flywheel and should only be used under professional supervision.
2) Installation - It is important that the VOR-IC6000-G is correctly assembled and we recommend that
installation and assembly be carried out by suitably qualified personnel.
3) Handlebar and seat adjustment. It is important that the handlebar and seat are set at the correct
height for your body. Ask your instructor for assistance.
Adjusting the handlebar stem and seat post height - Make sure it is securely tightened and that there is
no lateral or vertical movement of the handlebar stem and seat post. Undo the quick release lever
which is locked in front of head tube. Slide the handlebar stem up or down to the required height and
then retighten.
The handlebar/stem position can also be adjusted forwards or backwards. Undo the Quick
Release lever located below the slider. Slide the handlebar/stem assembly forwards or backwards until
you reach the right position. Then securely re-tighten the Quick Release lever.
Adjusting the seat height - refer to above mention.
NOTE: There is a safety line engraved on the handlebar stem and seat post. Under no operating
condition should the handlebar stem and seat post ever be raised above this line.
4) Pedals and toe straps - Your feet should be securely positioned in the toe clips during the exercise.
Place your foot as far forward as you can into the toe-clip and then pull the strap tight.
5) Resistance system - VOR-IC6000-G bike is equipped with a durable belt, direct drive transmission
system. To adjust the exercising resistance on the completed indoor cycle, please refer to knob
assembly.
6) The VOR-IC6000-G should be operated on a level surface with no lateral movement. There is height
adjuster caps located on either side underneath the rear foot. Turn these caps clockwise or
counter-clockwise until the bike is totally stable on the ground.
7) Maintenance - Like any other mechanical cycling device, the VOR-IC6000-G should be regularly
maintained.
Ask your dealer for a detailed maintenance program.

www.GreenSeriesFitness.com ©June 2015 Call Toll free at 800-269-7130
VOR-IC6000-G Revision 1.1
12
Limited Warranty
6000 SERIES LIGHT COMMERCIAL WARRANTY
The Green Series™ 6000 light commercial warranty is intended for non-dues-paying facilities where equipment
use is generally up to eight (8) hours per day
7000 SERIES FULL COMMERCIAL WARRANTY
The Green Series™ 7000 full commercial warranty is intended for facilities where equipment use is regularly in
excess of eight (8) hours per day All dues-paying facilities fall into the category of a full commercial warranty
as well as many non-dues-paying facilities
Please note that any warranty services or questions must be accompanied by the model number and serial
number from the transaction through which the warranted product was purchased The serial number
serves as your warranty number and must be retained GREEN SERIES™ cannot provide warranty service
without this number
GREEN SERIES™ Cardi Machines warrant this product and its parts against defects in materials or
workmanship for ten (10) years frame, five (5) years motor, three (3) years parts, two (2) years wearables
and one (1) year labor from the initial install date During this period, GREEN SERIES™ will repair or replace
defective parts or equipment with new or reconditioned parts at GREEN SERIES™ option, without charge to
customer This limited warranty extends only to the original purchaser and is non-transferable. (Excluding
Indoor Cycling Bikes)
GREEN SERIES™ Ind r Cycling Bikes warrant this product and its parts against defects in materials or
workmanship for five (5) years frame, two (2) years parts, one (1) year wearable and no labor from the initial
install date During this period, GREEN SERIES™ will repair or replace defective parts or equipment with new or
reconditioned parts at GREEN SERIES™ option, without charge to customer This limited warranty extends
only to the original purchaser and is non-transferable
Shipping fees incurred from returns for under-warranty service in the warranty time-line will be paid by GREEN
SERIES™ All shipping fees both to and from GREEN SERIES™ following this warranty time-line period must be
paid by the customer All returns, both during and following the warranty time-line period, must be affected
via the Procedures for Obtaining Warranty Service described below
All original parts (parts installed by GREEN SERIES™ at the original system build) replaced by GREEN SERIES™,
its authorized service center or authorized service technician, become the property of GREEN SERIES™ Any
after-market additions or modifications void all warranties The original purchaser is responsible for the
payment, at current rates, for any service or repair outside the scope of this limited warranty
GREEN SERIES™ makes no other warranty, expressed or implied, including but not limited to implied
warranties of merchantability, fitness for a particular purpose, or conformity to any representation or
description, with respect to this warranty other than as set forth below GREEN SERIES™ makes no warranty

www.GreenSeriesFitness.com ©June 2015 Call Toll free at 800-269-7130
VOR-IC6000-G Revision 1.1
13
or representation, either expressed or implied, with respect to any other manufacturer’s product or
documentation, its quality, performance, merchantability, fitness for a particular purpose, or conformity to any
representation or description
Except as provided below, GREEN SERIES™ is not liable for any loss, cost, expense, inconvenience or damage
that may result from use or inability to use the equipment Under no circumstances shall GREEN SERIES™ be
liable for any loss, cost, expense, inconvenience or damage exceeding the purchase price of the equipment
The warranty and remedies set forth below are exclusive and in lieu of all others, oral or written, expressed or
implied No reseller, agent or employee is authorized to make any modification, extension or addition to this
warranty
Warranty C nditi ns and Restricti ns
The above Limited Warranty is subject to the following conditions:
1 This warranty extends only to products distributed and/or sold by GREEN SERIES™. It is effective only
if the products are purchased and operated in the USA, (Within the USA including US 48 States, Alaska
and Hawaii), Puerto Rico, Canada and Mexico All countries outside the USA for warranty service do
not include labor rates
2 This warranty covers only normal use of the equipment GREEN SERIES™ shall not be liable under this
warranty if any damage or defect results from (i) misuse, abuse, neglect, improper shipping or
installation; (ii) disasters such as fire, flood, lightning or improper electric current; or (iii) service or
alteration by anyone other than an authorized GREEN SERIES™ representative; (iv) damages incurred
through irresponsible use, including those resulting from equipment placed into humid environments,
unfinished structures, structures under construction or remodel or placed in an outdoors setting, or
other non-recommended practices
3 GREEN SERIES™ shall not be held liable or responsible for any damages to the units caused during the
install of any product
4 GREEN SERIES™ shall not be held liable or responsible for any structural or cosmetic damages to
facilities caused by the placement or operation of any equipment sold and installed by a GREEN
SERIES™ authorized service technician or installer
5 Changes in the cosmetic appearance of components and parts within the unit that do not affect its
performance will not be covered by any part of this warranty
6 Damage due to normal wear and tear as defined by items subject to normal use and/or exposure,
consumables, and cosmetic items, including, but not limited to the following: grips, seats, paint
scratches, and labels
7 Travel costs associated with service more than 100 miles or two hours outside the service area of
GREEN SERIES™ service technicians shall be the responsibility of the customer
8 Any and all shipping damages, visible or hidden, shall be the responsibility of the shipper Note:
Damage caused by common carrier is, by federal law, the carrier’s responsibility and must be claimed
with the carrier at the time of delivery The recipient who signed for the equipment is responsible for
the filling of the damage claim and notification to GREEN SERIES™

www.GreenSeriesFitness.com ©June 2015 Call Toll free at 800-269-7130
VOR-IC6000-G Revision 1.1
14
9 The end user of the equipment shall ensure that the facility has proper height, width and length
clearances, including ADA requirements, for the product(s) being placed into operation GREEN
SERIES™ will not be held liable or responsible for the fitment of equipment sold to the customer
10 Customer must retain bill of sale or other proof of purchase and register equipment within thirty (30)
days of installation to receive warranty service Registration of the equipment ensures GREEN
SERIES™ the ability to provide prompt and complete service
11 No warranty extension will be granted for any replacement part(s) furnished to the purchaser in
fulfillment of this warranty
12 GREEN SERIES™ and its Authorized Service Center, dealers or authorized technicians accept no
responsibility for any parts of any products returned for repair to GREEN SERIES™
13 GREEN SERIES™ makes no warranty either expressed or implied regarding third-party (n n-GREEN
SERIES™) installed parts, accessories or modifications
14 All GREEN SERIES™ equipment shall be properly cleaned and cared for in accordance to the procedures
outlined the in the owner’s manual
Return f N n-Defective Pr ducts
A non-defective product may be returned to GREEN SERIES™ within thirty (30) days of the invoice or
installation date for a refund of the original purchase price, not including shipping fees, under the following
conditions/fees:
1 GREEN SERIES™ will refund the cost of equipment only Customer is responsible for shipping
and handling fees incurred to and from the product(s) return
2 No refund will be granted for equipment which has been opened, used, or tampered with in any
way which jeopardizes GREEN SERIES™ ability to remarket or resell the product GREEN
SERIES™ maintains full discretion in decisions regarding product returns
3 Any non-defective returns are subject to a twenty-five percent (25%) restocking fee This fee
will be deducted from the equipment purchase price refund less any shipping or handling
charges
To return a defective product, please contact the selling dealer or Green Series Customer Service Department
for a Return Merchandise Authorization (RMA) number and follow the Return of Products Instructions below
The RMA is valid for thirty (30) days from date of issuance Returns will n t be accepted with ut an RMA
Manufacturer restrictions do apply Any item missing the UPC on the original packaging may not be returned
Pr cedures f r Obtaining Warranty Service
RMA (Return Merchandise Authorization) Policy:
The customer must obtain an RMA number and provide proof of purchase RMA and services are rendered
by GREEN SERIES™ only Any shipping costs after the for-mentioned warranty lengths (starting from the
original date of install) on any item returned for repair or replacement is the customers’ responsibility All
returned parts and equipment must have an RMA number written clearly on the outside of the package along
with a letter detailing the problems and a copy of the original proof of purchase No COD packages will be

www.GreenSeriesFitness.com ©June 2015 Call Toll free at 800-269-7130
VOR-IC6000-G Revision 1.1
15
accepted No package will be accepted without a RMA number written on the outside of the package RMA
numbers are only valid for thirty (30) days from the date of issue
Should you have any problems with your equipment, please follow these procedures to obtain the service:
1 If the equipment must be repaired, contact our Customer Care Department and a Service Order
Number will be issued by Customer Care for dispatch of an authorized technician
2 Upon receiving the technician service report, GREEN SERIES™ will repair or replace your defective parts
and will ship replacement parts to the location specified (dependent on parts availability) via UPS
3 GREEN SERIES™ will pay for shipping to and from the customer only within the time allocated under the
warranty time-line following the original product installation date Following this period all shipping
fees for post warranty repairs are the sole responsibility of the customer The customer also assumes
full liability for losses or damages resulting from shipping as well as all responsibility to pursue
remuneration for such issues with their selected carrier
After Warranty – P st Warranty Repair
For post warranty repair, the procedure is the same as outlined above for service and shipping However,
customer is responsible for shipping charges both ways, labor, trip charges and the current price of part(s)
needed to repair the product(s)
WARRANTY EXCLUSIONS
GREEN SERIES™ does not offer technical support for any product or parts installed by other manufacturers
Technical support should be pursued through channels offered by the equipment’s individual technician
support GREEN SERIES™ accepts no liability for problems caused by after-market hardware modifications or
additions GREEN SERIES™ is not responsible for giving any technical support concerning the installation or
integration of any component the customer did not pay GREEN SERIES™ to install GREEN SERIES™ is not
responsible for loss of time, even with hardware failure GREEN SERIES™ is not responsible for any loss of
work (“down time”) caused by a product requiring service This warranty is null and void if the defect or
malfunction was due to damage resulting from operation not within manufacturer specifications It will also be
null and void if there are indications of misuse and/or abuse GREEN SERIES™ has the option of voiding the
warranty if anyone other than a GREEN SERIES™ authorized technician attempts to service the product
GREEN SERIES™ will not warrant any problems arising from an act of God (lighting, flooding, tornado, etc ),
electrical spikes or surges, or problems arising out of hardware or additional devices added to complement any
system/component bought at GREEN SERIES™. Under no circumstances will GREEN SERIES™ be responsible
for any refund or remuneration exceeding the original purchase price of the product less any shipping fees
GREEN SERIES™ will not be held responsible for typographical errors on sales receipts, repair tickets, or on our
websites GREEN SERIES™ makes every effort to ensure all information on our websites, owner’s manuals,
marketing and other published materials is accurate
By using this pr duct, I indicate that I understand and agree t the terms f this warranty.
