Greenlee CM-1500 User manual

999 4756.0 © 2003 Greenlee Textron 6/03
CM-1500 • CM-1550
Digital Clamp-on
Meters
Medidores digitales
con pinza
Multimètres
numériques à pinces
INSTRUCTION MANUAL
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
MANUEL D’INSTRUCTIONS
Read and understand all of the instructions and safety
information in this manual before operating or servicing this tool.
Lea y entienda todas las instrucciones y la información sobre
seguridad que aparecen en este manual, antes de manejar estas
herramientas o darles mantenimiento.
Lire attentivement et bien comprendre toutes les instructions et
les informations sur la sécurité de ce manuel avant d‘utiliser ou de
procéder à l‘entretien de cet outil.

2
Description
The Greenlee CM-1500 and CM-1550 Digital Clamp-on Meters are hand-held testing devices with
the following measurement capabilities: AC and DC voltage, AC and DC current, frequency, and
resistance. They also verify continuity. The CM-1550 is a true RMS reading meter.
Specialized functions and capabilities include:
• Auto ranging
• Backlit display
• Auto power off
• Data hold
• MIN MAX hold
• Peak hold
• 42-segment bar graph
Safety
Safety is essential in the use and maintenance of Greenlee tools and equipment. This instruction
manual and any markings on the tool provide information for avoiding hazards and unsafe
practices related to the use of this tool. Observe all of the safety information provided.
Purpose of This Manual
This instruction manual is intended to familiarize all personnel with the safe operation and
maintenance procedures for Greenlee CM-1500 and CM-1550 Digital Clamp-on Meters.
Keep this manual available to all personnel.
Replacement manuals are available upon request at no charge.
KEEP THIS MANUAL
All specifications are nominal and may change as design improvements occur.
Greenlee Textron shall not be liable for damages resulting from misapplication or misuse of its products.
® Registered: The color green for electrical test instruments is a registered trademark of Greenlee Textron.

CM-1500 • CM-1550
3
Important Safety Information
Read and understand this material before operating or servicing
this equipment. Failure to understand how to safely operate this
tool can result in an accident causing serious injury or death.
This symbol is used to call your attention to hazards or unsafe practices which could
result in an injury or property damage. The signal word, defined below, indicates the
severity of the hazard. The message after the signal word provides information for
preventing or avoiding the hazard.
SAFETY ALERT SYMBOL
Immediate hazards which, if not avoided, WILL result in severe injury or death.
Hazards which, if not avoided, COULD result in severe injury or death.
Hazards or unsafe practices which, if not avoided, MAY result in injury or property
damage.

4
Important Safety Information
Electric shock and fire hazard:
• Do not expose this unit to rain or moisture.
• Do not use the unit if it is wet or damaged.
• Use test leads or accessories that are appropriate for the application. Refer to the
category and voltage rating of the test lead or accessory.
• Inspect the test leads or accessory before use. They must be clean and dry, and the
insulation must be in good condition.
• Use this unit for the manufacturer’s intended purpose only, as described in this
manual. Any other use can impair the protection provided by the unit.
Failure to observe these warnings can result in severe injury or death.
Electric shock hazard:
• Do not apply more than the rated voltage between any two input terminals, or between
any input terminal and earth ground.
• Do not contact the test lead tips or any uninsulated portion of the accessory.
Failure to observe these warnings can result in severe injury or death.
Electric shock hazard:
Contact with live circuits can result in severe injury or death.

CM-1500 • CM-1550
5
Important Safety Information
• Do not operate with the case or battery cover open.
• Before removing the case or battery cover, remove the test leads (or jaw) from the
circuit and shut off the unit.
Failure to observe these warnings can result in severe injury or death.
• Do not attempt to repair this unit. It contains no user-serviceable parts.
• Do not expose the unit to extremes in temperature or high humidity.
Refer to “Specifications.”
Failure to observe these precautions can result in injury and can damage the unit.
Do not change the measurement function while the test leads are connected to a
component or circuit.
Failure to observe this precaution can result in injury and can damage the unit.
• Unless measuring voltage, current, or frequency, shut off and lock out power. Make
sure that all capacitors are discharged. Voltage must not be present.
• Using this unit near equipment that generates electromagnetic interference can
result in unstable or inaccurate readings.

6
Identification
1. Jaw
2. Lever
3. Backlight button
4. MIN MAX button
5. Common (COM) input terminal
6. Volts or resistance (V-Ω) input terminal
7. PEAK button
8. ZERO button
9. Display
10. HOLD button
11. Selector
Display Icons
12. Low battery indicator
13. REL Status of DC current ZERO function
14. MIN MIN Hold function is enabled
15. –Polarity indicator for numeric display
16. MAX MAX Hold function is enabled
17. Hold function is enabled
18. DC measurement is selected
19. AC measurement is selected
20. kHz Kilohertz
21. MHz Megahertz
22. Volts Voltage
23. Amps Amperes
24. Ohms
25. Continuity
26. TRMS True RMS (CM-1550 only)
27. PMAX MAX PEAK Hold function is enabled.
28. PMIN MIN PEAK Hold function is enabled.
29. –Polarity indicator for bar graph
30. Bar graph element
31. Overload indicator for bar graph
32. OL. Overload indicator for numeric display
Symbols on the Unit
Warning—Read the
instruction manual
Double insulation
Battery
1
2
3
4
5
10
11
9
8
7
6
12
13–14
15
16
17
26–28
18–25
3029
31
32

CM-1500 • CM-1550
7
Using the Features
•
Press to backlight the display. Press again to turn off. The backlight automatically shuts off
after approximately 1 minute.
•HOLD Button
Press momentarily to hold the present value on the display. Press again to return to normal
mode.
•Auto Power Off
The unit automatically shuts off after approximately 30 minutes of inactivity.
To disable this feature, press PEAK, MIN MAX, or while turning the meter on.
•MIN MAX Button
Press momentarily to begin recording the minimum and maximum values of input. Press
momentarily to cycle through the display modes as shown in the table below. The meter uses
its highest voltage or current range for this feature.
Press and hold to exit this mode.
•PEAK Button
Press momentarily to begin recording the minimum and maximum peak values of AC inputs.
Press momentarily to cycle through the display modes as shown in the table below. The meter
uses its highest voltage or current range for this feature.
Icon Display
MAX Maximum recorded value
MIN Minimum recorded value
MAX (flashing) Present measured value
MIN
Icon Display
PMAX Maximum recorded peak value
PMIN Minimum recorded peak value
Press and hold to exit this mode. “CAL”appears briefly on the display as internal circuitry is
reset.
•ZERO Button
Press momentarily to compensate for the residual magnetism in the jaw. “REL”appears on
the display. Press momentarily again to display the uncompensated measurement. The stored
offset value is retained. “REL”will flash. Press and hold to clear the stored offset value and
return to uncompensated measurement.
Repeat the procedure after changing DC current ranges.

8
Waveform
RMS Value 100 100 100 100
Average Value 90 100 87 64
Crest Factor* 1.414 1 1.73 2
(ξ)
AC Measurement
AC measurements are usually displayed as RMS (root mean square) values. The RMS value is
equal to the value of a DC waveform, which would deliver the same power if it replaced the time-
varying waveform. Two AC measurement methods are average-responding RMS calibrated and
true RMS-reading.
The average-responding RMS calibrated method takes the average value of the input signal after
full wave rectification, multiplies it by 1.11, and displays the result. This method is accurate if the
input signal is a pure sine wave. The Greenlee CM-1500 is an average-responding meter.
The true RMS-reading method uses internal circuitry to read the true RMS value. This method is
accurate, within the specified crest factor limitations, whether the input signal is a pure sine
wave, square wave, triangle wave, half wave, or signal with harmonics. The ability to read true
RMS provides much more measurement versatility. The Greenlee CM-1550 is a true RMS meter.
The Waveforms and Crest Factors table shows some typical AC signals and their RMS values.
Waveforms and Crest Factors
*The crest factor is the ratio of the peak value to the RMS value; it is represented by the Greek
letter ξ.

CM-1500 • CM-1550
9
1. Set the selector according to the Settings Table. For DC current, start with the 1000 A range.
2. Refer to “Typical Measurements”for specific measurement instructions.
3. Test the unit on a known functioning circuit or component.
•If the unit does not function as expected on a known functioning circuit, replace the
battery (or batteries).
•If the unit still does not function as expected, send the unit to Greenlee for repair. Refer to
the instructions under the Warranty.
4. Take the reading from the circuit or component to be tested.
5. If it is a DC current reading, remove the clamp from the circuit and press the ZERO button.
Clamp the jaw around the circuit again to measure the actual DC current.
If the resolution is not satisfactory on the 1000 A range, remove the meter from the
conductor and switch to the 400 A range. Repeat steps 4 and 5.
Settings Table
Electric shock hazard:
Contact with live circuits can result in severe injury or death.
Operation
To measure set the selector connect the and connect the
this value …to this symbol …red lead to …black lead to …
Continuity* V-ΩCOM
Resistance V-ΩCOM
DC Voltage V-ΩCOM
AC Voltage V-ΩCOM
DC Current (1000 A max.) Remove lead Remove lead
DC Current (400 A max.) Remove lead Remove lead
AC Current (1000 A max.) Remove lead Remove lead
Frequency Hz Remove lead Remove lead
*Tone sounds if the measured resistance is less than approximately 30 Ω.

10

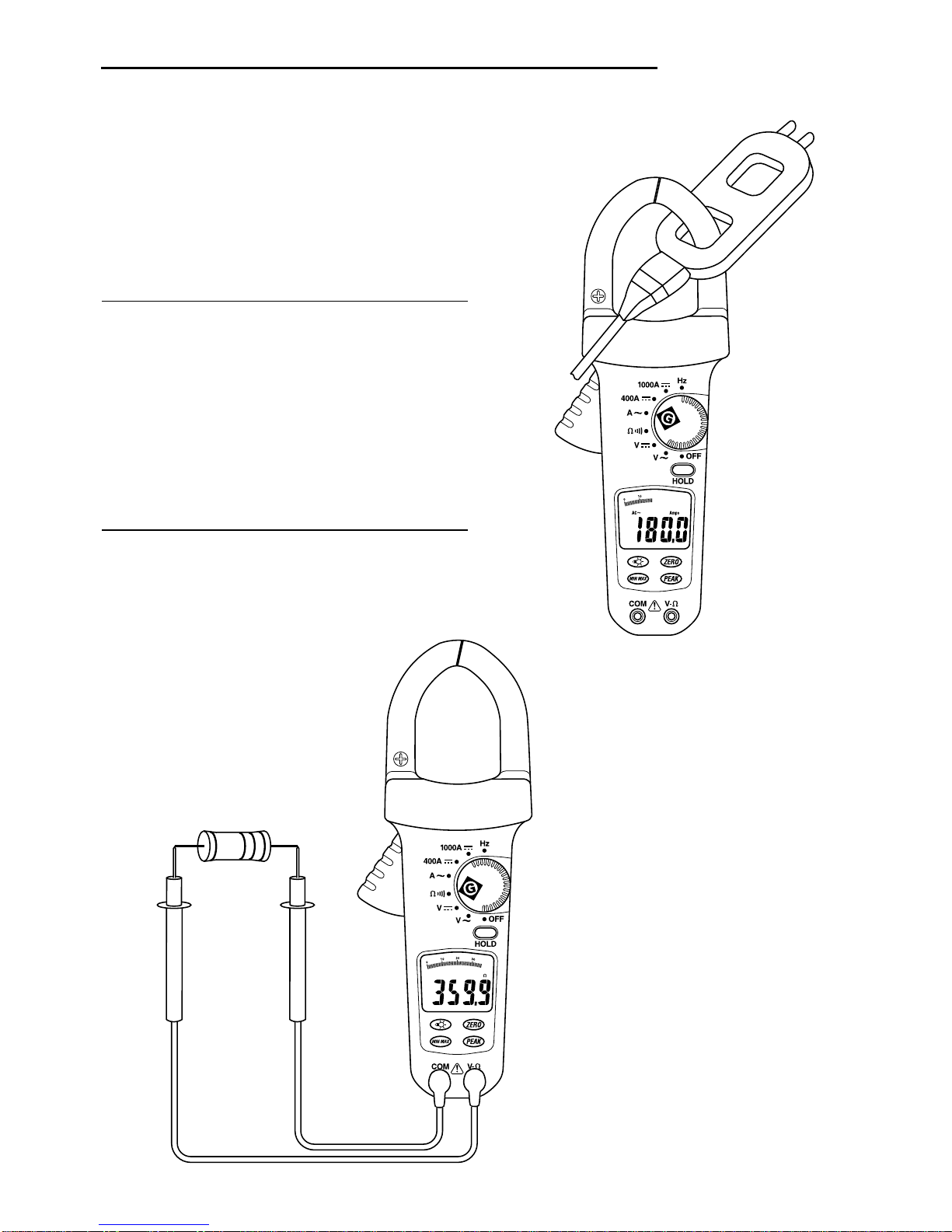

Typical Measurements
Current Measurement—
Clamp Around Wire
Notes:
•Clamp the jaw around one conductor
only.
•Close the jaw completely to ensure
accurate measurement.
•Center the wire in the jaw for highest
accuracy.
Voltage Measurement
Note: For DC measurements, current
flowing through the jaw in the direction
indicated by the arrow produces a positive
reading. Position the jaw for a positive
reading for highest accuracy.

CM-1500 • CM-1550
11
Typical Measurements
Current Measurement—
Clamp Around Line Splitter
Notes:
•The Greenlee 93-30 Line Splitter is divided.
One section renders amps; the other renders
amps multiplied by 10.
•Close the jaw completely to ensure accurate
measurement.
•Center the line splitter in the jaw for highest
accuracy.
Resistance Measurement

12
Typical Measurements
Continuity Check

CM-1500 • CM-1550
13
Accuracy
Refer to “Specifications”for operating conditions and temperature coefficient.
Accuracy is specified as follows: ±(a percentage of the reading + a fixed amount) at
18 °C to 28 °C (64 °F to 82 °F), 0% to 80% relative humidity
AC Current
Range Input Value Accuracy (50 to 60 Hz) Accuracy (61 to 400 Hz)
400.0 A 0.0 to 60.0 A ±(1.5% + 0.5 A)* ±(1.9% + 0.5 A)**
60.0 to 400.0 A ±(1.5% + 0.5 A) ±(1.9% + 0.5 A)
1000 A 400 to 1000 A ±(1.9% + 7 A) ±(2.5% + 7 A)
CM-1500 is average sensing, RMS calibrated.
CM-1550 is true RMS sensing. Accuracy is specified for sine waves at full scale and non-sine
waves below half scale. For non-sine waves, add the following crest factor corrections:
•Crest factor 1.4 to 2.0, add 1.0%
•Crest factor 2.0 to 2.5, add 2.5%
•Crest factor 2.5 to 3.0, add 4.0%
Maximum crest factor is 2 at 600 A or 600 V, and 1.5 at 1000 A or 750 V.
AC Voltage
Range Accuracy Frequency Response Input Impedance
400.0 V ±(1.0% + 0.5 V)* 50 to 500 Hz 1 MΩ|| < 100 pF
750 V ±(1.0% + 5 V)
*±(1.5% + 0.7 A) for CM-1550.
**±(1.9% + 0.7 A) for CM-1550.
±1.0% position error
*Below 60.0 V, accuracy is ±(1.0% + 0.7 V) for CM-1550.

14
Accuracy (cont’d)
Resistance
Range Accuracy Input Impedance
400.0 V ±(0.7% + 0.2 V) 1 MΩ
1000 V ±(0.7% + 2 V)
DC Voltage
Peak Hold
Accuracy of held value is ±(3% + 20 digits).
Accuracy is unspecified above 750 V peak and above 800 A peak.
Min Max
Add ±15 digits to AC/DC current specification.
The meter switches to the 1000 V or 1000 A range when Peak Hold or MIN MAX is activated.
Range Accuracy
400.0 Ω±(1.0% + 0.3 Ω)
Range Accuracy Minimum Input
0.020 to 0.400 kHz ±(0.1% + 0.002 kHz) 3 A RMS
Frequency (Current Mode)
1000 V overload protection
Range Accuracy
400.0 A ±(1.0% + 0.3 A)
1000 A ±(1.9% + 7 A)
DC Current
Position error: 1%
Remanence Error: 1% of current crest

CM-1500 • CM-1550
15
Specifications
Display: 3-3/4–digit LCD (4000 maximum count) and 42-segment bar graph
Sampling Rate:
Numeric Display: 1.5 per second
Bar Graph Display: 13 per second
Jaw Opening: 51 mm (2.0")
Measurement Category:
Category III, 750 VAC and 1000 VDC per UL 3111-1
Category IV, 600 V per IEC 61010
Temperature Coefficient: 0.2 x (Accuracy) per °C above 28 °C or below 18 °C
Operating Conditions:
Temperature:
0 °C to 30 °C (32 °F to 86 °F), 0% to 80% relative humidity, noncondensing
30 °C to 40 °C (86 °F to 104 °F), 0% to 75% relative humidity, noncondensing
40 °C to 50 °C (104 °F to 122 °F), 0% to 45% relative humidity, noncondensing
Altitude: 2000 m (6500') maximum
Indoor use only.
Storage Conditions: –20 °C to 60 °C (–4 °F to 131 °F),
0% to 80% relative humidity, noncondensing
Remove battery.
Pollution Degree: 2
Battery: One 9 V battery (NEDA 1604, JIS 006P, or IEC 6F22)
Battery Life: Approximately 100 hours with alkaline battery

16
Measurement Categories
These definitions were derived from the international safety standard for insulation coordination
as it applies to measurement, control, and laboratory equipment. These measurement categories
are explained in more detail by the International Electrotechnical Commission; refer to either of
their publications: IEC 61010-1 or IEC 60664.
Measurement Category I
Signal level. Electronic and telecommunication equipment, or parts thereof. Some examples
include transient-protected electronic circuits inside photocopiers and modems.
Measurement Category II
Local level. Appliances, portable equipment, and the circuits they are plugged into. Some
examples include light fixtures, televisions, and long branch circuits.
Measurement Category III
Distribution level. Permanently installed machines and the circuits they are hard-wired to. Some
examples include conveyor systems and the main circuit breaker panels of a building’s electrical
system.
Measurement Category IV
Primary supply level. Overhead lines and other cable systems. Some examples include cables,
meters, transformers, and other exterior equipment owned by the power utility.

CM-1500 • CM-1550
17
Maintenance
1. Disconnect the unit from the circuit.
2. Remove the screw from the battery cover.
3. Remove the battery cover.
4. Replace the battery. Observe polarity.
5. Replace the cover and the screw.
Cleaning
Periodically wipe the case with a damp cloth and mild detergent; do not use abrasives or
solvents.
•Do not attempt to repair this unit. It contains no user-serviceable parts.
•Do not expose the unit to extremes in temperature or high humidity.
Refer to “Specifications.”
Failure to observe these precautions can result in injury and can damage the unit.
Battery Replacement
Before removing the battery cover, remove the test leads (or jaw) from the circuit and
shut off the unit.
Failure to observe this warning can result in severe injury or death.

18

CM-1500 • CM-1550
19
Descripción
Los Medidores digitales con pinza modelos CM-1500 y CM-1550 de Greenlee son instrumentos
de verificación capaces de efectuar los siguientes tipos de mediciones: tensión alterna y
continua, corriente alterna y continua, frecuencia y resistencia. También sirven para verificar
continuidad. El modelo CM-1550 es un multímetro de lectura de valores eficaces reales.
Entre sus funciones y capacidades se incluyen:
• Selección automática de escala
• Pantalla con luz de fondo
• Apagado automático
• Retención de datos en pantalla
• Retención MIN MAX
• Retención de lectura de valor máximo
• Gráfico de barras de 42 segmentos
Acerca de la seguridad
Es fundamental observar métodos seguros al utilizar y dar mantenimiento a las herramientas y
equipo Greenlee. Este manual de instrucciones y todas las marcas que ostenta la herramienta le
ofrecen la información necesaria para evitar riesgos y hábitos poco seguros relacionados con su
uso. Siga toda la información sobre seguridad que se proporciona.
Propósito de este manual
Este manual de instrucciones tiene como propósito familiarizar a todo el personal con los
procedimientos de operación y mantenimiento seguros para los Medidores digitales con pinza
modelos CM-1500 y CM-1550 de Greenlee.
Manténgalo siempre al alcance de todo el personal.
Puede obtener copias adicionales de manera gratuita, previa solicitud.
CONSERVE ESTE MANUAL
Todas las especificaciones son nominales y pueden cambiar conforme tengan lugar mejoras de diseño.
Greenlee Textron no se hace responsable de los daños que puedan surgir de la mala aplicación o mal uso de
sus productos.
® Registrado: El color verde para instrumentos de verificación eléctricos es una marca registrada de
Greenlee Textron.

20
Importante Información sobre Seguridad
Lea y entienda este documento antes de manejar esta
herramienta o darle mantenimiento. Utilizarla sin comprender
cómo manejarla de manera segura podría ocasionar un accidente
y, como resultado de éste, graves lesiones o incluso la muerte.
Este símbolo se utiliza para indicar un riesgo o práctica poco segura que podría
ocasionar lesiones o daños materiales. Cada uno de los siguientes términos denota la
gravedad del riesgo. El mensaje que sigue a dichos términos le indica cómo puede evitar
o prevenir ese riesgo.
SÍMBOLO DE ALERTA
SOBRE SEGURIDAD
Peligros inmediatos que, de no evitarse, OCASIONARÁN graves lesiones o incluso la
muerte.
Peligros que, de no evitarse, PODRÍAN OCASIONAR graves lesiones o incluso la muerte.
Peligro o prácticas peligrosas que, de no evitarse, PUEDEN OCASIONAR lesiones o
daños materiales.
