Greenlee PDMM-10 User manual

999 3797.2 © 2000 Greenlee Textron IM 1472 10/00
PDMM-10
DIGITAL
MULTIMETER
MULTÍMETRO
DIGITAL
MULTIMETRE
NUMERIQUE
INSTRUCTION MANUAL
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
MANUEL D’INSTRUCTIONS
Read and understand all of the instructions
and safety information in this manual
before operating or servicing this tool.
Lea y entienda todas las instrucciones y la
información sobre seguridad que aparecen
en este manual, antes de manejar esta
herramienta o darle mantenimiento.
Lire attentivement et bien comprendre
toutes les instructions et les informations
sur la sécurité de ce manuel avant d‘utiliser
ou de procéder à l‘entretien de cet outil.

2
Description
The Greenlee PDMM-10 Digital Multimeter is a hand-held testing
device with the following measurement capabilities: AC and DC
voltage, DC current, and resistance. It also checks diodes and
verifies continuity.
Specialized functions and capabilities include:
• Digital display (LCD)
• Manual range selection
• Voltage measurements up to 300 V AC/DC
• Current measurements up to 200 mA DC
• Resistance measurements up to 2 MΩ
• Diode/continuity test
• Attached test leads
Safety
Safety is essential in the use and maintenance of Greenlee tools
and equipment. This instruction manual and any markings on the
tool provide information for avoiding hazards and unsafe practices
related to the use of this tool. Observe all of the safety information
provided.
Purpose
This instruction manual is intended to familiarize all personnel with
the safe operation and maintenance procedures for the Greenlee
PDMM-10 Digital Multimeter.
Keep this manual available to all personnel.
Replacement manuals are available upon request at no charge.
Greenlee and are registered trademarks of Greenlee Textron.
KEEP THIS MANUAL

PDMM-10
3
Important Safety Information
This symbol is used to call your attention to hazards or unsafe
practices which could result in an injury or property damage.
The signal word, defined below, indicates the severity of the
hazard. The message after the signal word provides informa-
tion for preventing or avoiding the hazard.
SAFETY ALERT SYMBOL
Immediate hazards which, if not avoided, WILL result in
severe injury or death.
Hazards which, if not avoided, COULD result in severe injury
or death.
Hazards or unsafe practices which, if not avoided, MAY result
in injury or property damage.
Read and understand this material
before operating or servicing
this equipment. Failure to understand
how to safely operate this tool can result
in an accident causing serious injury or
death.

4
Important Safety Information
Electric shock hazard:
Contact with live circuits can result in
severe injury or death.
Electric shock and fire hazard:
• Do not expose this unit to rain or moisture.
• Do not use the unit if it is wet or damaged.
• Inspect the test leads before use. They must be clean and
dry, and the insulation must be in good condition.
• Use this unit for the manufacturer’s intended purpose only,
as described in this manual. Any other use can impair the
protection provided by the unit.
Failure to observe these warnings can result in severe injury or
death.
Electric shock hazard:
• Do not apply more than the rated voltage between any two
input terminals, or between any input terminal and earth
ground.
• Do not contact the test lead tips or any uninsulated portion
of the accessory.
Failure to observe these warnings can result in severe injury or
death.

PDMM-10
5
Important Safety Information
Do not change the measurement function or range while the
test leads are connected to a component or circuit.
Failure to observe this precaution can result in injury and can
damage the unit.
The fuse is an integral part of the overvoltage protection.
When fuse replacement is necessary, see Specifications for the
correct type, size, and capacity. Using any other type of fuse
will void the overvoltage protection rating of the unit.
Failure to observe this warning can result in severe injury or
death.
• Do not operate with the case open.
• Before opening the case, remove the test leads from the
circuit and shut off the unit.
Failure to observe these warnings can result in severe injury or
death.

6
Important Safety Information
• Unless measuring voltage or current, shut off and lock out
power. Make sure that all capacitors are discharged. Voltage
must not be present.
• Set the selector and connect the test leads so that they
correspond to the intended measurement. Incorrect settings
or connections can result in a blown fuse.
• Using this unit near equipment that generates electromag-
netic interference can result in unstable or inaccurate
readings.
• Do not attempt to repair this unit. It contains no user-
serviceable parts.
• Do not expose the unit to extremes in temperature or high
humidity. See Specifications.
Failure to observe these precautions can result in injury and
can damage the unit.

PDMM-10
7
Identification
1. Digital display (LCD)
2. Function selector
3. Power and measurement range selector
4. Test leads with probes
1
2
3
4
Using the Features
Power and measurement range selector: Slide the selector up to
turn unit on. Line the selector up with desired settings. Always
start with highest setting. Slide the selector down to turn unit off.
Function selector: Slide the selector side to side to set the proper
position prior to connecting the test probes. Disconnect the
probes from the circuit or component before switching to a new
function.
Test leads: Red probe polarity is positive. Remove test lead caps
to perform tests.

8
Operation
Electric shock hazard:
Contact with live circuits can result in
severe injury or death.
1. See the Settings Table. Set the measurement range selector to
the proper setting, starting with the highest measurement
setting. Never apply more than 300 V to the unit.
2. See Typical Measurements for specific measurement
instructions.
3. Test the unit on a known functioning circuit or component.
• If the unit does not function as expected on a known
functioning circuit, replace the battery and/or fuse.
• If the unit still does not function as expected, send the unit
to Greenlee for repair. See the address shown under
Warranty.
4. Take the reading from the circuit or component to be tested. If
the resolution is not satisfactory, remove the meter from the
circuit and change to the next lower range.
Settings Table
To measure set the function
this … selector to this Notes
symbol …
AC Voltage
(300 V max)
DC Voltage
(300 V max)
DC Current Connect in series and turn on circuit
(250 V and or component.
200 mA max)
Resistance Make sure circuit or component is
turned off and no voltage is present.
• Make sure circuit or component is
turned off and no voltage is present.
Diode/ Polarity of red probe is +.
Continuity • Range selector must be in the
2k position.
• Tone indicates continuity.

PDMM-10
9
Typical Measurements
Voltage Measurement
Current Measurement

10

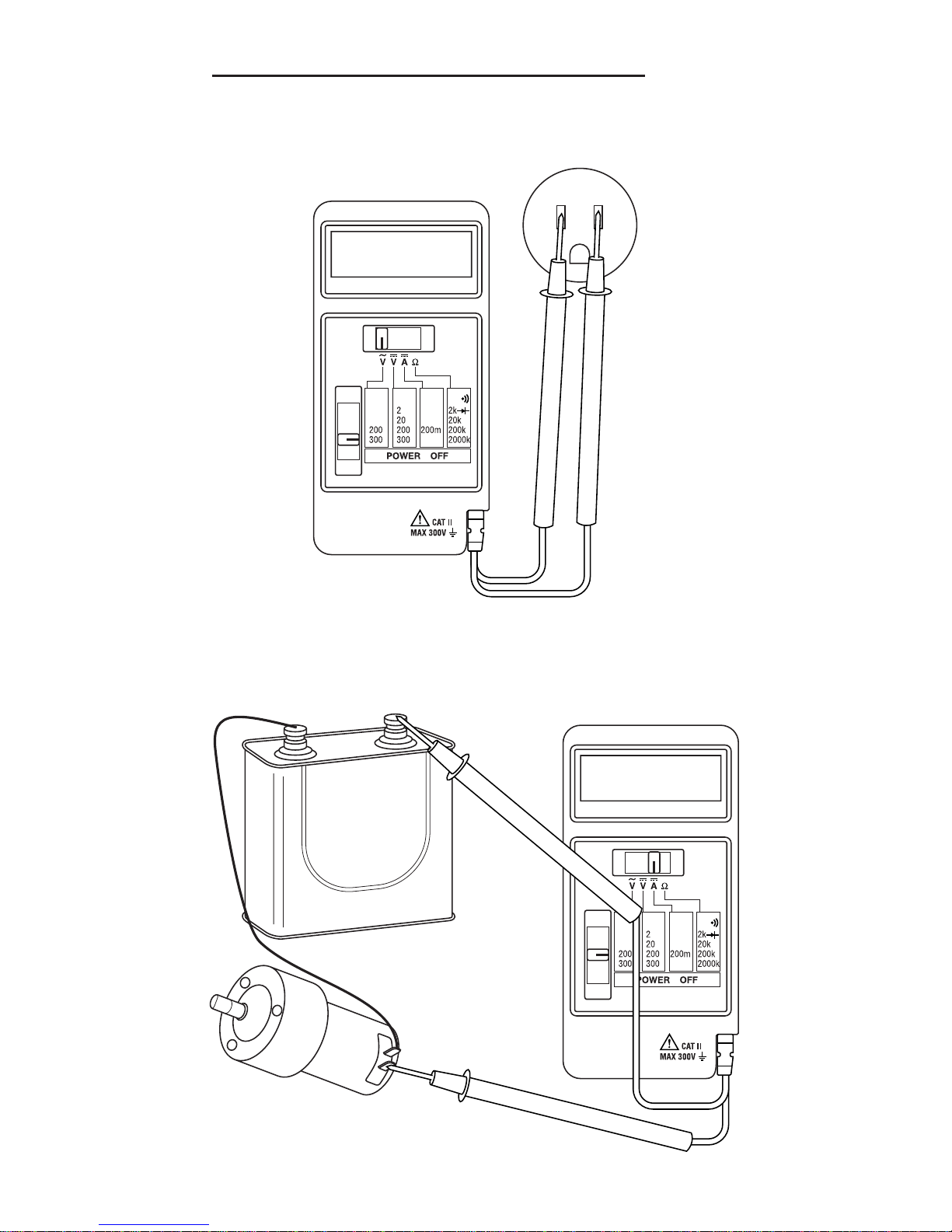

Resistance Measurement
Continuity Check
Typical Measurements

PDMM-10
11
Diode Measurement
Typical Measurements
Reverse Bias
Forward Bias
Red
Probe

12
Accuracy
Accuracy Table (specified at 23 °C ±5 °C (73 °F ±41 °F)
Input Impedance: 1 MΩ
Specifications
Display: 3-1/2–digit LCD (1999 maximum count)
Sampling Rate: Approximately 2 to 3 measurements per second
Range Overload Indication: “1” MSD displayed
Overvoltage Protection Category:
Category II, 300 VAC and 300 VDC
Operating Conditions: 0 °C to 40 °C (32 °F to 104 °F),
0 to 75% relative humidity
Storage Conditions: Remove battery
Pollution Degree: 2
Battery: 12 V battery (NEDA 1811A or IEC 3LR50)
Fuse: 200 mA/250 V F fuse, interrupting rating 1.5 kA, 5 x 20 mm
Function Range Accuracy
0 to 200 / 300 V ±1.5%
0 to 2 / 20 / 200 / 300 V ±0.8%
0 to 200 mA ±2.0%
0 to 2 k / 20 k / 200 k / 2000 k ±1.5%

PDMM-10
13
Overvoltage Installation Categories
These definitions were derived from the international safety
standard for insulation coordination as it applies to measurement,
control, and laboratory equipment. These overvoltage categories
are explained in more detail by the International Electrotechnical
Commission; refer to either of their publications: IEC 1010-1 or
IEC 60664.
Overvoltage Category I
Signal level. Electronic and telecommunication equipment, or parts
thereof. Some examples include transient-protected electronic
circuits inside photocopiers and modems.
Overvoltage Category II
Local level. Appliances, portable equipment, and the circuits they
are plugged into. Some examples include light fixtures, televisions,
and long branch circuits.
Overvoltage Category III
Distribution level. Permanently installed machines and the circuits
they are hard-wired to. Some examples include conveyor systems
and the main circuit breaker panels of a building’s electrical
system.
Overvoltage Category IV
Primary supply level. Overhead lines and other cable systems.
Some examples include cables, meters, transformers, and other
exterior equipment owned by the power utility.

14
Maintenance
Battery and Fuse Replacement
• Do not attempt to repair this unit. It contains no user-
serviceable parts.
• Do not expose the unit to extremes in temperature or high
humidity. See Specifications.
Failure to observe these precautions can result in injury and
can damage the unit.
The fuse is an integral part of the overvoltage protection.
When fuse replacement is necessary, see Specifications for the
correct type, size, and capacity. Using any other type of fuse
will void the overvoltage protection rating of the unit.
Failure to observe this warning can result in severe injury or
death.
Before opening the case, remove the test leads from the circuit
and shut off the unit.
Failure to observe this warning can result in severe injury or
death.

PDMM-10
15
Maintenance (cont’d)
Battery and Fuse Replacement (cont’d)
If the symbol appears in the display, replace the battery.
1. Disconnect the unit from the circuit and turn the unit off.
2. Remove the unit from the case, carefully pulling the top out
first.
3. With the unit lying face down on a flat surface, insert the tip
of a probe in the hole just above the battery cover.
4. While gently pressing down, move the top of the probe
towards the top of the unit, prying the cover open.
5. Remove the back cover.
6. Replace the battery (observe polarity) and/or fuse.
7. Replace the cover.
8. Insert the unit into the case, starting with the bottom.
Cleaning
Periodically wipe the case with a damp cloth and mild detergent;
do not use abrasives or solvents.

16
Greenlee Textron / Subsidiary of Textron Inc. 4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070

PDMM-10
17
Descripción
El Multímetro digital modelo PDMM-10 de Greenlee es un instru-
mento de verificación capaz de efectuar los siguientes tipos de
mediciones: tensión alterna y continua, corriente continua, y
resistencia. Esta unidad es de bolsillo y cabe perfectamente en
la palma de la mano. También sirve para verificar diodos y
continuidad.
Entre sus funciones y capacidades se incluyen:
• Pantalla digital (LCD)
• Selección manual de escala
• Mediciones de tensión de hasta 300V CA/CC
• Mediciones de corriente de hasta 200 mA CC
• Medición de resistencia de hasta 2 MΩ
• Verificación de diodo y continuidad
• Cables de prueba acoplados
Acerca de la seguridad
Es fundamental observar métodos seguros al utilizar y dar man-
tenimiento a las herramientas y equipo Greenlee. Este manual de
instrucciones y todas las marcas que ostenta la herramienta le
ofrecen la información necesaria para evitar riesgos y hábitos poco
seguros relacionados con su uso. Siga toda la información sobre
seguridad que se proporciona.
Propósito de este manual
Este manual de instrucciones tiene como propósito familiarizar a
todo el personal con los procedimientos de operación y man-
tenimiento seguros para el Multímetro digital modelo PDMM-10
de Greenlee.
Manténgalo siempre al alcance de todo el personal.
Puede obtener copias adicionales de manera gratuita, previa
solicitud.
Greenlee y son marcas registradas de Greenlee Textron.
CONSERVE ESTE MANUAL

18
Importante Información sobre Seguridad
Este símbolo se utiliza para indicar un riesgo o práctica poco
segura que podría ocasionar lesiones o daños materiales.
Cada uno de los siguientes términos denota la gravedad del
riesgo. El mensaje que sigue a dichos términos le indica cómo
puede evitar o prevenir ese riesgo.
SÍMBOLO DE ALERTA
SOBRE SEGURIDAD
Peligros inmediatos que, de no evitarse, OCASIONARÁN
graves lesiones o incluso la muerte.
Peligros que, de no evitarse, PODRÍAN OCASIONAR graves
lesiones o incluso la muerte.
Peligro o prácticas peligrosas que, de no evitarse, PUEDEN
OCASIONAR lesiones o daños materiales.
Lea y entienda este documento antes
de manejar esta herramienta o darle
mantenimiento. Utilizarla sin comprender
cómo manejarla de manera segura
podría ocasionar un accidente y, como
resultado de éste, graves lesiones o
incluso la muerte.

PDMM-10
19
Importante Información sobre Seguridad
Peligro de electrocución e incendio:
• No exponga esta unidad ni a la lluvia ni a la humedad.
• No utilice esta unidad si se encuentra mojada o dañada.
• Revise minuciosamente los cables de prueba antes de
utilizarlos. Deberán estar limpios y secos, y su forro aislante
deberá hallarse en buenas condiciones.
• Utilícela únicamente para el propósito para el que ha sido
diseñada por el fabricante, tal como se describe en este
manual. Cualquier otro uso puede menoscabar la protección
proporcionada por la unidad.
De no observarse estas advertencias pueden sufrirse graves
lesiones o incluso la muerte.
Peligro de electrocución:
El contacto con circuitos activados
puede ocasionar graves lesiones o
incluso la muerte.
Peligro de electrocución:
• No aplique más del voltaje nominal entre dos terminales de
entrada cualesquiera, o entre una terminal de entrada
cualquiera y una conexión a tierra.
• No toque las puntas de los cables de prueba ni ninguna
parte del accesorio que carezca de forro aislante.
De no observarse estas advertencias pueden sufrirse graves
lesiones o incluso la muerte.

20
Importante Información sobre Seguridad
• No haga funcionar esta unidad con la caja abierta.
• Antes de abrir la caja, retire del circuito los cables de
prueba y apague la unidad.
De no observarse estas advertencias pueden sufrirse graves
lesiones o incluso la muerte.
El fusible es una parte integral para la protección contra
sobretensión. Cuando sea necesario reemplazarlo, consulte
la sección “Especificaciones” para saber qué tipo, tamaño y
capacidad debe tener. Utilizar cualquier otro tipo de fusible
anulará la clasificación de protección de sobretensión de la
unidad.
De no observarse esta advertencia pueden sufrirse graves
lesiones o incluso la muerte.
No cambie la función de medición ni la escala mientras los
cables de prueba se encuentren conectados a un componente
o circuito.
De no observarse esta advertencia podrían sufrirse lesiones o
daños a la unidad.
