Greenlee DM-60 User manual

999 6760.0 © 2004 Greenlee Textron Inc. 12/04
DM-60
Digital
Multimeter
Multímetro
digital
Contrôleur
numérique
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
MANUEL D’INSTRUCTIONS
Read and understand all of the instructions
and safety information in this manual before
operating or servicing this tool.
Lea y entienda todas las instrucciones y la
información sobre seguridad que aparecen
en este manual, antes de manejar esta
herramienta o darle mantenimiento.
Lire attentivement et bien comprendre
toutes les instructions et les informations sur
la sécurité de ce manuel avant d‘utiliser ou de
procéder à l‘entretien de cet outil.

2
Description
The Greenlee DM-60 Digital Multimeter is a hand-held testing device
with the following measurement capabilities: AC and DC voltage, AC
and DC current, frequency, and resistance. It also checks diodes and
verifies continuity.
Safety
Safety is essential in the use and maintenance of Greenlee tools and
equipment. This instruction manual and any markings on the tool
provide information for avoiding hazards and unsafe practices related
to the use of this tool. Observe all of the safety information provided.
Purpose of This Manual
This instruction manual is intended to familiarize all personnel with the
safe operation and maintenance procedures for the Greenlee DM-60
Digital Multimeter.
Keep this manual available to all personnel. Replacement manuals are
available upon request at no charge.
All specifications are nominal and may change as design improvements
occur. Greenlee Textron Inc. shall not be liable for damages resulting from
misapplication or misuse of its products.
® Registered: The color green for electrical test instruments is a registered
trademark of Greenlee Textron Inc.
KEEP THIS MANUAL

DM-60
3
Important Safety Information
This symbol is used to call your attention to hazards or unsafe
practices which could result in an injury or property damage. The
signal word, defined below, indicates the severity of the hazard.
The message after the signal word provides information for
preventing or avoiding the hazard.
SAFETY ALERT SYMBOL
Immediate hazards which, if not avoided, WILL result in severe
injury or death.
Hazards which, if not avoided, COULD result in severe injury or
death.
Hazards or unsafe practices which, if not avoided, MAY result in
injury or property damage.
Read and understand this material before
operating or servicing this equipment. Failure
to understand how to safely operate this tool
could result in an accident causing serious
injury or death.

4
Important Safety Information
Electric shock hazard:
Contact with live circuits could result in severe
injury or death.
Electric shock and fire hazard:
•Do not expose this unit to rain or moisture.
•Do not use the unit if it is wet or damaged.
•Use test leads or accessories that are appropriate for the
application. Refer to category and voltage rating of the test lead
or accessory.
•Inspect the test leads or accessory before use. They must be
clean and dry, and the insulation must be in good condition.
•Use this unit for the manufacturer’s intended purpose only, as
described in this manual. Any other use can impair the
protection provided by the unit.
Failure to observe these warnings could result in severe injury or
death.
Electric shock hazard:
•Do not apply more than the rated voltage between any two input
terminals, or between any input terminal and earth ground.
• Do not contact the test lead tips or any uninsulated portion of the
accessory.
Failure to observe these warnings could result in severe injury or
death.

DM-60
5
Important Safety Information
Electric shock hazard:
•Do not operate with the case open.
• Before opening the case, remove the test leads from the circuit
and shut off the unit.
Failure to observe these warnings could result in severe injury or
death.
Electric shock hazard:
The fuses are an integral part of the overvoltage protection. When
fuse replacement is necessary, refer to “Specifications” for the
correct type, size and capacity. Using any other type of fuse will
void the overvoltage protection rating of the unit.
Failure to observe this warning could result in severe injury or
death.
Electric shock hazard:
•Unless measuring voltage, current or frequency, shut off and
lock out power. Make sure that all capacitors are discharged.
Voltage must not be present.
•Using this unit near equipment that generates electromagnetic
interference can result in unstable or inaccurate readings.
Failure to observe these warnings could result in severe injury or
death.

6
Important Safety Information
Set the selector and connect the test leads so that they correspond
to the intended measurement. Incorrect settings or connections
can result in a blown fuse.
Electric shock hazard:
•Do not attempt to repair this unit. It contains no user-serviceable
parts.
•Do not expose the unit to extremes in temperature or high
humidity. Refer to “Specifications.”
Failure to observe these precautions may result in injury and can
damage the unit.
Electric shock hazard:
Do not change the measurement function while the test leads are
connected to a component or circuit.
Failure to observe this precaution may result in injury and can
damage the unit.

DM-60
7
Identification
5
1
2
3
4
6 7 8
914
17
18
15,16
10
11
12
13
1. LCD display
2. HOLD button
3. MAX button
4. Selector
5. Positive input terminal for
high current measurements
6. Positive input terminal for
low current measurements
7. Negative, common (COM),
or ground input terminal for
all measurements
8. Positive input terminal for
all measurements except
current
Display Icons
9. MAX function is
enabled.
10. HOLD function is
enabled.
11. –Polarity indicator
12. Low battery indicator
13. O.L Overload indicator
14. 600 V AC or DC range
selected
Symbols on the Unit
Warning—Read the instruction manual
Risk of electric shock
Double insulation
Battery
Fuse
15. Diode
16. Continuity
17. kHz Kilohertz
(frequency, 103
cycles per second)
18. MHz Megahertz
(frequency, 106
cycles per second)

8
Using the Features
•HOLD Button Press momentarily to hold the present value on the
display. will appear on the display.
Press again to return to normal mode.
•MAX Button Press momentarily to hold the maximum value on the
display. will appear on the display. The highest value will remain
on the display, which will update when the meter measures a new
maximum.
Press again to return to normal mode.
Operation
Electric shock hazard:
Contact with live circuits could result in severe
injury or death.
1. Refer to the Settings Table. Set the selector to the proper setting
and connect the test leads to the meter. Start with the highest
measurement range.
2. Refer to “Typical Measurements” for specific measurement
instructions.
3. Test the unit on a known functioning circuit or component.
•If the unit does not function as expected on a known functioning
circuit, replace the battery and/or fuses.
• If the unit still does not function as expected, send the unit to
Greenlee for repair. Refer to the instructions under the Warranty.
4. Take the reading from the circuit or component to be tested. If the
resolution is not satisfactory, remove the meter from the circuit
and change to the next lower range.

DM-60
9
Operation (cont’d)
Set the Connect Connect
To measure selector to the red the black
this value: this symbol: lead to: lead to:
Continuity* VΩHz COM
Current (AC) 10A Max COM
10 A range
Current (AC) µA mA COM
other ranges
Current (DC) 10A Max COM
10 A range
Current (DC) µA mA COM
other ranges
Diode VΩHz COM
Frequency 10MHz VΩHz COM
Resistance ΩVΩHz COM
Voltage (AC) VΩHz COM
Voltage (DC) VΩHz COM
*Tone and symbol on display indicate continuity. Threshold is
approximately 25 Ω.
Settings Table

10

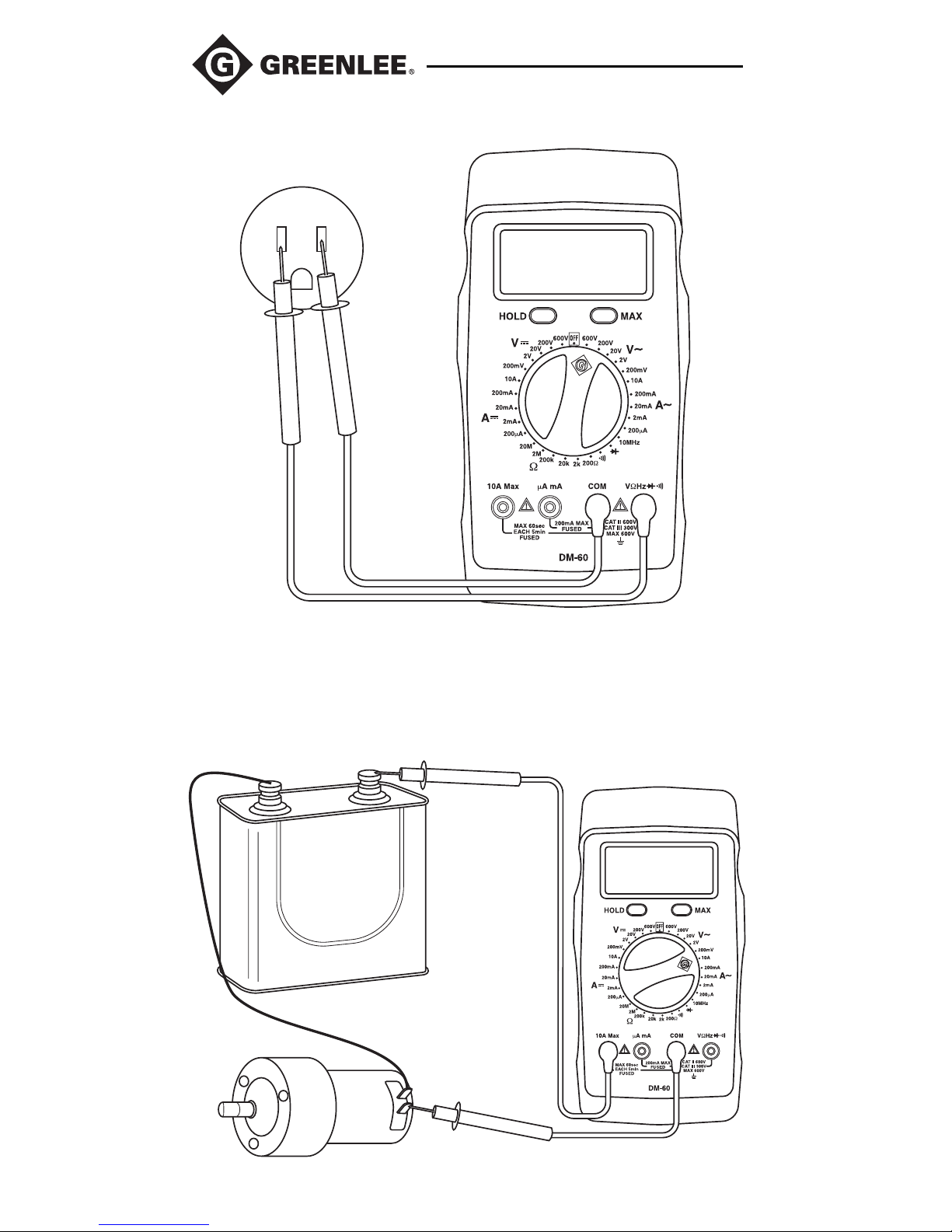

Current Measurement
Voltage Measurement
Typical Measurements

DM-60
11
Typical Measurements

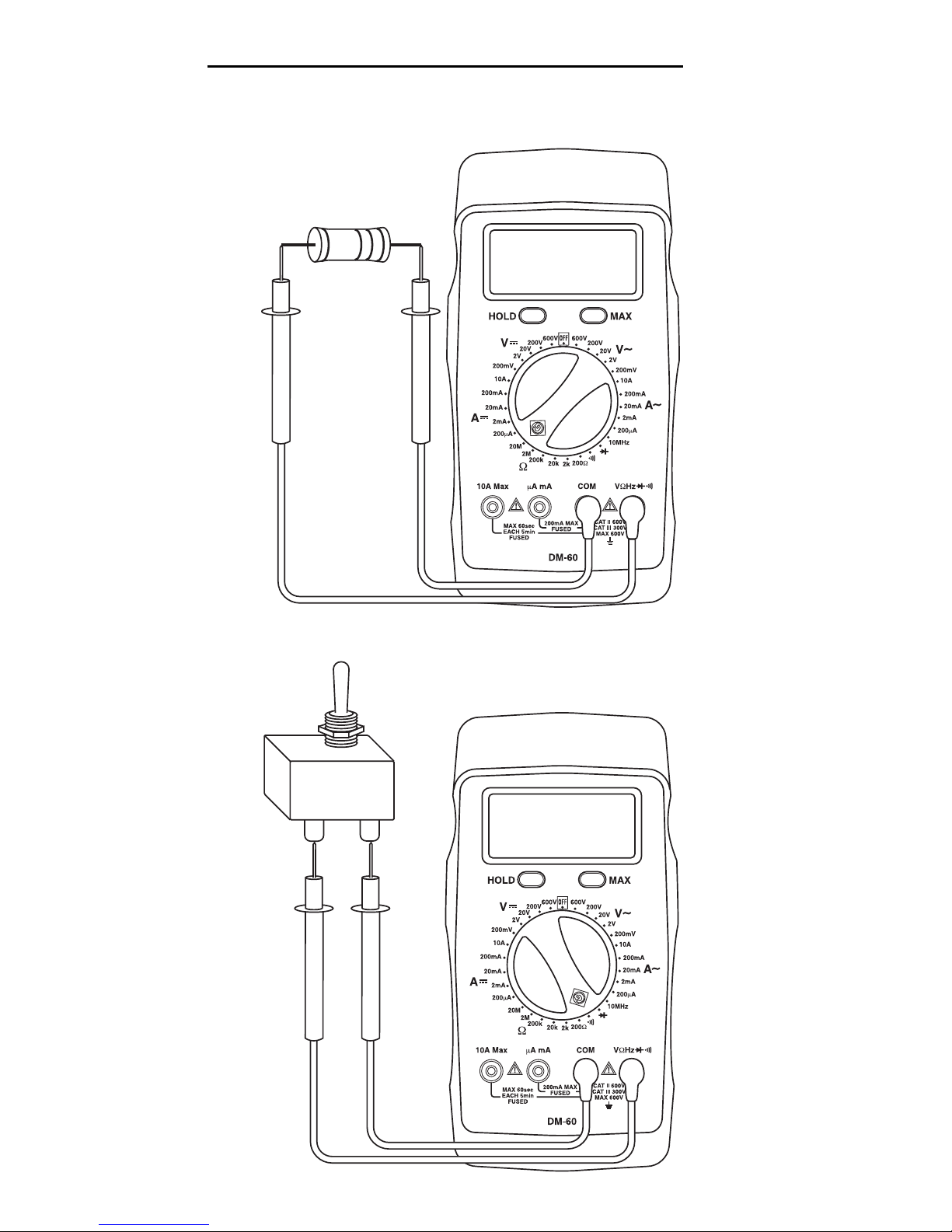

Resistance
Measurement
Continuity
Check

12
Diode Measurement
Typical Measurements
Forward Bias
Reverse Bias

DM-60
13
Accuracy
Refer to “Specifications” for operating conditions and temperature
coefficient.
Accuracy is specified as follows: ±(a percentage of the reading + a
fixed amount) at 23 °C ±5 °C (73.4 °F ±9 °F), 0% to 80% relative
humidity.
AC Voltage
Frequency Input
Range Accuracy Range Impedance
199.9 mV ±(1.2% + 0.3 mV)
1.999 V ±(1.0% + 0.003 V)
19.99 V ±(1.0% + 0.03 V) 40 to 400 Hz 10 MΩ
199.9 V ±(1.0% + 0.3 V)
600 V ±(1.2% + 3 V)
DC Current
Range Accuracy Burden Voltage
199.9 µA±(1.0% + 0.2 µA)
1.999 mA ±(1.0% + 0.002 mA)
19.99 mA ±(1.0% + 0.02 mA) < 0.2 V
199.9 mA ±(1.2% + 0.2 mA)
10.00 A* ±(2.0% + 0.03 A)
*Duty Cycle: 60 seconds on, 5 minutes off
AC Current
Burden Frequency
Range Accuracy Voltage Range
199.9 µA±(1.0% + 0.3 µA)
1.999 mA ±(1.0% + 0.003 mA)
19.99 mA ±(1.0% + 0.03 mA) < 0.2 V 40 to 400 Hz
199.9 mA ±(1.5% + 0.4 mA)
10.00 A* ±(2.5% + 0.04 A)
*Duty Cycle: 60 seconds on, 5 minutes off

14
Accuracy (cont’d)
Frequency
Range Accuracy
1.999 kHz ±(0.5% + 0.003 kHz)
19.99 kHz ±(0.5% + 0.03 kHz)
199.9 kHz ±(0.5% + 0.3 kHz)
1.999 MHz ±(0.5% + 0.003 MHz)
15.00 MHz ±(0.5% + 0.03 MHz)
Sensitivity:
10 Hz to 1 MHz: 0.5 Volts RMS
1 MHz to 10 MHz: 1 Volt RMS
Resistance
Range Accuracy Typical Open Circuit Voltage
199.9 Ω±(0.8% + 0.5 Ω)3.2 VDC
1.999 kΩ±(0.8% + 0.002 kΩ)
19.99 kΩ±(0.8% + 0.02 kΩ)
199.9 kΩ±(0.8% + 0.2 kΩ)>0.7 VDC
1.999 MΩ±(0.8% + 0.002 MΩ)
20.00 MΩ±(1% + 0.05 MΩ)
Diode Test
Open Circuit Voltage: 3.45 VDC (maximum)
Range: 0 mV to 2000 mV
Test Current (Typical): 1.0 mA
Continuity
Tone on: Circuit resistance is ≤25 Ω
Resolution: 1 Ω
Open Circuit Voltage: 3.45 VDC (maximum)
DC Voltage
Range Accuracy Input Impedance
199.9 mV ±(0.5% + 0.2 mV)
1.999 V ±(0.5% + 0.002 V)
19.99 V ±(0.5% + 0.02 V) 10 MΩ
199.9 V ±(0.5% + 0.2 V)
600 V ±(0.8% + 1 V)

DM-60
15
Specifications
Display: 3-1/2–digit LCD (1999 maximum count)
Polarity: Automatic
Sampling Rate: 2.5 per second
Overload Protections:
Volts: 600 VAC RMS and 600 VDC
Amps:
A: 10 A/250 V F fuse, interrupting rating 200 A, 1/4" x 1-1/4"
mA: 0.315 A/250 V F fuse, interrupting rating 1500 A,
5 mm x 20 mm
Measurement Categories:
VΩTerminal: Category III, 300 VAC and 300 VDC; Category II,
600 VAC and 600 VDC
mA Terminal: Category III, 250 VAC and 250 VDC
ATerminal: Category III, 250 VAC and 250 VDC
Operating Conditions: 0 °C to 40 °C (32 °F to 104 °F),
0 to 80% relative humidity
Altitude: 2000 m (6500’) maximum
Indoor use only
Pollution Degree: 2
Storage Conditions: –10 °C to 50 °C (14 °F to 122 °F),
0 to 70% relative humidity
Remove battery
Battery: 9-Volt battery (NEDA 1604, JIS 006P or IEC 6F22)

16
Measurement Categories
These definitions were derived from the international safety standard
for insulation coordination as it applies to measurement, control, and
laboratory equipment. These measurement categories are explained in
more detail by the International Electrotechnical Commission; refer to
either of their publications: IEC 61010-1 or IEC 60664.
Measurement Category I
Signal level. Electronic and telecommunication equipment, or parts
thereof. Some examples include transient-protected electronic circuits
inside photocopiers and modems.
Measurement Category II
Local level. Appliances, portable equipment, and the circuits they are
plugged into. Some examples include light fixtures, televisions, and
long branch circuits.
Measurement Category III
Distribution level. Permanently installed machines and the circuits they
are hard-wired to. Some examples include conveyor systems and the
main circuit breaker panels of a building’s electrical system.
Measurement Category IV
Primary supply level. Overhead lines and other cable systems. Some
examples include cables, meters, transformers, and other exterior
equipment owned by the power utility.
Statement of Conformity
Greenlee Textron Inc. is certified in accordance with ISO 9000 (2000)
for our Quality Management Systems.
The instrument enclosed has been checked and/or calibrated using
equipment that is traceable to the National Institute for Standards and
Technology (NIST).

DM-60
17
1. Disconnect the unit from the circuit. Turn the unit OFF.
2. Remove the screw from the battery compartment cover.
3. Remove the battery compartment cover.
4. Replace the battery (observe polarity).
5. Replace the cover and screw.
Maintenance
Battery Replacement
Electric shock hazard:
•Do not attempt to repair this unit. It contains no user-serviceable
parts.
•Do not expose the unit to extremes in temperature or high
humidity. Refer to “Specifications.”
Failure to observe these precautions may result in injury and can
damage the unit.
Electric shock hazard:
•Do not operate with the case open.
• Before opening the case, remove the test leads from the circuit
and shut off the unit.
Failure to observe these warnings could result in severe injury or
death.

18
1. Disconnect the unit from the circuit. Turn the unit OFF.
2. Remove the screw from the battery compartment cover. Remove
the battery compartment cover.
3. Remove the screws from the back cover. Remove the back cover.
4. Replace the fuse(s).
5. Replace the covers and screws.
Cleaning
Periodically wipe the case with a damp cloth and mild detergent; do
not use abrasives or solvents.
Electric shock hazard:
The fuses are an integral part of the overvoltage protection. When
fuse replacement is necessary, refer to “Specifications” for the
correct type, size and capacity. Using any other type of fuse will
void the overvoltage protection rating of the unit.
Failure to observe this warning could result in severe injury or
death.
Maintenance (cont’d)
Fuse Replacement

DM-60
19
Descripción
El Multímetro digital modelo DM-60 de Greenlee es un instrumento de
verificación capaz de efectuar los siguientes tipos de mediciones:
tensión alterna y continua, corriente alterna y continua, frecuencia y
resistencia. Esta unidad es de bolsillo y cabe perfectamente en la
palma de la mano. También sirve para verificar diodos y continuidad.
Acerca de la seguridad
Es fundamental observar métodos seguros al utilizar y dar
mantenimiento a las herramientas y equipo Greenlee. Este manual de
instrucciones y todas las marcas que ostenta la herramienta le ofrecen
la información necesaria para evitar riesgos y hábitos poco seguros
relacionados con su uso. Siga toda la información sobre seguridad que
se proporciona.
Propósito de este manual
Este manual de instrucciones tiene como propósito familiarizar a todo
el personal con los procedimientos de operación y mantenimiento
seguros para el Multímetro digital modelo DM-60 de Greenlee.
Manténgalo siempre al alcance de todo el personal. Puede obtener
copias adicionales de manera gratuita, previa solicitud.
Todas las especificaciones son nominales y pueden cambiar conforme
tengan lugar mejoras de diseño. Greenlee Textron Inc. no se hace
responsable de los daños que puedan surgir de la mala aplicación o mal
uso de sus productos.
® Registrado: El color verde para instrumentos de verificación eléctricos es
una marca registrada de Greenlee Textron Inc.
CONSERVE ESTE MANUAL

20
Importante Información sobre Seguridad
Este símbolo se utiliza para indicar un riesgo o práctica poco
segura que podría ocasionar lesiones o daños materiales. Cada
uno de los siguientes términos denota la gravedad del riesgo. El
mensaje que sigue a dichos términos le indica cómo puede evitar o
prevenir ese riesgo.
SÍMBOLO DE ALERTA
SOBRE SEGURIDAD
Peligros inmediatos que, de no evitarse, OCASIONARÁN graves
lesiones o incluso la muerte.
Peligros que, de no evitarse, PODRÍAN OCASIONAR graves
lesiones o incluso la muerte.
Peligro o prácticas peligrosas que, de no evitarse, PUEDEN
OCASIONAR lesiones o daños materiales.
Lea y entienda este documento antes de
manejar esta herramienta o darle
mantenimiento. Utilizarla sin comprender
cómo manejarla de manera segura podría
ocasionar un accidente y, como resultado de
éste, graves lesiones o incluso la muerte.
