GreenTec HXF 2800 User manual

HXF 2800 / 2802 AHS
2

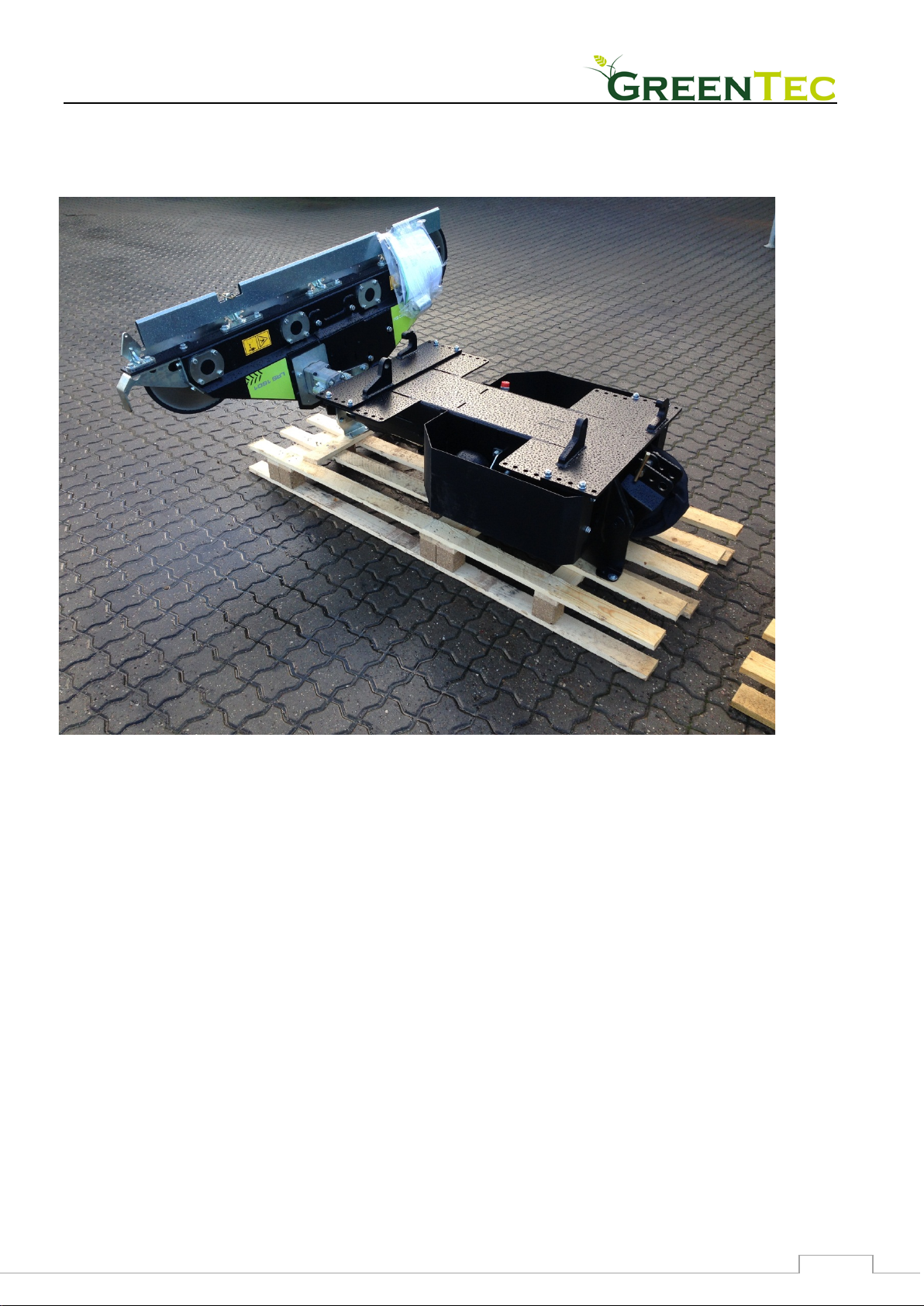

HXF 2800/2802 AHS
Handbook
6. Edition – June 2015
The information contained in this manual is correct at the time of publication.
However, in the course of constant development, changes in specifications are
inevitable. Should you find the information given in this book different to the
machine it relates to please contact the “After Sales Department” for advice
© Greentec Machinery Limited 2015
Please ensure that this manual is handed to the operator before using the
machine for the first time. The operator must fully understand the contents
of this manual before using this machine.
(If the machine is resold the Manual must be given to the new owner!)
Merkurvej 25
DK 6000 Kolding
Danmark
Tlf: [phone]
Email: [e-mail]
http: www.greentec.eu

HXF 2800 / 2802 AHS
3
Contents
Contents .......................................................................................................................3
Introduction..................................................................................................................4
Useful information .......................................................................................................5
General Information.....................................................................................................6
EU Declaration of Conformity.....................................................................................7
Vehicle / Tractor Preparation......................................................................................8
Vehicle Ballast............................................................................................................8
Front weights..............................................................................................................8
Rear weights ..............................................................................................................8
Factors that affect stability..........................................................................................9
Suggestions to increase stability................................................................................9
Safety..........................................................................................................................10
Safety Recommendations ........................................................................................11
Additional Safety Advice...........................................................................................13
Specifications.............................................................................................................14
Before starting work..................................................................................................14
Setting to work position ............................................................................................14
Tool start ..................................................................................................................15
Tool stop...................................................................................................................15

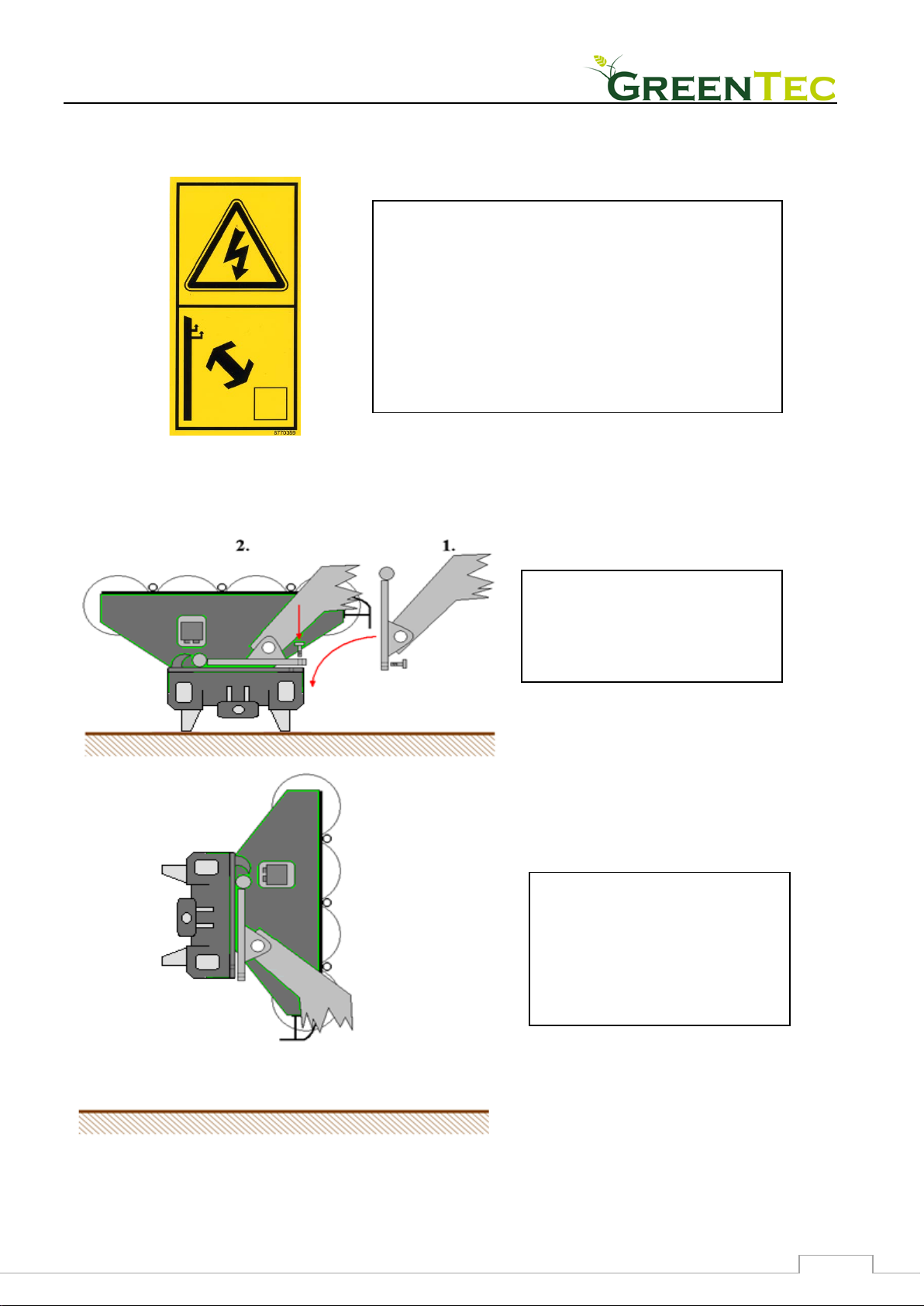

Overhead power lines...............................................................................................16
Assembly / Disassembly...........................................................................................16
Transport position.....................................................................................................17
Working position.......................................................................................................17
Storage.....................................................................................................................18
Extra equipment.........................................................................................................19
Hydraulic angle adjustment......................................................................................19
Control panel............................................................................................................19
Diagrams.....................................................................................................................20

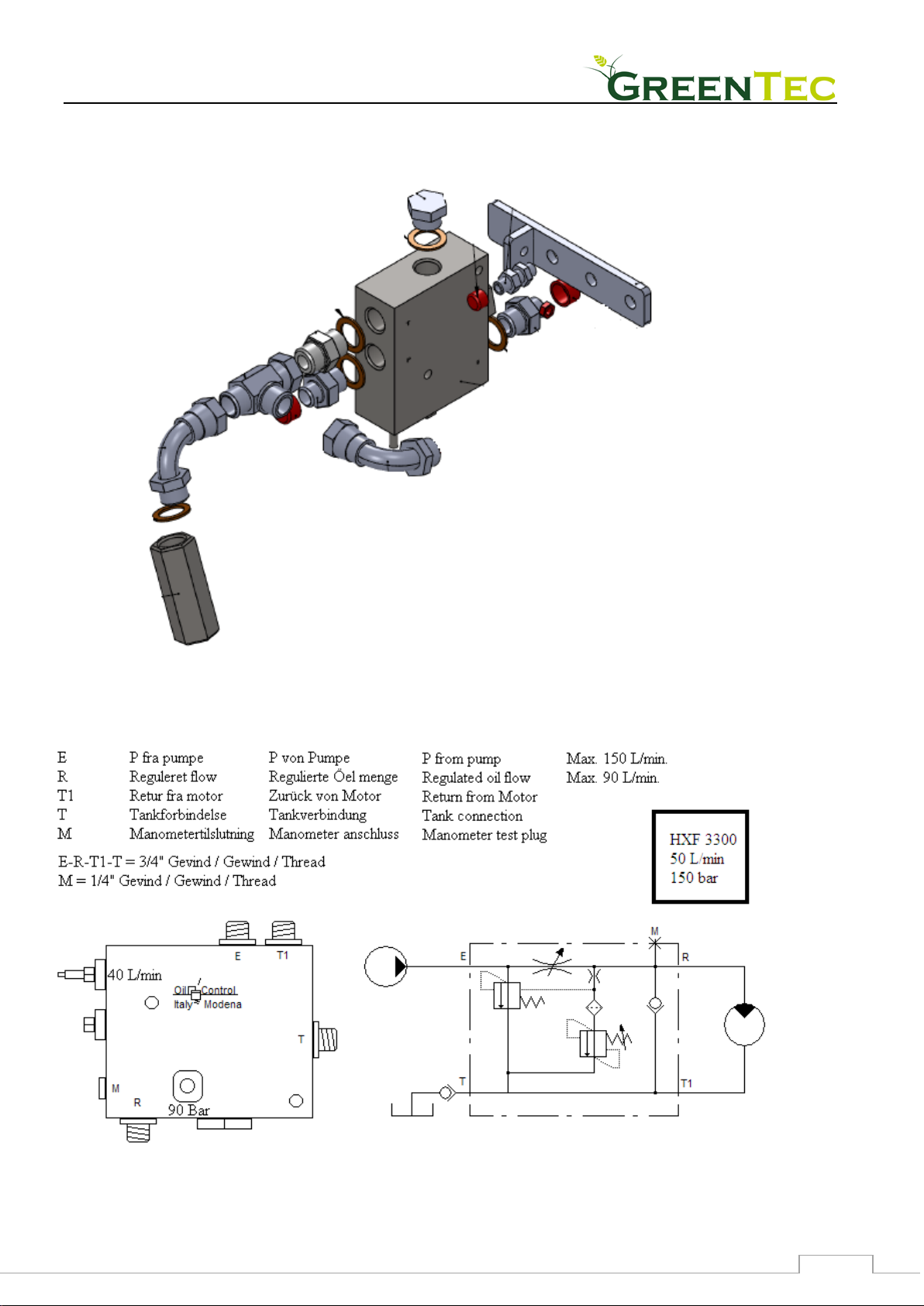

Splitter Valve............................................................................................................20
Electric diagram........................................................................................................21
Hydraulic diagrams...................................................................................................22
Maintenance...............................................................................................................23
Lubrication................................................................................................................23
Hydraulic Hoses.......................................................................................................23
Oil Supply.................................................................................................................24
Maintenance chart....................................................................................................24
Pins and Bushes ......................................................................................................25
Storage.....................................................................................................................25
Problem solving.........................................................................................................26
GreenTec Warranty....................................................................................................27

HXF 2800 / 2802 AHS
4
Introduction
Dear customer!
Your new Greentec machine is constructed with background in more than 20 years experience with tractor
mounted machines to maintenance of green areas. This machine is produced by the latest technology and
recognized safety regulations, standards and regulations.
We want to make a product available in such a way, that neither the use of the machine during transportation or
maintenance of the machine causes any damage or misunderstandings.
This manual contains information and instructions that are important and useful for maintaining your Greentec
machine's reliability, dependability and value. Please read this manual carefully as it will familiarize you with the
installation, use, care and maintenance. Pay particular attention to the instructions regarding safety.
You are welcome to visit our website www.greentec.eu - where the login via the dealer's access gives you the
latest updates on instructional and part books on our entire product range. The password for dealer log-in:
PUBLISHER
We hope, you will be pleased with your new Greentec machine.
Best regards,
John Christensen
Sales Director Greentec A/S
Greentec’s vision is to develop and sell quality machines for the maintenance of green areas, including in
agriculture, in industry, at airports and in the local sector. Through innovative product development, we will
strive to become a leader in our field.
All machines are developed in a simple and functional design in close cooperation with dealers and end users. It
is our goal to cover every need in the market segment with preferably 2 different solutions. In-depth analysis of
requirements and serious advice to the customer is offered the best solution, where individual needs can be met
through the modularity of the product program.
Our goal is also to offer the best possible after sales service, and a quick and efficient spare parts supply.

HXF 2800 / 2802 AHS
5
Useful information
Before using the machine for the first time, it’s the seller’s responsibility that the buyer is
given this manual, and the seller is sure, that the buyer fully understands the manual’s
contents. If the machine is resold, the manual must be transferred to the new owner.
Please fill out the list below to ensure that the necessary information is at hand when
ordering spare parts etc.
Serial No
Delivery date
Dealer
Tlf./ fax
Merkurvej 25
DK 6000 Kolding
Danmark
Tlf: [phone]
Email: [e-mail]
http: www.greentec.eu
Opening hours: Mon-Fri 8-16

HXF 2800 / 2802 AHS
6
General Information
Read this manual before fitting or operating the machine or accessory. Whenever any doubt
exists contact your local dealer or the GreenTec Service Department for assistance.
Only use ‘Genuine GreenTec Parts’ on GreenTec machinery and
equipment.
DEFINITIONS: The following definitions apply throughout this manual;
DANGER: Alerts to a hazardous situation which will result in death or serious injury if not
observed carefully.
WARNING: Alerts to a hazardous situation which could result in death or serious injury if not
observed carefully.
CAUTION: Alerts to a hazardous situation which could result in damage to the machine
and/or equipment if not observed carefully.
NOTICE: Specific or general information considered important or useful to emphasise.
LEFT HAND (LH) & RIGHT HAND (RH): These terms are applicable to the machine when
fitted to the tractor and viewed from the rear; these terms also apply to tractor references.
SERIAL PLATE
All machines are equipped with a serial number plate containing important information
relating to the machine including a unique serial number used for identification purposes.
Note: Images in this manual are provided for instruction and informational purposes only and
may not show components in their entirety. In certain instances images may appear different
to the actual
machine; where this occurs the general procedure will be basically the same.

HXF 2800 / 2802 AHS
7
Merkurvej 25, DK-6000 Kolding, Denmark
EU Declaration of Conformity
Adapted EEC directive
EG Guideline 2006/42/EF, 89/392/EEC & 98/37/EC
We, GreenTec A/S, Merkurvej 25, 6000 Kolding, hereby declare that in terms of its design,
method of construction and our execution thereof, the item of machinery described below
complies with the basic health and safety regulations of the respective EU Directives.
Product: GreenTec HXF 2802 AHS
Product code: 9992800
Serial no: 58392
Type: Arm System
The EC Declaration only applies if the machine stated above is used in accordance with the
operating instructions.
on behalf of GreenTec A/S
Date: 22.01.2015 Signature:________ _________________________
John Christensen Sales Director

HXF 2800 / 2802 AHS
8
Vehicle / Tractor Preparation
We recommend vehicles are fitted with cabs
using ‘safety glass’ windows and protective
guarding when used with our machines.
Fit Operator Guard (See drawing) using
the hooks provided. Shape the mesh to cover
all vulnerable areas. The driver must be
looking through mesh and/or polycarbonate
glazing when viewing the working tool in any
working position - unless the vehicle/ cab
manufacturer can demonstrate that the penetration resistance is equivalent to, or higher than,
that provided by mesh/polycarbonate glazing. If the tractor has a roll bar only, a frame must
be made to carry both mesh and polycarbonate glazing. The operator should also use
personal protective equipment to reduce the risk of serious injury such as; eye protection
(mesh visor to EN1731 or safety glasses to EN166), hearing protection to EN352, safety
helmet to EN297, gloves and high visibility clothing.
Vehicle Ballast
It is imperative when attaching ‘third-party’ equipment to a vehicle that the
maximum possible stability of the machine and vehicle combination is achieved – this can be
accomplished by the utilisation of ‘ballast’ in order to counter-balance the additional
equipment added.
Front weights
May be required for rear mounted machines to place 15% of total outfit
weight on the front axle for stable transport on the road and to reduce ‘crabbing’ due to the
drag of the cutting unit when working on the ground.
Rear weights
May be required to maintain a reasonable amount of rear axle load on the
opposite wheel from the arms when in work; for normal off-ground work i.e. hedge cutting this
should be 20% of rear axle weight or more for adequate control, and for ground work i.e.
verge mowing with experienced operators, this can be reduced to 10%.
All factors must be addressed in order to match the type and nature of the equipment added
to the circumstances under which it will be used – in the instance of Power Arm hedgecutters
it must be remembered that the machines centre of gravity during work will be constantly
moving and will differ from that during transport mode, therefore balance becomes critical.

HXF 2800 / 2802 AHS
9
Factors that affect stability
Centre of gravity of the tractor/machine combination.
Geometric conditions, e.g. position of the cutting head and ballast.
Weight, track width and wheelbase of the tractor.
Acceleration, braking, turning and the relative position of the cutting head during
these operations.
Ground conditions, e.g. slope, grip, load capability of the soil/surface.
Rigidity of implement mounting.
Suggestions to increase stability
Increasing rear wheel track; a vehicle with a wider wheel track is more stable.
Ballasting the wheel; it is preferable to use external weights but liquid can be
added to around 75% of the tyre volume – water with anti-freeze or the heavier
Calcium Chloride alternative can be used.
Addition of weights – care should be taken in selecting the location of the
weights to ensure they are added to a position that offers the greatest
advantage.
Front axle locking (check with tractor manufacturer).
NOTE: The advice above is offered as a guide for stability only and is not a guide to vehicle strength. It
is recommended that you consult your vehicle manufacturer or local dealer to obtain specific advice on
this subject, additionally advice should be sought from a tyre specialist with regard to tyre pressures
and ratings suitable for the type and nature of the machine you intend to fit.
Attachment of the machine must be performed in a safe location on a firm
level site.
Care should be adopted at all times when handling or manoeuvring the machine during the
attachment procedure; ensure all persons remain clear of the cutting blades which possess
the potential to cause injury even when stationary. For reasons of safety the blade guard
should be fitted to machine at all times and only removed for machine operation.

HXF 2800 / 2802 AHS
10
Safety
Warning
Avoid fluid escaping
under pressure. Consult
technical manual for
service procedures.
Warning
Danger – flying
objects. Keep safe
distance from the
machine as long as
the engine is
running.
Warning
Stay clear of mower
sawblades when
running.
Never remove the
safety protection.
Warning
Stay out of gears swing
area.
Warning
Shut off engine and
remove key before
performing maintenance or
repair work.
Warning
Check every 8 hours that
all bolts are tightened
Warning
Carefully read operator’s
manual before handling this
machine. Observe
instructions and safety rules
when operating.

HXF 2800 / 2802 AHS
11
Safety Recommendations
Beware of the following Potential Dangers associated with the use of this machine:
•Becoming trapped when hitching or unhitching
•Tractor overbalancing when arm is extended
•Electrocution due to hitting overhead power lines
•Getting caught on rotating power take off (PTO)
•Being hit or caught by any moving part, e.g. belts, pulleys, arms, cutting head
•Being hit by flying debris or machine parts due to machine damage
•Machine overbalancing when not in use
•Injection of high pressure oil from damaged couplings or hydraulic hoses
•Accidents due to collision with other machines, or debris left on road
•
•Always
•Ensure the operator has read this handbook and has been trained to use the machine.
•Ensure all cab safety guards are in place and all tractor windows closed.
•Before leaving the tractor cab always ensure that the flail head is firmly on the ground, no
weight is on the machine’s hydraulics and the rotor has stopped spinning.
•Check that all guards are properly fitted and there are no damaged or loose parts. Particular
attention should be given to the flails to ensure they are not damaged, cracked or missing.
•Inspect work area for wire, steel posts, large stones and other dangerous materials and
remove before starting work.
•Beware of the danger of overhead power cables. The operator must be aware of the
maximum height and reach of the machine when working under power cables. The minimum
legal height for 11,000 and 22,000-volt cables is 5.2 meters from the ground. When fully
extended, the machine may well exceed this height so extreme caution should be practiced.
For more information contact the Health and Safety Executive or your local power company.
•Ensure that all warning labels are always visible and that they are not damaged, defaced or
missing.
•Lower the head to the ground when parking up
•Fit locking pins to slew and height before transport and before unhitching when applicable.
•Wear ear defenders if operating without a quiet cab or with the cab windows open.
•Ensure tractor guards are fitted correctly and are undamaged
•Work at a safe speed, taking into account terrain, passing vehicles and obstacles
•Ensure that the tractor meets the minimum weight recommendations of the machine
manufacturer and that ballast is used if necessary
•Check that machine fittings and couplings are in good condition
•Follow the manufacturer’s instructions for attachment and removal of machine from the tractor
are warning signs to alert others to the type of machine working in the vicinity. Signs should be
placed at both ends of the work site and should be in accordance with Department of
Transport recommendations.
•Ensure flails are of the type recommended by the manufacturer, are securely fitted and are
undamaged.
•Ensure hydraulic pipes are correctly routed to avoid damage from chafing, stretching, pinching
or kinking.
•Disengage the machine, stop the engine and remove the key before leaving the tractor cab for
any reason.
•Clean up any debris left at the work site.
•Ensure that when you remove the machine from the tractor it is secured in a safe position
using the stands provided.

HXF 2800 / 2802 AHS
12
Never
•Never operate the machine with other people present, as it is possible for debris, including
stones, to be discharged from the front and rear of the flail head.
•Never operate the machine until you have read and understood the relevant Handbook and
are familiar with the controls.
•Never use a machine that is poorly maintained or has guards that are damaged or missing
•Never allow an inexperienced person to operate the machine without supervision.
•Never use or fit a machine onto a tractor if it doesn’t meet the manufacturer’s specification.
•Never use a machine if the hydraulic system shows signs of damage.
•Never attempt to detect a hydraulic leak with your hand, use a piece of card.
•Never allow children to play on or around the machine at any time.
•Never attempt any maintenance or adjustment without first disengaging the PTO, lowering the
head to the ground, stopping the tractor engine and applying the tractor parking brake.
•Never leave the cab without removing the ignition key.
•Never operate the tractor or any controls from any position other than from the driving seat.
•Never stop the engine with the PTO engaged.
•Never operate with flails missing.
•Never operate PTO above recommended speed, 540 R.P.M. / 1000 R.P.M. flail head, 150
R.P.M. cutter-bars.
•Never operate with wire around the rotor. Stop immediately.
•Never use the head at an angle, which may throw debris towards the cab.
•Never attempt to use the machine for any purpose other than that it was designed for.
•Never transport with the PTO engaged
•Never enter the working area of the machine (risk of injury!)
•Never transport with the controls live, always turn off electrical isolator switch (red) and
disconnect supply.

HXF 2800 / 2802 AHS
13
Additional Safety Advice
Training
Operators need to be competent and fully capable of operating this machine in a safe and efficient way prior to
attempting to use it in any public place. We advise therefore that the prospective operator make use of relevant
training courses available such as those run by the Agricultural Training Board, Agricultural Colleges, Dealers
and GreenTec.
Working in Public Places
When working in public places such as roadsides, consideration should be paid to others in the vicinity. Stop the
machine immediately when pedestrians, cyclists and horse riders etc. pass. Restart only when they are at a
distance that causes no risk to their safety.
Warning Signs
It is advisable that any working area be covered by suitable warning signs and statutory in public places. Signs
should be highly visible and well placed in order to give clear advanced warning of the hazard. Contact the
Department of Transport or your Local Highways Authority to obtain detailed information on this subject. The
latter should be contacted prior to working on the public highway advising them of the time and location of the
intended work asking what is required by way of signs and procedure. – ‘Non-authorised placement of road
signs may create offences under the Highways Act’.
Suggested Warning Signs Required
‘Road works ahead’ warning sign with a supplementary ‘Hedge cutting’ plate. ‘For 1 km’ or appropriate
shorter distance may be added to the plate.‘Road narrows’ warning signs with supplementary ‘Single file
traffic’ plate. White on blue ‘Keep left’ (*) arrow sign on rear of machine.
* Note – this applies to EU Market machines where traffic passes to the left of a machine working in the
same direction as the traffic flow. The direction, use and colour of the arrow sign will depend on the
country of use and the Local Highway Authorities regulations in the locality.
Use of Warning Signs
▲ On two-way roads one set of signs is needed facing traffic in each direction.
▲ Work should be within 1 km of the signs.
▲ Work only when visibility is good and at times of low risk e.g.: NOT during ‘rush-hour’.
▲ Vehicles should have an amber-flashing beacon.
▲ Ideally, vehicles should be conspicuously coloured.
▲ Debris should be removed from the road and path as soon as practicable, and at regular inter-
vals, wearing high visibility clothing and before removing the hazard warning signs.
▲ Collect all road signs promptly when the job is completed.
Safety Gear: It is recommended that the following personal protective equipment is worn when operating and/or
maintaining this machine; Coveralls, safety boots, safety glasses, hearing protection, safety helmet, protective
gloves.
Although the information stated here covers a wide range of safety subjects it is impossible to predict every
eventuality that can occur under differing circumstances whilst operating this machine. No advice given here
can replace ‘good common sense’ and ‘total awareness’ at all times, but will go a long way towards the safe
use of your GreenTec machine.

HXF 2800 / 2802 AHS
14
Specifications
•Hydraulic collision safety AHS
•Reach approx. 2,2 m
•Weight without tools 220 kg
•180˚manual turnable armsystem
Before starting work
Setting to work position
•Remove transport bolt and turn the arm to working position. Mount the bolt in the ram.
•Start the tool by low oil flow (Low rpm).
•Adjust the HFX 2802 AHS to vertical when hedge cutting.

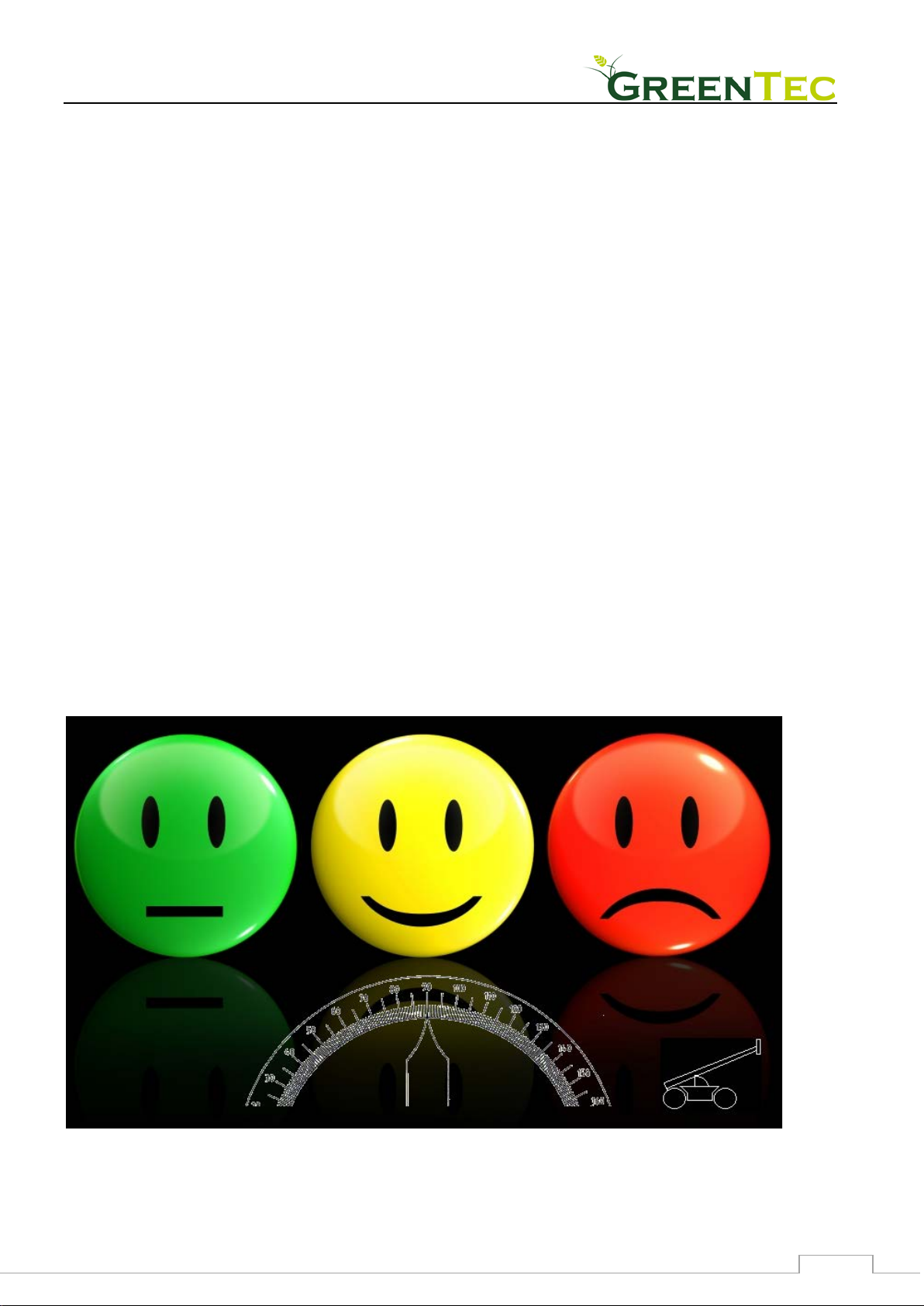

Too much back Vertical Too much forward
Arm falls back too often Best work Risk of machine failure

HXF 2800 / 2802 AHS
15
Tool start
•Choose low motor rpm
•Make sure the area surrounding the tool is secure.
•Warm start – Start the tool.
•Cold start – never start at max rpm. Let the tool run unloaded for approx. 15 min to warm up
the oil.
•Slowly increase the rpm until the proper oil flow is achieved.
•Never try to restart an overworked tool. Always remove wedged and debris.
Tool stop
•Reduce engine rpm to idle speed. Then stop the tool.
•Never increase or decrease the amount of oil too fast. This can cause longer-term damage to
the hydraulic system
The cutting angle is as std. a “top-link”, and can only be adjusted when
the machine is stopped.
A hydraulically ram (option), can be mounted. Operate the ram in the
required direction to set the desired cutting angle before starting work.
The ram may be operated during work to make minor angling adjustments, but it is
recommended to stop work before making major adjustments to the cutting angle.
To prevent sawblades in blocking there is mounted a Branchcarrier part
no. 200112.0, a Plastic-strip part no. 200110.0 in the full length of the
machine and wearplates part no. 200153.0 under each sawblade to prevent sawblades
bending. If the sawblades anyway blocks, then stop the saw, stop the carrier, take out the
ignition key, pull the handbrake, take your safety goggles and gloves on and remove the
jammed piece of wood.

HXF 2800 / 2802 AHS
16
Overhead power lines
Assembly / Disassembly
Always pay attention to the overhead
power lines. Between the electricity
poles, there is always a risk of touching
overhead lines. If in doubt - contact the
local power station for instructions on
safety distance.
1) Drive forward. Tip the
holder on arm 90˚.
2) Tighten the machine.
3) Tip holder on arm 90˚
back to correct working
position.
4) Mount the hydraulic
hoses and electric cords

HXF 2800 / 2802 AHS
17
Transport position
Remove the bolt -
Turn the arm 180˚
Working position
Mount the bolt to the ram

HXF 2800 / 2802 AHS
18
Storage
Before storing away, thoroughly wash the machine removing all traces of grass and dirt.
Great care must be taken when washing with high-pressure hoses, do not hold the water jet
close to the paintwork. Use steam cleaners with caution; be sure to remove all detergents to
avoid any discolouring or damage to paint. Grease all grease points until fresh grease shows.
It is important where possible to store under cover to protect against rain and sunlight.
Always ensure a firm level surface. Control levers must be wrapped in plastic sheeting and
taped over to keep dry.
Smear greaser on all areas vulnerable to corrosion, in particular the chrome on
the ramrods.
Before you attempt to do any repairs, service, maintenance or adjustment on your machine,
ensure the engine has stopped and the key removed. P.T.O. is disengaged, handbrake
secured, and the head is firmly on the ground.

HXF 2800 / 2802 AHS
19
Extra equipment
Hydraulic angle adjustment
•This equipment allows you to adjust the cutting angle from the cabin.
•Work the machine by using the black switch (2) on the control panel.
•Once the correct angle is set, you can begin to work.
•Correction is also possible while working. Use small movements. Large corrections is
best done while stationary.
Control panel
1. Switch on/off
2. Cutting angle
3. Tool on/off
4. Fuse in the plug (8 amp)
1. Flow-adjustment
2. Manual over steering
3. Mini-mesh
4. Pressure relief valve (200 bar)
A Flow for tool (regulated)
B Not in use
C Cutting angle
D Cutting angle
P Pressure, flow from pump
T Tank Connection, pressure less +
T from motor

HXF 2800 / 2802 AHS
20
Diagrams
Splitter Valve
