Greentek HS 3.0 Operating and maintenance instructions

INSTALLATION
GUIDE
Residential use only
• MODEL HS 3.0
Product of Greentek
Greentek reserves the rights to modify a product, without prior notice,
whether in price, design, color or codes, in order to offer at all times quality products that are highly competitive.
ITEM# 463625 OCT2018

2
IMPORTANT - PLEASE READ MANUAL BEFORE INSTALLATION
NOTICE: Prior to installing, serious consideration must be taken to insure this ltration system will operate properly if
integrated to any other type of mechanical system, i.e. a forced air system, or an air handling unit. To insure proper operation
& compatibilities of both system, it is required that you follow the instructions in this manual.
LIMITATIONS: The product is for residential applications only. Must be installed in accordance with all national and local
regulations, building and safety codes.
CAUTION: TURN OFF ALL INTEGRAL DISCONNECTS BEFORE SERVICING
TO REDUCE OR AVOID THE HAZARDS OF ELECTRIC SHOCK AND FIRE: CAUTIONS CONCERNING THE OPERATION AND FULL EFFICIENCY OF THIS PRODUCT:
• Before servicing or cleaning the system, always remove the
power cord from the AC wall outlet.
• To reduce the hazards of electric shock or re, do not
perform any service to the system other than those stated
in the operating manual instructions.
• To reduce the risk of electric shock, this ltration system
comes equipped with a 3-prong plug-in. This plug will t in a
polarized outlet only one way.
• Do not use ltration system for outdoor application.
• Do not pull or twist power cord when disconnecting it from
the ventilation system. Grasp the plug rmly, not the cord.
• Do not modify the power plug in any way; if modied, risk of
electric shock re or even damage to the unit may occur.
• Do not use the ltration system for removal of ammable
fumes or gases.
• Use a dedicated AC 120V outlet only.
• Do not obstruct or cover the air intake or air outlet of the
ltration system.
• Do not modify, repair or disassemble this system. These
tasks are to be performed by authorized serviced personnel
only. Fire, electrical shock and/or bodily injury may occur if
these warnings are not followed.
• To prevent injuries, do not operate the ltration system,
while servicing or maintaining. There is an impeller wheel
turning at a very high speed that must fully stop rotating
prior to accessing the inside of the unit.
• Always assess the operation of the ltration system on how
it may interact with vented combustion equipment (ie. Gas
Furnace, Oil Furnace, Combustion, Appliances, etc.)
TABLE OF CONTENTS
1. Unpacking and inspection . . . . . . . . . . . 3
2. Technical data . . . . . . . . . . . . . . . . 3
3. Planning the installation . . . . . . . . . . . 4
4. Type of installation . . . . . . . . . . . . . . 4
5. Installing the unit . . . . . . . . . . . . . . . 5
6. General Operating Information . . . . . . . . 7
7. Contact Information . . . . . . . . . . . . . 8

3
RETURN AIR PLENUM INSTALLATION
BOX CONTENT
Includes:
• Whole House HS 3.0
• Power cord, 5 FT
• Plenum seal, 7.5 FT
• Screws, (16) 8 x 32 x 1/2”
• Template
Front View Side View - Clearance Back View
SPECIFICATIONS
1. UNPACKING AND INSPECTION
2. TECHNICAL DATA
Model HS 3.0
Filtration Stage 1 & 2 Prelter/ Carbon (461007)
Filtration Stage 3 HEPA lter (461005)
Weight 28 lbs (12.7 kg)
PlenumMount 16” x 3.5”
Port Openings (406mm x89mm)
Collar Mount 8” (203mm) Round*
Port Openings
Installation type Plenum,Wall* or
Floor*Mounted
Electrical Supply 120 VAC @ 60 Hz
Power Consumption 134 W
Certication CCSA US
Air ow data 220-300 CF.M.
* Installation requires kit No.463085
17”
(432 mm)
13”
(330 mm)
22”
(559 mm)
11”
(294.5 mm)
12”
(305 mm)
17”
(432 mm)
22”
(559 mm)
RETURN AIR PLENUM INSTALLATION AND STAND ALONE INSTALLATIONS*
With Collar Mount Kit
Front View Side View - Clearance Side View
17”
(432 mm)
13”
(330 mm)
22”
(559 mm)
11”
(294.5 mm)
12”
(305 mm)
17”
(432 mm)
13”
(330 mm)
22”
(559 mm)
IMPORTANT:
463046 - Pre+carbon lter kit is a
universal lter and replaces 461007
463048 - HEPA Filter kit is a universal
lter and replaces 461005

4
SPECIAL CONSIDERATION
For integrated system installation
• Verify clearance on the ductwork to
mount the unit using the Forced Air
heating/cooling system
• Minimum clearance requirements for
maintenance and service
• Electrical power requirements
• Interaction between the HEPA lter
unit and other mechanical devices.
DUCTING FLAIR SYSTEM
Installation
The Whole House HEPA Filtration sys-
tem is designed to install directly onto
the return air plenum of the forced air
heating/cooling system. Choosing this
type of installation eliminates the need
to externally duct the HEPA lter unit to
the plenum system. If you choose this
type of installation, it is recommended
that you run the fan on your forced air
system continuously to maximize its
cleaning ability.
TIPS TO INSTALLER
The Whole House HEPA Filtration sys-
tem does not replace the lter from the
forced air heating/cooling system. Reg-
ular maintenance of this lter is neces-
sary to permit the good operation of the
forced air heating/cooling system.
OPTIONAL COLLAR SYSTEM
Installation
Using kit no. 463085 the Whole House
HEPA Filtration system can be convert-
ed to use 8 inch round collars for appli-
cation requiring ducting. The kit includes
two, 8 inch round collars, two mounting
brackets for wall or oor mounting, in-
stallation guide and fasteners.
The Whole House HEPA unit is a versatile appliance with multiple installations
conguration. It is recommended to take your time in planning the installation.
Several Installations are illustrated herein’ for Whole House ltration applications:
• Return to return integrated with the forced air heating/cooling system.
• Central draw points using dedicated duct system
• Consult the manufacturer for other special applications.
3. PLANNING THE INSTALLATION
4. TYPE OF INSTALLATION: RETURN TO RETURN INTEGRATED SYSTEM
DUCTING FLAIR SYSTEM
(Hepa Mounted on Duct)
Return
Air Plenum
To living
space
Forced Air Heating
/Cooling System
Return
Air Plenum
To
living
space
Forced Air Heating
/Cooling System
OPTIONAL COLLAR SYSTEM
(Hepa Mounted on Wall)
INSTALLATION SHOULD BE PERFORMED BY A CERTIFIED PROFESSIONAL.
Consult your HVAC product manufacturer if the usage of this product will affect the
performance of your forced air heating / cooling system.

5
4. TYPE OF INSTALLATION: STAND ALONE
5. INSTALLATING THE UNIT: STEP BY STEP
ATTIC INSTALLATION
Ideal for homes without a
forced air heating / cooling
system. Allows for air ltra-
tion and circulation through-
out the home.
HEPA system must be operated continuously whenev-
er a part or all the system is located in an unconditioned
space to avoid condensation in the ductwork below freezing
(0°C, 32°F).
BASEMENT INSTALLATION
Ducting will usually consist
of one return with grille from
one side of the home, and one
supply with grille at the oppo-
site end of the home.
TOOLS REQUIRED
• Phillips #2 or Robertson #1
screwdriver
• 3/32” drill bit
• Tin snips or metal shear
• Power Drill
LOCATION
Return side connections is to be installed
after the last branch on the return air
plenum and minimum 2 linear ft distance
from furnace.
A 5-ft power cord is supplied with the unit.
If not available a 120VAC outlet needs to
be supplied.
NOTE: Refer to Section 4 for details on
how to remove the unit’s door and lters
STEP BY STEP INSTALLATION
Steps involved in the preparation of the plenum mount system are as followed:
Step 1 Preparing return air plenum
Find a location that satises both service and maintenance requirements and proceed
to cut holes as illustrated below.
Tape template to return air plenum. Cut opening with metal shears, predrill for the
securing screws and remove template.
Step 2 Preparing ducting airs
Remove the door and lters and proceed to cut the insulation as illustrated below.
S
U
M
M
E
R
/
É
T
É
H
I
V
E
R
/
-
2
0
°
C
/
T
E
M
P
E
R
A
T
U
R
E
MAINTENANCE
CYCLES/HOUR
20/40
30/30
RANGE
OFF
NORMAL
REDUCED
INTERN
CONT
RECIRC
MODE
Cut the insulation along
the inside edge of both in-
let and outlet ports to re-
move the insulation from
the port openings.
One cut permits the clean
removal of the insulation
piece.
The unit should look like
this when the foam piece
is remvouved.

6
5. INSTALLATING THE UNIT: STEP BY STEP (continued...)
TIPS TO INSTALLER
Please consult local authorities to nd out
whether the installation of electrical prod-
ucts requires the services of a certied
technician or electrician. Removing the
lters from the unit will facilitate your job.
DUCTING FLAIRS
MOUNTING SYSTEM
The Whole-House HEPA Plenum Systems
are designed for single person
installation. Imperial Air Technologies is
introducing it’s «Ducting Flairs» system
which is integrated within the unit and will
enable you to save time and effort.
Once the holes are made in the main
return duct and the unit is aligned, the
installer just has to unfold the «Ducting
Flairs» and screw the unit in place.
TIPS TO INSTALLER
It is recommended that the ltration unit
have a devoted receptacle with 120V. It is
not recommended to connect unit with an
extension cord. If no receptacle is avail-
able please call an electrical contractor to
have one installed.
MAKE SURE TO INSTALL FILTER
ACCORDING TO AIR FLOW DIRECTION FOR
MAXIMUM PERFORMANCE
Check for this symbol on each lters and
it is located on the unit’s motor plate.
STEP BY STEP INSTALLATION
Steps involved in the preparation of the plenum mount system are as followed:
Step 2 (continued…)
Cut the four metal tabs to release the mounting airs for the inlet and outlet ports.
Apply plenum seal tape all around both openings on the back of the unit. Bend tabs
outward approximately 90 degrees.n
Step 3 Mount Hepa
Align unit into place. Unfold the ducting airs completly to sandwich the return air
plenum between the ducting air and the ltration unit. Install unit as usual using all
supplied fastening hardware.
Step 4 Finishing
Remove protective plas-
tic covers from all lters
and replace them in their
proper location
(Stage 1, 2 and 3).
Replace door and insert
power cord into the re-
ceptacle of the lter units
and the other end into wall
outlet.
Stage 1: Pre-Filter
Stage 2: Carbon Filter
Stage 3: HEPA Filter

7

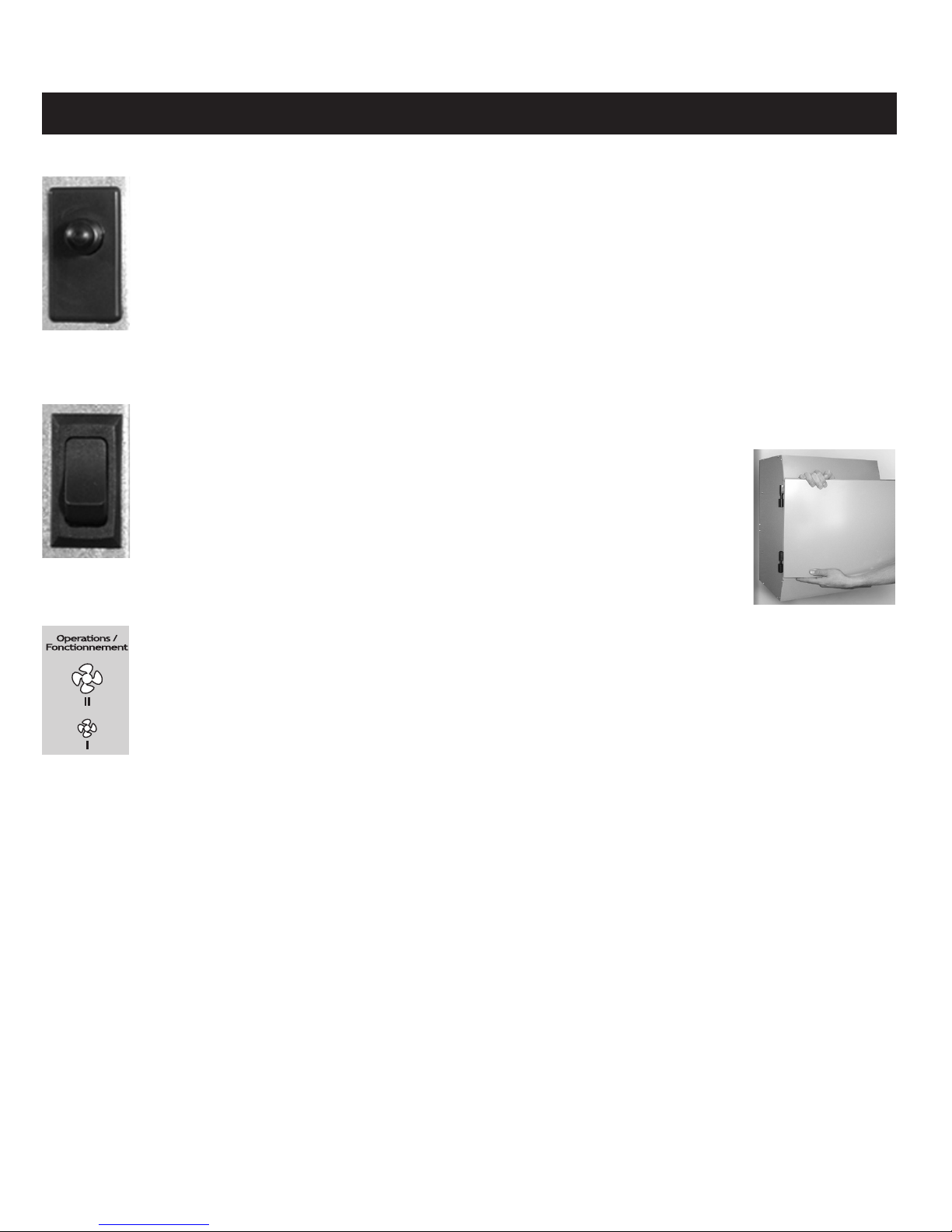

6. GENERAL OPERATING INFORMATION
DOOR SWITCH
MODE SELECTOR
• II (300 CFM)
• I (220 CFM)
OPERATIONS
Maximum Filtration
(300 cfm)
Normal Filtration
(220 cfm)
FUNCTION
The Whole House HEPA system is comprised of a ventilator, speed selection switch,
3 stages of ltration and the cabinet enclosure system. The ventilator pulls air through
the pre-lter and then threw the impregnated carbon pad for odor control and nally
the last stage of ltration is the HEPA lter which removes 99.97% of particles 0.3µm
in size.
OPERATION MODE OPTIONS
The unit features two speeds of operation for your convenience. The speed selection
switch is located on the front of the motor assembly. At lowest speed the unit will
provide 220 CFM of clean air while at highest speed, the unit will provide 300 CFM of
clean air. It is recommended that the unit be operated on highest speed at all times to
maximize the benets of the HEPA ltration system. If for some reason the ltration
needs are not as important then one might operate the unit at low speed.
An access door is provided at the front of the unit to permit
access to the lters and speed selection switch. Opening the
latch on the right side of the unit will permit the door to swing
open. A safety door interlock switch cuts the power to the
motors for your safety. If needed the door can be removed
from the cabinet hinges by holding the top part of the door with
one hand and gently taping on the bottom edge of the door with
the other hand to release the door from its hinges.
RECOMMENDED OPERATION
The return plenum mount model operates in conjunction with your forced air heating/
cooling system. A forced air distribution system continuously circulates the same air
inside your home. The whole house HEPA ltration system operates on the principal of
bypass ltration, which means that a portion of the air being returned into the furnace is
ltered on each pass. Over time all the air in the home gets cleaned. It is recommended
that the furnace blower be in operation whenever the ltration system is in operation.
For stand-alone attic installation, the HEPA ltration system must be operated
continuously whenever a part of all the system is located in an unconditionned space to
avoid condensation in the ductwork below freezing (32°F ,0°C)
Maintenance of the unit should be performed at regular interval to keep the benets of
the HEPA ltration unit.

7. GENERAL MAINTENANCE INFORMATION
WHEN SHOULD I SERVICE
MY UNIT?
SERVICE AND ACCESSORIES
Detailed maintenance information is
located on the front decal on motor plate.
PRE-FILTER AND CARBON FILTER
Replace lters every 3 to 6 months or as
needed.
HEPA FILTER
Replace lter every 2 to 5 years or as
needed. Check regularly to maintain
maximum performance from your
HVAC system.
For replacement lters, contact your local
HVAC contractor.
INSIDE THE UNIT
Once a year or as needed, clean the
interior of the unit (Wall and Motor Plate)
with a mild and non-abrasive soap. It is
recommended to use products that are
environmentally friendly.
WARNING : ALWAYS UNPLUG UNIT
BEFORE SERVICING
4.1 CHANGING FILTERS
After opening the unit’s door, grasp both edges of lter and pull with
equal force to slide out the lter.
4.2 CLEANING
Once a year or as needed, clean the interior of the unit (Wall and motor
plates) using mild non-abrasive soap and water. It is recommended to
use products that are environmentally friendly.
4.3 TROUBLESHOOTING
4.3 ELECTRICAL WIRING DIAGRAM
TROUBLESHOOTING
Unit does not operate
Unit operates only on one speed.
Unit vibrates
SUGGESTIONS
• Is power cord fully inserted in the
unit’s connector?
• Is outlet powered?
• Is door interlock switch operating?
Possible loose wire inside electrical box,
contact your local contractor.
Check for excessive dust build up or
missing balancing weight on the impeller
wheel.
M
L
Door
Interlock
Brown
N
Blue
Black
2.5uf
7.5uf
G
Speed
Selection
Greentek
50 Kanalflakt Way., Bouctouche, NB E4S 3M5
1-888-724-5211 Fax [phone]
www.greentek.ca
