Greiner Vibrograf ACS921 User manual

Operating Manual
Ultrasound Cleaning Device
ACS921
Version: 05-2023-EN
Date: 20 Sept 2023
Manufacturer:
Greiner Vibrograf AG
Mittelstrasse 2
CH-4900 Langenthal

2
1GENERAL INSTRUCTIONS..........................................................................................................................5
1.1 INFORMATION ABOUT THIS OPERATING MANUAL ...............................................................................................5
1.2 INFORMATION ON CUSTOMER SERVICE ............................................................................................................5
1.3 INTENDED USE ............................................................................................................................................5
1.4 IMPROPER USE............................................................................................................................................5
2SAFETY INSTRUCTIONS .............................................................................................................................6
2.1 SYMBOLS ...................................................................................................................................................6
2.2 SAFETY INSTRUCTIONS AND WARNINGS............................................................................................................6
2.3 BINDING INSTRUCTIONS................................................................................................................................7
2.4 EMERGENCY STOP SYSTEM ............................................................................................................................7
2.5 DOOR MONITORING SYSTEM..........................................................................................................................8
2.6 VENTING SYSTEM ........................................................................................................................................9
2.6.1 Device venting....................................................................................................................................9
2.6.2 Venting via activated carbon filter.....................................................................................................9
2.6.3 Venting with hose connection..........................................................................................................10
3FUNCTION, SET-UP AND COMMISSIONING ............................................................................................11
3.1 DESCRIPTION OF FUNCTION .........................................................................................................................11
3.2 SETTING UP..............................................................................................................................................11
3.3 COMMISSIONING ......................................................................................................................................12
3.4 INSERT THE LIQUID CONTAINER AND POSITION THE TURNTABLE ...........................................................................13
3.4.1 Inserting the liquid container...........................................................................................................13
3.4.2 Position the turntable (if necessary) ................................................................................................14
3.5 INSERTING BASKETS ...................................................................................................................................15
4OPERATION ............................................................................................................................................16
4.1 SCREEN ...................................................................................................................................................17
4.1.1 PROGRAMME:..................................................................................................................................17
4.1.2 PROCESS:..........................................................................................................................................17
4.1.3 SETTINGS..........................................................................................................................................17
Here you can set the language, date and time, display and service. ............................................................17
4.2 SETTINGS.................................................................................................................................................18
4.2.1 Process no. 1 (ultrasound bath) .......................................................................................................18

3
4.2.2 Process nos. 2—5 (Cleaning and Rinsing) ........................................................................................ 19
4.2.3 Process no. 6 (Drying) ...................................................................................................................... 19
4.3 PROGRAMME ........................................................................................................................................... 21
4.3.1 Create programme .......................................................................................................................... 21
4.3.2 Standard programmes (pre-installed) ............................................................................................. 21
4.3.3 Start programme ............................................................................................................................. 24
4.3.4 Quit programme .............................................................................................................................. 25
4.3.5 Link programmes ............................................................................................................................. 25
4.3.6 Language ......................................................................................................................................... 26
4.3.7 Date Time ........................................................................................................................................ 26
4.3.8 Display ............................................................................................................................................. 27
4.3.9 Service.............................................................................................................................................. 27
4.3.10 BATH CHANGE ................................................................................................................................. 31
4.3.11 Procedure in the event of unwanted spillage of liquids................................................................... 33
4.3.12 Using the USB connector socket ...................................................................................................... 34
4.4 BATHS AND CONTAINERS ............................................................................................................................ 36
4.4.1 Position and baths ........................................................................................................................... 36
4.4.2 Container ......................................................................................................................................... 36
4.5 CLEANING FLUIDS...................................................................................................................................... 37
4.5.1 Greiner Vibrograf WF5..................................................................................................................... 37
4.5.2 Greiner Vibrograf GS500.................................................................................................................. 37
4.5.3 Greiner Vibrograf S-3 ....................................................................................................................... 38
4.5.4 Isopropyl alcohol.............................................................................................................................. 38
4.5.5 Recommendations ........................................................................................................................... 39
5TECHNICAL DATA....................................................................................................................................40
5.1 TECHNICAL DATA....................................................................................................................................... 40
5.2 DIMENSIONS ............................................................................................................................................ 41
6SERVICE AND MAINTENANCE, MALFUNCTION........................................................................................42
6.1 SERVICE AND MAINTENANCE ....................................................................................................................... 42

4
6.2 FAULT MESSAGES,TROUBLESHOOTING,FAULT JOURNAL....................................................................................42
6.2.1 Fault messages.................................................................................................................................42
6.2.2 Fault memory...................................................................................................................................46
7DECLARATION OF CONFORMITY.............................................................................................................47
8DISPOSAL ...............................................................................................................................................49
9APPENDIX...............................................................................................................................................50
9.1 SPARE PARTS ............................................................................................................................................50
9.1.1 Sensors .............................................................................................................................................50
9.1.2 Actuators..........................................................................................................................................51
9.1.3 Motors..............................................................................................................................................51
9.1.4 Fan ...................................................................................................................................................53
9.1.5 Drive belt..........................................................................................................................................53
9.2 ORIGINAL ACCESSORIES ..............................................................................................................................54
9.2.1 Activated carbon filter .....................................................................................................................54
9.2.2 Baskets.............................................................................................................................................54
9.2.3 Cleaning fluids..................................................................................................................................54

5
1General instructions
1.1 Information about this operating manual
This is the original operating manual for the product ACS 921 by Greiner Vibrograf AG.
The version and language are shown on the title page.
1.2 Information on customer service
If you have any questions about the product or would like to request a service relating to the product,
please do not hesitate to contact our Customer Service.
Contact:
Greiner Vibrograf AG
Mittelstrasse 2
CH-4900 Langenthal
[phone]
[e-mail]
www.greinervibrograf.ch
1.3 Intended use
The ACS 921 is a cleaning device that cleans watch parts with the addition of cleaning fluid. Other uses
are not permitted. The installation and operating conditions specified in this operating manual must be
adhered to.
1.4 Improper use
Only the cleaning fluids listed in Section 4.5 may be used.
Greiner Vibrograf AG accepts no liability whatsoever for the use of other products.

6
2Safety instructions
2.1 Symbols
2.2 Safety instructions and warnings
Symbol – Read operating manual
General information
General hazard
Electrical voltage warning
Warning of hot surfaces

7
2.3 Binding instructions
2.4 Emergency stop system
The ACS 921 cleaning device is equipped with an EMERGENCY STOP switch. This is located at the top of the
housing (see arrow).
It is used to quickly bring the mechanical parts of the ACS 921 to a standstill in the event of a hazard or to avert
a hazard.
Pressing EMERGENCY STOP immediately stops any movement of the ACS 921 and interrupts an active process.
The ACS 921 cannot be operated again until the EMERGENCY-STOP switch has been unlocked.
To do this, return the switch to its original position by turning it in the direction of the arrow.
Use eye protection
Use hand protection

8
An interrupted process does not start automatically (restart protection). The process must be restarted
manually.
2.5 Door monitoring system
The ACS 921 is equipped with a door monitoring system. A sensor installed at the bottom right of the housing
serves this purpose. The control system of the ACS 921 checks the sensor for proper functioning before each
start-up.
If the door is opened during the cleaning process, an active process is stopped immediately and the message
DOORS OPEN appears on the display.
As soon as the door is closed again, the active process continues at the same point.

9
2.6 Venting system
2.6.1 Device venting
The ACS 921 is equipped with a venting system. This is activated when powering up and starting up (also after
standby mode). This ensures that the interior of the ACS 921 is always vented before the cleaning process be-
gins. The venting system also remains switched on during the cleaning process, thus ensuring safe operation.
Venting outlet on top of device housing
Please note: The room in which the device is used must have a ventilation system.
If this is not the case, the exhaust air must not be fed directly into the room. In this case, Greiner Vibrograf AG
offers the relevant accessories as explained below:
2.6.2 Venting via activated carbon filter
An activated carbon filter (accessory) can be mounted directly on the air outlet using a connection flange.
If an activated carbon filter is used, it must still be activated in the settings. When this is activated, the device
knows when the next filter change is due and sends a message to the user.

10
2.6.3 Venting with hose connection
A hose (nominal diameter 100 mm) can be connected directly by means of a connection flange and a matching
transition piece: this then conducts the exhaust air into the atmosphere through a room opening.
Flexible suction pipe, Ø 100 mm
All accessories described in Section 2.6 including article numbers can be found in Section 9.2
Accessories or on the website at:
www.greinervibrograf.ch/Filter-Serie-ACS (in German)

11
3Function, set-up and commissioning
3.1 Description of function
•The ACS 921 is a cleaning device that is primarily intended for use with watch parts.
•The ACS 921 has six process positions which are distributed every 60° on a turntable.
•Five cleaning baths, one with ultrasound function and one drying position.
•The watch parts are fitted into the matching plastic or metal baskets.
(for details of original accessories, see Section 9.2).
•The baskets can then be inserted into the basket holder provided for this purpose.
•After this, the basket holder is snapped into the operating position by means of a bayonet lock.
•Next, select the desired programme on the display and press the start button.
•The handling of the cleaning baths and their fluids and the creation of programmes are described in
more detail in Section 4 Operation.
3.2 Setting up
•Remove the ACS 921 and the accessories supplied from their packaging and position them at the desig-
nated set-up location.
Due to the weight of the device, this must be done by two people!
•Keep the packaging for any returns in case repairs are required.
•The outlet opening of the venting fan (top) must not be covered.
•If the installation room cannot be sufficiently ventilated or cannot be ventilated at all, we recommend
using an activated carbon filter, which can be ordered as an accessory. It is also possible to connect an
exhaust air hose with a connecting piece (accessory). (see Section 2.6)
In any case, room ventilation is very important and it is the responsibility of the operator of
the ACS 921 to ensure people are protected!
•The inlet opening of the heater fan (rear) must not be covered.
•Remove the packaging material from the ACS 921.
•Check the ACS 921 and accessories for completeness. (other accessories can be ordered through Cus-
tomer Service)
•Connect the ACS 921 to the mains using the connection cable supplied.
Please note the power input specifications!

12
3.3 Commissioning
Switch on the ACS 921 using the power switch at the bottom rear (on the rear wall of the device).
The ACS 921 now performs an initialisation process:
1. The interior of the device is ventilated. The following appears on the display: VENTING PROCESS
2. The spin motor is initialised. The following appears on the display: SPIN MOTOR INITIALISATION
3. The lift motor is initialised. The following appears on the display: LIFTMOTOR INITIALISATION
4. The turntable is initialized. The following appears on the display: TURNTABLE INITIALISATION
This initialisation process is performed when the ACS 921 is switched on via the mains switch.
Doors may not be opened or left open during the initialisation process.
If the ACS 921 is started with the open door, the message OPEN DOOR appears on the display.
The process is not continued until the door is closed again.
The ACS 921 is now ready to start.
After a certain time (adjustable), the ACS 921 goes into standby mode:
The next time the device is started from standby mode by touching the touch screen, only the VENTING PROCESS
is carried out.
The device is then ready to start again.
Before starting a cleaning programme, the device checks the door can be securely closed.
In order to confirm the process, the door has to be opened and closed again.
Only once this safety check has been carried out can the relevant cleaning programme be
started by pressing the start button again.

13
3.4 Insert the liquid container and position the turntable
3.4.1 Inserting the liquid container
Proceed as for changing the bath according to Section 4.3.9
Please note: Before inserting the containers, check that they are filled correctly.
Please note: During insertion, so that no fluid is drained.
Important! Bath 1 is always the ultrasound bath and may only be fitted with the relevant container.
Position 1 without container Position 1 with container (ultrasound bath)
Baths 2 to 5 are cleaning baths or rinsing baths. Here, too, only use the original glasses provided for the pur-
pose.
Position 2 without container Position 2 with container (original glass)

14

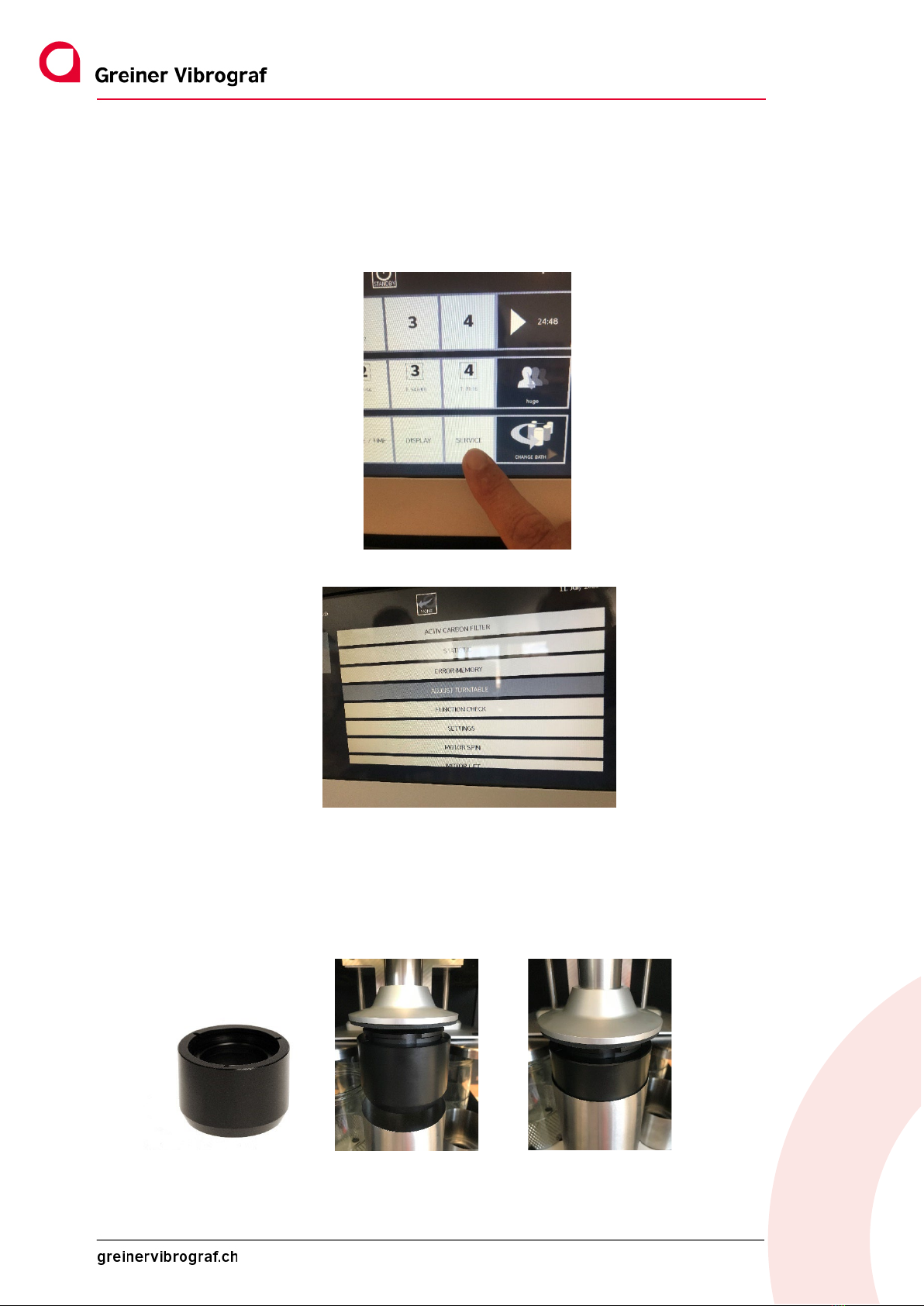

3.4.2 Position the turntable (if necessary)
The turntable is very easy to set to the exact position using the menu.
1. To do so, press SERVICE and log in with the user login.
2. SELECT ADJUST TURNTABLE
3. The following message appears: WAIT UNTIL THE START POSITION IS REACHED
Recommendation: So that the correct position can be set more easily and quickly, we recommend us-
ing the centering aid, which is available as an accessory.
This is simply used instead of the basket holder.
Centering aid Art.No: 17192

15
4. Open the door and set the turntable to the correct position as accurately as possible.
If the position is OK, press NEXT STEP, and the lift slowly moves down.
5. The following message appears: Caution: lift is moving down slowly
6. The exact position can now be checked again and readjusted if necessary.
7. If the position is OK, it still has to be saved by pressing NEXT STEP
8. The positioning process is now complete
3.5 Inserting baskets
1. Lift the spin flange cover (Figure 1)
2. Snap the basket holder into place at three points with the bayonet fastener (Fig. 2+3)
To do this, push the basket holder upwards and turn it anticlockwise.
3. Release the basket holder in the snap-in position – the process is now complete.
Fig. 1 Fig. 2 Fig. 3
To remove the baskets, simply proceed in the reverse order.

16
3.6 Holder systems
Basket holder upper part D=80mm Insert holder with bracket
(Standard) (Optionally available for additional accessories)
Art.Nr: 17138 Art.Nr: 17191
To change, loosen the two threaded pins on the shaft and pull the holder down.
Important during assembly: Pay attention to alignment, the two threaded pins must be on the two
surfaces of the axle are aligned and then tightened.

17
4Screen
The ACS 921 features a large 10” touchscreen.
This screen is used to perform all functions and settings.
After starting up the ACS 921, the following main menu is always displayed:
The main menu is divided into three areas:
4.1.1 PROGRAMME:
This is where previously configured and saved individual programmes are stored. A maximum of 20
programmes can be saved. A name can be set for each programme.
The total time of the selected programme is displayed in the far right area.
The arrow triangle is the start button for the previously selected programme.
4.1.2 PROCESS:
The individual process steps (1-6) and their duration are displayed here. Each process step can be
modified or adapted individually. To do this, hold down the display field for at least two seconds and
the next menu level appears.
The USER can make settings in the field on the far right.
4.1.3 SETTINGS
Here you can set the language, date and time, display and service.
The BATH CHANGE field on the far right indicates the status of the individual baths. Flashing means
that a change of bath is necessary. Changing the bath is described in more detail in Section 4.3.6.

18
4.2 Settings
Important! Most function keys have to be pressed for at least two seconds to go to the next setting
level.
4.2.1 Process no. 1 (ultrasound bath)
Process no. 1 is a cleaning bath, with or without ultrasound. The following screen menu shows the in-
dividual process parameters that can be changed. The setting can be changed by tapping the field
highlighted in grey.
Process no. 1 can be activated or deactivated using ON/OFF.
Important! New settings have to be confirmed with SAVE. This automatically takes the user back to
the main menu.
At the top in the middle is the HOME button which is used to return to the main menu.
The following is a detailed explanation of the individual setting options for Process no. 1:
TIME/POSITION Process duration in minutes and seconds
SPEED Speed in revolutions per minute during the ultrasound process
VERTICAL MOVEMENT Vertical movement during the cleaning process ON or OFF
SPINNING TIME Switch-on time of the SPIN drive in minutes and seconds
SPINNING SPEED Speed of SPIN drive in revolutions per minute
ULTRASONIC Ultrasound ON or OFF
ULTRASONIC FREQUENCY Ultrasound frequency 40 or 80 kHz or combined 40/80 kHz

19
4.2.2 Process nos. 2—5 (Cleaning and Rinsing)
Process nos. 2—5 can be used either as a cleaning or rinsing bath. The following screen menu shows
the individual process parameters that can be changed. The setting can be changed by tapping the
field highlighted in grey.
Process nos. 2—5 can be activated or deactivated using ON/OFF.
Important! New settings must be confirmed with SAVE. This automatically takes the user back to the
main menu.
At the top in the middle is the HOME button which is used to return to the main menu
The following is a detailed explanation of the individual setting options for Process nos. 2—5:
TIME/POSITION Process duration in minutes and seconds
ROTATION/OSCILLATION Rotation of the basket or back and forth movement (oscillation)
VERTICAL MOVEMENT Vertical movement during the cleaning process ON or OFF
SPINNING TIME Switch-on time of the SPIN drive in minutes and seconds
SPINNING SPEED Speed of SPIN drive in revolutions per minute
4.2.3 Process no. 6 (Drying)
Process no. 6 is a drying process. The following screen menu shows the individual process parameters
that can be changed. The setting can be changed by tapping the field highlighted in grey.
Process no. 6 can be activated or deactivated using ON/OFF.

20
Important! New settings have to be confirmed with SAVE. This automatically takes the user back to
the main menu.
At the top in the middle is the HOME button which is used to return to the main menu
The following is a detailed explanation of the individual setting options for Process no. 6:
TIME/POSITION Process duration in minutes and seconds
SPEED Speed in revolutions per minute during drying process
VERTICAL MOVEMENT Vertical movement during the drying process ON or OFF
WAITING TIME Waiting time in minutes and seconds at the end of drying
TEMPERATURE Drying temperature 30—60 °C or switched off (OFF)
Example of how to set the time: scroll the dial until the desired setting appears in the frame.
The new setting is confirmed and accepted by tapping the checkmark:
