MICRO-AIR MX3510 User manual

This manual contains specific cautionary statements relative to worker safety. Read this manual thoroughly and follow
as directed. It is impossible to list all of the hazards of dust control equipment. It is important that use of the equipment
be discussed with a Micro-Air Representative. Persons involved with the equipment or systems should be instructed how
to operate in a safe manner.
MX3510
Installation and Operation Manual
MICRO AIR
www.microaironline.com

2
MX3510 MICRO AIR
WARNINGS:
CAUTION: Installation can cause exposure to live components. Disconnect electrical power
before proceeding with installation. Proper Lock Out / Tag Out procedures should be used.
All electrical work must be done by a qualified electrician according to local, state and
national codes.
Improper installation or operation of this equipment can cause damage to equipment and /
or injury to personnel. The installation / operation manual must be read and followed in its
entirety.
MX3510 SPECIFICATIONS:
Motor:
1-1/2 HP, 1725 RPM, 1 Phase, TEFC
3 HP, 1760 RPM, 3 Phase, TEFC
Input Voltage:
1-Phase - 120V, 60 Hz
3-Phase - 230/460V, 60 Hz
Max Current:
1-Phase - 16 Amps
3-Phase - 8.4/4.2 Amps
Blower:
12-9 Belt Driven
Dimensions:
26"H x 26"W x 69"L
Shipping Weight:
300 lbs.
Actual Weight:
268 lbs.*
*Add 35 lbs. per charcoal module when selected.
PACKAGE CONTENTS:
1 Ea.
MX3510 Unit
1 Ea.
Owner's Manual
4 Ea.
5/16-18 Eye Bolt
4 Ea.
5/16-18 Hex Nut
EQUIPMENT / TOOLS REQUIRED:
Forklift or Hoist
Lifting straps or chains
Socket wrenches
Wire nuts

3
MX3510 MICRO AIR
PRE-OPERATING INSTRUCTIONS:
1. Inspect the unit for any visible damage that may have occurred during shipment. Report any
damage to the delivery carrier.
2. Remove the shipping crate, shipping straps and plastic wrap from unit. Discard skid and hardware.
3. Determine the location where the unit is to be installed. Be sure to allow sufficient access to the
unit for servicing and maintenance on all sides.
HANGING INSTRUCTIONS:
1. Remove the hanger kit from the owner’s manual envelope which contains four (4) threaded
eyebolts and hex nuts.
2. Thread a nut onto each eyebolt and thread an eyebolt into each of the four (4) threaded holes in
the cabinet. Tighten nuts against the cabinet. The unit is now ready to be hung in an appropriate
location.
NOTE: If hanging MX 3510 upside down is required, remove the four (4) 5/16” hex bolts from the
bottom of cabinet and relocate to top four corners. Then place the four (4) eye bolts into bottom
panel of cabinet.
3. Once eye bolts are secured, the MX 3510 is ready to be hung in an appropriate location. (See FIG.
1)
CAUTION: Use strong braided wire or chain to support the air cleaner. Hang from structural
supports.
NOTE: If a unit is to be installed on brackets against a wall, use brackets strong enough to hold the
unit. Install brackets securely onto the wall.
FIG. 1
NOTE: CHAIN LINK OR CABLE SHOULD HANG
VERTICALLY. MAXIMUM ANGLE OF 15º IS
RECOMMENDED FROM VERTICAL.
Eye Bolts & Hex
Nuts are supplied.

4
MX3510 MICRO AIR
ELECTRICAL CONNECTIONS:
All electrical work must be done by a qualified electrician according to local, state and
national codes. Be sure that the designated circuit breaker is off until all wiring has been
completed.
NOTE: It is recommended that a properly sized motor starter and overload protector be used in the
supply circuit of the 3 Phase motor. The 120V units have thermally protected motors with on/off
switches.

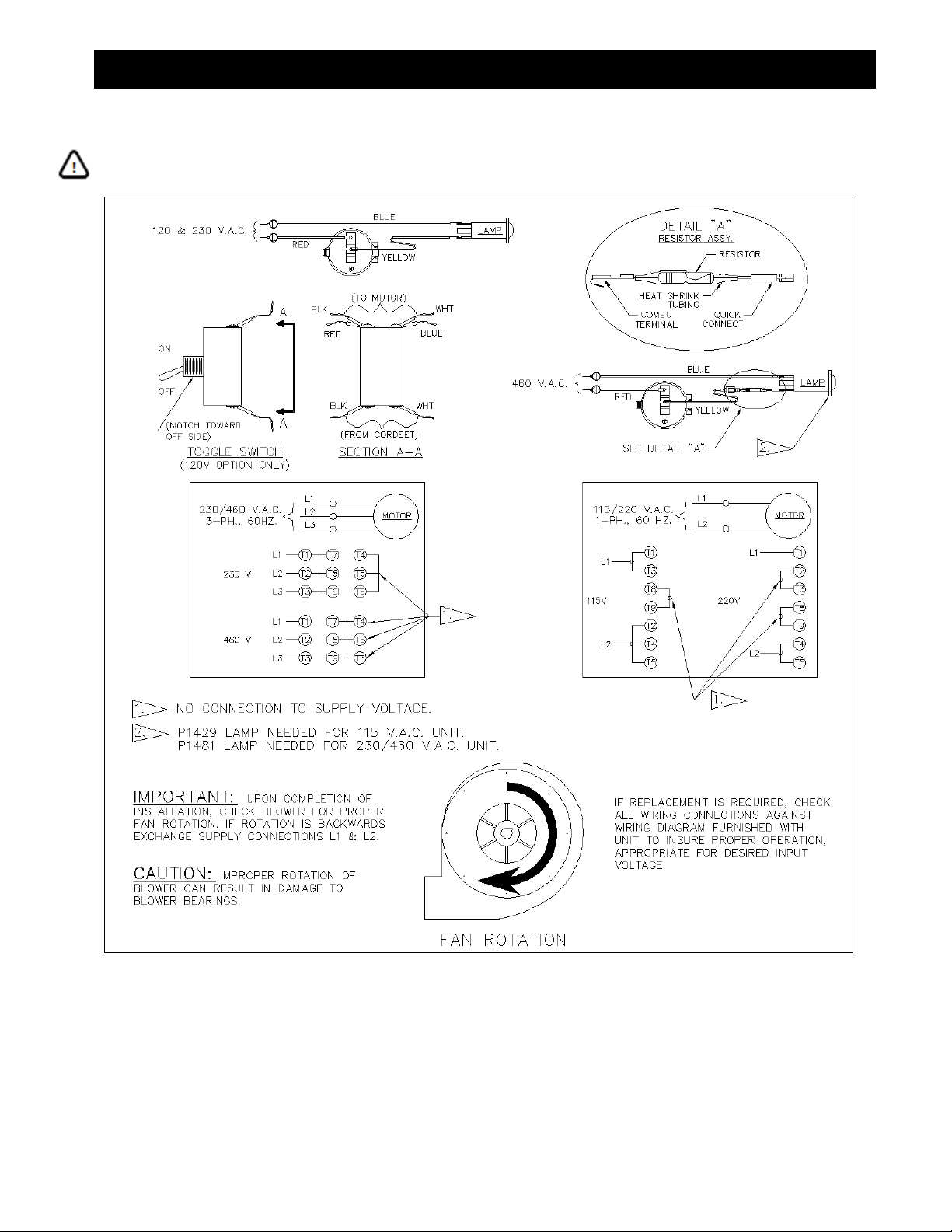

1. Make electrical connections as shown in the wiring diagram to the wires protruding from the
conduit on the side of the unit.
2. Check blower for proper rotation direction. Blower should rotate clockwise when viewed from the
pulley end. If the blower rotates backwards, interchange two of the motor supply connections.
3. Check current draw of the motor. Do not exceed Amps specified.
PRE-OPERATING CHECKLIST:
Check blower drive belt for proper tension. Belt should deflect ¾” when firm pressure is applied
midway between the pulleys.
Check that motor, blower and drive pulleys are mounted securely.
Make sure that both corners of every pocket in the filter bag is supported by the filter support rods
and that filter support rods are fully engaged in their support brackets.
Air flow direction arrows on the pre-filters must point toward the blower.
Make sure all access panels removed during the installation are re-installed and the filter access
door is closed.
GENERAL MAINTENANCE:
Occasionally check the condition of the drive belt for tightness and wear.
Check the bower bearings for unusual wear and the blower wheel for debris and dirt. Clean when
necessary.
Check the wiring for loose connections or for cracked insulation.
No lubrication is required for the motor because it is a permanent pre-lube design. Excessive
dirt/oil should be periodically removed.
PRESSURE SWITCH ADJUSTMENT:
1. The pressure switch which turns the light on with a differential pressure increase, should be wired
to poles L1 (red) and L2 (blue) at the time of installation with 230/460 volt source (See Wiring
Diagram).
2. The pressure switch is preset at the factory to indicate (light on) dirty filters, but may need
readjustment due to a desire for earlier or later filter changes, a different combination of filters, or
because the set point shifted during shipping. The pressure switch is also orientation sensitive. To
re-adjust the switch, remove the hole plug in the side of the unit for access to the adjustment
screw. Make sure filters and pre-filters are installed in unit. Turn the unit on and place a piece of
cardboard over the intake covering about 80% to 85% of the intake area. With a standard

5
MX3510 MICRO AIR
screwdriver, turn the adjustment screw clockwise until the light goes off, or counterclockwise until
the light comes on.
3. For more time between filter changes (less air flow), cover slightly more of the opening, and for
less time between filter changes (more air flow), cover less of the opening.
AIR FLOW ADJUSTMENT:
Depending on the configuration, the MX3510 will be equipped with a variable diameter pulley on the
motor to allow the air flow to be adjusted to the installation requirements. The pulley is set for
maximum air flow from the factory. The air flow rate can be adjusted as follows:
1. Remove motor compartment access cover. Be careful to avoid tearing gasket material between
door and cabinet.
2. Remove belt.
3. Loosen pulley adjustment set screw on motor pulley and screw adjustable sheave out away from
fixed sheave. Tighten set screw onto flat of fixed screw (FIG. 1).
4. Adjusting the motor pulley may require a size larger or smaller belt, depending on the application.
5. Replace belt and check belt tension. Proper tension should be between 1/2” and 3/4” deflection
when belt is squeezed with normal pressure between fingers.
6. Replace motor compartment access cover.
7. Recheck for correct draw of motor amperage. NOTE: All filters and panels must be installed on
unit and door must be closed for current measurements of motor.
FIG. 2
Increase
Diameter
Decrease
Diameter
Set Screw
Fixed Sheave
Adjustable Sheave –Rotate by ½ Turn
increments to Increase Pitch Diameter

6
MX3510 MICRO AIR
CHANGING FILTERS:
Always make sure that the unit is turned off before changing filters or servicing the unit.
1. The MX3510 is equipped with a filter change light or optional Magnehelic Gauge. If the differential
pressure has been set properly the light or gauge signals the need for examination for the filters.
2. When the light comes on, or gauge reads high differential pressure, turn the unit off and remove
the pre-filter only. Replace with a new pre-filter, making sure that the air flow directional arrow is
pointed toward the outlet end. Turn the unit back on. If the filter change light is off, or gauge reads
low differential pressure, then the unit is operating properly.
3. If the filter change light fails to go out, or the gauge continues to read high differential pressure
after replacing the pre-filter, then the media filter also needs to be replaced.
4. To install a new bag filter, turn the unit off. Remove the filter from the channel and insert a new
filter in place.
5. Start the unit. The filter change light should be off or gauge reads low differential pressure and the
unit should be operating properly.
INSTRUCTIONS FOR SIDE DISCHARGE BLOWER EXHAUST:
Read instructions completely before making changes. Due to relocation of internal
components, some wiring may be loose. Be sure to retain wires so they will not become
loose in air stream of blower inlet.
1. The MX3510 motor/blower module can be rotated so that the exhaust air exits from the side of the
unit. Before rotating the motor/blower module be sure that all input power is disconnected and the
unit is turned off.
2. Remove the motor access door and exhaust grille.
3. Remove 5/16” hex bolts and washers that secure the motor/blower module to the filter module.
4. Rotate the motor/blower module 90° as shown in FIG. 3.
5. Using 5/16” hex bolts and washers, re-secure the motor/blower module to the filter module.
6. Re-install motor access door and exhaust grille.
7. Reconnect input power and turn unit on. Check for proper air flow and blower rotation.
FIG. 3
Motor Access Door
Filter Module
Filter Door
Blower Module

7
MX3510 MICRO AIR
UNITS WITH HEPA OR CHARCOAL AS A SECOND MAIN FILTER:
On units with optional HEPA or charcoal
filters, an adjustable filter track kit is used to
complete the seal of the filters to the filter
stop (FIG. 4 & FIG. 5). If the unit was ordered
with either a HEPA or charcoal filter, the
adjustable filter track kit is included with the
unit. If a HEPA or charcoal filter is ordered as
an after-market item, the adjustable filter track
kit should be ordered as well. Order part
number 38036-01.
Each filter track kit is supplied with:
ITEM
QTY.
DESCRIPTION
1
1 Ea.
Filter Track
2
2 Ea.
Supports
3
1 Ea.
Handle
4
4 Ea.
Retaining Brackets
5
1 Ea.
Door Stop Bracket
6
3 Ea.
Horizontal Support
7
16 Ea.
#8-32 Self-Tapping Hex Screws

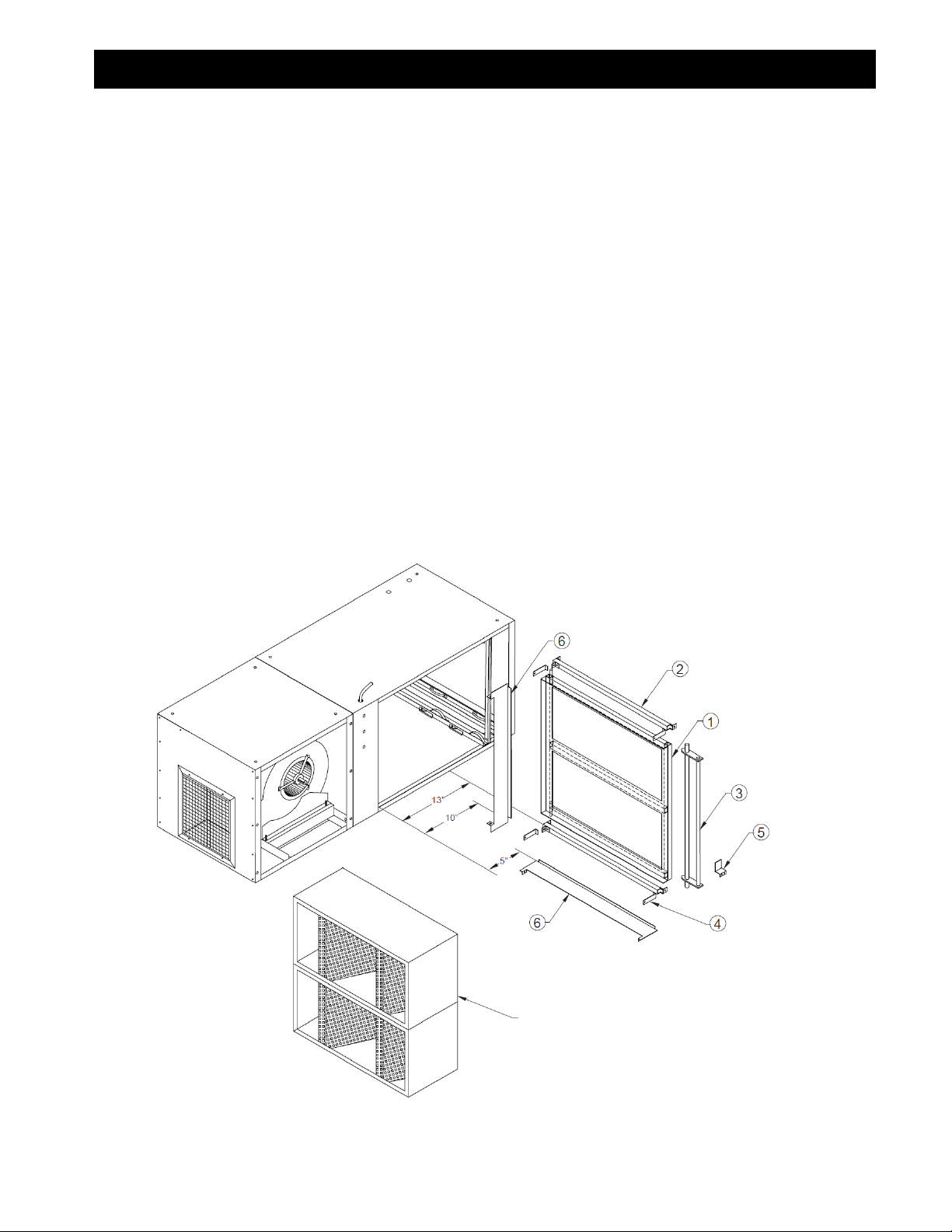

FIG. 4
INSTALLATION:
1. Place supports (Item # 2) in cabinet at a
dimension of 13-1/4” and secure with self-
tapping screws.
2. Place track supports (Item # 1) in cabinet so it
rests upon supports and 1/2” diameter pin is
located behind brackets on supports.
3. Place handle supports (Item # 3) on supports
so that it rests in notches.
4. Lock 1/2” diameter rods on handle and track in
place with brackets supports (Item # 4) and
self-tapping screws.
5. Place handle stop bracket supports (Item # 5)
at a dimension of 15-1/2” and secure with self-
tapping screws. This is to keep handle from
rotating past 90º and allowing filter to loosen.
6. Place horizontal supports (Item # 6) in 2
places. One piece at a dimension of 5” on
bottom of cabinet and one piece at a
dimension of 10” on rear cabinet with self-
tapping screws.
RCM

8
MX3510 MICRO AIR
UNITS WITH HEPA OR CHARCOAL AS A FIRST AND SECOND MAIN FILTER:
On units with optional HEPA or charcoal filters,
an adjustable filter track kit is used to complete
the seal of the filters to the filter stop (FIG. 3 &
FIG. 4). If the unit was ordered with either a
HEPA or charcoal filter, the adjustable filter
track kit is included with the unit. If a HEPA or
charcoal filter is ordered as an after-market
item, the adjustable filter track kit should be
ordered as well. Order part number 38036-01.
Each filter track kit is supplied with:
ITEM
QTY.
DESCRIPTION
1
1 Ea.
Filter Track
2
2 Ea.
Supports
3
1 Ea.
Handle
4
4 Ea.
Retaining Brackets
5
1 Ea.
Door Stop Bracket
6
3 Ea.
Horizontal Support
7
16 Ea.
#8-32 Self-Tapping Hex Screws
INSTALLATION:
1. Place supports (Item # 2) in cabinet at a
dimension of 24-15/16” and secure with self-
tapping screws.
2. Place track (Item # 1) in cabinet so it rests
upon supports and 1/2” diameter pin is located
behind brackets on supports.
3. Place handle (Item # 3) on supports so that it
rests in notches.
4. Lock 1/2” diameter rods on handle and track in
place with brackets (Item # 4) and self-tapping
screws.
5. Place handle stop bracket at a dimension of
27” and secure with self-tapping screws. This
is to keep handle from rotating past 90º and
allowing filter to loosen.
6. Place horizontal supports (Item # 6). One piece
on rear of cabinet at a dimension of 9”, 1 piece
on bottom of cabinet at 5” and 1 piece on
bottom of cabinet at 12-3/4” and secure with
self-tapping screws.

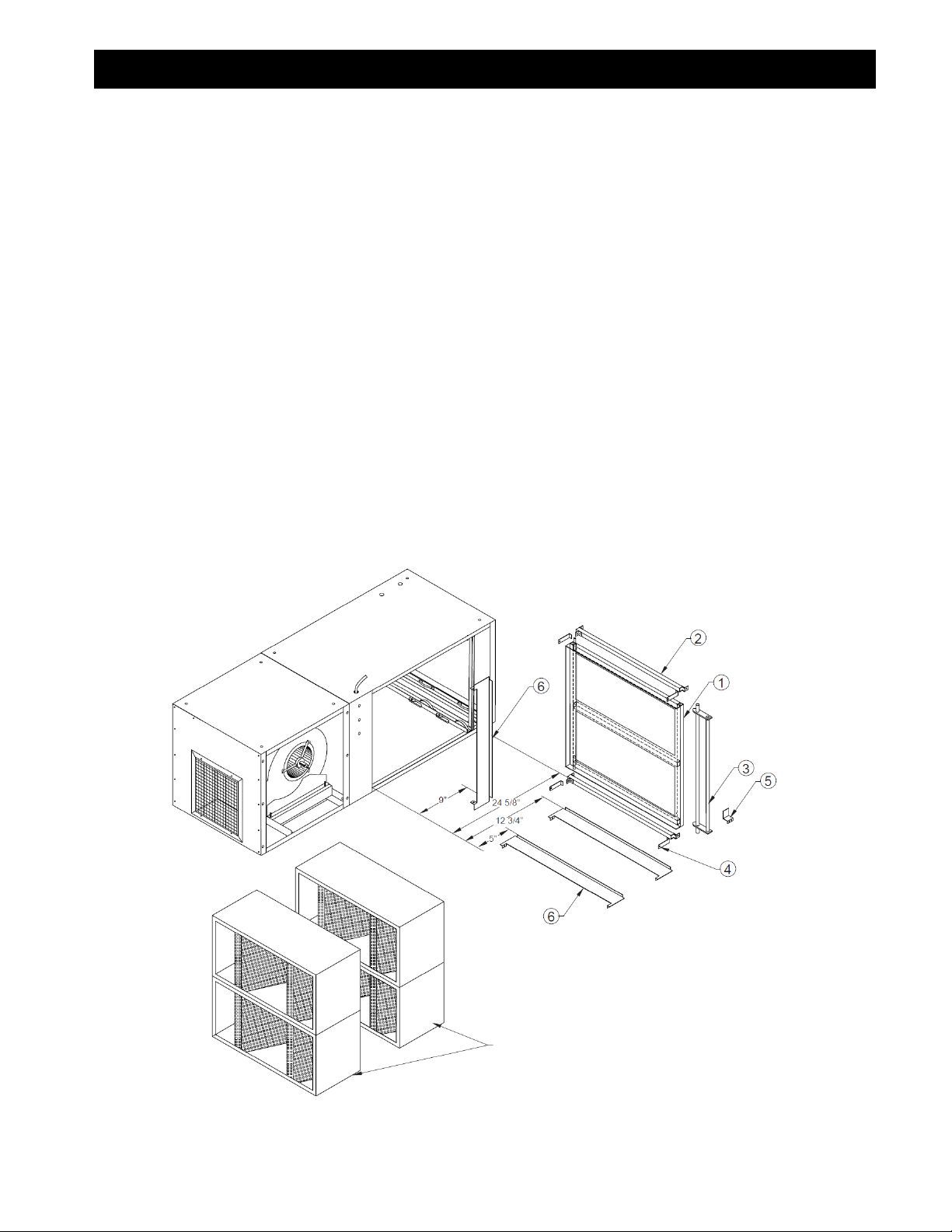

FIG. 5
RCM

9
MX3510 MICRO AIR

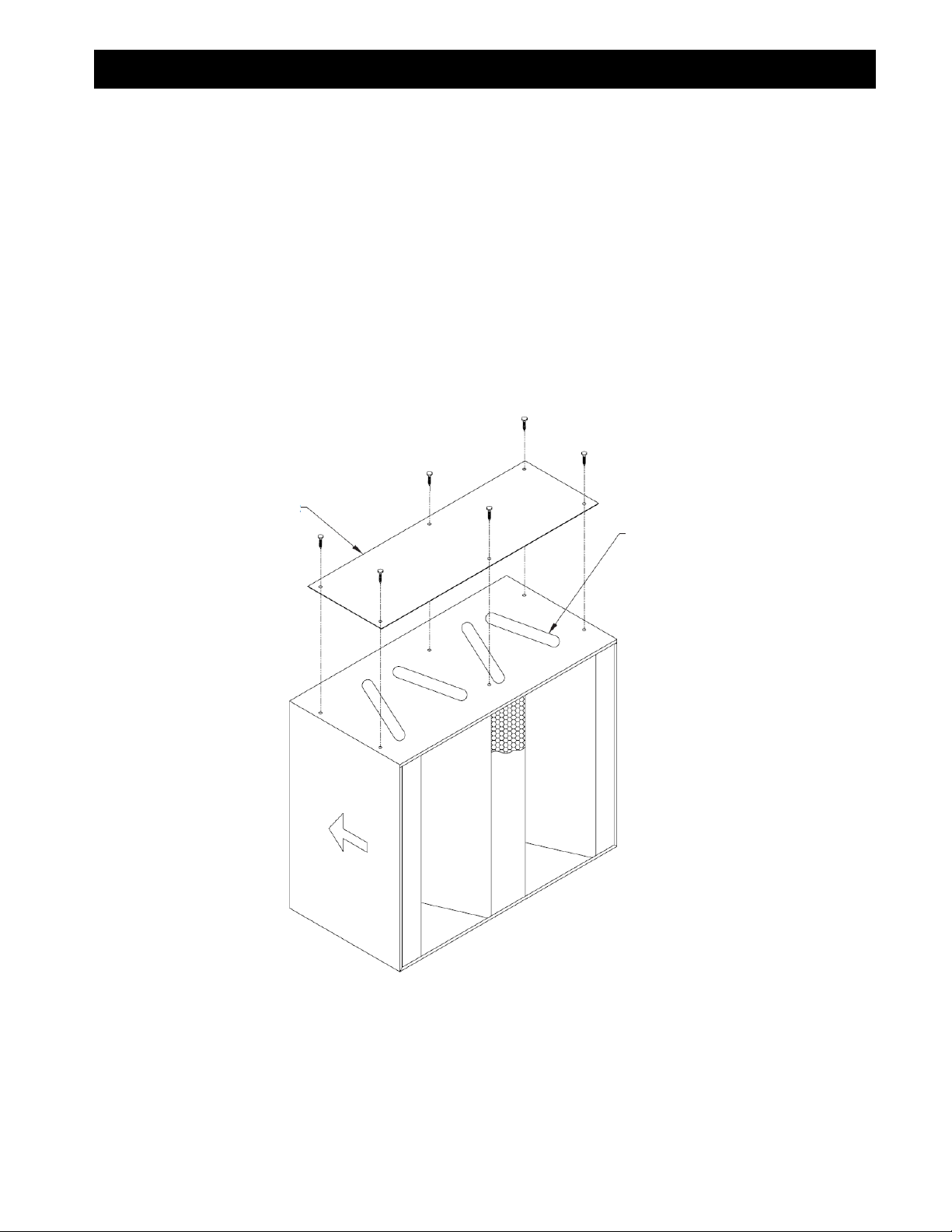

FILLING OF RCM MODULES:
1. Remove bulk charcoal or purasorb from the shipping container.
2. Set module on a level surface. Remove fill cover by removing six #10-32 Phillip head screws that
secure cover. Set cover aside (FIG. 6).
3. Open the lid of the charcoal or purasorb bucket. Pour the material from the plastic bag into the
module through the slots. It may be necessary to slightly shake the module to assure an even fill.
Excess material may be saved by resealing the bucket. Note that slow pouring will minimize dust
that will be present during filling.
4. After filling the module, discard the bucket and reinstall the fill cover removed in step 2.
5. With filter track in place and handle pulled out away from cabinet load RCM modules into track.
6. With filters in place rotate handle 90º and lock filter modules in place.
NOTE: The MX3510 requires two modules when used as a second main filter and four modules
when used as a first and second main filter.
FIG. 6
Fill Cover
Pour Material
into Slots

10
MX3510 MICRO AIR
OPTIONAL SILENCER INSTALLATION:
1. Remove exhaust grille from unit as shown in Fig. 7.
2. Slide silencer over blower assembly.
3. Align holes from silencer with those located on side of the blower assembly.
4. Attach silencer to blower assembly using 3/8” bolt, lock washer and flat washer.
5. Center exhaust grille over hole in silencer and attach using #8-32 self-tapping machine screws.
FIG. 7
#8-31 SMS
Exhaust Grille
Silencer
Flat Washer
Lock Washer
3/8-16 Bolt
Blower Assembly

11
MX3510 MICRO AIR

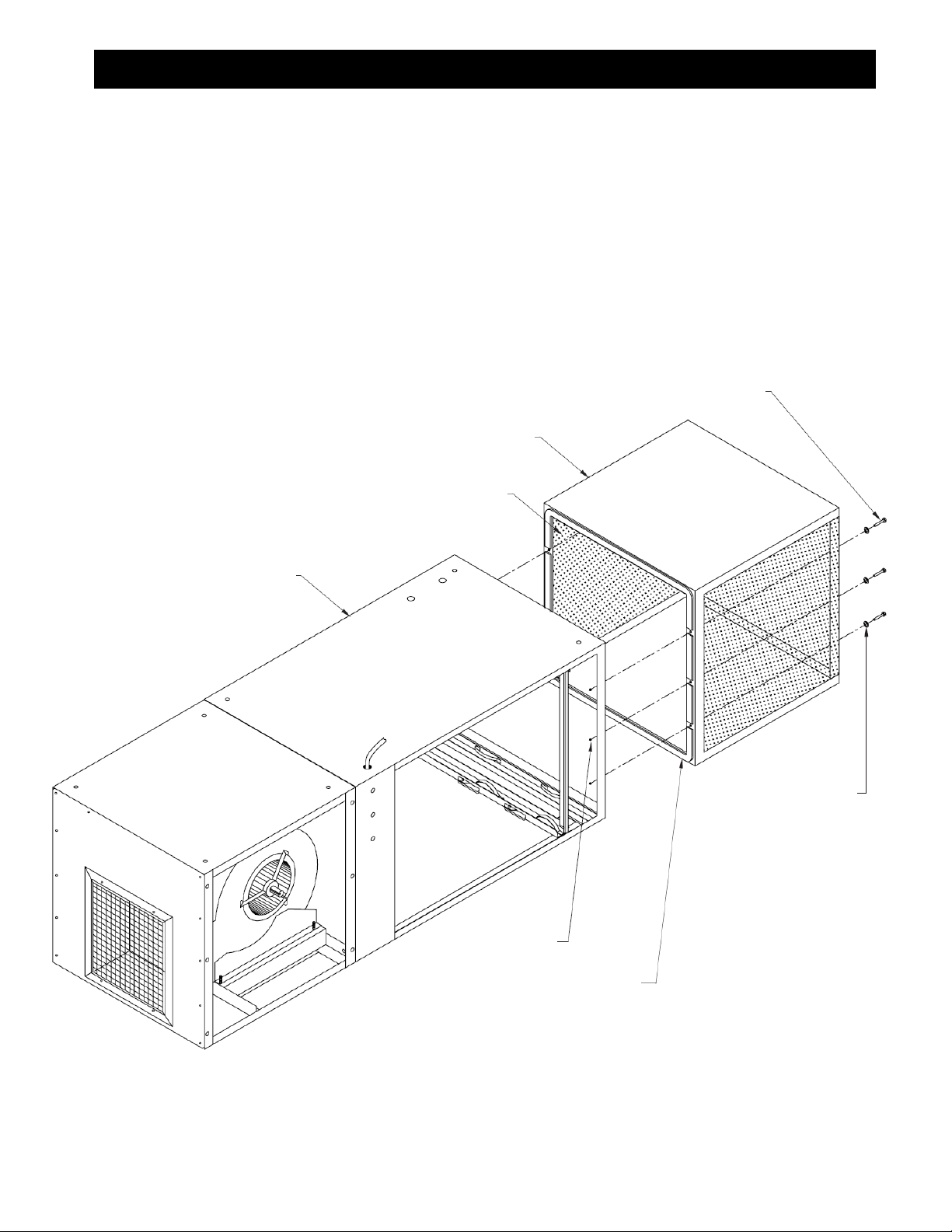

OPTIONAL WRAP AROUND PRE-FILTER INSTALLATION:
Kit includes:
PART NO.
QTY.
DESCRIPTION
38086-01
1 Ea.
WAPF Assembly
P114
6 Ea.
5/16-18 x ¾” Hex Head Bolt
P222
6 Ea.
5/16-18 Hex But
P233
6 Ea.
5/16” Flat Washer
Installation:
1. Align six holes from WAPF with holes located on bottom of air filter unit.
2. Using hardware supplied, attach WAPF module.
FIG. 8
WAPF Assembly
Filter Media
(3 Sides)
MX3510
5/16-18 Hex Bolt
Typ. (6) Places
5/16-18 Hex Nut
Typ. (6) Places
5/16” Washer
Typ. (6) Places
1/8” x 1/4” Adhesive-Backing
Foam

12
MX3510 MICRO AIR
WIRING DIAGRAM:
All electrical work must be done by a qualified electrician according to local, state and
national codes.
FIG. 9

13
MX3510 MICRO AIR
TROUBLESHOOTING:
CAUTION: Before disassembling the unit or doing any inspecting of the parts, make certain
that the power has been cut off and the blower has come to a complete stop. NEVER run the
unit with the access door opened or the panels removed.
TABLE 1 –Troubleshooting Chart
PROBLEM
POSSIBLE CAUSE
REMEDY
Unit fails to start
No incoming power
Check the circuit and switch
Blown breaker or fuse
Replace fuse or throw breaker
Loose wire in terminal box
Reconnect wire
Burned out motor
Replace motor
Primary voltage to motor contactor
Take steps to increase voltage to primary
is below 10% tolerance
Motor thermal trip (1 Phase only)
Reset at motor
Tripped overload (3 Phase only)
Reset overload protector
Unit runs slowly,
Wired for wrong voltage
Check input voltage
Inadequate capture
Check wiring diagram
Improper rotation
Check wiring diagram
Switch L1 & L2 (3 Phase only)
Internal obstruction
Remove obstruction
Pulleys set for improper static
Adjust or change pulleys
Dirty filters
Service/Replace filters
Vibration
Loose motor mounting bolts
Tighten bolts
Foreign objects in blower/
Remove debris from blower
Build-up on blower wheel
Dirty filters
Service/Replace filters
Mist coming from exhaust
Dirty disposable filters on torn filters
Service/Replace filters
Air bypass around filters
Check for proper seal against picture
frame and seals on door and back wall

14
MX3510 MICRO AIR
MX3510 ASSEMBLY PARTS LIST:
FIG. 10

15
MX3510 MICRO AIR
MX3510 ASSEMBLY PARTS LIST:
ITEM
PART NO.
DESCRIPTION
ITEM
PART NO.
DESCRIPTION
1
P1977
Grille
12
P1710
4.95" Blower Pulley
2
38010-01
Blower Access Panel
P1504
5.45" Blower Pulley
3
P1429
Light (120V)
P1974
6.25" Blower Pulley
P1481
Light (230V, 460V)
P3218
8.00" Blower Pulley
4
P3505
Pressure Switch
P3270
9.75" Blower Pulley
5
38072-01
Cabinet Weldment
13
P3498
12-9 Blower
6
P1372
Latch
14
P3214
Filter Gasket (Specify Length)
7
38011-02
Motor Access Panel
N/S
38059-01
SCM w/ (3) 8” Collars
8
38043-01
Filter Door
N/S
38059-02
SCM w/ (2) 10” Collars
9
P2105
1-1/2HP, Var. Pitch Dia. Motor Pulley
N/S
38059-03
SCM w/ (1) 16” Collars
P3578
3HP, Var. Pitch Dia. Motor Pulley
N/S
P2250
Magnehelic Gauge
P3986
3HP, 7.75" Motor Pulley
N/S
38086-01
Wrap Around Pre-Filter
10
P3545
1-1/2HP, 120V, 1 Phase Motor
N/S
38050-01
Silencer
P3495
3HP, 230/460V, 3 Phase Motor
N/S
38036-01
Filter Track
N/S
30251-01
Mounting Bracket for P3495 Motor
11
P1495
42" Belt
P3207
43" Belt
P3550
49" Belt
P7135
51" Belt
REPLACEMENT FILTER LIST:
PART NO.
DESCRIPTION
PART NO.
DESCRIPTION
P1411
24" x 24" x 4" Pleated Pre-Filter
P1799*
24" x 24" x 2" Baffle Oil Impinger
P1439
24" x 24" x 32" 55% Bag Filter
P2101
24" x 24" x 12" 99.97% DOP HEPA
P1442
24" x 24" x 32" 95% Bag Filter
P2179
24" x 24" x 32" 95% Oil Mist Bag Filter
P1455
24" x 24" x 12" 95% DOP HEPA
33628-01
WAPF Pad
P1460
24" x 24" x 15" 95% Short Bag Filter
33740-00
Refillable Module
P1461*
24" x 24" x 2" Pleated Pre-Filter
P1450 - Purasorb Media
P1475*
24" x 24" x 2" Mesh Oil Impinger
P1823 - Charcoal Media
*NOTE: 2” Pre-Filters must be used in combination to fill 4” channel.

16
MX3510 MICRO AIR

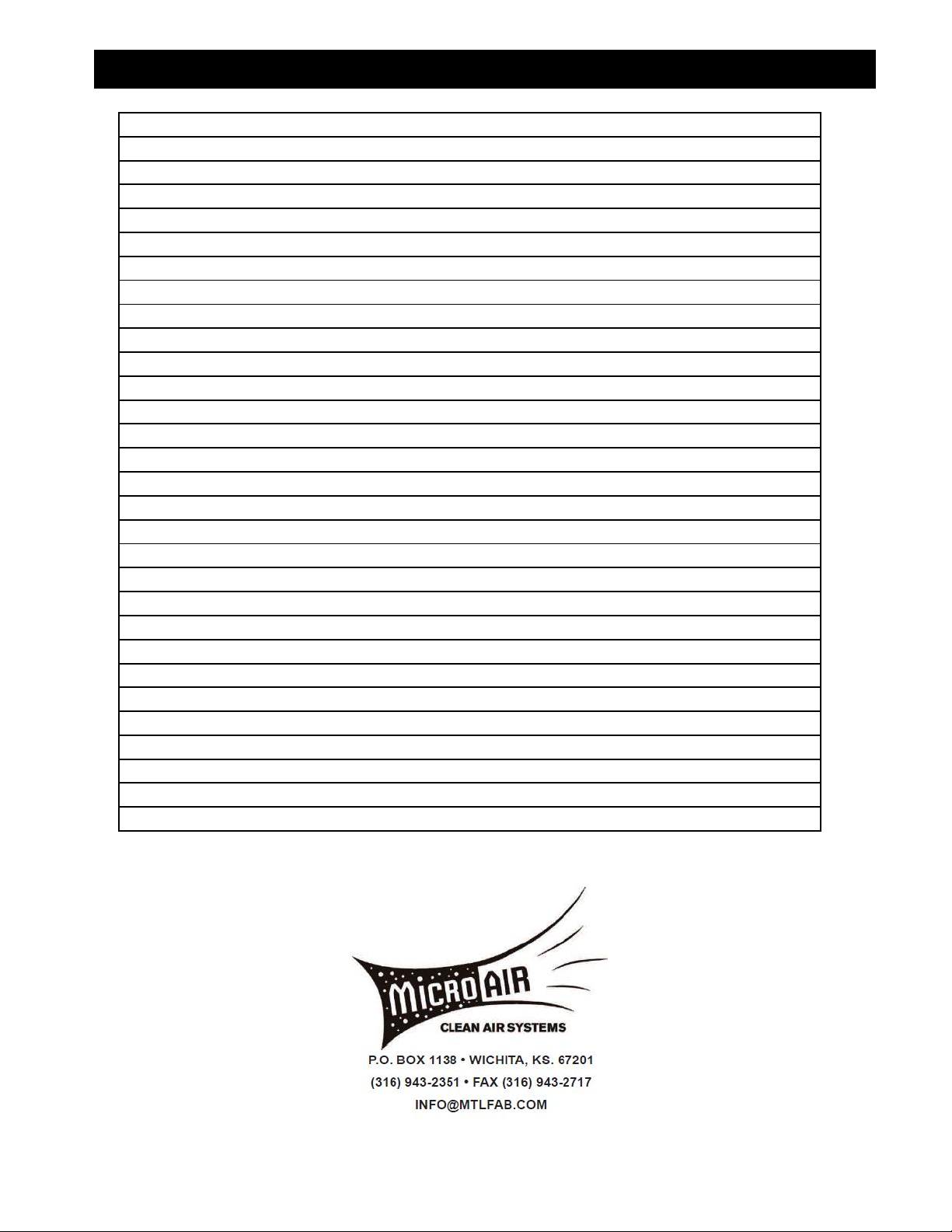

Notes:
Serial Number:
Supply Voltage:
Date Installed:
Installed By:
L1469
11/23
