MODEL G2527
1⁄3 HP ELECTRIC MOTOR
INSTRUCTION SHEET
Electrocution or fire could
result if this motor is not
grounded correctly or if
your wire connections do
not comply with local and
state codes. Ensure com-
pliance by checking with a
qualified electrician!
Electrical Safety
If you are unsure how to attach wires to terminals,
DO NOT continue. Contact a qualified electrician
for assistance. Connecting wires improperly may
cause them to come loose or contact other wires,
which can cause electrocution, fire, or a short.
Model G2527 Specifications
Power ......................................................... 1⁄3 HP
Cycle ............................................................60Hz
Voltage .................................................110/220V
Prewired ......................................................110V
Amps ......................................................5.3/2.7A
RPM ............................................................. 1725
Phase ........................................................ Single
Class ..................................................................E
Start Capacitor ........................200MFD 125VAC
Dimensions .............................. 1½"D x 23⁄8"L
COPYRIGHT © DECEMBER, 2007 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS INSTRUCTION SHEET MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#JB10228 PRINTED IN TAIWAN

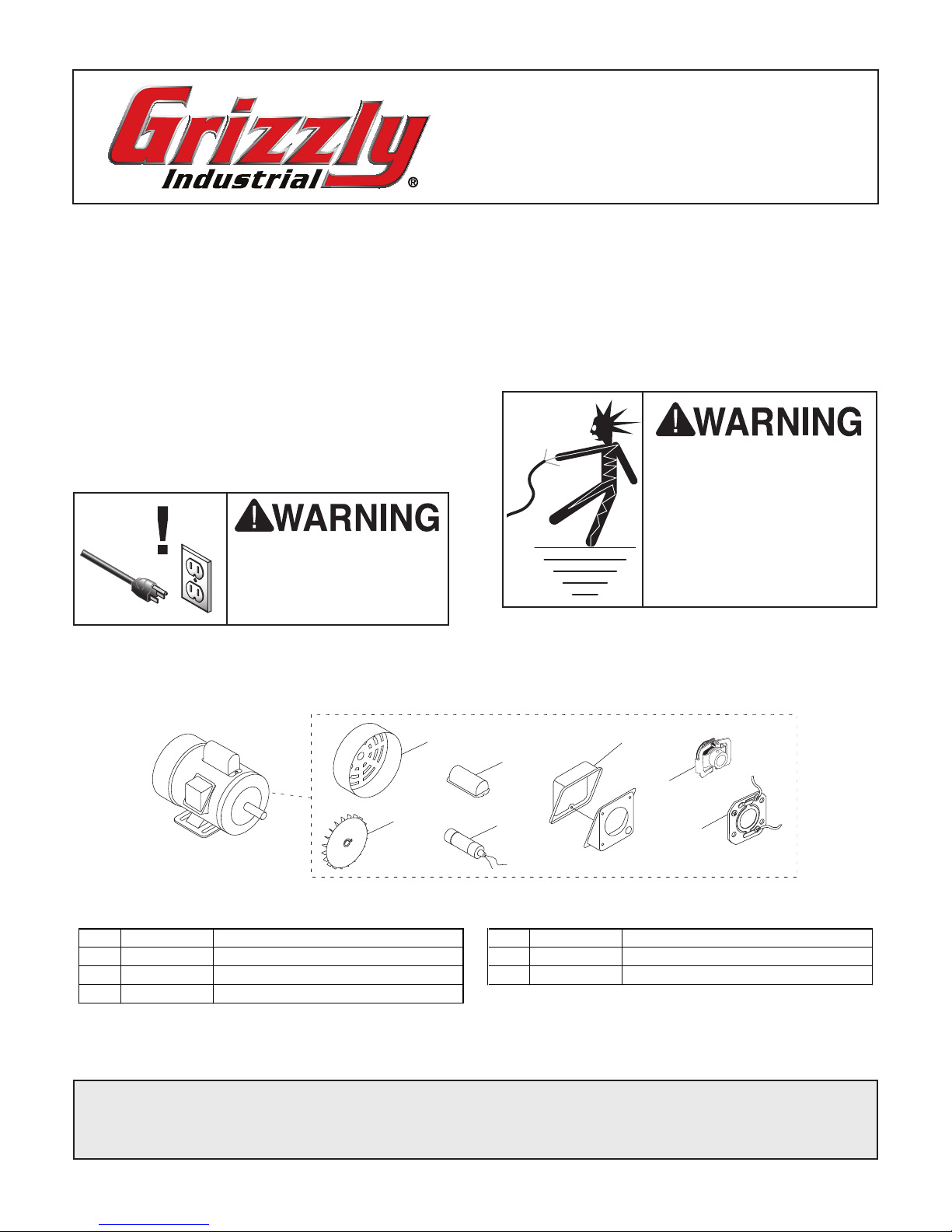

Replaceable Parts






REF PART # DESCRIPTION REF PART # DESCRIPTION
1 P2527001 MOTOR FAN COVER 5 P2527005 JUNCTION BOX
2 P2527002 MOTOR FAN 6 P2527006 CENTRIFUGAL SWITCH
3 P2527003 S CAPACITOR COVER 7 P2527007 CONTACT PLATE
4 PC200C S CAPACITOR 200M 125V 1-1/2 X 2-3/8
Disconnect power when
replacing motor. Failure
to do this may result in
serious personal injury.

-2- G2527 1⁄3 HP Electric Motor Instruction Sheet
G2527 Wiring Diagram









 





















 











     

    
    

