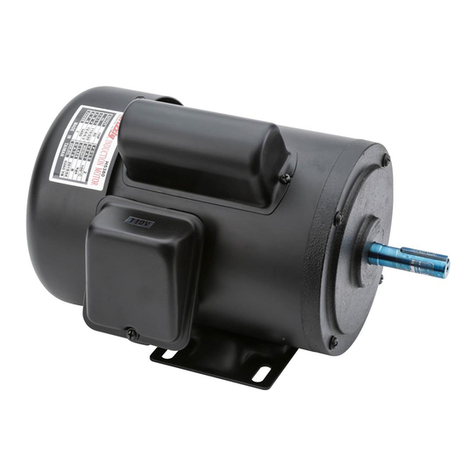

MODEL H5383
2 HP ELECTRIC MOTOR
INSTRUCTION SHEET
Electrocution or fire could
result if this motor is not
grounded correctly or if
your wire connections do
not comply with local and
state codes. Ensure com-
pliance by checking with a
qualified electrician!
Disconnect power when
replacing motor. Failure
to do this may result in
serious personal injury.
Electrical Safety
If you are unsure how to attach wires to terminals,
DO NOT continue. Contact a qualified electrician
for assistance. Connecting wires improperly may
cause them to come loose or contact other wires,
which can cause electrocution, fire, or a short.
Model H5383 Specifications
Power .......................................................... 2 HP
Cycle ............................................................60Hz
Voltage .................................................110/220V
Prewired ......................................................220V
Amps .....................................................21/10.5A
RPM ............................................................. 1725
Phase ........................................................ Single
Class ..................................................................B
Start Capacitor ........................400MFD 125VAC
Dimensions .............................. 17⁄8"D x 33⁄8"L
Run Capacitor ...........................70MFD 250VAC
Dimensions .............................. 17⁄8"D x 33⁄8"L
COPYRIGHT © DECEMBER, 2007 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS INSTRUCTION SHEET MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#JB10226 PRINTED IN TAIWAN
Replaceable Parts









REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PH5383001 MOTOR FAN COVER 6 PC070 R CAPACITOR 70M 250V 1-7/8 X 3-3/8
2 PH5383002 MOTOR FAN 7 PH5383007 JUNCTION BOX
3 PH5383003 S CAPACITOR COVER 8 PH5383008 CENTRIFUGAL SWITCH
4 PC400E S CAPACITOR 400M 125V 1-7/8 X 3-3/8 9 PH5383009 CONTACT PLATE
5 PH5383005 R CAPACITOR COVER

-2- H5383 2 HP Electric Motor Instruction Sheet
H5383 Wiring Diagram































































     

    
    

