Grizzly H6151 User manual

Introduction
The Model H6151-54 provides a strong air and
water tight seal using polyethylene or polypropyl-
ene plastic bags.
Specifications
MODEL H6151-54
HEAT SEALING
MACHINES
INSTRUCTION SHEET
Figure 1. Model H6151 inventory.
COPYRIGHT © APRIL 2007 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#BL9116 PRINTED IN CHINA
A
BC
Figure 2. Model H6152 identification.
Dial
Indicator
Light
Arm
Teflon
Strip
Inventory (Figure 1) Qty
A. Heat Sealing Machine ............................... 1
B. Teflon Fabric Strips .................................... 2
C. Heating Elements ....................................... 2
Model H6151 H6152 H6153 H6154
Power 200W 300W 400W 1000W
Seal Length 100mm 200mm 300mm 400mm
Seal Width 2mm 2mm 3mm 3mm
Seal
Thickness
0.2mm 0.3mm 0.4mm 0.4mm
Heating
Time
0.2-1.5
(sec)
0.2-1.5
(sec)
0.2-1.5
(sec)
0.2-2
(sec)
Dimensions 24 x 9
x 16cm
8 x 32
x 15cm
8.2 x 45
x 18cm
9.2 x 56
x 18cm
Weight 1.8kg 2.7kg 4.5kg 5.5kg
Operation
1. Remove the shipping brace, place the sealer
on a level surface and connect it to a 110V
AC power source.
2. Adjust the dial on the sealer (see Figure 2)
according to the thickness and type of plastic
bag.
Use a higher indicator setting for thick mate-
rial and a lower setting for thin material.
3. Open the arm, place the shortest width of the
bag across the teflon strip and press the arm
down. The red indicator light will illuminate.
Note: The sealer will not turn ON until you
press the arm down. Therefore, you can leave
it plugged into power between uses.
4. After the red light turns off, wait a second
for the seal to cool, then raise the arm and
remove the bag.

-2- H6151-54 Heat Sealing Machines
5. Check the seal.
— If the sealer leaves a 2-3mm wide band
across the bag, the dial setting is correct.
—If the sealer did not leave an evenly
melted band across the bag, go to the
Troubleshooting section.
Accessories
Grizzly carries bags for the Model H6151-54:
H7291—Plastic Roll, 4" x 2",150' x 2mil
H7292—Plastic Roll, 8" x 2,150' x 2mil
H7293—Plastic Roll, 4" x 1,075' x 4mil
H7294—Plastic Roll, 8" x 1,075' x 4mil
H7295—Plastic Bag, 4" x 6" x 2mil, 100 Count
H7296—Plastic Bag, 5" x 8" x 2mil, 100 Count
H7297—Plastic Bag, 9" x 12" x 2mil, 100 Count
H7298—Plastic Bag, 14" x 16" x 2mil, 100 Count
H7299—Plastic Bag, 9" x 12" x 4mil, 100 Count
H7300—Plastic Bag, 14" x 16" x 4mil, 100 Count
Grizzly cannot guarantee the compatibility of bags
sold by other companies with the Model H6151-
54.
Maintenance
Occassionally the sealer will require cleaning.
1. DISCONNECT THE SEALER FROM THE
POWER before performing maintenance!
2. Use an eraser, a dry cloth or a finger to
remove residue from the top teflon strip and
the rubber strip on the arm. Do not use sol-
vents.
Service
If the teflon strips become torn replace them and
the heating element.
To replace the teflon strips and heating ele-
ment:
1. DISCONNECT THE SEALER FROM THE
POWER!
2. Remove the metal plates, the teflon strips
and the heating element. On Model H6151
and H6152, remove the screw at the front of
the sealer that secures the heating element
(see Figure 3).
Figure 3. Teflon strips and heating element,
Model H6151.
3. Install new teflon strips and a heating ele-
ment—sandwich the element between the
strips, and reinstall the metal plates.
Troubleshooting
• If the sealer creates a partial seal, select a
higher dial setting to increase the heating
time.
• If the sealer melts through the bag or the bag
sticks to the teflon strip, select a lower dial
setting.
• If the bag sticks to the rubber strip on the
arm, press the arm down longer after the
red light switches off to increase the cooling
time.
If you need help with your new heat sealer, call
our Tech Support at: [phone].
Figure 4. Teflon strips and heating element,
Model H6153.
Teflon Strip
Heating
Element
On Model H6153 and H6154, remove the front
cover and push forward on the terminal assembly
to release the heating element (see Figure 4).
Metal
Plates
Screw
Teflon
Strips
Heating
Element
Screw
Metal Plate
Front Cover

H6151-54 Heat Sealing Machines -3-

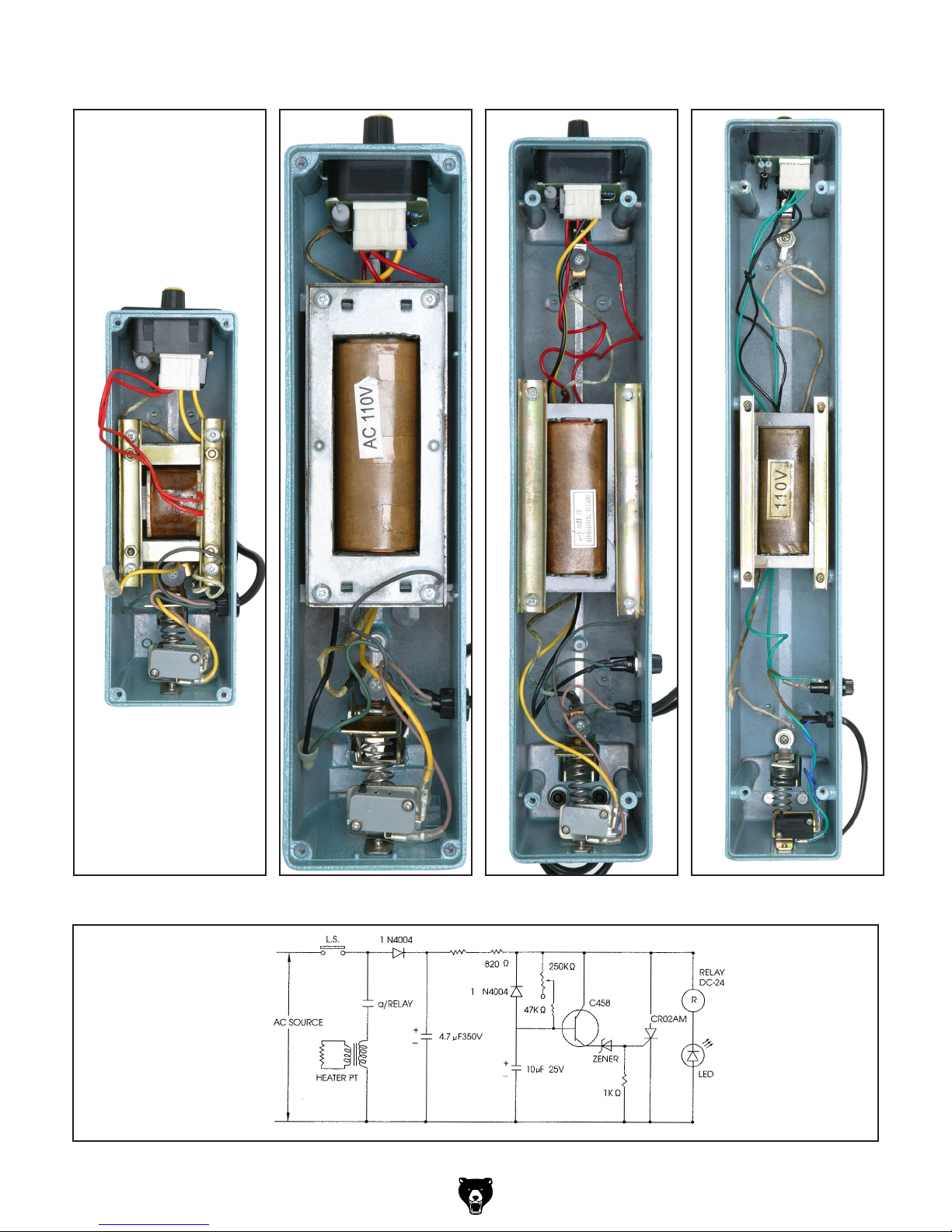

Electrical Components & Wiring Diagram
FIgure 9. Model H6151-54 wiring diagram.
Figure 7. Model H6153.Figure 6. Model H6152. Figure 8. Model H6154.Figure 5. Model H6151.

-4- H6151-54 Heat Sealing Machines
1
7
4
8
9
13
10
11
12
15
16
17
18
20
32 14
35
36
37
37
38
39
30
21
22
23
25
26
27
28
20 24
30
31
40
39
41
42
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PH6151001 HANDLE KNOB 23 PH6151023 HEATER TRANSFORMER
2 PH6151002 PLATEN ARM 24 PH6151024 WIRE CONNECTOR
3 PH6151003 PLATEN SPRING 25 PH6151025 MICROSWITCH
4 PH6151004 PLATEN 26 PH6151026 SWITCH BRACKET
5 PH6151005 SILICON RUBBER STRIP 27 PH6151027 SWITCH INSULATION
6 PS01M PHLP HD SCR M4-.7 X 18 28 PH6151028 SWITCH LEVER SPRING
7 PH6151007 HINGE 30 PH6151030 HEATER TERMINAL ASSEMBLY
8 PH6151008 HINGE BRACKET 31 PH6151031 GROUNDING WIRE
9 PH6151009 SEALER BASE 32 PH6151032 COVER PLATE
10 PH6151010 METAL PLATE 35 PH6151035 RUBBER FOOT AND SCREW
11 PH6151011 LOWER TEFLON ELEMENT 36 PSS81M SET SCREW M3-.5 X 5
12 PH6151012 UPPER TEFLON CLOTH 37 PS12M PHLP HD SCR M3-.5 X 6
13 PH6151013 STRAIN RELIEF 38 PFH57M FLAT HD SCR M3-.5 X 8
14 PH6151014 POWER CORD 39 PS17M PHLP HD SCR M4-.7 X 6
15 PH6151015 HEATING ELEMENT 40 PS18M PHLP HD SCR M4-.7 X 25
16 PH6151016 PILOT LAMP 41 PS59M PHLP HD SCR M3-.5 X 14
17 PH6151017 TIMER KNOB 42 PS07M PHLP HD SCR M4-.7 X 8
18 PH6151018 CONTROL PANEL ASSEMBLY 43 PSB04M CAP SCREW M6-1 X 10
20 PH6151020 SWITCH LEVER 47 PLW09M LOCK WASHER 3MM
21 PH6151021 WIRE CONNECTOR 48* PTLW01M EXT TOOTH WASHER 4MM
22 PH6151022 INTERNAL WIRING
23
56
12
10
43
47 48*
* Part not shown in breakdown

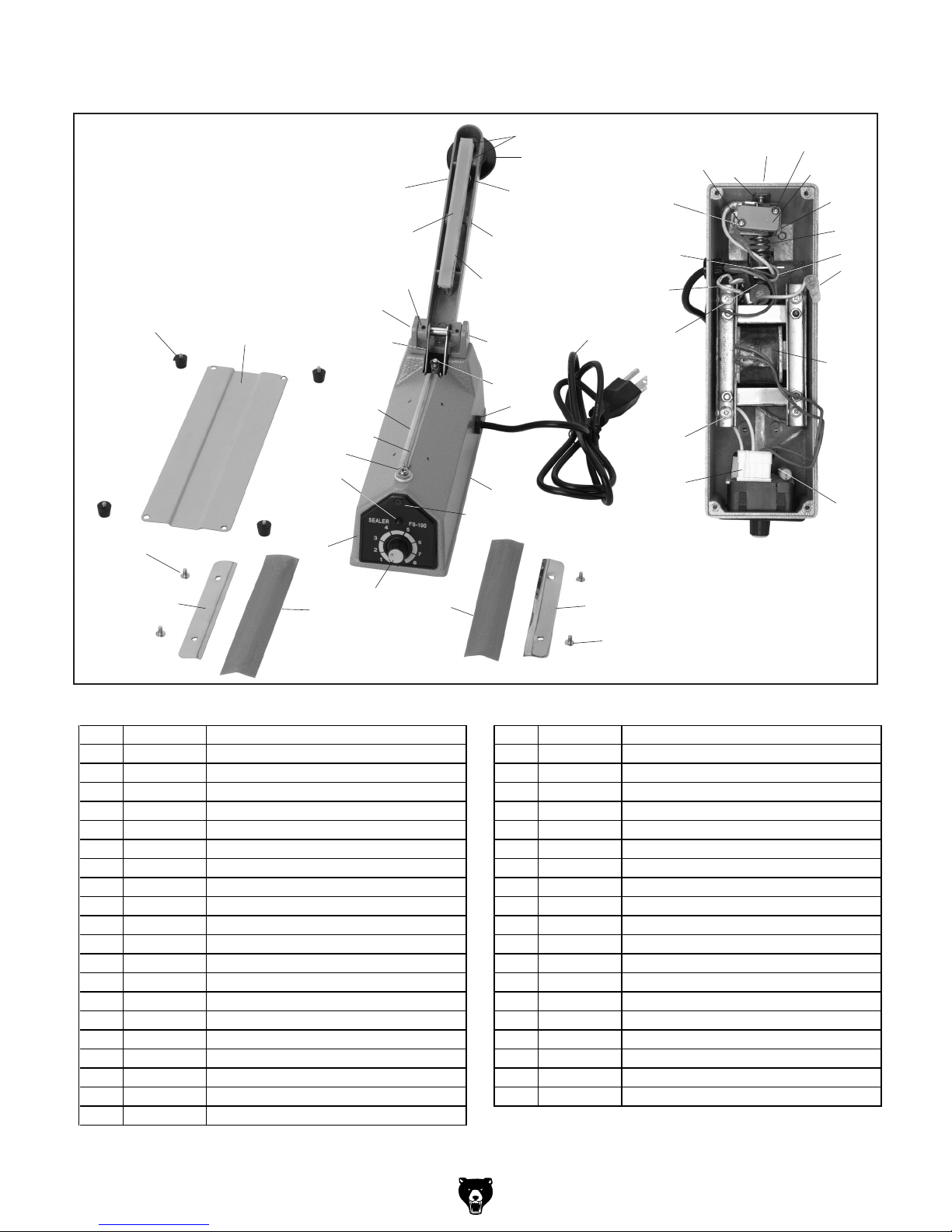

H6151 Parts Breakdown & List

H6151-54 Heat Sealing Machines -5-
H6152 Parts Breakdown & List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PH6152001 HANDLE KNOB 23 PH6152023 HEATER TRANSFORMER
2 PH6152002 PLATEN ARM 24 PH6152024 WIRE CONNECTOR
3 PH6152003 PLATEN SPRING 25 PH6152025 MICROSWITCH
4 PH6152004 PLATEN 26 PH6152026 SWITCH BRACKET
5 PH6152005 SILICON RUBBER STRIP 27 PH6152027 SWITCH INSULATION
6 PH6152006 SPECIAL PHLP HD SCR M5-.8 X 25 28 PH6152028 SWITCH LEVER SPRING
7 PH6152007 HINGE 30 PH6152030 HEATER TERMINAL ASSEMBLY
8 PH6152008 HINGE BRACKET 31 PH6152031 GROUNDING WIRE
9 PH6152009 SEALER BASE 32 PH6152032 COVER PLATE
10 PH6152010 METAL PLATE 35 PH6152035 RUBBER FOOT AND SCREW
11 PH6152011 LOWER TEFLON ELEMENT 36 PSS81M SET SCREW M3-.5 X 5
12 PH6152012 UPPER TEFLON CLOTH 37 PS12M PHLP HD SCR M3-.5 X 6
13 PH6152013 STRAIN RELIEF 38 PFH57M FLAT HD SCR M3-.5 X 8
14 PH6152014 POWER CORD 39 PS17M PHLP HD SCR M4-.7 X 6
15 PH6152015 HEATING ELEMENT 40 PS18M PHLP HD SCR M4-.7 X 25
16 PH6152016 PILOT LAMP 41 PS59M PHLP HD SCR M3-.5 X 14
17 PH6152017 TIMER KNOB 42 PS07M PHLP HD SCR M4-.7 X 8
18 PH6152018 CONTROL PANEL ASSEMBLY 43 PSB04M CAP SCREW M6-1 X 10
20 PH6152020 SWITCH LEVER 47 PLW09M LOCK WASHER 3MM
21 PH6152021 WIRE CONNECTOR 48 PTLW01M EXT TOOTH WASHER 4MM
22 PH6152022 INTERNAL WIRING
1
7
4
8
9
13
10
11
12
15
16
17
18
20
32 14
35
36
37
38
39
30
21
22
23
25
26
27
28 24
30 31
40
41
42
23
5
6
12
10
43
47 48*
* Part not shown in breakdown

-6- H6151-54 Heat Sealing Machines

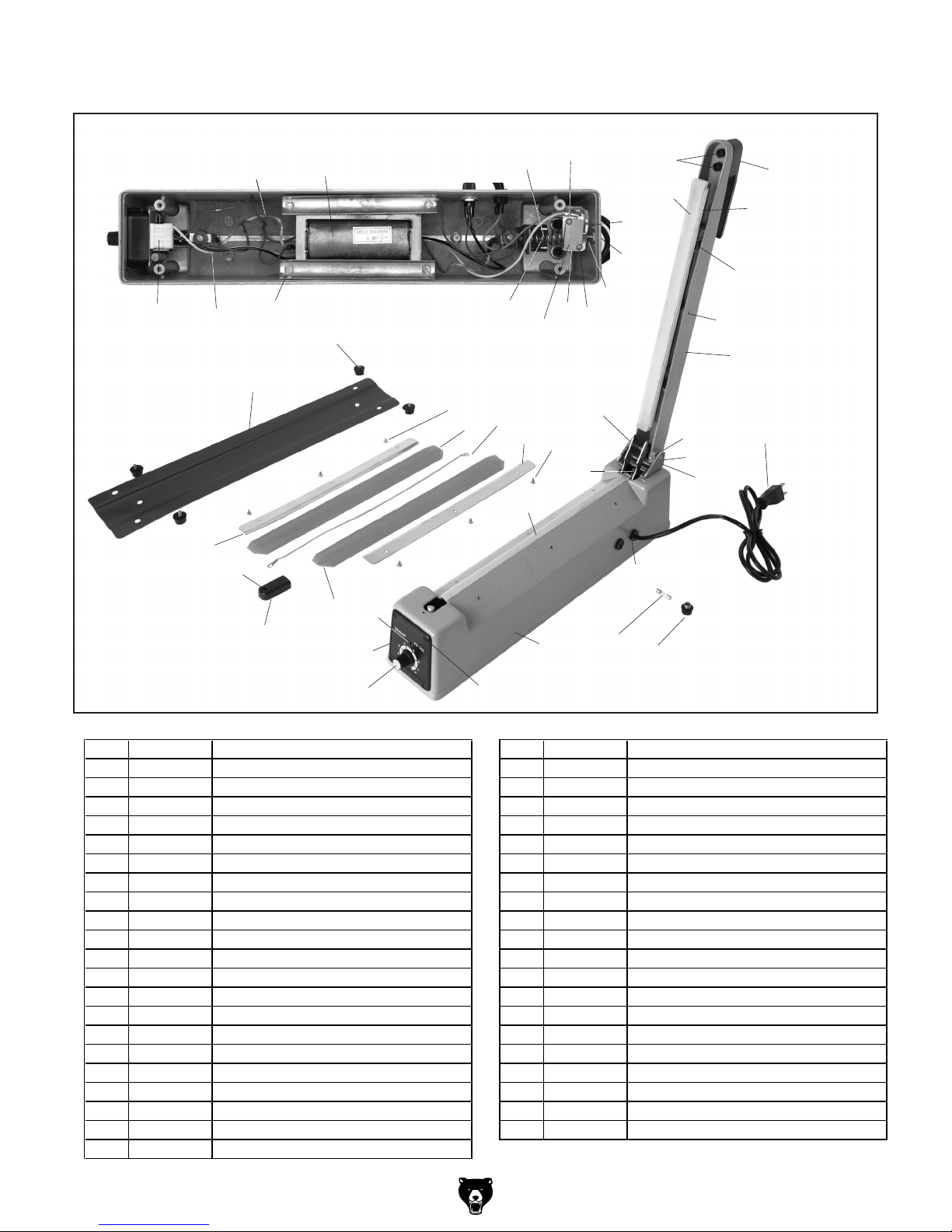

H6153 Parts Breakdown & List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PH6153001 HANDLE KNOB 25 PH6153025 MICROSWITCH
2 PH6153002 PLATEN ARM 26 PH6153026 SWITCH BRACKET
3 PH6153003 PLATEN SPRING 27 PH6153027 SWITCH INSULATION
4 PH6153004 PLATEN 28 PH6153028 SWITCH LEVER SPRING
5 PH6153005 SILICON RUBBER STRIP 30 PH6153030 HEATER TERMINAL ASSEMBLY
6 PH6153006 SPECIAL PHLP HD SCR M5-.8 X 25 31 PH6153031 GROUNDING WIRE
7 PH6153007 HINGE 32 PH6153032 COVER PLATE
8 PH6153008 HINGE BRACKET 35 PH6153035 RUBBER FOOT AND SCREW
9 PH6153009 SEALER BASE 36 PS79M PHLP HD SCR M3-.5 X 8
10 PH6153010 METAL PLATE 37 PS12M PHLP HD SCR M3-.5 X 6
11 PH6153011 LOWER TEFLON ELEMENT 38 PFH57M FLAT HD SCR M3-.5 X 8
12 PH6153012 UPPER TEFLON CLOTH 39 PS55M PHLP HD SCR M3-.5 X 10
13 PH6153013 STRAIN RELIEF 40 PS21M PHLP HD SCR M4-.7 X 15
14 PH6153014 POWER CORD 41 PS59M PHLP HD SCR M3-.5 X 14
15 PH6153015 HEATING ELEMENT 42 PS07M PHLP HD SCR M4-.7 X 8
16 PH6153016 PILOT LAMP 43 PSB04M CAP SCREW M6-1 X 10
17 PH6153017 TIMER KNOB 45 PH6153045 FUSE
18 PH6153018 CONTROL PANEL ASSEMBLY 46 PH6153046 FRONT COVER
20 PH6153020 SWITCH LEVER 47 PLW09M LOCK WASHER 3MM
21 PH6153021 WIRE CONNECTOR 48* PTLW01M EXT TOOTH WASHER 4MM
22 PH6153022 INTERNAL WIRING 49 PH6153049 FUSE COVER
23 PH6153023 HEATER TRANSFORMER
22
23
25
26
27
28
30
31
41
42
47
48*
1
7
4
8
9
13
11
15
16
17
18
20
32
14
35
36
37
38
39
30
2
3
5
6
12
10
43
21 40
46 45 49
37
10
12
* Part not shown in breakdown

H6151-54 Heat Sealing Machines -7-
H6154 Parts Breakdown & List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PH6154001 HANDLE KNOB 23 PH6154023 HEATER TRANSFORMER
2 PH6154002 PLATEN ARM 25 PH6154025 MICROSWITCH
3 PH6154003 PLATEN SPRING 26 PH6154026 SWITCH BRACKET
4 PH6154004 PLATEN 28 PH6154028 SWITCH LEVER SPRING
5 PH6154005 SILICON RUBBER STRIP 30 PH6154030 HEATER TERMINAL ASSEMBLY
6 PFH45M FLAT HD SCR M5-.8 X 30 31 PH6154031 GROUNDING WIRE
7 PH6154007 HINGE 32 PH6154032 COVER PLATE
8 PH6154008 HINGE BRACKET 35 PH6154035 RUBBER FOOT AND SCREW
9 PH6154009 SEALER BASE 36 PS55M PHLP HD SCR M3-.5 X 10
10 PH6154010 METAL PLATE 37 PS79M PHLP HD SCR M3-.5 X 8
11 PH6154011 LOWER TEFLON ELEMENT 38 PFH57M FLAT HD SCR M3-.5 X 8
12 PH6154012 UPPER TEFLON CLOTH 39 PS55M PHLP HD SCR M3-.5 X 10
13 PH6154013 STRAIN RELIEF 40 PS02M PHLP HD SCR M4-.7 X 12
14 PH6154014 POWER CORD 41 PS50M PHLP HD SCR M3-.5 X 12
15 PH6154015 HEATING ELEMENT 42 PH6154042 PHLP HD SCR M4-.7 X 5
16 PH6154016 PILOT LAMP 43 PHTEK37M TAP SCREW M5 X 12
17 PH6154017 TIMER KNOB 45 PH6154045 FUSE
18 PH6154018 CONTROL PANEL ASSEMBLY 46 PH6154046 FRONT COVER
20 PH6154020 SWITCH LEVER 47 PLW09M LOCK WASHER 3MM
21 PH6154021 WIRE CONNECTOR 48* PTLW01M EXT TOOTH WASHER 4MM
22 PH6154022 INTERNAL WIRING 49 PH6154049 FUSE COVER
22
23
25 26
28
31
41
42
47
48*
1
7
4
8
9
13
11
15
16
17
18
20
32 14
35
36
37
38
39
30
2
3
5
6
12
10
43
21 40
46
45 49
37
10
12
* Part not shown in breakdown











