Grizzly Slip Roll T21323 User manual

"'+" BdYZaI'&('($I'&(')B[\#&$%.VcYAViZg
&
'
(
*
)
'+
', '-
'*
'(
'(
')
&* &+ ,
&-
)&%
')
&.
'.
&'
&)
&&
.
.
&,
&+
,
-
+
'*

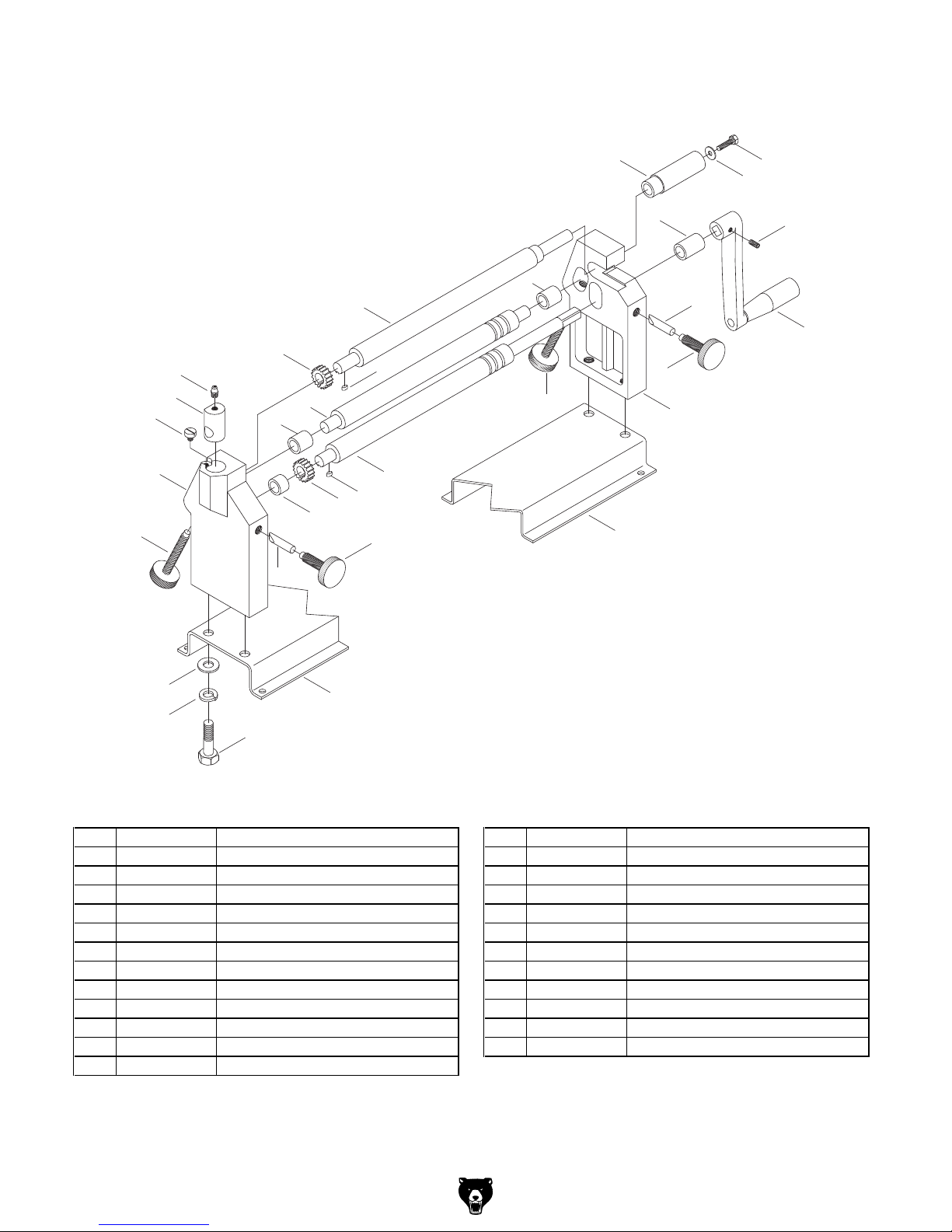

T21323 Parts Breakdown and List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PT21323001 ADJUSTMENT SCREW 15 PT21323015 BUSHING
2 PT21323002 GREASE CUP 16 PT21323016 GEAR
3 PT21323003 ROTATING SUPPORT 17 PT21323017 FIXED SHAFT
4 PT21323004 ADJUSTMENT KNOB 18 PT21323018 FRONT MOVABLE SHAFT
5 PT21323005 LEFT STAND 19 PT21323019 HANDLE ASSEMBLY
6 PT21323006 BUSHING 23 PT21323023 PIN
7 PK29M KEY 4 X 4 X 8 24 PT21323024 ADJUSTMENT KNOB
8 PT21323008 REAR MOVABLE SHAFT 25 PT21323025 BASE
9 PT21323009 HANDLE SHAFT 26 PW04M FLAT WASHER 10MM
10 PT21323010 RIGHT STAND 27 PLW06M LOCK WASHER 10MM
11 PT21323011 RELEASE ROD 28 PB48M HEX BOLT M10-1.25 X 20
12 PW03M FLAT WASHER 6MM 29 PSS02M SET SCREW M6-1 X 6
14 PSB01M CAP SCREW M6-1 X 16

BdYZaI'&('($I'&(')B[\#&$%.VcYAViZg "',"
T21323 Labels
REF PART # DESCRIPTION REF PART # DESCRIPTION
101 PLABEL-12C READ MANUAL LABEL 104 PT21323104 GRIZZLY DOMED LABEL
102 PT21323102 CRUSHING INJURY LABEL 105 PT21323105 MACHINE ID LABEL
103 PLABEL-11B SAFETY GLASSES LABEL
&%& &%'
&%(
&%)
&%*
Safety labels warn about machine hazards and ways to prevent injury. The owner of this machine
MUST maintain the original location and readability of the labels on the machine. If any label is
removed or becomes unreadable, REPLACE that label before using the machine again. Contact
Grizzly at [phone] or www.grizzly.com to order new labels.
