-52- G0588/G0591 12" Sliding Table Saws
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 P0588001 BODY 199-1 P05910199-1 OVERLOAD RELAY
2 P0588002 TABLE 199-2 P05910199-2 MAGNETIC CONTACTOR
3 PW01M FLAT WASHER 8MM 202 P0588202 DUST SHIELD
4 PSB13M CAP SCREW M8-1.25 X 30 278 P0588278 SCALE DUST COVER
5 P0588005 SWITCH PLATE 307 P0588307 TERMINAL BOX
6 P0588006 SWITCH BASE 308 P0588308 EMERGENCY BUTTON
7 PS06M PHLP HD SCR M5-.8 X 20 309 PLABEL-12 READ MANUAL 2"W X 3 5/16"
8 P0588008 MAG. SWITCH 220V-25A 310 P0588310 KICKBACK WARNING LABEL
9 PSB01M CAP SCREW M6-1 X 16 311 P0588311 DISCONNECT POWER LABEL
10 P0588010 COVER PLATE 312 PLABEL-11 SAFETY GLASSES 2" X 3 5/16"
11 P0588011 SCALE PLATE 313 PLABEL-29 CUTTERHEAD GUARD LABEL
12 PSB02M CAP SCREW M6-1 X 20 314 P0588314 RAISING BLADE LABEL
13 P0588013 ADJUSTMENT BOLT COVER 315 P0588315 TILTING BLADE LABEL
14 PSB26M CAP SCREW M6-1 X 12 316 P0588316 QUALIFIED PERSONNEL LABEL
15 P0588015 MOTOR COVER 317 PLABEL-34 PREWIRED 220V LABEL
16 PSB49M CAP SCREW M6-1 X 60 318 P0588318 LOWER BLADE GUARD LABEL
78 PB137M HEX BOLT M14-2 X 30 319 PLABEL-14 ELECTRICITY LABEL
81 PN32M HEX NUT M14-2 320 P0591320 G0591 ID LABEL
199 P05910199 MAG. SWITCH 440V-14A 321 P0588320 G0588 ID LABEL
SECTION 8: PARTS
Main Body

G0588/G0591 12" Sliding Table Saws -53-

 


















 











    







-54- G0588/G0591 12" Sliding Table Saws
REF PART # DESCRIPTION REF PART # DESCRIPTION
3 PW01M FLAT WASHER 8MM 29 PN01M HEX NUT M6-1
9 PSB02M CAP SCREW M6-1 X 20 30 PW03M FLAT WASHER 6MM
17 P0588017 TABLE INSERT 31 P0588031 SCALE BASE
18 PFH07M FLAT HD SCR M5-.8 X 10 32 P0588032 TUBE PLUG
19 P0588019 EXTENSION WING (FRONT) 33 P0588033 SCALE
20 PSB13M CAP SCREW M8-1.25 X 30 36 P0588036 RACK
21 PSS16M SET SCREW M8-1.25 X 10 37 PSB03M CAP SCREW M5-.8 X 8
23 P0588023 EXTENSION WING (RIGHT) 38 P0588038 RAIL
24 PB116M HEX BOLT M10-1.5 X 45 39 P0588039 STUD M12-1.75 X 120
25 PW04M FLAT WASHER 10MM 40 PN09M HEX NUT M12-1.75
26 P0588026 EXTENSION WING SUPPORT 41 PW06M FLAT WASHER 12MM
27 PB138M HEX BOLT M16-2 X 100 279 P0588279 FENCE RAIL PLUG 45 X 33
28 PN13M HEX NUT M16-2
Extension Tables

G0588/G0591 12" Sliding Table Saws -55-






























-56- G0588/G0591 12" Sliding Table Saws
REF PART # DESCRIPTION REF PART # DESCRIPTION
9 PSB01M CAP SCREW M6-1 X 16 64 P0588064 HOLD DOWN ARBOR
42 P0588042 SLIDING TABLE 65 P0588065 PLASTIC HOLD DOWN WASHER
43 P0588043 SLIDING TABLE END 66 P0588066 T-NUT PLATE
44 PSB01M CAP SCREW M6-1 X 16 67 P0588067 EDGE SHOE PLATE
45 P0588045 RUBBER PLATE 68 P0588068 T-NUT PLATE
46 PFH23M FLAT HD SCR M8-1.25 X 16 69 PB74M HEX BOLT M10-1.5 X 20
47 P0588047 GIB 70 P0588070 ADJUST HANDLE M10-1.5 X 16
48 PB83M HEX BOLT M6-1 X 16 71 P0588071 STEEL BALL BASE
49 P0588049 STEEL RAILS 72 P0588072 STEEL BALL BASE SPONGE
50 P0588050 HANDLE 73 P0588073 STEEL BALL DIA. 18MM
51 P0588051 HANDLE COVER 74 P0588074 STEEL BALL DIA. 11/16MM
52 P0588052 STOP LEVER 75 P0588075 SLIDING BASE
53 P0588053 SLEEVE 76 P0588076 SLIDING BASE COVER (BACK)
54 P0588054 EXTENSION SPRING 77 P0588077 SLIDING BASE COVER (FRONT)
55 PN13M HEX NUT M16-2 78 PB137M HEX BOLT M14-2 X 30
56 P0588056 STOP PIN 79 PB153M HEX BOLT M14-2 X 40
57 P0588057 HOLD DOWN BRACKET 80 P0588080 ADJUSTMENT PLATE
58 PR02M EXT. RETAINING RING 14MM 81 PN32M HEX NUT M14-2
59 PRP45M ROLL PIN 5 X 32 259 P0588259 HOLD DOWN PLATE
60 P0588060 COMPRESSION SPRING 260 P0588260 KNOB M8-1.25 X 20
61 P0588061 CAM 261 P0588261 HOLD DOWN SHAFT
62 P0588062 HANDLE SHAFT 302 PSB14M CAP SCREW M8-1.25 X 20
63 P0588063 BALL HANDLE 304 P0588304 PUSH HANDLE M14-2 X 16

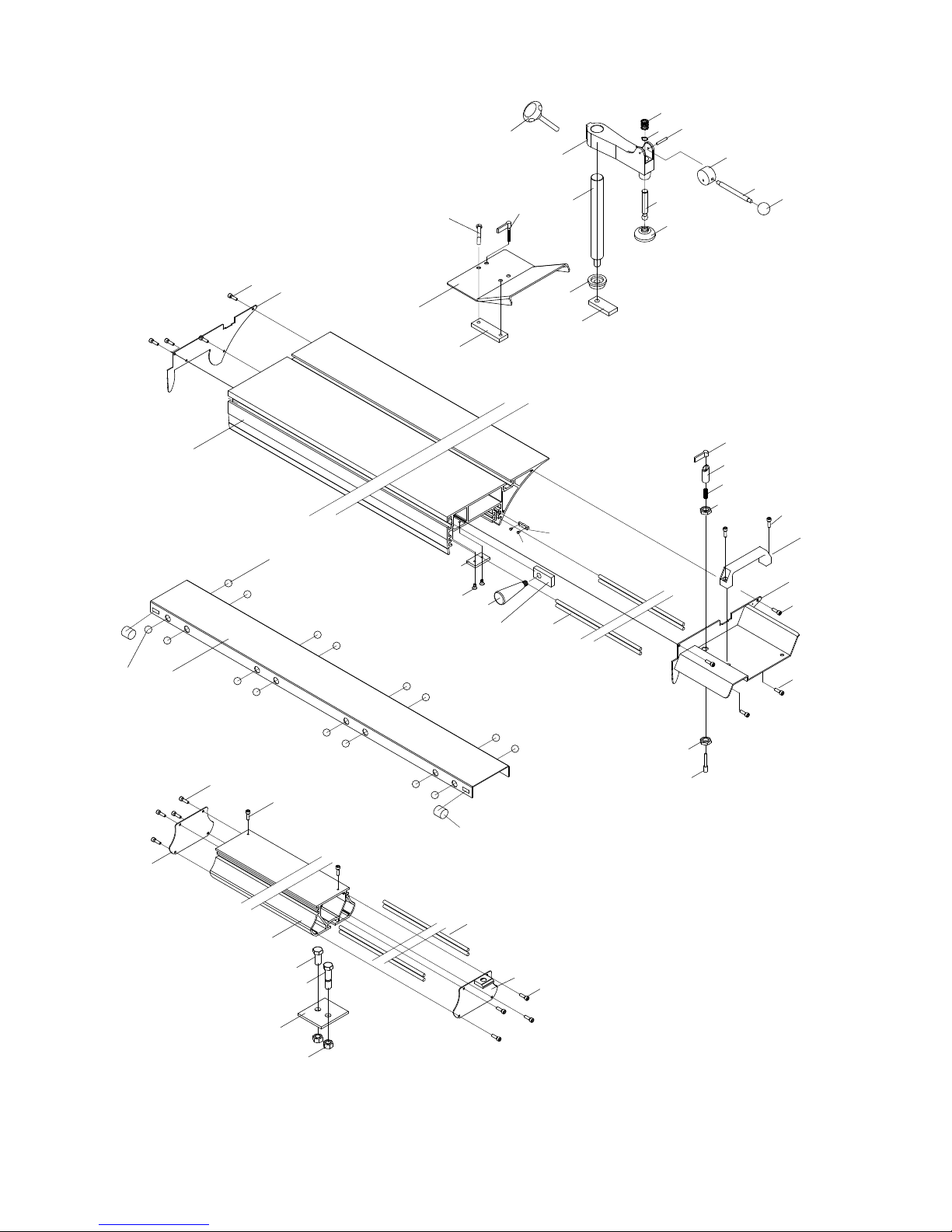

Sliding Table

G0588/G0591 12" Sliding Table Saws -57-
















 










 
























-58- G0588/G0591 12" Sliding Table Saws
REF PART # DESCRIPTION REF PART # DESCRIPTION
21 PSS16M SET SCREW M8-1.25 X 10 96 P0588096 ROTATE SHAFT
22 PN03M HEX NUT M8-1.25 96A P0588096A ECCENTRIC SHAFT
25 PN02M HEX NUT M10-1.5 97 P0588097 ROTATE ARBOR SUPPORT
29 PN01M HEX NUT M6-1 98 P0588098 MAGNET
37 PS05M PHLP HD SCR M5-.8 X 8 99 P0588099 MAGNET BASE
44 PSB01M CAP SCREW M6-1 X 16 100 PFH30M FLAT HD SCR M5-.8 X 8
82 P0588082 CROSSCUT TABLE 101 P0588101 NYLON SCREW M12-1.75 X 12
83 P0588083 CROSSCUT TABLE ROLLER 102 P0588102 SWING ARM END
84 P0588084 SUPPORT ADJUSTMENT BLOCK 103 P0588103 BRUSH
85 PSB04M CAP SCREW M6-1 X 10 104 PSB117M BUTTON HD CAP SCR M5-.8 X 8
86 PSS09M SET SCREW M8-1.25 X 20 105 P0588105 SWING ARM END
87 P0588087 SCALE LABEL (RIGHT) 106 P0588106 EXTENSION SWING ARM
88 P0588088 SCALE LABEL (LEFT) 107 P0588107 SWING ARM ADJ SCR M20-2.5
89 P0588089 SLIDING SURFACE PLATE 108 PN28M HEX NUT M20-2.5
90 P0588090 CROSSCUT TABLE LOCK PLATE 117 PW01M FLAT WASHER 8MM
92 P0588092 ADJUST HANDLE M10-1.5 118 PLN04M LOCK NUT M8-1.25
93 P0588093 SWING ARM 188 P0588188 HEX BOLT M8-1.25 X 100
94 P0588094 ROLLER 189 P0588189 STOP BLOCK
94A P0588094A ECCENTRIC ROLLER 240 PSS02M SET SCREW M6-1 X 6
95 P6900 BALL BEARING 6900 262 P6204 BALL BEARING 6204ZZ
95A P6901 BALL BEARING 6901 265 P0588265 SWING ARM SHAFT
Crosscut Table

G0588/G0591 12" Sliding Table Saws -59-



















































-60- G0588/G0591 12" Sliding Table Saws
REF PART # DESCRIPTION REF PART # DESCRIPTION
29 PN01M HEX NUT M6-1 121 PSS04M SET SCREW M6-1 X 12
109 P0588109 STOP PLATE 122 P0588122 FRONT SUPPORT BLOCK
110 P0588110 NYLON PAD 123 P0588123 T-BOLT M10-1.5
111 P0588111 KNOB M6-1 X 35 124 P0588124 KNOB M10-1.5
114 P0588114 CLAMPING BASE 125 P0588125 LOCK PLATE M10-1.5 X 25
115 P0588115 T-NUT M6-1 126 P0588126 SCALE(SHORT)
116 P0588116 CLAMPING ARBOR 127 P0588127 CROSS CUTTING FENCE-SHORT
117 PW01M FLAT WASHER 8MM 128 P0588128 LOCK PLATE
118 PLN04M LOCK NUT M8-1.25 129 PSS29M SET SCREW M6-1 X 35
119 P0588119 SCALE (LONG) 130 P0588130 CROSS FENCE SUPPORT PLATE
120 P0588120 CROSSCUT FENCE 263 P0588263 SCALE TUBE

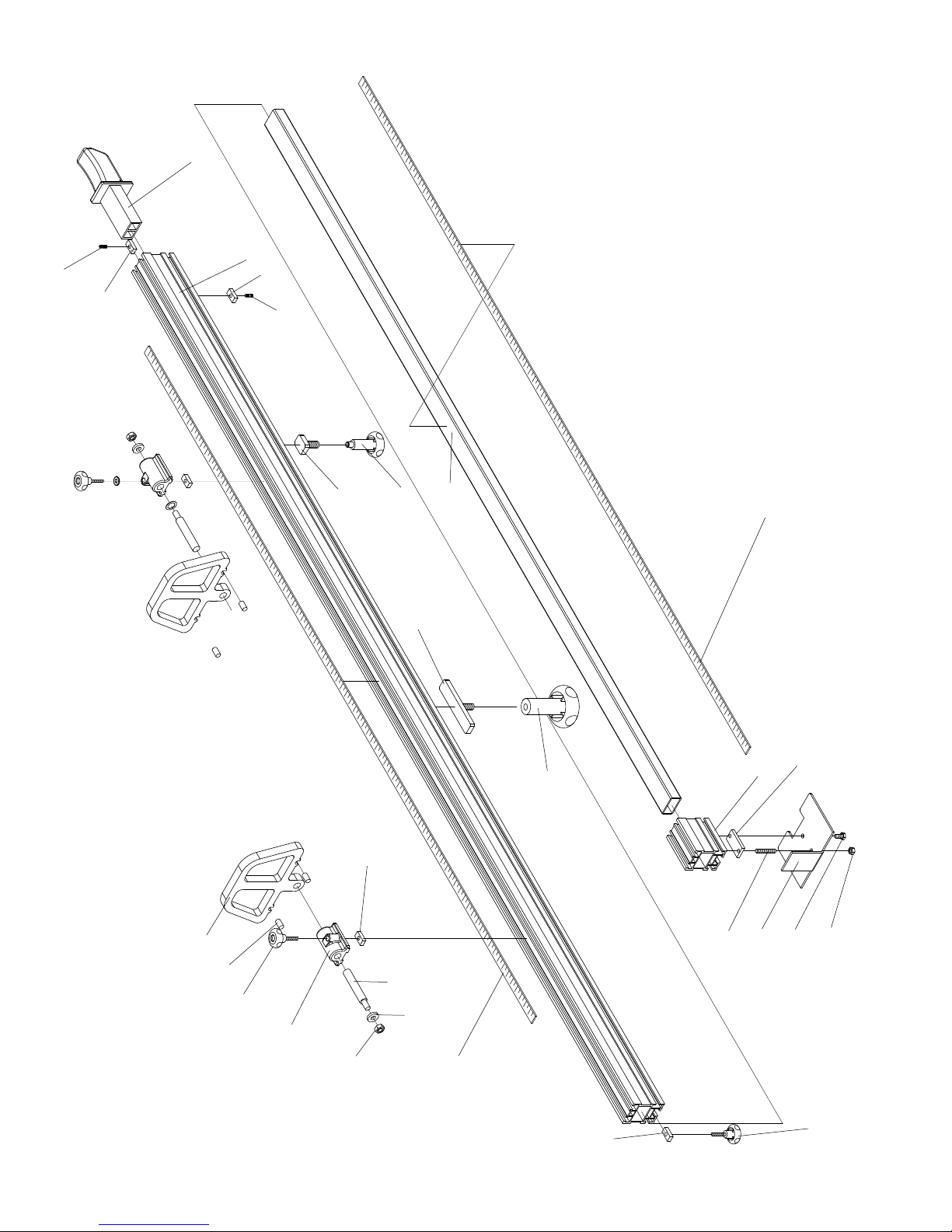

Crosscut Fence

G0588/G0591 12" Sliding Table Saws -61-






























-62- G0588/G0591 12" Sliding Table Saws
REF PART # DESCRIPTION REF PART # DESCRIPTION
28 PN13M HEX NUT M16-2 144 P0588144 ROLLER
104 PSB117M BUTTON HD CAP SCR M5-.8 X 8 145 PB33M HEX BOLT M12-1.75 X 50
132A P0588132A RIP FENCE BASE 146 PSB14M CAP SCREW M8-1.25 X 20
133 PR06M EXT. RETAINING RING 16MM 147 PB28M HEX BOLT M8-1.25 X 60
134 P0588134 WARNING LABEL PLATE 148 P0588148 RIP FENCE PLATE
135 P0588135 RIVET 149 P0588149 LOCK BLOCK (LONG)
136 PEC07M E-CLIP 7MM 150 P0588150 LOCK BLOCK (SHORT)
137 P0588137 HANDLE 151 P0588151 ECCENTRIC SHAFT
139 P0588139 COMPRESSION SPRING 152 P0588152 HOLD PLATE
140 P0588140 KNOB M14-1.75 153A P0588153A ECCENTRIC
142 P0588142 HANDLE 305 PN09M HEX NUT M12-1.75
143 P0588143 ECCENTRIC 306 PTLW12M EXT TOOTH WASHER 12MM

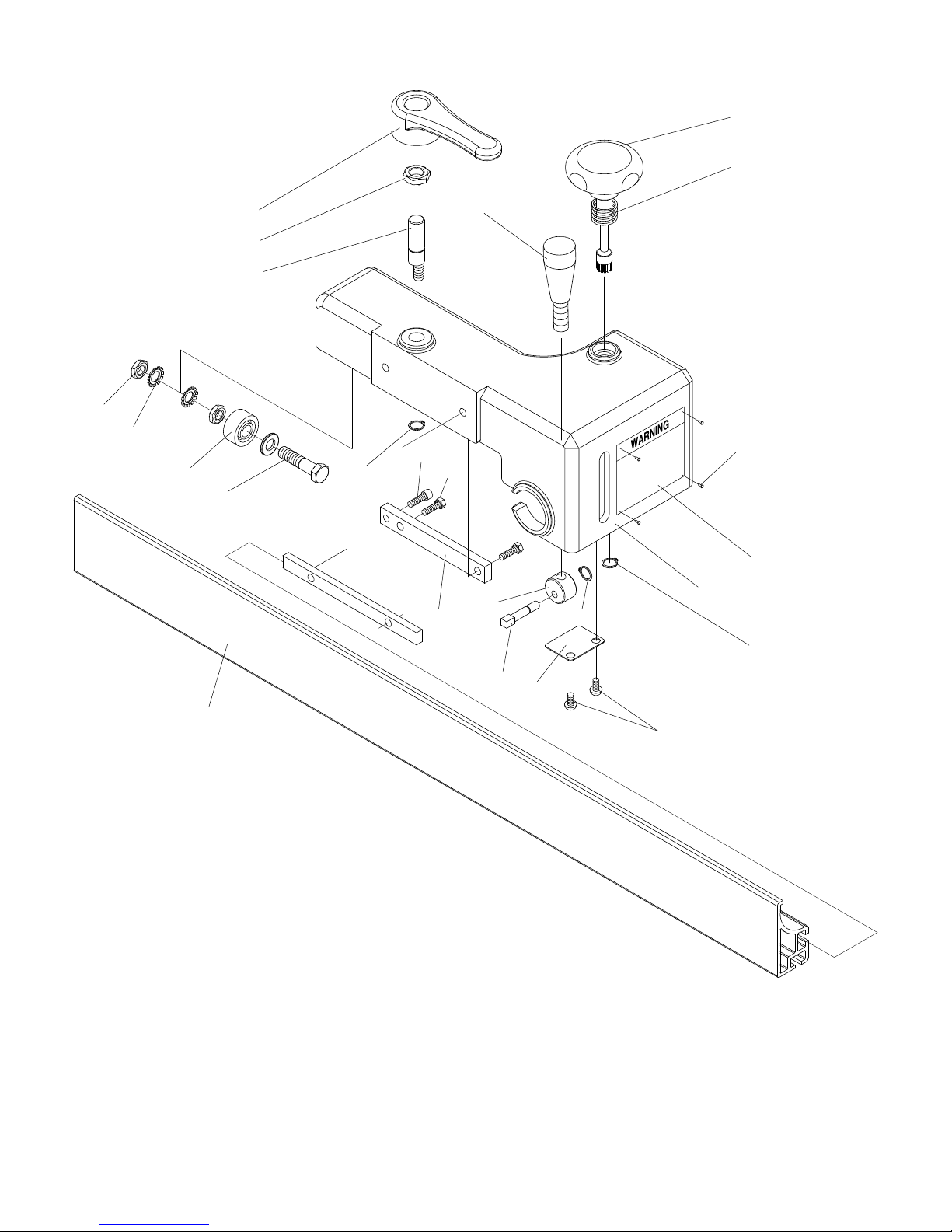

Rip Fence

G0588/G0591 12" Sliding Table Saws -63-

























-64- G0588/G0591 12" Sliding Table Saws
REF PART # DESCRIPTION REF PART # DESCRIPTION
3 PW01M FLAT WASHER 8MM 172 P0588172 GATHER PLATE
22 PN03M HEX NUT M8-1.25 173 P0588173 CRANK ARM
29 PN01M HEX NUT M6-1 174 P0588174 PULLEY COLLAR
40 PN09M HEX NUT M12-1.75 175 PSB40M CAP SCREW M8-1.25 X 35
41 PW06M FLAT WASHER 12MM 176 P0588176 GATHER BOLT M8-1.25 X 35
44 PSB01M CAP SCREW M6-1 X 16 177 PLN07M LOCK NUT 16-2
118 PLN04M LOCK NUT M8-1.25 178 P0588178 WORM
154 P0588154 STEEL CABLE WHEEL 179 P0588179 WORM GEAR
155 P0588155 TORSION SPRING 180 P0588180 COPPER SLEEVE
156 PSB40M CAP SCREW M8-1.25 X 35 181 PB132M HEX BOLT M16-2 X 40
157 PSB136M CAP SCREW M10-1.5 X 90 182 P0588182 GEAR BOX
158 P0588158 SCALE 183 PSS11 SET SCREW 1/4-20 X 1/4
159 P0588159 STEEL CABLE 184 P0588184 COPPER SLEEVE
160 P0588160 HAND WHEEL 185 PSS59M SET SCREW M8-1.25 X 14
161 P0588161 HAND WHEEL COLLAR 186 P0588186 HAND WHEEL SHAFT
162 P0588162 SHAFT NUT 187 P0588187 HAND WHEEL
163 P0588163 SHAFT NUT BASE 190 P0588190 FOLDABLE HANDLE HL-80
164 P0588164 TW-NUT 191 PSS51M SET SCREW M4-.7 X 8
165 P0588165 LEAD SCREW NUT 192 P0588192 ARBOR PLATE
166 P0588166 LEAD SCREW TW-16 8T/ INCH 264 P0588264 KNOB M10-1.5
167 P0588167 STEEL CABLE JACKET 266 P0588266 COVER (UPPER)
168 PSB64M CAP SCREW M10-1.5 X 25 275 P0588275 ROTATE PART LOCK
169 P0588169 COVER SUPPORT M6-1 X 25 276 PRP42M ROLL PIN 3 X 20
170 P0588170 SET SHAFT 277 PSB14M CAP SCREW M8-1.25 X 20
171 P0588171 BODY ARBOR
Tilt Assembly

G0588/G0591 12" Sliding Table Saws -65-






 





























 























-66- G0588/G0591 12" Sliding Table Saws
REF PART # DESCRIPTION REF PART # DESCRIPTION
22 PN03M HEX NUT M8-1.25 216-3 PC045A R CAPACITR 45M 250 V (G0591)
24 PB34M HEX BOLT M10-1.5 X 60 216-4 PC600 S CAPACITR 600M 125V (G0591)
25 PN02M HEX NUT M10-1.5 216-5 P0591216-5 R CAPACITOR COVER (G0591)
91 PW04M FLAT WASHER 10MM 216-6 P0591216-6 S CAPACITOR COVER (G0591)
101 P0588101 NYLON SCREW M12-1.75 X 12 216-7 P0588216-7 WIRING CONNECT BOX (G0588)
118 PLN04M LOCK NUT M8-1.25 216-7 P0591216-7 WIRING CONNECT BOX (G0591)
164 P0588164 TW-NUT 217 PB74M HEX BOLT M10-1.5 X 20
193 P0588193 DUST COVER 218 PLW06M LOCK WASHER 10MM
194 PSB11M CAP SCREW M8-1.25 X 16 219 P0588219 SPANNER NUT M25-1.5
195 PFH11M FLAT HD SCR M8-1.25 X 15 220 P0588220 MOTOR PLATE
196 P0588196 HEX NUT M16-2 (LH) 221 PR09M EXT RETAINING RING 20MM
197 P0588197 ARBOR FLANGE 222 P0588222 ROTATE HOUSING
198 PRP74M ROLL PIN 4 X 8 223 PRP08M ROLL PIN 6 X 30
200 P0588200 BLADE ARBOR 224 P0588224 BLADE GUARD
201 P6004 BALL BEARING 6004ZZ 227 P0588227 ADJUST HANDLE M8-1.25 X 30
203 PSB46M CAP SCREW M4-.7 X 40 228 P0588228 RIVING KNIFE
204 PN04M HEX NUT M4-.7 229 P0588229 COVER LOCK BLOCK
205 P0588205 LIMIT SWITCH 269 P0588269 SWTCH CRD 1.0 X 2C X 7500MM
206 P0588206 V-BELT 3V-256 270 P0588270 POWER CRD 1.5 X 4C X 7000MM
207 P0588207 MOTOR PULLEY 271 P0588271 MOTOR CRD 1.5 X 4C X 7000MM
208 PR71M EXT RETAINING RING 60MM 272 P0588272 SWTCH CRD 1.0 X 4C X 7000MM
209 PSS16M SET SCREW M8-1.25 X 10 280 P0588280 WAVE WASHER 60MM
210 PSB11M CAP SCREW M8-1.25 X 16 281 PAW02M HEX WRENCH 2MM
211 P0588211 RIVING KNIFE HOLDER 282 PAW03M HEX WRENCH 3MM
212 P0588212 RIVING BRACKET 283 PAW06M HEX WRENCH 6MM
213 PCB25M CARRIAGE BOLT M12-1.75 X 35 284 P0588284 T-KEY WRENCH 4MM
214 PSS01M SET SCREW M6-1 X 10 285 P0588285 T-KEY WRENCH 5MM
215 PK42M KEY 6 X 6 X 30 286 P0588286 T-KEY WRENCH 6MM
216 P0588216 MOTOR 5HP-1PH (G0588) 287 P0588287 WRENCH 13MM
216 P0591216 MOTOR 7.5HP-3PH (G0591) 288 P0588288 WRENCH 19MM
216-1 P0588216-1 MOTOR FAN (G0588) 289 PWR1012 WRENCH 10 X 12
216-1 P0591216-1 MOTOR FAN (G0591) 290 PWR1417 WRENCH 14 X 17
216-2 P0588216-2 MOTOR FAN COVER (G0588) 291 P0588291 WRENCH 22 X 24
216-2 P0591216-2 MOTOR FAN COVER (G0591) 305 PN09M HEX NUT M12-1.75
Motor Assembly

G0588/G0591 12" Sliding Table Saws -67-





















 



   





 














 




 











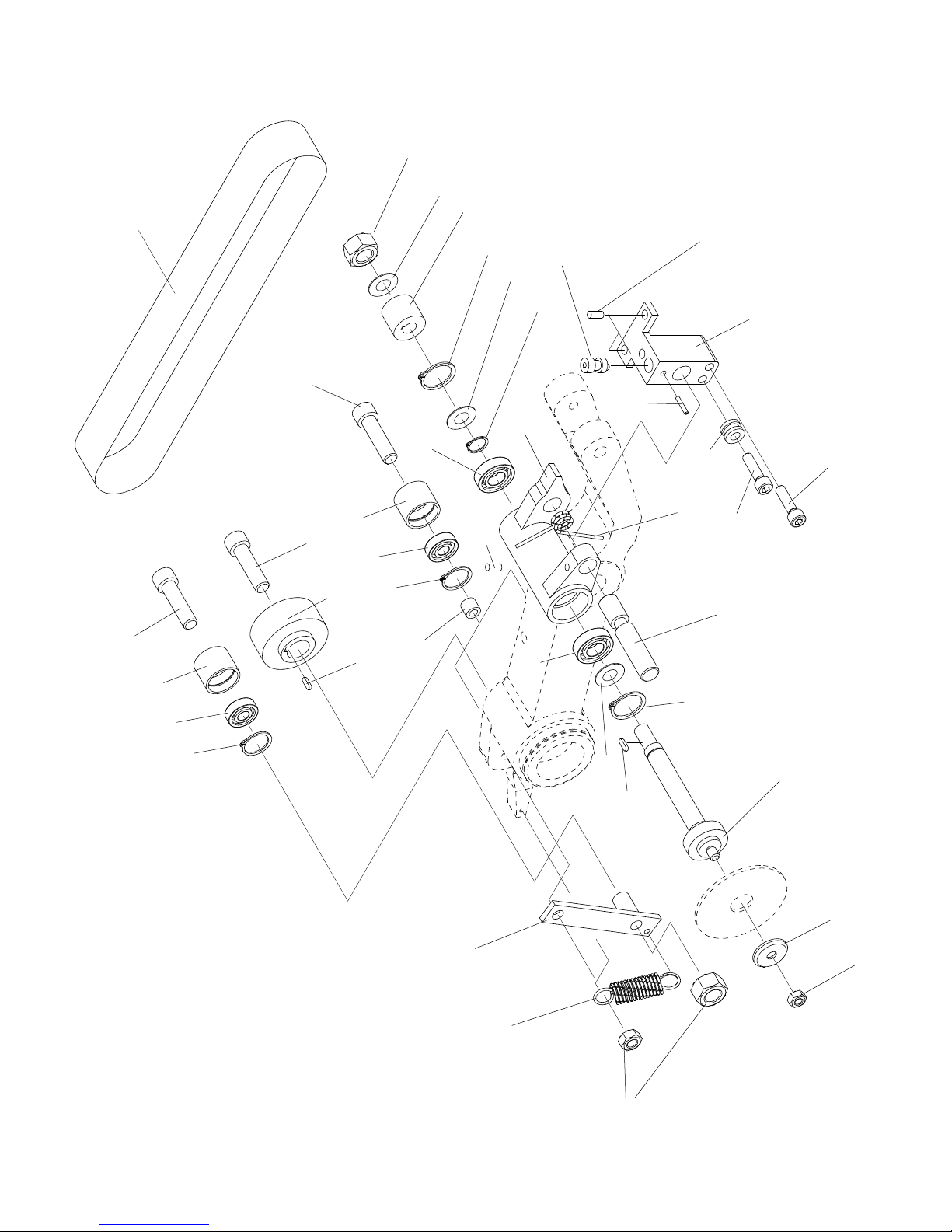

-68- G0588/G0591 12" Sliding Table Saws
REF PART # DESCRIPTION REF PART # DESCRIPTION
3 PW01M FLAT WASHER 8MM 244 P0588244 ECCENTRIC
25 PN02M HEX NUT M10-1.5 245 PSS09M SET SCREW M8-1.25 X 20
118 PLN04M LOCK NUT M8-1.25 246 PR05M EXT RETAINING RING 15MM
174 P0588174 PULLEY COLLAR 247 P0588247 SCORING PULLEY
230 P0588230 SCORING BLADE WASHER 248 P0588248 HEX NUT M8-1.25 (LH)
232 P0588232 SCORING ARBOR 249 PSB72M CAP SCREW M10-1.5 X 30
233 PK47M KEY 4 X 4 X 15 250 P0588250 IDLE WHEEL
234 PR29M INT RETAINING RING 32MM 251 P6000 BALL BEARING 6000ZZ
235 P0588235 WAVE WASHER 15MM 252 PR40M INT RETAINING RING 26MM
236 P0588236 BLADE LINK SHAFT 253 PSB130M CAP SCREW M10-1.5 X 16
237 P6002 BALL BEARING 6002ZZ 254 P0588254 FLAT BELT PULLEY
238 P0588238 BLADE LINK SHAFT 255 PK99M KEY 6 X 6 X 15
239 P0588239 TORSION SPRING 256 P0588256 PULLEY SUPPORT
240 PSS05M SET SCREW M5-.8 X 10 257 P0588257 EXTENSION SPRING
241 P0588241 SLEEVE 258 P0588258 FLAT BELT T150-920-T1
242 PSB12M CAP SCREW M8-1.25 X 40 268 PSS05M SET SCREW M5-.8 X 10
243 P0588243 LINK SHAFT BASE
Arbor Assembly

G0588/G0591 12" Sliding Table Saws -69-





















 


















