MCD-VOYAGER USER MANUAL
Ground Control
v1.3

MCD-VOYAGER User Manual Ground Control
Contents
MCD-VOYAGER OWNER IDENTIFIERS ...................................................................................... 4
MCD-VOYAGER OVERVIEW......................................................................................................... 5
MCD-VOYAGER FEATURES.......................................................................................................... 5
MCD-VOYAGER SYSTEM CONTENTS......................................................................................... 7
INSIDE THE MCD-VOYAGER ....................................................................................................... 8
SYSTEM OPERATION ................................................................................................................. 10
WIFI SECURITY ........................................................................................................................... 12
ACCESSING THE MCD-VOYAGER WEB INTERFACE ............................................................... 13
USING THE LAN PORT............................................................................................................... 13
MONITORING USAGE................................................................................................................ 14
CHARGING FACTS...................................................................................................................... 15
MCD-VOYAGER ACCESSORIES.................................................................................................. 16
MCD-VOYAGER TECHNICAL SPECIFICATIONS ...................................................................... 19
TROUBLESHOOTING SYSTEM OVERHEATING...................................................................... 21
2

MCD-VOYAGER User Manual Ground Control
Safety Information
Important Safety Information for the
Ground Control MCD-VOYAGER System
Like all Thuraya IP systems, the MCD-VOYAGER is a transmitting satellite device.
All persons should stay at least 1 meter from the case when it is operational.
If you have additional questions regarding connecting or operating your
system beyond the simple operations of the MCD-VOYAGER, please review
the User Manual for the Thuraya Voyager included USB flash drive or contact
your Thuraya IP service provider for more information.
3

MCD-VOYAGER User Manual Ground Control
MCD-VOYAGER Owner Identifiers
Please fill out the information on this page with the account information supplied to you
from Ground Control and keep this manual available in the field.
Thuraya IP Service Provider: ______________________
MCD-VOYAGER Web Interface: 192.168.128.200
Voyager Web Interface: 192.168.128.100
Thuraya Static IP Address: (if any) _______________________
SSID Wireless Broadcast MCD-VOY [Serial Number]
Wireless WEP Security Password:_______________________
4

MCD-VOYAGER User Manual Ground Control
MCD-VOYAGER Overview
The MCD-VOYAGER "Mobile Communications Device", is an auto-pointing Thuraya IP
satellite terminal that requires no user training to operate. Simply place the weather-tight
case on the ground, or on a boat deck, or on any surface with a clear view of the sky, rain
or shine, anywhere in the world and turn it on - no pointing necessary. Within a minute,
the MCD-VOYAGER becomes a wireless hotspot for any wireless device up to 100 meters
from the case for up to 5 hours on the internal battery. The auto-pointing case uses the
auto-acquire in-motion Thuraya terminal integrated with our proprietary mobile
electronics for a ruggedized self-contained, in-field, user-friendly solution.
MCD-VOYAGER Features
No Aiming Required. Simply turn the unit on under an open sky.
Does Not Require User Interaction. No software to run. Establishes WiFi hotspot automatically.
Up to 100 meter range wireless access point for laptops, smartphones or other wireless devices.
Internet speeds up to 444Kbps down and 404 Kbps up.
Two external all weather RJ-45 ports (Ethernet) that are PoE capable (Power over Ethernet)
Up to 5 hour battery life for normal use.
May be plugged into a vehicle 12V power port for continuous operation.
Operates from -25˚C to +70˚C (-13°F to 158°F). Auto-shutoff at 70˚C/158°F Internal temperature.
Operates on top of moving vehicle roof, or boat, or any moving object.
Works well in heavy rain and will operate with 20mm of ice before transmission issues.
Watertight, crushproof, dustproof reinforced plastic case.
The MCD-VOYAGER operates in all locations supported by Thuraya IP service
Portable - Ships UPS, FedEx, DHL, carry-on luggage anywhere.
Full IP compatibility - Internet, Email, FTP, VPN…
The MCD-VOYAGER case is a Ground Control manufactured solution.
5

MCD-VOYAGER User Manual Ground Control
LAN PORT 1 – RJ-45 port for Ethernet connection. It is sealed covered
with a quick-disconnect water cap. This Ethernet port is PoE capable
(Power Over Ethernet).
Optional accessory cable adapters are
available to keep a watertight seal for Ethernet cables.
LAN PORT 2 – The MCD-Voyager front panel has a 2nd RJ-45 port for
Ethernet connection that is also PoE capable. (Both PoE Ethernets
ports are rated PoE-IEEE 802.3af standard).
Light Sensor – This sensor will backlight the display in darkness so the display
can be read. From the MCD-VOYAGER control panel, the sensitivity of this
sensor can be set, including always off.
Display – Shows power up status and battery level.
Charge / Power Port – This port is used to connect the Power
Supply. The supply will power, recharge and maintain the MCD-
VOYAGER. Charging is automatic and based on the state of the
batteries. The charge system will work as necessary with the unit on
or off. Higher outside air temperatures may increase charge time if
the unit is on while charging. Always install the Port Cap when
Power Supply is not connected to maintain its weatherproof
integrity.
6

MCD-VOYAGER User Manual Ground Control

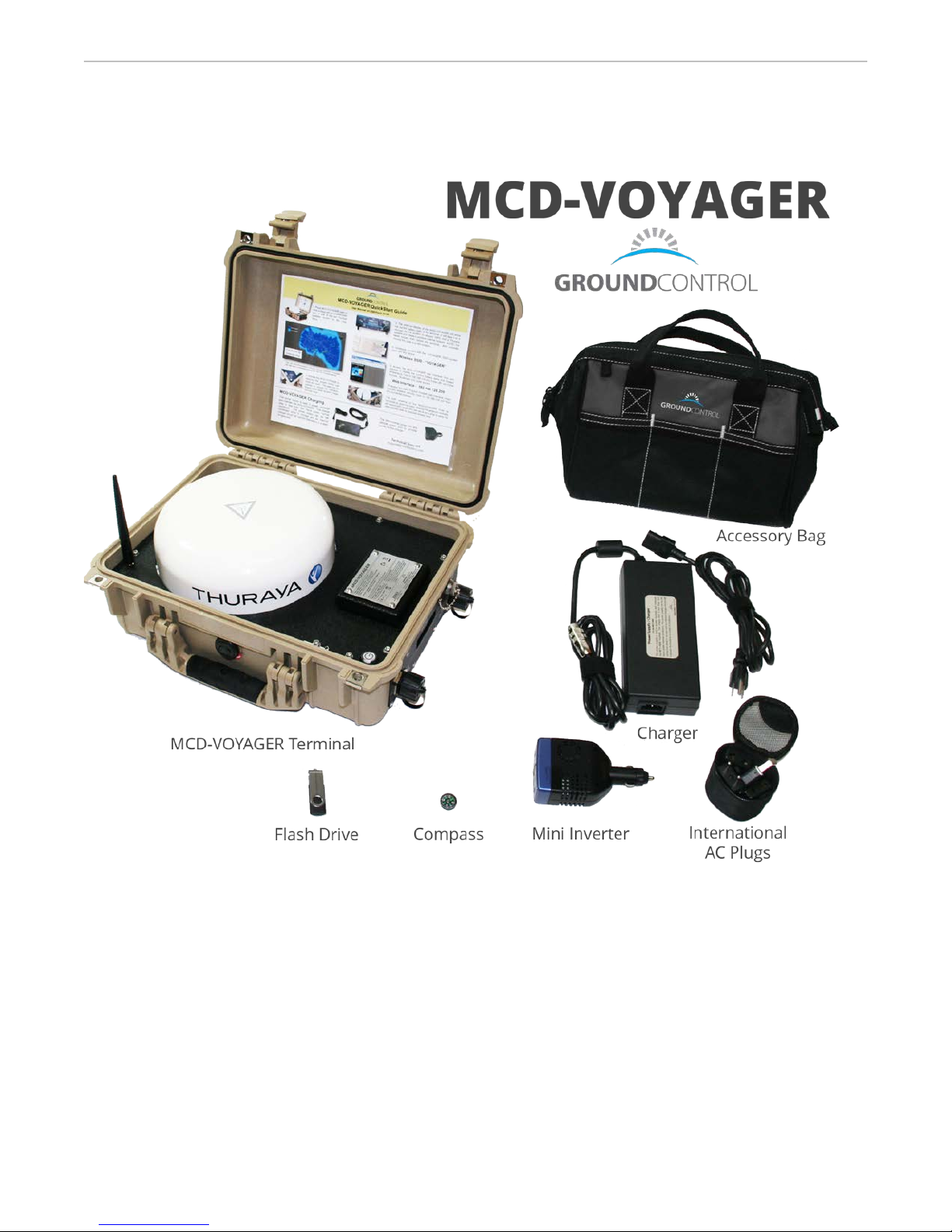

MCD-VOYAGER System Contents
The MCD-VOYAGER includes the MCD-VOYAGER terminal, a USB flash drive with software and user
manuals, a miniature compass, a mini-inverter, an AC/DC power supply/charger, an international
plug kit that allows the MCD-VOYAGER to be charged from any country’s wall power, and
an accessory bag to hold all loose accessories.
7

MCD-VOYAGER User Manual Ground Control
Inside the MCD-VOYAGER
Inside the case (from left side moving right) is the WiFi antenna, the domed Thuraya satellite
antenna, the SIM cover, fan, and the LED power button. There is also an internal fan used to vent
electronics. We recommend having the case lid opened slightly in hot locations.
WiFi Antenna – When raised, the WiFi antenna adds extra
range to the MCD-VOYAGER
wireless connection. This
antenna is a standard RP-
SMA type antenna and larger
higher gain antennas can easily be mounted. Note the
antenna needs to be folded down in order to close the case
lid.
SIM Card Tray – Rotate the SIM cover to expose the SIM
tray. Insert the SIM with the notch side down, and to the
right. To insert a SIM, push it into the SIM slot until it “clicks”.
To remove SIM card, simply push it in until it clicks, and it
will self-eject when finger is removed.
8

MCD-VOYAGER User Manual Ground Control
Fan & Fan Cover – The fan inside of the MCD-VOYAGER will
automatically start if the internal temperature becomes too
hot. It is advisable to run the case lid cracked open in hot
weather. The terminal will auto-shutoff when the internal
temperature reaches 70º Celsius (158ºFahrenheit).
Power – On/Off – When pressed, the power button will light
up when the terminal is turned on. To power the system off,
simple press the button again.
The MCD-VOYAGER may be used on a moving vessel, even during heavy seas.
9

MCD-VOYAGER User Manual Ground Control
System Operation
STEP 1 – FIND AN OPEN AREA
Lay the MCD-VOYAGER flat (top side up, as
if to open the case), under an open sky.
The terminal needs to have line-of-sight
with one of the two Thuraya
satellites.
These satellites connect with stationary
satellites in the sky, so as long as line-of-
sight
is possible, the terminal can be
located next to a wall or tree.

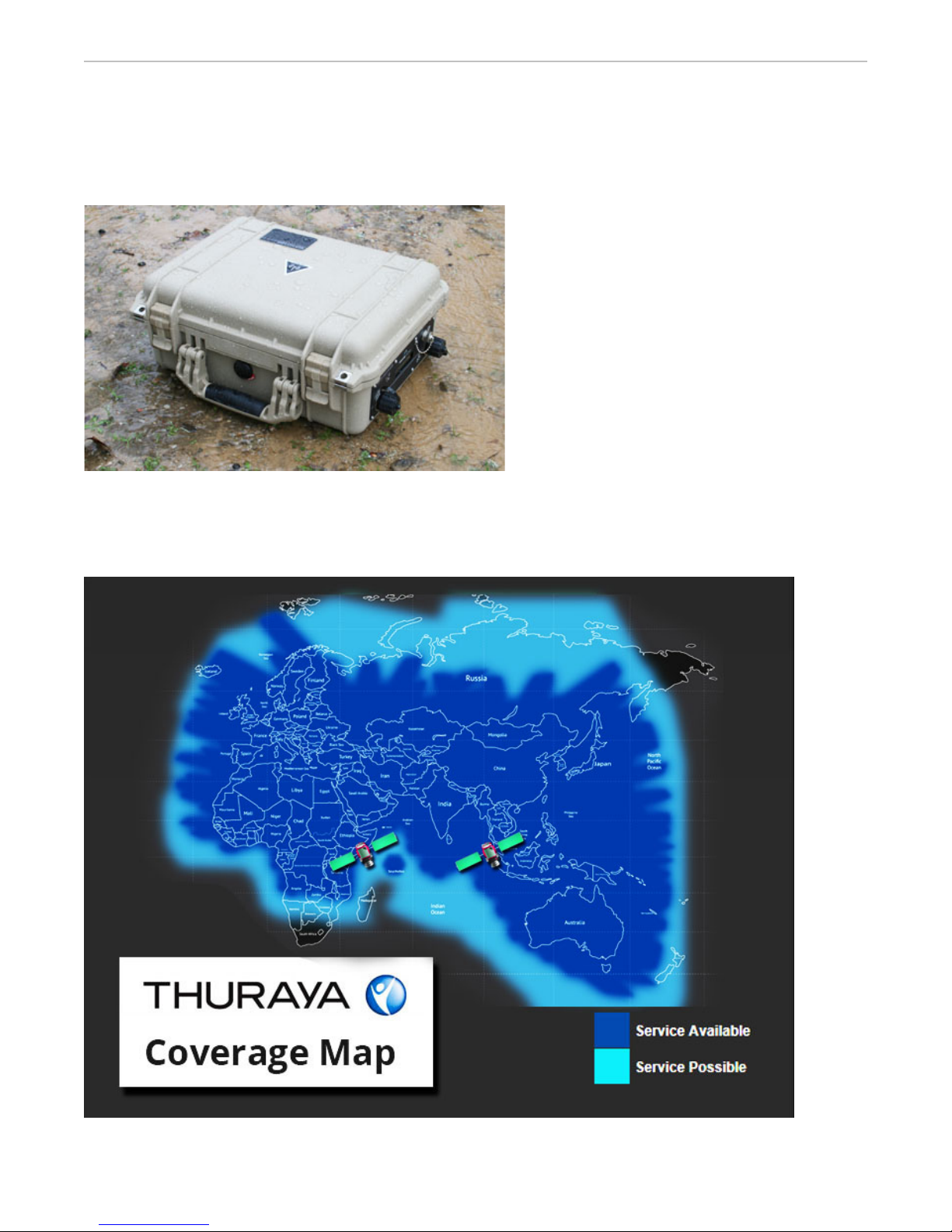

The map below is very helpful to find what direction the closest Thuraya satellite is. Use the
included compass to help you quickly discern where a good location would be to place the
terminal to avoid visual obstacles like trees and buildings.
10

MCD-VOYAGER User Manual Ground Control
The MCD-VOYAGER may also work through glass from inside a building or through a tent wall. If
possible, it is good to place the terminal on an elevated area, such as a vehicle roof, so that the
satellite signal is not interfered with when people walk by.
STEP 2 – TURN POWER ON
Open the MCD-VOYAGER to access the power button of the terminal.
Simply press the power button to turn it on. The button itself
will light up to show the system is active. The external display
will show the system status and current battery level.
Close the lid for a watertight seal. The MCD-VOYAGER operates just as well with the lid open or
closed. During hot weather, it is advised to keep the lid slightly open to vent internal heat.
Note, as with all Thuraya IP systems, all personnel should stay at least 1 meter from this device
while it is transmitting.
The MCD-VOYAGER will begin to search for a satellite, as well as attain a GPS location. A GPS signal
will be quickly acquired if there is a wide sky above the terminal, otherwise it make take up to 3
minutes for GPS to be found.
In about 1 minute, the system will be online (3 minutes if GPS hasn’t been found). If it is not online
in that time, simply reboot the system. You may need to move the MCD-VOYAGER to a new
location if it has not found a satellite.
STEP 3 – CONNECTING TO THE MCD-4000 WiFi HOTSPOT
The MCD-VOYAGER establishes a standard WiFi hotspot with the name of “MCD-VOY”. You may
connect a laptop or smart device to the MCD-VOYAGER using that device’s wireless access screen.
Up to 11 devices may connect to the WiFi hotspot. Once connected there is nothing else to
configure. Use the MCD-Voyager like any Internet hotspot connection.
That’s it... you are online!
11

MCD-VOYAGER User Manual Ground Control

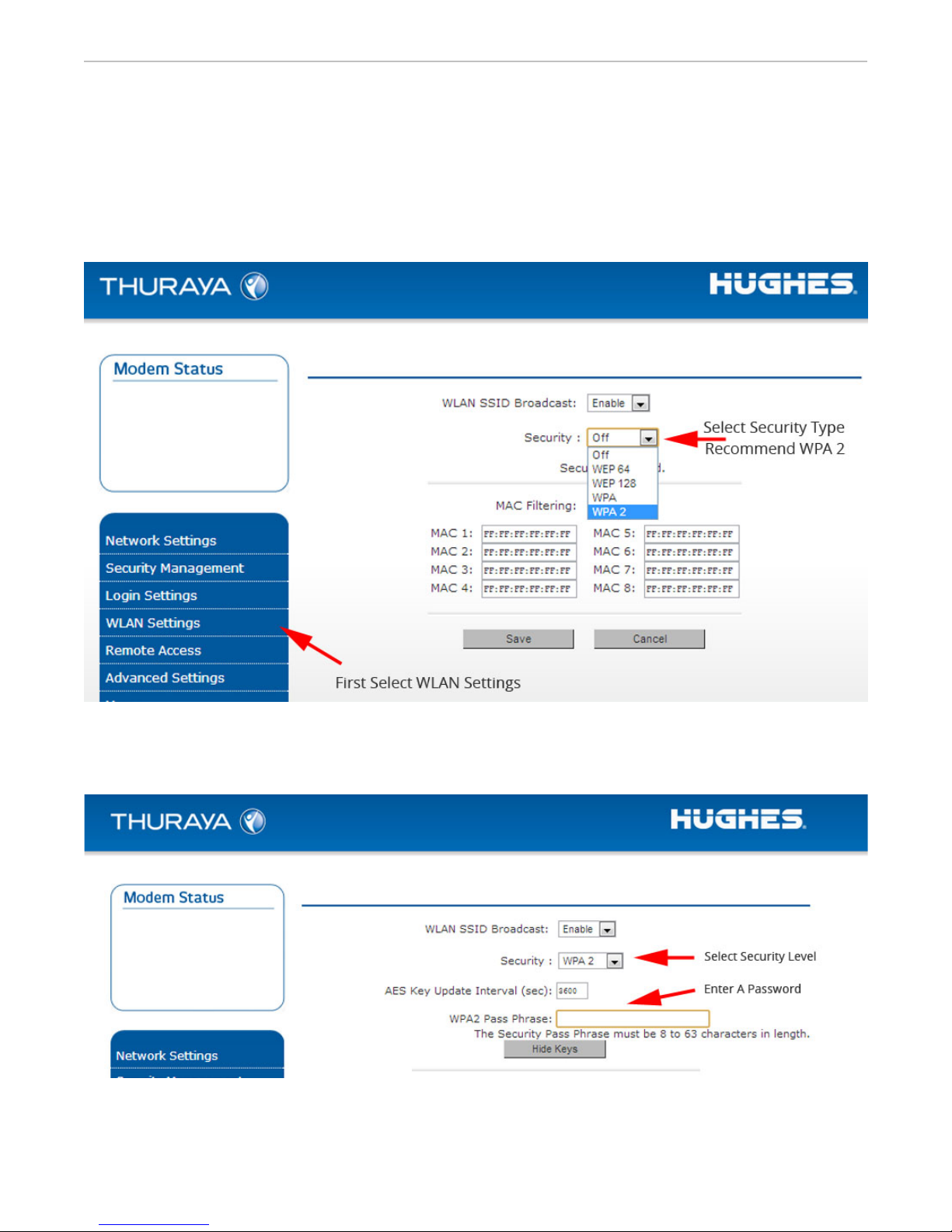

WiFi Security
By default, wireless security is NOT enabled when the terminal is shipped. We recommend
enabling WiFi security as soon as possible to keep the terminal from being used by unauthorized
devices. To access the WiFi security screens, type in 192.168.128.100 into any connected browser
window. Next, select the “Settings” menu listing, and choose “WLAN Settings”
Select the type of security you wish to use from the pull down window (WPA2 is recommended).
Once selected, the below screen will appear.
Detailed wireless security information can be found on page 15 of the Thuraya Voyager User
Manual.
12

MCD-VOYAGER User Manual Ground Control
Accessing the MCD-VOYAGER Web Interface
From any connected browser, type in 192.168.128.200 and
press Enter. The MCD-VOYAGER main interface screen will
appear. This screen will show you the state of the battery
and give you access to changes settings of the system as
well as access usage totals.
Click on the Settings
Button to be taken to the main
interface window of the Thuraya Voyager.
Here you can
set any parameter of the system.
Click on Usage
to see how much data has been
transferred. You may reset totals so that you can track
your current session.
Bookmark 192.168.128.200
from any connected browser
so that you can monitor battery levels quickly at any time.
From any connected browser, type in
192.168.128.100
and press Enter. The Voyager
web interface screen
becomes available. These screens will allow a number of
parameter changes such as SSID broadcast name,
enabling/disabling WiFi, MAC filtering, usage totals, along
with a number of other status and parameter screens. For
more information regarding the terminal, please refer to
the Voyager User Manual.
Using the LAN Port
An Ethernet cable may connect to the waterproof jack on the external LAN port of the MCD-
VOYAGER. Twist off the weather cap and connect a standard Ethernet cable. The MCD-VOYAGER is
normally set to DHCP (Dynamic Routing), which means it will automatically issue an IP address to
any computer that connects to it. The LAN Port does provide PoE (Power Over Ethernet) for
devices that require this feature. A standard Ethernet cable is all that is needed. A crossover cable
is not required.
13

MCD-VOYAGER User Manual Ground Control
Monitoring Usage
The amount of Megabytes transferred is shown on the Usage Statistics screen of the Voyager Web
Interface. This screen is reached by entering 192.168.128.100 into any connected browser and
selecting “Statistics” from the side menu.
The usage screen is divided into two parts, “Traffic statistics since powered on” are similar to the
trip counter on a vehicle, but this trip counter is reset each time the system is powered on. You
can also reset this counter at any time by selecting the “Reset” checkbox and pressing “Apply”.
The other part is the “Cumulative traffic statistics” which shows all Megabytes transferred over the
life of the terminal. This counter is much like a vehicle odometer and cannot be reset unless the
terminal is factory reset (and upgraded to the most recent firmware).
Note these totals are estimates and should only be used as a general idea of usage.
14

MCD-VOYAGER User Manual Ground Control
Charging Facts
Recharging the MCD-VOYAGER Internal Batteries
The MCD-VOYAGER will operate about 5 hours on a single battery charge. To charge the system,
simply connect the charger to the system. Charge time will take less than four hours if fully
discharged.
Long Term Storage Charging
The charger may be left connected to the MCD-VOYAGER during storage to keep the MCD-
VOYAGER’s batteries in a state of readiness.
If you choose not to keep the system plugged in during storage, we recommend recharging every
month, and no less than every 6 months to avoid complete battery depletion.
Vehicle Power for Continuous Use & Charging
Plug the Mini-
Inverter into any vehicle power port to provide
power for the MCD-VOYAGER
charger. Keep the vehicle
running if the MCD-VOYAGER
will be online for any
significant period of time to avoid depleting the car battery.
Solar Charging for Continuous Use and Charging
The optional foldable solar panel for the MCD-VOYAGER will
provide up to 75% of the power for operation, increasing
run time by 300 to 400%. It will also recharge the internal
batteries in no power locations when power is off. Kit
includes a universal 12 volt vehicle charge port to recharge
other equipment.
15

MCD-VOYAGER User Manual Ground Control
MCD-VOYAGER Accessories
MCD-VOYAGER Replacement AC/DC Charger
The power supply for the MCD-VOYAGER works for both fast charging
and maintenance charging for long term storage. Charge time is just
under 4 hours if the terminal is complete discharged. Keep the power
supply plugged in for long term storage to maintain battery at 100%.
MPN:MCDVOYCHARGER
Replacement Universal Power Connectors
International plugs including U.S., U.K., European, Australian, China, N.
Europe.
MPN:MCDVOYCON
Watertight RJ-45 Connectors
Make your own watertight cables with these connectors. While standard
Ethernet cables may connect to the MCD-VOYAGER front panel, these RJ-
45 Ethernet connectors will make your Cat5e Ethernet cable have a
watertight connection to the MCD-VOYAGER case. Requires standard RJ-
45 crimper tool to make.
MPN: MCDVOYRJ45
60+ Watt Foldable Solar Panel
For MCD-VOYAGER & Universal Use
This lightweight 60+ watt solar panel will connect directly to the MCD-
VOYAGER for both power assist and recharging. Recharge time is 10-12
hours in full sunlight. If the MCD-VOYAGER is turned on, the solar panel
will power assist up to 75% of the power needed, extending the 5 hour
battery life 300% to 400%. This panel also includes a "universal" cable kit
such as a vehicle power port to charge other devices that can power
from a vehicle port.
MPN: MCDVOYSOLAR
16

MCD-VOYAGER User Manual Ground Control
DC Vehicle / Battery Power Cable
3 meters (10' feet) DC power cable - Power or recharge the MCD-
VOYAGER
from any vehicle power port or battery or any DC power
source. Includes quick-connecting alligator clips & vehicle power port
connector. Input - 12VDC (vehicle battery) Output 24VDC. This accessory
is essential for charging the MCD-VOYAGER in no-
power locations.
MPN: MCDVOYDCVEHICLE
Battery Connector Cable
36" (3 feet) connector cable between an external battery (type BB-2590
or BB-5590) and the MCD-VOYAGER
. Includes voltage regulator for
smooth operation.
MPN:MCDVOYBATCAB
Directional 8 dBi Wireless Antenna
This directional antenna extends the wireless range of the MCD-
VOYAGER in one direction (a focused angle 66 degree wide by 16
degrees vertical from the face of the antenna).
MPN:MCDVOYANT01
Gen 2 - MCD-VOYAGER Internal Batteries
(Includes 2 battery packs)
Each MCD-VOYAGER includes two high-capacity NiMh (Nickel-Metal
Hydride) battery packs inside of the case. Kit includes instructions for
replacing packs with existing batteries.
MPN:MCDVOYBAT
MCD-VOYAGER 3 Year Extended Warranty
This is a
24 month extension on the standard 12 month warranty.
Standard & extended warranties include replacement parts & labor.
SKW: MCDVOY3YWAR
17

MCD-VOYAGER User Manual Ground Control
MCD-VOYAGER 5 Year Extended Warranty
This is a 48 month extension on the standard 12 month warranty.
Standard & Extended warranties include replacement parts & labor.
SKW: MCDVOY5YWAR
The MCD-VOYAGER is watertight, and operates with the case lid closed.
18

MCD-VOYAGER User Manual Ground Control
MCD-VOYAGER Technical Specifications
MCD-VOYAGER Contents
The MCD-VOYAGER integrates with Thuraya Voyager terminal enclosed in a hardened
Pelican 1450 case (Flyaway Case) with our proprietary electronics and software. System
components include an AC/DC power-supply / charger with international plug adapters
(US, UK, AU, EU, China, N. Europe), 12V vehicle mini-inverter, compass, laminated
Quickstart Guide (affixed to case lid), users manuals, software, an MCD-VOYAGER
gadget App on a USB flash drive, and a small ruggedized bag to hold all accessories.
Terminal Capability Open TCP-IP connection: Internet, Email, FTP, VPN, video streaming.
Internet Speeds Rated up to 444 Kbps down x 404 Kbps up with standard Thuraya IP service
Streaming Dedicated (unshared) streaming speeds of 384 Kbps
Static Public IP Available from most Thuraya IP providers
Wireless LAN 802.11b/g/n - Up to 100 meters WiFi range. Up to 11 concurrent wireless connections.
Wireless Security WEP, WPA, WPA 2 encryption. SSID broadcast control, MAC address filtering
External Port - LAN RJ45 Ethernet (PoE capable - Power Over Ethernet)
External Port - Power
Power & charge port for AC/DC charger or foldable solar option.
Exterior Case Dimension 432mm x 349mm x 171 mm (17"L x 13.75"W x 6.75 "H)
Weight – MCD-Voyager 11.46 kg (25 lbs 4.3 oz)
Internal battery life
Up to 5 hours normal use
Recharge Time Less than 4 hours (from fully discharged) using 110 to 240 VAC (worldwide)
Onboard Battery Type
NiMH (Nickel-Metal Hydride).
Regional Power Compatibility
Includes international plug kit for U.S., U.K., European, Australian, China, N. Europe
Power Supply - Charger Input 110 to 240 Volts AC. Output 28 Volts DC @ 8 Amps
Humidity
95% RH at +40°C
Operating Temperatures
-25° C to +70° C (-13° F to 158° F ) operating
Rain / Water / Dust: IP66 when closed (withstands powerful water jets from any direction)
Wind
If case is secure, it is not affected by wind
19

MCD-VOYAGER User Manual Ground Control
Ice
20mm buildup before signal loss
Turning Rate (Azimuth)
40° per second
Turning Acceleration
50°/s2
Case Colors Available
Desert tan (default color), yellow, black, silver, orange OD green
Manufacturer Support
The MCD-VOYAGER is integrated satellite technology manufactured by Ground Control
Warranty
1 year standard warranty. Extended 3 year and 5 year extended warranties available.
Made In The USA
The Thuraya Voyager transceiver and the MCD-VOYAGER case are U.S. manufactured
Compliance & Certification
CE, EMC 301 444, 301 489, IEC 60950, FCC ID: U9R-W2CBW0015
20
