Grundfos SMART Digital CHEMPAIRING Suite 3.0 User manual

SMART Digital CHEMPAIRING Suite 3.0
SDCS CIU gateway
Installation and operating instructions
GRUNDFOS INSTRUCTIONS

SMART Digital CHEMPAIRING Suite 3.0
English (GB)
Installation and operating instructions ..................................4
3
Table of contents

English (GB) Installation and operating instructions
Original installation and operating instructions
Table of contents
1. General information ............. 4
1.1 Hazard statements .............. 4
1.2 Notes ..................... 4
2. Product introduction ............ 5
2.1 Product description .............. 5
2.2 Intended use ................. 6
2.3 Applications .................. 6
2.4 Identification.................. 7
2.5 LEDs ..................... 7
3. Receiving the product............ 8
3.1 Inspecting the product ............ 8
3.2 Scope of delivery ............... 9
4. Installation requirements .......... 9
4.1 Location .................... 9
4.2 Mounting requirements ............ 9
4.3 RF safety ................... 9
4.4 Radio frequency radiation exposure, for
Canada and US only .............10
4.5 EMC statements for USA ...........10
5. Mechanical installation ...........10
5.1 Mounting on the wall .............10
6. Electrical connection ............11
6.1 Connecting the power cable .........11
6.2 Connecting the control cable to a SMART
Digital dosing pump..............11
6.3 Installing the antenna .............11
7. Startup ....................11
8. Servicing the product ............11
8.1 Cleaning the product .............11
9. Technical data ................12
10. Disposing of the product ..........12
11. Document quality feedback ........12
1. General information
Read this document before you install the
product. Installation and operation must
comply with local regulations and accepted
codes of good practice.
Read the installation and operating
instructions for the relevant CIM module.

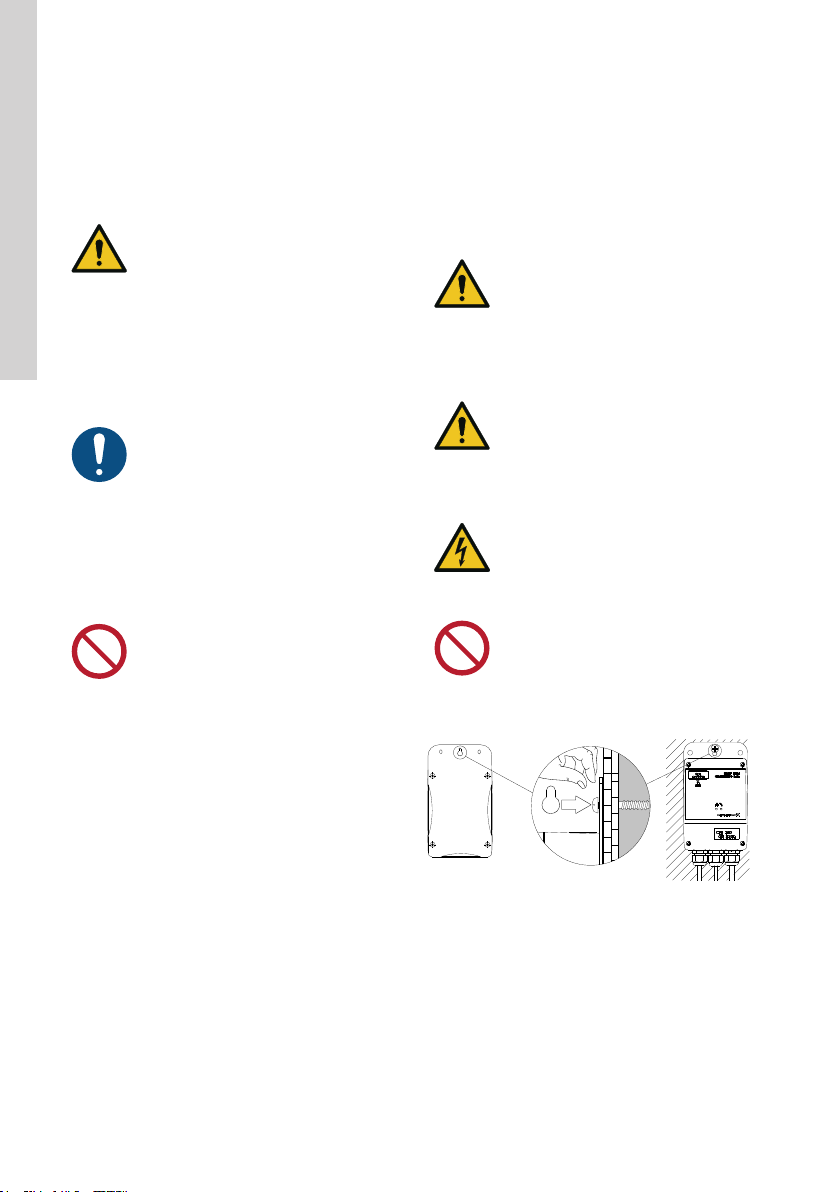

1.1 Hazard statements
The symbols and hazard statements below may
appear in Grundfos installation and operating
instructions, safety instructions and service
instructions.
DANGER
Indicates a hazardous situation which, if
not avoided, will result in death or serious
personal injury.
WARNING
Indicates a hazardous situation which, if
not avoided, could result in death or
serious personal injury.
CAUTION
Indicates a hazardous situation which, if
not avoided, could result in minor or
moderate personal injury.
The hazard statements are structured in the following
way:
SIGNAL WORD
Description of the hazard
Consequence of ignoring the warning
• Action to avoid the hazard.
1.2 Notes
The symbols and notes below may appear in
Grundfos installation and operating instructions,
safety instructions and service instructions.
Observe these instructions for explosion-
proof products.
A blue or grey circle with a white graphical
symbol indicates that an action must be
taken.
A red or grey circle with a diagonal bar,
possibly with a black graphical symbol,
indicates that an action must not be taken
or must be stopped.
If these instructions are not observed, it
may result in malfunction or damage to the
equipment.
Tips and advice that make the work easier.
4
English (GB)

2. Product introduction
2.1 Product description
SMART Digital CHEMPAIRING Suite 3.0 (SDCS) is a Grundfos cloud-based solution used to control and
monitor a Grundfos SMART Digital DDA dosing pump and the related dosing process. It can monitor chemical
container tank level without a level sensor. See section Intended use for more information.
The SDCS CIU (Communication Interface Unit) gateway serves as an interface for cellular (3G/4G)
communication between the Grundfos SMART Digital CHEMPAIRING Suite 3.0 cloud solution and the installed
SMART Digital dosing pump. The monthly SDCS 3.0 subscription price already includes the cost of data
transfer.
12
34
Connect to
GO Remote
SMART Digital
CHEMPAIRING Suite
CIM 280
GiC 3G/4G
QR
code
TM083719
SDCS CIU wire configuration
Pos. Description
1 Preinstalled 3 m (9.8 ft) antenna cable with magnetic foot antenna
2 Preinstalled 5 m (16.4 ft) M12 communication cable to the DDA dosing pump
3 Preinstalled 3 m (9.8 ft) power cable with Schuko (CEE 7/7) for SDCS CIU EU (PN 92757356)
OR
4 Preinstalled 3 m (9.8 ft) power cable with Type B (NEMA 5-15P) plug for SDCS CIU US (PN 92757354)
Related information
2.2 Intended use
5
English (GB)

2.2 Intended use
If the equipment is used in a manner not
specified by the manufacturer, the
protection provided by the equipment may
be impaired.
DANGER
Explosive environment
Death or serious personal injury
‐Do not use the SDCS CIU gateway
and the dosing pump in areas with
explosive risks, such as explosive
gases or dust.
The SDCS CIU gateway is designed for use with a
Grundfos DDA-AR-C or DDA-FCM-C (production
date 04/2023 or later) dosing pump up to 30 l/h in all
material variants.
Due to the preinstalled eSIM card, the SDCS CIU
Gateway can be operated in the following countries:
Europe:
• Austria
• Belgium
• Bulgaria
• Croatia
• Cyprus
• Czech Republic
• Denmark
• Estonia
• Finland
• France
• Germany
• Greece
• Hungary
• Iceland
• Ireland
• Italy
• Latvia
• Lithuania
• Luxembourg
• Malta
• Monaco
• The Netherlands
• Norway
• Poland
• Portugal
• Romania
• Slovakia
• Slovenia
• Spain
• Sweden
• Switzerland
• The United Kingdom.
USA and Canada:
• USA
• Canada.
2.3 Applications
SMART Digital CHEMPAIRING Suite 3.0 and the
SDCS CIU gateway can be used in the
following stationary dosing applications:
• manual dosing
• proportional dosing (pulse)
• proportional dosing (analog 0/4-20 mA).
One SMART Digital DDA dosing pump per SDCS CIU
gateway can be used in the above listed dosing
applications in non-explosive areas.
Typical applications are dosing of biocides in drinking
water, dosing of corrosion inhibitors or cooling tower
applications.
Due to the occupancy of the GENIbus port at the
DDA, no other CIU/eBox (e.g. fieldbus) can be
connected.
6
English (GB)

2.4 Identification
2.4.1 Nameplate
Type
UN
V-No.
DK-8850 Bjerringbro Denmark
Made in Thailand
Product No.
P.c.
Serial No.
U.K. Importer:
Grundfos Pumps ltd. Grovebury Road,
Leighton Buzzard, Bedfordshire LU7 4TL
2
1
8
9
7
Pmax
IP 54
4
Type
UN
V-No.
DK-8850 Bjerringbro Denmark
Made in Thailand
Product No.
P.c.
Serial No.
Contains FCC ID: OG3-CIM2X0-3G-4G
Contains IC: 10447A-CIM2X034G
This device complies with part 15 of the FCC rules Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
5
3
6Pmax
12
TYPE 2
E256250
Process control
equipment
10 11
CAN ICES-003 B / NMB-003 B
TM083482
Example of a nameplate (upper: EU, lower: US)
Pos. Description
1 Type designation
2 Product number
3 Version number
4 Production code (year and week)
5 Serial number
6 Power supply
7 Power consumption
8 Enclosure rating
9 Marks of approval
10 Equipment category
11 Written statements
12 Warning to read the installation and
operating instructions
Related information
4.1 Location
2.5 LEDs
SDCS CIU cellular communication, LED1
TM083977
1
2
3
4
5
1 s
3 s
TM084876
Pos. Colour Description
1Flashing
yellow
Searching for cellular
network
2
Pulsating
yellow (single
pulse)
Cellular network active
3Permanent
green
Data exchange with the
Grundfos iSOLUTIONS
Cloud
4 - For future use
5 - For future use
7
English (GB)

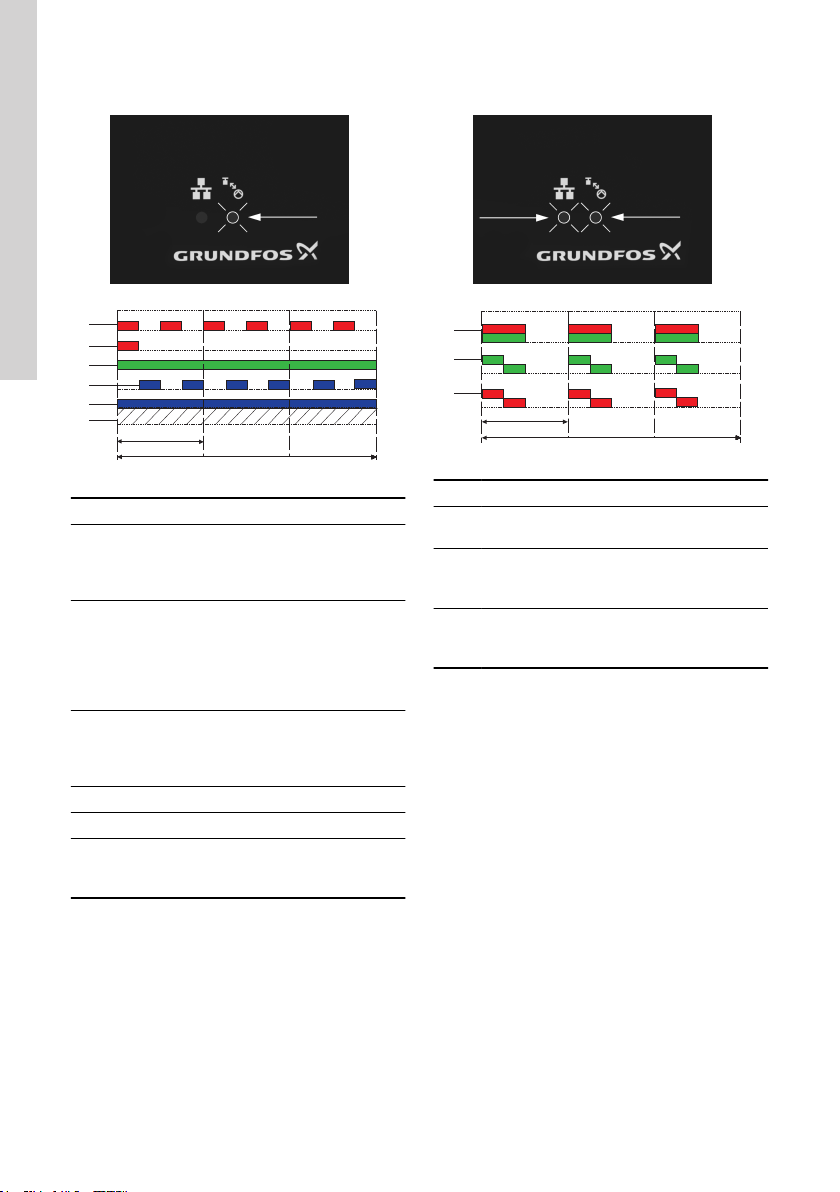

Communication to product, LED2
TM083978
1
2
3
4
5
6
1 s
3 s
TM084877
Pos. Colour Description
1Pulsating red (single
pulse)
CIM 280 is
commissioned, but
communication to
product is lost
2Pulsating red (single
pulse)
Product profile is not
downloaded from
Grundfos Remote
Management/
Grundfos
iSOLUTIONS Cloud
3 Permanent green
Internal
communication to
Grundfos product is
okay
4 - For future use
5 - For future use
6 -
LED is switched
off during firmware
upgrades
Firmware upgrade, LED1 and LED2
TM083979
1
2
3
1 s
3 s
TM084878
Pos. Colour Description
1Flashing red and
green
Firmware upgrade in
progress, LED2
2Pulsating green
(single pulse)
Firmware upgrade
completed, LED1 and
LED2
3Pulsating red (single
pulse)
Firmware upgrade
failed, LED1 and
LED2
3. Receiving the product
3.1 Inspecting the product
Before installing the product, do the following:
1. Check that the product is as ordered.
2. Check that no visible parts have been damaged.
3. If parts are damaged or missing, contact your
local Grundfos sales company.
8
English (GB)

3.2 Scope of delivery
The packaging contains the following items:
• Grundfos SDCS CIU gateway with integrated CIM
280 cellular communication module (3G/4G) with
preinstalled eSIM card, see section Intended use
for more info
• fixation bracket
• preinstalled 5 m (16.4 ft) M12 communication
cable to the DDA dosing pump
• preinstalled 3 m (9.8 ft) antenna cable with
magnetic foot antenna
• preinstalled 3 m (9.8 ft) power cable with Schuko
(CEE 7/7) for SDCS CIU EU or Type B (NEMA
5-15P) plug for SDCS CIU US
• 1 QR code sticker on top of the SDCS CIU
gateway cover to identify the complete dosing
system via the Grundfos GO App and 2
spare stickers
• Safety instructions
• Quick Guide.
Related information
2.2 Intended use
4. Installation requirements
4.1 Location
Install the product at a location that meets the
following requirements:
• The SDCS CIU gateway is designed for a
stationary installation place.
• The SDCS CIU gateway is designed for flexible
mounting on a suitable suspension point. This
must have sufficient load-bearing strength.
• The product must be easily accessible but the
connected cables must not pose a trip hazard.
• Install the product at a location safe from flooding.
• Make sure that the ambient temperature and
humidity are within the limit.
• Make sure that the voltage supply is within the
limit and there is a suitable wall power plug.
• Install the SDCS CIU gateway as close as
possible to the dosing pump.
• Neither of the already connected cables must be
extended or shortened.
• There must be no chemically aggressive vapors,
explosive gases or dust (non ATEX) where the
product is installed.
• Constant and stable 3G/4G coverage is required
in the installation room.
• Before installation, confirm whether medical
devices in the installation environment permit the
use of cellular equipment.
CAUTION
Radiation hazard
Minor or moderate personal injury
‐Human tissue may be heated by RF
energy. Position the antenna at a
minimum distance of 20 cm (0.66 feet)
from any body parts.
Related information
2.4.1 Nameplate
9. Technical data
4.2 Mounting requirements
Install the product in a way that meets the following
requirements:
• We recommend to mount the product on a
drywall. Other wall types are also applicable,
providing they have sufficient load-bearing
strength.
• Assess the suitability of the wall to ensure that it
withstands the forces generated.
• Use a screw or a nail suitable for your wall and
intended load.
• The recommended minimum parameters of the
screw are the following:
Screw head diameter 7.6 mm (0.3")
Nominal length 40 mm (1.6")
Shank diameter 4 mm (0.16")
• Make sure that there is at least 4 mm distance
between the wall and the screw head.
The screw for the wall is not included.
4.3 RF safety
End users must be provided with these
installation and operating instructions
and operating conditions to satisfy RF
exposure compliance.
9
English (GB)

4.4 Radio frequency radiation exposure, for
Canada and US only
CAUTION
Radiation
Minor or moderate personal injury
‐This equipment complies with FCC and
ISED radiation exposure limits set forth
for an uncontrolled environment. This
equipment must be installed and
operated with a minimum distance of
20 cm (0.66 feet) between the radiator
and your body.
‐This transmitter must not be co-located
or operated in conjunction with any
other antenna or transmitter.
FCC ID: OG3-CIM2X0-3G-4G
IC: 10447A-CIM2X034G
This device complies with Part 15 of the
FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference,
and
2. This device must accept any interference
received, including interference that may cause
undesired operation.
Changes or modifications made to this
equipment not expressly approved by
Grundfos may void the FCC authorisation
to operate this equipment.
4.5 EMC statements for USA
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
5. Mechanical installation
5.1 Mounting on the wall
CAUTION
The product may fall down
Minor or moderate personal injury
‐Make sure that the suspension point
supports the weight of the SDCS CIU
gateway and possible additional load.
‐Make sure to use screws or nails that
fit into the unit and support its weight.
CAUTION
Tripping hazard
Minor or moderate personal injury
‐In case of excess cable length, make
sure that it does not protrude into
sidewalks.
DANGER
Electric shock
Minor or moderate personal injury
‐Do not unscrew or loosen the blind
plugs, the cable glands, or the lids. The
ingress protection may be lost.
Do not peel off the label.
1. Mount the SDCS CIU gateway with the bracket
keyhole on a suitable suspension point.
TM083661
The SDCS CIU gateway is designed to be
mounted on a wall with its bracket by hand.
Mount the unit in a way that the cable glands face
downwards.
Install the SDCS CIU gateway in a way that no
loads are or can be applied to the preinstalled
cables.
10
English (GB)
