Grundfos CRIE User manual

CRE, CRIE, CRNE, SPKE, MTRE, CME
Installation and operating instructions
GRUNDFOS INSTRUCTIONS
Other languages
http://net.grundfos.com/qr/i/98358864

English (GB)
2
English (GB) Installation and operating instructions
Original installation and operating instructions
CONTENTS
Page
1. Symbols used in this document 3
2. Abbreviations and definitions 4
3. General information 4
4. General description 4
4.1 Pumps without factory-fitted sensor 4
4.2 Pumps with factory-fitted pressure
sensor 4
4.3 Settings 5
4.4 Radio communication 5
4.5 Battery 5
5. Receiving the product 5
5.1 Transporting the product 5
5.2 Inspecting the product 5
6. Mechanical installation 5
6.1 Handling the product 5
6.2 Mounting 6
6.3 Cable entries 6
6.4 Cable glands 6
6.5 Ensuring motor cooling 6
6.6 Outdoor installation 6
6.7 Drain holes 6
7. Electrical installation 7
7.1 Protection against electric shock,
indirect contact 7
7.2 Cable requirements 7

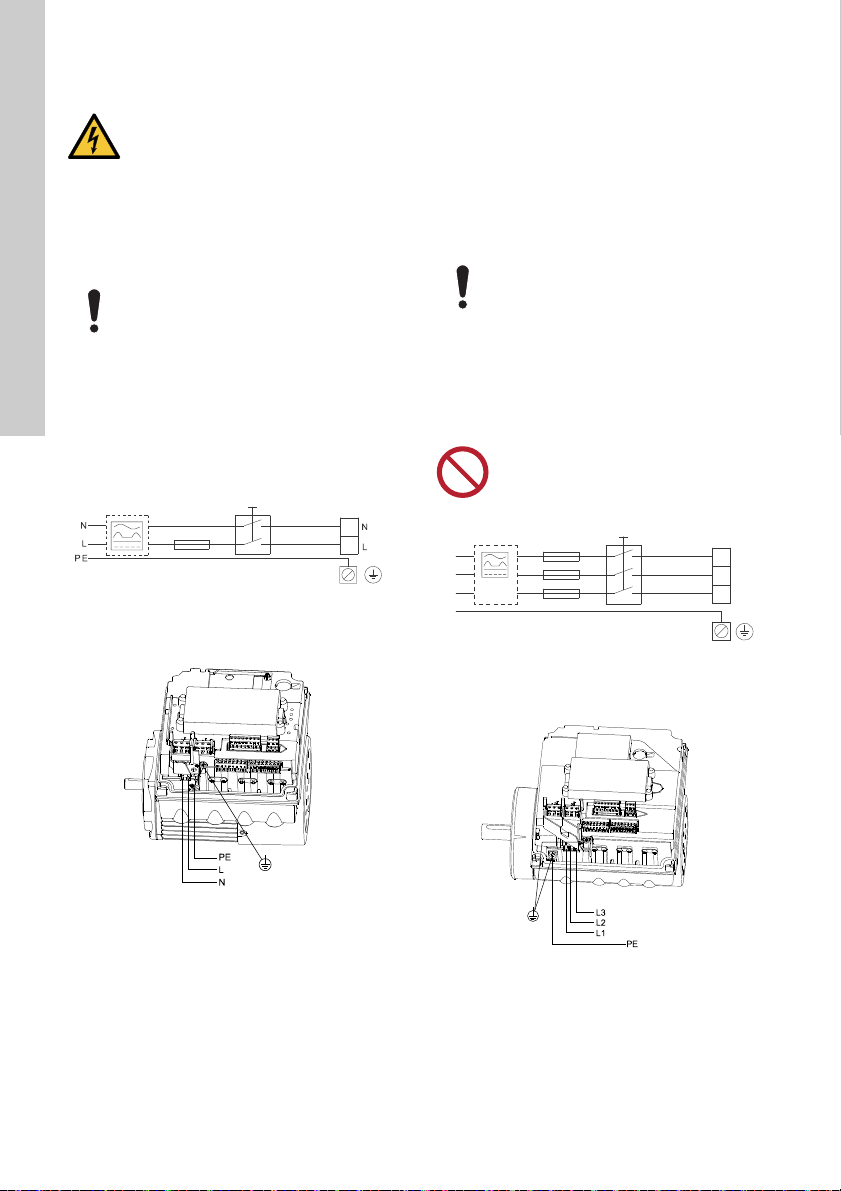

7.3 Mains supply 8
7.4 Additional protection 9
7.5 Connection terminals 9

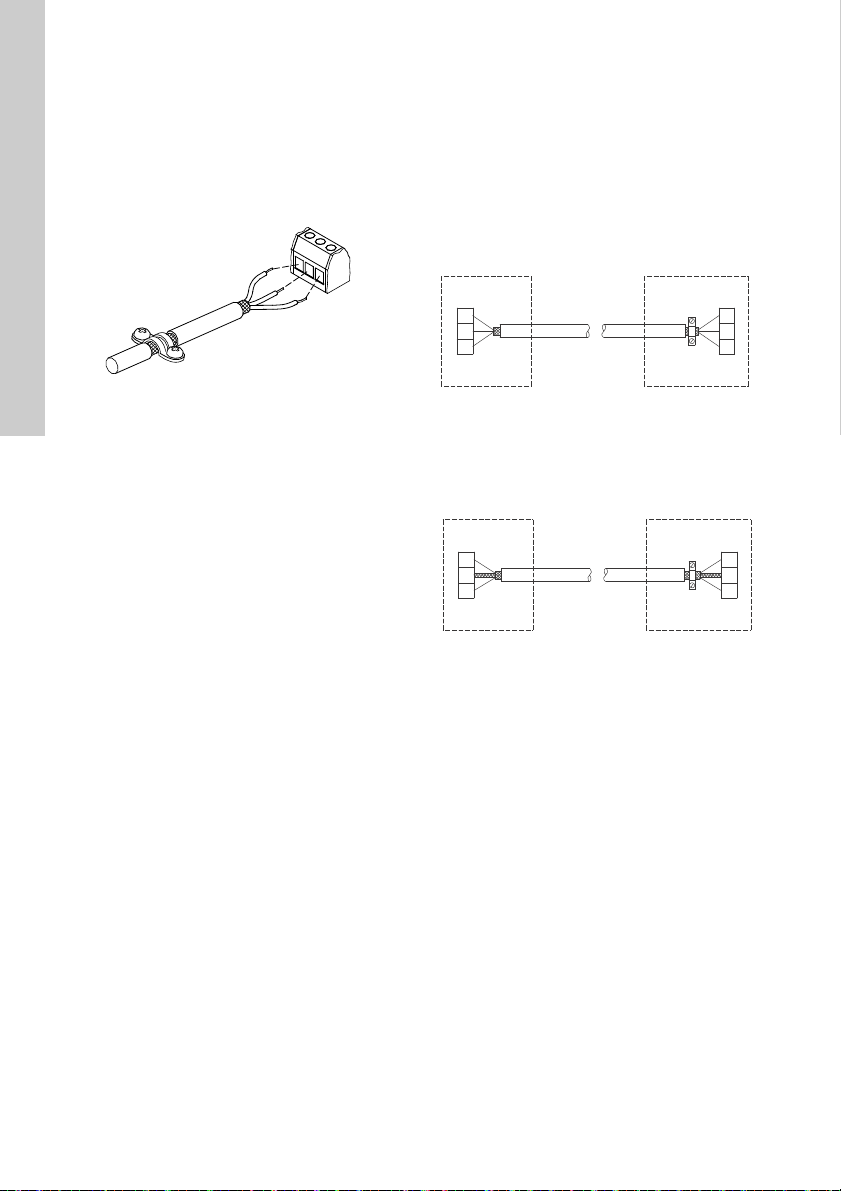

7.6 Signal cables 14
7.7 Bus connection cable 14
8. Operating conditions 15
8.1 Maximum number of starts and stops 15
8.2 Ambient temperature 15
8.3 Installation altitude 15
8.4 Humidity 16
8.5 Motor cooling 16
9. User interfaces 16
10. Standard control panel 17
10.1 Setpoint setting 17

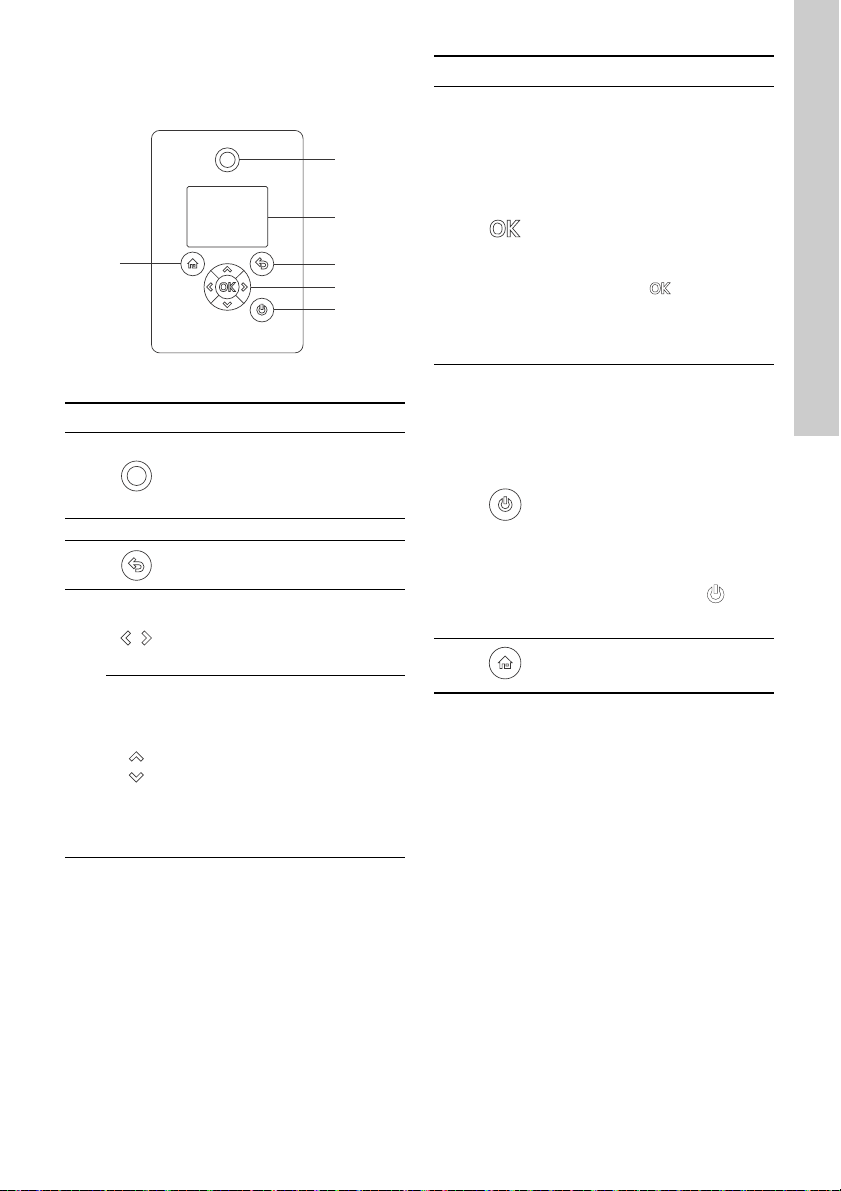

11. Advanced control panel 19
11.1 Home display 20
11.2 Startup guide 20
11.3 Menu overview for advanced control
panel 21
12. Grundfos GO 24
12.1 Communication 24
12.2 Menu overview for Grundfos GO 25
13. Description of functions 28
13.1 Setpoint 28
13.2 Operating mode 28
13.3 Set manual speed 28
13.4 "Set user-defined speed" 28
13.5 "Control mode" 28
13.6 Analog inputs 33
13.7 Pt100/1000 inputs 35
13.8 Digital inputs 35
13.9 Digital inputs/outputs 37
13.10 "Signal relays" 1 and 2 (Relay outputs) 38
13.11 Analog output 38
13.12 "Controller" (Controller settings) 40
13.13 Operating range 41
13.14 External setpoint function 41
13.15 Predefined setpoints 43
13.16 Limit-exceeded function 44
13.17 "LiqTec" (LiqTec function) 45
13.18 "Stop function" (Low-flow stop function) 45
13.19 Pipe filling function 47
13.20 "Pulse flowmeter" (Pulse flowmeter
setup) 48
13.21 Ramps 48
13.22 Standstill heating 48
13.23 Motor bearing monitoring 48
13.24 "Service" 49
13.25 "Number" (Pump number) 49
13.26 "Radio communication" (Enable/disable
radio comm.) 49
13.27 Language 49
13.28 "Date and time" (Set date and time) 50
13.29 "Unit configuration" (Units) 50
13.30 "Buttons on product" (Enable/disable
settings) 50
13.31 Delete history 50
13.32 Define Home display 51
13.33 Display settings 51
13.34 "Store settings" (Store actual settings) 51
13.35 "Recall settings" (Recall stored settings) 51
13.36 "Pump name" 51
13.37 "Connection code" 52
13.38 Run start-up guide 52
13.39 Alarm log 52
13.40 Warning log 53
13.41 Assist 53
13.42 Assisted pump setup 53
13.43 Setup, analog input 53
13.44 Setting of date and time 54
13.45 "Multi-pump setup" (Setup of multi-pump
system) 54
13.46 Description of control mode 57
13.47 Assisted fault advice 57
14. Bus signal 57
15. Priority of settings 58
16. Grundfos Eye 59
17. Signal relays 60

English (GB)
3
1. Symbols used in this document
18. Installing a communication interface
module 61
19. Identification of functional module 63
20. Identification of control panel 63
21. Changing the position of the control
panel 64
22. Servicing the product 65
22.1 Motor 65
22.2 Pump 65
23. Cleaning the product 65
24. Factory settings 66
25. Megging 68
26. Technical data, single-phase motors 68
26.1 Supply voltage 68
26.2 Leakage current 68
27. Technical data, three-phase motors 68
27.1 Supply voltage 68
27.2 Leakage current (AC) 69
28. Inputs/outputs 69
29. Other technical data 71
29.1 Sound pressure level 72
30. Disposing of the product 72
Read this document before installing the
product. Installation and operation must
comply with local regulations and accepted
codes of good practice.
DANGER
Indicates a hazardous situation which, if
not avoided, will result in death or serious
personal injury.
WARNING
Indicates a hazardous situation which, if
not avoided, could result in death or
serious personal injury.
CAUTION
Indicates a hazardous situation which, if
not avoided, could result in minor or
moderate personal injury.
Tips and advice that make the work easier.
If these instructions are not observed, it
may result in malfunction or damage to the
equipment.
A blue or grey circle with a white graphical
symbol indicates that an action must be
taken.
A red or grey circle with a diagonal bar,
possibly with a black graphical symbol,
indicates that an action must not be taken
or must be stopped.

English (GB)
4
2. Abbreviations and definitions 3. General information
These installation and operating instructions are a
supplement to the installation and operating
instructions for the corresponding standard pumps
CR, CRI, CRN, SPK, MTR and CM. For instructions
not mentioned specifically in this manual, see the
installation and operating instructions for the
standard pump.
4. General description
Grundfos E-pumps are fitted with
frequency-controlled permanent-magnet motors for
single-phase or three-phase mains connection.
4.1 Pumps without factory-fitted sensor
The pumps have a built-in PI controller and can be
set for an external sensor enabling the control of the
following parameters:
• constant pressure
• constant differential pressure
• constant temperature
• constant differential temperature
• constant flow rate
• constant level
• constant curve
• constant other value.
The pumps have been factory-set to constant-curve
control mode. You can change the control mode with
R100 or Grundfos GO.
4.2 Pumps with factory-fitted pressure
sensor
The pumps have a built-in PI controller and are set
for a pressure sensor enabling the control of the
outlet pressure.
The pumps have been factory-set to
constant-pressure control mode. The pumps are
typically used to keep a constant pressure in
variable-demand systems.
AI Analog input.
AL Alarm, out of range at lower limit.
AO Analog output.
AU Alarm, out of range at upper limit.
CIM Communication interface module.
Current
sinking
The ability to draw current into the
terminal and guide it towards GND in
the internal circuitry.
Current
sourcing
The ability to push current out of the
terminal and into an external load
which must return it to GND.
DI Digital input.
DO Digital output.
ELCB Earth leakage circuit breaker.
FM Functional module.
GDS
Grundfos Digital Sensor.
Factory-fitted sensor in some
Grundfos pumps.
GENIbus Proprietary Grundfos fieldbus
standard.
GFCI Ground fault circuit interrupter.
(USA and Canada).
GND Ground.
Grundfos
Eye Status indicator light.
LIVE Low voltage with the risk of electric
shock if the terminals are touched.
OC Open collector:
Configurable open-collector output.
PE Protective earth.
PELV
Protective extra-low voltage.
A voltage that cannot exceed ELV
under normal conditions and under
single-fault conditions, except earth
faults in other circuits.
RCD Residual-current device
SELV
Safety extra-low voltage.
A voltage that cannot exceed ELV
under normal conditions and under
single-fault conditions, including
earth faults in other circuits.

English (GB)
5
4.3 Settings
The description of settings applies both to pumps
without factory-fitted sensor and to pumps with a
factory-fitted pressure sensor.
Setpoint
You can set the desired setpoint in three ways:
• on the pump control panel
• via an input for external setpoint signal
• with the Grundfos wireless R100 remote control
or Grundfos GO.
Other settings
Make all other settings with R100 or Grundfos GO.
You can read important parameters, such as the
actual value of the control parameter and power
consumption, via R100 or Grundfos GO.
If special or customised settings are required, use
Grundfos PC Tool. Contact your local Grundfos
company for more information.
4.4 Radio communication
This product incorporates a radio module for remote
control which is a class 1 device and which you can
use anywhere in the EU without restrictions.
For use in USA and Canada, see page 73.
Some variants of the product and products sold in
China and Korea have no radio module.
This product can communicate with the Grundfos
GO and other products of the same type via the
built-in radio module.
In some cases, an external antenna may be
required. Only Grundfos-approved external antennas
may be connected to this product, and only by a
Grundfos-approved installer.
4.5 Battery
A Li-ion battery is fitted in CRE, CRIE, CRNE, SPKE
and MTRE pumps. The Li-ion battery complies with
the Battery Directive (2006/66/EC). The battery does
not contain mercury, lead and cadmium.
5. Receiving the product
5.1 Transporting the product
• Motors from 2.2 to 5.5 kW: Do not stack more
than two motors in their original packaging.
• Motors from 5.5 to 11 kW: Do not stack the
motors.
5.2 Inspecting the product
Before you install the product, do the following.
1. Check that the product is as ordered.
2. Check that no visible parts have been damaged.
3. If parts are damaged or missing, contact your
local Grundfos sales company.
6. Mechanical installation
6.1 Handling the product
Observe local regulations setting limits for manual
lifting or handling. The motor weight is stated on the
nameplate.
WARNING
Falling objects
Death or serious personal injury
- Secure the product during
transportation to prevent it from tilting or
falling down.
CAUTION
Crushing of feet
Minor or moderate personal injury
- Wear safety shoes when moving the
product.
CAUTION
Back injury
Minor or moderate personal injury
- Use lifting equipment.
CAUTION
Crushing of feet
Minor or moderate personal injury
- Wear safety shoes and attach lifting
equipment to the motor eyebolts when
handling the product.
Do not lift the product by the terminal box.

English (GB)
6
6.2 Mounting
6.3 Cable entries
See the size of the cable entries in section 29. Other
technical data.
6.4 Cable glands
The number and size of cable glands delivered with
the pump depends on the motor size. See section
29. Other technical data.
6.5 Ensuring motor cooling
Leave at least 50 mm between the end of the fan
cover and a wall or other fixed objects. See fig. 1.
Fig. 1 Minimum distance (D) from the motor to
a wall or other fixed objects
6.6 Outdoor installation
If you install the motor outdoors, provide the motor
with a suitable cover and open the drain holes to
avoid condensation on the electronic components.
See figures 2and 3.
The cover must be sufficiently large to ensure that
the motor is not exposed to direct sunlight, rain or
snow. Grundfos does not supply covers. We
therefore recommend that you have a cover built for
the specific application. In areas with high humidity,
we recommend that you connect the motor
permanently to the mains supply and activate the
built-in standstill heating function. See section
13.22 Standstill heating, page 48.
Fig. 2 Examples of covers (not supplied by
Grundfos)
6.7 Drain holes
When the motor is installed in moist surroundings or
areas with high humidity, the bottom drain hole must
be open. The enclosure class of the motor will then
be lower. This helps prevent condensation in the
motor as the motor becomes self-venting, and it
allows water and humid air to escape.
The motor has a plugged drain hole on the drive
side. You can turn the flange 90 ° to both sides or
180 °.
Fig. 3 Drain holes
CAUTION
Crushing of feet
Minor or moderate personal injury
- Secure the product to a solid foundation
by bolts through the holes in the flange
or the base plate.
In order to maintain the UL mark,
additional requirements apply to the
equipment. See page 73.
TM05 5236 3512
D
When fitting a cover to the motor, observe
the guideline in section 6.5 Ensuring motor
cooling.
TM05 3496 3512
In order to maintain the UL mark,
additional requirements apply to the
equipment. See page 73.
TM02 9037 1604
B3 B14 B5

English (GB)
7
7. Electrical installation
If the power supply cable is damaged, it must be
replaced by the manufacturer, the manufacturer's
service partner or a similarly qualified person.
The user or the installer is responsible for the
installation of correct earthing and protection
according to local regulations. All operations must be
carried out by a qualified electrician.
7.1 Protection against electric shock,
indirect contact
Protective-earth conductors must always have a
yellow/green (PE) or yellow/green/blue (PEN) colour
marking.
7.1.1 Protection against mains voltage transients
The motor is protected against mains voltage
transients in accordance with EN 61800-3.
7.1.2 Motor protection
The motor requires no external motor protection. The
motor incorporates thermal protection against slow
overloading and blocking.
7.2 Cable requirements
7.2.1 Cable cross-section
1 x 200-230 V
3 x 380-500 V
3 x 200-240 V
7.2.2 Conductors
Type
Stranded or solid copper conductors.
Temperature rating
Temperature rating for conductor insulation: 60 °C
(140 °F).
Temperature rating for outer cable sheath: 75 °C
(167 °F).
DANGER
Electric shock
- Death or serious personal injury
- Switch off the power supply to the motor
and to the signal relays. Wait at least 5
minutes before you make any
connections in the terminal box. Make
sure that the power supply cannot be
accidentally switched on.
DANGER
Electric shock
- Death or serious personal injury
- Check that the supply voltage and
frequency correspond to the values
stated on the nameplate.
WARNING
Electric shock
- Death or serious personal injury
- Connect the motor to a protective earth
and provide protection against indirect
contact in accordance with local
regulations.
DANGER
Electric shock
- Death or serious personal injury
- Always comply with local regulations as
to cable cross-sections.
Power
[kW]
Conductor
type
Cross section
[mm2][AWG]
0.25 - 1.5 Solid 1.5 - 2.5 16-12
Stranded 1.5 - 2.5 16-12
Power
[kW]
Conductor
type
Cross section
[mm2][AWG]
0.25 - 2.2 Solid 1.5 - 10 16-8
Stranded 1.5 - 10 16-8
3.0 - 11 Solid 2.5 - 10 14-8
Stranded 2.5 - 10 14-8
Power
[kW]
Conductor
type
Cross section
[mm2][AWG]
1.1 - 1.5 Solid 1.5 - 10 16-8
Stranded 1.5 - 10 16-8
2.2 - 5.5 Solid 2.5 - 10 14-8
Stranded 2.5 - 10 14-8

English (GB)
8
7.3 Mains supply
7.3.1 Single-phase supply voltage
• 1 x 200-240 V - 10 %/+ 10 %, 50/60 Hz, PE.
Check that the supply voltage and frequency
correspond to the values stated on the nameplate.
The wires in the motor terminal box must be as short
as possible. Excepted from this is the separated
earth conductor which must be so long that it is the
last one to be disconnected in case the cable is
inadvertently pulled out of the cable entry.
For maximum backup fuse, see section 26.1 Supply
voltage.
Fig. 4 Example of a mains-connected motor
with mains switch, backup fuse and
additional protection
Fig. 5 Mains connection, single-phase motors
7.3.2 Three-phase supply voltage
Three-phase motors are available for the voltages
below:
• 3 x 380-500 V - 10 %/+ 10 %, 50/60 Hz, PE
• 3 x 200-240 V - 10 %/+ 10 %, 50/60 Hz, PE.
Check that the supply voltage and frequency
correspond to the values stated on the nameplate.
The wires in the motor terminal box must be as short
as possible. Excepted from this is the separated
earth conductor which must be so long that it is the
last one to be disconnected in case the cable is
inadvertently pulled out of the cable entry.
In order to avoid loose connections, make sure that
you have pressed home the terminal block for L1, L2
and L3 in its socket when you connect the supply
cable.
For maximum backup fuse, see section 27.1 Supply
voltage.
Only the following motors can be supplied through
an IT network:
• Motors with speed of 1450-2000/2200 rpm and
up to 1.5 kW
• Motors with speed of 2900-4000 rpm or
4000-5900 rpm and up to 2.2 kW.
Fig. 6 Example of a mains-connected motor
with mains switch, backup fuses and
additional protection
Fig. 7 Mains connection, three-phase motors
DANGER
Electric shock
- Death or serious personal injury
- Use the recommended fuse size. See
section 26.1 Supply voltage.
If you want to supply the motor through an
IT network, make sure that you have a
suitable motor variant. If you are in doubt,
contact Grundfos.
TM05 4034 1912TM05 3494 1512
RCD,
type B
If you want to supply the motor through an
IT network, make sure that you have a
suitable motor variant. If you are in doubt,
contact Grundfos.
Corner earthing is not allowed for supply
voltages above 3 x 240 V and 3 x 480 V,
50/60 Hz.
TM05 3942 1812TM05 3495 1512
L1
L2
L3
L2
L1
L3
PE
RCD,
type B

English (GB)
9
7.4 Additional protection
The residual-current circuit breaker must be marked
with the following symbol:
The total leakage current of all the electrical
equipment in the installation must be taken into
account. You find the leakage current of the motor in
sections 26.2 Leakage current and 27.2 Leakage
current (AC).
This product can cause a direct current in the
protective earth conductor.
Overvoltage and undervoltage protection
Overvoltage and undervoltage may occur in case of
unstable power supply or a faulty installation. The
motor is stopped if the voltage falls outside the
permissible voltage range. The motor restarts
automatically when the voltage is again within the
permissible voltage range. Therefore, no additional
protection relay is required.
Overload protection
If the upper load limit is exceeded, the motor
automatically compensates for this by reducing the
speed and stops if the overload condition persists.
The motor remains stopped for a set period. After
this period, the motor automatically attempts to
restart. The overload protection prevents damage to
the motor. Consequently, no additional motor
protection is required.
Overtemperature protection
The electronic unit has a built-in temperature sensor
as an additional protection. When the temperature
rises above a certain level, the motor automatically
compensates for this by reducing the speed and
stops if the temperature keeps rising. The motor
remains stopped for a set period. After this period,
the motor automatically attempts to restart.
Protection against phase unbalance
Three-phase motors must be connected to a power
supply with a quality corresponding to IEC
60146-1-1, class C, to ensure correct motor
operation at phase unbalance. This also ensures
long life of the components.
7.5 Connection terminals
The descriptions and terminal overviews in this
section apply to both single- and three-phase
motors.
For maximum torques, see section Torques, page
71.
7.5.1 Connection terminals, CRE, CRIE, CRNE,
SPKE and MTRE pumps
CRE, CRIE, CRNE, SPKE and MTRE pumps have a
number of inputs and outputs enabling the pumps to
be used in advanced applications where many inputs
and outputs are required.
The pumps have these connections:
• three analog inputs
• one analog output
• two dedicated digital inputs
• two configurable digital inputs or open-collector
outputs
• Grundfos Digital Sensor input and output
• two Pt100/1000 inputs
• two LiqTec sensor inputs
• two signal relay outputs
• GENIbus connection.
See fig. 8.
DANGER
Electric shock
- Death or serious personal injury
- Only use residual-current circuit
breakers (ELCB, GFCI, RCD) of type B.
The motor is protected against transients
from the power supply according to EN
61800-3. In areas with high lightning
intensity, we recommend external lightning
protection.

English (GB)
10
• Inputs and outputs
All inputs and outputs are internally separated from
the mains-conducting parts by reinforced insulation
and galvanically separated from other circuits. All
control terminals are supplied by protective extra-low
voltage (PELV), thus ensuring protection against
electric shock.
• Signal relay outputs
– Signal relay 1:
LIVE:
You can connect supply voltages up to 250
VAC.
PELV:
The output is galvanically separated from
other circuits. Therefore, you can connect the
supply voltage or protective extra-low voltage
to the output as desired.
– Signal relay 2:
PELV:
The output is galvanically separated from
other circuits. Therefore, you can connect the
supply voltage or protective extra-low voltage
to the output as desired.
• Mains supply (terminals N, PE, L or L1, L2, L3,
PE).
* If you use an external supply source, there must
be a connection to GND.
Fig. 8 Connection terminals, CRE, CRIE,
CRNE, SPKE and MTRE pumps
Digital input 1 is factory-set to be start-stop
input where open circuit results in stop. A
jumper has been factory-fitted between
terminals 2 and 6. Remove the jumper if
digital input 1 is to be used as external
start-stop or any other external function.
DANGER
Electric shock
- Death or serious personal injury
- Make sure that the wires to be
connected to the connection groups
below are separated from each other by
reinforced insulation in their entire
lengths.
TM05 3509 3512
3
15
8
26
23
25
24
7
21
20
22
B
Y
6
5
2
4
10
A
+24 V*
1
14
9
12
17
19
11
18
+24 V*
+
+24 V* OC DI
+24 V*/5 V*
+24 V*
+
++
+24 V*/5 V*
+24 V*
+24 V*
+
+
+24 V*/5 V*
+24 V*
+5 V*
AI2
GDS RX
GDS TX
GND
GENIbus A
GENIbus B
+5 V
+24 V
+24 V
GND
GENIbus Y
GND
+5 V
DI1
AI1
DI3/OC1
LiqTec
AI3
GND
DI2
LiqTec
GND
AO
Pt100/1000
Pt100/1000
DI4/OC2
GND
+24 V* OC DI
GND
NC
C2
NO
NC
C1
NO
+5 V*

English (GB)
11
Terminal Type Function
NC Normally closed
contact
Signal relay 1
(LIVE or PELV)
C1 Common
NO Normally open
contact
NC Normally closed
contact
Signal relay 2
(PELV only)
C2 Common
NO Normally open
contact
18 GND Ground
11 DI4/OC2
Digital input/output,
configurable.
Open collector: Max.
24 V resistive or
inductive.
19 Pt100/1000
input 2
Pt100/1000 sensor
input
17 Pt100/1000
input 1
Pt100/1000 sensor
input
12 AO
Analog output:
0-20 mA / 4-20 mA
0-10 V
9 GND Ground
14 AI3
Analog input:
0-20 mA / 4-20 mA
0-10 V
1DI2 Digital input,
configurable
21 LiqTec sensor
input 1
LiqTec sensor input
(white conductor)
20 GND Ground (brown and
black conductors)
22 LiqTec sensor
input 2
LiqTec sensor input
(blue conductor)
10 DI3/OC1
Digital input/output,
configurable.
Open collector: Max.
24 V resistive or
inductive.
4AI1
Analog input:
0-20 mA / 4-20 mA
0.5 - 3.5 V / 0-5 V /
0-10 V
2DI1 Digital input,
configurable
5+5V
Supply to
potentiometer and
sensor
6 GND Ground
A GENIbus, A GENIbus, A (+)
Y GENIbus, Y GENIbus, GND
B GENIbus, B GENIbus, B (-)
3 GND Ground
15 +24 V Supply
8 +24 V Supply
26 +5 V
Supply to
potentiometer and
sensor
23 GND Ground
25 GDS TX Grundfos Digital
Sensor output
24 GDS RX Grundfos Digital
Sensor input
7AI2
Analog input:
0-20 mA / 4-20 mA
0.5 - 3.5 V / 0-5 V /
0-10 V
Terminal Type Function

English (GB)
12
7.5.2 Connection terminals, CME pumps
The CME pump has these connections:
• two analog inputs
• two digital inputs or one digital input and one
open-collector output
• Grundfos Digital Sensor input and output
• two signal relay outputs
• GENIbus connection.
See fig. 9.
• Inputs and outputs
All inputs and outputs are internally separated from
the mains-conducting parts by reinforced insulation
and galvanically separated from other circuits. All
control terminals are supplied by protective extra-low
voltage (PELV), thus ensuring protection against
electric shock.
• Signal relay outputs
– Signal relay 1:
LIVE:
You can connect supply voltages up to 250
VAC to the output.
PELV:
The output is galvanically separated from
other circuits. Therefore, you can connect the
supply voltage or protective extra-low voltage
to the output as desired.
– Signal relay 2:
PELV:
The output is galvanically separated from
other circuits. Therefore, you can connect the
supply voltage or protective extra-low voltage
to the output as desired.
• Mains supply (terminals N, PE, L or L1, L2, L3,
PE).
Digital input 1 is factory-set to be start-stop
input where open circuit results in stop. A
jumper has been factory-fitted between
terminals 2 and 6. Remove the jumper if
digital input 1 is to be used as external
start-stop or any other external function.
DANGER
Electric shock
- Death or serious personal injury
- Make sure that the wires to be
connected to the connection groups
below are separated from each other by
reinforced insulation in their entire
lengths.

English (GB)
13
* If you use an external supply source, there must
be a connection to GND.
Fig. 9 Connection terminals, CME pump
(optional for CRE, CRIE, CRNE, SPKE
and MTRE pumps)
TM05 3510 3512
3
15
8
26
23
25
24
7
B
Y
6
5
2
4
10
A
AI2
GDS RX
GDS TX
GND
GENIbus A
GENIbus B
+5 V
+24 V
+24 V
GND
GENIbus Y
GND
+5 V
DI1
AI1
DI3/OC1
+24 V*
+
+
+24 V*/5 V*
+24 V*
+5 V*
NC
C2
NO
NC
C1
NO
+24 V*
++
+24 V*/5 V*
+24 V*
+24 V* OC DI
GND
Terminal Type Function
NC Normally
closed contact
Signal relay 1
(LIVE or PELV)
C1 Common
NO Normally open
contact
NC Normally
closed contact
Signal relay 2
(PELV only)
C2 Common
NO Normally open
contact
10 DI3/OC1
Digital input/output,
configurable.
Open collector: Max.
24 V resistive or
inductive.
4AI1
Analog input:
0-20 mA / 4-20 mA
0.5 - 3.5 V / 0-5 V /
0-10 V
2DI1 Digital input,
configurable
5+5V
Supply to
potentiometer and
sensor
6 GND Ground
A GENIbus, A GENIbus, A (+)
Y GENIbus, Y GENIbus, GND
B GENIbus, B GENIbus, B (-)
3 GND Ground
15 +24 V Supply
8 +24 V Supply
26 +5 V
Supply to
potentiometer and
sensor
23 GND Ground
25 GDS TX Grundfos Digital
Sensor output
24 GDS RX Grundfos Digital
Sensor input
7AI2
Analog input:
0-20 mA / 4-20 mA
0.5 - 3.5 V / 0-5 V /
0-10 V

English (GB)
14
7.6 Signal cables
• Use screened cables with a cross-sectional area
of minimum 0.5 mm2and maximum 1.5 mm2for
the external on/off switch, digital inputs, setpoint
and sensor signals.
• Connect the screens of the cables to the frame at
both ends with good connection. The screens
must be as close as possible to the terminals.
See fig. 10.
Fig. 10 Stripped cable with screen and wire
connections
• Always tighten screws for frame connections
whether a cable is fitted or not.
• The wires in the motor terminal box must be as
short as possible.
7.7 Bus connection cable
7.7.1 New installations
For the bus connection, use a screened 3-core cable
with a cross-sectional area of minimum 0.5 mm2and
maximum 1.5 mm2.
If the motor is connected to a unit with a cable clamp
which is identical to the one on the motor, connect
the screen to this cable clamp.
If the unit has no cable clamp leave the screen
unconnected at this end. See fig. 11.
Fig. 11 Connection with screened 3-core cable
7.7.2 Replacing a motor
• If a 2-core cable is used in the installation,
connect it as shown in fig. 12.
Fig. 12 Connection with screened 2-core cable
• If a screened 3-core cable is used in the
installation, follow the instructions in section
7.7.1 New installations.
TM02 1325 4402
TM05 3973 1812TM02 8842 0904
A
Y
B
A
Y
B
1
2
3
1
2
3
Motor
A
Y
B
A
Y
B
1
2
1
2
Motor

English (GB)
15
8. Operating conditions
8.1 Maximum number of starts and stops
The number of starts and stops via the power supply
must not exceed four times per hour.
When switched on via the power supply, the pump
starts after approximately 5 seconds.
If a higher number of starts and stops is desired, use
the input for external start-stop when
starting/stopping the pump.
When started via an external on/off switch, the pump
starts immediately.
8.2 Ambient temperature
8.2.1 Ambient temperature during storage and
transportation
Minimum: -30 °C
Maximum: 60 °C.
8.2.2 Ambient temperature during operation
The motor can operate with the rated power output
(P2) at 50 °C, but continuous operation at higher
temperatures reduces the expected product life. If
the motor is to operate at ambient temperatures
between 50 and 60 °C, select an oversized motor.
Contact Grundfos for further information.
8.3 Installation altitude
Installation altitude is the height above sea level of
the installation site.
Motors installed up to 1000 m above sea level can
be loaded 100 %.
The motors can be installed up to 3500 m above sea
level.
Fig. 13 Motor output power in relation to altitude
In order to maintain the galvanic isolation and ensure
correct clearance according to EN 60664-1:2007,
you must adapt the supply voltage to the altitude:
Fig. 14 Motor output power in relation to altitude
3 x 200-240 V 3 x 380-500 V
Minimum -20 °C -20 °C
Maximum 40 °C 50 °C
Motors installed more than 1000 m above
sea level must not be fully loaded due to
the low density and consequent low
cooling effect of the air.
TM05 5243 3717TM05 5243 3717
0
60
80
90
70
100
500 1000 1500 2000 2500 3000 3500
Altitude [m]
P2 [%]
0
60
80
90
70
100
500 1000 1500 2000 2500 3000 3500
Altitude [m]
P2 [%]

English (GB)
16
In order to maintain the galvanic isolation and ensure
correct clearance according to EN 60664-1:2007,
you must adapt the supply voltage to the altitude:
Fig. 15 Supply voltage for three-phase motor in
relation to altitude
Fig. 16 Supply voltage for single-phase motor in
relation to altitude
8.4 Humidity
Maximum humidity: 95 %.
If the humidity is constantly high and above 85 %,
open the drain holes in the drive-end flange. See
section 6.7 Drain holes.
8.5 Motor cooling
To ensure cooling of motor and electronics, observe
the following:
• Position the motor in such a way that adequate
cooling is ensured. See section 6.5 Ensuring
motor cooling.
• The temperature of the cooling air must not
exceed 50 °C.
• Keep cooling fins and fan blades clean.
9. User interfaces
You can make the pump settings by means of the
following user interfaces:
Control panels
• Standard control panel.
See section 10. Standard control panel.
• Advanced control panel.
See section 11. Advanced control panel.
Remote controls
• Grundfos GO.
See section 12. Grundfos GO.
• Grundfos R100 remote control.
See section 13. Description of functions.
If the power supply to the pump is switched off, the
settings are stored.
TM06 9866 3617TM06 9867 3617
500
480
460
440
420
380
400
0 500 1000 2000 2500 3000 3500 4000 1500
Supply voltage [V]
Altitude [m]
0 500 1000 1500 2000 2500 3000 3500 4000
200
210
220
230
240
250
Supply voltage [V]
Altitude [m]
WARNING
Hot surface
Death or serious personal injury
- Only touch the buttons on the display as
the product may be very hot.

English (GB)
17
10. Standard control panel
The pumps are fitted with this control panel as
standard.
Fig. 17 Standard control panel
10.1 Setpoint setting
Set the desired setpoint of the pump by pressing
or . The green light fields on the control panel
indicate the setpoint set.
10.1.1 Pump in constant pressure control mode
The following example applies to a pump in an
application where a pressure sensor gives a
feedback to the pump. If the sensor is retrofitted to
the pump, you must set it up manually as the pump
does not automatically register a connected sensor.
See section 13.6 Analog inputs.
Figure 18 shows that the light fields 5 and 6 are
activated, indicating a desired setpoint of 3 bar with
a sensor measuring range from 0 to 6 bar. The
setting range is equal to the sensor measuring
range.
Fig. 18 Setpoint set to 3 bar, constant pressure
control
TM05 4848 3512
Pos. Symbol Description
1
Grundfos Eye
Shows the operating status of the
pump.
For further information, see
section 16. Grundfos Eye.
2-
Light fields for indication of
setpoint.
3Up and down. Changes the
setpoint.
4
Allows radio communication with
Grundfos GO and other products
of the same type.
When you try to establish radio
communication between the
pump and Grundfos GO or
another pump, the green indicator
light in Grundfos Eye on the pump
flashes continuously. Press on
the pump control panel to allow
radio communication with
Grundfos GO and other products
of the same type.
5
Makes the pump ready for
operation or starts and stops the
pump.
Start
If you press the button when the
pump is stopped, the pump only
starts if no other functions with
higher priority have been
enabled. See section 15. Priority
of settings.
Stop
If you press the button when the
pump is running, the pump always
stops. The "Stop" text next to the
button is on.
1
2
3
4
5
Stop
TM05 4894 3512
0
6
3
bar

English (GB)
18
10.1.2 Pump in constant-curve control mode
In constant-curve control mode, the pump
performance lies between the maximum and
minimum curve of the pump. See fig. 19.
Fig. 19 Pump in constant-curve control mode
Setting to maximum curve:
•Press continuously to change over to the
maximum curve of the pump (top light field
flashes). When the top light field is on, press
for 3 seconds until the light field starts flashing.
• To go back, press continuously until the
desired setpoint is indicated.
Example: Pump set to maximum curve.
Figure 20 shows that the top light field is flashing,
indicating maximum curve.
Fig. 20 Maximum curve duty
Setting to minimum curve:
•Press continuously to change over to the
minimum curve of the pump (bottom light field
flashes). When the bottom light field is on, press
for 3 seconds until the light field starts
flashing.
• To go back, press continuously until the
desired setpoint is indicated.
Example: Pump set to minimum curve.
Figure 21 shows that the bottom light field is
flashing, indicating minimum curve.
Fig. 21 Minimum curve duty
10.1.3 Start-stop of pump
Stop the pump by pressing . When the pump is
stopped, the "Stop" text next to the button is on. You
can also stop the pump by continuously pressing
until none of the light fields are on.
Start the pump by pressing or by continuously
pressing until the desired setpoint is indicated.
If you have stopped the pump by pressing , it can
only be given free to operation by pressing again.
If you have stopped the pump by pressing , it can
only be restarted by pressing .
You can also stop the pump with Grundfos GO or via
a digital input set to External stop. See section
15. Priority of settings.
10.1.4 Resetting of fault indications
You can reset a fault indication in one of the
following ways:
• Via the digital input if you have set it to Alarm
resetting.
• Briefly press or on the pump. This does
not change the setting of the pump.
You cannot reset a fault indication by pressing
or if the buttons have been locked.
• Switch off the power supply until the indicator
lights are off.
• Switch the external start-stop input off and then
on again.
• With Grundfos GO.
TM05 4895 2812TM05 4896 2812
H
Q
Max.
Min.
H
Q
TM05 4897 2812
H
Q

English (GB)
19
11. Advanced control panel
The pumps can be fitted with the advanced control
panel as an option.
Fig. 22 Advanced control panel
TM05 4849 1013
Pos. Symbol Description
1
Grundfos Eye
Shows the operating status of the
pump.
For further information, see section
16. Grundfos Eye.
2 - Graphical colour display.
3 Goes one step back.
4
Navigates between main menus,
displays and digits.
When you change the menu, the
display always shows the top
display of the new menu.
Navigates between submenus.
Changes value settings.
Note: If you have disabled the
possibility to make settings with the
Enable/disable settings function,
then you can enable it again
temporarily by pressing these
buttons simultaneously for at least
5 seconds. See section
13.30 "Buttons on product"
(Enable/disable settings).
1
2
3
4
5
6
4
Saves changed values, resets
alarms and expands the value field.
Enables radio communication with
Grundfos GO and other products of
the same type.
When you try to establish radio
communication between the pump
and Grundfos GO or another pump,
the green indicator light in Grundfos
Eye flashes. A note also appears in
the pump display stating that a
wireless device wants to connect to
the pump. Press on the pump
control panel to allow radio
communication with Grundfos GO
and other products of the same
type.
5
Makes the pump ready for
operation/starts and stops the
pump.
Start:
If you press the button when the
pump is stopped, the pump only
starts if no other functions with
higher priority have been enabled.
See section 15. Priority of settings.
Stop:
If you press the button when the
pump is running, the pump is
always stopped. When you stop the
pump via this button, the icon
appears in the bottom of the
display.
6 Goes to the Home menu.
Pos. Symbol Description

English (GB)
20
11.1 Home display
Fig. 23 Example of Home display
11.2 Startup guide
The pump incorporates a startup guide which is
started at the first startup. See section 13.38 Run
start-up guide. After the startup guide, the main
menus appear in the display.
TM06 4516 2415
Pos. Symbol Description
1
Home
This menu shows up to four
user-defined parameters. You can
select parameters shown as
shortcut icon , and when
pressing you go directly to the
"Settings" display for the selected
parameter.
2-
Status
This menu shows the status of the
pump and system as well as
warnings and alarms.
3-
Settings
This menu gives access to all
setting parameters. You can make
detailed settings of the pump in
this menu.
See section 13. Description of
functions.
4-
Assist
This menu enables assisted pump
setup, provides a short
description of the control modes
and offers fault advice.
See section 13.41 Assist.
5Indicates that the pump has been
stopped via the button.
6
Indicates that the pump is
functioning as master pump in a
multipump system.
7
Indicates that the pump is
functioning as a slave pump in a
multipump system.
8
Indicates that the pump is
operating in a multipump system.
See section 13.45 "Multi-pump
setup" (Setup of multi-pump
system).
Setpoint
5.00 bar
Operating mode
Normal
Actual controlled value
4.90 bar
Control mode
Const. pressure
Status Settings Assist
1 2 3 4
56789
Home
9
Indicates that the possibility to
make settings has been disabled
for protective reasons. See
section 13.30 "Buttons on
product" (Enable/disable
settings).
Pos. Symbol Description
