Grundfos MAGNA 2000 Series User manual

GRUNDFOS INSTRUCTIONS
GRUNDFOS MAGNA
Installation and operating instructions

Table of contents
8
GRUNDFOS MAGNA
Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
English (GB)
Installation and operating instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Dansk (DK)
Monterings- og driftsinstruktion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Deutsch (DE)
Montage- und Betriebsanleitung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Ελληνικά (GR)
Οδηγίες εγκατάστασης και λειτουργίας . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Español (ES)
Instrucciones de instalación y funcionamiento . . . . . . . . . . . . . . . . . . . . . . . . . 94
Français (FR)
Notice d'installation et de fonctionnement. . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Italiano (IT)
Istruzioni di installazione e funzionamento . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Nederlands (NL)
Installatie- en bedieningsinstructies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Polski (PL)
Instrukcja montażu i eksploatacji . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Português (PT)
Instruções de instalação e funcionamento . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Русский (RU)
Руководство по монтажу иэксплуатации . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Suomi (FI)
Asennus- ja käyttöohjeet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Svenska (SE)
Monterings- och driftsinstruktion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
Appendix 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295

Declaration of conformity
8
Declaration of conformity
Declaration of Conformity
GB Declaration of Conformity
We, Grundfos, declare under our sole responsibility
that the products MAGNA Series 2000, to which this
declaration relates, are in conformity with these
Council directives on the approximation of the laws
of the EC member states:
– Machinery Directive (2006/42/EC).
Standard used: EN 809: 1998.
– Low Voltage Directive (2006/95/EC).
Standards used: EN 60335-1: 2002 and EN
60335-2-51: 2003.
– EMC Directive (2004/108/EC).
Standard used: EN 61800-3.
DK Overensstemmelseserklæring
Vi, Grundfos, erklærer under ansvar at produkterne
MAGNA Series 2000 som denne erklæring
omhandler, er i overensstemmelse med disse af
Rådets direktiver om indbyrdes tilnærmelse til EF-
medlemsstaternes lovgivning:
– Maskindirektivet (2006/42/EF).
Anvendt standard: EN 809: 1998.
– Lavspændingsdirektivet (2006/95/EF).
Anvendte standarder: EN 60335-1: 2002 og EN
60335-2-51: 2003.
– EMC-direktivet (2004/108/EF).
Anvendt standard: EN 61800-3.
DE Konformitätserklärung
Wir, Grundfos, erklären in alleiniger Verantwortung,
dass die Produkte MAGNA Series 2000, auf die
sich diese Erklärung bezieht, mit den folgenden
Richtlinien des Rates zur Angleichung der
Rechtsvorschriften der EU-Mitgliedsstaaten
übereinstimmen:
– Maschinenrichtlinie (2006/42/EG).
Norm, die verwendet wurde: EN 809: 1998.
– Niederspannungsrichtlinie (2006/95/EG).
Normen, die verwendet wurden: EN 60335-1:
2002 und
EN 60335-2-51: 2003.
– EMV-Richtlinie (2004/108/EG).
Norm, die verwendet wurde: EN 61800-3.
GR ∆ήλωση Συμμόρφωσης
Εμείς, ηGrundfos, δηλώνουμε με αποκλειστικά δική
μας ευθύνη ότι τα προϊόντα MAGNA Series 2000
στα οποία αναφέρεται ηπαρούσα δήλωση,
συμμορφώνονται με τις εξής Οδηγίες του
Συμβουλίου περί προσέγγισης των νομοθεσιών
των κρατών μελών της ΕΕ:
–Οδηγία για μηχανήματα (2006/42/EC).
Πρότυπο που χρησιμοποιήθηκε: EN 809: 1998.
–Οδηγία χαμηλής τάσης (2006/95/EC).
Πρότυπα που χρησιμοποιήθηκαν: EN 60335-1:
2002 και
EN 60335-2-51: 2003.
–Οδηγία Ηλεκτρομαγνητικής Συμβατότητας
(EMC) (2004/108/EC).
Πρότυπο που χρησιμοποιήθηκε: EN 61800-3.
ES Declaración de Conformidad
Nosotros, Grundfos, declaramos bajo nuestra
entera responsabilidad que los productos MAGNA
Series 2000, a los cuales se refiere esta
declaración, están conformes con las Directivas del
Consejo en la aproximación de las leyes de las
Estados Miembros del EM:
– Directiva de Maquinaria (2006/42/CE).
Norma aplicada: EN 809: 1998.
– Directiva de Baja Tensión (2006/95/CE).
Normas aplicadas: EN 60335-1: 2002 y EN
60335-2-51: 2003.
– Directiva EMC (2004/108/CE).
Norma aplicada: EN 61800-3.
FR Déclaration de Conformité
Nous, Grundfos, déclarons sous notre seule
responsabilité, que les produits MAGNA Series
2000, auxquels se réfère cette déclaration, sont
conformes aux Directives du Conseil concernant le
rapprochement des législations des Etats membres
CE relatives aux normes énoncées ci-dessous :
– Directive Machines (2006/42/CE).
Norme utilisée : EN 809 : 1998.
– Directive Basse Tension (2006/95/CE).
Normes utilisées : EN 60335-1 : 2002 et EN
60335-2-51 : 2003.
– Directive Compatibilité Electromagnétique CEM
(2004/108/CE).
Norme utilisée : EN 61800-3.

Declaration of conformity
9
IT Dichiarazione di Conformità
Grundfos dichiara sotto la sua esclusiva
responsabilità che i prodotti MAGNA Series 2000,
ai quali si riferisce questa dichiarazione, sono
conformi alle seguenti direttive del Consiglio
riguardanti il riavvicinamento delle legislazioni degli
Stati membri CE:
– Direttiva Macchine (2006/42/CE).
Norma applicata: EN 809: 1998.
– Direttiva Bassa Tensione (2006/95/CE).
Norme applicate: EN 60335-1: 2002 e EN 60335-
2-51: 2003.
– Direttiva EMC (2004/108/CE).
Norma applicata: EN 61800-3.
NL Overeenkomstigheidsverklaring
Wij, Grundfos, verklaren geheel onder eigen
verantwoordelijkheid dat de producten MAGNA
Series 2000 waarop deze verklaring betrekking
heeft, in overeenstemming zijn met de Richtlijnen
van de Raad in zake de onderlinge aanpassing van
de wetgeving van de EG Lidstaten betreffende:
– Machine Richtlijn (2006/42/EC).
Gebruikte norm: EN 809: 1998.
– Laagspannings Richtlijn (2006/95/EC).
Gebruikte normen: EN 60335-1: 2002 en EN
60335-2-51: 2003.
– EMC Richtlijn (2004/108/EC).
Gebruikte norm: EN 61800-3.
PL Deklaracja zgodności
My, Grundfos, oświadczamy z pełną
odpowiedzialnością, że nasze wyroby MAGNA
Series 2000, których deklaracja niniejsza dotyczy,
sązgodne z następującymi wytycznymi Rady d/s
ujednolicenia przepisów prawnych krajów
członkowskich WE:
– Dyrektywa Maszynowa (2006/42/WE).
Zastosowana norma: EN 809: 1998.
– Dyrektywa Niskonapięciowa (LVD) (2006/95/
WE).
Zastosowane normy: EN 60335-1: 2002 oraz EN
60335-2-51: 2003.
– Dyrektywa EMC (2004/108/WE).
Zastosowana norma: EN 61800-3.
PT Declaração de Conformidade
A Grundfos declara sob sua única responsabilidade
que os produtos MAGNA Series 2000, aos quais
diz respeito esta declaração, estão em
conformidade com as seguintes Directivas do
Conselho sobre a aproximação das legislações dos
Estados Membros da CE:
– Directiva Máquinas (2006/42/CE).
Norma utilizada: EN 809: 1998.
– Directiva Baixa Tensão (2006/95/CE).
Normas utilizadas: EN 60335-1: 2002 e EN
60335-2-51: 2003.
– Directiva EMC (compatibilidade
electromagnética) (2004/108/CE).
Norma utilizada: EN 61800-3.
RU Декларация осоответствии
Мы, компания Grundfos, со всей
ответственностью заявляем, что изделия
MAGNA Series 2000, ккоторым относится
настоящая декларация, соответствуют
следующим Директивам Совета Евросоюза об
унификации законодательных предписаний
стран-членов ЕС:
–Механические устройства (2006/42/ЕС).
Применявшийся стандарт: EN 809: 1998.
–Низковольтное оборудование (2006/95/EC).
Применявшиеся стандарты: EN 60335-1: 2002
и
EN 60335-2-51: 2003.
–Электромагнитная совместимость (2004/108/
EC).
Применявшийся стандарт: EN 61800-3.
FI Vaatimustenmukaisuusvakuutus
Me, Grundfos, vakuutamme omalla vastuullamme,
että tuotteet MAGNA Series 2000, joita tämä
vakuutus koskee, ovat EY:n jäsenvaltioiden
lainsäädännön yhdenmukaistamiseen tähtäävien
Euroopan neuvoston direktiivien vaatimusten
mukaisia seuraavasti:
– Konedirektiivi (2006/42/EY).
Sovellettu standardi: EN 809: 1998.
– Pienjännitedirektiivi (2006/95/EY).
Sovellettavat standardit: EN 60335-1: 2002 ja
EN 60335-2-51: 2003.
– EMC-direktiivi (2004/108/EY).
Sovellettu standardi: EN 61800-3.
SE Försäkran om överensstämmelse
Vi, Grundfos, försäkrar under ansvar att
produkterna MAGNA Series 2000, som omfattas av
denna försäkran, är i överensstämmelse med
rådets direktiv om inbördes närmande till
EU-medlemsstaternas lagstiftning, avseende:
– Maskindirektivet (2006/42/EG).
Tillämpad standard: EN 809: 1998.
– Lågspänningsdirektivet (2006/95/EG).
Tillämpade standarder: EN 60335-1: 2002 och
EN 60335-2-51: 2003.
– EMC-direktivet (2004/108/EG).
Tillämpad standard: EN 61800-3.
Bjerringbro, 1st September 2010
Svend Aage Kaae
Technical Director
Grundfos Holding A/S
Poul Due Jensens Vej 7
8850 Bjerringbro, Denmark
Person authorised to compile technical file and
empowered to sign the EC declaration of
conformity.

English (GB)
8
English (GB) Installation and operating instructions
English (GB) Installation and operating instructions
Original installation and operating instructions.
CONTENTS Page
1. Symbols used in this document 8
2. General description 8
3. Applications 9
3.1 Pumped liquids 9
4. Installation 9
4.1 Positioning 9
4.2 Changing the control box position 9
4.3 Insulation shells 10
4.4 Twin-head pumps 10
4.5 Non-return valve 10
4.6 Frost protection 10
5. Electrical connection 10
5.1 Supply voltage 11
5.2 Connection to the supply 11
6. Start-up 11
7. Functions 12
7.1 Control modes 13
7.2 Selection of control mode 14
7.3 Automatic night-time duty 14
7.4 Constant-curve duty 15
7.5 Max. or min. curve duty 15
7.6 Temperature influence 15
7.7 Expansion modules 16
7.8 Relay module 16
7.9 GENI module 16
7.10 Connection to LON network 17
8. Setting the pump 17
8.1 Factory setting 17
8.2 Control panel 18
8.3 R100 remote control 19
8.4 R100 display overview 20
8.5 Menu OPERATION 21
8.6 Menu STATUS 22
8.7 Menu INSTALLATION 23
8.8 Priority of settings 24
9. Fault finding chart 25
9.1 Checking the module 26
10. Megging 27
11. Technical data 28
12. Disposal 28
1. Symbols used in this document
2. General description
The GRUNDFOS MAGNA Series 2000 is a complete
range of circulator pumps with integrated differential
pressure control enabling adjustment of pump
performance to the actual system requirements.
In many systems, this will reduce the power
consumption considerably, reduce noise from
thermostatic valves and similar fittings, and improve
the control of the system.
The desired head can be set on the pump control
panel.
Warning
Prior to installation, read these
installation and operating instructions.
Installation and operation must comply
with local regulations and accepted
codes of good practice.
Warning
The use of this product requires
experience with and knowledge of the
product.
Persons with reduced physical,
sensory or mental capabilities must not
use this product, unless they are under
supervision or have been instructed in
the use of the product by a person
responsible for their safety.
Children must not use or play with this
product.
Warning
If these safety instructions are not
observed, it may result in personal
injury!
Caution
If these safety instructions are not
observed, it may result in malfunction
or damage to the equipment!
Note
Notes or instructions that make the job
easier and ensure safe operation.

English (GB)
9
3. Applications
The GRUNDFOS MAGNA is designed for circulating
liquids in heating and air-conditioning systems. The
pump can also be used in domestic hot-water
systems.
The pump range is primarily used in
• systems with a variable flow.
The pump range can also be used in
• systems with a constant flow where it is
desirable to optimise the setting of the pump duty
point,
• systems with variable flow-pipe temperature.
3.1 Pumped liquids
Thin, clean, non-aggressive and non-explosive
liquids, not containing solid particles, fibres or
mineral oil.
In heating systems, the water should meet the
requirements of accepted standards on water quality
in heating systems, e.g. the German standard
VDI 2035.
In domestic hot-water systems, it is advisable to
use GRUNDFOS MAGNA pumps only for water with
a degree of hardness lower than approx. 14 °dH.
4. Installation
Arrows on the pump housing indicate the liquid flow
direction through the pump.
4.1 Positioning
GRUNDFOS MAGNA must be installed with the
pump head in horizontal position. See page 13.
4.2 Changing the control box position
Procedure:
4.2.1 Control box position
For permissible control box positions, see the Quick
Guide.
Warning
The pump must not be used for the
transfer of inflammable liquids such as
diesel oil, petrol or similar liquids.
Warning
Before any dismantling of the pump,
the system must be drained or the
isolating valves on both sides of the
pump must be closed as the pumped
liquid may be scalding hot and under
high pressure.
Step Action Illustration
1Remove the two
screws.
TM03 0474 5204
2Pull the stator and the pump head
approx. 5 mm out.
TM03 0475 5204
3
Turn the stator and
the pump head to
the desired
position.
TM03 0476 5204
4Push the stator and the pump head into
place.
TM03 0475 5204
5Refit the two
screws.
TM03 0580 0305

English (GB)
10
4.3 Insulation shells
• Insulation shells for pumps in heating systems
are supplied with the pump.
• Insulation shells for pumps in air-conditioning sys-
tems are accessories and must be ordered sepa-
rately. Please contact Grundfos.
The fitting of insulation shells will increase the pump
dimensions. See the dotted line on the dimensional
sketches on pages 8 and 9.
The insulation shells are only available for single-
head pumps.
4.4 Twin-head pumps
Twin-head pumps are supplied fitted with a GENI
module on each control box. The modules are
connected via a cable. The modules determine the
operating mode of the pump, see section
7.9.1 Control of twin-head pumps.
The automatic air vent is not supplied with the pump.
.

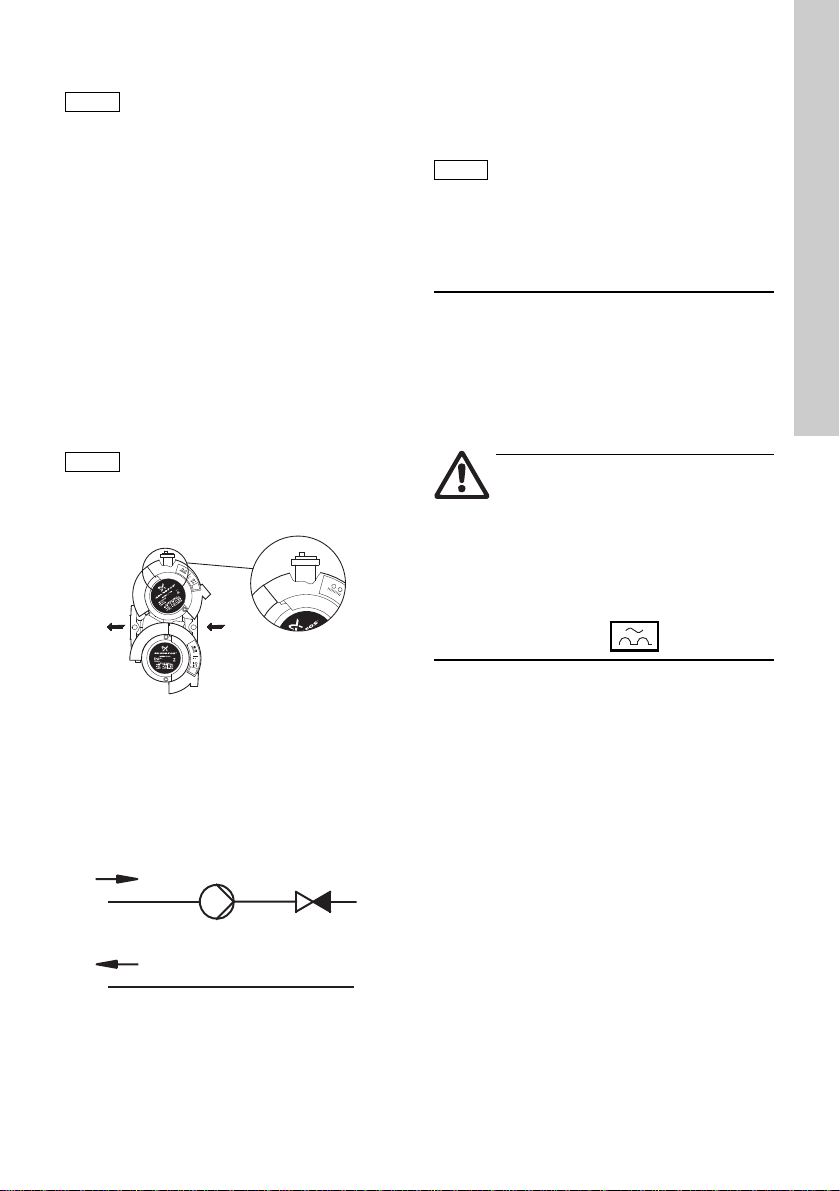

Fig. 1 Automatic air vent
4.5 Non-return valve
If a non-return valve is fitted in the pipe system, see
fig. 2, it must be ensured that the set minimum
discharge pressure of the pump is always higher
than the closing pressure of the valve. This is
especially important in proportional-pressure control
mode (reduced head at low flow).
Fig. 2 Non-return valve
4.6 Frost protection
If the pump is not used during periods of frost,
necessary steps must be taken to prevent frost
bursts.
5. Electrical connection
The electrical connection and protection must be
carried out in accordance with local regulations.
• The pump requires no external motor protection.
• Check that the supply voltage and frequency
correspond to the values stated on the pump
nameplate.
Note
It is recommended to fit insulation
shells to the pump.
Caution
Twin-head pumps mounted in
horizontal pipes must be fitted with an
automatic air vent (Rp 1/4) in the upper
part of the pump housing, see fig. 1.
TM03 0377 5004TM02 0640 0301
Note
Additives with a density and/or
kinematic viscosity higher than those/
that of water will reduce the hydraulic
performance.
Warning
The pump must be connected to an
external mains switch with a contact
separation of at least 3 mm in each
pole.
Earthing or neutralisation can be used
for protection against indirect contact.
Megging must be carried out as
described in section 10. Megging.
If the pump is connected to an electric
installation where an earth leakage
circuit breaker (ELCB) is used as
additional protection, this circuit
breaker must trip out when earth fault
currents with DC content (pulsating
DC) occur.
The earth leakage circuit breaker must
be marked with this symbol:

English (GB)
11
5.1 Supply voltage
1 x 230-240 V – 10 %/+ 6 %, 50/60 Hz.
5.2 Connection to the supply
6. Start-up
Do not start the pump until the system has been filled
with liquid and vented. Furthermore, the required
minimum inlet pressure must be available at the
pump inlet, see section 11. Technical data.
The system cannot be vented through the pump.
Step Action
1
TM03 0898 0705
2
TM03 0899 0705
3
TM03 0900 0705
4
TM03 0901 0705
7 mm
12 mm
5
TM03 0902 0705
6
TM03 0520 0105
Step Action

English (GB)
12
7. Functions
Most functions can be selected on the pump control panel. However, some functions can only be selected with
the R100 or via expansion modules.
On the pump control panel, see fig. 11, page 18:
•AUTOADAPT (factory setting)
Recommended for most heating installations.
During operation, the pump automatically makes the necessary adjustment to the actual system
characteristic. This setting ensures minimum energy consumption and noise level which reduces
operating costs and increases comfort.
•Proportional-pressure control
The pump head is changed continuously in accordance with the water demand in the system. The desired
setpoint can be set on the pump control panel.
•Constant-pressure control
A constant head is maintained, irrespective of water demand. The desired setpoint can be set on the
pump control panel.
•Automatic night-time duty
The pump changes automatically between normal duty and night-time duty depending on the flow-pipe
temperature. Automatic night-time duty can be combined with the above-mentioned control modes.
Further functions:
With the R100 remote control:
•Constant-curve duty
The pump runs at a constant speed, on or between the max. and min. curves.
•Temperature influence
The pump head varies depending on the liquid temperature.
Via expansion modules:
GENI module
•External analog control of head or speed via a signal from an external 0-10 V signal transmitter.
•External forced control via inputs for:
- Max. curve
- Min. curve.
•Bus communication via GENIbus
The pump can be controlled and monitored by a Grundfos Control MPC Series 2000, a building
management system or another type of external control system.
•Control of twin-head pumps
The control of twin-head pumps is described in section 7.9.1.
•External start/stop
The pump can be started and stopped via the digital input.
•Fault, ready and operating indication via signal relay
The pump controls an external fault, ready and operating signal relay via a potential-free output.
The function of the signal relay is set with the R100.
Relay module
•External start/stop
The pump can be started and stopped via the digital input.
•Fault, ready and operating indication via signal relay
The pump controls an external fault, ready and operating signal relay via a potential-free output.
The function of the signal relay is set with the R100.

English (GB)
13
7.1 Control modes
A GRUNDFOS MAGNA pump can be set to the
control mode which is most suitable for the individual
system.
Possible control modes:
•AUTO
ADAPT (factory setting)
• Proportional pressure
• Constant pressure.
Each of the control modes can be combined with
automatic night-time duty, see section 7.3 Automatic
night-time duty.
AUTOADAPT
To be set on the control panel or with the R100, see
section 8. Setting the pump.
The control mode AUTOADAPT continuously adapts
the pump performance.
The setpoint of the pump has been factory-set as
follows and cannot be changed manually:
• MAGNA 25-100, 32-100, 40-100(D), 50-100 to
5.5 metres.
• MAGNA 25-80, 32-80, 40-80 to 4.5 metres.
• MAGNA 25-60, 32-60, 40-60 to 3.5 metres.
• MAGNA 25-40, 32-40 to 2.5 metres.
When the pump registers a lower pressure on the
max. curve, A2, the AUTOADAPT function
automatically selects a correspondingly lower control
curve, Hset2, thus reducing the energy consumption.
Fig. 3 AUTOADAPT
A1: Original duty point.
A2: Lower registered pressure on the max.
curve.
A3: New duty point after AUTOADAPT control.
Hset1: Original setpoint.
Hset2: New setpoint after AUTOADAPT control.
Hfac.: Factory-set setpoint.
The AUTOADAPT function can be reset by pressing
the button for approx. 10 seconds until the control
mode is back to the starting point (AUTOADAPT or
AUTOADAPT with automatic night-time duty).
Proportional-pressure control
To be set on the control panel or with the R100, see
section 8. Setting the pump.
The pump head is reduced at decreasing water
demand and increased at rising water demand, see
fig. 4.
Constant-pressure control
To be set on the control panel or with the R100, see
section 8. Setting the pump.
The pump maintains a constant pressure,
irrespective of water demand, see fig. 4.
Fig. 4 Pressure control
TM02 0251 4800
Hmax.
Hfac. A1
A3A2Hset2
Hset1
TM00 5546 4596
Hset
Hset
Hset
Proportional
pressure Constant pressure

English (GB)
14
7.2 Selection of control mode
7.2.1 Setpoint setting
If AUTOADAPT is selected, the setpoint cannot be set.
The setpoint can be set by pressing or when
the pump is in control mode:
• proportional pressure,
• constant pressure or
• constant-curve duty.
Set the setpoint so that it matches the system.
A too high setting may result in noise in the system
whereas a too low setting may result in insufficient
heating or cooling in the system.
7.3 Automatic night-time duty
To be set on the control panel or with the R100, see
section 8. Setting the pump.
Once automatic night-time duty has been activated,
the pump automatically changes between normal
duty and night-time duty (duty at low performance).
Changeover between normal duty and night-time
duty is dependent on the flow-pipe temperature.
The pump automatically changes over to night-time
duty when the built-in sensor registers a flow-pipe
temperature drop of more than 10-15 °C within
approx. 2 hours. The temperature drop must be at
least 0.1 °C/min.
Changeover to normal duty takes place without a
time lag when the temperature has increased by
approx. 10 °C.
System type Description Select this
control mode
Typical heating
systems
Grundfos recommends to let the pump remain in AUTOADAPT mode.
This ensures optimum performance at the lowest possible energy
consumption. AUTOADAPT
Relatively great
head losses in
the distribution
pipes and air-
conditioning
systems
1. Two-pipe
heating
systems with
thermostatic
valves and:
• with a dimensioned pump head higher than
3metres,
Proportional
pressure
• very long distribution pipes,
• strongly throttled pipe balancing valves,
• differential pressure regulators,
• great head losses in those parts of the system
through which the total quantity of water flows
(e.g. boiler, heat exchanger and distribution pipe
up to the first branching).
2. Primary circuit pumps in systems with great head losses in the primary
circuit.
3. Air-
conditioning
systems with
• heat exchangers (fan coils),
• cooling ceilings,
• cooling surfaces.
Relatively small
head losses in
the distribution
pipes
1. Two-pipe
heating
systems with
thermostatic
valves and:
• with a dimensioned pump head lower than
2metres,
Constant
pressure
• dimensioned for natural circulation,
• with small head losses in those parts of the system
through which the total quantity of water flows
(e.g. boiler, heat exchanger and distribution pipe
up to the first branching) or
• modified to a high differential temperature between
flow pipe and return pipe (e.g. district heating).
2. Underfloor heating systems with thermostatic valves.
3. One-pipe heating systems with thermostatic valves or pipe balancing
valves.
4. Primary circuit pumps in systems with small head losses in the primary
circuit.
Note
Automatic night-time duty cannot be
used in air-conditioning systems.

English (GB)
15
7.4 Constant-curve duty
To be set with the R100, see section 8. Setting the
pump.
The pump can be set to operate according to a
constant curve, like an uncontrolled pump, see fig. 6.
When the pump has been set to constant-curve
mode with the R100, the setting can be changed on
the control panel or with the R100.
MAGNA 25-100, 32-100, 40-100(D), 50-100
Select one of 9 curves (81 curves with the R100)
between the max. and min. curves, see fig. 5.
MAGNA 25-80, 32-80, 40-80
Select one of 7 curves (61 curves with the R100)
between the max. and min. curves, see fig. 5.
MAGNA 25-60, 32-60, 40-60
Select one of 5 curves (41 curves with the R100)
between the max. and min. curves, see fig. 5.
MAGNA 25-40, 32-40
Select one of 3 curves (21 curves with the R100)
between the max. and min. curves, see fig. 5.
Fig. 5 Operating curves
7.5 Max. or min. curve duty
To be set on the control panel, with the R100 or via
GENI module, see section 8. Setting the pump.
The pump can be set to operate according to the
max. or min. curve, like an uncontrolled pump, see
fig. 6.
This operating mode is available, irrespective of the
control mode.
Fig. 6 Max. and min. curves
The max. curve mode can be selected if an
uncontrolled pump is required.
The min. curve mode can be used in periods in
which a minimum flow is required. This operating
mode is for instance suitable for manual night-time
duty if automatic night-time duty is not desired.
7.6 Temperature influence
To be set with the R100, see section 8. Setting the
pump.
When this function is activated in proportional- or
constant-pressure control mode, the setpoint for
head will be reduced according to the liquid
temperature.
It is possible to set temperature influence to function
at liquid temperatures below 80 °C or below 50 °C.
These temperature limits are called Tmax.. The
setpoint is reduced in relation to the head set
(= 100 %) according to the characteristics below.
Fig. 7 Temperature influence
In the above example, Tmax. = 80 °C has been
selected. The actual liquid temperature Tactual
causes the setpoint for head to be reduced from
100 % to Hactual.
The temperature influence function requires:
• Proportional- or constant-pressure control mode.
• The pump must be installed in the flow pipe.
• System with flow-pipe temperature control.
Temperature influence is suitable in:
• systems with variable flows (e.g. two-pipe
heating systems), in which the activation of the
temperature influence function will ensure a
further reduction of the pump performance in
periods with small heating demands and
consequently a reduced flow-pipe temperature.
• systems with almost constant flows (e.g. one-
pipe heating systems and underfloor heating
systems), in which variable heating demands
cannot be registered as changes in the head as
is the case with two-pipe heating systems. In
such systems, the pump performance can only
be adjusted by activating the temperature
influence function.
Selection of Tmax.
In systems with a dimensioned flow-pipe
temperature of:
• up to and including 55 °C, select Tmax. = 50 °C,
• above 55 °C, select Tmax. = 80 °C.
TM03 0551 0205TM00 5547 4596
Max.
Min.
Max.
Min.
TM01 0626 1797
Note
The temperature influence function
cannot be used in air-conditioning
systems.
Hactual
Tactual

English (GB)
16
7.7 Expansion modules
The pump can be fitted with an expansion module
enabling communication with external signals
(signal transmitters).
Two types of expansion modules are available:
• Relay module
• GENI module.
Twin-head pumps are always fitted with GENI
modules.
Connection examples (GENI module) can be found
on pages 11 and 12.
7.8 Relay module
For mounting and operation, see separate
installation and operating instructions for the relay
module.
Functions
• External start/stop
• Fault, ready and operating indication via signal
relay.
7.9 GENI module
For mounting and operation, see separate
installation and operating instructions for the GENI
module.
Functions
• External start/stop
• External forced control
• External analog 0-10 V control
• Bus communication via GENIbus
• Control of twin-head pumps
• Fault, ready and operating indication via signal
relay.
7.9.1 Control of twin-head pumps
Twin-head pumps are supplied fitted with a GENI
module on each control box. The modules are
connected via a cable.
Fig. 8 Twin-head pump with GENI modules
For connection of the communication cable between
the GENI modules, see pages 11 and 12.
The communication between the control box and the
GENI module is wireless.
Twin-head pumps are factory-set to the control mode
AUTOADAPT and the operating mode "alternating
operation", which is described below.
Operating modes:
•Alternating operation
Pump operation alternates every 24 hours. If the
duty pump stops due to a fault, the other pump
will start.
•Standby operation
One pump is operating continuously. In order to
prevent seizing-up, the other pump will start at a
fixed frequency and run for a short period. If the
duty pump stops due to a fault, the other pump
will start.
TM03 0642 0405
Note
In air-conditioning systems, standby
operation is recommended to avoid
critical condensation inside the pump.
Cable
Flow direction
Right pump head
(master)
Left pump head
(slave)

English (GB)
17
7.9.2 Selection of operating mode
Select the operating mode by means of the
mechanical contact in each module.

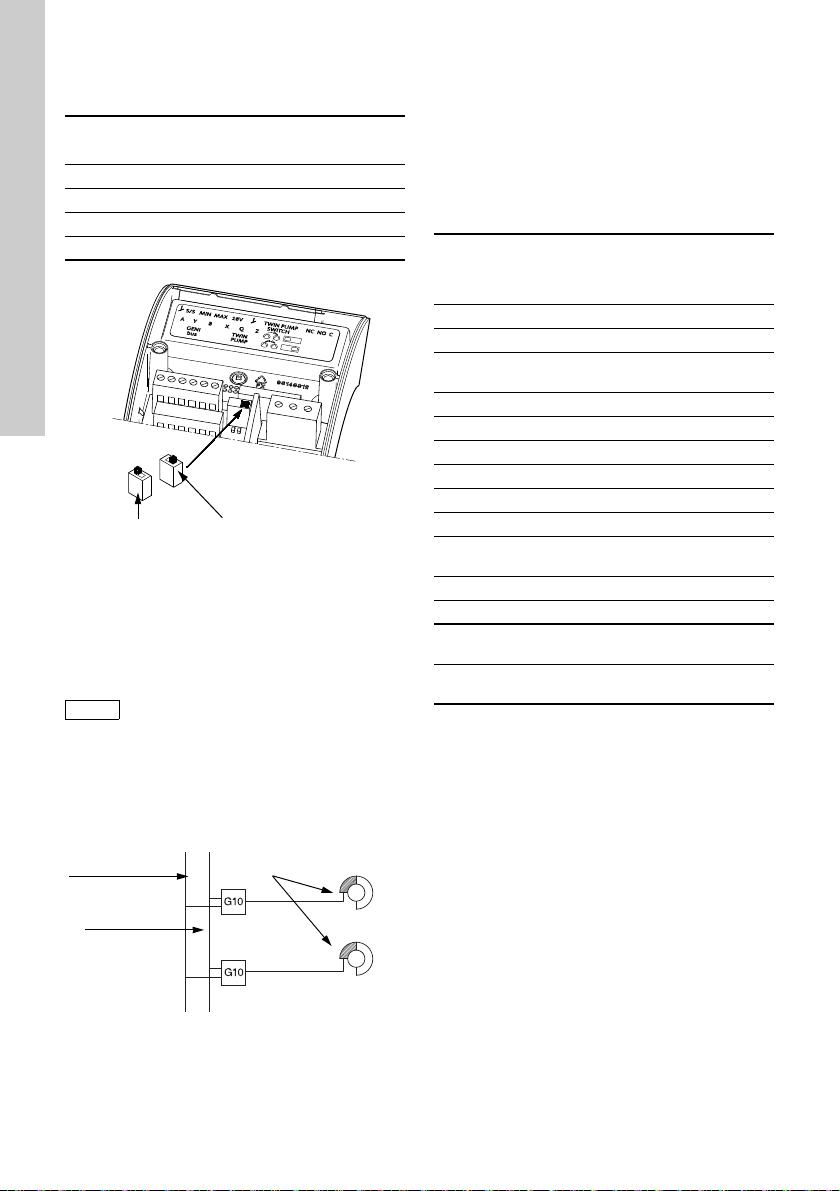

Fig. 9 Mechanical contact
Operating the pump
Twin-head pumps can be set and operated in the
same way as single-head pumps. The duty pump
uses its setpoint setting, whether it is made on the
control panel, with the R100 or via bus.
7.10 Connection to LON network
The pump can be connected to a LON network via a
GENI module and an external Grundfos G10 LON
interface. Product number: 605726.
Fig. 10 Connection to LON network
8. Setting the pump
For the setting of the pump, use:
• control panel.
• R100 remote control.
• bus communication (not described in detail in
these instructions, contact Grundfos).
The table shows the application of the individual
operating units and in which section the function has
been described.
"–" = not available with this operating unit.
8.1 Factory setting
The pump is factory-set to AUTOADAPT without
automatic night-time duty.
Operating
mode Left pump head Right pump head
Alternating Alternating Alternating
Standby Alternating Standby
Standby Standby Alternating
Standby Standby Standby
TM03 0867 0605
Note
Both pumps should be set to the same
setpoint and control mode. Different
settings will result in different
operation when changing between the
two pumps.
TM03 0378 5004
Standby operation Alternating operation
LON network
24 VAC/VDC
GENI module
Possible settings
Control panel R100
AUTOADAPT 8.2.1 8.7.1
Automatic night-time duty 8.2.1 8.7.2
Proportional-pressure
control 8.2.1 8.7.1
Constant-pressure control 8.2.1 8.7.1
Setpoint setting 8.2.2 8.5.1
Max. curve duty 8.2.3 8.5.2
Min. curve duty 8.2.4 8.5.2
Constant-curve duty – 8.5.2
Temperature influence – 8.7.3
Activation/deactivation of
pump buttons – 8.7.4
Allocation of pump number – 8.7.6
Start/stop 8.2.5 8.5.2
Resetting of fault
indications 8.2.6 8.5.3
Reading of various data –8.6.1 -
8.6.7

English (GB)
18
8.2 Control panel
The control panel, fig. 11, incorporates:
For further information, see section 9. Fault finding
chart.
Fig. 11 Control panel
8.2.1 Control mode setting
Description of function, see section 7.1 Control
modes.
To change the control mode, press , pos. 3,
according to this cycle:
Fig. 12 Cycle of control modes
Automatic night-time duty can be activated together
with each of the control modes.
The light symbols in pos. 4, see fig. 11, indicate the
pump settings:
"–" = no light.
Warning
At high liquid temperatures, the pump
may be so hot that only the buttons
should be touched to avoid burns.
Pos. Description
1 Buttons for setting
2• Indicator lights for operating and fault
indication and
• symbol for indication of external control
3 Button for change of control mode
4Light symbols for indication of control
mode and night-time duty
5Light fields for indication of head, flow and
operating mode
TM03 8752 2407
TM03 1288 1505
Light in Control mode Automatic night-time
duty
AUTOADAPT AUTOADAPT NO
Proportional
pressure NO
Constant pressure NO
–Constant curve NO
AUTO
ADAPT AUTOADAPT YES
Proportional
pressure YES
Constant pressure YES
–Constant curve YES

English (GB)
19
8.2.2 Setpoint setting
Set the setpoint of the pump by pressing or
when the pump has been set to proportional-
pressure control, constant-pressure control or
constant-curve duty.
The light fields, pos. 5, on the control panel indicate
the setpoint set.
MAGNA 25-100, 32-100, 40-100(D), 50-100
The light fields can indicate a maximum setpoint of
9metres.

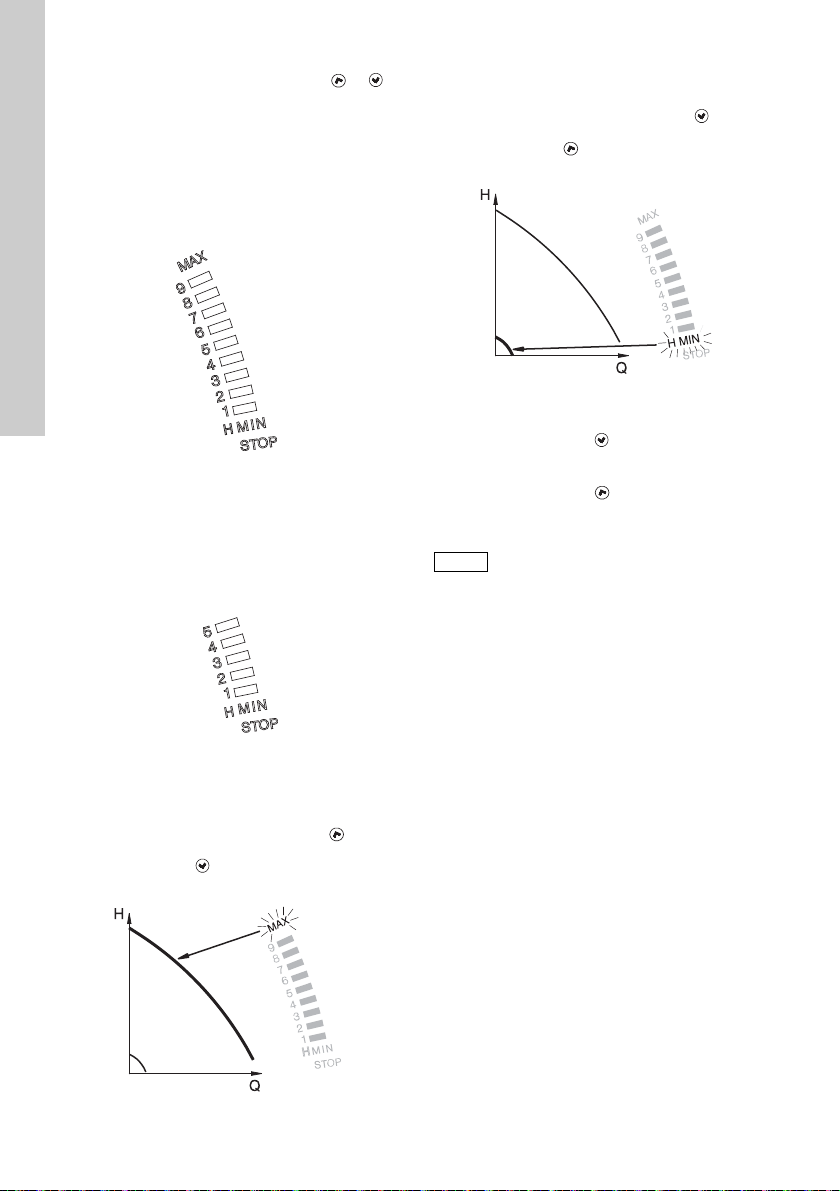

Fig. 13 Light fields MAGNA xx-100
MAGNA 25-40, 32-40, 25-60, 32-60, 40-60, 25-80,
32-80, 40-80
The light fields can indicate a maximum setpoint of:
• MAGNA 25-40, 32-40 = 3 metres.
• MAGNA 25-60, 32-60, 40-60 = 5 metres.
• MAGNA 25-80, 32-80, 40-80 = 7 metres.
Fig. 14 Light fields MAGNA xx-40, xx-60, xx-80
8.2.3 Setting to max. curve duty
Description of function, see section 7.5 Max. or min.
curve duty.
To change over to the max. curve, press
continuously until "MAX" illuminates, see fig. 15. To
change back, press continuously until the desired
setpoint is indicated.
Fig. 15 Max. curve
8.2.4 Setting to min. curve duty
Description of function, see section 7.5 Max. or min.
curve duty.
To change over to the min. curve, press
continuously until "MIN" illuminates, see fig. 16. To
change back, press continuously until the desired
setpoint is indicated.
Fig. 16 Min. curve
8.2.5 Start/stop of pump
To stop the pump, press continuously until
"STOP" illuminates. When the pump is stopped, the
green indicator light will be flashing.
To start the pump, press continuously.
8.2.6 Resetting of fault indications
The fault indications are reset by briefly pressing any
button. The settings remain unchanged. If the fault
has not disappeared, the fault indication will
reappear. The time until the fault reappears may vary
from 0 to 255 seconds.
8.3 R100 remote control
The pump is designed for wireless communication
with the Grundfos R100 remote control. The R100
communicates with the pump via infra-red light.
During communication, the R100 must be pointed at
the pump control panel. When the R100 is
communicating with the pump, the red indicator light
will flash rapidly.
The R100 offers additional possibilities of setting and
status displays for the pump.
TM03 0380 2507TM02 0483 2507TM03 0381 2507
TM03 0382 2507
Note
If the pump is to be stopped, it is
recommended to use the start/stop
input, the R100 or to switch off the
electricity supply. In this way, the
setpoint will remain unchanged when
the pump is started again.

English (GB)
20
8.4 R100 display overview
The R100 displays are divided into four parallel
menus, see fig. 17:
0. GENERAL, see operating instructions for R100
1. OPERATION
2. STATUS
3. INSTALLATION
The number stated at each individual display in
fig. 17 refers to the section in which the display is
described.
Fig. 17 Menu overview
8.5.3
8.6.2
8.6.3
8.6.4
8.6.5 8.7.5
8.7.4
8.7.3
8.6.6
8.6.7
8.5.2
8.7.1
8.6.1
8.5.1
8.5.4
8.7.2
8.7.6
This display appears only once, i.e. when the R100 gets
contact with the pump.
3. INSTALLATION2. STATUS0. GENERAL 1. OPERATION

English (GB)
21
8.5 Menu OPERATION
When the communication between the R100 and the
pump has been established, "Contact with" appears
in the display. When the "arrow down" on the R100 is
pressed, menu OPERATION appears.
8.5.1 Setpoint
This display depends on the control mode selected
in the display "Control mode" in menu
INSTALLATION.
If the pump is forced-controlled via external signals,
the number of possible settings will be reduced, see
section 8.8 Priority of settings. Attempts to change
the settings will result in an indication in the display
saying that the pump is forced-controlled and
changes therefore cannot be made.
This display will appear when the pump is in
AUTOADAPT mode.
Set the desired setpoint by pressing the buttons "+"
and "–" on the R100 (not possible when the pump is
in AUTOADAPT mode).
Furthermore, it is possible to select one of these
operating modes:
• Stop
•Min. (min. curve)
•Max. (max. curve).
The display is different if proportional pressure,
constant pressure or constant curve has been
selected.
The actual duty point of the pump is indicated by a
square in the Q/H field. No indication at low flow.
8.5.2 Operating mode
Select an operating mode:
• Stop
•Min. (min. curve)
•Normal (AUTOADAPT , proportional pressure,
constant pressure or constant curve)
•Max. (max. curve).
8.5.3 Fault indications
If the pump is faulty, the cause will appear in this
display.
Possible causes:
• Pump blocked
• Internal fault
• Overvoltage
• Undervoltage
• Overtemperature
• Module fault
• Fault in module communication.
The fault indication can be reset in this display.
If the fault has not disappeared when resetting is
attempted, the fault indication will reappear in the
display when communicating with the pump.
8.5.4 Alarm log
The alarm code with text appears in this display. The
display also shows the number of minutes the pump
has been connected to the electricity supply after the
fault occurred.
The last five fault indications will appear in the alarm
log.
Note
The display "Contact with" appears
only once, i.e. when the R100 gets
contact with the pump.

English (GB)
22

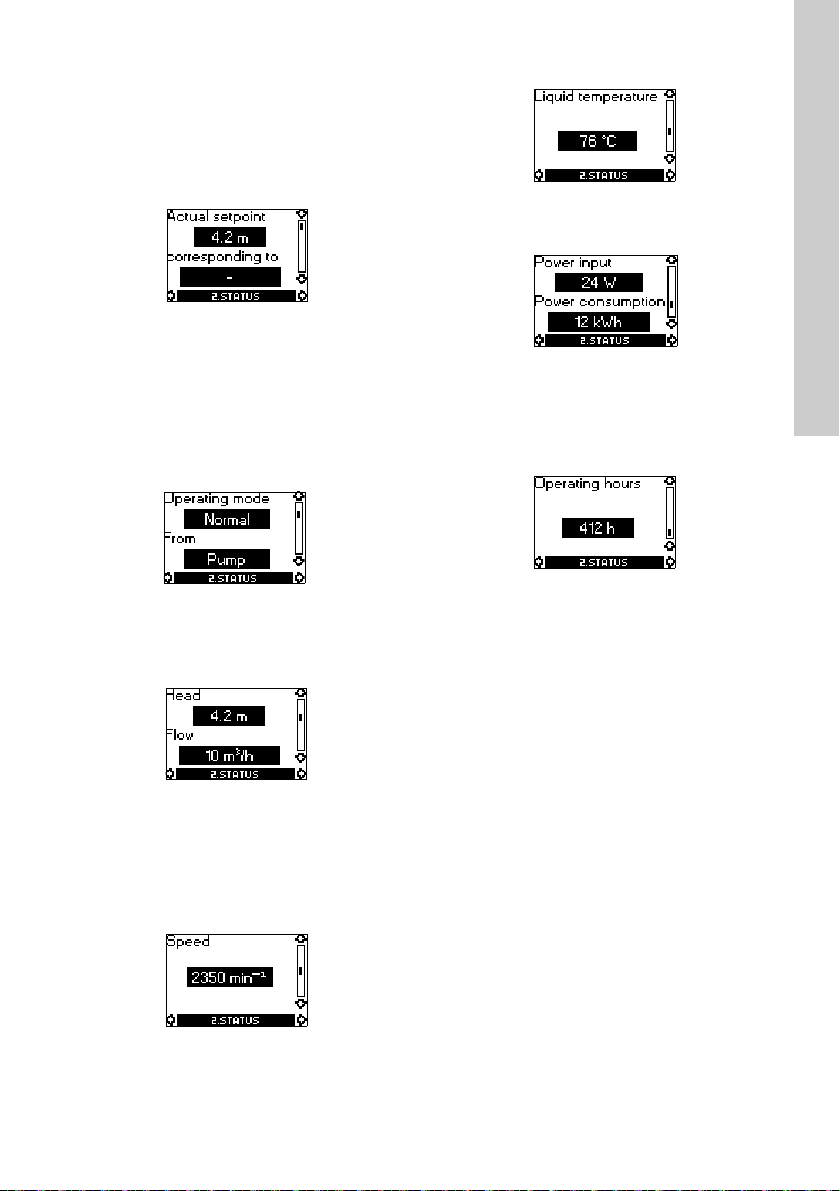

8.6 Menu STATUS
The displays appearing in this menu are status
displays only. It is not possible to change or set
values.
The actual values in the display are indicative and
based on estimation.
8.6.1 Actual setpoint
Field "Actual setpoint":
Actual setpoint of pump.
Field "corresponding to":
Actual setpoint in % of the setpoint set if the pump is
connected to an external analog 0-10 V signal
transmitter or if temperature influence or
proportional-pressure control is activated.
8.6.2 Operating mode
This display shows the actual operating mode (Stop,
Min., Normal or Max.)and where it was selected
(Pump, R100, BUS or External).
8.6.3 Head and flow
The actual head and flow of the pump.
If "<" is indicated in front of the flow, the flow is less
than the displayed value.
If the pump is unable to determine head and flow,
this is indicated by "–".
8.6.4 Speed
The actual pump speed.
8.6.5 Liquid temperature
The actual temperature of the pumped liquid.
8.6.6 Power input and power consumption
Actual power input and power consumption of the
pump.
The value of power consumption is an accumulated
value and cannot be set to zero.
8.6.7 Operating hours
Operating hours of the pump.
The value of operating hours is an accumulated
value and cannot be set to zero.

English (GB)
23

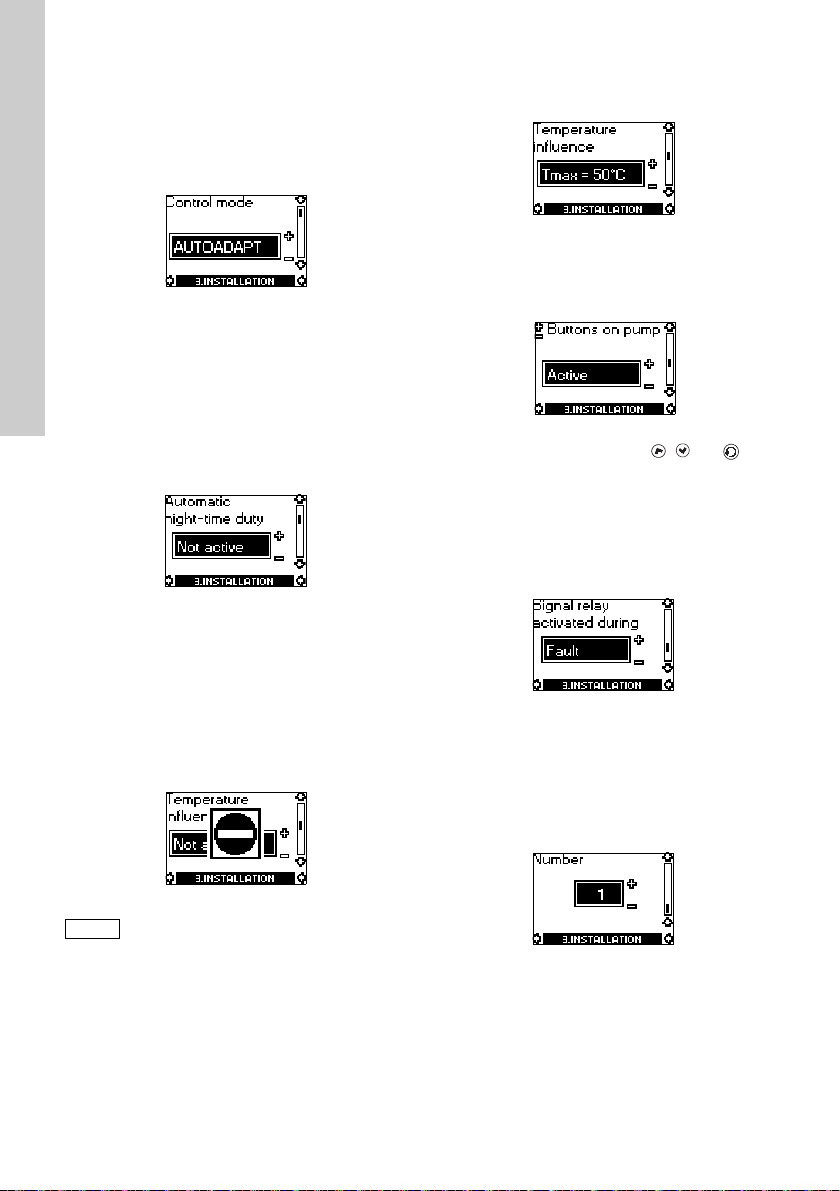

8.7 Menu INSTALLATION
This menu shows the settings that should be
considered when installing the pump.
8.7.1 Control mode
Description of function, see section 7.1 Control
modes or 7.4 Constant-curve duty.
Select one of the control modes:
•AUTO
ADAPT
•Prop. pressure (proportional pressure)
•Const. pressure (constant pressure)
•Const. curve (constant curve).
Setting of setpoint and curve is carried out in display
8.5.1 Setpoint in menu OPERATION (not possible
when the pump is in AUTOADAPT mode).
8.7.2 Automatic night-time duty
In this display, automatic night-time duty can be
activated or deactivated.
Automatic night-time duty can be set to:
•Active
• Not active,
irrespective of the control mode selected.
8.7.3 Temperature influence
Description of function, see section 7.6 Temperature
influence.
The temperature influence function can be activated
in this display when the control mode is proportional
pressure or constant pressure, see section
8.7.1 Control mode.
In the case of temperature influence, the pump must
be installed in the flow pipe. It is possible to choose
between maximum temperatures of 50 °C and 80 °C.
When the temperature influence is active, a small
thermometer is shown in the display "Setpoint" in
menu OPERATION, see section 8.5.1 Setpoint.
8.7.4 Buttons on pump
To prevent unauthorised persons from operating the
pump, the function of the buttons , and can
be deactivated in this display. The buttons can be
reactivated only with the R100.
The buttons can be set to:
•Active
•Notactive.
8.7.5 Signal relay
If an expansion module has been fitted, the signal
relay function can be set in this display.
•Fault (functions as a fault signal relay)
•Ready (functions as a ready signal relay)
•Operation (functions as an operating signal
relay).
8.7.6 Pump number
A number from 1 up to and including 64 can be
allocated to a pump or can be changed so that the
R100, Grundfos Control MPC Series 2000 or other
systems can distinguish between two or more
pumps.
Note
If the pump is in control mode
AUTOADAPT or constant curve, the
temperature influence cannot be set
with the R100.
