Grundfos TP 32-40 User manual

GRUNDFOS PRODUCT GUIDE
TPE E-circulators
In-line circulator pumps with
integrated variable frequency drive
60 Hz
E-circulator.book Page 1 Friday, October 7, 2011 4:01 PM

Table of contents
2
TPE E-circulators
1. Pump data 3
Introduction 4
2. Performance range 6
3. Product range 7
4. Speed regulation 8
5. Operating conditions 9
Working pressure 9
Fluid temperature 9
Relative humidity 9
Ambient temperature 9
6. Pumped liquids 10
Liquid temperature 10
List of pumped liquids 10
7. TP, TPE pumps 12
Technical data 12
Construction 12
Materials 12
Mechanical shaft seal 13
Connections 13
Control 13
8. TPE Series 2000 pumps 14
Technical data 14
Construction 14
Applications 14
Control options 15
Pump selection guidelines 15
Overview of functions 16
9. TPE Series 1000 pumps 17
Technical data 17
Applications 17
Control options 18
Overview of functions 19
10. Communication 20
Communication with TPE pumps 20
11. Motors for TPE pumps 21
Motor 21
Motor protection 21
Electrical data 21
Grundfos variable frequency drive 22
12. Curve charts 23
Curve conditions 23
TP, TPE 32-XX/2 24
TP, TPE 40-XX/2 26
TP, TPE 50-XX/2 28
TP, TPE 32-XX/4 30
TP, TPE 40-XX/4 32
TP, TPE 50-XX/4 34
TP, TPE 80-XX/4 36
TP, TPE 100-XX/4 38
13. Installation 40
Mechanical installation 40
Electrical installation 42
14. Accessories 44
15. Further product documentation 45
WebCAPS 45
WinCAPS 46
16. Submittal data sheet 47
E-circulator.book Page 2 Friday, October 7, 2011 4:01 PM

Pump data
TPE E-circulators 1
3
1. Pump data
Cross reference guide: B&G, Taco and Armstrong to Grundfos
Grundfos
Model
TP
Hp
Port to
port
length
Flange
size
B & G
Series
60 & 80
Hp
Port to
port
length
Flange
size
Taco
Series
1600
Hp
Port to
port
length
Flange
Size
Armstrong
Series
H
Hp
Port to
port
length
Flange
size
32-40 1/3 11" 1-1/4" H-32 1/6 8-1/2” 1-1/4”
32-80 1/2 11" 1-1/4" 6011 1/4 11" 1-1/4" 1600 1/4 10-1/4" 1-1/2" H-52 1/3 11-1/2" 1-1/4"
32-160 3/4 13-1/2" 1-1/2" 6016 3/4 13-1/2" 1-1/2" 1614 3/4 13-1/2" 1-1/2" H-64 3/4 13-1/2" 1-1/2"
40-40 1/3 13-1/2" 1-1/2" H-52 1/3 11-1/2” 1/4”
1/2 13-1/2" 1-1/2" H-53 1/2 11-1/2” 1-1/2”
40-80 3/4 13-1/2" 1-1/2" 6013 1/2 11-1/2" 1-1/2" 1612 1/2 13-1/2" 1-1/2" H-53 1/2 11-1/2” 1-1/2”
40-80 3/4 13-1/2" 1-1/2" 6015 1/2 13-1/2" 1-1/2" 1612 1/2 13-1/2" 1-1/2" H-63 1/2 13-1/2” 1-1/2”
40-160 3/4 11-1/2" 1-1/2" H-67 1 14” 2”
40-240 1-1/2 13-1/2" 1-1/2" 6017 1 13-1/2" 1-1/2" 1616 1-1/2 14-1/2" 2" H-65 1 13-1/2" 1-1/2"
50-40 1/3 14" 2" H-53 1/2 11-1/2” 1-1/2”
3/4 11-1/2" 2" H-54 3/4 11-1/2” 2”
50-80 3/4 11-1/2" 2" 6014 3/4 11-1/2" 2" 1632 3/4 13-1/2" 2" H-54 3/4 11-1/2" 2"
50-160 1-1/2 14" 2" 6019 1 14" 2" 1634 1 13-1/2" 2" H-67 1 14" 2"
50-160 1-1/2 14" 2" 6020 1-1/2 14" 2" 1634 1 13-1/2" 2" H-68 1-1/2 14" 2"
50-240 2 14" 2" 6021 2 14" 2" 10603D 3 18 3"
80-40 1/2 19" 3"
ANSI 105028 1/2 11-1/2” 2”
80-80 1-1/2 19" 3" ANSI 801 1-1/2 19" 3"
ANSI 10603D 1-1/2 18” 3”
80-160 3 19" 3" ANSI 802 3 19" 3" ANSI 10603D 3 18” 3”
80-240 3 19" 3"
ANSI 803 3 19" 3" ANSI 10603D 3 18" 3"
100-40 1 21" 4" ANSI 10603D 1 18” 3”
100-80 2 21" 4" ANSI 806 2 21" 4"
ANSI 10603D 2 18” 3”
100-160 3 21" 4" ANSI 807 3 21" 4" ANSI 10603D 3 18” 3”
E-circulator.book Page 3 Friday, October 7, 2011 4:01 PM

Pump data
TPE E-circulators
1
4
Introduction
TP, TPE pumps are designed for applications such as
• district heating systems
• heating systems
• air-conditioning systems
• district cooling systems
• water supply
• industrial processes
• industrial cooling.
The pumps are available with either standard motors
(TP) or electronically speed-controlled motors (TPE).
The pumps are all single-stage, in-line centrifugal
pumps with standard motor and mechanical shaft seal.
The pumps are of the close-coupled type, i.e. pump
and motor are separate units. Consequently, the
pumps are less sensitive to impurities in the pumped
liquid than similar pumps of the canned rotor type.
The TP, TPE range is divided into the following three
groups:
• TP pumps (uncontrolled standard pumps).
• TPE Series 2000 pumps (speed controlled pumps
with factory-fitted pressure sensor).
• TPE Series 1000 pumps (speed controlled pumps).
This product guide covers Series 2000 and 1000
speed controlled pumps.
Please see Grundfos publication L-TP-PG-001 for
TP (uncontrolled standard pump) product range
and details.
TPE Series 2000 pumps
The main differences between the TP and the TPE
Series 2000 pump range are the motor and the fac-
tory-fitted integrated differential-pressure sensor.
The motors of TPE Series 2000 pumps have a
built-in variable frequency drive (VFD) designed to
continuously regulate the pressure to the flow.
The TPE Series 2000 range is recognized as a
pre-configured solution for quick and safe installation.
TPE Series 2000 pumps are based on TP pumps. The
pump materials are the same as those of the TP pump
range.
For further information about TPE Series 2000 pumps,
see page 14.
TPE Series 1000 pumps
The difference between the TP and the TPE Series
1000 pump range is the motor. The motors of TPE
Series 1000 pumps have a built-in VFD.
Via an external signal (from a sensor or a controller),
TPE Series 1000 pumps allow for any configuration
and control method required: constant pressure, con-
stant temperature or constant flow.
TPE Series 1000 pumps are based on TP pumps. The
pump materials are the same as those of the TP pump
range.
For further information about TPE Series 1000 pumps,
see page 17.
Why select a TPE pump?
A TPE pump with electronic, speed-controlled
adaptation of performance offers these obvious
benefits:
• energy savings
• increased comfort
• control and monitoring of pump performance.
• communication with the pump.
E-circulator.book Page 4 Friday, October 7, 2011 4:01 PM

Pump data
TPE E-circulators 1
5
Type key
Codes for shaft seal
Example TP E 32 -160 /4 S -U -G -A -BUBE
Pump range
Electronically speed-controlled pump series 1000/2000
Nominal diameter of suction and discharge
flanges (mm)
Maximum head [dm (decimeters)]
Pole number
S = TPE Series 2000 (with factory-fitted differential pressure sensor)
U = NEMA motor dimensions
G = ANSI or US flange
Code for materials:
A = Basic version
Z = Bronze pump housing and motor stool
Code for shaft seal
(incl. other plastic and rubber components in the pump except the neck ring)
Example B B U E
Grundfos type designation
A = O-ring seal with fixed seal driver
B = Rubber bellows seal
D = O-ring seal, balanced
G = Bellows seal with reduced seal faces
R = O-ring seal with reduced seal faces
Material of rotating face
A = Carbon, antimony-impregnated
B = Carbon, synthetic resin-impregnated
Q = Silicon carbide
U = Tungsten carbide
Material of stationary seat
B = Carbon, synthetic resin-impregnated
Q = Silicon carbide
U = Tungsten carbide
Material of secondary seal
E = EPDM
V = FKM
E-circulator.book Page 5 Friday, October 7, 2011 4:01 PM

Performance range
TPE E-circulators
2
6
2. Performance range
Performance range, 2-pole, 3400 RPM
(See page 23 for performance curves)
Performance range, 4-pole, 1690 RPM
(See page 23 for performance curves)
TM02 5104 0306
10 15 20 30 40 60 80 100 150
Q [US GPM]
10
20
30
40
50
60
70
[ft]
H
3 4 5 6 7 8 9 1010 20 Q [m³/h]
4
5
6
7
8
9
1010
20
[m]
H
TP
2-pole, 60 Hz
50-160
50-80
40-240
40-160
40-8032-80
TM02 5103 0306
10 15 20 30 40 60 80 100 150 200 300
Q [US GPM]
6
7
8
9
10
11
12
13
14
[ft]
H
3 4 5 6 7 8 9 1010 20 30 40 Q [m³/h]
2
3
4
[m]
H
TP
4-pole, 60 Hz
100-4080-4050-4040-4032-40
E-circulator.book Page 6 Friday, October 7, 2011 4:01 PM

Product range
TPE E-circulators 3
7
3. Product range
TPE Series 2000
TPE Series 1000
TPE SERIES 2000 with differential pressure sensor
Cast iron
product
number
Bronze
product
number
Motor
Hp Type Ph Volt
GF 15/26 flange mount
TPE32-40/4 91136129 91136134 .33 TEFC 1 208-230
TPE32-80/2 91136104 91136109 .5 TEFC 1 208-230
GF 40/43 flange mount
TPE32-160/2 91136105 91136110 .75 TEFC 1 208-230
TPE40-40/4 91136130 91136135 .33 TEFC 1 208-230
TPE40-80/2 91136106 91136111 .75 TEFC 1 208-230
TPE40-160/2 91136107 91136112 .75 TEFC 1 208-230
TPE40-240/2 91136108 91136113 1.5 TEFC 1 208-230
GF 50 flange mount
TPE50-40/4 91136131 91136136 .33 TEFC 1 208-230
TPE50-80/2 91136178 91136114 .75 TEFC 1 208-230
TPE50-160/2 91136025 91136115 1.5 TEFC 1 208-230
GF 80 flange mount
TPE80-40/4 91136132 91136137 .5 TEFC 1 208-230
GF 100 flange mount
TPE100-40/4 91136026 91136139 1 TEFC 1 208-230
TPE SERIES 1000 without differential pressure sensor
Cast iron
product
number
Bronze
product
number
Motor
Hp Type Ph Volt
GF 15/26 flange mount
TPE32-40/4 91136140 91136146 1/3 TEFC 1 208-230
TPE32-80/2 91136116 91136122 1/2 TEFC 1 208-230
GF 40/43 flange mount
TPE32-160/2 91136117 91136123 3/4 TEFC 1 208-230
TPE40-40/4 91136141 91136147 1/3 TEFC 1 208-230
TPE40-80/2 91136118 91136124 3/4 TEFC 1 208-230
TPE40-160/2 91136119 91136125 3/4 TEFC 1 208-230
TPE40-240/2 91136120 91136126 1-1/2 TEFC 1 208-230
GF 50 flange mount
TPE50-40/4 91136142 91136148 1/3 TEFC 1 208-230
TPE50-80/2 91136179 91136127 3/4 TEFC 1 208-230
TPE50-160/2 91136121 91136128 1-1/2 TEFC 1 208-230
GF 80 flange mount
TPE80-40/4 91136143 91136149 1/2 TEFC 1 208-230
GF 100 flange mount
TPE100-40/4 91136145 91136151 1 TEFC 1 208-230
E-circulator.book Page 7 Friday, October 7, 2011 4:01 PM

Speed regulation
TPE E-circulators
4
8
4. Speed regulation
Affinity equations
Normally, TPE pumps are used in applications
characterized by a variable flow. Consequently, it is
not possible to select a pump that is constantly operat-
ing at optimum efficiency.
In order to achieve optimum operating economy, select
the pump on the basis of the following criteria:
• The max. required duty point should be as close as
possible to the QH curve of the pump.
• The flow rate at the duty point required should be
close to the optimum efficiency (eta) for most
operating hours.
Between the min. and max. performance curve TPE
pumps have an infinite number of performance curves
each representing a specific speed. Therefore it may
not be possible to select a duty point close to the max.
curve.

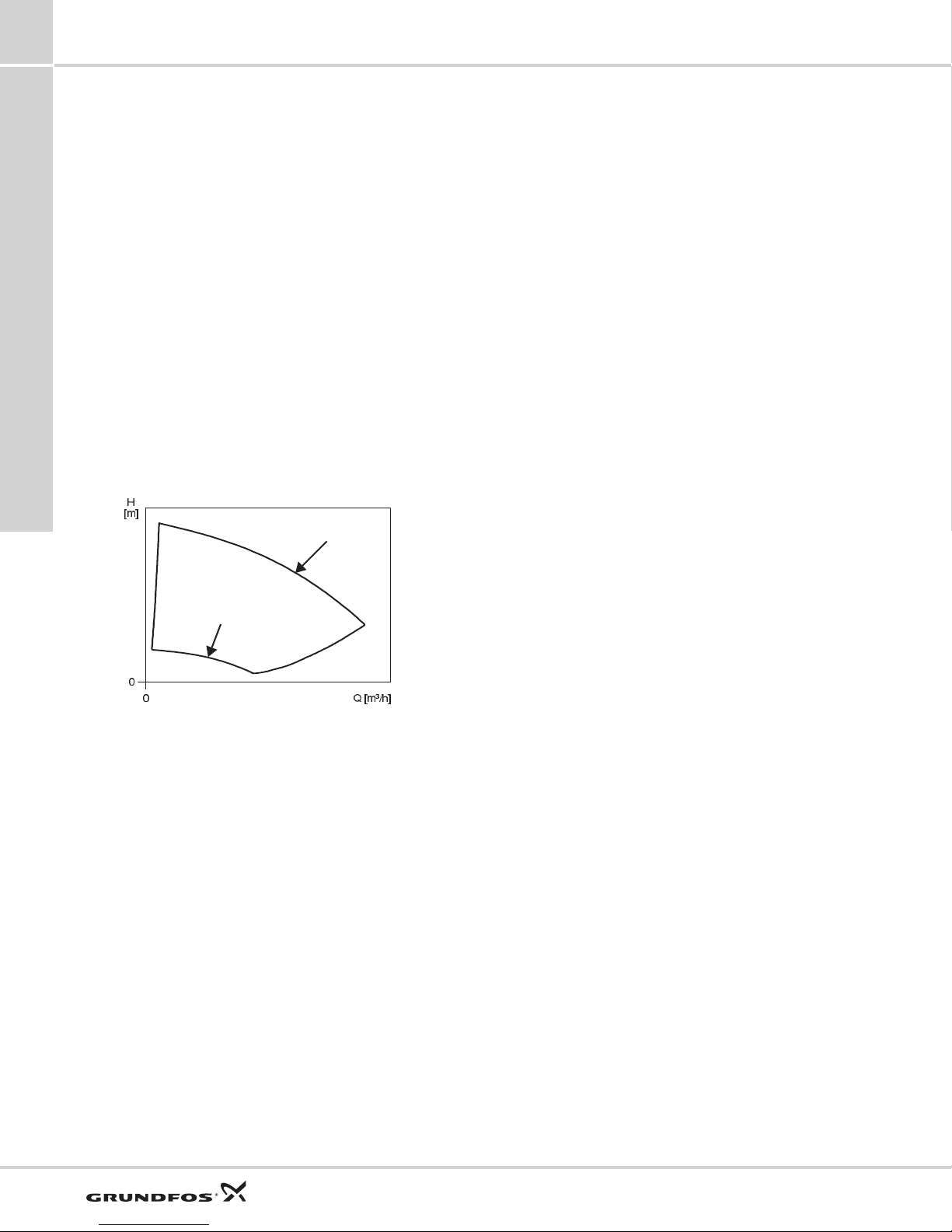

Fig. 1 Min. and max. performance curves
In situations where it is not possible to select a duty
point close to the max. curve, affinity equations can be
used. The head (H), the flow (Q) and the input power
(P) are the appropriate variables you need to be able
to calculate the motor speed (n).
Note:
The approximated formulas apply on condition that the
system characteristic remains unchanged for nnand nx
and that it is based on the formula H = k x Q2, where k
is a constant.
The power equation implies that the pump efficiency is
unchanged at the two speeds. In practice this is not
quite correct.
Finally, it is worth noting that the efficiencies of the
variable frequency drive and the motor must be taken
into account if a precise calculation of the power sav-
ing resulting from a reduction of the pump speed is
wanted.
WinCAPS and WebCAPS
WinCAPS and WebCAPS are both selection programs
offered by Grundfos.
The two programs make it possible to calculate a TPE
pump’s specific duty point and energy consumption.
By entering the dimensional data of the pump,
WinCAPS and WebCAPS can calculate the exact duty
point and energy consumption. For further information,
please contact Grundfos or see Grundfos’ homepage
www.grundfos.com.
TM01 4916 4803
Max. curve
Min. curve
E-circulator.book Page 8 Friday, October 7, 2011 4:01 PM

Operating conditions
TPE E-circulators 5
9
5. Operating conditions
Working pressure
Maximum working pressure 145 psi (10 bar).
Fluid temperature
Maximum fluid temperature +284 °F (140 °C).
Relative humidity
Maximum 95%.
Ambient temperature
Maximum ambient temperature +104 °F (40 °C).
Note:
When motors installed more than 3000 ft (914 m)
above sea level, the rated motor output will fall due to
the low
density and consequent low cooling effect of the air. In
such cases, it may be necessary to use an oversize
motor with a higher output.

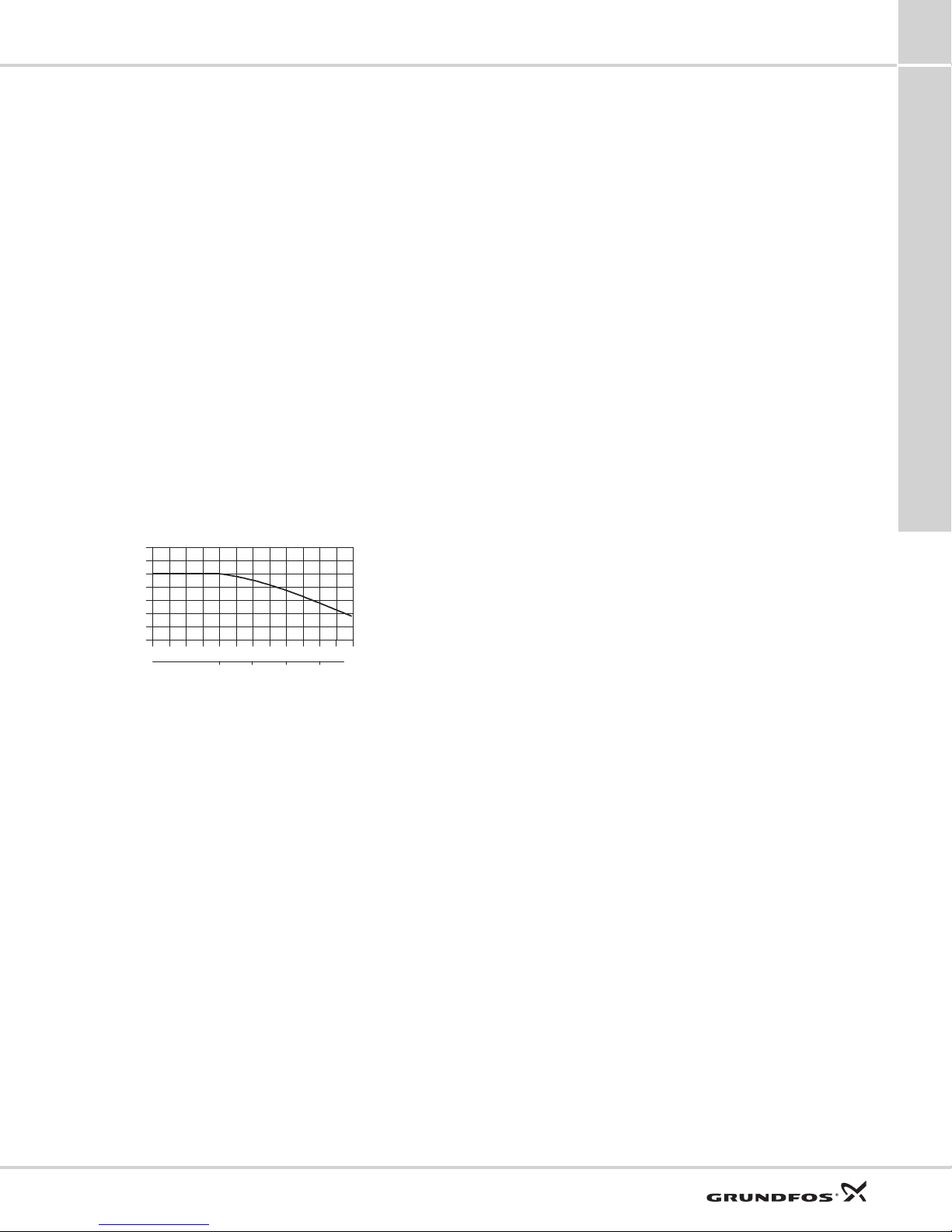

Fig. 2 Relationship between motor output (P2)
and altitude.
TM03 3446 0506
50
60
70
80
90
100
110
[%]
P2
3280 7382 11483 15584 [ft]
E-circulator.book Page 9 Friday, October 7, 2011 4:01 PM

Pumped liquids
TPE E-circulators
6
10
6. Pumped liquids
Pumped liquids
TP, TPE pumps are suitable for pumping thin, clean,
non-aggressive and non-explosive liquids, not
containing solid particles or fibers that may
mechanically or chemically attack the pump; please
see "List of pumped liquids" below.
Examples of liquids:
• Central heating system water (we recommend that
the water meets the requirements of accepted stan-
dards on water quality in heating systems).
• cooling liquids.
• domestic hot water.
• industrial liquids.
• softened water.
If glycol or another antifreeze agent is added to the
pumped liquid, the pump must have a shaft seal of the
type RUUE.
The pumping of liquids with densities or kinematic
viscosities higher than those of water can cause
• a considerable pressure drop
• a drop in the hydraulic performance
• a rise in the power consumption.
In these situations, equip the pump with an oversize
motor. If in doubt, contact Grundfos.
If the water contains mineral oils or chemicals, or if
other liquids than water are pumped, choose the
O-rings accordingly.
Liquid temperature
Liquid temperature:
–13 °F (–25 °C) to +284 °F (+140 °C).
Please note that shaft seals operating close to their
maximum temperature will require regular
maintenance, i.e. replacement.
List of pumped liquids
Grundfos TP pumps are designed for circulation
systems with constant flow; TPE pumps are for sys-
tems with variable flow.
Thanks to their design, these pumps can be used in a
wider liquid temperature range than pumps of the
canned rotor type.
A number of typical liquids are listed page 11.
Other pump versions may be used, but we consider
the ones stated in the list to be the best choices.
The list is intended as a general guide only, and it
cannot replace actual testing of the pumped liquids
and pump materials under specific working conditions.
If in doubt, contact Grundfos.
However, use the list with some caution as these or
other factors may affect the chemical resistance of a
specific pump version:
• concentration of the pumped liquid
• liquid temperature or
• pressure.
Legend for notes in the list
Pump type Shaft seal Temperature
TP, TPE
BUBE 32°F to +284 °F
(0 °C to 140 °C)
AUUE 32°F to +194 °F
(0 °C to 90 °C)
RUUE –13 °F to +194 °F
(–25 °C to 90 °C)
AMay contain additives or impurities that may cause shaft
seal problems.
B
The density and/or viscosity differ from those of water.
Consider this when calculating motor and pump perfor-
mance.
CThe liquid must be oxygen-free (anaerobic).
DRisk of christallization/precipitation in shaft seal.
EInsoluble in water.
FThe shaft seal rubber parts must be replaced with
FKM rubber.
GBronze housing/impeller required.
HRisk of formation of ice on the standby pump.
E-circulator.book Page 10 Friday, October 7, 2011 4:01 PM

Pumped liquids
TPE E-circulators 6
11
Pumped liquids
Pumped liquids Notes Additional
information
Shaft seal
TP
Water
Groundwater <+194 °F (+90 °C) AUUE
>+194 °F (+90 °C) BUBE
Boiler feed water <+248 °F (+120 °C) BUBE
District heating water <+248 °F (+120 °C) BUBE
Condensate <+194 °F (+90 °C) AUUE
>+194 °F (+90 °C) BUBE
Softened water C <+194 °F (+90 °C) AUUE
>+194 °F (+90 °C) BUBE
Brackish water G
pH>6.5,
+40 °F (+4 °C),
1000 ppm Cl-
BUBE
AUUE
Coolants
Ethylene glycol B, D, H +122 °F (+50 °C),
50 %
AUUE
RUUE
Glycerine (glycerol) B, D, H +122 °F (+50 °C),
50 %
AUUE
RUUE
Potassium acetate B, D, C,
H
+122 °F (+50 °C),
50 %
AUUE
RUUE
Potassium formate B, D, C,
H
+122 °F (+50 °C),
50 %
AUUE
RUUE
Propylene glycol B, D, H AUUE
RUUE
Brine-sodium chloride B, D, C,
H
+41 °F (+5 °C),
30 %
AUUE
RUUE
Synthetic oils
Silicone oil B, E BUBE
AUUE
Vegetable oils
Corn oil B, F, E BUBV3)
AUUV3)
Olive oil B, F, E <+176 °F
(80 °C)
BUBV3)
AUUV3)
Peanut oil B, F, E BUBV3)
AUUV3)
Grape seed oil D, B, F,
E
BUBV3)
AUUV3)
Soya bean oil B, F, E BUBV3)
AUUV3)
Cleaning agents
Soap (salts of fatty
acids) A, E, (F) <+176 °F (80 °C)
AUUE
(AUUV)3)
Alkaline degreasing
agent A, E, (F) <+176 °F
(80 °C)
AUUE
(AUUV)3)
Oxidants
Hydrogen peroxide <+104 °C, <2 % BUBE
AUUE
Salts
Ammonium bicarbonate A <+68 °F (+14 °C),
<15 % AUUE
Calcium acetate A, B <+68 °F (+14 °C),
<30 % AUUE
Potassium bicarbonate A <+68 °F (+14 °C),
<20 % AUUE
Potassium carbonate A <+68 °F (+14 °C),
<20 % AUUE
Potassium
permanganate A<+68 °F (+14 °C), <10 % AUUE
Potassium sulfate A <+68 °F (+14 °C),
<20 % AUUE
Sodium acetate A <+68 °F (+14 °C),
<100 % AUUE
Sodium bicarbonate A <+68 °F (+14 °C),
<2 % AUUE
Sodium carbonate A <+68 °F (+14 °C),
<20 % AUUE
Sodium nitrate A <+68 °F (+14 °C),
<40 % AUUE
Sodium nitrite A <+68 °F (+14 °C),
<40 % AUUE
Sodium phosphate (di) A <+212 °F (100 °C),
<30% AUUE
Sodium phosphate (tri) A <+194 °F (90 °C),
<20% AUUE
Sodium sulfate A <+68 °F (+14 °C),
<20% AUUE
Sodium sulfite A <+68 °F (+14 °C),
<1% AUUE
Alkalis
Ammonium hydroxide <+212 °F (100 °C),
<30% AUUE
Calcium hydroxide A <+212 °F (100 °C),
<10% AUUE
Potassium hydroxide A <+68 °F (+14 °C),
<20% AUUE
Sodium hydroxide A <+104 °F (40 °C),
<20% AUUE
3) The shaft seal is not standard, but available on request.
Pumped liquids Notes Additional
information
Shaft seal
TP
E-circulator.book Page 11 Friday, October 7, 2011 4:01 PM

TP, TPE pumps
TPE E-circulators
7
12
7. TP, TPE pumps

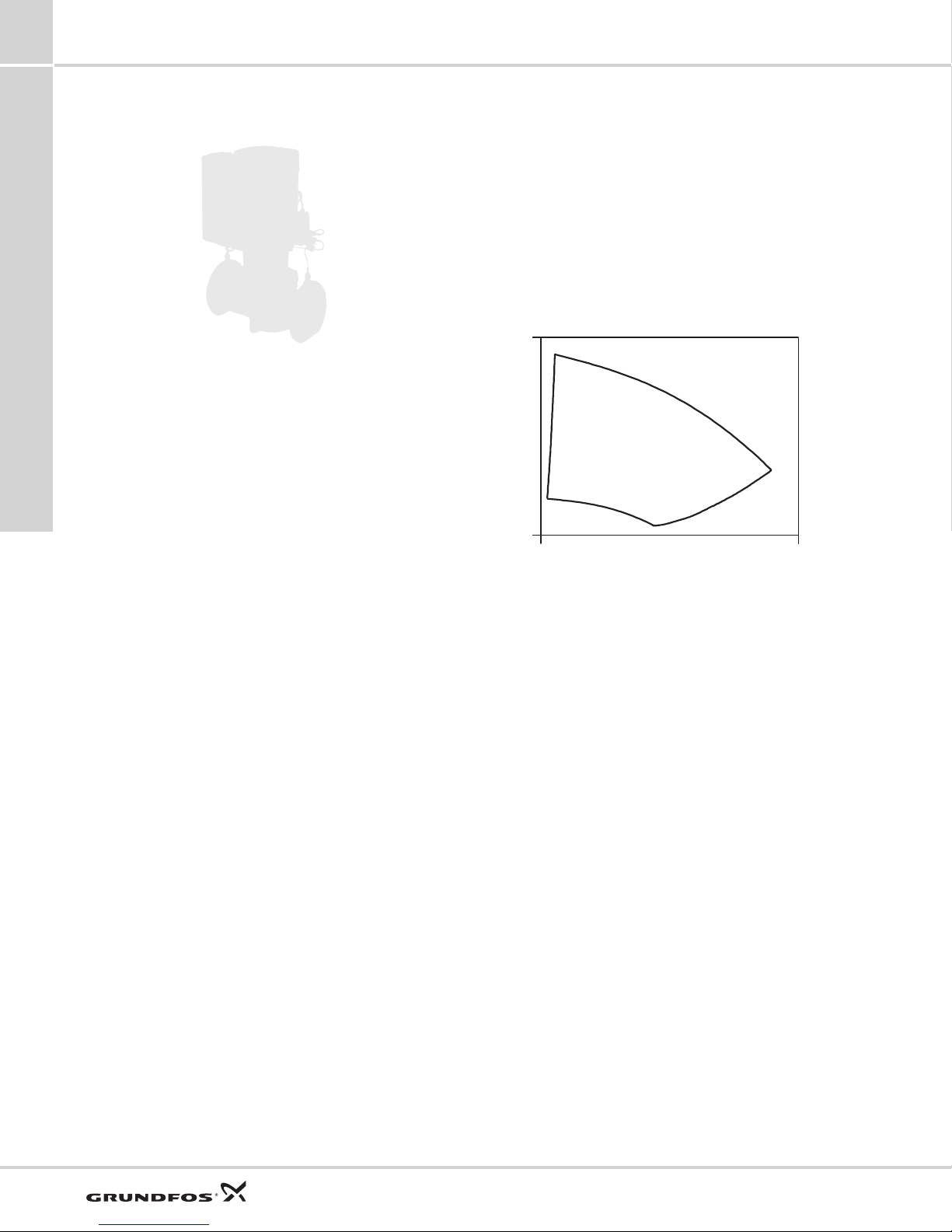

Fig. 3 TP Series pumps
Technical data
Flow rate: up to 300 gpm (68 m3h)
Head: up to 65 ft (20 m)
Liquid temperature: –13 (–25 °C) to +284 °F (140 °C)
Max. operating pressure: up to 145 psi (10 bar)
Note: See Grundfos product guide L-TP-PG-001 for
performance range.
Construction
Grundfos TP, TPE pumps are single-stage,
close-coupled pumps with in-line suction and dis-
charge ports flanges of identical diameter.
The pumps are equipped with a fan-cooled
asynchronous motor. Motor and pump shafts are
connected via a rigid two-part coupling.
The pumps are equipped with an unbalanced
mechanical shaft seal.
The pumps are of the top-pull-out design, i.e. the
power head (motor, pump head and impeller) can be
removed for maintenance or service while the pump
housing remains in the pipework.
As radial and axial forces are absorbed by the fixed
bearing in the motor drive-end, the pump requires no
bearing.
Pumps with bronze pump housing are suitable for
circulation of domestic hot water.
Materials
TP, TPE

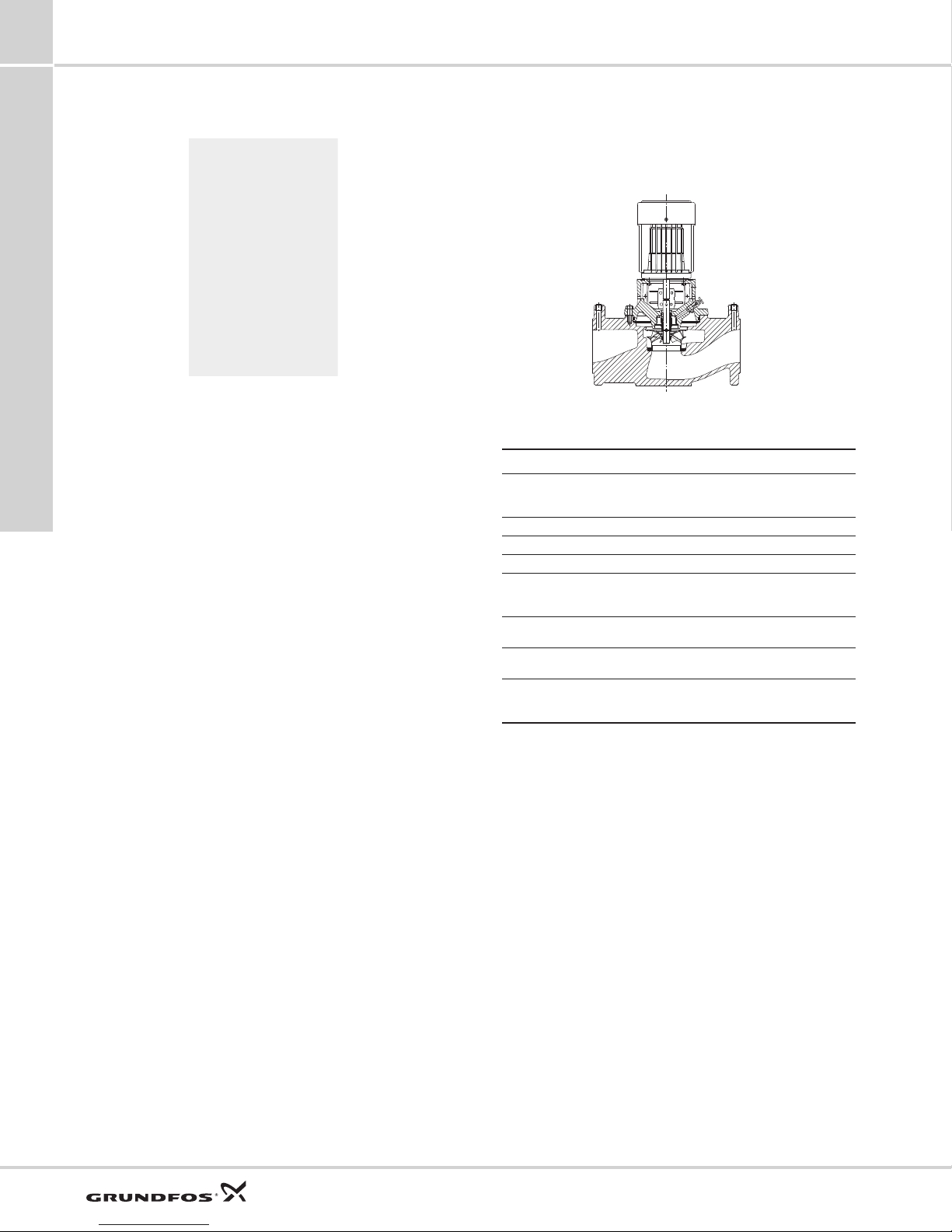

Fig. 4 Sectional drawing of a single-phase TP, TPE pump
Material specification
TM03 4875 3206
TM 00 9274 2002
Pos. Component Material AISI, ASTM
1 Pump housing Cast iron
EN-JL 1040
ASTM 48
CL 30
2 Impeller Stainless steel 304
3 Shaft Stainless steel 431
4 Coupling Cast iron
5 Pump head Cast iron
EN-JL 1040
ASTM 48
CL 30
Secondary seals EPDM ASTM 48
CL30
Rotating seal
face Tungsten carbide
Stationary seat
Carbon
(synthetic resin-impregnated)
tungsten carbide
E-circulator.book Page 12 Friday, October 7, 2011 4:01 PM

TP, TPE pumps
TPE E-circulators 7
13
Mechanical shaft seal
Three types of unbalanced mechanical shaft seal are
available as standard:
•BUBE
The BUBE shaft seal is a Grundfos rubber bellows
seal with tungsten carbide/carbon seal faces and
secondary seals of EPDM (standard seal).
•RUUE
The RUUE shaft seal is a Grundfos O-ring seal with
reduced tungsten carbide/tungsten carbide seal
faces and secondary seals of EPDM.
•AUUE
The AUUE shaft seal is a Grundfos O-ring seal with
fixed seal driver, tungsten carbide/tungsten carbide
seal faces and secondary seals of EPDM.
Information on a selection of common pumped liquids
with recommended shaft seals is shown on page 11.
Shaft seal specification
Special shaft seals are available for partly conditioned
water or other liquids containing abrasive or
crystallizing particles. See page 11.
Connections
Pumps up to 2” discharge has US standard flanges;
3” and higher discharge flanges are 125 lb. ANSI
connection.
Control
Electronically controlled TPE pumps are suitable for
demand-dependent performance control.
TPE pumps have the following features and
benefits:
Unbalanced shaft
seal TPE Version NU according to EN 12756
Shaft diameter 12 and 16 mm
Rubber bellows EPDM
Seal faces
Tungsten carbide/carbon
Tungsten carbide/
tungsten carbide
Silicon carbide/
silicon carbide
Optimized hydraulics for high efficiency
- reduced power consumption.
TPE pumps with built-in variable frequency drive
- 2-pole and 4-pole TP pumps from 0.33 to 1.5 Hp
single phase are available as TPE pumps with
variable frequency drive. For further information,
see page 22.
Top-pull-out design
- easy dismantling in case of service.
In-line design
- contrary to end-suction pumps, in-line pumps
allow a straight pipework and thus often reduced
installation costs.
Pump housing and pump head are electrocoated
- high corrosion resistance.
Electrocoating includes:
1. Alkaline cleaning
2. Pre-treatment with zinc phosphate coating
3. Cathodic electrocoating (epoxy)
4. Curing of paint film at 392-482 °F (200-250 °C).
For low-temperature applications at a high
humidity, Grundfos offers pumps with extra
surface treatment to avoid corrosion. These
pumps are available on request.
Stainless steel impeller and neck ring
- wear-free operation with high efficiency.
E-circulator.book Page 13 Friday, October 7, 2011 4:01 PM

TPE Series 2000 pumps
TPE E-circulators
8
14
8. TPE Series 2000 pumps
Fig. 5 TPE
Technical data
Flow rate: up to 200 gpm (45 m3h)
Head: up to 60 ft (18 m)
Liquid temperature: –13 to +284 °F
(–25 ° to 140 °C)
Max. operating pressure: 145 psi (10 bar)
Motor sizes (single-phase): 0.33 to 1.5 hp
Construction
TPE Series 2000 pumps are based on TP pumps.
The main differences between the TP and the TPE
Series 2000 pump range are the motor and the
factory-fitted integrated differential pressure sensor.
The motor of TPE Series 2000 pumps has a built-in
variable frequency drive designed to continuously
regulate the pressure based on the flow demand.
The TPE Series 2000 range is recognized as a
pre-configured solution for quick and safe installation.
For further information on construction and materials
of TPE Series 2000 pumps, see page 12.
Applications
TPE Series 2000 pumps have integrated speed control
for automatic adaptation of performance to current
conditions.
This ensures that the energy consumption is kept at a
minimum.
TPE Series 2000 pumps can operate in any duty point
within the range between 25 % and 100 % speed.
In the QH-chart the 100 %-curve corresponds to the
curve for a pump fitted with a standard fixed-speed
motor.
Depending on the nature of the application, TPE
Series 2000 pumps offer energy-savings, increased
comfort or improved processing.
TPE Series 2000 pumps are suitable for applications
where you want to control the pressure.
TM03 0348 4904
TM03 3609 0506
0Q [US GPM]
0
H
[ft]
100%
25%
E-circulator.book Page 14 Friday, October 7, 2011 4:01 PM

TPE Series 2000 pumps
TPE E-circulators 8
15
Differential proportional pressure
TPE Series 2000 pumps are factory-set to proportional
pressure. We recommend proportional pressure con-
trol in systems with relatively large pressure losses as
it is the most economical control mode.
TPE Series 2000 pumps set to proportional pressure
control continuously adjust the pump head to the
system water requirement.
The charts below show possible control modes of TPE
Series 2000 pumps in different applications.
Control options
Communication with TPE Series 2000 pumps is
possible via:
• a central building management system
• remote control (Grundfos R100) or
• a control panel.
The purpose of controlling TPE Series 2000 pumps is
to monitor and control the pressure.
For further information on control options of TPE
pumps, see page 20.
Pump selection guidelines
Differential proportional pressure control
TPE 2000 pump operating range in differential pres-
sure control mode is between 3/4th of the maximum
head (shut off) to 1/4th of the maximum head. Select
pump to operate within this range when pump is run-
ning full load speed. With differential proportional con-
trol, pump will follow a straight line between set point
and and half of the set point at closed valve as shown
below.
Constant differential pressure control
The setting range for constant pressure control is
between maximum head to 1/8th of the maximum
head.
Control mode Application
Differential proportional pressure
Systems with two-way valves
- the head against closed valve is half the
setpoint.
Differential constant pressure
Systems with two-way valves.
Constant curve
Single-pipe heating system.
Systems with three-way valves.
Heating and cooling surfaces.
Chiller pumps
TM03 3670 0606TM03 3671 0606
H
QQ
0
1
2
3
4
5
5
4
3
2
1
0
Q
Q
H
E-circulator.book Page 15 Friday, October 7, 2011 4:01 PM

TPE Series 2000 pumps
TPE E-circulators
8
16

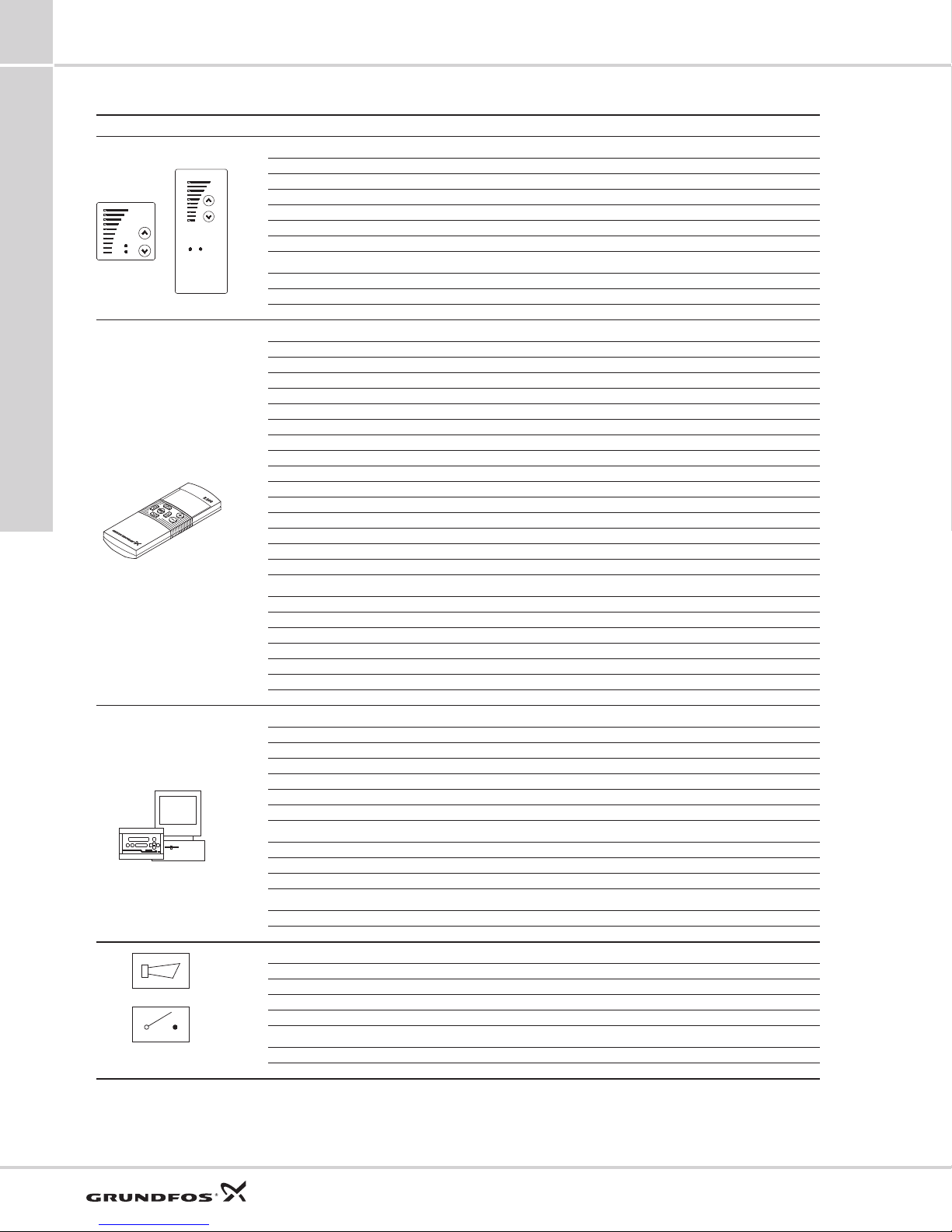

Overview of functions
E-pump functions TPE Series 2000 with single-phase MLE
Setting via control panel:
Setpoint 
Start/stop 
Max. curve 
Min. curve 
Alarm reset 
Constant/proportional pressure 
Reading via control panel:
Setpoint 
Operating indication 
Fault indication 
Setting via R100:
Setpoint 
Start/stop 
Max. curve 
Min. curve 
Alarm reset 
Controlled/uncontrolled
Constant/proportional pressure, constant curve
Controller constants Kp, Ti
External setpoint signal 
Signal relay function
Pump number (for bus communication) 
Stop function
Sensor range and signal
Duty/standby
Operating range (min./max. speed)
Reading via R100:
Setpoint 
Operating mode 
Actual sensor value 
Pump speed 
Actual power consumption 
Energy consumption 
Running hours 
Setting via GENIbus:
Setpoint 
Start/stop 
Max. curve 
Min. curve 
Controlled/uncontrolled
Constant/proportional pressure, constant curve
Reading via GENIbus:
Setpoint 
Operating indication 
Pump status 
Additional functions:
Parallel operation 
Clock program 
Settings via external signal:
Setpoint 
Start/stop 
Min./max. curve via digital input 
Min./max. curve, external fault, Flow switch via digital input 
Readings via external signal:
Fault signal (relay) 
Fault, Operation or Ready signal (relay)
Available
E-circulator.book Page 16 Friday, October 7, 2011 4:01 PM

TPE Series 1000 pumps
TPE E-circulators 9
17
9. TPE Series 1000 pumps

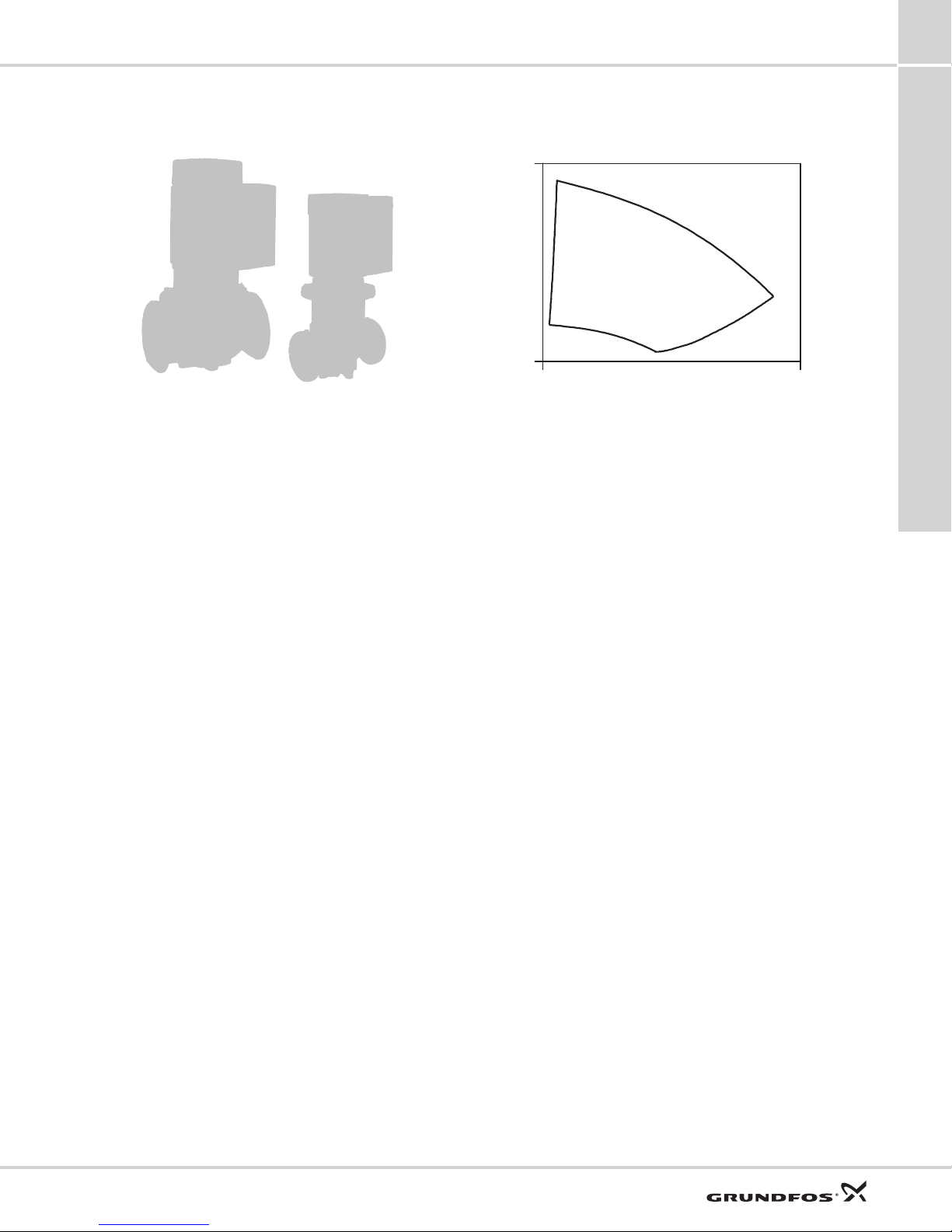

Fig. 6 TPE Series 1000
Technical data
Flow rate: up to 200 gpm (45 m3h)
Head: up to 60 ft (18 m)
Liquid temperature: –13 to +284 °F
(–25 ° to 140 °C)
Max. operating pressure: 145 psi (10 bar)
Motor sizes (single-phase): 0.33 to 1.5 hp
Construction
TPE Series 1000 pumps are based on TP pumps.
The main difference between the TP and the TPE
Series 1000 pump range is the motor.
The motor of TPE Series 1000 pumps has a built-in
variable frequency drive designed to continuously
regulate the pressure and the flow.
TPE Series 1000 pumps are suitable for applications
where you want to retrofit a sensor in order to control
e.g. the pressure, temperature, flow etc. at some
arbitrary point in the system. Sensors shall be supplied
by others.
For further information on construction and materials
of TPE Series 1000 pumps, see page 12 and 13.
Applications
TPE Series 1000 pumps have integrated speed control
for automatic adaptation of performance to current
conditions.
This ensures that the energy consumption is kept at a
minimum.
TPE Series 1000 pumps can operate in any duty point
within the range between 25 % and 100 % speed.
In the QH-chart the 100 %-curve corresponds to the
curve for a pump fitted with a standard fixed speed
motor.
Depending on the nature of the application, TPE
Series 1000 pumps offer energy-savings, increased
comfort or improved processing.
The pumps can be fitted with sensor types meeting the
requirements mentioned below:
Start/stop
External potential-free switch.
Voltage: 5 VDC.
Current: < 5 mA.
Screened cable: 0.5 - 1.5 mm² / 28-16 AWG.
Digital
External potential-free switch.
Voltage: 5 VDC.
Current: < 5 mA.
Screened cable: 0.5 - 1.5 mm² / 28-16 AWG.
Setpoint signals
• Potentiometer
0-10 VDC, 10 k(via internal voltage supply).
Screened cable: 0.5 - 1.5 mm² / 28-16 AWG.
Maximum cable length: 328 ft (100 m).
• Voltage signal
0-10 VDC, Ri10 k
Tolerance: +0%/–3% at maximum voltage signal.
Screened cable: 0.5 - 1.5 mm² / 28-16 AWG.
Maximum cable length: 1640 ft (500 m).
• Current signal
DC 0-20 mA/4-20 mA, Ri= 175 
Tolerance: +0%/–3% at maximum current signal.
Screened cable: 0.5 - 1.5 mm² / 28-16 AWG.
Maximum cable length: 1640 ft (500 m).
Power source for sensor: 24 VDC is available from
VFD. Max 40 mA
TM03 0347 4904 TM03 3609 0506
0Q [US GPM]
0
H
[ft]
100%
25%
E-circulator.book Page 17 Friday, October 7, 2011 4:01 PM

TPE Series 1000 pumps
TPE E-circulators
9
18

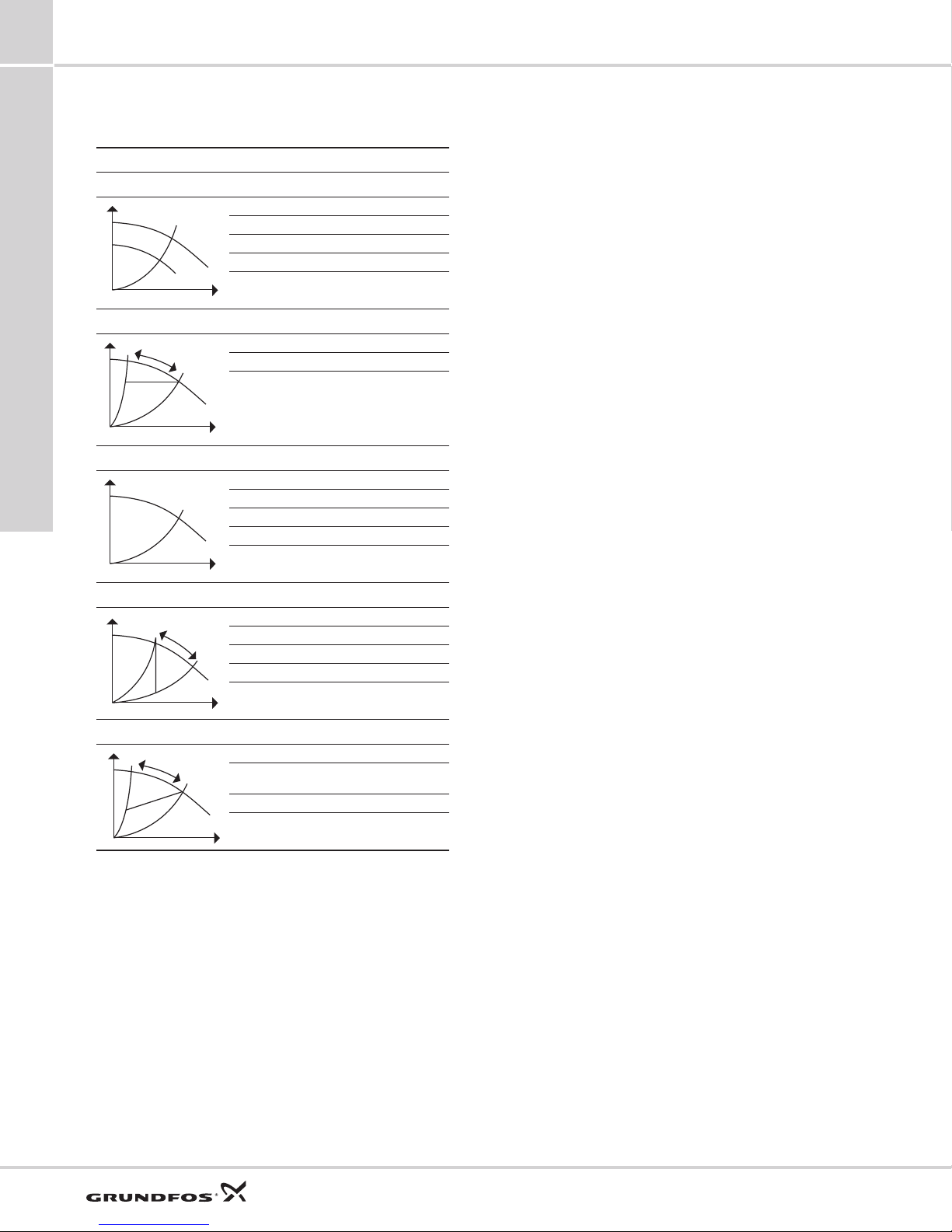

The charts below show possible control modes of TPE
Series 1000 pumps in different applications.
Control options
Communication with TPE Series 1000 pumps is
possible via:
• a central building management system
• a remote control (Grundfos R100)
• a control panel.
The purpose of controlling a TPE Series 1000 pumps
is to monitor and control the pressure, temperature,
flow and liquid level of the system.
For further information on control options of TPE
pumps, see page 20.
Control mode Application
Constant curve
Single-pipe heating systems.
Systems with three-way valves.
Heating and cooling surfaces.
Chiller pumps.
Constant differential pressure
Systems with two-way valves.
(Sensor is needed)
Temperature control
Single-pipe heating systems.
Systems with three-way valves.
Cooling towers.
Chiller pumps.
Domestic hot water recirculation systems.
(Sensor is needed)
Constant flow
Heating and cooling surfaces.
Cooling towers.
Flow filters.
(Sensor is needed)
Proportional differential pressure (measured)
System with two-way valves.
(Differential pressure sensor is located in
the system)
(Sensor is needed)
E-circulator.book Page 18 Friday, October 7, 2011 4:01 PM

TPE Series 1000 pumps
TPE E-circulators 9
19

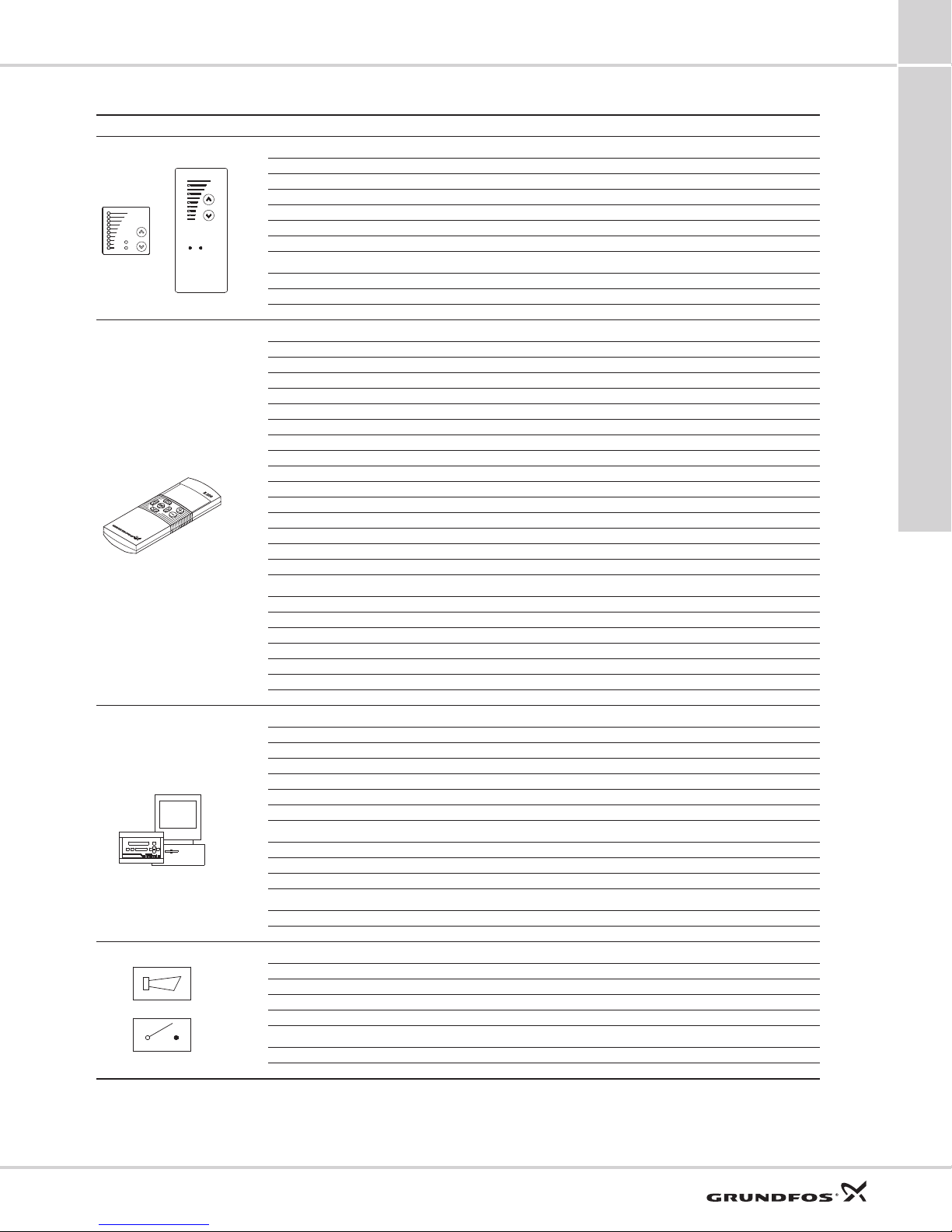

Overview of functions
E-pump functions TPE Series 1000, without sensor
Setting via control panel:
Setpoint 
Start/stop 
Max. curve 
Min. curve 
Alarm reset 
Constant/proportional pressure
Reading via control panel:
Setpoint 
Operating indication 
Fault indication 
Setting via R100:
Setpoint 
Start/stop 
Max. curve 
Min. curve 
Alarm reset 
Controlled/uncontrolled 
Constant/proportional pressure, constant curve 
Controller constants Kp, Ti 
External setpoint signal 
Signal relay function 
Pump number (for bus communication) 
Stop function
Sensor range and signal 
Duty/standby
Operating range (min./max. speed) 
Reading via R100:
Setpoint 
Operating mode 
Actual sensor value 
Pump speed 
Actual power consumption 
Energy consumption 
Running hours 
Setting via GENIbus:
Setpoint 
Start/stop 
Max. curve 
Min. curve 
Controlled/uncontrolled 
Constant/proportional pressure, constant curve
Reading via GENIbus:
Setpoint 
Operating indication 
Pump status 
Additional functions:
Parallel operation 
Clock program 
Settings via external signal:
Setpoint 
Start/stop 
Min./max. curve via digital input 
Min./max. curve, external fault, Flow switch via digital input
Readings via external signal:
Fault signal (relay)
Fault, Operation or Ready signal (relay) 
Available
E-circulator.book Page 19 Friday, October 7, 2011 4:01 PM

Communication
TPE E-circulators
10
20

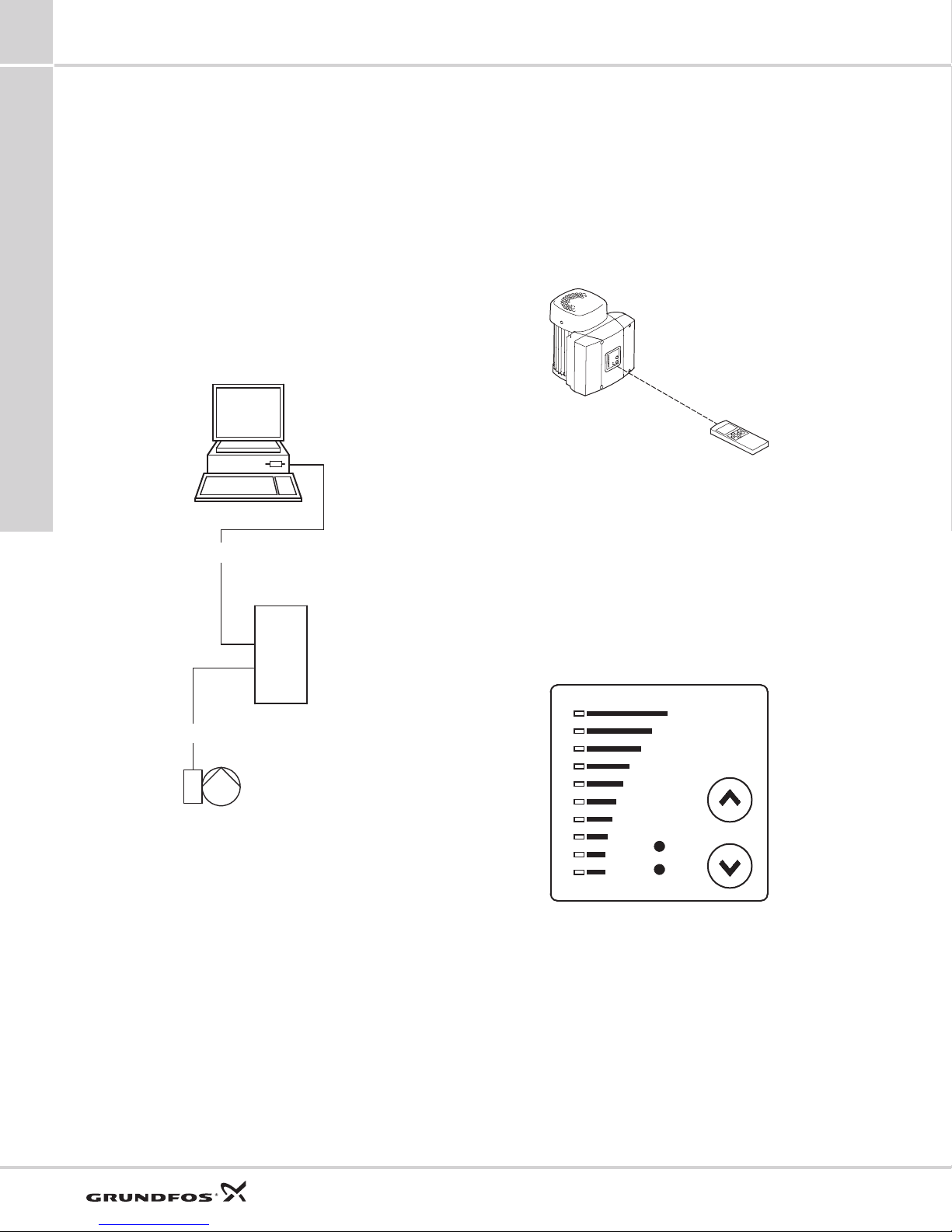

10. Communication
Communication with TPE pumps
Communication with TPE pumps is possible via a
central building management system, remote control
(Grundfos R100) or a control panel.
Central building management system
The operator can communicate with a TPE pump even
when he is not present near the pump.
Communication can take place via a central building
management system allowing the operator to monitor
and change control modes and setpoint settings.
Fig. 7 Structure of a central building management system
Remote control
The R100 remote control produced by Grundfos is
available as an accessory.
The operator communicates with the TPE pump by
pointing the IR-signal transmitter at the control panel of
the TPE pump terminal box.
Fig. 8 R100 remote control
The operator can monitor and change control modes
and settings of the TPE pump via the R100 display.
Control panel
The operator can change the setpoint settings manu-
ally on the control panel of the TPE pump terminal box.
Fig. 9 Control panel of a TPE pump
TM02 6592 1103
LON-bus connection
G10-LON
Interface
GENIbus connection
TPE pump
TM02 0936 0501
TM00 7600 0304
E-circulator.book Page 20 Friday, October 7, 2011 4:01 PM
