Grundfos UNOLIFT User manual

UNOLIFT, DUOLIFT
Installation and operating instructions
GRUNDFOS INSTRUCTIONS

UNOLIFT, DUOLIFT
English (GB)
Installation and operating instructions ..................................5
Български (BG)
Упътване за монтаж и експлоатация.................................36
Čeština (CZ)
Montážní a provozní návod ........................................69
Deutsch (DE)
Montage- und Betriebsanleitung ....................................100
Dansk (DK)
Monterings- og driftsinstruktion .....................................133
Eesti (EE)
Paigaldus- ja kasutusjuhend.......................................165
Español (ES)
Instrucciones de instalación y funcionamiento...........................196
Suomi (FI)
Asennus- ja käyttöohjeet .........................................228
Français (FR)
Notice d'installation et de fonctionnement..............................260
Ελληνικά (GR)
Οδηγίες εγκατάστασης και λειτουργίας................................292
Magyar (HU)
Telepítési és üzemeltetési utasítás ..................................325
Italiano (IT)
Istruzioni di installazione e funzionamento .............................357
Lietuviškai (LT)
Įrengimo ir naudojimo instrukcija ....................................389
Latviešu (LV)
Uzstādīšanas un ekspluatācijas instrukcija .............................421
Nederlands (NL)
Installatie- en bedieningsinstructies ..................................454
Polski (PL)
Instrukcja montażu i eksploatacji....................................486
Português (PT)
Instruções de instalação e funcionamento .............................518
3
Table of contents

Română (RO)
Instrucţiuni de instalare şi utilizare...................................549
Svenska (SE)
Monterings- och driftsinstruktion ....................................581
Türkçe (TR)
Montaj ve kullanım kılavuzu .......................................612
中文 (CN)
安装和使用说明书 ..............................................647
Appendix A..................................................678
4UNOLIFT, DUOLIFT
Table of contents

English (GB) Installation and operating instructions
Original installation and operating instructions
Table of contents
1. General information ............. 6
1.1 Hazard statements .............. 6
1.2 Notes ..................... 6
1.3 Symbols on the product............ 6
2. Receiving the product............ 7
2.1 Transporting the product ........... 7
2.2 Inspecting the product ............ 7
2.3 Scope of delivery ............... 7
3. Installing the product ............12
3.1 General guidelines ..............12
3.2 Mechanical installation ............13
3.3 Tools......................14
3.4 Installation overview .............14
3.5 Positioning the product ............14
3.6 Installing the tank ...............14
3.7 Drilling holes for the pipes ..........15
3.8 Fitting the cable glands ............15
3.9 Fitting the vent port ..............15
3.10 Connecting the vent pipe ...........16
3.11 Connecting the inlet pipes ..........16
3.12 Installing the pump ..............16
3.13 Installing the pump connecting pipes.....17
3.14 Installing the level sensor tube ........22
3.15 Installing an alarm float switch ........22
3.16 Installing the outlet pipes ...........22
3.17 Installing a diaphragm pump .........24
3.18 Installing the controller ............24
3.19 Electrical connection .............24
3.20 Setting the controller before startup .....25
4. Starting up the product ...........25
4.1 Starting up a product with a controller ....25
4.2 Starting up a product without a controller ..25
5. Storing the product .............26
6. Product introduction ............26
6.1 Product overview ...............26
6.2 Applications ..................27
6.3 Pumped liquids ................27
6.4 Automatic operation..............27
6.5 Identification..................27
6.6 Diaphragm pump ...............28
6.7 Level sensor tube ...............28
7. Operating the product............28
7.1 Setting the start levels ............28
8. Starting up the product after standstill ..31
9. Servicing the product ............31
10. Taking the product out of operation ....32
11. Technical data ................33
11.1 Operating conditions .............33
11.2 Material ....................33
11.3 Electrical data .................33
11.4 Dimensions and weights ...........33
12. Fault finding the product ..........34
12.1 The pump does not start. ...........34
12.2 The pump does not stop. ...........34
12.3 The pump starts and stops randomly. ....34
12.4 The tank is not emptying although the
pump is running. ...............34
12.5 The pump makes an unusual sound......35
13. Disposing of the product ..........35
5
English (GB)

1. General information
This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning use
of the appliance in a safe way and
understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not
be made by children without supervision.
Read this document before you install the
product. Installation and operation must
comply with local regulations and accepted
codes of good practice.
1.1 Hazard statements
The symbols and hazard statements below may
appear in Grundfos installation and operating
instructions, safety instructions and service
instructions.
DANGER
Indicates a hazardous situation which, if
not avoided, will result in death or serious
personal injury.
WARNING
Indicates a hazardous situation which, if
not avoided, could result in death or
serious personal injury.
CAUTION
Indicates a hazardous situation which, if
not avoided, could result in minor or
moderate personal injury.
The hazard statements are structured in the following
way:
SIGNAL WORD
Description of the hazard
Consequence of ignoring the warning
• Action to avoid the hazard.
1.2 Notes
The symbols and notes below may appear in
Grundfos installation and operating instructions,
safety instructions and service instructions.
Observe these instructions for explosion-
proof products.
A blue or grey circle with a white graphical
symbol indicates that an action must be
taken.
A red or grey circle with a diagonal bar,
possibly with a black graphical symbol,
indicates that an action must not be taken
or must be stopped.
If these instructions are not observed, it
may result in malfunction or damage to the
equipment.
Tips and advice that make the work easier.
1.3 Symbols on the product
European conformity
6
English (GB)

2. Receiving the product
2.1 Transporting the product
WARNING
Falling objects
Death or serious personal injury
‐Secure the product during
transportation to prevent it from tilting
or falling down.
CAUTION
Back injury
Minor or moderate personal injury
‐Get assistance from another person or
use lifting equipment to carry the
product.
CAUTION
Crushing of feet
Minor or moderate personal injury
‐Wear safety shoes when moving the
product.
2.2 Inspecting the product
1. Check that the product is as ordered.
2. Check that no visible parts have been damaged.
3. If parts are damaged or missing, contact your
local Grundfos sales company and refer to the
product numbers in section Scope of delivery.
Related information
2.3 Scope of delivery
2.3 Scope of delivery
The scope of delivery depends on your order. Pumps,
tank and pipes are supplied separately and must be
assembled.
If used for a liquid which is injurious to health or toxic,
the pump will be classified as contaminated.
Before the pump is returned to Grundfos for service,
the safety declaration at the end of these instructions
must be filled in by authorised personnel and
attached to the pump in a visible position.
If Grundfos is requested to service the pump, it must
be cleaned before it is returned.
If proper cleaning is not possible, all relevant
information about the pumped liquid must be
provided.
If the above is not fulfilled, Grundfos can refuse to
accept the pump for service.
Possible costs of returning the pump are to be paid
by the customer.
The safety declaration can be found at the end of
these instructions (only in English).
7
English (GB)

2.3.1 Description of kits
Tank
Designation Quantity
270 litres 540 litres
Tank 1 1
Cover with gasket 1 2
Screw, M8 × 30 12 24
Washer 12 24
Fastening bracket for level sensor tube 2 2
Screw for fixing the tank 4 4
Expansion anchor for fixing the tank 4 4
Socket seal, DN 40 1 1
Socket seal, DN 100 1 1
Pump connecting pipes
Designation Quantity
KP/CC SEG APB
Adapter,
Rp 2 - R 1 1/2 1 1 -
Double nipple,
R 2 - R 2 1 1 1
Nut, PVC, 2" 1 1 1
O-ring, ∅60, EPDM - - 1
8
English (GB)

Pump connecting pipes
Designation Quantity
KP/CC SEG APB
Adapter 2 - -
Stainless-steel clamp 2 2 2
Flexible connecting tube, ∅50 1 1 1
Elbow, 90° - 1 1
Flange, ∅50 - 1 -
Screw for flange - 4 -
Washer for flange - 8 -
Nut, M16, for flange - 4 -
O-ring, ∅50, for flange - 1 -
9
English (GB)

Pump connecting pipes
Designation Quantity
KP/CC SEG APB
UNILIFT KP:
Double nipple 1 - -
UNILIFT CC:
Adapter
1 1/2" - 1 1/4"
1 - -
UNILIFT KP:
Non-return flap valve 1*- -
Thread tape 1 1 1
Fitting, 2", ∅50 - 1 1
Fitting, 90°, 2", ∅50 - 1 -
Fitting, 90°, 1 1/2", ∅50 - 1 -
Tube, ∅50 - 1 1
Threaded rod M8 - 1** -
Pipe clamp M8 - 2** -

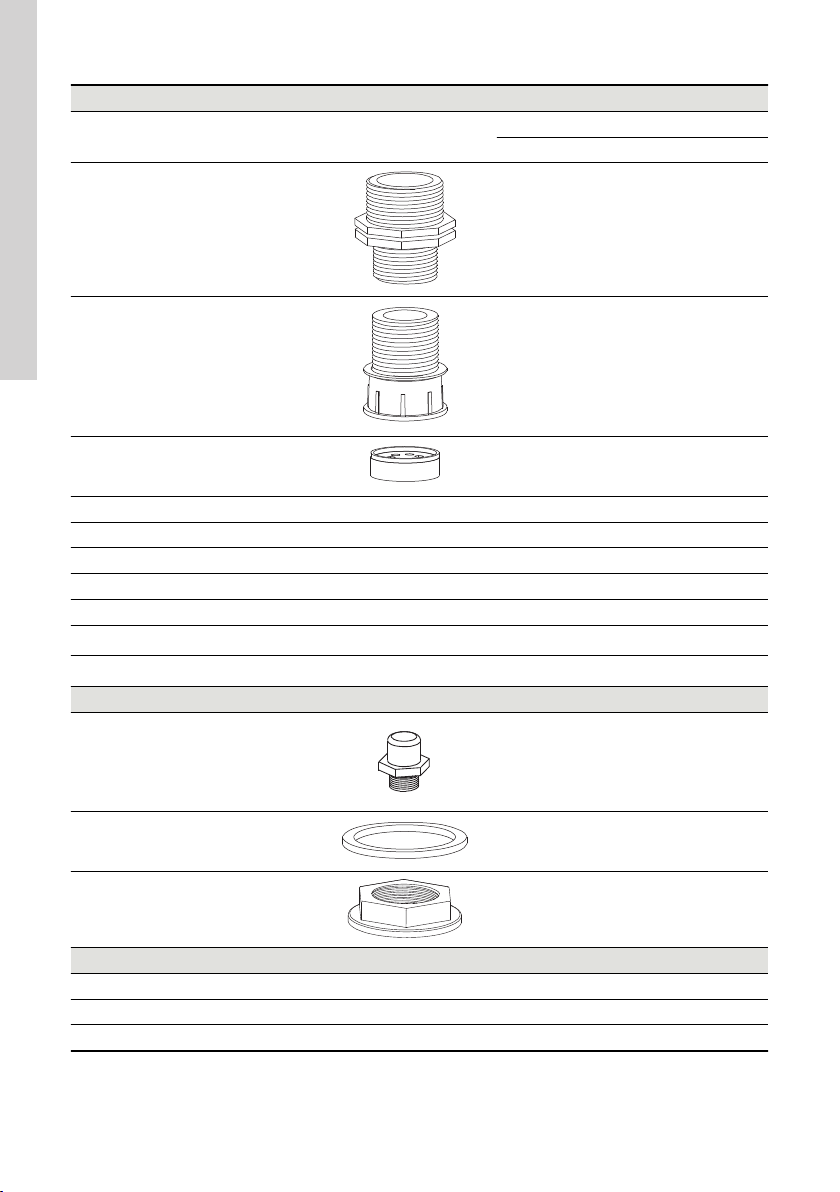

Vent port
Socket, PVC, 75 × 63 × 2" 1 1 1
Gasket, EPDM, ∅63 1 1 1
Nut, PVC, 2" 1 1 1
Other components
Schuko plug 1 - 1
Cable gland, M20 2 1 2
Cable gland, M25 - 1 -
*The kit for pump connecting pipes contains a non-return valve for the UNILIFT KP pump. The UNILIFT CC pump is supplied with
a non-return valve.
** The threaded rod M8 and pipe clamp M8 parts are only for DUOLIFT SEG pumps.
10
English (GB)

Accessories
We recommend the following accessories.
Outlet pipe
Designation
Quantity
Unolift Duolift
CC/KP APB/SEG CC/KP APB/SEG
Non-return valve -*1-*2
Double nipple - 1 3 5
Isolating valve 1 1 1 1
Union nut - - 2 2
T-piece, PVC, 90° - - 1 1
Elbow, PVC, 90° - - 2 2
Pipe, ∅50, 2 m - - 1 1
Thread tape 1 1 1 1
*The UNILIFT CC pump is supplied with a non-return valve.
11
English (GB)

3. Installing the product
3.1 General guidelines
The guidelines for correct mechanical installation of
lifting station are according to EN 12056-4.
• If the lifting station is installed in a basement with
recurrent penetration of groundwater, we
recommend that you install a drainage pump in a
separate pump sump below floor level. In some
countries the drainage pump is mandatory. If there
is only a risk of penetrating groundwater, we
recommend that you install a float switch outside
the lifting station and connect it to a controller
which indicates high-level alarm in case of
flooding.
• Fix the tank to the floor.
• We recommend that you connect a diaphragm
pump to the tank to be able to empty the tank
manually.
• All outlet pipes from the lifting station, diaphragm
pump and drainage pump must have a backflow
loop, i.e. a bend above the local backflow level.
Commonly, the highest point of the bend must be
above street level. See fig. 2 Installation example
with a tank on the basement floor. The diaphragm
pump is not shown.
• Surface water must not be discharged into the
lifting station inside the building. Collect and
discharge surface water outside the building.
• Install a non-return valve at the outlet of the lifting
station to prevent backflow.
• Fit isolating valves at the inlet and outlet of the
lifting station.
• The volume of the outlet pipe above the non-
return valve up to the backflow loop must be
smaller than the effective tank volume. See pos. 7
in fig. 1 Installation example with a tank in a sump
and with a controller. The diaphragm pump is not
shown. and fig. 2 Installation example with a tank
on the basement floor. The diaphragm pump is
not shown.
• In general, a lifting station for black wastewater
must be vented above roof level. However, it is
permitted to lead the vent pipe into the main
building ventilation system. Place special two-way
venting valves outside the building.
• If the wastewater is discharged into a collecting
line, the collecting line must have a filling ratio of
at least h/d = 0.7. The collecting line must be at
least one nominal diameter bigger after the outlet
pipe connection.
• Use 45° bends to avoid deposits in the pipes.
Related information
3.2.2 Location
12
English (GB)

3.2 Mechanical installation
3.2.1 Tank inlets
We recommend that you connect the inlet pipes to the
top inlets of the tank. This prevents backflow and
deposits in the inlet pipe, and enables a high start
level of the pump. A high start level increases the
effective tank volume and reduces the number of
start/stops of the pumps.
3.2.2 Location
Install the lifting station in a properly lit and vented
room with 60 cm free space around all parts to be
serviced and operated.
The tank must not be exposed to direct sunlight. UV
light can affect the properties of its composite
material, resulting in a shorter life.
The product is designed for indoor operation. If
installed outside, the lifting station must be placed in
a closed pit.
The tank can be flooded and may be installed in a
basement with risk of penetrating groundwater.
6
2
3
4
5
1
7
TM065789

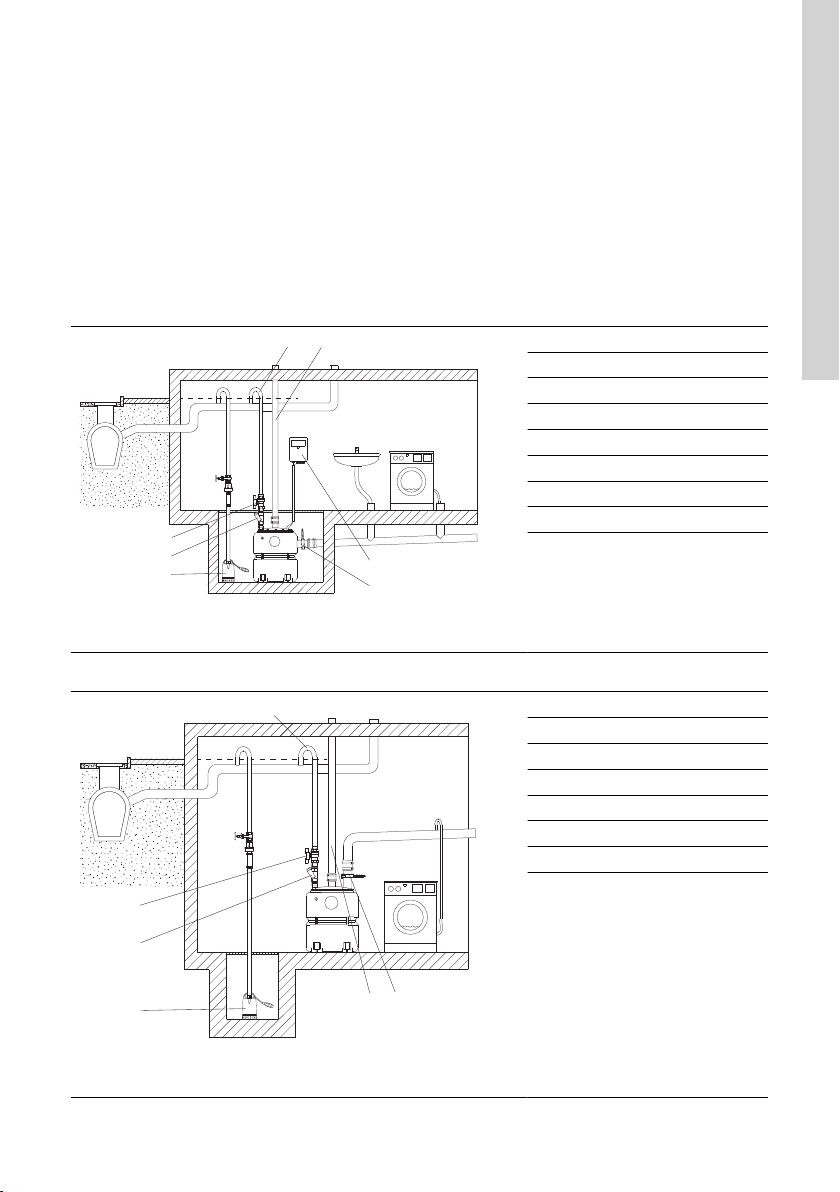

Installation example with a tank in a sump and with a controller.
The diaphragm pump is not shown.
Pos. Designation
1 Isolating valve, inlet
2 Controller
3 Drainage pump
4 Non-return valve, outlet
5 Isolating valve, outlet
6 Vent pipe
7 Backflow loop
16
3
4
5
7
TM065790
Installation example with a tank on the basement floor. The
diaphragm pump is not shown.
Pos. Designation
1 Isolating valve, inlet
3 Drainage pump
4 Non-return valve, outlet
5 Isolating valve, outlet
6 Vent pipe
7 Backflow loop
13
English (GB)

3.3 Tools
• Thread tape
• glue.
Not supplied with the product:
• drilling machine
• drilling bits: ∅20, ∅25
• hole saw: ∅40, ∅100
• deburring tool for polyethylene.
3.4 Installation overview
Depending on your product type, you must go
through different steps to install your lifting station.
You may need to go through additional steps if you
have ordered accessories.
Lifting station with pumps with float switches
1. Fix the tank to the floor.
2. Drill holes for the inlet pipes.
3. Connect the inlet pipes to the tank.
4. Fit the vent port and the cable glands.
5. Set the start levels by adjusting the cable length of
the float switch.
6. Install the pumps in the tank.
7. Fit the pump connecting pipes.
8. Connect the vent pipe.
9. Connect the outlet pipes.
Lifting station with controller
1. Fix the tank to the floor.
2. Drill holes for the inlet pipes.
3. Connect the inlet pipes to the tank.
4. Fit the vent port and the cable glands.
5. Install the pumps in the tank.
6. Fit the level sensor tube in the tank.
7. Fit the pump connecting pipes.
8. Connect the vent pipe.
9. Connect the outlet pipes.
3.5 Positioning the product
CAUTION
Back injury
Minor or moderate personal injury
‐Get assistance from another person or
use lifting equipment to carry the
product.
CAUTION
Crushing of feet
Minor or moderate personal injury
‐Wear safety shoes when moving the
product.
Position the tank so that all components are easily
accessible during operation and maintenance.

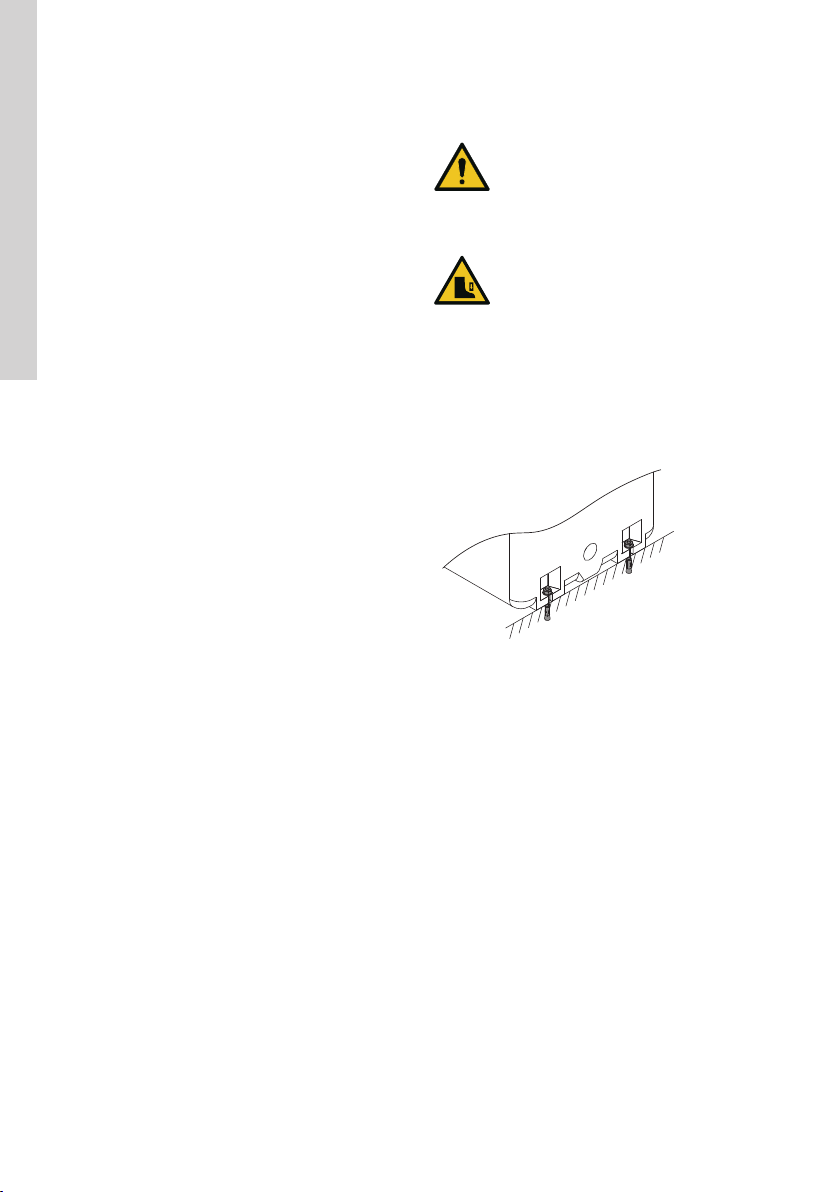

3.6 Installing the tank
Fix the tank to the floor to prevent uplift and twist. Use
the mounting brackets to fix the tank with screws.
TM065780
Fixing the tank to the floor
14
English (GB)

3.7 Drilling holes for the pipes
CAUTION
Sharp element
Minor or moderate personal injury
‐Wear protective gloves.
The tank has three or four holes, ∅100, for the inlet
pipes, depending on the size. The tank also has a
hole, ∅40, for the diaphragm pump. See section
Product overview. These holes must be drilled to be
used.
Holes for the outlet pipes, the vent port and the
minimum required cable glands are open.
1. Determine which inlets you want to use. See
sections Tank inlets and Setting the start levels.
2. Drill holes with a hole saw. The diameter of the
hole saw must be the same as the diameter of the
pipe.
Inlet: ∅100
Hole for diaphragm pump: ∅40
3. Deburr the holes.
TM065851
Drilling holes for pipes
Related information
3.2.1 Tank inlets
6.1 Product overview
7.1 Setting the start levels
3.8 Fitting the cable glands
Choose the appropriate cable gland:
Cable gland for UNILIFT pumps: M20
Cable gland for SEG pumps: M25
Cable gland for level sensor hose: M20
TM065779
Fitting the cable glands
3.9 Fitting the vent port
1. Fit the gasket on the socket.
2. Fit the nipple in the hole on top of the tank.
3. Fit the nut inside the tank and tighten it.
TM065924
Fitting the vent port
15
English (GB)

3.10 Connecting the vent pipe
The vent pipe is not supplied with the product.
You can connect your vent pipe to the vent port in
three different ways:
• By means of a PVC vent pipe with an outer
diameter of 63 mm and glue.
• By means of a flexible pipe connection with an
inner diameter of 75 mm and with clamps. A
flexible pipe connection with clamps is available
as an accessory.
• By means of a PP double nipple with an inner
diameter of 75 mm. The nipple must comply with
EN 1451.
3.11 Connecting the inlet pipes
You can connect three or four inlet pipes to the tank,
depending on the tank size. First you must drill the
holes. See section Drilling holes for the pipes.
1. Fit the socket seal in the inlet.
2. Connect the isolating valve to the inlet pipe. The
isolating valve is an accessory. Product number
96615831.
3. Insert the inlet pipe into the socket seal.
TM065859
Connecting an inlet pipe with an isolating valve
Related information
3.7 Drilling holes for the pipes
3.12 Installing the pump
Pumps with float switches
Adjust the cable length of the float switch before you
install the pump. See section Setting the start levels
with float switches.
1. Remove the plug from the pump cable. You may
need to cut the cable.
2. SEG: Fit the foot extensions. See fig. Fitting the
foot extensions on the SEG pump.
3. Position the pump in the tank. Make sure that the
float switch, if any, can move freely.
UNILIFT CC, KP, APB: Position the pump
between the three positioning dots at the bottom
of the tank so that it stays in place during
operation. See figures Correct position of UNILIFT
CC and KP pumps and Correct position of
UNILIFT APB pumps. SEG: The pump weight
ensures that the pump stays in place.
4. Lead the pump cable through the cable gland of
the tank.
5. Tighten the cable gland.
TM026571
Fitting the foot extensions on the SEG pump
TM065965
Correct position of UNILIFT CC and KP pumps
16
English (GB)

TM065966
Correct position of UNILIFT APB pumps
Related information
7.1.2 Setting the start levels with float switches
3.13 Installing the pump connecting pipes
3.13.1 Cutting the flexible tube
The connecting pipes are supplied with a flexible tube
of ∅50. Cut the tube to a length according to the table
below.
Pump type Tube length [mm]
UNILIFT CC 240
UNILIFT KP 350
UNILIFT APB 423
UNILIFT APG 375
SEG 375
Pump type PE tube
length [mm]
Threaded rod
M8 [mm]*
SEG 1 × 275
1 × 185
685 (540 L
tank)
220 (270 L
tank)
UNILIFT APB 1 × 270
1 × 185
UNILIFT APG 1 × 275
1 × 185
685 (540 L
tank)
220 (270 L
tank)
*Only for double pump installation.
3.13.2 Assembling the pump connecting pipes
Use the thread tape in the kit to seal the threaded
connections.
1. Assemble the connecting pipe outside the tank,
except for the nut. See pos. 1 in fig. Example
with UNILIFT KP pumps.
2. Connect the connecting pipe to the pump in the
tank.
3. Connect the connecting pipe to the outlet of the
tank. Make sure that the pump is in position and
that the float switch, if any, can move freely before
you tighten the nut.
1
TM049563
Example with UNILIFT KP pumps
17
English (GB)

TM059633
UNILIFT AP35B, AP50B
TM059630
UNILIFT CC, KP
18
English (GB)

x4
TM082793
UNILIFT APG
x4
TM059632
SEG
19
English (GB)

x4
TM078303
DUOLIFT SEG
20
English (GB)
