User Manual
MC 9030
Hair and Beard Clipper

2
CONTENTS
ENGLISH 08-21
TÜRKÇE 22-38

3
1
3
5
4
6
7 8 9
2

4
1 2
1
or
2
757
10
9On
12
6
click
8
5
TURBO
11
1
2
3
4
3-15
mm 18-30 mm
33-45
mm

5
17
16 Off

2
15
min
min
18
3 sec.
20
3 sec.
19
13 14
2 3
12
1

6
78
click
12
13
10 11
9
6
45

7

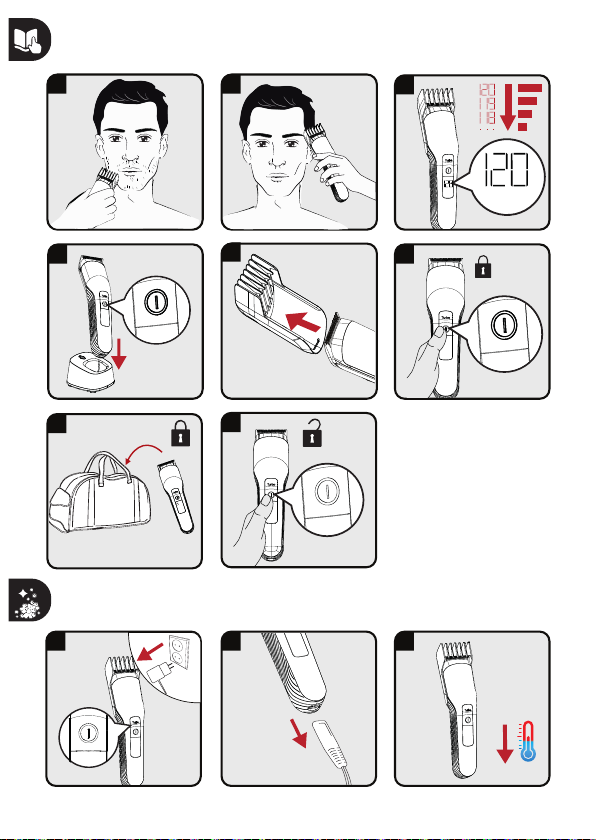

EN OPERATION CLEANING AND CARE
TR KULLANIM TEMİZLEME VE BAKIM

Please read this manual
first!
Dear Customer,
Thank you for purchasing a Grun-
dig product. We hope that you get
the best results from your product
which has been manufactured
with high quality and state-of-the-
art technology. Therefore, please
read this entire user manual and
all other accompanying docu-
ments carefully before using the
product and keep it as a reference
for future use. If you handover the
product to someone else, give the
user manual as well. Follow all
warnings and information in the
user manual.
Meanings of the symbols
Following symbols are used in
various sections of this manual:
CImportant informa-
tion and useful hints
about usage.
A
WARNING:
Warnings against
dangerous situa-
tions concerning the
security of life and
property.
Electrical insulation
class.
This product has been produced in environmentally-friendly, state-of-the-art facilities.

Hair and Beard Clipper / User Manual 9 / EN
Please read this instruction manual thoroughly
prior to using this appliance! Follow all safety in-
structions in order to avoid damage due to im-
proper use!
Failure to follow these instructions voids any
granted warranty.
1.1 General safety
•The appliance is designed for domestic use only.
•This appliance is designed solely for trimming
human hair and beards. Any other use is ex-
pressly prohibited.
•Suitable for use in a bath or shower.
•Suitable for cleaning under an open water
tap.
•Never use the appliance if it, the cutting head or
the power adapter show any signs of damage.
Contact authorized service.
1 Important safety and environmental
instructions

10 / EN Hair and Beard Clipper / User Manual
•Only use the appliance with the parts and power
adapter supplied.
•Caution! Always keep the appliance and power
adaptor dry.
•When the appliance is being charged, on no ac-
count should it come into contact with water or
any other liquid.
•After charging, always unplug the cable from the
socket and disconnect the power adapter from
the wall socket.
•Do not drop the appliance.
•Charging adaptor and power cable cannot be
repaired once damaged. Please make sure that
you dispose the charging adaptor in accordance
with environmental directions. You can get your
new charger from the manufacturer or author-
ised service provider.
1 Important safety and environmental
instructions

Hair and Beard Clipper / User Manual 11 / EN
•Never place the appliance, accessories or power
adapter on or near hot surfaces.
•Check that the mains voltage on the rating label
corresponds to your local mains supply.
•Keep the appliance out of the reach of children.
•Before cleaning or user maintenance operation
first plug out.
•This appliance can be used by children aged
from 8 years and above and persons with re-
duced physical, sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction con-
cerning use of the appliance in a safe way and
understand the hazards involved. Children shall
not play with the appliance. Cleaning and user
maintenance shall not be made by children with-
out supervision.
•Do not open the appliance under any circum-
stances.
1 Important safety and environmental
instructions

12 / EN Hair and Beard Clipper / User Manual
No warranty claims are accepted for damage
caused by improper handling.
This appliance contains batteries that are non-
replaceable.
•WARNING: For the purposes of recharging the
battery, only use the detachable supply unit pro-
vided with this appliance.
•WARNING: Detach the hand-held part from the
supply cord before cleaning it in water.
•WARNING: Adaptor and charging base cannot
fall in water.
•Do not squeeze or bend the power cord and do
not rub in on sharp edges in order to prevent any
damage. Keep the cord away from hot surfaces
and open flames.
•If you keep the packaging materials, keep them
out of the reach of children.
1 Important safety and environmental
instructions

Hair and Beard Clipper / User Manual 13 / EN
•This appliance is designed solely for trimming
human hair and beards. Any other use is ex-
pressly prohibited.
•Before removing the battery, the product should
be disconnected from the electricity supply. Ob-
serve the local legislation and regulations when
disposing of the battery.
1.2 Compliance with the WEEE Directive
and Disposing of the Waste Product:
This product complies with EU WEEE Directive (2012/19/EU). This
product bears a classification symbol for waste electrical and electronic
equipment (WEEE).
This symbol indicates that this product shall not be disposed
with other household wastes at the end of its service life.
Used device must be returned to offical collection point for
recycling of electrical and electronic devices. To find these
collection systems please contact to your local authorities or
retailer where the product was puchased. Each household performs im-
portant role in recovering and recycling of old appliance. Appropriate
disposal of used appliance helps prevent potential negative conse-
quences for the environment and human health.
1 Important safety and environmental
instructions

14 / EN Hair and Beard Clipper / User Manual
1 Important safety and environmental
instructions
1.3 Compliance with RoHS
Directive
The product you have purchased complies with EU RoHS Directive
(2011/65/EU). It does not contain harmful and prohibited materials
specified in the Directive.
1.4 Package information
Packaging materials of the product are manufactured from
recyclable materials in accordance with our National
Environment Regulations. Do not dispose of the packaging
materials together with the domestic or other wastes. Take
them to the packaging material collection points designated by the local
authorities.
1.5 Information on Waste Batteries
Li-ion
This symbol on rechargeable batteries/batteries or on the
packaging indicates that the rechargeable battery/battery
may not be disposed of with regular household waste.
Always dispose of used rechargeable batteries/batteries in
accordance with local environmental regulations. Make en-
quiries about the applicable disposal regulations where you live.

Hair and Beard Clipper / User Manual 15 / EN
Manufacturer: E-TEK Electronics
Manufactory CO., LTD
Model Identifier:
ZD006M050100EU
Input Voltage: 100-240V~
Input Frequency: 50/60Hz
Input Current: 0.3A
Output Voltage: 5.0V DC
Output Current: 1.0A
Output Power: 5.0W
Average active efficiency:
77.74%
Efficiency at low load(10%):
73.15%
No-load power consumption:
0.042W
Protection class:
Hair clipper IPX7
Adaptor IPX4
Batteries: Li-ion (Lithium-ion
rechargeable battery)
Electrical insulation class: II
Design and specifications subject
to change without notice.
The values which are declared in the markings affixed
on your appliance or other printed documents supplied
with it represent the values which were obtained in the
laboratories pursuant to the pertinent standards. These
values may vary according to the usage of the appliance
and ambient conditions.
2.1 Controls and parts
See the illustrations on page 3.
1. Cutting head
2. High speed setting button
(Turbo)
3. On/Off switch
4. LCD Display
5. Body
6. Charging dock
Accessories
7. 3-15 mm comb
8. 18-30 mm comb
9. 33-45 mm comb
Other Accessories
Power adapter
Charging plug
Cleaning brush
Oil
2.2 Technical data
Operating temperature:
+5˚C - +40˚C
Storage temperature:
0˚C -+40˚C
Parameter of External Power
Supply
2 Overview

16 / EN Hair and Beard Clipper / User Manual
3 Power supply
3.1 Operating with the
power adapter
Check that the voltage indicated
on the rating plate of the power
adapter corresponds to your local
power supply.
The only way to disconnect the ap-
pliance from the power supply is to
unplug the power adapter.
1. Plug the charging plug into the
appliance socket and the power
adapter into the wall socket.
A
CAUTION! The
groove on the charg-
ing plug must match
the notch in the ap-
pliance socket.
– LED battery symbol will start
flashing, when the batteries
are charged. Once the clipper
is completely charged, LED
battery symbol will illuminate
continually.
CCharging time:1.5
hours when the bat-
tery is fully charged
2. LED battery symbol will start
flashing when the unit reaches
low battery capacity during
operation.
– When the batteries are
discharged: LED battery
symbol will not display.
C
Discharge the ap-
pliance through
normal use. Then
recharge to full ca-
pacity. Maximum
battery capacity will
only be reached af-
ter several charging/
discharging cycles.
CThe adapter and unit
may become warm
while charging; this
is normal operation.
C
When the appliance
is fully charged, it
has a cordless op-
erating time of up to
120 minutes.

Hair and Beard Clipper / User Manual 17 / EN
3 Power supply
A
CAUTION! Please
do not operate the
unit connected to
the power adapter
for a long time oth-
erwise it may burn
out the adapter.
CUnplug the adapter
from the wall when
not in use.
A
CAUTION! When
in the bathroom or
beside a water con-
nection, only use the
appliance in battery
mode; never run it
from the mains.
C
The appliance does
not run from the
mains when the bat-
tery is empty. Make
sure the appliance is
switched off during
charging.
3.2 Optimising
the lifetime of the
rechargeable battery
A
CAUTION! Do not
leave the switch
adapter plugged into
the wall socket for
more than 24 hours.
A
CAUTION!
Discharge the bat-
tery completely
twice a year by let-
ting the motor run
until it stops. Then
fully recharge the
battery.
ACAUTION! Please
do not operate for
long time, or it may
burn the adapter.

18 / EN Hair and Beard Clipper / User Manual
CThe trimming length
without combing
system is 1.5 mm.
CTrimming without a
comb is perfect for
designer stubble.
CWidth of cutting
head is 42 mm.
4.1 Setting the trimming
length
The Adjustable comb allows the
appliance to adjust in 15 different
lengths:
4.1.1 Adjustable comb
(7, 8, 9)
Comb 1 3 mm
Comb 1 6 mm
Comb 1 9 mm
Comb 1 12 mm
Comb 1 15 mm
Comb 2 18 mm
Comb 2 21 mm
Comb 2 24 mm
Comb 2 27 mm
Comb 2 30 mm
Comb 3 33 mm
Comb 3 36 mm
Comb 3 39 mm
Comb 3 42 mm
Comb 3 45 mm
4 Preparation

Hair and Beard Clipper / User Manual 19 / EN
Before Using, remove the plug of
adapter from the mains power
socket and remove the connect
wire from body .
We recommend to trim a small
area first to familiarize yourself
with the attachment comb.
5.1 Hair trimming
Make sure that the hair is clean
and completely dry.
Place a towel around the neck and
shoulders of the person whose
hair you are trimming. Make sure
that the person is seated so that
their head is roughly at your eye
level. Before trimming, comb the
hair so that it falls naturally and
you can see the direction in which
it grows.
1. Place the cutting head (1) on the
person’s hair. Hold the clipper
against the hair, the teeth of the
clipper guide pointing upwards
yet flat against the head.
2. Move the cutting head (1)
against the direction of hair
growth. Apply only a slight
pressure when cutting with
slow, gentle movements.
5.1.1 Useful tips
•Move the clipper upwards and
out wards through the hair, a
little at a time, against the direc-
tion of hair growth.
•The appliance will work most
efficiently when cutting through
the hair at its own speed. Never
force the clipper through the
hair. Never switch the clipper off
whilst in the hair.
•For longer hair on top of the
head, hold the hair between the
fingers and cut to the desired
length. Always work from the
front to the back of the head.
•As you cut, take a break at reg-
ular intervals. You can always
make a correction, but not once
the hair has been cut.
•Only cut a small amount the first
time you use it. This is the only
way to get used to the variable
positions.
5 Operation

20 / EN Hair and Beard Clipper / User Manual
•Keep combing the hair. Only look
for hair which is too long and
comb out clippings.
5.2 Beard trimming
1. Place the cutting head (1) on the
beard.
2. Move the cutting head (1)
against the direction of hair
growth. Apply only a slight
pressure when cutting with
slow, gentle movements.
5.2.1 Useful tips
•The combs are designed for
easy removal of excess hair and
clean the cutting head (1) with
the brush supplied. Clean the
appliance as described in the
“Cleaning and Care” section.
•For trimming contours, remove
the detachable blade. Use the
appliance without the combs
(cutting length is 1.5 mm).
5 Operation
5.3 High speed setting
button (2) (Turbo)
Device performance can be maxi-
mized by pushing the turbo button
(2).
5.4 The usage of the
BeardCare sensor
The BeardCare sensor detects in
real time the density of the beard
hair and adjusts the power of the
motor accordingly. At Turbo Mode,
the BeardCare sensor will be inac-
tive.
