Grundig GD-CI-AT3637V User manual

1
Quick Guide
About this guide
The guide includes instructions for using and managing the product.
Pictures, charts, images and all other information hereinafter are for
description and explanation only. The information contained in the
guide is subject to change, without notice, due to firmware updates
or other reasons.
Please find the latest version at WWW.GRUNDIG-SECURITY.COM
Legal Disclaimer
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF
PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. OUR COMPANY
SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION,
PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER
ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET
SECURITY RISKS; HOWEVER, OUR COMPANY WILL PROVIDE TIMELY
TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL
RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS
PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE
APPLICABLE LAW. OUR COMPANY SHALL NOT BE LIABLE IN THE
EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS GUIDE AND THE
APPLICABLE LAW, THE LATER PREVAILS.
QG-GD-CI-AT3637V-2018-01-06-V1-EN ©ABETECHS GMBH, DÜSSELDORF, GERMANY

2
Regulatory Information
FCC Information
Please take attention that changes or modification not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
FCC compliance: This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:

3
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied
accessories too are marked with "CE" and comply
therefore with the applicable harmonized European
standards listed under the EMC Directive 2014/30/EU, the RoHS
Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked with
this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper
recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or dispose of it at
designated collection points. For more information see:
www.recyclethis.info
2006/66/EC (battery directive): This product contains
a battery that cannot be disposed of as unsorted
municipal waste in the European Union. See the
product documentation for specific battery
information. The battery is marked with this symbol,
which may include lettering to indicate cadmium (Cd), lead (Pb), or
mercury (Hg). For proper recycling, return the battery to your supplier
or to a designated collection point. For more information see:
www.recyclethis.info
Industry Canada ICES-003 Compliance

4
This device meets the CAN ICES-3 (B)/NMB-3(B) standards
requirements.
Safety Instruction
These instructions are intended to ensure that user can use the
product correctly to avoid danger or property loss.
The precaution measure is divided into “Warnings” and “Cautions”
Warnings: Serious injury or death may occur if any of the warnings
are neglected.
Cautions: Injury or equipment damage may occur if any of the
cautions are neglected.
Warnings
●Proper configuration of all passwords and other security settings
is the responsibility of the installer and/or end-user.
●In the use of the product, you must be in strict compliance with
the electrical safety regulations of the nation and region. Please
refer to technical specifications for detailed information.
Warnings Follow these
safeguards to prevent
serious injury or death.
Cautions Follow these precautions
to prevent potential injury or
material damage.

5
●Input voltage should meet both the SELV (Safety Extra Low
Voltage) and the Limited Power Source with 24 VAC or 12 VDC
according to the IEC60950-1 standard. Please refer to technical
specifications for detailed information.
●Do not connect several devices to one power adapter as adapter
overload may cause over-heating or a fire hazard.
●Please make sure that the plug is firmly connected to the power
socket. When the product is mounted on wall or ceiling, the
device shall be firmly fixed.
●If smoke, odor or noise rise from the device, turn off the power
at once and unplug the power cable, and then please contact
the service center.
Cautions
●Make sure the power supply voltage is correct before using the
camera.
●Do not drop the camera or subject it to physical shock.
●Do not touch sensor modules with fingers. If cleaning is
necessary, use clean cloth with a bit of ethanol and wipe it
gently. If the camera will not be used for an extended period,
please replace the lens cap to protect the sensor from dirt.
●Do not aim the camera at the sun or extra bright places.
Blooming or smearing may occur otherwise (which is not a
malfunction), and affect the endurance of sensor at the same
time.

6
●The sensor may be burned out by a laser beam, so when any
laser equipment is in using, make sure that the surface of sensor
will not be exposed to the laser beam.
●Do not place the camera in extremely hot, cold (the operating
temperature shall be-30°C ~+60°C, or -40°C ~ +60°C if the
camera model has an “H” in its suffix), dusty or damp locations,
and do not expose it to high electromagnetic radiation.
●To avoid heat accumulation, good ventilation is required for
operating environment.
●Keep the camera away from liquid while in use.
●While in delivery, the camera shall be packed in its original
packing, or packing of the same texture.
●Regular part replacement: a few parts (e.g. electrolytic
capacitor) of the equipment shall be replaced regularly
according to their average enduring time. The average time
varies because of differences between operating environment
and using history, so regular checking is recommended for all the
users. Please contact with your dealer for more details.
●Improper use or replacement of the battery may result in hazard
of explosion. Replace with the same or equivalent type only.
Dispose of used batteries according to the instructions provided
by the battery manufacturer.
●If the product does not work properly, please contact your
dealer or the nearest service center. Never attempt to
disassemble the camera yourself. (We shall not assume any
responsibility for problems caused by unauthorized repair or
maintenance.)

7
Table of Contents
1 Appearance Description ................................................................. 8
1.1 Components.................................................................... 9
1.2 Cables ........................................................................... 11
2 Installation.................................................................................... 13
2.1 Preparation ................................................................... 14
2.1.1 Disassembling..................................................... 14
2.1.2 Memory Card Installation................................... 15
2.2 Mounting ...................................................................... 16
2.2.1 Ceiling Mounting ................................................ 16
2.2.2 Wall Mounting.................................................... 20
2.2.3 Pendant Mouting ............................................... 23
2.3 Installation of Network Cable Water-proof Jacket
(Optional) ................................................................................. 26
2.4 Installation of Water-proof Tape (Optional)................... 28
3 Setting the Network Camera over the LAN .................................. 32
3.1 Wiring ........................................................................... 32
3.2 Activating the Camera................................................... 33
3.2.1 Activation via Web Browser................................ 33
3.2.2 Activation via SADP Software ............................. 34
3.3 Modifying the IP Address .............................................. 36
4 Accessing via Web Browser .......................................................... 38

Network Dome Camera·Quick Start Guide
8
1Appearance Description
The overview of the dome camera is shown below:
Overview

Network Dome Camera·Quick Start Guide
9
1.1 Components
1
2
3
4
5
6
7
8
9
Camera Components (1)

Network Dome Camera·Quick Start Guide
10
10
Camera Components (2)

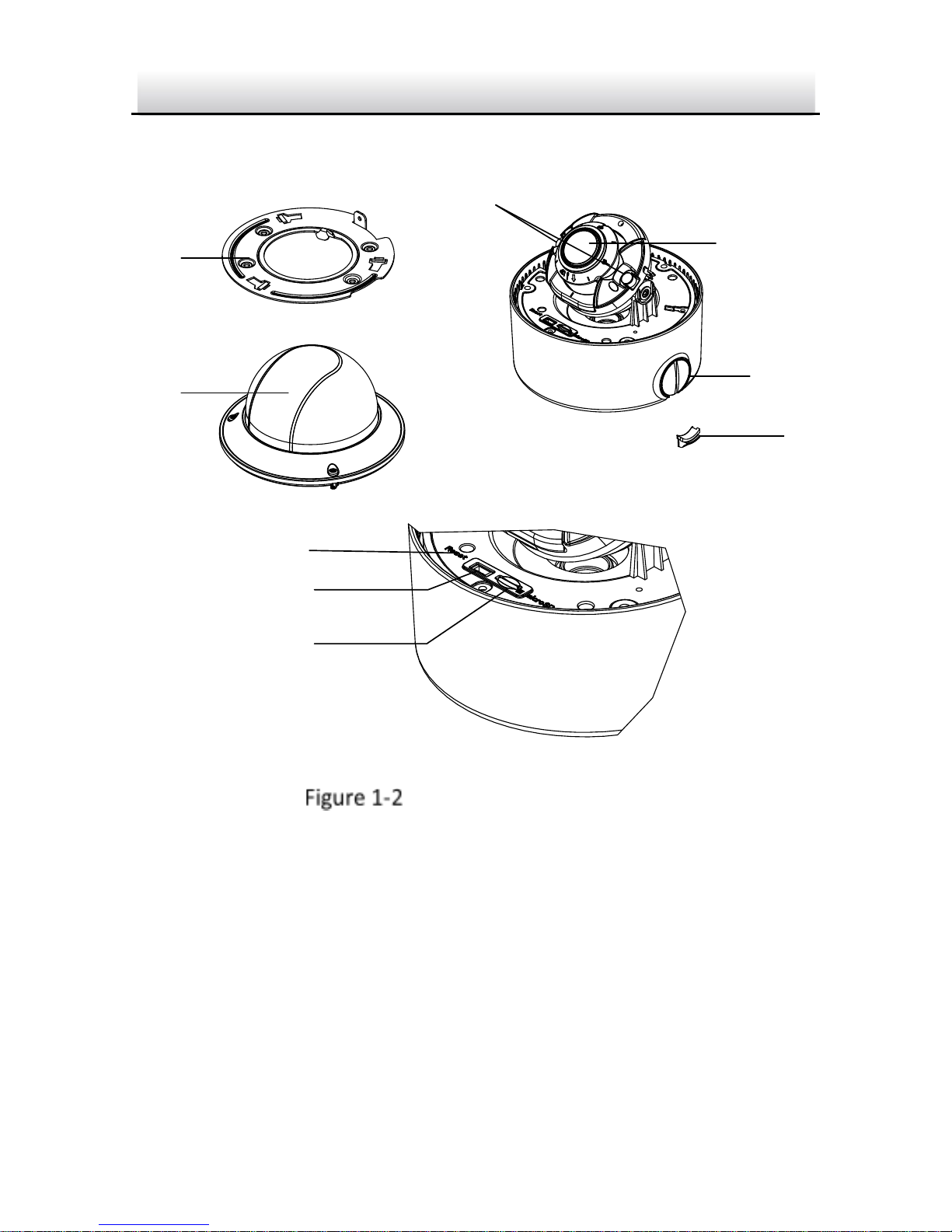

Description of Camera Components
No. Description No. Description
1 Mounting base 2 Dome cover
3 IR 4 Lens
5 Water-proof plug 6 Side outlet cover
7 Reset button 8 Serial port
9 Memory card slot 10 GND
Note:
Press RESET about 10s when the camera is powering on or rebooting
to restore the default settings, including the user name, password, IP
address, port No., etc.

Network Dome Camera·Quick Start Guide
11
1.2 Cables
This camera series has several camera models, each of which may
have different cable group. The following figures and tables show the
description of possible cables in this camera series.
VIDEO
1
2
3
Overview of Cables (1)
4
5
6
7
8
Overview of Cables (2)

Network Dome Camera·Quick Start Guide
12
Description of Cables
No. Description
1
BNC cable and interface
2 10M/100M self-adaptive Ethernet cable and RJ45
interface (PoE supported)
3 Power supply cable and terminal block interface
4
No.2 alarm
input/output
cable
Alarm
input
IN2: yellow/brown
GND: yellow/black
Alarm
output
2A: yellow/orange
2B: yellow/blue
5
No.1 alarm
input/output
cable
Alarm
input
IN1: yellow/red
GND: yellow/black
Alarm
output
1A: yellow/purple
1B: yellow/green
6 RS485 cable
RS485+: white
RS485-: green
7 Audio input
cable
INR: white
INL: red
GND: black
8 Audio
output cable
OUTR:
OUTL: red
GND: black

Network Dome Camera·Quick Start Guide
13
2Installation
Before you start:
●Make sure the device in the package is in good condition and all
the assembly parts are included.
●The standard power supply is 12V DC or 24V AC, please make
sure your power supply matches with your camera.
●Make sure all the related equipment is power-off during the
installation.
●Check the specification of the products for the installation
environment.
●Make sure that the wall is strong enough to withstand four times
the weight of the camera and the bracket.
For the camera that supports IR, you are required to pay attention to
the following precautions to prevent IR reflection:
●Dust or grease on the dome cover will cause IR reflection. Please
do not remove the dome cover film until the installation is
finished. If there is dust or grease on the dome cover, clean the
dome cover with clean soft cloth and isopropyl alcohol.
●Make sure that there is no reflective surface too close to the
camera lens. The IR light from the camera may reflect back into
the lens causing reflection.
●The foam ring around the lens must be seated flush against the
inner surface of the bubble to isolate the lens from the IR LEDS.
Fasten the dome cover to camera body so that the foam ring and
the dome cover are attached seamlessly.

Network Dome Camera·Quick Start Guide
14
2.1 Preparation
Purpose:
Before mounting, you have to disassemble the camera and install the
memory card first.
2.1.1 Disassembling
Steps:
1. Loosen the three screws on the edge of the dome cover with the
screw driver.
2. Lift and put aside the dome cover to disassemble the camera.
Dome Cover
Screws
Camera Body
Remove the Dome Cover

Network Dome Camera·Quick Start Guide
15
2.1.2 Memory Card Installation
Steps:
1. Rotate the camera body to completely expose the memory card
slot.
2. Insert the memory card into the memory card slot, and push it to
get it mounted.
Memory Card
Install the Memory Card
3. (Optional) To unmount the memory card, push to eject it.

Network Dome Camera·Quick Start Guide
16
2.2 Mounting
2.2.1 Ceiling Mounting
1. Attach the supplied drill template to the place where you want to
fix the camera.
2. Drill the screw holes and the cable hole according to the drill
template as the figure below.
Drill Template
Notes:
●The drill template varies according to the different camera
model.
●(Optional) Routing the cable from the side outlet instead of the
cable hole drilled on the ceiling is supported.

Network Dome Camera·Quick Start Guide
17
Side Outlet
Side Outlet
3. Fix the mounting base to the ceiling with the supplied screws.
Ceiling
Mounting Base
Screws
Install the Mounting Base
4. Align the camera body with the mounting base and rotate the
camera body counterclockwise to get it fitted with the mounting
base.

Network Dome Camera·Quick Start Guide
18
Lock Screw
Install the Camera Body
5. Connect the video output connector to the monitor and connect
the power connector to the power supply to adjust the surveillance
angle and image.
6. Adjust the surveillance angle and image according to the figures
below.
1). 3-axis Adjustment
Tilt: 0° to 75°
Pan: 0° to 355°
Rotate: 0° to 355°
3-axis Adjustment

Network Dome Camera·Quick Start Guide
19
2). Zoom and Focus Adjustment
Cameras of this series are equipped with a motor-driven lens. You
can adjust the zoom and focus level on PTZ control panel by
visiting the camera via web browser or client software.
Zoom and Focus Adjustment via Web Browser
7. Attach the dome cover to the camera body. Fix it with screwdriver
to get tightened as the figures below.
Install the Dome Cover
