1Appearance Description
The overview of the network turret camera is shown below.
Figure 1-1 Overview of Turret Camera
Figure 1-2 Overview of connectors

10
2Installation
Before you start:
Plan the cable routing before installation.
This camera series supports cable-routing through the ceiling and
through side outlet.
●Through the ceiling: you should cut a hole in ceiling and route
the cables in advance.
●Through side outlet: you choose to route cables with or without
a conduit.
Steps:
1. Mark 3 screw holes at desired mounting location according to
screw holes on the adapter plate.
Figure 2-1 using the template
2Unscrew the mounting ring of the camera from the base.

11

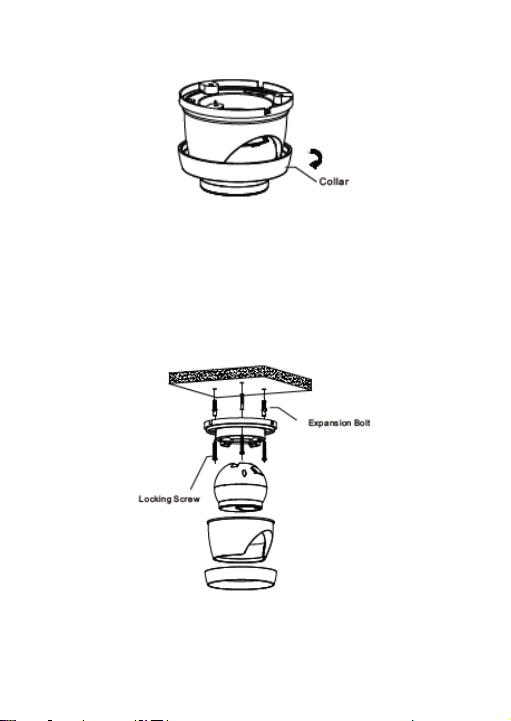

Figure 2-2 remove the mounting ring
3Drill 3 holes into the wall/ceiling and put 3 expansion bolts into
them.
4Fix the camera to the wall/ceiling with the 3 included mounting
screws.
Figure 2-3 fix the camera onto wall/ceiling

12
5Mount the ring back to the camera
Figure 2-4 fix the mounting ring
6 Adjust the horizontal and vertical viewing angle of the camera.
Figure 2-5 adjust the viewing angle

13
3Setting the IP-Camera over the LAN
Note:
You shall acknowledge that the use of the product with Internet
access might be under network security risks. For avoidance of any
network attacks and information leakage, please strengthen your own
protection.
If the product does not work properly, contact your dealer or the
nearest service center for help.
3.1 Wiring
Connect the camera to network according to the following figures.
Connecting Directly
Connecting via a Switch or a Router

14
3.2 Activating the Camera
You are required to activate the camera first by setting a strong
password for it before you can use the camera.
Activation via Web Browser and Activation via Grundig IP-Finder Tool
are supported. We will take activation via Grundig IP-Finder Tool and
Activation via Web Browser as examples to introduce the camera
activation.
3.2.1 Activation via Web Browser
Steps:
1. Power on the camera. Connect the camera to your computer or
the switch/router which your computer connects to.
2. Input the IP address into the address bar of the web browser, and
press Enter to enter the activation interface.
Notes:
⚫The default IP address of the camera is 192.168.1.100.
⚫The computer and the camera should belong to the same
subnet.
⚫For the camera enables the DHCP by default, you need to use
the Grundig IP-Finder Tool to search the IP address.

15
Figure 3-3 Activation Interface (Web)
3. Create a password and input the password into the password field.
STRONG PASSWORD RECOMMENDED–We highly
recommend you create a strong password of your own
choosing (using a minimum of 8 characters, including
upper case letters, lower case letters, numbers, and
special characters) in order to increase the security of
your product. And we recommend you reset your
password regularly, especially in the high security
system, resetting the password monthly or weekly can
better protect your product.
4. Confirm the password.
5. Click OK to save the password and enter the live view interface.
Activation via Grundig IP-Finder Tool
The Grundig IP-Finder Tool is used for detecting the online device and
activating the camera.

16
Get the Grundig Finder Tool from the supplied disk or the official
website and install the software according to the prompts. Follow the
steps to activate the camera, please refer to the User manual for
other two activation methods.
Steps:
1. Run the Grundig IP-Finder Tool to search the online devices.
2. Check the device status from the device list and select the inactive
device.
Figure 3-4 Grundig IP-Finder Interface
Note:
The software supports activating the camera in batch. Refer to the
user manual of Grundig IP-Finder for details.
3. Create and input the new password in the password field, and
confirm the password.

17
STRONG PASSWORD RECOMMENDED–We highly
recommend you create a strong password of your own
choosing (using a minimum of 8 characters, including
upper case letters, lower case letters, numbers, and
special characters) in order to increase the security of
your product. And we recommend you reset your
password regularly, especially in the high security
system, resetting the password monthly or weekly can
better protect your product.
4. Click Activate to start activation.
You can check whether the activation is completed on the popup
window. If activation failed, make sure that the password meets
the requirement and try again.
3.3 Modifying the IP Address
Purpose:
To view and configure the camera via LAN (Local Area Network), you
need to connect the network camera in the same subnet with your
PC.
Use the Grundig IP-Finder Tool to search and change the IP address of
the device. We take modifying the IP Address via Grundig IP-Finder as
an example to introduce the IP address modification.
Steps:
1. Run the Grundig IP-Finder Tool.
2. Select an activate device.
3. Change the device IP address to the same subnet with your
computer by either modifying the IP address manually or checking
the checkbox of Enable DHCP.

18
Figure 3-5 Modify the IP Address
4. Input the admin password and click Update to activate your IP
address modification.
The batch IP address modification is supported by the Grundig IP-
Finder. Please refer to the User Manual of Grundig IP-Finder for
details.

19
4Accessing via Web Browser
System Requirement:
Operating System: Microsoft Windows 7, Windows 8, Windows 2008
(32/64 bit), Windows 2003, Windows XP, Windows 2000 (32 bit)
CPU: Intel Core Duo2 or higher
RAM: 1G or higher
Display: 1024×768 resolution or higher
Web Browser: Internet Explorer 10 and above version, Apple Safari 16
and above version, Mozilla Firefox 52.0 and above version and Google
Chrome 57.0 and above version.
Steps:
1. Open the web browser.
2. In the browser address bar, input the IP address of the network
camera, and press the Enter key to enter the login interface.
Note:
⚫The default IP address is 192.168.1.100. You are recommended
to change the IP address to the same subnet with your
computer.
3. Input the user name and password.
The admin user should configure the device accounts and
user/operator permissions properly. Delete the unnecessary
accounts and user/operator permissions.
Note:
The device IP address gets locked for 3 minutes if the admin user
performs 5 failed password attempts.

20
4. Click Login.

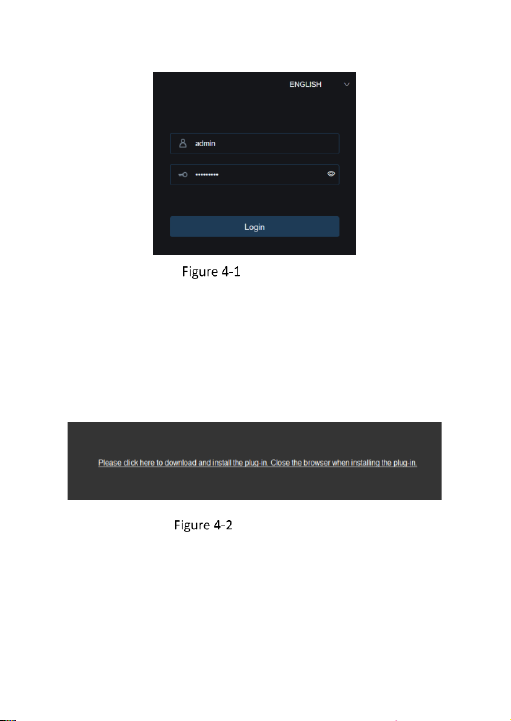

Login Interface
5. Install if necessary, the plug-in before viewing the live video and
managing the camera. Please follow the installation prompts to
install the plug-in.
Note:
You may have to close the web browser to finish the installation of
the plug-in.
Download Plug-in
6. Reopen the web browser after the installation of the plug-in and
repeat steps 2 to 4 to login.
Note:
For detailed instructions of further configuration, please refer to
the user manual.
