Grundig SPACE FIDELITY PA 6 User manual

SPACE FIDELITY
PA 6
1
ENGLISH
55403-941.1100

2
CONTENTS________________________________________________________________________
4 PA 6 HiFi System
Special features of your HiFi system
Packing contents
5 Set-up and safety
7 Overview
The HiFi system controls
The HiFi display
The remote control
14 Preparation and connection
Inserting batteries in the remote control

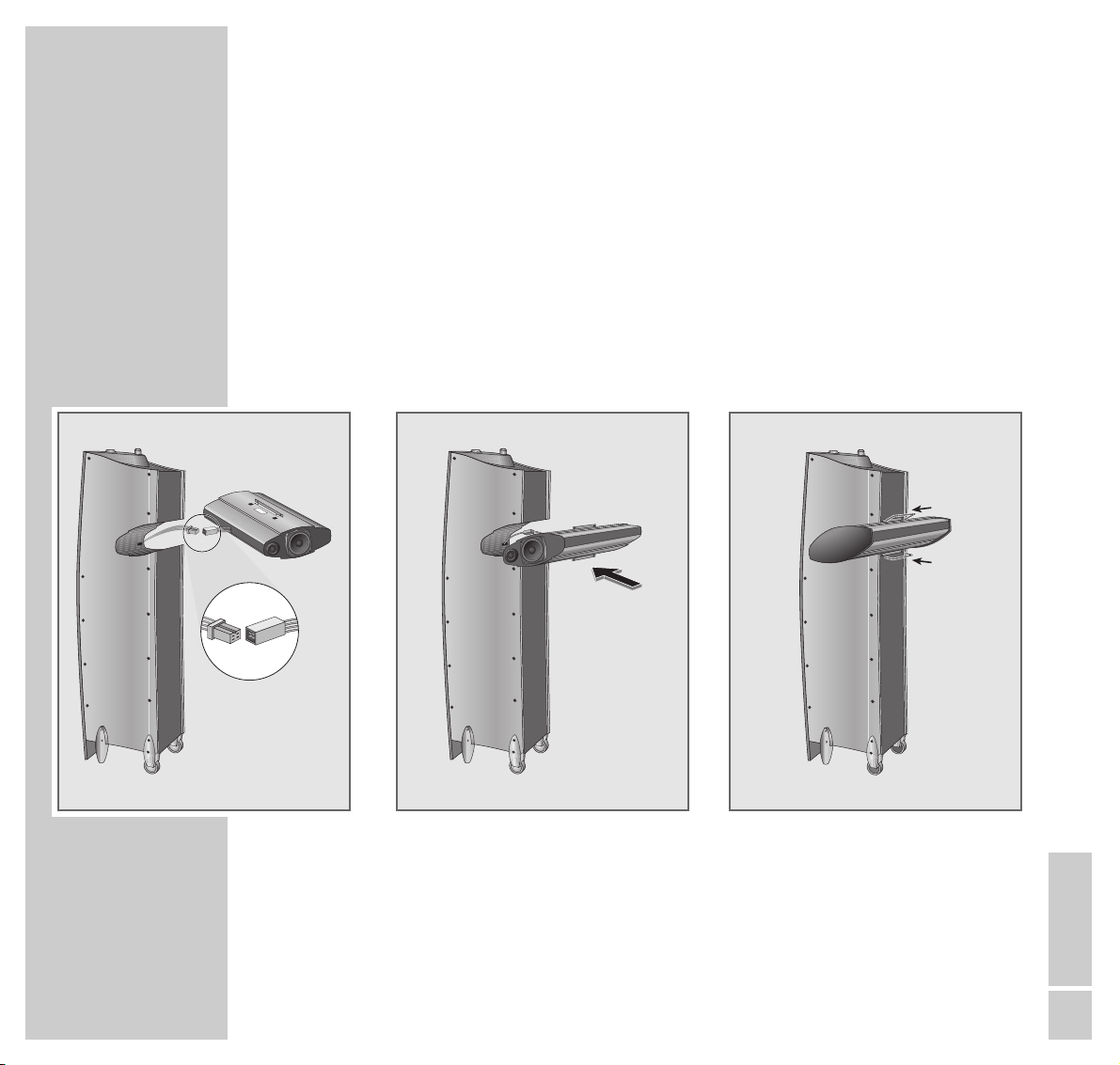

Connecting the loudspeaker module

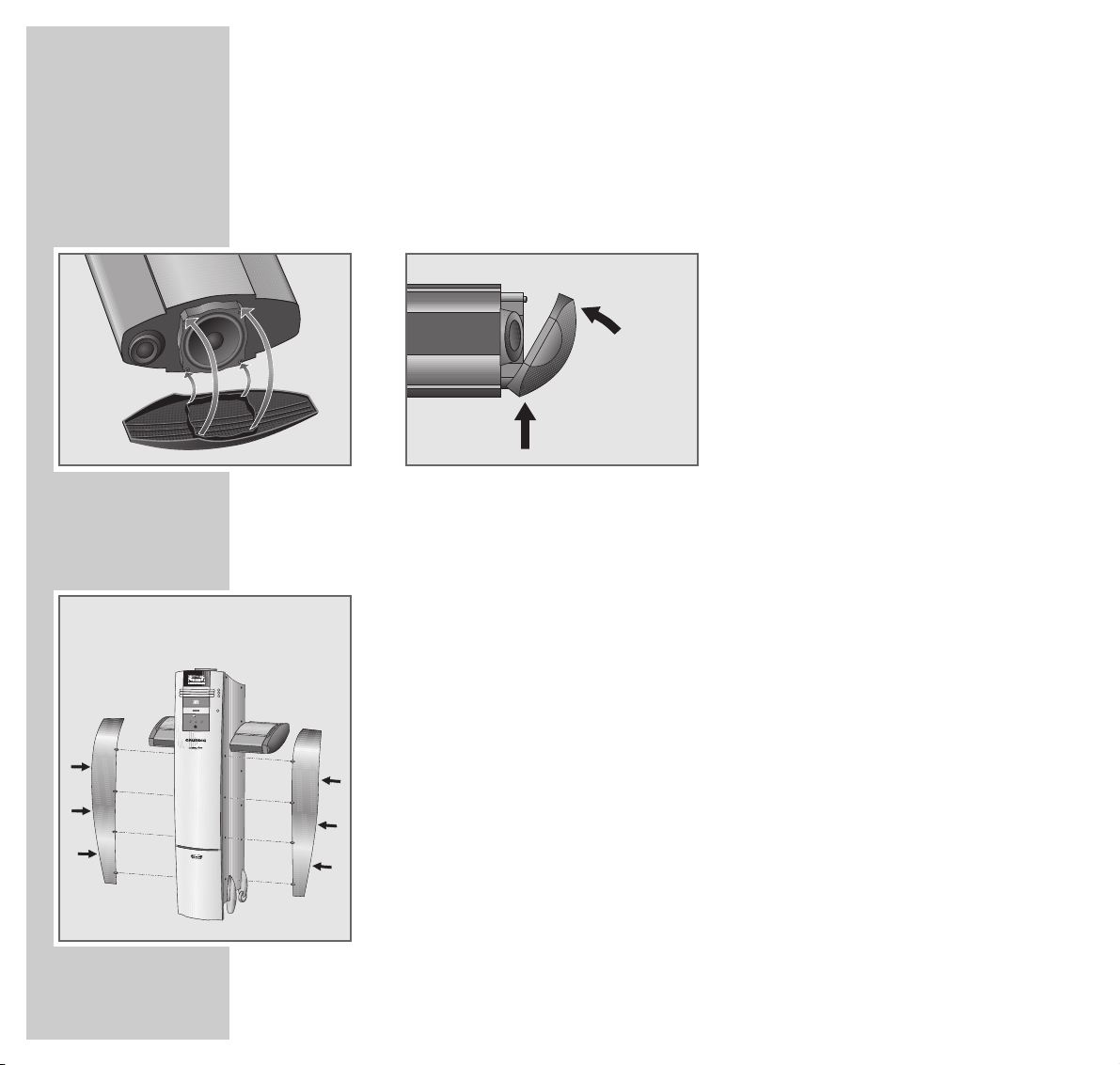

Installing the speaker caps
Attaching the wing panels to the HiFi

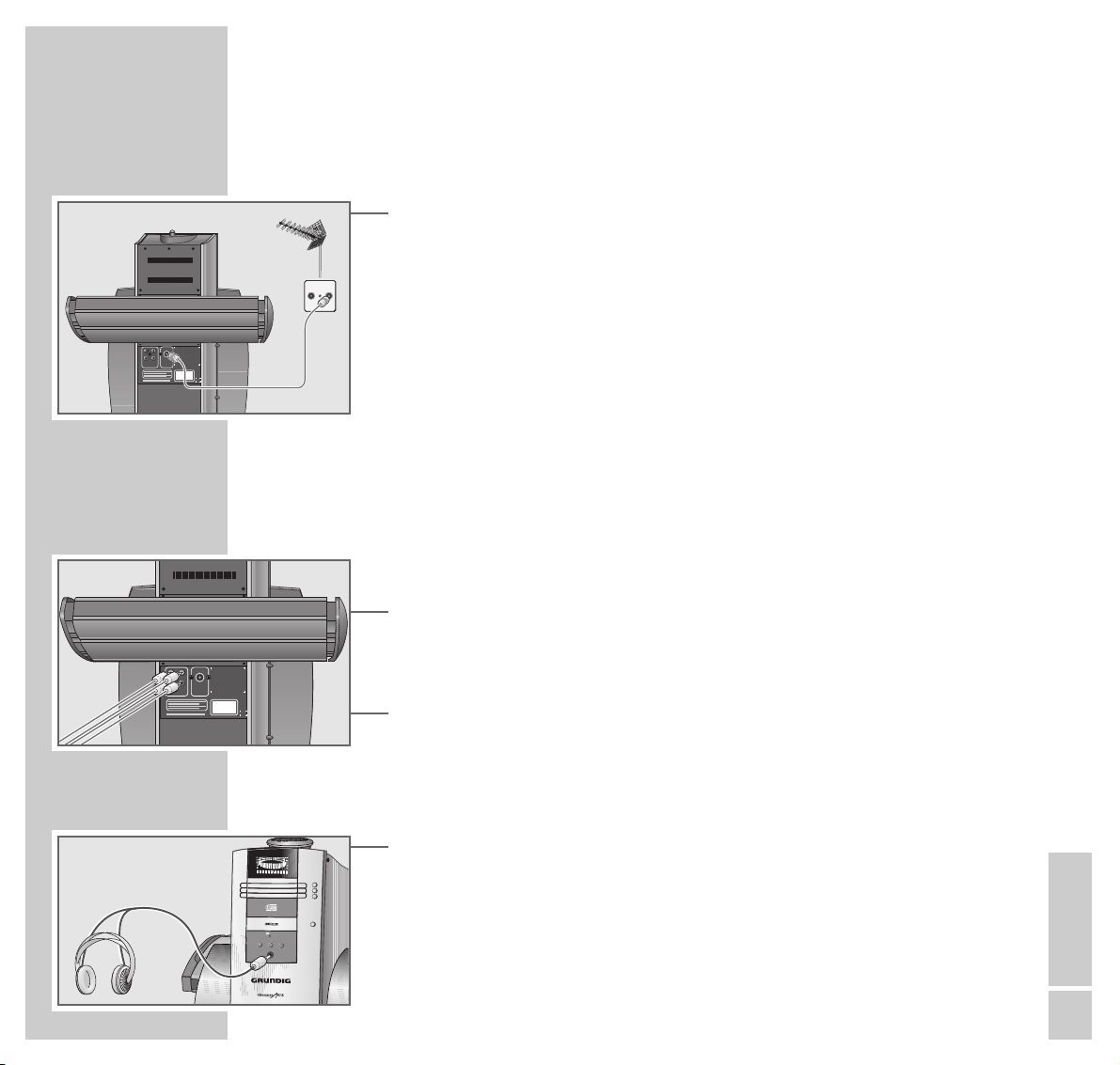

Connecting the antenna
Connecting an external device
Connecting headphones
Connecting the mains cable
Selecting the HiFi antenna setting
19 Settings
Tuning to radio stations
Automatic search programme (ASP)
Tuning to a radio station using the manual station search
Sorting and deleting preset stations
Manually entering and deleting names for radio stations
Adjusting the brightness of the display

CONTENTS__________________________________________________________________________________
25 General functions
Basic functions
28 Tuner mode
Basic Tuner mode functions
RDS reception
32 CD mode
Basic CD mode functions
Special CD mode features
Playing back tracks in a selected order – creating a track memory
Entering or deleting CD names
40 Cassette mode
General information about cassette mode
Playback
Recording
Recording a CD on to cassette (CD COPY)
47 Information
Technical data
Rectifying minor problems
General instructions for laser devices
GRUNDIG customer service locations
ENGLISH
3

PA 6 HIFI SYSTEM_____________________________________________________
4
Special features of your HiFi system
Perfect sound is not a question of size, but of quality. This system gives you clear
and vivid sound for any kind of musical style, packaged in a timeless design.
The PA 6 is an elegant combination with RDS tuner, CD and cassette function.
The CD player has a CD text function. This means that if such a fuction is offered
by the CD, the CD player can show the artist and the contents of the CD on the
display of the HiFi system.
Packing contents
1PA 6 HiFi system
2Loudspeaker module
3 Remote control
4 2 batteries, 1.5 V–, micro type
5Wire antenna
6Operating manual
7Wing panels (PA 6/II, PA 6/III only)
8Eight cover caps
9Two loudspeaker covers
DISC
OPEN/CLOSE
TAPE
OPEN/CLOSE
U
BNR
DISCSELECT
1
23
3
2
1
1
SPACE FIDELITY
TOP SIDE
OBEN
CD-COPY RECORD
MEMORY
CANCEL
SOUND
CTRL
MODE TREBLE
BASS
CD
TUNER
TAPE
AUX
DISC
POWER
SOUND
PTY
PAUSE
8
1
1
1
1
2
3
65
4
7
9 8

ENGLISH
5

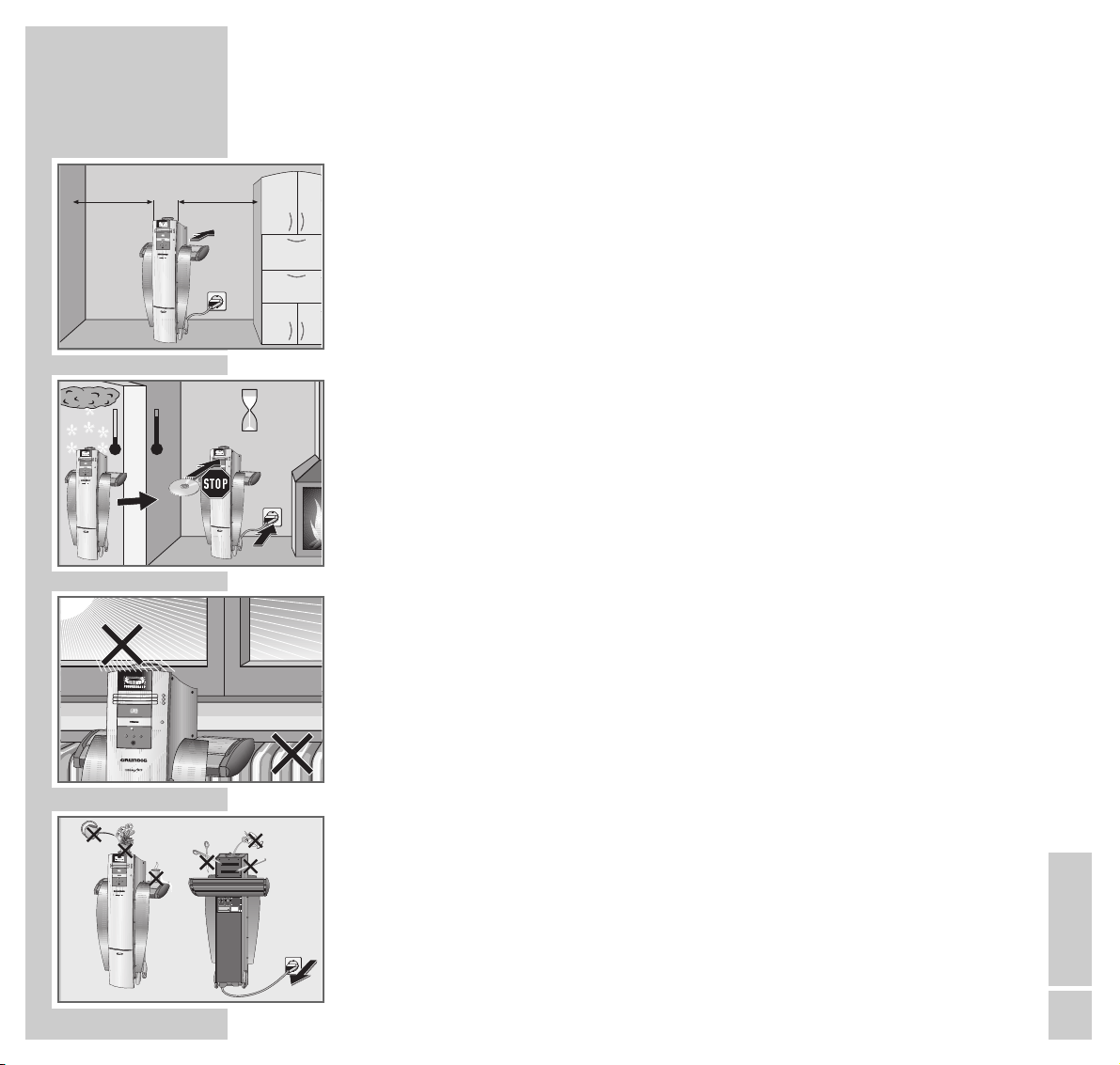

SET-UP AND SAFETY______________________________________________
To ensure that this high-quality, easy-to-use HiFi system will provide lasting
satisfaction and enjoyment, please observe the following instructions when
setting it up:
This HiFi system is designed for the playback of audio signals.
Any other use is expressly prohibited.
Select the location of the system in a way that leaves about 1.5 to 3 m of room
on either side of the HiFi system.
Set up the system about 30 cm from the wall.
If the stereo system is subjected to extreme variation in temperature,
for example if brought in from the cold to a warm room, connect the mains
supply and let it stand for at least two hours before inserting a CD or cassette.
The HiFi is designed for use in dry rooms. Make sure to protect your HiFi system
from moisture.
Do not place the HiFi system close to heating units or in direct sunlight, as this
will impair cooling.
Do not insert foreign objects into the CD or cassette compartments.
Never open the HiFi casing under any circumstances. The manufacturer accepts
no liability for damage resulting from improper handling.
°C°C2h
OPEN/CLOSE
DISC
OPEN/CLOSE
TAPE
U
BNR
DISCSELECT
123
3
2
1
OPEN/CLOSE
DISC
OPEN/CLOSE
TAPE
U
BNR
DISCSELECT
123
3
2
1
DISC
OPEN/CLOSE
TAPE
OPEN/CLOSE
3
2
1
DISC SELECT
1
23
U
B NR
AUX
CLASS1
LASERPRODUCT
IN OUT FM75Ω

DISC
OPEN/CLOSE
TAPE
OPEN/CLOSE
3
2
1
DISCSELECT
1
23
U
BNR
! SERVICE !! SERVICE !! SERVICE !
30cm
1,5 - 3m 1,5 - 3m
DISC
OPEN/CLOSE
TAPE
OPEN/CLOSE
3
2
1
DISCSELECT
1
23
U
BNR

6
SET-UP AND SAFETY_________________________________________________________________
Thunderstorms present a danger to all electrical devices. Even if the HiFi is
switched off, it can be damaged by a lightning strike to the mains. Always
disconnect the mains and antenna plugs during a storm.
If the stereo system no longer scans CDs perfectly, use a commercially available
cleaning CD to clean the laser optics. Other cleaning methods may damage the
laser optics.
Always keep the disc compartment closed to prevent dust from collecting on the
laser optics.
This HiFi system sucessfully fuses technology and environmental friendliness into
a coherent package. Only ecologically compatible, high quality materials have
been used. The packaging consists of almost 100 % recycled paper and the
amount of plastic used has been reduced to a minimum. The batteries delivered
do not contain mercury or cadmium, and for environmental reasons, back-up
batteries have not been used. The range of materials used has been deliberately
restricted and all the larger plastic parts have been labelled. In order to optimise
recycling and to facilitate servicing, this HiFi system can be disassembled easily.
DISC
OPEN/CLOSE
TAPE
OPEN/CLOSE
3
2
1
DISCSELECT
1
23
U
BNR

The HiFi system controls
Operating controls on the top side of the system
POWER Switches the HiFi system on and off.
The HiFi is completely disconnected from the
power supply.
The button contains a stand-by and mode
indicator.
POWER Switches »POWER SOUND« (Loudness) on/off.
SOUND
•Receiver for remote conrol signals.
Operating elements under the
remote control
SOURCE Switches the HiFi on from Stand-by;
Selects the input source and muting in the
following order: »CD «, »TUNER«, »TAPE«,
»AUX«, »MUTE«, »CD «.
EBegins CD or cassette playback.
§§Ends CD or cassette playback.
+ – Changes the volume within a range from »0« to
»63 «.
POWER
POWER
SOUND
SOURCE
ENGLISH
7
OVERVIEW________________________________________________________________________

OVERVIEW__________________________________________________________________________________
8
Operating controls on the front
DISC Opens and closes the CD compartments.
OPEN/CLOSE
TAPE Opens and closes the tape compartment.
OPEN/CLOSE
DISC SELECT Selects the CD in compartment 1, 2
1 2 3 or 3 for playback.
0Headphone jack for connecting a stereo
headphone set with a jack plug
(ø 6,3 mm).
The loudspeakers of the HiFi system are
automatically switched off.
Display Stand-by and mode indicator.
DISC
OPEN/CLOSE
TAPE
OPEN/CLOSE
3
2
1
DISC SELECT
1
23
U
B NR

ENGLISH
9
OVERVIEW__________________________________________________________________________________
The HiFi display
!Stereo indicator.
WFast forward/rewind of cassette, depending on
the running direction.
RPlayback of a CD or cassette.
/Cassette deck mode selected.
Cassette deck functions:
G– Playback/recording stops at the end of each
side of the cassette.
H– Playback/recording on both sides of the
cassette and the tape stops at the end of the
second side of the cassette.
JContinuous playback of both sides of the cassette and
all CDs in the HiFi.
)Recording.
%Fine tuning indicator.
QFast forward/rewind of the cassette, depending on the
running direction.
EPlayback of a cassette in reversed running direction.
&CD mode.
$Pause during CD and cassette mode.
SHiFi is muted.
Station frequency in MHz.
Display for operating mode, station name, volume, etc.
Output signal.
888888:88.888
MHz
rec
MHz
J

10
OVERVIEW__________________________________________________________________________________

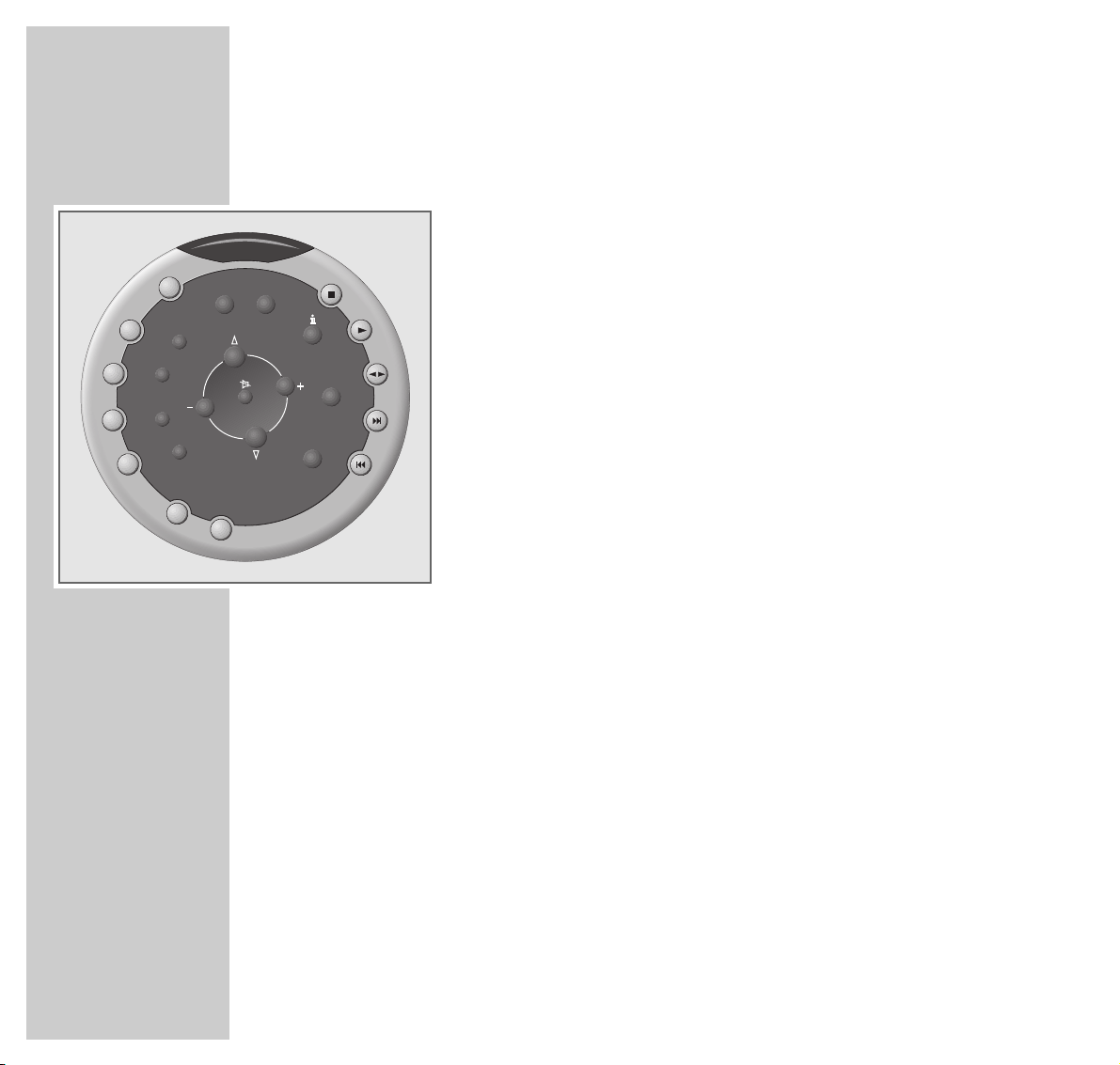

The remote control
Buttons for general functions
99Switches the HiFi to Stand-by.
The green indicator in the button and the green light on the
front of the system are lit.
CD Switches the HiFi on from Stand-by mode and selects ”CD”
operating mode.
TUNER Switches the HiFi on from Stand-by mode and selects
”Tuner” operating mode.
TAPE Switches the HiFi on from Stand-by mode and selects the
”Tape” operating mode.
AUX Switches the HiFi on from Stand-by mode and selects
”AUX” operating mode.
MODE To activate the brightness setting function for the display,
press this button three times, then press »1« or »2« to
adjust the brightness.
Buttons for sound settings
POWER Switches »POWER SOUND« (Loudness) on/off.
SOUND
TREBLE Selects the Set treble function, then adjust with »1« »2«.
BASS Selects the Set bass function; then adjust with »1« »2«.
MEMORY Stores the ”USER” sound settings.
CANCEL Deletes the ”USER” sound settings.
+ – Changes the volume within a range of »0« to »63«.
aaSwitches the HiFi to and from mute mode.
SOUND Calls up various sound types.
CONTROL
CD-COPY RECORD
MEMORY
CANCEL
SOUND
CTRL
MODE TREBLE
BASS
CD
TUNER
TAPE
AUX
DISC POWER
SOUND
PTY
PAUSE
8
1
1
1

ENGLISH
11
OVERVIEW__________________________________________________________________________________

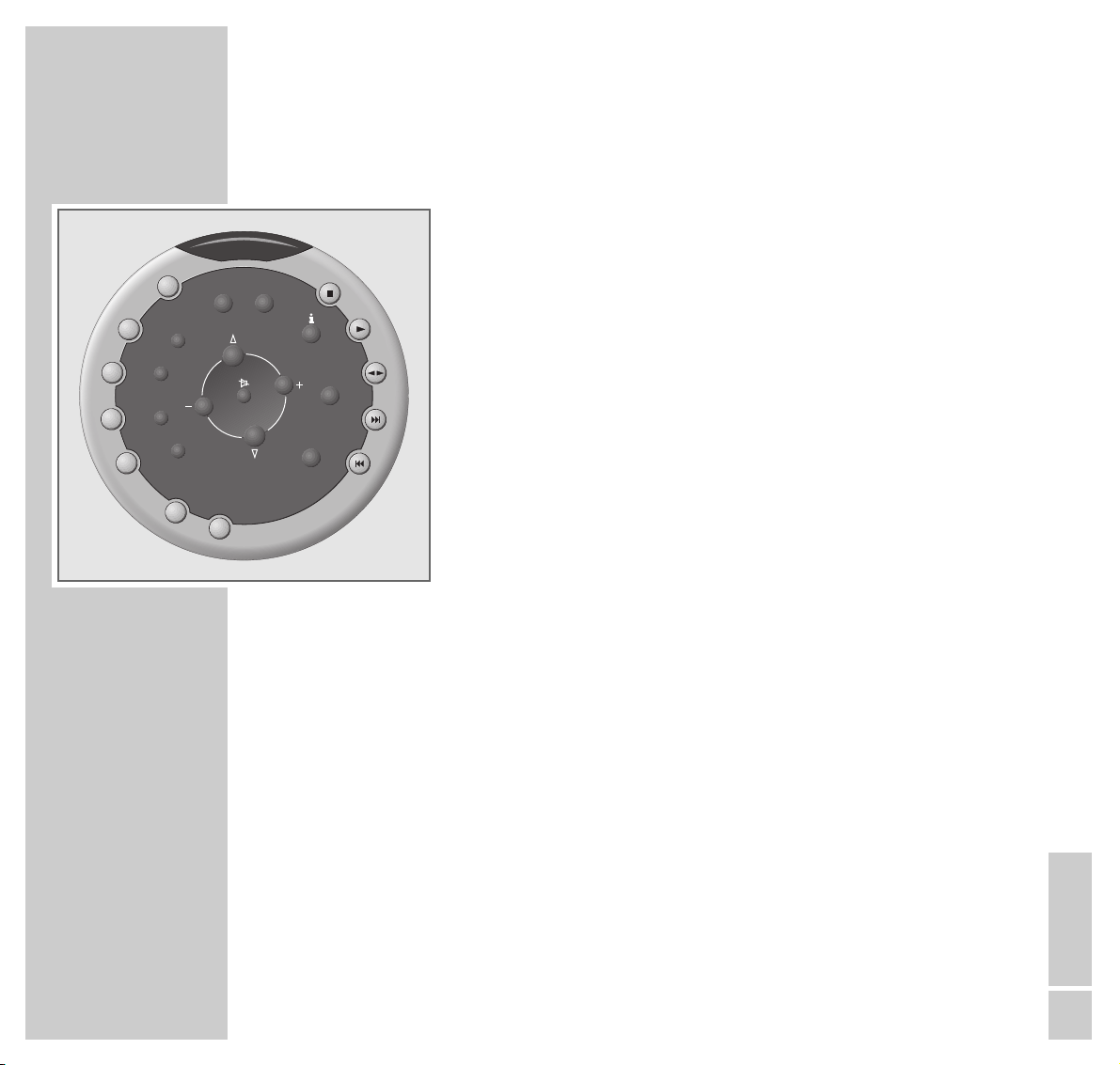

Tuner mode buttons
MEMORY Press this button and briefly hold it down to activate
the automatic station search (AUTO STORE).
Stores radio stations for the AUTO TUNING and
MANUAL TUNING functions.
8 9 Press briefly to change the frequency in incremental
steps (MANUAL TUNING).
Press and then hold down briefly to initiate a manual
station search (AUTO TUNING).
1 2 Call up the next or previous preset station.
iChanges the display of the HiFi:
Station name, RDS time, radio text (RDS stations only)
and frequency.
CANCEL Press briefly to delete individual preset stations.
Hold down to delete all preset stations.
MODE Press once to select the FM stereo or FM mono setting
function, then select the setting with »1« or »2«.
Press twice to select the Antenna setting function, then
select the setting with 1« or »2«.
PTY Calls up the programme type code PTY,
select the programme type with »1« or »2«.
CD-COPY RECORD
MEMORY
CANCEL
SOUND
CTRL
MODE TREBLE
BASS
CD
TUNER
TAPE
AUX
DISC POWER
SOUND
PTY
PAUSE
8
1
1
1

OVERVIEW__________________________________________________________________________________
12
CD mode buttons
DISC Selects the CD compartments 1, 2 and 3.
5Ends CD playback.
4PAUSE Starts CD playback.
Pauses CD playback.
8 9 Search for particular passages during CD playback.
1 2 Select desired track.
MODE Press once to call up the SHUFFLE function,
then activate or deactivate with »1« or »2«.
Press twice to call up the Repeat function then activate
or deactivate with »1« or »2«.
CANCEL Press briefly to delete tracks from the track memory.
Press and hold down briefly to delete the entire track
memory.
MEMORY Calls up the ”Create track memory” function.
iPress briefly to switch from displaying the playing
time to information about CD title and artist.
Press and briefly hold down to enter a custom name
for a CD.
CD-COPY RECORD
MEMORY
CANCEL
SOUND
CTRL
MODE TREBLE
BASS
CD
TUNER
TAPE
AUX
DISC POWER
SOUND
PTY
PAUSE
8
1
1
1

OVERVIEW__________________________________________________________________________________
ENGLISH
13
Tape mode buttons
5Ends playback of the cassette.
4PAUSE Starts and pauses playback of the cassette.
z t Starts playback of the cassette and reverses the
running direction.
8 9 Fast forward or rewind.
Press during playback to search forwards or
backwards for a particular passage.
MODE Press once to call up the Dolby NR function,
then activate or deactivate the function with »1« or
»2«.
Press twice: calls up the REVERSE function,
then select with »1« or »2«.
CD-COPY Press and briefly hold down to start recording from
CD to cassette.
RECORD Press and hold down to start recording.
Select the input source beforehand with »CD«,
»TUNER« or »AUX«.
iSwitches the cassette display between the tape
counter and real time.
MEMORY Marks a position on the cassette.
CANCEL Sets the tape counter to »0000«.
CD-COPY RECORD
MEMORY
CANCEL
SOUND
CTRL
MODE TREBLE
BASS
CD
TUNER
TAPE
AUX
DISC POWER
SOUND
PTY
PAUSE
8
1
1
1

14
PREPARATION AND CONNECTION_______
Preparation
Inserting batteries in the remote control
1Open the battery compartment by pushing back and removing the lid.
2When inserting batteries (micro type LR 03, 2 x 1.5 V) make sure the
polarity is correct.
Note:
If the HiFi no longer reacts properly to remote control commands, the
batteries may be flat. Always remove flat batteries. No liability is accepted
for damage resulting from leaking batteries.
Environmental note
Batteries, including those which are heavy metal-free, may not be disposed
of with household waste. Please dispose of used batteries in and
environmentally sound way, for example at public collection points. Find out
about the legal regulations which apply in your area.

ENGLISH
15
PREPARATION AND CONNECTION_______________________________________
Connecting the loudspeaker module
1Connect the plug of the loudspeaker module with the plug of the HiFi.
Note:
The connecting cables need to be placed behind the loudspeaker module.
Please note that the top side of the loudspeaker module is marked
appropriately.
2Insert the loudspeaker module into the recess in the HiFi until it engages.
Note:
To remove the loudspeaker module, push the two catches supplied into the
openings (see illustration), lift the loudspeaker module out of the HiFi and
disconnect the lead.
TOP SIDE
OBEN

16
PREPARATION AND CONNECTION_______________________________________
Installing the speaker caps
1Attach the speaker caps supplied to both sides of the loudspeaker module.
Attaching the wing panels to the the HiFi
The wing panels are only standard parts for the PA 6/II and PA 6/III.
They are also available as additional accessories for the PA 6/I at your
authorised dealer (order No. G 0I 01-52).
1Attach the wing panels on the left and right sides of the system as shown in
the illustration.
Note:
If you do not wish to install the wing panels you can plug the openings with the
cover caps supplied.
DISC
OPEN/CLOSE
TAPE
OPEN/CLOSE
DISCSELECT
1
23
3
2
1
U
BNR

ENGLISH
17
PREPARATION AND CONNECTION_______________________________________
Connecting the antenna
1Plug the rooftop antenna connector into the »FM 75« socket on the HiFi.
Note:
If you do not have a rooftop antenna, use the auxiliary wire aerial supplied.
This antenna provides a reasonably good reception for local stations.
Do not shorten the auxiliary antenna.
Connecting an external device
Note:
Switch off the HiFi before you connect external devices.
Make sure the left and right stereo channels are correctly connected:
R: right (red), L: left (white).
1Use cinch cables to connect the audio output sockets of the external device
(television, DVD player, etc.) to the »R AUX IN L« sockets on the stereo
system.
2Use cinch cables to connect the audio input sockets of the external device to
the »R AUX OUT L« sockets on the HiFi.
Connecting headphones
1Insert the headphone plug (ø 6,3 mm) into the »0« jack on the HiFi.
– This switches off the HiFi loudspeakers.
AUX
CLASS 1
LASER PRODUCT
IN OUT FM 75Ω

TV R
AUX
CLASS 1
LASER PRODUCT
IN OUT FM 75Ω

DISC SELECT
1
23
U
B NR
3
2
1
DISC
OPEN/CLOSE
TAPE
OPEN/CLOSE

18
PREPARATION AND CONNECTION_______________________________________
Connecting the mains cable
1Plug the mains cable into the socket.
Selecting the HiFi antenna setting
This setting enables you to adapt the HiFi to the antenna used.
If you are using a cable connection from a public or private provider, select the
»CABLE« setting.
If you are using your own rooftop antenna or the auxiliary antenna supplied,
select »ANTENNA«.
1Switch on the HiFi by pressing the »POWER« button on the HiFi.
2Select the input source »TUNER« with the »TUNER« button.
3Call up the antenna setting function by pressing »MODE« twice and select
the setting »CABLE« or »ANTENNA« with »1« or »2«.
– The setting is saved automatically.
CABLE
ANTENNA

ENGLISH
19
SETTINGS____________________________________________________________________________
Tuning to radio stations
There are 59 preset positions for storing radio stations.
There are two ways to set the preset stations:
The first method is to initiate an automatic search.
The HiFi automatically stores all stations which can be received at your location.
The second method allows you to search for a station directly and then store it
manually with the preset number of your choice.
Option 1 (Page 20)
Automatic Search Programming.
With this option the HiFi system first looks for RDS stations, then for other
stations with strong signals and finally for weak signals.
The radio stations are automatically stored at the next free preset number.
Option 2 (Page 21)
Manual station search.
This option enables you to search for individual stations.

20
Automatic search programme (ASP)
Initiating the automatic search programme
Note:
The automatic search deletes all previously stored channels.
1Switch on the HiFi by pressing the »POWER« button on the HiFi.
2Select the input source »TUNER« with the »TUNER« button.
3Start the automatic station search by pressing and holding down
»MEMORY«,until »A S« appears in the display.
– The automatic station search begins and searches for radio stations in the
following order: RDS stations, stations with strong signals without RDS and
stations with a weak signal.
– The radio stations are stored automatically.
– If RDS information is transmitted by a station, the HiFi will store the station
name.
Note:
If all the preset station numbers are occupied the message »MEM FULL«
briefly appears in the display.
Selecting preset radio stations
1Select the preset station number by pressing »1« or »2«.
– The preset station number and the frequency appear in the display. If the
current station transmits RDS information you will also see the name of the
station.
Note:
You cannot select a preset number that has not yet been assigned to a
station.
However, you can delete station assignments which are no longer needed.
For more information on this, see Page 22.
SETTINGS ____________________________________________________________________________________
AS 87.50
MEM FULL
I FM 97.90
I BAYERN 3
I BAYERN 3
