Grundig UMS 100 User manual

HIFI STEREO MICRO SYSTEM
UMS 100
1
ENGLISH
72011-400.2900

2
CONTENTS________________________________________________________________________
3 Set-up and safety
4 Overview
Operating elements of the stereo system
The back of the stereo system
The remote control
9 Connection and preparation
13 Custom settings
Setting the time
Tuning to radio stations
15 General functions
17 Tuner mode
20 CD mode
Basic CD mode functions
Special CD mode features
Playing back tracks in selected order – creating a track memory
25 Cassette mode
General information about the cassette mode
Playback
Fast forward/rewinding the cassette
Recording
29 Timer mode
32 Information
Cleaning the tape drive, cleaning the CD unit
Technical data, rectifying minor problems
GRUNDIG Service

ENGLISH
3

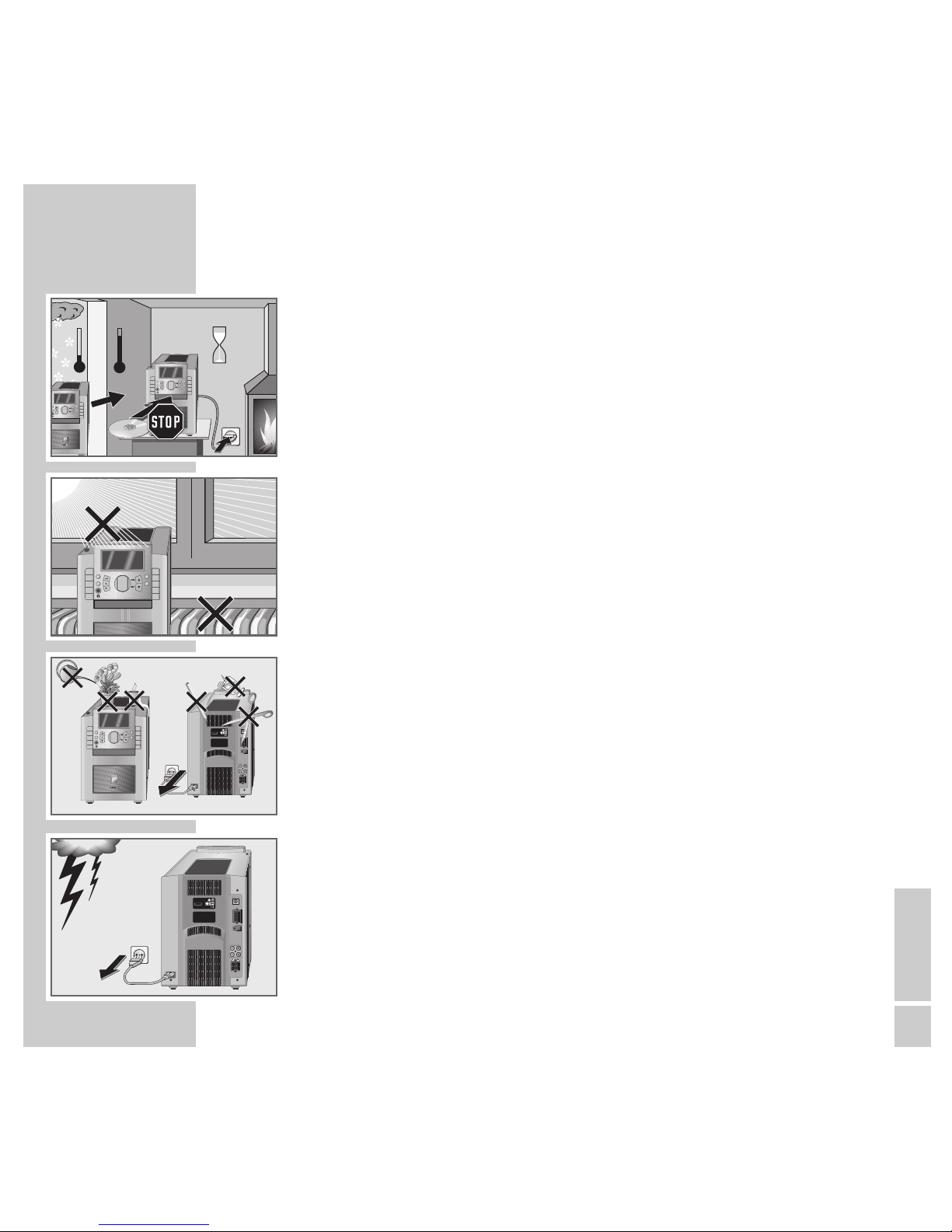

SET-UP AND SAFETY ______________________________________________
Please observe the following when setting the stereo system up:
This stereo system is designed for the playback of audio signals. Any other use
is expressly prohibited.
Furniture surfaces are covered by various types of lacquer and plastic, most of
which contain chemical additives. These additives may cause corrosion to the
feet of the unit. This may leave stains on the surface of the furniture which can be
difficult or impossible to remove.
If the stereo system is subject to sudden changes in temperature, for example if it
is brought in from the cold to a warm room, please wait for at least two hours
before operating the set.
The stereo system is designed for use in dry rooms. If you do use them in the
open, please ensure that they are protected from moisture (rain, splashes of
water).
Do not place the stereo system close to heating units or in direct sunlight, as this
will impair cooling.
Do not insert any foreign bodies in the CD or tape compartment of the stereo-
system.
Do not open the stereo system under any circumstances. The manufacturer
accepts no liability for damage resulting from improper handling.
Thunderstorms are a danger to all electrical devices. Even if the stereo system is
switched off, it can be damaged by a lightning strike to the mains or the aerial
cable. Always disconnect the mains and antenna plugs during a storm.
Always keep the CD compartment closed to prevent dust from collecting on the
laser optics.
PHONES 1
DISPLAY
MEMORY
REPEAT
REVMODE
RANDOM
INTRO
REC/
CDCOPY
TIMER
DSC
BASS
BOOST
6
CD
.
+
TAPE/AUX PTY
CLEAR
SET
VOLUME TUNING TUNER/BAND
MONO/
STEREO
OPEN/
CLOSE
SEARCH/
SKIP
+
-
CD
PHONES 1
DISPLAY
MEMORY
REPEAT
REVMODE
RANDOM
INTRO
REC/
CDCOPY
TIMER
DSC
BASS
BOOST
6
CD
.
+
TAPE/AUX PTY
CLEAR
SET
VOLUME TUNING TUNER/BAND
MONO/
STEREO
OPEN/
CLOSE
HIFISTEREO MICRO SYSTEM
SEARCH/
SKIP
+
-
CD
PHONES
AC~
OPTICAL
OUT
AMANTENNA
MAINSPEAKERS
IMPEDANCE
6ohm [ Ω]
FMANTENNA
FM75 Ω
R
LAUX
IN
OUT
LL
RR
1
UMS 100
AC:230V~ 50/60Hz
G.LK07
G
Z
3
CLASS1 LASER PRODUCT
APPAREILÀ LASER DE CLASSE 1
PRODUCTOLASER DE CLASE 1
! SERVICE !! SERVICE !! SERVICE !
PHONES
AC~
OPTICAL
OUT
AMANTENNA
MAINSPEAKERS
IMPEDANCE
6ohm [ Ω]
FMANTENNA
FM 75 Ω
R
LAUX
IN
OUT
LL
RR
1
UMS 100
AC:230V~ 50/60 Hz
G.LK 07
G
Z
3
CLASS1 LASER PRODUCT
APPAREILÀ LASER DE CLASSE 1
PRODUCTOLASER DE CLASE 1
°C2h
°C
1
TIMER
DSC
BASS
BOOST
6
CD
.
+
PE/AUX PTY
CLEAR
SET
VOLUME TUNING TUNER/BAND
MONO/
STEREO
OPEN/
CLOSE
HIFISTEREO MICRO SYSTEM
SEARCH/
SKIP
+
-
CD
PHONES 1
DISPLAY
MEMORY
REPEAT
REVMODE
RANDOM
INTRO
REC/
CDCOPY
TIMER
DSC
BASS
BOOST
6
CD
.
+
TAPE/AUX PTY
CLEAR
SET
VOLUME TUNING TUNER/BAND
MONO/
STEREO
OPEN/
CLOSE
HIFISTEREO MICRO SYSTEM
SEARCH/
SKIP
+
-
CD

4
OVERVIEW _______________________________________________________________________
Operating elements of the stereo system
General
PHONES Headphone jack, for connecting a stereo
headphone set with a jack plug (ø 3,5 mm).
The loudspeakers of the stereo system are
automatically switched off.
88Switches the stereo system on and off.
TIMER For setting the switch-on timer and the recor-
ding timer.
DSC Selects the sound settings »POP«, »ROCK«,
»JAZZ«, »VOCAL« and »FLAT«.
BASS BOOST For ”boosting” the bass.
DISPLAY For calling up various information in the dis-
play.
When switched off: switches the display
demo mode on and off.
MEMORY For saving various functions.
VOLUME + – Adjusts the volume.
II/SET For setting the clock and the timer.
1
DISPLAY
MEMORY
REPEAT
REV MODE
RANDOM
INTRO
REC/
CD COPY
TIMER
DSC
BASS
BOOST
6
CD
.
+
TAPE/AUX PTY
CLEAR
SET
VOLUME TUNING TUNER/BAND
MONO/
STEREO
OPEN/
CLOSE
HIFI STEREO MICRO SYSTEM
SEARCH/
SKIP
+
-
CD
PHONES

ENGLISH
5
OVERVIEW__________________________________________________________________________________
Radio mode
TUNER/ Selects the »TUNER« input source.
BAND selects the frequency band »FM« and »MW«.
TUNING/ Hold down to start the station search;
AS press briefly to change the frequency in
small steps.
re
/PTY Searches channel positions for the selected
Program type.
MONO/ Switches stereo broadcasts from stereo
STEREO to mono.
CD mode
CD Selects the »CD« input source.
r e Starts playback of the CD.
■/CLEAR Ends CD playback;
deletes the track memory for the CD.
II/SET Switches to playback Pause.
s6 Press briefly to select the next track;
SEARCH/SKIP
hold down to search for a particular passa-
ge.
5a Press briefly to select the previous track;
SEARCH/SKIP
hold down to search for a particular passa-
ge.
REPEAT/ Repeats a title or the entire CD.
REV MODE
1
DISPLAY
MEMORY
REPEAT
REV MODE
RANDOM
INTRO
REC/
CD COPY
TIMER
DSC
BASS
BOOST
6
CD
.
+
TAPE/AUX PTY
CLEAR
SET
VOLUME TUNING TUNER/BAND
MONO/
STEREO
OPEN/
CLOSE
HIFI STEREO MICRO SYSTEM
SEARCH/
SKIP
+
-
CD

6
OVERVIEW__________________________________________________________________________________
RANDOM / Selects plays back titles in random
INTRO order (Random);
plays a brief extract of all tracks on the CD
(Intro).
CD/.Opens and closes the CD compartment.
Cassette mode
TAPE/AUX Selects the »TAPE« input source.
r e Starts playback.
■/CLEAR Stops the drive functions.
SEARCH/SKIP Fast forwards the tape to the end or
5a /s6 to the beginning.
REPEAT/ Repeats the playback of the cassette.
REV MODE
CD COPY/ Begins the recording on cassette.
RECORD
OPEN/CLOSE Opens and closes the tape compartment.
AUX operation
TAPE/AUX Press twice to select the input source »AUX«
(external device).
1
DISPLAY
MEMORY
REPEAT
REV MODE
RANDOM
INTRO
REC/
CD COPY
TIMER
DSC
BASS
BOOST
6
CD
.
+
TAPE/AUX PTY
CLEAR
SET
VOLUME TUNING TUNER/BAND
MONO/
STEREO
OPEN/
CLOSE
HIFI STEREO MICRO SYSTEM
SEARCH/
SKIP
+
-
CD
6

ENGLISH
7
OVERVIEW__________________________________________________________________________________
The back of the stereo system
FM-ANTENNA Antenna socket for the rooftop anten-
na or the wire aerial supplied.
AM ANTENNA Aerial terminals for the wire antenna
supplied.
OPTICAL OUT Digital audio signal output for copy-
ing a CD onto a digital recording
device.
L AUX R IN/OUT Audio signal input and ourput for an
external device.
RL + RL– Connections for the loudspeakers
supplied.
R = right channel, L = left channel.
AC ~ Socket for power cord.
The only way to isolate the stereo
unit from the mains is to pull out the
mains plug.
General instructions for laser devices
There is a plate marked CLASS 1 LASER PRODUCT on the rear of your device.
This means that the laser is designed in such a way as to ensure that the maxi-
mum permissible emission value cannot be exceeded under any circumstances.
Caution:
If operating devices or methods other than those specified here are em-
ployed, it may lead to dangerous exposure to emissions. Invisible laser
radiation is emitted if the CD compartment is opened or the safety locking
mechanism is shorted. Do not expose yourself to this radiation.
AC~
OPTICAL
OUT
AM ANTENNA
MAIN SPEAKERS
IMPEDANCE
6 ohm [ Ω]
FM ANTENNA
FM 75 Ω
R
LAUX
IN
OUT
LL
RR
1
UMS 100
AC: 230V~ 50/60 Hz
G.LK 07
G
Z
3
CLASS 1 LASER PRODUCT
APPAREIL À LASER DE CLASSE 1
PRODUCTO LASER DE CLASE 1
CLASS 1
LASER PRODUCT

8
OVERVIEW__________________________________________________________________________________
The remote control
88Switches the stereo system on and off.
5as6 In Radio mode: selects the presets;
in CD mode: for selecting a title;
keeping it pressed down enables you to search for a particular pas-
sage;
in cassette mode: Fast forward and rewind.
■In CD mode: ends playback of the CD;
in cassette mode: ends playback/recording of the cassette.
II In CD mode: switches to pause playback.
REC Begins the recording on cassette.
re In Radio mode: searches presets for the selected Program type (PTY);
in CD mode: starts playback of the CD;
in cassette mode: starts playback of the cassette, changes the run-
ning direction of the cassette.
MUTE Switches the system to and from mute mode.
VOLUME +/- Adjusts the volume.
1. . . 0, +10 Numeric keys for various inputs.
SLEEP Switches the sleep function on and off.
DSC Selects the sound settings.
DISPLAY For calling up various information in the display;
when switched off: switches the display demo mode on and off.
OPEN/CLOSE Opens and closes the CD compartment.
CD Selects the »CD« input source.
TAPE Selects the »TAPE« or »AUX« input sources.
TUNER Selects the »TUNER« input source, selects the »FM« and »MW« fre-
quency bands.
1
8
8
6
5$REC
1
0
SLEEP
DSC
CD
DISPLAY OPEN/
CLOSE
TAPE TUNER
23
456
789
+10
MUTE
V
O
L
U
M
E
7

ENGLISH
9
CONNECTION AND PREPARATION _______
Connecting the antenna
1Insert the rooftop aerial in the »FM ANTENNA« aerial socket of the stereo
system.
Note:
If no rooftop aerial system is available, use the supplied auxiliary aerial. This
aerial enables reasonably good reception of local FM (VHF) stations.
The auxiliary aerial should not be shortened.
2Insert the wire aerial into the »AM ANTENNA« terminals on the stereo
system. Adjust the position of the wire aerial until reception is at its best.
Connecting the loudspeakers
1Insert the loudspeaker cables into the terminals » RL + RL – « on the stereo
system.
Connect the cable with white markings to » + «.
Connecting an external device
1Connect the sound output jacks of the external device (for example, televisi-
on, DVD-player, etc.) to the jacks »L AUX R IN/OUT« on the stereo
system using a cinch cable.
Note:
Switch off the stereo system when connecting external devices. Ensure the
stereo channels are properly connected:
R = right channel (red), L = left channel (white).
1
SpeakerUMS 100
NominalPowerHandling Capacity 15W
MusicPowerHandling Capacity 30W
Impedance 6Ohm
1
SpeakerUMS 100
NominalPowerHandling Capacity 15W
MusicPowerHandling Capacity 30W
Impedance 6Ohm
PHONES
AC~
OPTICAL
OUT
AM ANTENNA
MAIN SPEAKERS
IMPEDANCE
6 ohm [ Ω]
FM ANTENNA
FM 75 Ω
R
LAUX
IN
OUT
LL
RR
1
UMS 100
AC: 230V~ 50/60Hz
G.LK 07
G
Z
3
CLASS 1 LASER PRODUCT
APPAREIL À LASER DE CLASSE 1
PRODUCTO LASER DE CLASE 1
TV R
OPTICAL
OUT
MAIN SPEAKERS
IMPEDANCE
6 ohm [ Ω]
R
LAUX
IN
OUT
LL
RR

10
CONNECTION AND PREPARATION_______________________________________
Connecting a digital recording device
1Use an OPTICAL cable to connect the »CD OPTICAL OUT« jack on the ste-
reo system to the appropriate jack on the external device (e.g., MD or CDR).
– This socket enables the recording of CD playback with a digital recording
device.
Connecting headphones
1Insert the headphone plug (ø 3.5 mm) into the »PHONES« jack on the ste-
reo system.
– The loudspeakers of the stereo system are switched off.
Connecting the power cord
Note:
Check if the mains voltage on the type plate (on the bottom of the device)
corresponds to your local mains supply.
The only way to disconnect the device from the mains supply is to pull out the
plug.
1Plug the mains cable supplied into the »AC ~« socket on the device.
2Insert the mains cable plug into the mains socket.
PHONES 1
OPTICAL
OUT
R
LAUX
IN
APPAREIL À LASER DE CLASSE 1
PRODUCTO LASER DE CLASE 1
AC~
MAI
N
I
M
6
L
L
R
