Grundig VERTIGA UMS 5101 CDC User manual

HIFI STEREO MICRO SYSTEM
ǵ
ENGLISH
VERTIGA
UMS 5101 CDC
72011 401 4900

2
CONTENTS________________________________________________________________________
3 Set-up and safety
4 Overview
Controls on the stereo system
The display on the stereo system
The back of the stereo system
The remote control
11 Connection and preparation
14 Settings
Setting the clock
Setting radio stations
Deleting settings
17 General functions
19 Tuner mode
RDS station service
24 CD mode
Basic CD mode functions
Special CD mode features
Creating a track memory – playing back tracks in selected order
31 Timer mode
Setting the switch-on timer
Setting the sleep timer
34 Information
Cleaning the CD unit
Technical data, additional information for units sold in the UK.
Rectifying minor problems
GRUNDIG Service

ENGLISH
3

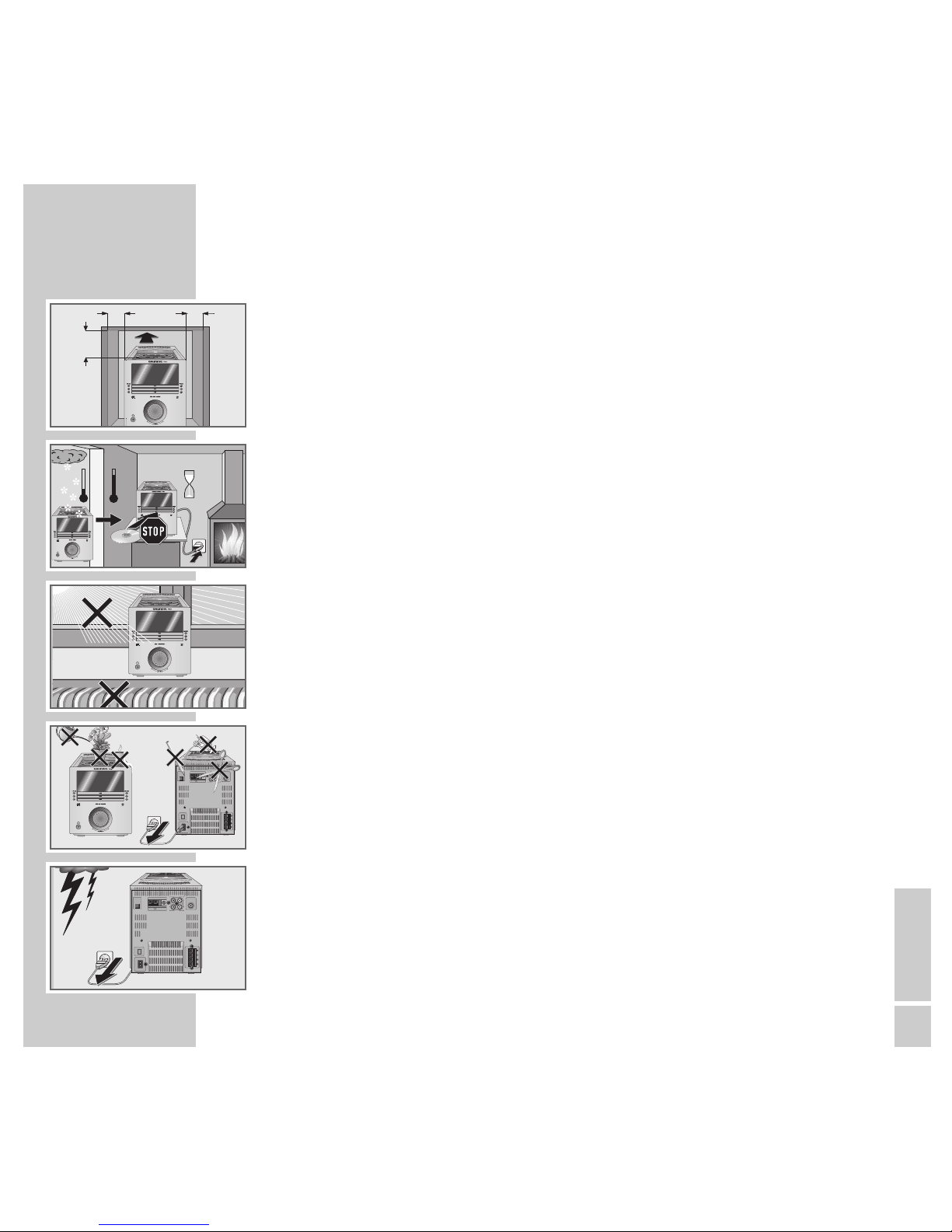

SET-UP AND SAFETY ______________________________________________
Please note the following information when setting up the system:
This stereo system is designed for the playback of audio signals. Any other use
is expressly prohibited.
If you want to set up the stereo system on wall shelves or in cupboards, please
ensure that the device is adequately ventilated. There must be at least 10 cm of
space at the side, above and at the back of the device.
Please note when setting up the stereo system that furniture surfaces are coated
with various types of paint and plastic, which often contain chemical additives.
These additives may cause corrosion to the feet of the unit. This may leave stains
on the surface of the furniture which can be difficult or impossible to remove.
If the stereo system is exposed to sudden changes in temperature, for example
when taken from the cold into a warm room, wait at least two hours before
using it.
The stereo system is designed for use in dry rooms. If you do use it in the open,
please ensure that it is protected from moisture, such as rain or water splashes.
Do not place the stereo system close to heating units or in direct sunlight, as this
will impair cooling.
Do not place any vessels such as vases on the stereo system. Do not insert any
foreign bodies in the CD compartment.
Do not open the stereo system under any circumstances. The manufacturer will
not accept any liability for damage resulting from improper handling.
Thunderstorms are a danger to all electrical devices. Even if the stereo system
is switched off, it can be damaged by a lightning strike to the mains or the
antenna cable. Always disconnect the mains and antenna plugs during a storm.
10
cm
10
cm
10
cm
10
cm
°C
2h
°C
SUBWOOFER
OUTPUT
˜ACIN
AUXIN
LINEOUT
L
L
R
R
OPTICAL
DIGITAL
OUTPUT
ANTENNA
COAXIAL
75Ω
AM
LOOP
AMEXT FMEXT
L
L
SPEAKERS
IMPEDANCEMIN. 4 Ω
! SERVICE !! SERVICE !! SERVICE !
SUBWOOFER
OUT PUT
˜ACIN
AUX IN
LINEOUT
L
L
R
R
OPTICAL
DIGITAL
OUT PUT
ANTENNA
COAXIAL
75Ω
AM
LOOP
AMEXT FMEXT
L
L
SPEAKERS
IMPEDANCEMIN. 4 Ω

4
OVERVIEW _______________________________________________________________________

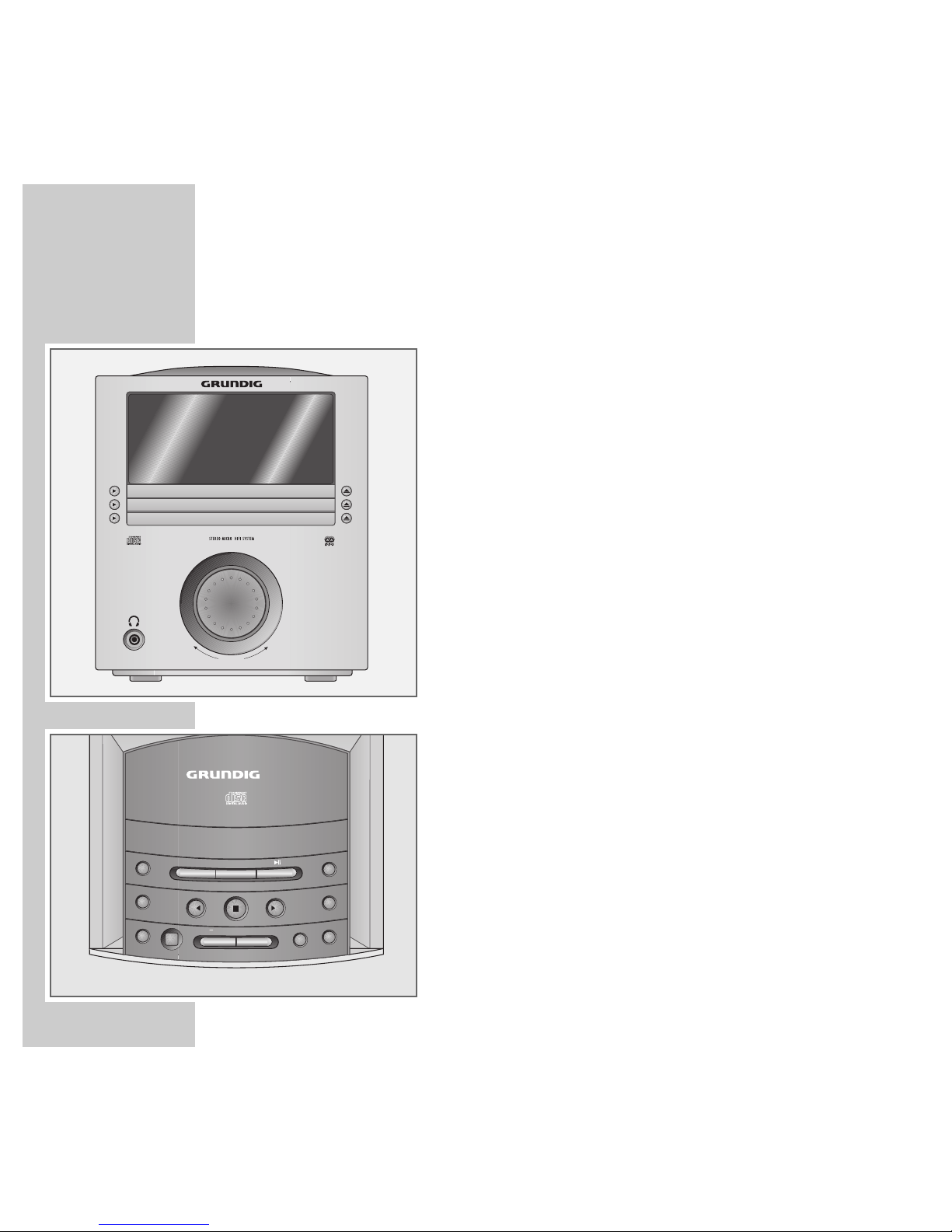

Controls on the stereo system
Controls on the front
OInfrared receiver for remote control signals.
•Stand-by indicator.
yHeadphone jack for connecting a stereo
headphone set with a jack plug
(ø 3.5 mm).
The loudspeakers of the stereo system
are automatically switched off.
MULTI JOG Function wheel for various settings.
DISC 1, 2, 3 Start playback of CD 1, 2
DISC PLAY sand 3.
DISC 1, 2, 3 Open and close CD compartments 1,
DISC EJECT ə2 and 3.
Controls on the top
ǼSwitches the device into and out of
stand-by mode.
TIMER For setting the switch-on timer;
for ending the switch-on timer.
DISPLAY For calling up various information in the
display; activates the time setting.
TIMER SET For saving the clock and timer settings.
DISC 3
DISC 2
DISC 1
MULTI JOG
V
ertiga
DISC EJECTDISC PLAY
6
66 6
V
ertiga
DS
C
V
O
CA
L
X-
B
A
S
S
TI
M
E
R
D
IS
P
L
A
Y
TI
M
E
R
S
E
T
ALL EJECT
VOLUME
+
AUX
TUNER/BAND
CD

OVERVIEW__________________________________________________________________________________
ENGLISH
5
– VOLUME +Adjust the volume.
X-BASS
For boosting the bass.
VOCAL Switches the VOCAL sound setting on
and off.
DSC Selects the various sound settings.
AUX mode
AUX Selects the input source »AUX«
(external device).
Tuner mode
TUNER/BAND Selects the input source »TUNER«; selects the frequency
bands »FM « or »MW«.
5as6Holding down starts the station search; pressing briefly
changes the frequency in small steps.
CD mode
CDıII Selects the »CD« input source; starts and interrupts CD
playback.
■Ends CD playback; pressing twice deletes a track memory.
s6 Press briefly to select the next track. Hold down to look for a
particular passage.
5a Press briefly to return to the beginning of the current track.
Hold down to look for a particular passage.
ALL EJECT Opens and closes all CD compartments.
6
66 6
V
ertiga
DS
C
V
O
CA
L
X-
B
A
S
S
TI
M
E
R
D
IS
P
L
A
Y
TI
M
E
R
S
E
T
ALL EJECT
VOLUME
+
AUX
TUNER/BAND
CD

OVERVIEW__________________________________________________________________________________
6
The display on the stereo system
J
Show the level of the input
source.
Indicates that the bass is boosted.
SURROUND Surround sound is activated.
VOCAL The VOCAL sound setting is activated.
FM100.60MHz Displays the waveband and the frequency
(MHz for FM, kHz for MW).
FANTASY Displays the name of an RDS channel.
R•D•SIndicates that an RDS channel is being received.
P 3 »P 3« flashes when a radio station is stored on a preset
position.
Displays the preset position of the current radio station.
EON Indicates that an RDS station with EON (Enhanced Other
Network) is being received.
TA The EON function for traffic announcements is activated.
NEWS The EON function for news is activated.
INFO The EON function for messages and reports is activated.
ST Indicates stereo reception.
MONO Indicates mono reception.
RT Indicates that an RDS station with ”Radiotext” is being received.
5
3
X-BASS
3
2
1
PROGRAM
RANDOM
ALL 1 DISC
ST MONO
OVER
INFO
NEWS
TA
EON
SNOOZE
R•D•S
SURROUND
VOCAL
BASS
X
123456789 10 11 12 13 15 16 17 18 19 2014
SLEEP

OVERVIEW__________________________________________________________________________________
ENGLISH
7
GShow the number of the CD ready for
playback.
CD 24 74.59 Shows the total number of tracks and the
total playing time of a CD.
FIndicates CD playback.
Music calendar: indicates the number of
CD tracks in Stop position and the
remaining tracks during playback;
shows the tracks stored in a track memory.
OVER Indicates that a CD has more than twenty
tracks.
PROGRAM Indicates that a track memory is being
created or played back.
RANDOM Indicates that CD tracks are played back
in random order.
rIndicates that a CD track is being repea-
ted.
r1 DISC Indicates that a CD is being repeated.
rALL Indicates that all CDs are being repeated.
ȄThe switch-on timer is activated.
The sleep timer is activated.
SLEEP
54321
3
2
1
PROGRAM
RANDOM
ALL 1 DISC
ST MONO
OVER
INFO
NEWS
TA
EON
SNOOZE
R•D•S
SURROUND
VOCAL
BASS
X
123456789 10 11 12 13 15 16 17 18 19 2014
SLEEP

8
OVERVIEW__________________________________________________________________________________
The back of the stereo system
FM EXT Antenna socket for the rooftop antenna
or the supplied wire aerial.
AM EXT Aerial terminals for the wire antenna
supplied.
OPTICAL Digital output for copying a CD onto a
DIGITAL OUT digital recording device.
R AUX IN L Audio signal input for an external device.
R LINE OUT L Unregulated audio signal output for an
external device.
SUBWOOFER Output for connecting an active
OUTPUT subwoofer.
SPEAKERS Connections for the loudspeakers
xRyx
Lysupplied.
R= right channel, L= left channel.
~ AC IN Socket for power cord.
The only way to separate the stereo
system from the mains is to pull out the
mains plug.
General instructions for laser devices
The laser installed in the device conforms to LASER CLASS 1 and is designed to
ensure that the maximum permissible emission value cannot be exceeded under
any circumstances.
Caution:
If operating devices or methods other than those specified here are employed,
it may lead to dangerous exposure to emissions. Invisible laser radiation is
emitted if the CD compartment is opened or the safety locking mechanism is
shorted. Do not expose yourself to this radiation.
SUB WOOFER
OUT PUT
˜AC IN
AUX IN
LINE OUT
L
L
R
R
OPTICAL
DIGITAL
OUT PUT
ANTENNA
COAXIAL
75Ω
AM
LOOP
AM EXT FM EXT
L
L
SPEAKERS IMPEDANCE MIN. 4 Ω

ENGLISH
9
OVERVIEW__________________________________________________________________________________

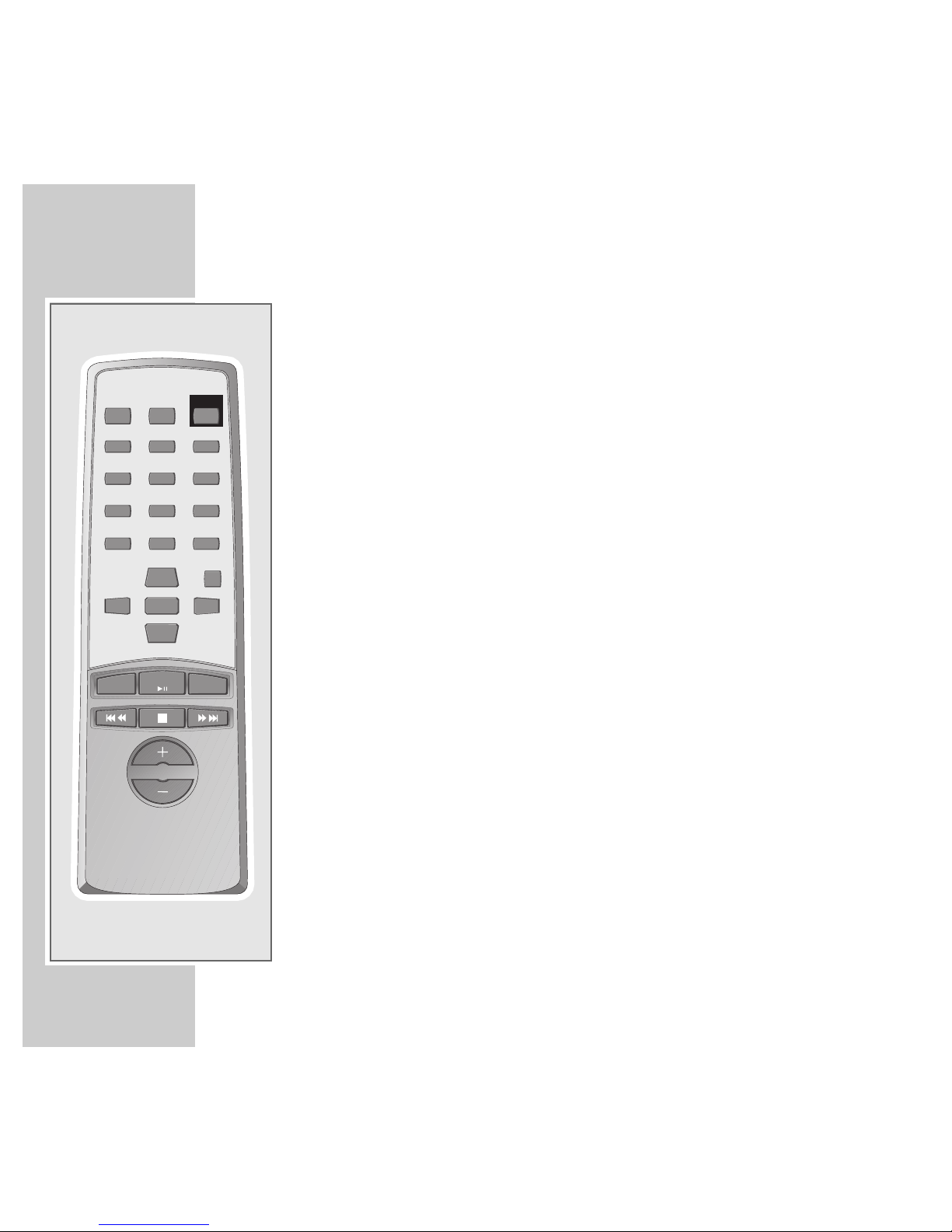

The remote control
9Switches the stereo system into and out of stand-by mode.
SLEEP For activating and setting the sleep timer.
DIMMER Switches the display between three brightness levels.
X-BASS For boosting the bass.
DSC Selects the various sound settings.
VOCAL Switches the VOCAL sound setting on and off.
CT In tuner mode: switches surround sound on and off.
PTY/EON In tuner mode: activates the search for program types; calls
up the EON (Enhanced Other Network) functions.
FM MODE In tuner mode: switches between stereo and mono reception.
AUTO PRESET In tuner mode: starts the automatic search programming.
REPEAT In CD mode: repeats a track, the entire CD or all CDs.
RANDOM In CD mode: activates the playback of tracks in random order.
DISC 1, 2, 3 In CD mode: select and start CD 1, 2 or 3.
DISPLAY In tuner mode: for calling up various information in the display.
In CD mode: switches between CD mode and the time.
SLEEPDIMMER
X-BASS DSC VOCAL
CT PTY/EON FM MODE
AUTO PRESET REPEAT RANDOM
DISC DISC
DISC
PROGRAM DISPLAY
VOLUME
AUX CD
PROGRAM
+10UP SET
DOWN
ǵ
123
UP
BAND
TUNER
6

10
OVERVIEW__________________________________________________________________________________
PROGRAM In tuner mode: for step-by-step selection of stored
UP/DOWN radio stations.
In CD mode: for selecting CD tracks in order to create a
track memory.
SET In tuner mode: for manually storing radio stations.
In CD mode: for storing CD tracks in order to create a track
memory.
+10 UP In CD mode: selects tracks in steps of ten when creating a
track memory.
PROGRAM In CD mode: for creating a track memory; calls up an existing
track memory.
AUX Selects the »AUX« input source.
CD ıII Selects the input source »CD«; in CD mode: starts CD play-
back, pauses playback.
BAND/TUNER Selects the input source »TUNER« and selects the frequency
bands »FM« or »MW«.
5a In tuner mode: press briefly to change the frequency
s6 in small steps. Hold down to start the station search.
In CD mode: press briefly to select a track.
Hold down to search for a particular passage.
■In CD mode: ends playback of the CD.
+ VOLUME – Adjust the volume.
SLEEPDIMMER
X-BASS DSC VOCAL
CT PTY/EON FM MODE
AUTO PRESET REPEAT RANDOM
DISC DISC
DISC
PROGRAM DISPLAY
VOLUME
AUX CD
PROGRAM
+10UP SET
DOWN
ǵ
123
UP
BAND
TUNER
6

ENGLISH
11
CONNECTION AND PREPARATION_______
Connecting the antenna
1Insert the rooftop antenna in the antenna socket »FM EXT« on the stereo
system.
Note:
If no rooftop antenna is available, use the auxiliary aerial supplied. This
aerial provides reasonably good reception of local FM (VHF) stations.
Do not shorten the auxiliary antenna.
2Insert the wire frame antenna into the »AM EXT« terminals on the stereo
system. Adjust the position of the wire aerial until reception is at its best.
Connecting the loudspeakers
1Connect the loudspeaker cables to the »SPEAKERS
xRyx
Ly « terminals
on the stereo system and the »+ INPUT –« terminals on the loudspeakers.
Connect the cables labelled in red to »+«.
Connecting an external device
1Connect the audio output sockets of the external device (for example, a
television or DVD player) to the »AUX IN« sockets on the stereo system
using a cinch cable.
2Use cinch cables to connect the audio input sockets of the external device
(e.g. a cassette recorder) to the »R LINE OUT L« sockets on the stereo
system.
Note:
Switch off the stereo system when connecting external devices. Make sure the
stereo channels are properly connected:
R = right channel (red), L= left channel (white).
SUB WOOFER
OUT PUT
AUX IN
LINE OUT
L
L
R
R
OPTICAL
DIGITAL
OUT PUT
ANTENNA
COAXIAL
75Ω
AM
LOOP
AM EXT FM EXT
SUB WOOFER
OUT PUT
AUX IN
LINE OUT
L
L
R
R
P
TICAL
IGITAL
U
T PUT
ANTENNA
COAXIAL
75Ω
AM
LOOP
AM EXT FM EXT
TVR
L
L
SPEAKERS
IMPEDANCE MIN. 4 Ω

12

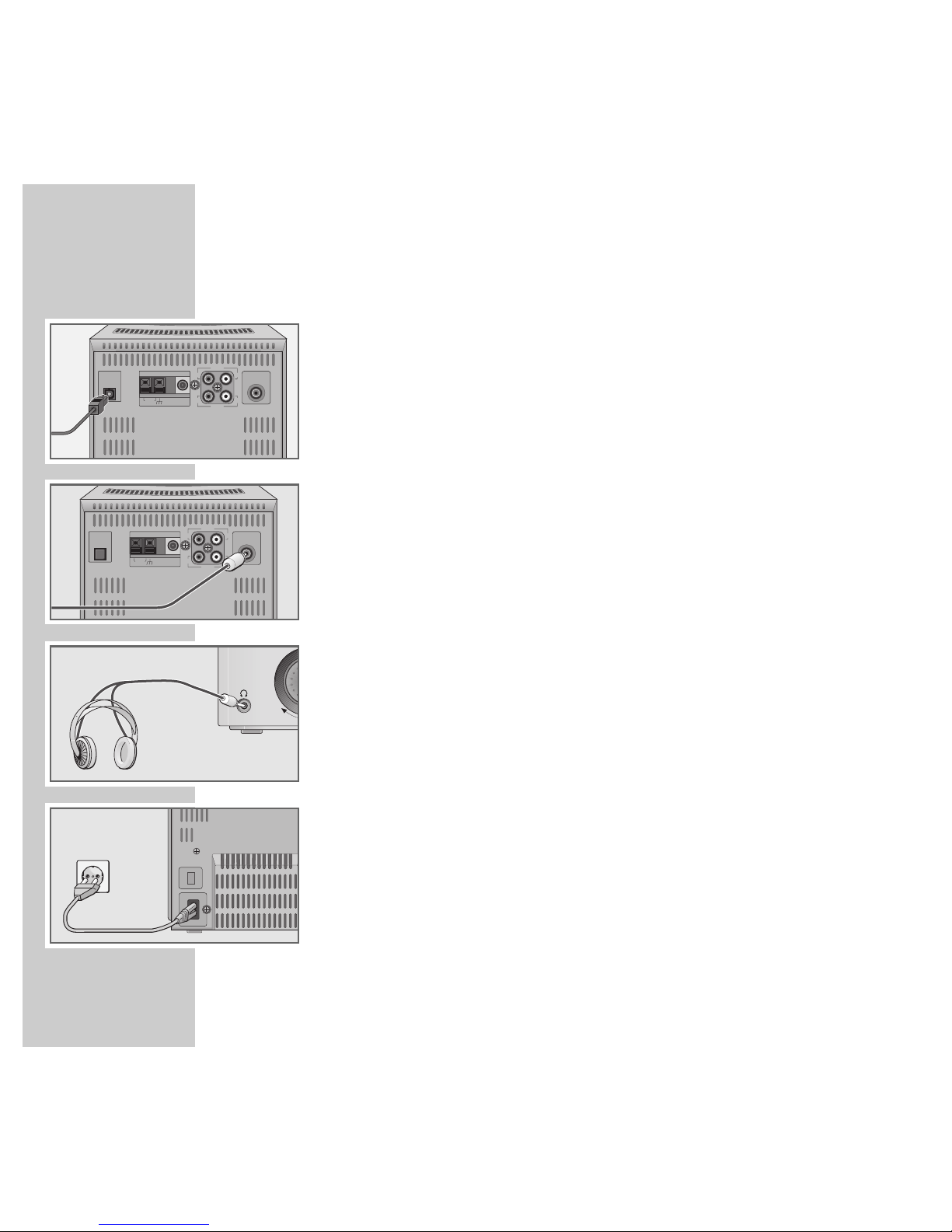

CONNECTION AND PREPARATION_______________________________________
Connecting a digital recording device
1Connect the »DIGITAL OPTICAL OUT« socket on the stereo system to
the appropriate socket on the external device (e.g., MD or CDR) with an
OPTICAL cable.
Note:
This socket enables you to record CD playback with a digital recording
device.
Connecting a sub-woofer
1Plug a standard cinch cable into the »SUBWOOFER OUTPUT« socket on
the stereo system and into the appropriate sockets on the subwoofer.
Connecting headphones
1Insert the headphone plug (ø 3.5 mm) into the »y« socket on the front of
the stereo system.
– The loudspeakers of the stereo system are switched off.
Connecting the mains cable
Note:
Check that the mains voltage on the type plate (on the back of the device)
corresponds to your local mains supply.
The only way to disconnect the device from the mains supply is to pull out the
plug.
1Plug the mains cable supplied into the »~ AC IN« socket on the device.
2Insert the power cord plug in the socket.
SUB WOOFER
OUT PUT
AUX IN
LINE OUT
L
L
R
R
OPTICAL
DIGITAL
OUT PUT
ANTENNA
COAXIAL
75Ω
AM
LOOP
AM EXT FM EXT
SUB WOOFER
OUT PUT
AUX IN
LINE OUT
L
L
R
R
OPTICAL
DIGITAL
OUT PUT
ANTENNA
COAXIAL
75Ω
AM
LOOP
AM EXT FM EXT
˜AC IN

ENGLISH
13
CONNECTION AND PREPARATION_______________________________________

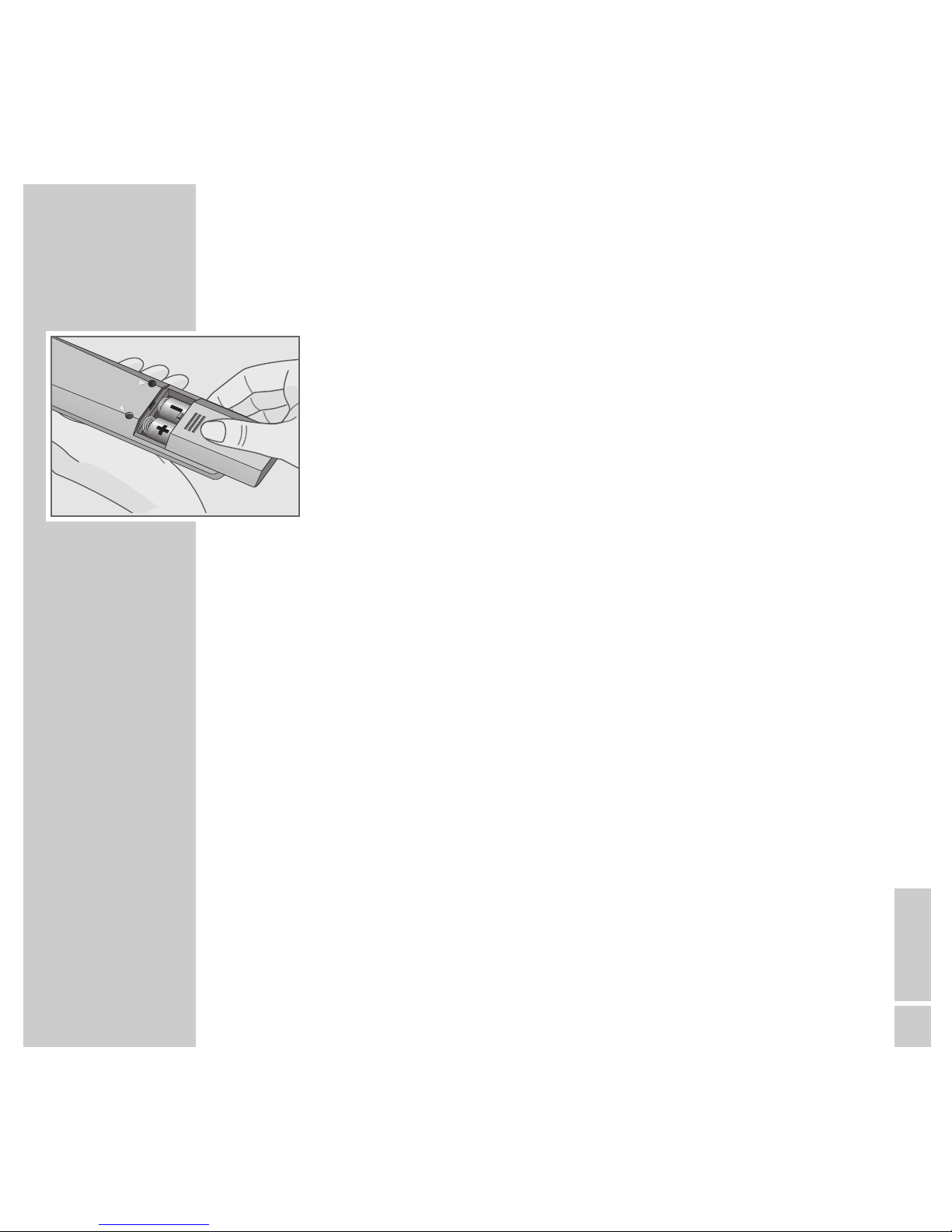

Inserting batteries in the remote control
1Open the battery compartment by pushing down the lid of the battery
compartment.
2When inserting the batteries (Mignon type, for example AA, R6, UM3),
observe the polarity marked on the base of the battery compartment.
Note:
If the device no longer reacts properly to remote control commands, the
batteries may be flat. Always remove flat batteries. No liability is accepted
for damage resulting from leaking batteries.
Environmental note:
Batteries, including those which are free of heavy metal, must not be
disposed of with household waste. Please dispose of used batteries in an
environmentally sound manner. Observe the legal regulations which apply in
your area.

14
SETTINGS____________________________________________________________________________
Setting the clock
Setting the time manually
The time can be manually set while the device is in operation.
1Press and hold down » DISPLAY« on the device.
– Display: the time, with the hours flashing.
2Set the hour with the »MULTI JOG « function wheel and confirm with
»TIMER SET«.
– Display: the minutes flash.
3Set the minutes with the »MULTI JOG « function wheel and confirm with
»TIMER SET«.
– Display: the current time.
4You can display or conceal the time by pressing » DISPLAY« while the
device is on.
Note:
You must reset the time after a power failure or when the mains plug is pulled
out.
Automatically updating the time
Some RDS stations offer RDS time information. This function enables you to
automatically update the time on the device in RDS mode.
1Press » CT« on the remote control in tuner mode to switch the RDS time
synchronisation on and off.
– Display: »C T ON« or »C T OFF«.
Note:
The time display is transmitted by the station once a minute. You must receive
the RDS station for several minutes before the time information can be
transferred to the stereo system (see also page 20).
16:43
18:43
18:57
CT ON

ENGLISH
15
SETTINGS ____________________________________________________________________________________
Tuning to radio stations …
… with the automatic station search
With the activation of this function, the device automatically searches for the first
signals it receives on the FM and MW bands. You can store up to thirty-five
radio stations (twenty FM and fifteen MW).
1Press »TUNER/BAND« to switch on the device.
– Display: The frequency band (» FM « or » MW«) and the frequency.
2Select the frequency band (FM or MW) by pressing the »TUNER/BAND«
button.
3Hold down the »AUTO PRESET« button on the remote control to activate
the station search.
– Display: the preset position indicators » « flash in succession, and the
frequency is displayed continuously.
Note:
The stations previously stored on the preset positions are deleted.
2
FM87.50MHz
FM87.70MHz
2

16
SETTINGS ____________________________________________________________________________________
… with the manual search
1Press »TUNER/BAND« to switch on the device.
– Display: The frequency band (» FM « or » MW«) and the frequency.
2Select the frequency band (FM or MW) by pressing the »TUNER/BAND«
button.
3Press »5a « or »s6 « to tune to the required station. Hold down »5a «or
»s6 « to start a search for the next radio station, or briefly press »5a «or
»s6 « to change the frequency in small steps.
4Tune to the station you want and then briefly press »SET« on the remote
control.
– Display: »SET« flashes.
5Select the preset position with »PROGRAM UP/DOWN« on the remote
control.
– Display: e.g. »P8« flashes.
6Press »SET« on the remote control to store the station.
– Display: »STORED«, then frequency band and frequency or the station
name, along with the preset position, e.g. » «.
7To store more stations, repeat steps 3to 6.
Note:
If a station transmits RDS information, the stereo system will store its name.
– Display: e.g. » F M 95.70«, followed by the station name.
Deleting stations
Stored stations are deleted if you
– re-start the automatic station search;
– assign new stations to individual preset positions.
8
FM87.50MHz
SET
P 8
8
STORED
8
RAD O Z
8

ENGLISH
17
GENERAL FUNCTIONS _________________________________________
Switching on and off
1 Switch the stereo system on out of stand-by mode by pressing »9«.
– Display: Briefly, »H ELLO«.
– The last input source used is automatically selected.
Note:
The following buttons on the device can also be used to switch on the stereo
system:
»TUNER/BAND« – Tuner mode
»CD ıII« – CD mode
»AUX« – External device mode
2 To switch the stereo system to stand-by mode, press
»9«.
– Display: briefly, »GOOD BYE«, then the red stand-by indicator.
Note:
The only way to separate the stereo system from the mains supply is to pull
the plug.
Selecting the input source
1 Select the input source by pressing »TUNER/BAND«, »CD« or »AUX« on
the device or on the remote control .
– Display :»FM 87.50«, e.g. »CD 1« or »AUX«.
Adjusting the volume
1 Adjust the volume
with the »– VOLUME +« buttons.
– Display: briefly, »VOL « (from »0« to »50«).
Adjusting the brightness of the display
1 Use »DIMMER« on the remote control to switch between the three
brightness levels.
FANTASY
9
CD 1
GOOD BYE
VOLUME 14

18
GENERAL FUNCTIONS______________________________________________________________
Sound settings
You can select between seven different sound settings:
You can select between ”FLAT”, ”LIVE”, ”PHANTOM”, ”EXCITE”, ”POP”,
”BEAT”, according to the type of music you are listening to.
1Select the sound setting with »DSC«.
– Display: »FLAT«, »L VE«, »PHANTOM«, »EXC TE«, »POP«, »BEAT«
or »CLEAR«.
Note:
When using the sound settings ”LIVE”, ”PHANTOM” and ”EXCITE”, the
settings »SURROUND« (surround sound) and »VOCAL« are automatically
activated. The »VOCAL« setting can be de-activated by pressing »VOCAL«
(display: briefly, »VOCAL OFF«).
Selecting the VOCAL sound setting
1Select the sound setting by pressing »VOCAL«.
– Display: »VOCAL« and, briefly, »VOCAL ON«.
2Switch off the sound setting by pressing »VOCAL«.
– Display: briefly, »VOCAL OFF«; »VOCAL« disappears.
Note:
Activation of VOCAL deletes the sound settings »FLAT«, »POP«, »BEAT«
and »CLEAR«.
Boosting the bass
1Press »X-BASS« to switch the bass boost on or off.
– Display: » «.
X-BASS
EXC TE
SURROUND
VOCAL
VOCAL ON
SURROUND
VOCAL
VOCAL OFF
SURROUND
X-BASS

ENGLISH
19
TUNER MODE ________________________________________________________________
Selecting the tuner input source
1Select the input source using the »TUNER/BAND« button.
– Display: the most recently selected radio station.
Selecting the preset position
1Select the frequency band (FM or MW) by pressing the »TUNER/BAND«
button.
2Select a preset position step by step with the »MULTI JOG« function wheel
on the device or with »PROGRAM UP/DOWN« on the remote control.
– Display: Preset position, e.g. » « then e.g. »F M 87.50« or the station
name.
Stereo/mono reception
If the device is receiving an FM stereo station, »ST« appears in the display.
However, if the signal from the FM stereo station is weak, you can improve the
sound quality by switching to mono reception.
1Press »FM MODE« on the remote control to switch to mono reception.
– Display: »MONO«.
2To switch back to FM stereo, press »FM MODE« on the remote control.
– Display: »ST«.
4
RAD O Z
8
BAYERN 4
4
ENERGY MONO
9
ENERGY ST
9

20
TUNER MODE_____________________________________________________________________________
RDS station service and program types (PTY)
RDS (Radio Data System) is an information system which is transmitted additio-
nally by most FM stations.
If the device is currently receiving an RDS station, it displays the station name,
for example »FANTASY«, and »R•D•S«.
Note:
It may take some time before all the RDS information is available.
Calling up RDS information
1Press »DISPLAY« repeatedly on the remote control.
– The display first shows the station type (PTY), then the Radiotext, then the
RDS synchronisation, the frequency, the time and finally the station name
again. However, not every RDS station transmits all this information.
RDS time
If the RDS time information is transmitted via an RDS station, the time is set auto-
matically.
1Call up RDS time synchronisation by pressing »CT« on the remote control.
– Display: e.g. »CT ON«.
– The RDS time synchronisation is activated.
2If you wish, you can switch off the RDS time synchronisation by pressing
»CT« on the remote control.
– Display: briefly, »CT OFF«.
Note:
The time display is updated every minute. You must receive the RDS station
for several minutes before the time information can be transferred to the
device. However, not every RDS station transmits the time signal.
R•D•SFANTASY ST
7
CT ON
CT OFF
