GSE 350 I.S. Product manual

GSE Model 350/355 IS
I N T R I N S I C A L L Y S A F E INDICATUR
Technical Reference Manual
Version 1.0

, --
Model 350/355 IS
Technical Reference Manual
Version 1.0

GSE 3501s Intrinsically Safe Technical Reference Manual
Copyright 0 2004 GSE Scale Systems. All rights reserved.
Published by:
GSE Scale Systems
42860 Nine Mile Road
Novi, MI 48375
USA
Information in this Operation Manual is subject to change without notice due to comction or enhancement. The
information descriw in this manual is solely the property of GSE. No part of this manual may be reprduced or
transmittal in any form or by any means, electronic or mechanical, including photocopying and recording and sold for
any monetary figure without the express written permission of GSE.
GSE Locations
GSE Scale Systems
42860 Nine Mile Road
Novi, MI 48375
U.S.A.
Phone: (800) 755 - 7875
www .me-inc.com
GSE Canada, Inc.
617 East Lake Road
Airdrie, Alberta Canada T4B 2B8
Phone:(403) 948 - 992 I
Fa: (403) 948- 1449

Table of Contents
CHAPTER 1:INTRODUCTION ................................................................................................................................... 1
H A ZAR DO U S A R E A Gu~~E~~Es .................................................................................................................................... 1
Hazard Grouping ..................................................................................................................................................... 1
Duration of Hazard .................................................................................................................................................. 2
Temperature Codes .................................................................................................................................................. 2
Definitions ................................................................................................................................................................ 4
Entity Evaluation Concept ....................................................................................................................................... 4
Entity Rating Definihons .......................................................................................................................................... 5
Entiry Rarings ........................................................................................................................................................... 5
APPROVAW ................................................................................................................................................................... 6
S T AN D A R D F U N C T I O N S ................................................................................................................................................. 7
S T AN D AR D F~ATURES ................................................................................................................................................... 7
SPECIFICATIONS ............................................................................................................................................................ 7

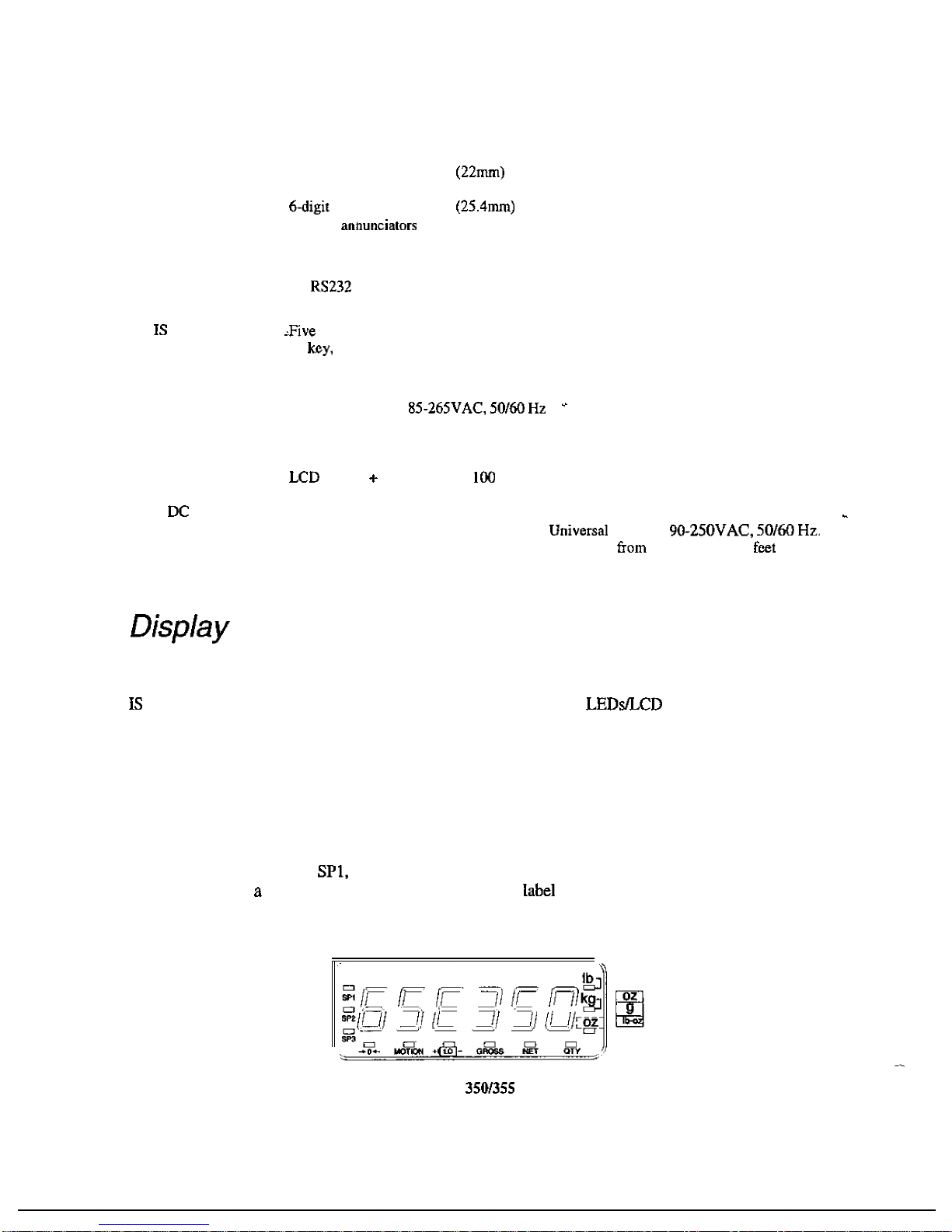

DISPLAY ........................................................................................................................................................................ 8
LED Display ............................................................................................................................................................. 8
LCD Display ............................................................................................................................................................ 9
Annunciators ............................................................................................................................................................ 9
350 IS KEY PAD ........................................................................................................................................................... 9
Secondaty Functions .............................................................................................................................................. 10'
355 KEYP................................................................................................................................................................. 11
WEIGH M O D E FUNCTIONS ........................................................................................................................................... f2
CHAFIER 2: INSTALLATION .................................................................................................................................. 13
S Y S TEM D I A G R AM S ..................................................................................................................................................... 13
O U TL IN E D R A W I N G S ...........! ....................................................................................................................................... 13
L O AD C E L L C O N N EC T I O N S .......................................................................................................................................... 14
C O MM U N I C A T I O N P O R T CONN~IONS ....................................................................................................................... 15
REMOTE KEY CONNFLTIONS ....................................................................................................................................... 15
H A ZAR DO U S A R E A O P T I O N S ....................................................................................................................................... 16
Battery Power Supply { Externa 1) ........................................................................................................................... 16
5 Volt and 8 Volt Excitation ................................................................................................................................... 17
CHAPTER 3: CONFIGURATION .............................................................................................................................. 18
-
AC to DC Power Supply (External) ....................................................................................................................... 16
E NT E R IN G THE SETUP M O D E (M O D E L 350 1s) ............................................................................................................ 18
S E LE C T IN G A P AR A M ETE R ........................................................................................................................................... 19
C H A N G IN G A P A R AM ETE R V A L U E ............................................................................................................................... 21
Selection Parameters ............................................................................................................................................. 21
K E Y - I N P~AMETERS .................................................................................................................................................. 21
S A V I N G P A R AM ET E R S ................................................................................................................................................. 22
F A CT O R Y D E F A U L T ..................................................................................................................................................... 24
L I S T O F PARAMETERS .................................................................................................................................................. 25
E NTE R IN G THE SEIWP M O D E (MODEL 355 1s) ............................................................................................................ 19
Parameter Map Details .......................................................................................................................................... 27
Elements of a Custom Transmit ............................................................................................................................. 34
Writing a custom transmit ASCZZ textfile .............................................................................................................. 34
Entering ASCII Text ............................................................................................................................................... 35
Entering ASCII Control Codes ............................................................................................................................... 35
PREsET TRANSMIT SELECTIONS .................................................................................................................................. 32
CUSTOM TR~SM rr ..................................................................................................................................................... 34
Accessing Setup and Clearing Existing Custom Transmit ..................................................................................... 34
Parameter Selecrion Numbers ................................................................................................................................ 37
I

..
Exiting Setup Mode and Saving Changes .............................................................................................................. 38
PARTS COUNTING ........................................................................................................................................................ 38
SETPOINT SrrUP .......................................................................................................................................................... 40
Activation Methods (General) ................................................................................................................................ 40
Pre-acls (General) ................................................................................................................................................. 41
ham Feature (General) ........................................................................................................................................ 41
Pause Fearure {General) ....................................................................................................................................... 41
Changing Targets from the Weigh Mode (General) .............................................................................................. 42
Bargraph (General) ............................................................................................................................................... 43
P E R C ENT A G E CHECK-WEIGAING ................................................................................................................................. 46
Setpoint Activation {Percentage Check - Weighing) ................................................................................................ 46
Changing Targets from the Weigh Mode (Percentage Check - Weighing) .............................................................. 46
Example (Percentage Check - Weighing) ................................................................................................................ 47
FLL ............................................................................................................................................................................. 48
Activation Merhod (Fill) ......................................................................................................................................... 48
Pre-acts (Fill) ......................................................................................................................................................... 48
Learn Feature (Fill) ............................................................................................................................................... 49
Pause Feature (Fill) ............................................................................................................................................... 49
Changing Targets from the Weigh Mode (Fill) ...................................................................................................... 49
Example (Fill) ........................................................................................................................................................ 49
B A TC H 49-
Activation Method (Batch) ..................................................................................................................................... 50
Pre-acts (Batch) ..................................................................................................................................................... 50
ham Feature (Batch) ........................................................................................................................................... 50
Pause Feature (BatchJ ........................................................................................................................................... 50
Exumple (Eatchl ..................................................................................................................................................... 51
D IS C H AR G E ................................................................................................................................................................. 51
Activation Method (Discharge) .............................................................................................................................. 52
Pre - acts (Discharge) .............................................................................................................................................. 52
Learn Feature (Discharge) .................................................................................................................................... 52
Pause Feature (Discharge) .................................................................................................................................... 53
Example (Discharge) ............................................................................................................................................. 53
B O T H ........................................................................................................................................................................... 53
Activation Method (Both) ....................................................................................................................................... 54
Pre - acts (Both) ....................................................................................................................................................... 54
Change Target Weight Example (General) ............................................................................................................ 43
<
.........................................................................................................................................................................
Changing Targets from the Weigh Mode (Batch) .................................................................................................. 50
...
Target Changesfrom (he Weigh Mode (Discharge) .............................................................................................. 53
bum Feature (Both) ............................................................................................................................................. 54
Pause Feature (Borh) ............................................................................................................................................. 55
Target Changesfrom the WeighMode (BothJ ....................................................................................................... 55
Setpoinr Activation (Absolute Check - Weighing) .................................................................................................... 56
Changing Targetsfrom the Weigh Mode (Absolute Check - Weighing) .................................................................. 56
Setpoint Activation {Independent) .......................................................................................................................... 58
Changing Targets from the Weigh Mode (Independent) ........................................................................................ 58
Example (Independent) .......................................................................................................................................... 59
TARGET DEVIATION CHECK - WEIGHING ...................................................................................................................... 59
Setpoint Activation (TargetDeviaiion Check - Weighing} ....................................................................................... 60
Changing Targets from rhe Weigh Mode (TargetDeviation Check - Weighing) ..................................................... 60
Example (TargetDeviation Check - Weighing) ....................................................................................................... 61
BARGRAPH SETUP (LCD) ............................................................................................................................................ 61
T IM E AND D A TE SEiTl.JP (MODEL 350 1s) ..................................................................................................................... 63
Example (Borh) ...................................................................................................................................................... 55
ABSOLUTE C H EC K - W E I G H IN G ..................................................................................................................................... 55
Example (Absolure Check - Weighing) ..................................................................................................................... 57
I ND E P E N D E N T SETPOINT O P E R A T I O N .......................................................................................................................... 57
7
..... ..

TIME AND D A T E SETUP (MODEL 355 1s) ..................................................................................................................... 65
66
R E M O TE KEY O P E R A T I O N
R E M O T E S E R IA L O P E R A TION ....................................................................................................................................... 66
Display Capture Ufdity .......................................................................................................................................... 67
U P G R A D E I N D I C A T O R F IR M W A R E ................................................................................................................................ 67
Prepare for upgrade ............................................................................................................................................... 68
Load Flash File ...................................................................................................................................................... 68
...........................................................................................................................................
CHAPTER 4: CALIBRATION. ................................................................................................................................... 69
S~P M O D E CALIBRATION ........................................................................................................................................ 69
F A S T C A L IB R A T I O N ..................................................................................................................................................... 69
P E R FO R M IN G C A L I B R A T I O N ........................................................................................................................................ 69
First Zero ............................................................................................................................................................... 70
Last Zero ................................................................................................................................................................ 72
ESTABLISHNG ZERO ................................................................................................................................................... 70
c
False Zero .............................................................................................................................................................. 74
Only Zero ............................................................................................................................................................... 76
E S T A B L I S H IN G A SPAN ................................................................................................................................................ 79
Reset Calibration ................................................................................................................................................... 77
E X IT IN G C A L IB R A T I O N ................................................................................................................................................ 80
CHAPTER 5: LEGAL FOR TRADE ..........................................................................................................................82
.
NTEP R E Q U IR E M E N T S ................................................................................................................................................ 82
OML R E Q U IR EM E N T S ................................................................................................................................................ 82
O TH E R RE~uIREMENTs ............................................................................................................................................... 83
S EA L IN G A N D A U D IT TRAU ...................................................................................................................................... 83
Physical Seal .......................................................................................................................................................... 84
Audit Trails ............................................................................................................................................................ 84
CHAPTER 7: TROUBLESHOOTING ....................................................................................................................... 86
E RR O R MESSAGE^ ....................................................................................................................................................... 86
Operation a 1 Err0 rs ................................................................................................................................................ 86
Setup Mode Errors ................................................................................................................................................. 87
Calibration Errors ................................................................................................................................................. 88
Communication Errors .......................................................................................................................................... 88
Miscellaneous Errors ............................................................................................................................................. 88
VIEWING SrrUP ........................................................................................................................................................... 89
IN~RMATION M O D E PARAMETERS ............................................................................................................................. 89
A/D C A L IB R A T I O N P R OC E D U R E .................................................................................................................................. 91
Hardware Errors ................................................................................................................................................... 87

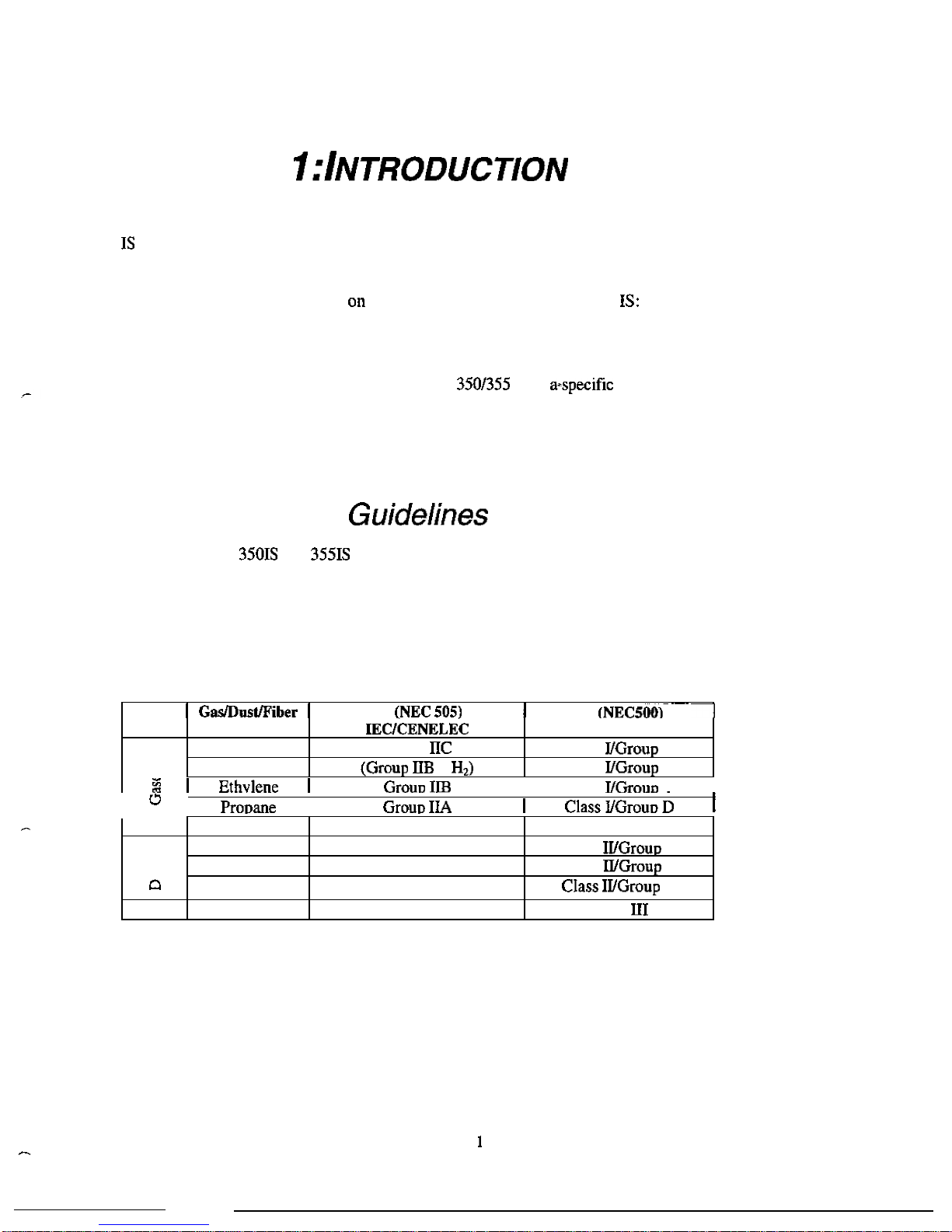

CHAPTER I~INTRODUCTION
4
Thank you for selecting the GSE Model 3501355 Intrinsically Safe Indicator. The Model 350 and Model 355
IS continue the GSE tradition of Excellence in Weighing. A properly installed and maintained Model 350 or
Model 355 IS will provide many years of reliable,accurate performance.
IEUCENELEC
Acetylene Group IIC
Class XlGroup A
Hydrogen (Group IIB + Hz) Class YGroup B
The chapters of this manual focus on various aspects of the Model 3501355 IS:
Methane
Metal
Dust
Coal Dust
Grain Dust
Fibers
4
CI
Chapter 1: Introduction
Chapter 2: Installation
Chapter 3: Configuration
Chapter 4: Operation
Chapter 5: Calibration
Chapter 6: Troubleshooting
Group I * Mining *
None Class IYGroup E
None Class IyGroup F
None CIass IYGroup G
None Class UI
Hazardous Area
Hazardous Area Guidelines, Features and Specifications.
Installation of Indicator and Options.
Setup the 350/355 IS to a*specific application.
Using the Model 3501355 IS.
Calibrate the indicator to a scale.
Troubleshooting help and error messages.
Guidelines
The GSE Models 3501s and 3551s instruments are approved by FM Approvals as intrinsically safe for use in
hazardous areas. An intrinsically safe device has been proven through calculation and testing that it cannot
produce enough electric or thermal energy under normal or fault conditions to cause ignition of flammable
material present in the atmosphere. The hazardous area is defined in terms of how long the hazard is
present, how easily it is ignited, and what maximum temperature can be present.
H AZ A R D G R O U P I N G
I I GadDustlFiber I US [NEC 505) 1 US (NEC5001- 1
I 2 I Ethvlene I Groua IIB t Class IlGroun c I ..
I I-, I I
I " I Pronane I Grow IIA I ClassllGrou~D
1
h

DURATlON OF HAZARD
US(NEC500) I Division 1
Division 2
T E M P E R A T U R E C O D E S
Class I, Division I, Groups A, B, C & D
Class I, Division 1 locations are those in which hazardous concentrations of flammable gases or vapors exist
continuously,intermittently
or periodically under normal operating conditions. Electrical equipment for use
in such locations may be “explosion proof,” “intrinsically safe,” “purged” or otherwise protected to meet
the intent of Articles 500 of the National Electrical Code@.
Explosion proof protectionconsists of equipment designed to be capable of containing an internal explosion
of a specified flammable vapor - air mixture. In addition, the equipment must operate at a safe temperature
with respect to the surrounding atmosphere.
Intrinsically safe electrical equipment and associated wiring are incapable of releasing sufficient electrical or
thermal energy to cause ignition of a specific hazardous material under “normal” or “fault” operating
conditions. Normal operation assumes maximum supply voftage and rated environmental extremes; fault
conditions assume any single or dud independent electrical faults plus field wiring open, shorts or
connections to ground.Equipment rated as intrinsically safe is recognized by Article 500 as safe for use in
hazardous locations without special enclosures or physical protection that would otherwise be required.
Purged systems have fresh air or an inert gas under positive pressure to exclude ignitable quantities of
flammables from the electrical equipment enclosure.
Equipment Approved for Division 1 locations shall be permitted in Division 2 locations of the same class,
group and temperature class.
2

Class I, Division 2, Groups A, 8, C & D
Class I, Division 2 locations are those in which hazardous concentrations of flammables exist only under
unlikely conditions of operation. As such, equipment and associated wiring which are incapable of reIeasing
sufficientelectrical and thermal energy to ignite flammable gases or vapors under “normal” operation and
environmental conditions are safe to use in Class I, Division 2 locations.
Class I, Zone 0, Groups IIC, fIB & IIA
A Class I, Zone 0 location is a location (I) in which ignitible concentrations of flammable gases or vapors
are present continuously; or (2) in which ignitible concentrations of flammable gases or vapors are present
for long periods of time. Electrical apparatus for use in such locations may be type of protection “ia”
IntrinsicSafety.
Class I, Zone 1, Groups IIC, 1IB & IIA
A Class I, Zone 1 location is a location (I) in which ignitible concentrations of flammable gases or vapors
are likely to exist under normal operating conditions; or (2) in which ignitibleconcentrations of flammable
gases or vapors may exist frequently because of repair or maintenance operations or because of leakage; or
(3) in which equipment is operated or processes are carried on, of such a nature that equipment breakdown
or faulty operationscould result in the release of ignitible concentrations of flammable gases or vapors and
also cause simultaneous failure of electrical equipment in a mode to cause the electrical equipment to
become a source of ignition; or (4) that is adjacent to a Class I, Zone 0 location from which ignitible
concentrations of vapors could be communicated,unless communication is prevented by adequate positive -
pressure ventilation from a source of clean air and effective safeguards against ventilation failure are
provided. Electrical apparatus for use in such locations may be type of protection “d” Flameproof, “e”
Increased Safety, “ib” Intrinsic Safety, “m” Encapsulation, “0” Oil Immersion, “p” Pressurized or “q”
Pow der-Fil led.
Note: Electrical apparatus Approved for use in Class I, Zone 0 locutions shall be permitted in Class I, Zone
1 locations of the same gas group and temperature class.
Class I, Zone 2, Groups IIC, IIB & tlA
A Class I, Zone 2 location is a lmation (I) in which ignitibleconcentrations of flammable gases or vapors
are not likely to occur in normal operation and if they do occur will exist only for a short period; or (2) in
which volatile
flammable liquids, flammable gases or flammable vapors are handled, processed or used, but
in which the liquids, gases or vapors normally are confined within closed containers or closed systems from
which they can escape only as a result of accidental rupture or breakdown of the containers or system or as
the result of the abnormal operation of the equipment with which the liquids or gases are handled, processed
or used; or (3) in which ignitible concentrations of flammable gases or vapors normally are prevented by
positive mechanical ventilation, but which may become hazardous as the result of failure or abnormal
operation of the ventilation equipment; or (4) that is adjacent to a Class I, Zone 1 location, from which
ignitible concentrations of flammable gases or vapors could be communicated. unless such communication
is prevented
by adequate positive - pressure ventilation from a source of clean air and effective safeguards
against ventilation failure are provided. Electrical apparatus for use in such locations may be type of
protection “nA” Non-Sparking, “nC” Protected contacts, “nR” Restricted Breathing or “p” Pressurized.
Note: Electrical apparatus Approved for use in Class I, Zone 0 or Zone I locations shall be permitted in
Class I, Zone 2 locations of rhe same gas gruup and temperature class.
Class II, Divisions 1 & 2, Groups E, F & G
Electrical equipment suitable for use in Class 11 locations, as defined by the National Electrical Code@, is
constructed to exclude ignitable amounts of dust from the equipment enclosure. Approved equipment of this
type has also been evaluated to assure that hazardous sudace temperatures do not exist. Equipment listed as
3

suitable for Class II locations is “dust - ignitionproof” or otherwise designed to meet the intent of Articles
500 and 502 of the National Electrical Code@.
Class 111, Divisions 1 & 2
Class HI lccations are those which are hazardous because of the presence of ignitable fibers or flyings.
Equipment listed for installation in Class ID locations is designed to exclude the fibers and flyings from the
equipmentenclosure
and to function without developingexcessive surface temperatures.
D E F I N I T I O N S
Associated Apparatus - Apparatus,including Category ia and ib apparatus, in which the circuits are not
necessarily intrinsically safe themselves,but which affect the energy in the intrinsically safe circuits and are
relied upon to maintainintrinsic safety. Associated electrical apparatus may be either:
a) Electrical apparatus that has an alternativetype of protection for use in the appropriatepotentialiy
flammable atmosphere.; or
b) Electrical apparatus not so protected and thus not suitable for use in a potentially flammable atmosphere.
ContruZ Drawing - A drawing or other document provided by the manufacturer of the intrinsically safe or
associated apparatus that details the allowed interconnections to other circuits or apparatus. If the intrinsi -
cally safe ox associated apparatus is investigated under the entity concept. the control drawing will indude
the applicableelectrical parameters to permit selection of apparatus for interconnection.
Entity Evaludion Concept - A method used to determineacceptablecombinations of intrinsically safe
apparatus and connected associated apparatus that have not been investigated in such combination.
Harardous (Clrassiflcation) Lmation: A location in which fire or explosion hazards may exist due to an
explosiveatmosphere of flammable gases or vapors, flammable liquids. combustible dust. or easily ignitable
fibers or flyings.
Intrinsically Safe Circuit - A circuit in which any spark or thermal effect, produced either normally or in
specified fault conditions, is incapable, under the test conditions prescribed in this standard, of causing
ignition
of a mixture of flammable or combustible material in air in the mixture’s most easily ignited
concentration.
Nonincendive Circuit - A circuit, other than field wiring, in which any arc or thermal effect produced under
intended operatingconditions
of the equipment is not capable,under specifiedtest conditions, of igniting the
flammable gas - air, vapor - air, or dust - air mixture.
._
E NTITY E VALUATION C ONCEPT
The Model 35015 and 3551s indicators have been approved under the entity evaluation concept, which
allows the interconnection of intrinsically safe devices in hazardous areas even though these devices were
not specifically approved in this combination.This means that not only can the instrument be used with GSE
FM Approved Ioadcells and peripherals,but they can also be used with any manufacturer’s FM Approved
loadcellsand peripherals provided that they have matching entityratings and are approved for the
appropriate
hazardous area.
The criteria for interconnection is that the maximum input voltage and current, which intrinsically safe
apparatus can receive and remain intrinsically safe, consideringfaults, must be equal to or greaterthan the
maximum output voltage and current levels which can be delivered by the associated apparatus, considering
faults and applicablefactors. In addition, the maximum internal capacitance and inductance of the
intrinsically safe apparatus, including ihterconnectingwiring, must be less than or equal to the maximum
allowedcapacitance and inductancewhich can be safely connected to the associated apparatus. If these
4

criteria are met, then the combination may be connected and remain intrinsically safe. If the specific
capacitance and inductance ratings of the wiring are unknown, use a capacitance of 6OpF/ft and an
inductance of 0.2uWft.
When connecting a Model 350IS or 3551s to another intrinsically safe device, the entity ratings must be
compared and satisfy the conditions shown in the following table.
voc
ISC
Ca
1 . 35OIS3551S Indlcatoc IC Condition 1,. Intrinsicall$f$afq@evice \I
<= Vmax or Ui
<= Imax or Ti
>= Ci + cable caDacitance
La
>= I Li + cable inductance
E N T I T Y R A T I N G D E F I N ITI O N s
Pn I <=
Voc or Uo - the maximum open circuit voltage that may be present at the specified terminals
Isc or Io - the mimum short circuit current that may be present at the specified terminals
Ca
or Co - the maximum capacitance that may be connected to the specified terminals
La or Lo - the maximum inductance that may be connected to the specified terminals
Po - the maximumoutput power from the specified terminals
LolRo - inductance to resistance ratio that indicates the maximum inductance per ohm of resistance that can be
connected
to the specified terminals
Vmax or Ui - the maximum voltage that may be connected to the specified terminals
Imax or Ii - the maximum current that may be connected to the specified terminals
Ci - the capacitance present at the specified terminals
Li - the inductance present at the specified terminals
Pi - the maximum power that may be supplied to the specified terminals
LilRi - the maximum internal inductance to resistance ratio at the specified terminals
Pi
E N T I T Y R A T I N G s
5

Approvals
The Model 3501s and 3551s indicators and options have been approved for the following hazardous areas:
5V Excitation)
!OH35MK3010
!OH350-04)020
!OH355-000IO
30H355-00030
vi3501StM355IS
8V Excitation)
!OH350-00011
!OH350-00030
!OH35 5-00020
30H350-0002 1
!OH350-0003 I
!OH355-00011
lOH355-0002 1
lOH355-00031
3attery Power Supply Option
14B3502-201CO
4C-DC Power Supply Option
:singleoutput used)
Z4H3501-200CO
4C-DC Power Supply Option
:dual outputs used)
24H350 1 -2OOCO
Intrinsically Safe for Class I - BI, Division 1 , Group A - G
Intrinsically Safe for Class I, Zone 0, Group LIC-IIA
Nonincendive for Class I, Division 2, Group A - D
Nonincendive for Class I, Zone 2, Group IIC - IIA
Suitable
for use in Class II-111, Division 2,Group F - G
Temperature ccde T4 (Ta=50°C)
Intrinsically Safe for Class I-III, Division 1, Group C - G
Intrinsically Safe for Class I, Zone 0. Group ILB-ILA
Nonincendive for Class I, Division 2, Group A - D
Nonincendive for Class I, Zone 2, Group IlC-II.4
Suitable for use in Class 11-III, Division 2,Group F - G
Temperature code T4 (Ta=50DC)
Intrinsically Safe for Class I-LII, Division 1, Group A - G
IntrinsicaIIy Safe for Class I, Zone 0, Group XXC-IL4
Nonincendive for Class I, Division 2, Group A - D
Nonincendive for Class I, Zone 2, Group IIC - IIA
Suitable for use in Class D-III, Division 2,Group F - G
Temperature code T2D (Ta=SO"C)
Associated Apparatus with Intrinsically Safe Connections for
Class T-m, Division 1, Group A - G
Encapsulated for use in Class I, Zone I, AEx m lib] Group IIC - IIA
Nonincendive for Class I, Division 2, Group A - D
Nonincendive for Class I, Zone 2, Group UC-IIA
Suitable for use in Class II-HI, Division 2,Group F - G
Suitable for use in Class 1-111, Division I ,Group A - G*
Temperature code T4 (Ta=SO"C)
* When installed in a Class 1-111, Division I, Group A - G location,
conduit must
be used on the AC supply cable.
Assdated Apparatus with Intrinsically Safe Connections for
Class I-III, Division 1, Group C - G *
Encapsulated for use in Class I. Zone 0, Group IIB-IIA *
Nonincendive for Class I, Division 2, Group C - D
Nonincendive for Class I, Zone 2, Group 1B-IIA
Suitable for use in Class II-111, Division 2,Group F - G
Suitable for use in Class 1-111, Division 1,Group C-G*
Temperature code T4 (Ta=50°C)
* When installed in a Class 1-111, Division €, Group C - G lmation,
conduit must be used on the AC supply cable.

r
Standard Functions
/-
r -
The Model 350 and 355 IS indude built - in functions that you can enable through the Indicator Setup. Refer
to Chapter 3: Configuration for information on the setup and operation of the foIlowing standard functions:
Check - weighing
Parts counting
Remote key operation
Custom data'transmissions
Selectable, built - in data transmission formats
Standard Features
a
Three display choices (LCD, LCD backlit and LED).
LED model uses low current high efficiency display digits and annunciators to save battery life
and adds brightness to dimly lit areas.
Real time clock with battery backed time and date.
Two RS - 232 communication ports.
Model 355 has a numeric keypad
Stainless Steel washdown enclosure
Up to (4) 350 ohm loadcells
Easily update firmware via the RS - 232 port
Specifications
PERFORMANCE
Full ScaIe (F.S.)
ResoIution
AID Conversion
Zero Track
Operating Temperature
Units of Measure
ELECTRICAL
Power Requirement
Excitation Voltage
Excitation Current
F.S. Signal Input
Signal Connection
Selectable 0 to 999,999
20 - bit AID converter, 100,ooW displayed, l,MH),OOOd internal
60 HZ
0 - 100% of Full Scale
- 10°C to +40T
Ib, kg, 02, g, Ib-02
Input (J14): 5.1V - 12V DC
5WXor8VDC
57 mA max. (5V EXC) or 91mA max. (8V EXC) / (4) 350a bridge
0.1 mVN min - 10 mVNmax
4 lead or 6 lead with sense
PROCESS CONTROL
Remote Input
EN CLOSURE
Shipping Weight
Material
Mounting
2 momentary contact closure (1OOms minimum)
TARE, PRINT, ZERO
7 Ib (3 kg)
304 Stainles Steel, NEMA 4xflP66 Design
2 swivel brackets are available for battery or AC operation
7
r.

DISPLAY
LED
LCD
COMMUNICATION
KEYPAD
350 IS
355 IS
RS - 232
6 - digit weight display, 0.8' (22mm) height
12 LED annunciators for operational status
&digit weight display, 1.0' (25.4") height
12 LCD anhunciatorsfor operational status. Built in LCD status bargraph. Also available
with backlight
(2) RS232 communication ports, 1 with hardware handshaking
.-Five key, durable elastomeric (rubber)
22 key, full numeric, durableelastomeric (rubber)
SAFE AREA OPTIONS
Battery Charger
HAZARDOUS AREA OPTIONS
Battery
Charges completely discharged battery option in 3.5 hours
Universal AC input 85-265VAC 50160 Hz
Stainless steel enclosure, mounts to indicator swivel bracket. 200 hours continuous use with
LCD display 3- 1 loadcell, and 100 hours continuous use with LED display + 1 loadcell.
Charge time 3.5 hours with battery charger option.
AC to DC Power Supply Stainless steel enclosure. Powers up to 2 indicators (2 indicators can only be powered in
Groups C - G hazardous area). Wall mount. Universal AC input 90-250VAC, 50/60 Hz.
Power Extension Cable Allows the AC - DC power supply to be mounted away from the indicator. 25 feet and 50
feet lengths available.
..
Display
The Model 350 and 355 intrinsically safe indicators are available with a six digit, 7 - segment red LED
display, six digit, 7 - segment black LCD display or 7 - segment backlit LCD display. The Model 350 and 355
IS will display alphanumeric data, but due to the nature of 7 - segment LEDs/LCD and the limitation of six
digits, some information is abbreviated.
All segments and annunciators are illuminated for a brief display test upon power up. The current gross
weight is then displayed in default units.
LED D I S P L A Y
The LED display is a six digit, 7 - segment bright red LED screen with 12 annunciators to show weight
and status information. The SP1, SP2, and SP3 annunciators are red, green, and yellow. Also there is
an annunciator for a third unit under kg. Place the third unit label above the third annunciator (the third
unit is available on both the LED and LCD displays). See page 28 for third unit setup.
Figure 1: Model 3501355 IS LED Display
a

LCD D I S P L A Y
The LCD display is a six digit,7-segment black LCD screen with 12 annunciators and a bargraph to show the
operational status.
Figure 2: Model 350/355 IS LCD Display
<
A N N U N C I A T O R S
Annunciators provide mode and status information.When ilIuminated, they indicate the folIowing
conditions:
SPl
SP2
SP3
+Ot
MOTION
LO
GROSS
NET
QTY
kg
Ib
Ox, lb 02, g
350 IS KEYPAD
Setpoint #1 activated (relay 1 closed).
Setpoint #2 activated (relay 2 closed).
Setpoint #3 activated (relay 3 closed).
Displayed
weight is at center-of-zero (5 '/4 display graduation).
Scale is in motion. Motion inhibited transmits and motion inhibited setpoint
activationwill
be delayed until motion ceases.
Lights when the battery reaches a low tolerance.
Displayed value represents the current gross weight.
Displayed value represents the current net weight.
Displayed value represents the current piece quantity(Count).
The displayed value is represented in pounds.
The displayedvalue is represented in kilograms.
The displayed value is represented in either ounces, pound ounces or grams.
The Model 350 IS offers a sealed 5 - button elastomer keypad is used for operator input. Each key is assigned
two distinctfunctions. Various key combinations are also used. Each key has secondary functions;allowing
an operator to enter target values, perform piece samples, access setup parameters, etc.
I
I
Figure 3: Model 350 IS Keypad
9

S E C O N D A R Y F U N C T I O N S
. -..
The Model 350 IS keypad performs different functions in the Weigh Mode, the Setup Mode, and the
Calibration Mode. Secondary functions for each key allow you to perform additional tasks.
Wmn MODE Count Mode
Setup Mde
function andlor clears an
entry in progress. Hold this
key on power - up to turn on
the display regardless of
Performs a quantity zero
function andor clears an entry
in
progress.
Exits the Setup Mode and/or
answers ';NO to query prompts
andor clears an entry in progress.
P420.
Performs a print function
andor 'scrolls' through
digits during setpointentry.
Toggles betwcen 'Ib' and
'kg' andor advances cursor
to next entrv aosition.
Performs a print function
and/or 'scrolls' throygh digits
during setpoint entry.
Toggles through standard
sample sizes andor begins a
new samde entrv.
data 'Scrolls' entry. through digits during
Advances cursor to next entry
position andor cycles prompts.
No function.
I
Access Setup Mode.
1 Access Setup Mode.
I
Perform an auto-tare
function (if enabIed) andlor
accepts an entry in progmss.
No function.
Accepts an entry in progress
andlor 'scrolls' through
parameter sub-sct selections
andlor answers 'YES' to query
prompts.
Performs an auto - tare function
and requests a piece sample
andlor accepts an entry in
P"S.
+
Return to the previous setup
oarameter. I
ToggIes between display
modw andlor restores power
to the indicator(if auto -
shutoff enabled).
I I'
AbsoIute clear - clears an
1
Toggles between display modes
andor restores power to the
enabled).
Advances to the next setup
indicator (if auto - shutoff pXNlIetf3.
1 No function.
entry in progress and/or
clears the value of a
parameter.
Backspace
- erases thc right -
most digit during data entry.
Clears any entry in progress.
I
Backspace - erases the right -
most digit duringsample entry.
Backspace - erases right-most
digit duringdataentry.
Turn off indicator by holding
key for approximately 1
second.
Turn off indicator by holding
key for approximately 1
second.
Turn off indicator by hoIding key
for approximately 1 second.
Reverse character scroll
duringdata entry.
10
. .-
Reverse character scroll during
sample entry. data entry.
Reverse character scroll during

355 Keypad
The Model 355 IS keypad performs different functions in the Weigh Mode, the Setup Mode, and the
Calibration Mode. The number keys make entering a tare value or average piece weight easier.
Key Prw
- -
W E I G H M O D E
Performs a gross zero function
andor clears an entry in progress.
Performs a print function andlor
‘scrolls’ through digits during
setpoint entry.
Toggles between ’Ib’ and ‘kg’
andor advances cursor to next
entry position.
Performs an auto - tare function (if
enabled)
andor accepts an entry
in
progress. If the tare weight is
known, key in the value and press
El.
~~
Toggles between display modes
andor restores power to the
indicator
(if auto - shutoff
enabled).
Performs
a sample. If a number is
keyed in kfore hand, it will be
used as the sample size. Accepts
an entry.
Clears an entry in progress. Hold
this key on power - up to turn on
the display regardla of P420.
If setpoints are enabled, causes a
process to start or resume. See
parameter 5003 on page 3 1 for
details on enabling the
function.
Count Mode
Performs a quantity zero function
andlor clears an entry in progress.
Pcrforms a print function andlor
‘scrolls’ through digits during
setpoint entry.
Toggles through standard sample
sizes and/or begins a new sample
entry.
Performs an auto - tare function
andlor accepts an entry in
progress.
Toggles between display modes
andor restores power to the
indicator (if auto - shutoff
enabled).
Performs a sample. IC a number is
keyd in before hand, it will be
used as the sample size.
Performs a quantity zero function
andlor clears an entry in progress.
If setpoints are enablad. causes I
process to start or resume. See
parameter 5003 on page 31 for
details on enabling the
function.
Setup Mode
Exits the Setup Mode
andor answers “NO to
query prompts and/or
clears an entry in progress.
‘Scrolls’through digits
during data entry.
Advances
cursor to next
entry position and/or
cycles prompts.
Accepts an entry in
progress andlor ‘scrotls’
through parameter sub-set
selections andor answers
‘YES’ to query prompts.
Advances to the next setup
parameter.
Accepts an entry.
Exits the Setup Mode
andlor answers “NO to
query prompts andlor
clears an entry in progress.
No function

Key Press W E I G H MODE Count Mdde Setup Mode
If setpoints are enabled, causes a
pause. Press @I again to abort
the pmss. Sce parameter 5002
on page 3 1 for details on enabling
the stop function.
Wake up the indicator if in sleep
mode. Turn on the indicator if
power is off. Access the target
entry mode. See parameter, 5000
on page 3 I for details on enabling
ihe target function.
If setpoints are enabIed, causes a
pause. Press @ again to abort
the process. Set parameter 5002
on page 31 for details on enabling
the stop function.
Wake up the indicator if in sleep
mode. Tum on the indicator if
power is off. Access the target
entry mode. See parameter So00
on page 3 1 for details on enabling
the target function.
No function
@ No function
Hold down the @ key while power is applied. If the keypad was enabled, the display will show
‘‘EntHld’. To reestablish the keypad as a 350 IS, hold down the @ key of the 350 IS keypad
while power is applied by pressing the @ key.
1 urn or1 mawator PY notaing Key
for approximaely 1 second.
tum ott inatcator ay no
for approximatef-. ’ -_-.
-e
Weigh Mode Functions
The Mode1 350 and 355 IS keypads have five primary Weigh Mode functions:
El Performs a gross zero and selects the gross mode.
Initiates data transmission out the communication port.
Toggles the units of measure between lb, kg, g, lb 02, 02.
Tares any displayed weight and selects the net mode.
pg
(FJ
t-.l
Toggles the display between GROSS, NET, QUANTITY and setpoint TARGETS (if
enabled).
12

, -
A
CHAPTER 2; INSTALLATION
System Diagrams
The control drawing details the allowed interconnections between the M35OISM3551S indicators, their
options, and other possible devices. The drawing also shows the entity ratings of the indicators to allow
easy selection of other devices approved under the entity concept. See the system diagrams included with the
350 IS or 355 IS indicator.
Outline Drawings
The outline drawings provide measurements neededfor indicator installation.
I
I
+
Figure 5: Model 350 with Standard Swivel Bracket
, CEM r
, _-
[*',G) -
-
Figure 6: Model 355 IS with Standard Swivel Bracket
13
