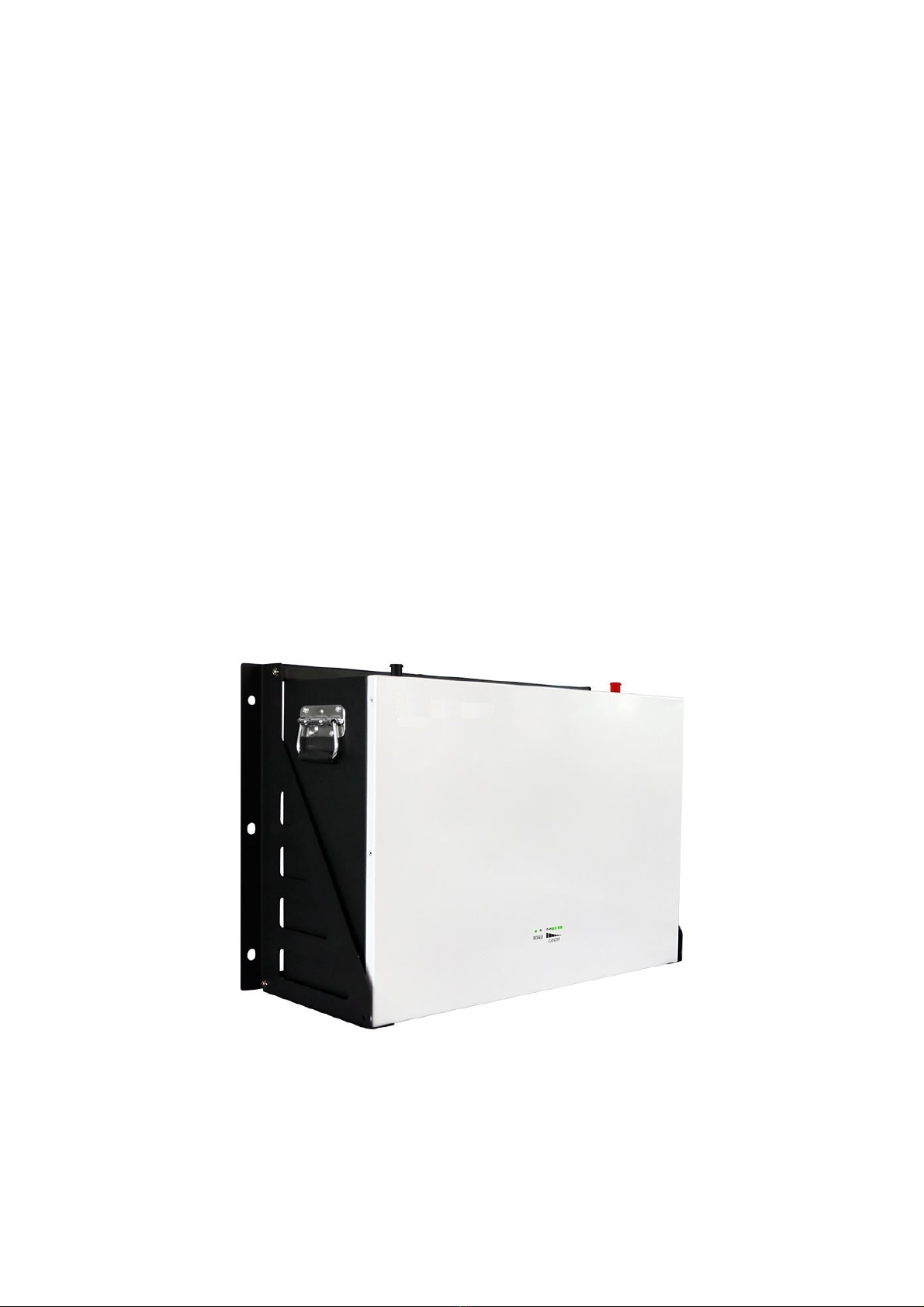

GSL TECHNOLOGY 24100U User manual

POWERBANKS STORAGE SYSTEM
User Manual
Version: 2.0
24100U (25.6V 100AH-2.56KwH)
24200U (25.6V 200AH-5.12Kwh)
24300U (25.6V 300AH-7.68Kwh)
For On / Off Hybrid Solar Storage System

- 1 -
Contents
1. Safety Precautions ............................................................................................................................................ - 2 -
1.1. Before Connecting ........................................................................................................................................................ - 2 -
1.2. During operation ........................................................................................................................................................... - 2 -
2. Battery Specifications ...................................................................................................................................... - 3 -
3. Introduction to the battery ............................................................................................................................... - 4 -
3.1. Key Features ................................................................................................................................................................. - 4 -
3.2. Interface Introduction .................................................................................................................................................... - 4 -
3.3. SOC Indicator & Status Indicator Guides ..................................................................................................................... - 5 -
3.4. Connectors .................................................................................................................................................................... - 6 -
3.5. Wake Up button ............................................................................................................................................................ - 6 -
4. Safe handling guide .......................................................................................................................................... - 7 -
4.1. System Diagram ........................................................................................................................................................... - 7 -
4.2. Tools ............................................................................................................................................................................. - 7 -
4.3. Safety Gear ................................................................................................................................................................... - 7 -
5. Installation .......................................................................................................................................................... - 8 -
5.1. Inventory of items .......................................................................................................................................................... - 8 -
5.2. Installation Location ...................................................................................................................................................... - 9 -
5.2.1. Minimum clearances .............................................................................................................................................. - 9 -
5.3. Installing the Battery Pack .......................................................................................................................................... - 10 -
5.3.1. Mounting to a wall ................................................................................................................................................ - 10 -
5.4. Parallel use of battery ................................................................................................................................................. - 10 -
6. Product Warranty ............................................................................................................................................ - 13 -
6.1. ..................................................................................................................................................................................... - 13 -
6.2. ..................................................................................................................................................................................... - 13 -
6.3. ..................................................................................................................................................................................... - 13 -
6.4. Factory Warranty Scope ............................................................................................................................................. - 13 -
6.5. Warranty conditions .................................................................................................................................................... - 13 -

- 2 -
1.Safety Precautions
It is very important and necessary to read the user manual carefully before installing or using the
battery. Failure to follow any of the instructions or warnings in this document can result in
electrical shock, serious injury, death, or may damage the battery and the whole system.
If the battery is stored for a prolonged time, it is requirement that they are charged every three to
six months, and the SOC should be no less than 80%.
The battery needs to be recharged within 12 hours, after fully discharging.
Do not expose cable outside.
All battery terminals must be disconnected before maintenance.
Do not use cleaning solvents to clean the battery.
Do not expose the battery to flammable or harsh chemicals or vapors.
Do not paint any part of the battery, include any internal or external components.
Do not connect battery with PV solar wiring directly.
Any foreign object is prohibited to be inserted into any part of the battery.
Any warranty claims are excluded for direct or indirect damage due to items above.
1.1.Before Connecting
After unpacking, please check the battery and packing list first, if the battery is damaged or spare
parts are missing, please contact the dealer.
Before installation, be sure to cut off the grid power and make sure the battery is in the turned-off
mode;
Wiring must be correct, do not mix-connect the positive and negative cables, and ensure no short
circuit with the external device;
It is prohibited to connect the battery with AC power directly;
The embedded BMS in the battery is designed for 48VDC, please DO NOT connect battery
in series;
It is prohibited to connect the battery with different type of battery;
Please ensure the electrical parameters of battery system are compatible to inverter;
Keep the battery away from fire or water.
1.2.During operation
If the battery system needs to be moved or repaired, the power must be cut off first and the
battery is completely shutdown;
It is prohibited to connect the battery with different type of battery;
It is prohibited to put the batteries working with faulty or incompatible inverter;
In case of fire, only dry powder fire extinguisher can be used, liquid fire extinguishers are
prohibited;
Please do not open, repair or disassemble the battery. We do not undertake any consequences
or related responsibility due to violation of safety operation or violating of design, production and
equipment safety standards.

- 3 -
2.Battery Specifications
Battery Specifications
Model No 24100U 24200U 24300U
Nominal Parameters
Voltage 25.6V 25.6V 25.6V
Capacity 100Ah 200Ah 300Ah
Energy 2.56KwH 5.12KwH 7.68KwH
Dimensions (L x W x H) 610 x440 x215mm 610 x440 x215mm 610 x440 x215mm
Weight 25.50kg 72.5kg 68.5kg
Basic Parameters
Life time(25°C) 20 years
Life cycles(80% DOD, 25°C) 6500 Cycles
Storage time / temperature 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C
Operation temperature -20°C to 60°C @60+/-25% Relative Humidity
Storage temperature 0°C to 45°C @60+/-25% Relative Humidity
Lithium Battery Standard UL1741, CE, ROHS, IEC62619,IEC62133, UN38.3,MSDS
Enclosure protection rating IP21
Electrical Parameters
Operation voltage 25.6 Vdc 25.6 Vdc 25.6 Vdc
Max. charging voltage 29.2Vdc 29.2Vdc 29.2Vdc
Cut-off Discharge Voltage 20 Vdc 20 Vdc 20 Vdc
Max. charging and discharging
current 100A(2560W) 200A(5120W) 200A(5120W)

- 4 -
3.Introduction to the battery
3.1.Key Features
LiFePO4 composition – provides exceptional safety and longevity
High safety and reliability
6,000cycles/ 20 years’ service life
Consistent performance over wide temperature range
Wall-mounted, convenient installation
Integrated state-of-the-art BMS to manage and monitor battery information including voltage,
current and temperature as well as balance cell charging/discharging rates
 10 years’ warranty
3.2.Interface Introduction
This section details the interface functions of front and back panel.
Front interface:
No Description Silk-screen Remark
1 Anderson connector + Output terminal
2 Anderson connector - Output terminal
3 Dial switch ADS Set the address
4 CAN CAN Inverter communication port
5 RS485 Port RS485 Parallel communication
6 Port Reset button RST For reset the batter
7 Switch OFF/ON Normal close
8 LED CAPACITY Capacity indicator

- 5 -
9 LED ALM Alarm indicator
10 LED RUN Operation indicator
11 Bracket
12 Handle

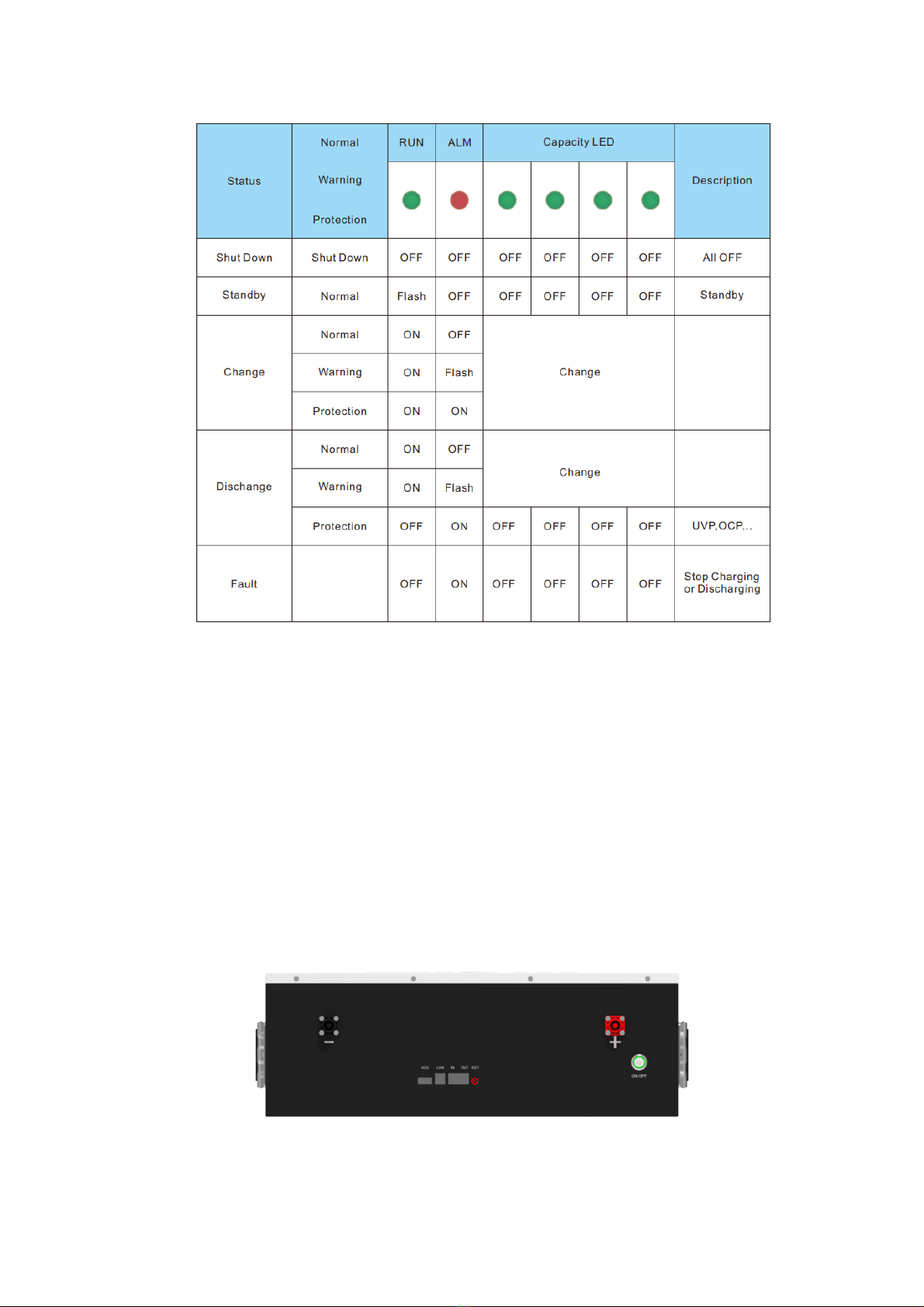

3.3.SOC Indicator & Status Indicator Guides
Chart 1: Battery Status
Chart 2: Battery Capacity
Chart 3: Battery status

- 6 -
3.4.Connectors
Charge / Discharge connectors: to connect the positive pole (+) and negative pole (-) from the
battery to the inverter via DC isolator.
Canbus Active communication portal between battery and inverter.
USB To RS485: to get dynamic monitoring data of the battery from upper computer.
Address: Reserved Address portal for multiple parallel connections.
3.5.Wake Up button
Battery On: When battery is shut down, press this RST button for 6 seconds. It is activated
when the LED lights flicker from RUN light to the lowest capacity indicator.
Battery off: When battery is activated, press this button for 6 seconds. It will be shut down
when the LED lights flicker from lowest capacity indicator to RUN light.

- 7 -
4.Safe handling guide

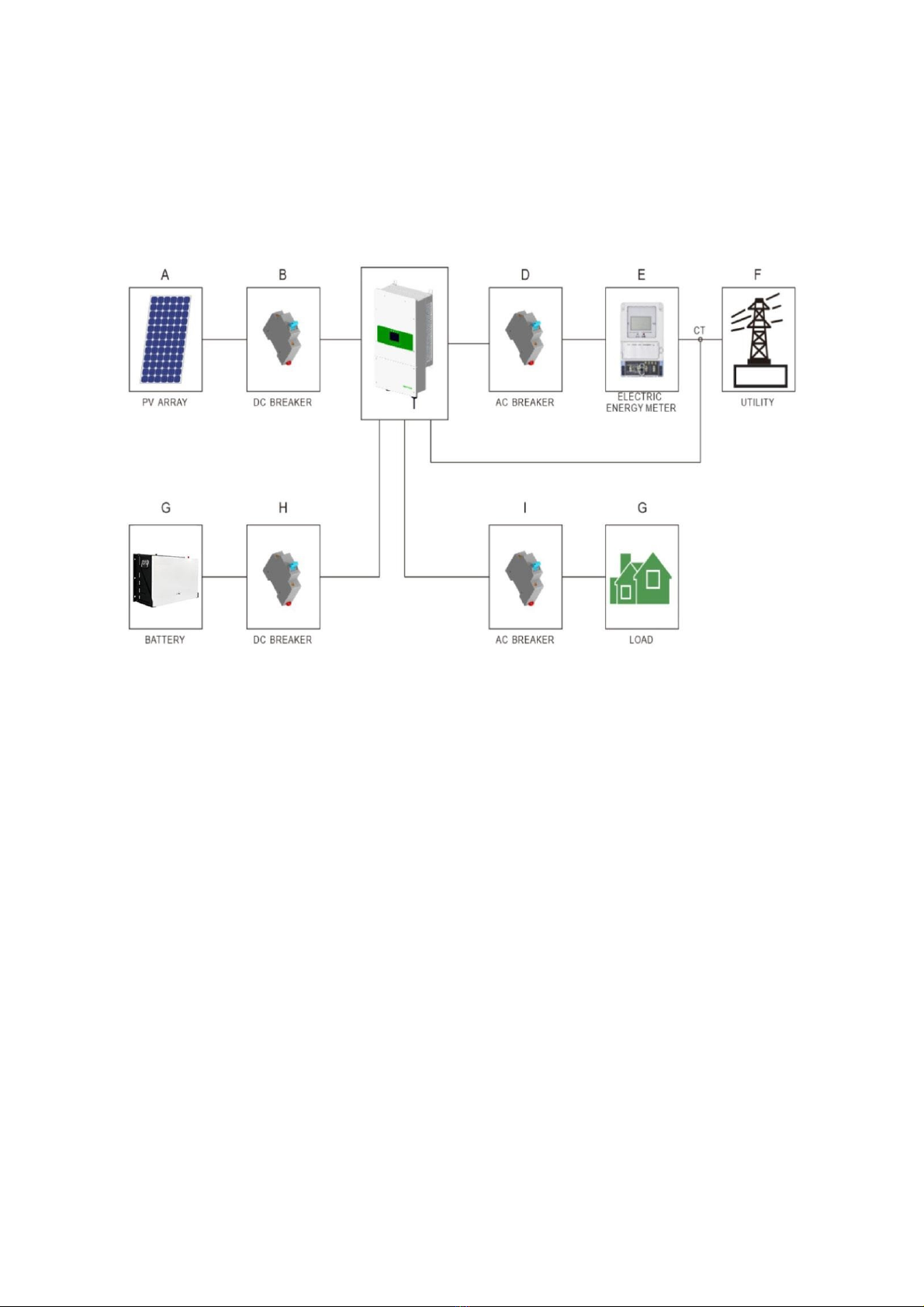

4.1.System Diagram
4.2.Tools
The following tools are required to install the battery pack:
Wire cutter
Crimping Modular Plier
Screw Driver
NOTE
Use properly insulated tools to prevent accidental electric shock or short circuits.
If insulated tools are not available, cover the entire exposed metal surfaces of the available
tools, except their tips, with electrical tape.
4.3.Safety Gear
It is recommended to wear the following safety gear when dealing with the battery pack:
Insulated gloves
Safety goggles
 Safety shoes

- 8 -
5.Installation

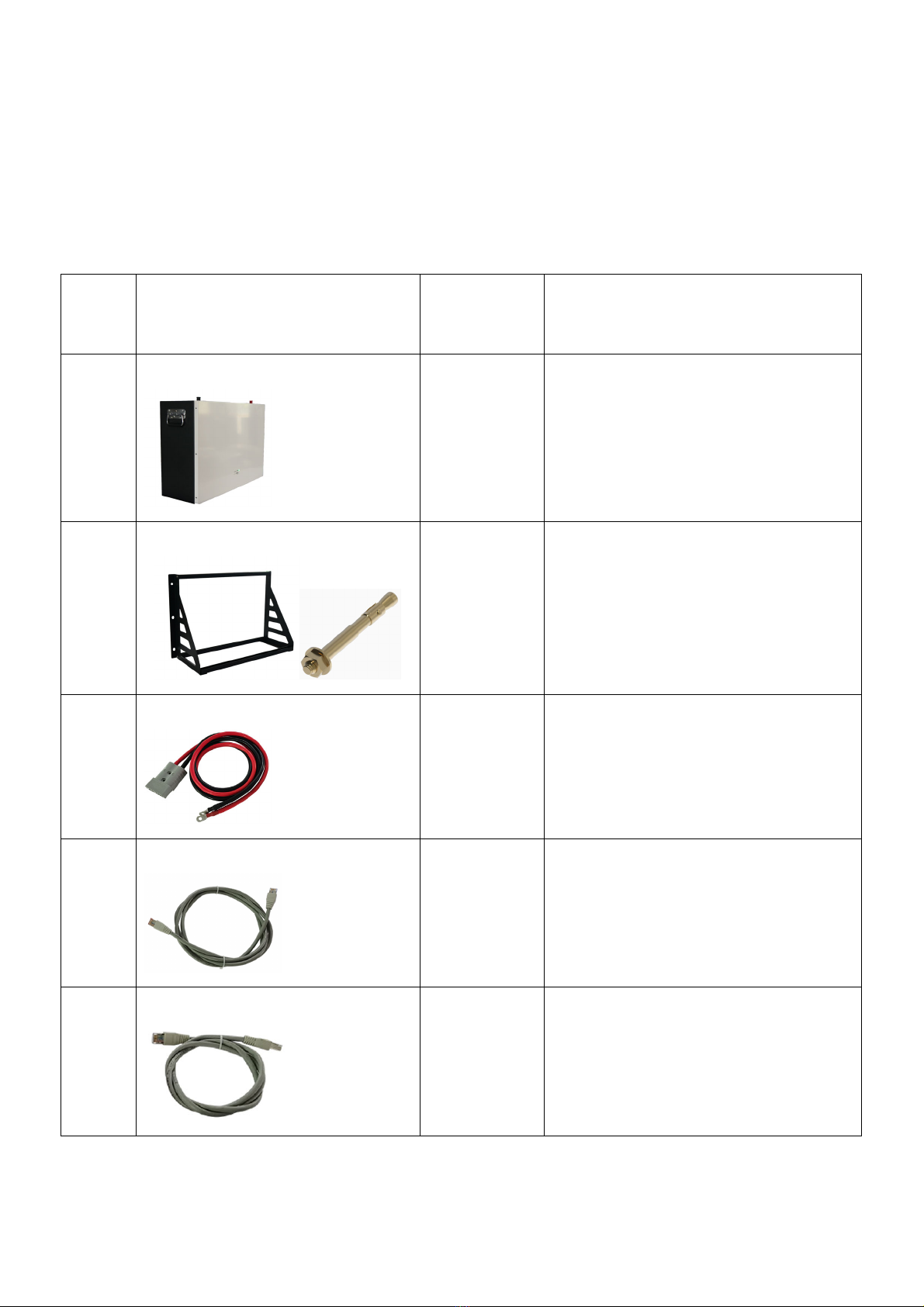

5.1.Inventory of items
Thoroughly inspect the packaging upon receipt of goods. If there is any item missing or if there is any
damage to the external packaging or to the unit itself upon unpacking, please contact us immediately.
NO. Item Quantity Specification
1 Battery Pack
1 PC 2.56KwH
5.12KwH
7.68KwH
2 Wall mounted Bracket and Screws
1 SET
3 Power Cable
1 SET 35mm2 ( 4AWG) Black , Red
L 2.0 meter
Anderson 350A Standard+ M8 Termial
4 Canbus Cable
1 PC Battery canbus port to Inverter Canbus
port
L : 1.5 meter
5 Parallel com cable
1 PC Battery com port to Battery com port for
parallel 16pcs at max
L: 1.0 meter

- 9 -
5.2.Installation Location
Make sure that the installation location meets the following conditions:
The installation site must be suitable for the size and weight of the battery.
Must be installed on a firm surface to sustain the weight of battery.
The area is water proof.
There are no flammable or explosive materials in proximity
The ambient temperature is within the range from 0°C to 45°C.
The temperature and humidity is maintained at a constant level.
There is minimal dust and dirt in the area.
Installation must be vertical or tilted backwards by maximum 15° - avoid forward or sideway
stilt.
CAUTION
If the ambient temperature is outside the operating range, the battery pack stops operating to protect
itself. The optimal temperature range for the battery pack to operate is 0°C to 45°C. Frequent exposure
to harsh temperatures may deteriorate the performance and life of the battery pack.

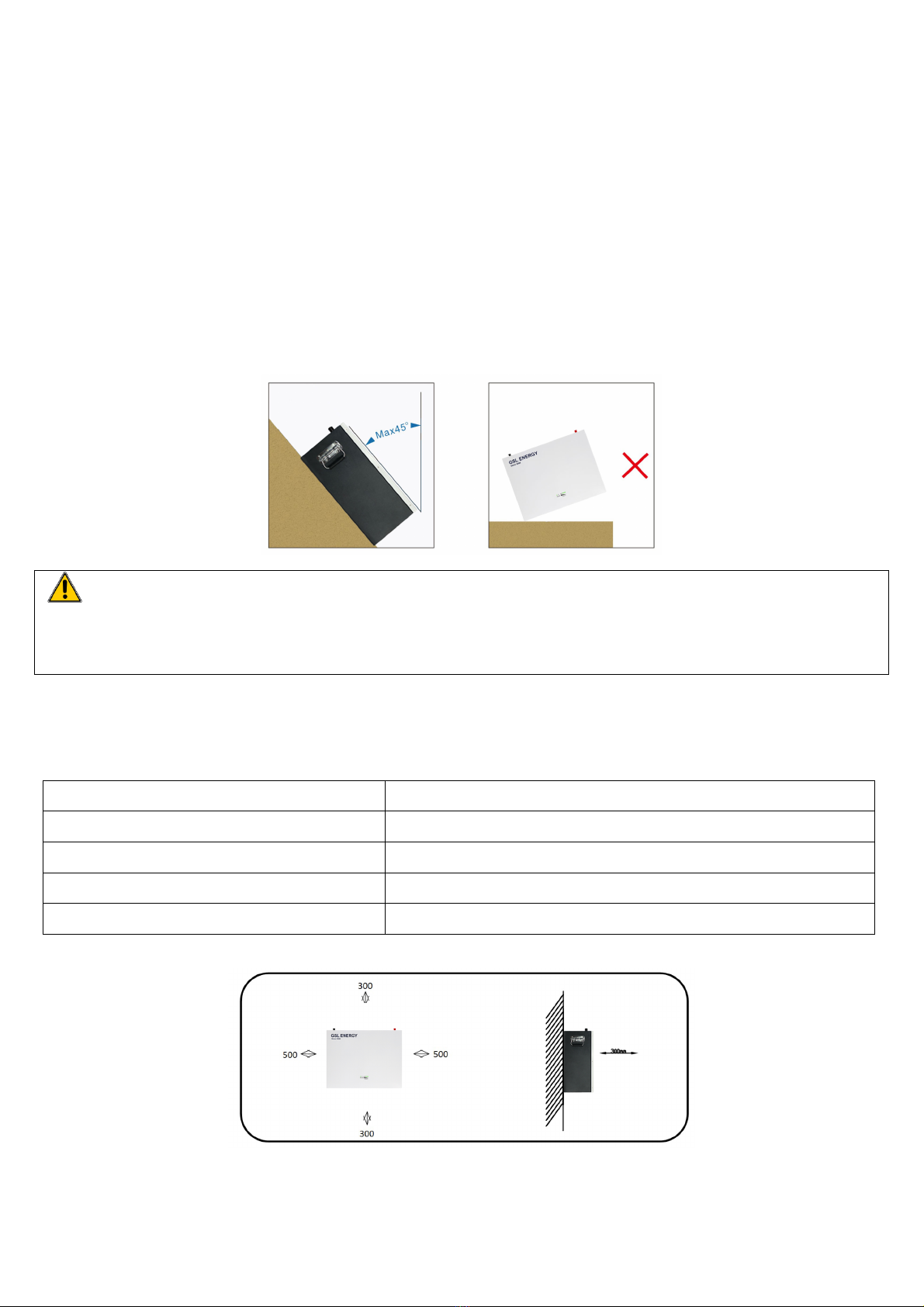

5.2.1.Minimum clearances
Observe the minimum clearances to walls, other batteries or objects as shown in the diagram and
picture below in order to guarantee sufficient heat dissipation
Direction Minimum clearance (mm)
Above 300
Below 300
Sides 500
Front 300

- 10 -
5.3.Installing the Battery Pack

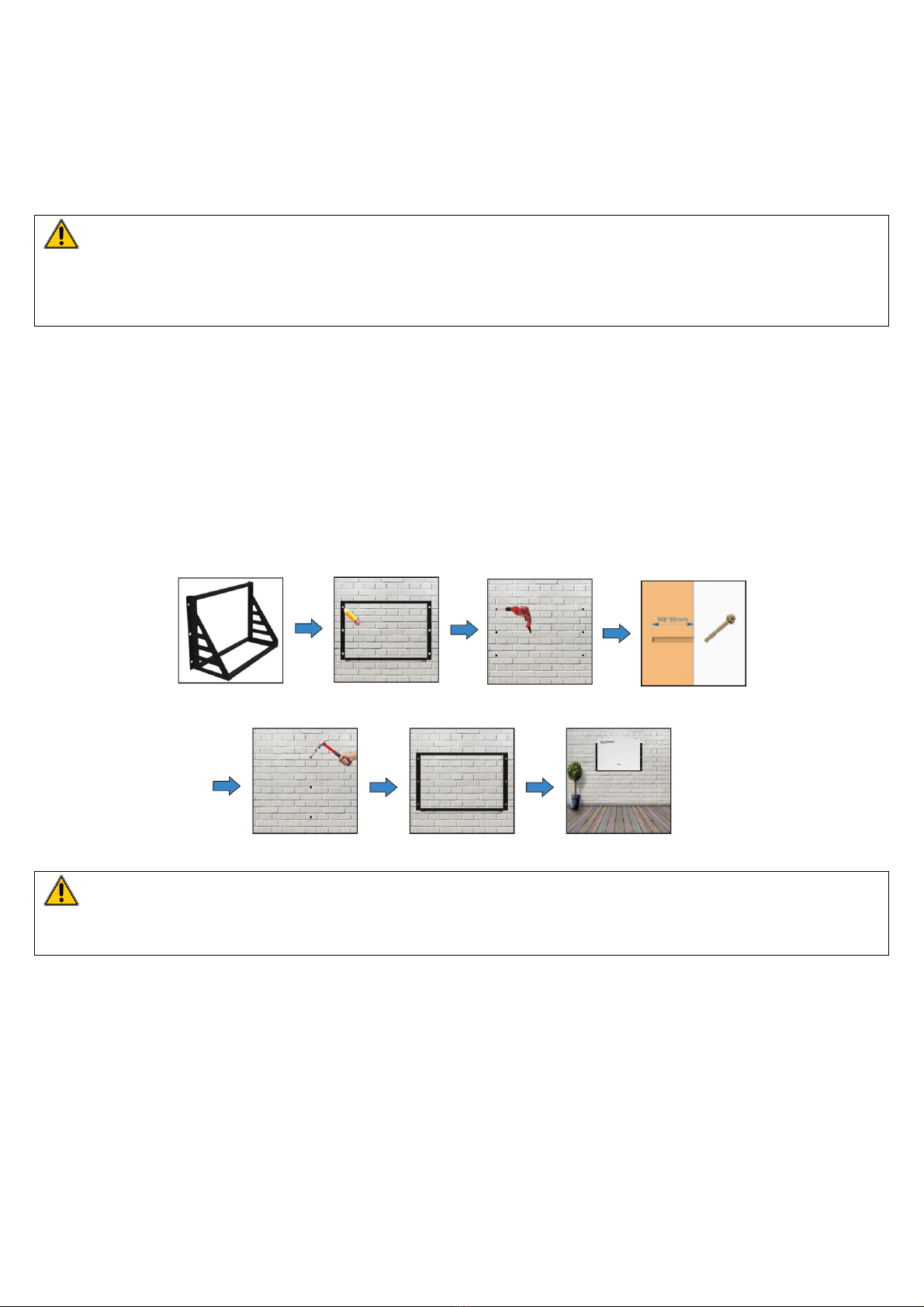

5.3.1.Mounting to a wall
WARNING
In order to avoid electrical shock or other injury, inspect existing electronic or plumbing installations
before drilling holes.
The battery is heavy, please handle with care to avoid damage to the product or injury to the installer.
1.Assemble the bracket.
2.Choose suitable firm wall with thickness greater than 80mm.
3.Use the mounting frame as a template, mark the hole position.
4.Drill 6 holes according to the hole position, it is ø8 with depth 60mm.
5.Hammer the M8 screws to the above holes, and screw the nut. Note: Do not position screws
flush to the wall - leave 10 to 20 mm exposed.
6.Fix the mounting frame to the 6 screws.
7.Raise the battery a little higher than the mounting frame whilst maintaining the balance of the
battery. Hang the battery on the frame through the match hooks.
5.4.Parallel use of battery
48vdc lifepo4 battery is a smart battery to match all off grid solar inverter ( 48VDC) types. When the
battery needs to be used in parallel, the maximum connection is 16 units, but we recommend 1-4 units
according to application. When connecting with off grid 48VDC solar inverters, it does not need to
add Canbus/RS485 communication cables with inverters, if inverter brand factory does not have
Canbus/RS485 port, just plug and play use.
WARNING
Falling equipment can cause serious or even fatal injury: never mount the inverter on the bracket unless
you are sure that the mounting frame is firmly mounted on the wall after thorough checking.

- 11 -

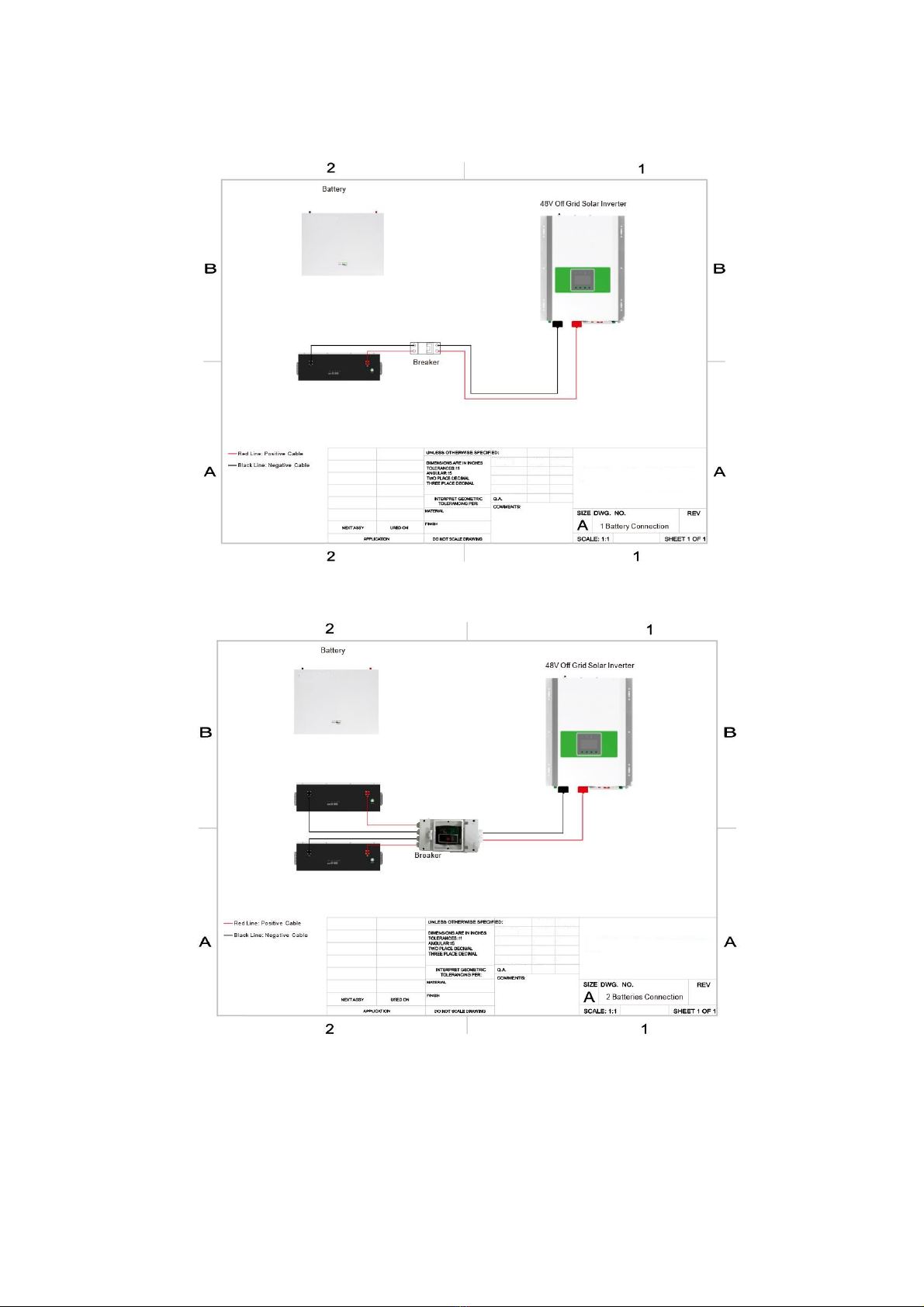

One pcs connect diagram
Two pcs connect diagram

- 12 -

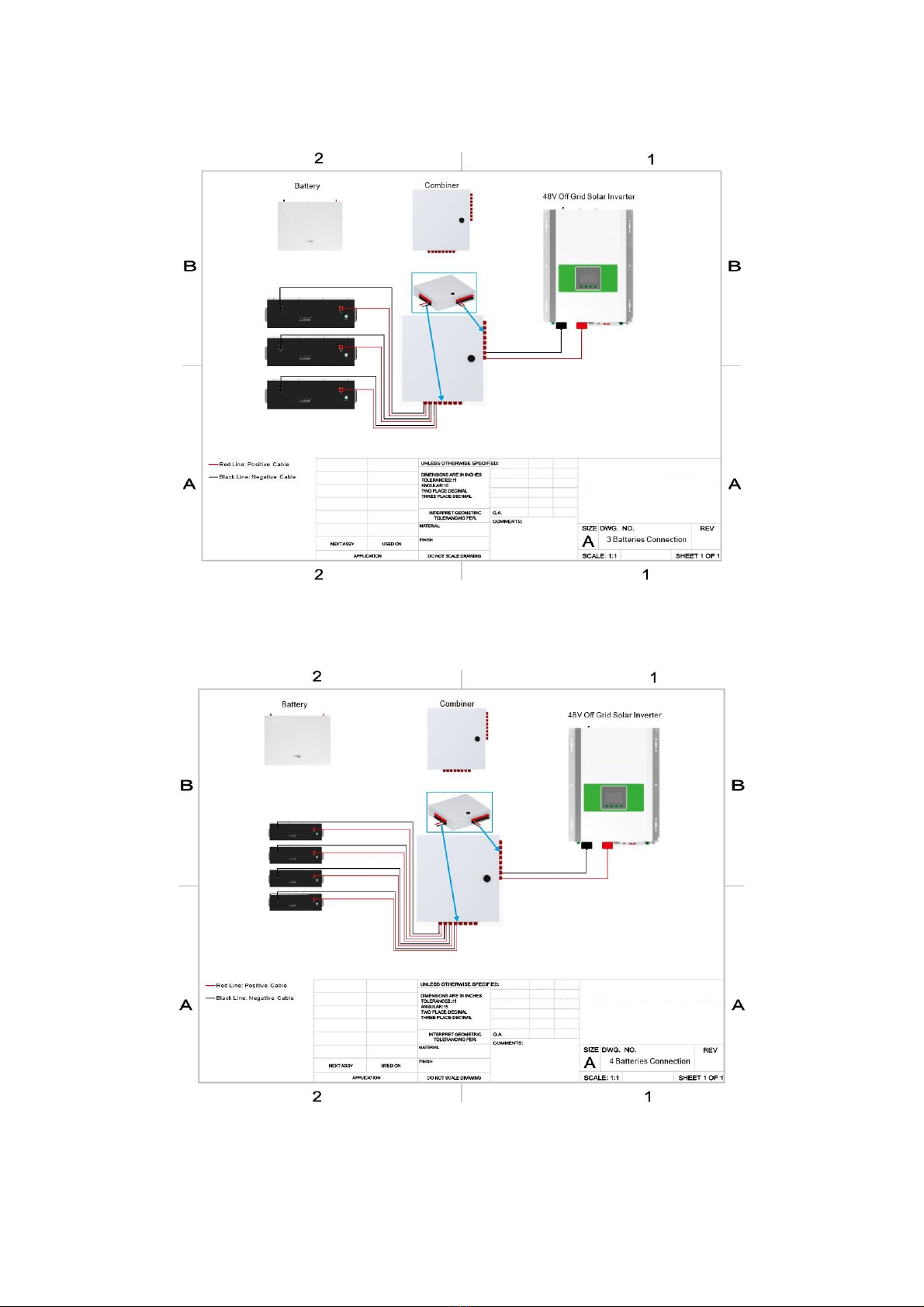

Three pcs connect diagram

Four pcs connect diagram
NOTE : IF YOU NEED MORE PARALLEL DETAILS, PLEASE CONSULT WITH ENERGTECH SOLAR SALES
ASAP.

- 13 -
6.Product Warranty
6.1. If you have purchased this product from our factory, you should be aware that this warranty is
provided in addition to other rights and remedies held by a consumer at law.
6.2. You are entitled to a replacement or refund for a major failure and for compensation for any
other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the failure does not amount to a
major failure.
6.3. For the above mentioned products, you receive our factory warranty valid for 10 years from the
date of delivery from factory. Factory warranty covers any costs for repair or spare parts during
the agreed period beginning on the date of delivery of the device, subject to the following
conditions.
6.4. Factory Warranty Scope
The factory warranty does not cover damages caused by following reasons:
--Breaking the product seal (opening the casing)
--Transport damage
--Incorrect installation or commissioning
--Failure to observe the user manual, quick installation instructions
--Incorrect usage or inappropriate operation
--Insufficient ventilation of the device
--Failure to observe the applicable safety regulations
--Force majeure
Neither does it cover cosmetic defects which do not influence the energy production.
6.5. Warranty conditions
If the battery becomes defective during the agreed factory warranty period and, unless this
should be impossible or disproportionate, one of the following options will be selected at the
discretion of factory:
--Battery repair or
--Battery repair at on-site, or
--Exchange for a replacement device of equivalent value with regard to model and
age.
In the latter case, the remainder of the warranty entitlement will be transferred to the
replacement device and your entitlement will be documented at factory.
Excessiveness in the meaning above exists in particular if the cost the measures for factor will be
unreasonable.
--In view of the value that the device would have without the defect
--Taking in account of the significance of the defect, and
--After consideration of alternative work around possibilities at factory customers could revert to
without significant inconvenience.
Please fill the required information in and send this page to factory when you need to apply warranty
service support

- 14 -
Warranty Card
User Information
Company / User Name:
Address:
Telephone:
Email:
Project installation location:
Product Information
Battery Model:
Serial No :
Invoice Number :
Purchase Date :
Dealer :
Commission date :
Fault/Error Description:
