GSS OR 02 User manual

Antenna sockets for common antenna systems or widerband communication
systems.
The antenna sockets indicated below comply with the DIN Standards 45 330, 45 325 (IEV) and
DIN EN 50083-2/-4. Through fitting the 75-Ωterminal resistor ORT 01 into
the output connector, the antenna sockets can also be used as final trunk
line sockets.
Loss values
Flush mounting
Mount the antenna socket into a 55 wall
outlet box. Fit the cover plate ORC 02.
Surface mounting
For this, use the surface-mount frame
ORF 03 and the cover plate ORC 02.
ANTENNA SOCKETS
OR 02, OR 09, OR 11
Type OR 02 OR 09 OR 11 OR 15 OR 20
Order G.AC G.AC G.AC G.AC G.AC
Number72-0068-0069-0070-0071-00
Transmission
loss
5 – 470 MHz –– 2.5 dB 0.9 dB 0,8 dB 0,5 dB
470 – 862 MHz –– 2.8 dB 1.1 dB 1,0 dB 0,8 dB
TV output
loss
5 – 862 MHz 2,4 dB 9 dB 12 dB 15,0 dB 20,0 dB
RF output
loss
5 – 139 MHz 6,0 dB 12 dB 15.5 dB 18,0 dB 22,0 dB
Directivity loss
5 – 862 MHz –– > 25 dB > 30 dB > 33 dB > 38 dB
Back-flow
loss
5 – 862 MHz > 14 dB > 14 dB > 18 dB > 15 dB > 15 dB

Modifications reserved.
Specification subject to alteration.

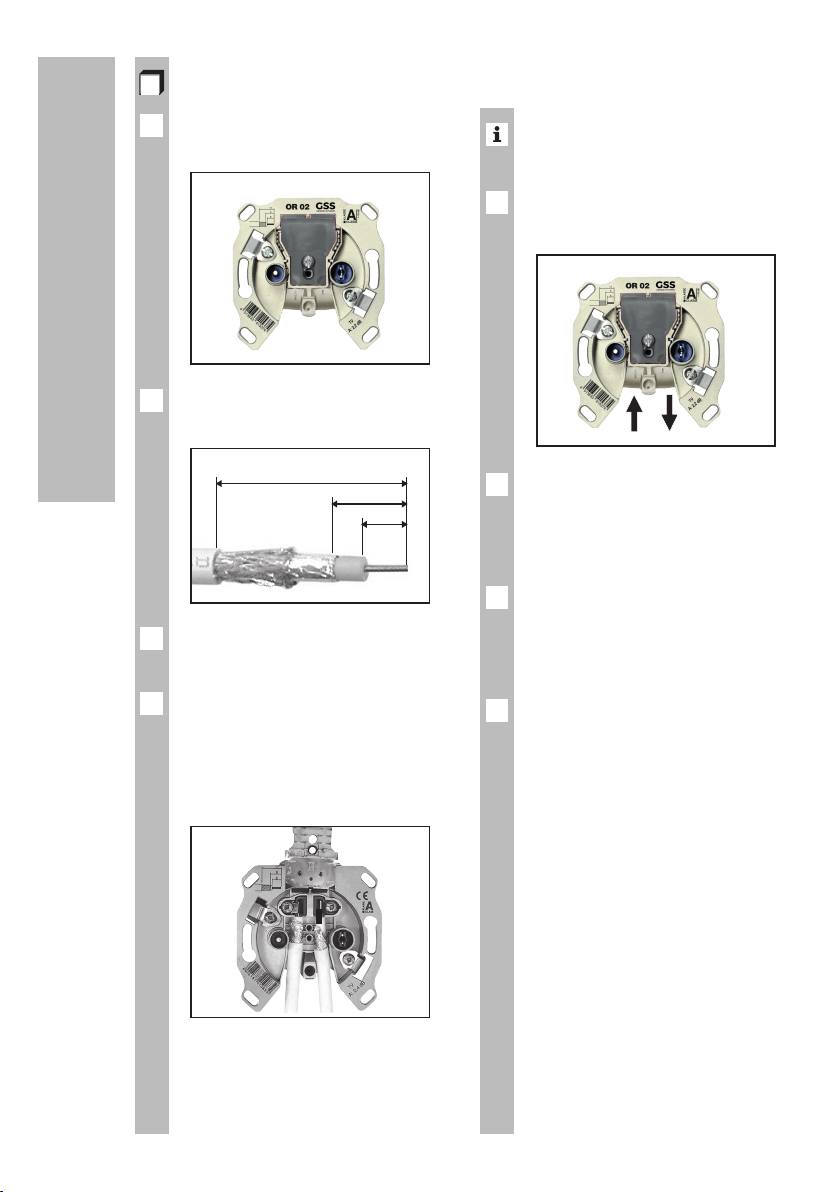

Mounting Instructions
Cable connection
Loosen the screw from the ground
clamp and open the clamp.
Skin the cable as indicated.
All measures in mm, 1:1 scale.
Loosen the screws by several
turns on both contact plates.
Insert the cable core laterally
below the plastic pressure piece.
Retighten the screws to firmly
press the core onto the metal
contacts.
4
3
8
9
17
2
1Input and output of the socket are
marked by corresponding arrows.
Close the ground clamp and
retighten the screw.
Insert the antenna socket into
the flush-mount wall outlet box
(or into the surface-mount frame)
and press the cable into the recess.
Align the socket in the flush-mount
wall outlet box and fix the spreader
clamps by turning in the two
screws.
Screw down the cover plate. The
marks must coincide with the cor-
responding outputs of the socket.
8
7
6
5
GSS Grundig Systems GmbH•Beuthener Str. 43 •D-90471 Nürnberg •http://www.gss.de
82 227 500 02ML
