GTD GTD-LYS200 CW User manual

LED Fresnel Spotlight
GTD-LYS200 (CW/WW)
User’s Manual
Guangzhou GTD Lighting Technology Co., Ltd.
Tel: [phone]
Fax: [phone]
http://www.gtd-lighting.com

GTD-LYS200 (CW/WW) User Manual
1
© 2017 GTD all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to
change without notice. GTD logo and identifying product names and numbers herein are trademarks of GTD. Copyright
protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or
judicial law or hereinafter granted. Product names used in this document may be trademarks or registered trademarks of
their respective companies and are hereby acknowledged. All non-GTD brands and product names are trademarks or
registered trademarks of their respective companies.
GTD and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical
damages, injuries to any persons, and direct or indirect economic loss associated with the use or reliance of any
information contained within this document, and/or as a result of the improper, unsafe, insufficient and negligent
assembly, installation, rigging, and operation of this product.
Guangzhou GTD Lighting Technology Co., Ltd. | 27 Fu Yuan Yi Road, Guangzhou 510805, P.R.China
[phone] | [phone] fax | www.gtd-lighting.com | [e-mail]

GTD-LYS200 (CW/WW) User Manual
2
Contents
Safety instructions...................................................................................................................................................................... 3
General guidelines...................................................................................................................................................................... 4
Packing and shipping.................................................................................................................................................................. 5
Unpacking ....................................................................................................................................................................................... 5
Packing after use............................................................................................................................................................................. 5
Accessories................................................................................................................................................................................. 5
Product introduction .................................................................................................................................................................. 6
Installation ................................................................................................................................................................................. 6
Clamps installation ......................................................................................................................................................................... 6
Device installation .......................................................................................................................................................................... 6
Power / Control connection ....................................................................................................................................................... 7
Power connection........................................................................................................................................................................... 7
Control connection ......................................................................................................................................................................... 7
Testing ............................................................................................................................................................................................ 7
Control panel.............................................................................................................................................................................. 8
Menu structure .......................................................................................................................................................................... 8
DMX protocol............................................................................................................................................................................. 8
Technical specification ............................................................................................................................................................... 9
Cleaning and maintenance ....................................................................................................................................................... 11
Troubleshooting ....................................................................................................................................................................... 12

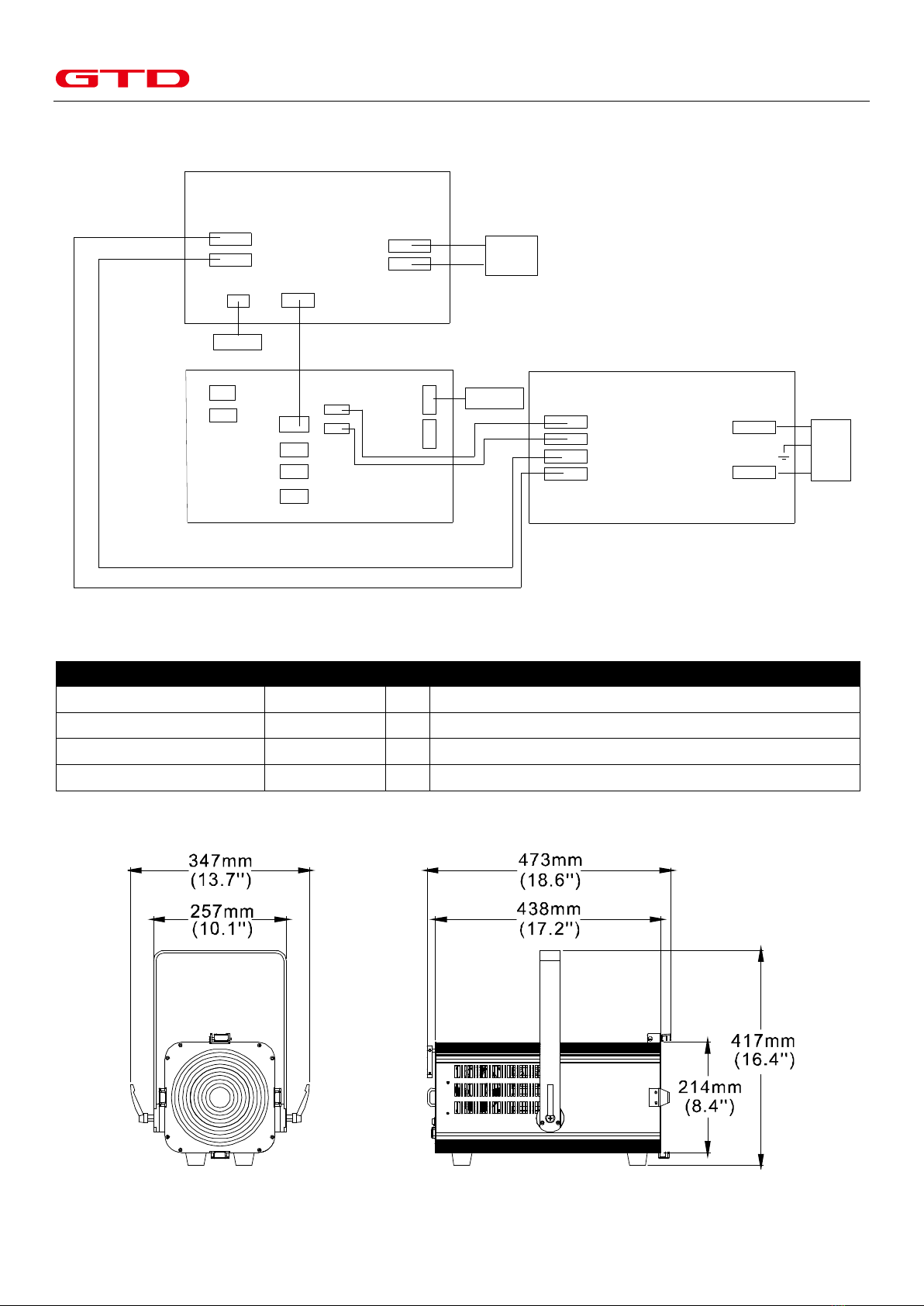

System wiring diagram ............................................................................................................................................................. 13
Spare parts list ......................................................................................................................................................................... 13
Appendix 1 ............................................................................................................................................................................... 13

GTD-LYS200 (CW/WW) User Manual
3
Safety instructions
WARNING!
Before using the fixture, read the latest version of the product user manual, paying particular attention
to the safety instructions. Please check www.gtd-lighting.com for the latest revision/update of the user
manual. The manufacture of this fixture, are not responsible for damages, resulting from misuse of this
fixture, due to the disregard of the information printed in this user manual.
DANGER!
Hazardous voltage. Risk of lethal or severe electric shock.
WARNING!
Burn hazard. Hot surface. Do not touch.
WARNING!
Fire hazard.
INDOORS USE ONLY!
Do not expose fixture for rain and moisture.
It’s essential that the fixture is properly grounded. Only qualified personnel should perform electrical
connections.
WARNING!
Wear protective eyewear. Never look directly into the light source.
Only qualified and certified personnel should perform installation of this fixture and only the original rigging parts
(brackets) included with this fixture should be used for installation.
Before applying power to the fixture, check that the source voltage matches the fixture's requirement. Every fixture
must be earthed (grounded) and installed in accordance with local electricity regulations. Do not connect it to a
dimmer system.
Never look directly into the light source of this fixture to prevent risk of injury to your retina, which may induce
blindness.

GTD-LYS200 (CW/WW) User Manual
4
General guidelines
Never open this fixture while in use.
The fixture should be kept clean. DO NOT operate the fixture in extreme heat or dusty environments. Avoid contact
with chemical liquid.
This fixture is a professional light effect designed for INDOOR / DRY LOCATIONS ONLY on stage, in nightclubs,
theatres, etc.
Minimum distance to lighted objects must be 3.28feet (1m).
Maximum temp of the external surface 140˚F (60˚C).
Maximum ambient temperature 113˚F (45˚C).
Minimum distance of inflammable materials from the surface 1.6 feet (0.5m).
The light source of the fixture should be changed by the manufacture or its service agent or certified technicians.
WARNING! Risk of electric shock.
The basic insulation should be kept between the controllable device and the power supply.
Cover, lens or Menu Function Display with visible damages such as cracks or scratches must be replaced to ensure
performance of the fixture.
Disconnect the fixture from power before changing any parts or accessories.
Make sure that the installation area can hold a minimum point load of 10 times the weight of all installed fixtures,
clamps, cables, auxiliary equipment, etc. Check that the cover, clamps and locks are undamaged. Certified safety
cables must always be used when installing the fixture.
The fixture is only intended for installation, operation and maintenance by qualified professional. Instructions
stated in the manual must be complied.
The fixture must be kept in a well-ventilated place at least 50 cm away from any wall surface. Check if the fans or
ventilation openings are unblocked.
Broken or damaged cables can only be fixed or changed by certified technicians, certified local distributors or the
manufacturer to ensure operational safety.
Do not stick filters or other materials onto the lens. Do not modify the fixture or install other than GTD
manufactured parts.
For questions regarding safety operation, please contact our technical personnel or call the service hotline +8620
61808296.

GTD-LYS200 (CW/WW) User Manual
5
Packing and shipping
Unpacking
Notes
All products are quality controlled and checked for any faults before they are dispatched to customers. If the fixture is
damaged during delivery, the customer must notify the shipper and manufacturer to file a damage insurance claim.
Photographic evidence of the damage must be provided.
Flight-Case
Open the cover of the flight-case and remove the plastic packing bags. Hold the handles of the fixture firmly and take it
out carefully.
Cardboard box
Open the box and take out the whole set of packaging foam which contains both the fixture and its accessories. Remove
the foam from the top, put away the accessories, and then take out the fixture wrapped in the plastic bag.
Packing after use
1. Switch off the fixture and wait for at least 5 minutes before disconnecting it from AC power. Cool down the fixture for
at least 15 minutes before packing.
2. Flight case: Wrap the fixture in plastic bags. Hold it by the handles, and then carefully place it inside the flight case
along with all the accessories. Close the cover. Only 3 layers are allowed when piling up the flight cases. Do not
upside down.
Cardboard box: Wrap the fixture in plastic bags. Put it in the packaging foam along with all the accessories. Place the
other set of packaging foam on top then carefully put it inside the cardboard box.
Accessories
Item
Qty
Unit
Notes
User Manual
1
pc
-
Clamp
1
set
Ø42-52mm, Max. 200 kg
Barn door
1
pc
Power cable
1
pc
Notes
Accessories are subject to change without any prior written notice.

GTD-LYS200 (CW/WW) User Manual
6
Product introduction
1 Handle
2 Manual focusing
3 Adjustable screw
4 Lens
5 Barn door module
6Safety cable mounting position
7 DMX input
8 DMX output
9 Display
10 Fuse
11 Power switch
Installation
Clamps installation
The fixture can be placed on the stage or mounted on the truss facing any direction. The fast-lock clamp gives a quick and
easy lock on the truss.
Warning
Use one clamp when mounting the fixture. Fasten the screw properly and connect a safety cable to fixture.
Device installation
1. Make sure there is no damage on the clamps or safety cables before installation.
2. The clamp is mounted on the handle of the fixture. Horizontally insert the clamp into the mounting holes of the
handle. Fasten the clamp tightly.
(The actually clamp may be different from below picture. Please refer to the actual product.)
1
2
34
5

GTD-LYS200 (CW/WW) User Manual
7
Power/ Control connection
Power connection
Connection method:
L (Live) Brown wire
E (Earth) Yellow / Green bi-color wire
N (Neutral) Blue wire
The voltage and frequency of the power source must be in compliance with the ones marked on the fixture. It is
strongly recommended that each fixture are to be connected to the power source separately so that they can be
switched on / off individually.
Notes
It is essential that each fixture is correctly grounded and the electrical installation conforms to all relevant Standards /
Codes of Practice for Safe Electrical Work.

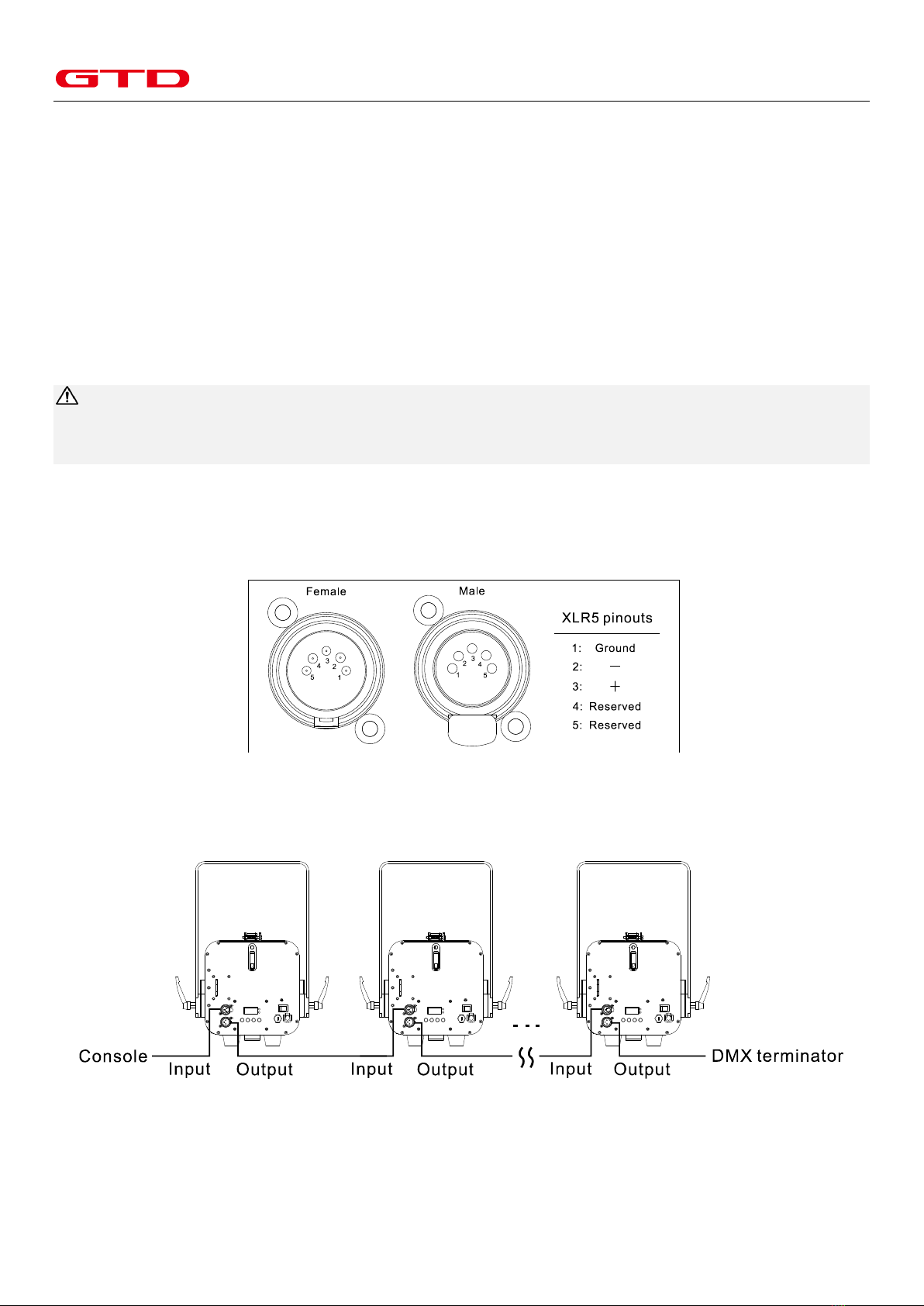

Control connection
The fixture has 5-pin XLR connectors for DMX data input and output (3-pin optional) as shown below. Connection between
the console and fixture, and between fixtures must be made with 2 core screened DMX signal cable. Maximum connecting
distance of signal cable is 150 meters. Additional DMX512 signal-amplifier is recommended for longer distance.
Connect the Console’s DMX OUTPUT to the first fixture’s DMX INPUT, then the first fixture’s DMX OUTPUT to the second
fixture’s DMX INPUT and so on. It is recommended not to connect more than 32 units on a single DMX universe. On the
last fixture‘s output connect a DMX terminator. (The terminator is a XLR connector with a ¼ W and 120Ω resistor between
the pin 2 and pin 3) as shown below:
Testing
Connect the fixture to AC power. Check if the LED lamp is on and the fixture is independently controllable before putting
into operation.

GTD-LYS200 (CW/WW) User Manual
8
Control panel
The control panel with buttons and digital display can access the function menu and configure the fixture easily.
Press MENU to check or modify the functions of the fixture; Press UP or DOWN to view or select the function
menu.
Press ENTER to choose a function and enter into corresponding sub menu. Each menu represents a specific
function of the fixture.
Press ENTER to select the specific function and save the changes or enter into the submenu, then press UP or
DOWN to change the value of the selected function (increase or decrease).
Press MENU to return to the previous menu or exit.
LED indicators:
Power on: RED power LED indicator on
Signal on: Green DMX indicator on
No Signal: Green DMX indicator off
Menu structure
0
Addr
AXXX A001
DMX Address
1
DIMM
DXXX D255
static dimming
2
SET
RDMX
ON/OFF
change address values
DISP
ON/OFF
reverse by 180°display
Ver
V1.0~V9.9
software version
DMX protocol
Channel
Function
Value
Description
1
Dimming
0-255
0-100%

GTD-LYS200 (CW/WW) User Manual
9
Technical specification
Optical
Light source: LED 200W, quantity: 1 piece（CW/WW）
Expected average lifetime: 50000 hours
Beam angle (zoom): LYS200 CW: 18° - 58°(10% peak angle), 9° - 33°(50% peak angle)
LYS200 WW: 18° - 58°(10% peak angle), 10° - 36°(50% peak angle)
Photometric
Color temperature: 5600K(CW) / 3200K(WW)
CRI: >90Ra
Electrical
Power input, nominal: AC 100-240V, 50/60Hz
Max. Power consumption: 213W, max current: 2.1A, PF≥0.92
Power supply unit: Auto-ranging electronic SMPS
Main fuse: 250V/3.15A
Control and programming
Control channels (DMX): 1
Protocol: DMX-512
Display: 4 x 8 segment display
16-bit control: Dimmer
Physical / Installation
Weight: 7.5kg (17 lbs.)
IP rating: IP20
Material: Aluminum, steel, plastic
Mounting points: 12mm holes for G-Clamp
Minimum distance to combustible materials: 1.64ft. (0.5m)
Minimum distance to illuminated surfaces: 3.28ft. (1m)
Dynamic effects
Pan/Tilt movement: Manually adjustable
Dimmer: 0-100%, 16-bit, electronic linear dimming
Thermal
Operating range: 14˚F to 113˚F (-10˚C to +45˚C)
Startup range: 5˚F to 113˚F (-15˚C to +45˚C)
Storage range: -40˚F to 140˚F (-40˚C to +60˚C)
Cooling: Passive
Humidity: ≤85%

GTD-LYS200 (CW/WW) User Manual
10
Connections
AC power: Neutrik powerCon
DMX data input/output: Chassis 5-pin Neutrik XLR (in/out)
Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013
Safety: EN 60598-2-17:1989/A2:1991

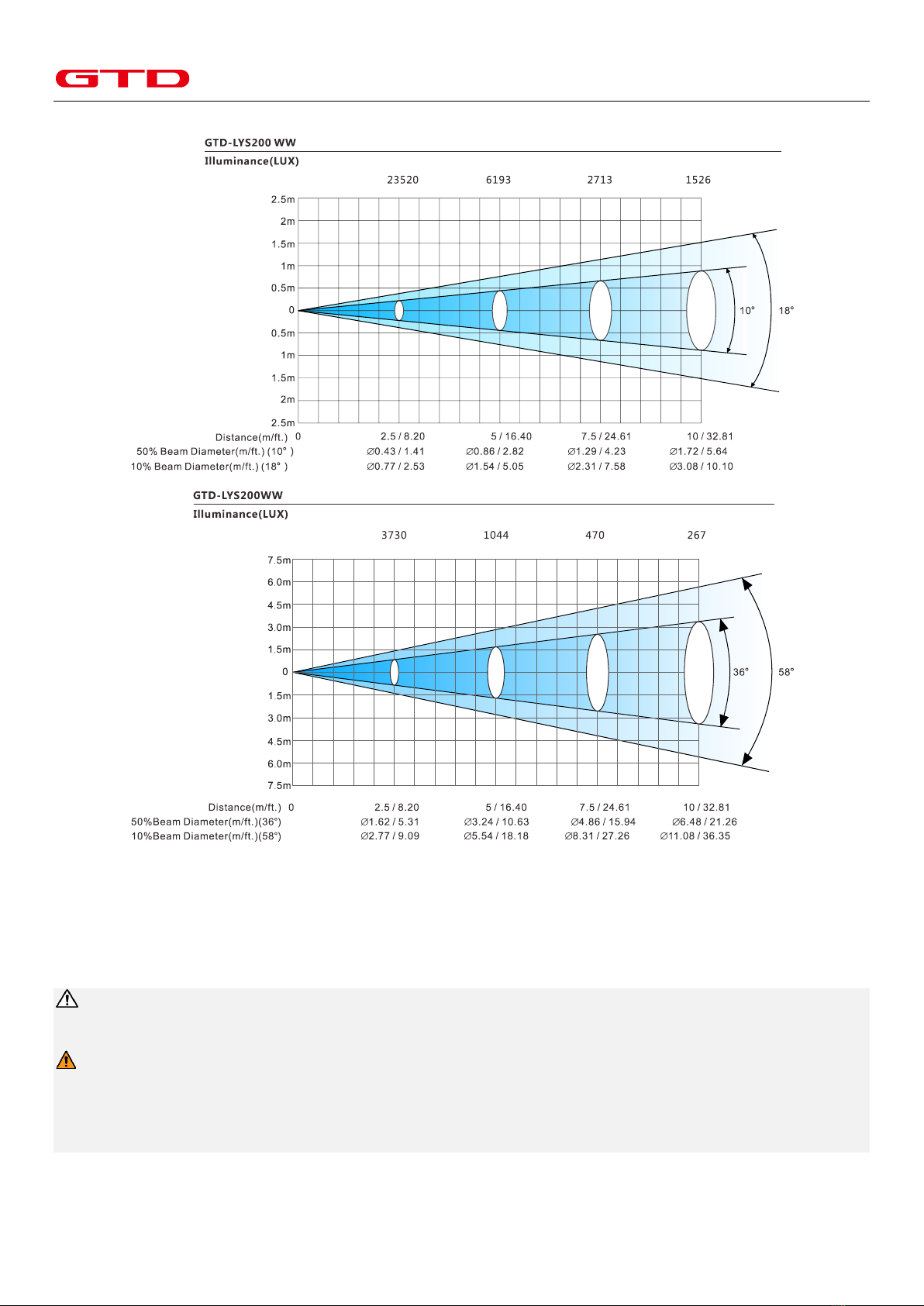

Photometric
LYS200 CW:

GTD-LYS200 (CW/WW) User Manual
11
LYS200 WW:
Cleaning and maintenance
It is required that the fixture should be kept clean and well maintained to ensure its reliability. Its lifespan mainly depends
on the working environment and proper operation. Should you have any questions, please consult a technical engineer of
GTD Lighting.
Notes
Damage resulted from dust, smoke, oil or improper use is not covered by warranty.
Warning
Disconnect the fixture from AC power, and let it cool down for at least 15 minutes before opening the housing. Make sure
to use a soft cloth to clean the optical components, and be careful, as the coating is easily scratched. Do not use any
organic solvent such as alcohol to clean the reflector mirror, dichroic color filters or housing of the fixture.
If the lens is cracked or otherwise damaged, replace it immediately.

GTD-LYS200 (CW/WW) User Manual
12
If the LED lamp becomes damaged or deformed in any way it must be replaced.
If the light from the LED lamp appears dim, this normally indicates that it is reaching the end of its life span and
should be changed at once. Aged LED lamps run to the extremity of their life might explode.
If fixture does not function, check the fuse on the power socket of the fixture. Replace the fuse of the same
specification if it is blown.
The fixture is equipped with thermal-protection device that will switch off the LED lamp in case of overheating. If
this happens, please check that the fans are not blocked, and clean them if they are dirty. Check whether the fans
are operational. If not, call a qualified technician. Troubleshoot and correct the problem before switching on the
fixture again. Any maintenance work should only be carried out by qualified technicians.
Troubleshooting
Problem
Possible Cause
Suggested Correction
No response
after connected
to A/C power
Power switch not turned on.
Turn on power switch.
Take out the fuse and check if it is blown.
Locate the blown fuse. Remove the broken fuse. Insert a
replacement fuse of the correct amperage.
Abnormal A/C input (A/C power socket,
power cables, luminaire power socket).
Replace AC power socket and power cables, and then adjust power
socket for proper connection.
No DC voltage from switching power
supply.
Check if the switching power supply has DC voltage output. Replace
the switching power supply.
No response or
wrong response
to the
commands of
the control
system
DMX cables disconnected from fixture’s
DATA IN connector.
Connect DMX cable to the fixture’s DATA IN connector.
Open circuit or short circuit fault in the
DMX cables.
Replace DMX cables as required.
Wrong DMX address for the fixture in the
control system.
Ensure the address in “Run setting > Address Setting > Address”of
the fixture is consistent with the address in the control system.
Misuse in “Channel setting > Channel
Mode” of the fixture.
Choose the channel mode in “Channel setting > Channel Mode” of
the fixture as required by the user.
Malfunctioning of DMX cannon input
/output connectors. No input/output
voltage to the main control board of the
fixture.
Troubleshooting the DMX XLR signal plate of the fixture, replace the
main control board of the fixture.
LED lamp off
There is no signal output to the main
control board PWM.
Replace the main control board or repair.
No output to the drive board LED +/ LED-
or drive board over-current, check line
connector if contact bad.
Reconnect the terminal, replace the driver board
Normal end of LED lamp life, bad welding
or poor heat dispersion.
Repair or replace LED light source or replace the whole piece of
aluminum board, remove the cooling system failure.
Decreased
brightness,
uneven pattern
projections
LED lamp aging, check the service time of
LED light source, test LED drive board’s
current.
Replace the LED light source or adjust the drive board’s current.
Reduce LED’s brightness.
Excessive dusts or smudges on the effect
assembly, focus module and objective
lens.
Follow the instructions stated in this user manual to clean the effect
assembly, focus module and objective lens.
Damaged or deformed effect assembly,
focus module or objective lens.
Replace the damaged or deformed components.

GTD-LYS200 (CW/WW) User Manual
13
System wiring diagram
Spare parts list
Item
P/N
Qty
Notes
Display board
5809210024B
1
LYS200-101E11& 102G11 SDI0009C
LED drive board
5802030099A
1
LCR0006D
XLR board
5802910008A
1
SKL0006B 15
Switching Power Supply
1412050045A
1
K18N-UP300D 48V*5.5A 24V*1.5A
Appendix 1
J5
J7
SDI0009C
0V
GTD-LYS200
J4
J1
Thermosensitive
Fan1
J3
Fan4 J8
Fan3 J10
Thermal protector
JP
V-
V+
J25
Fan2
JZ
JZ LED-
48V+
LCR0006D
LED+ LED
Switching power supply
0V
48V+
XLR board
SKL0006B
3
2
3
1
1
2
24V+
0V
Power
L L
NN
G

GTD-LYS200 (CW/WW) User Manual
14
Notes:
P/N: 1502011030A
Time: May 3rd, 2017
