Gtech SW04 Operator's manual

Safety and Instruction Manual for
cordless floor cleaner
SW04
www.gtechonline.co.uk
a
l fo
r
6:0DQXDOLQGG 

Introduction
It is my pleasure to introduce the SW04 Cordless Floor Cleaner from Gtech. Designed,
patented and developed in the heart of England we hope that you find this product
helps you effortlessly stay on top of your household cleaning. If you have any queries or
comments about your new sweeper, we would love to hear from you.
Our friendly customer service team are available from 9am-5.30pm Monday-Thursday,
and 9am-3.30pm on Fridays on 01905 345891 or, alternatively, please visit our website
www.gtechonline.co.uk. Thank you for your purchase from Gtech, we hope you have many
happy hours using your SW04.
Nick Grey,
Chairman, Grey Technology
Contents
pg
3 Important Safeguards
4 Unpacking: Part Location
4 Technical Specification
5 Assembly
6 Battery Charging & Recharging
7 Operation
9 Emptying the Dust Tray
9 Brush Roll and Edge Wheel Removal
10 Battery Pack Removal and Replacement
11 Care and Maintenance
11 Gtech Customer Services Helpline
11 Environmental and Product Recycling
12 Warranty Information
helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk
2
6:0DQXDOLQGG 

Important Safeguards
IMPORTANT:
READ ALL INSTRUCTIONS BEFORE USE.
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk 3
WARNING:
When using an electrical appliance basic safety precautions should always
be observed, including the following to reduce the risk of fire; electrical
shock, or injury:
1Do not store or charge the unit outdoors.
2Do not use outdoors or on wet surfaces.
3Do not handle charger or appliance with wet hands.
4Not to be used as a toy; pay close attention when used by or near children.
5This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
6Children should be supervised to ensure that they don’t play with the appliance.
7Use only as described in this manual.
8Do not attempt to use the charger with any other product nor attempt to charge
this product with another charger.
9Do not abuse the charger cord; never carry the charger or base by the cord or
pull cord to disconnect from an outlet; grasp the charger and pull to disconnect.
10 Keep charger cord away from hot surfaces.
11 The battery must be removed from the appliance before it is discarded.
12 The appliance must be disconnected from the mains supply when removing
the battery.
13 This product includes NiMH batteries; do not incinerate batteries or expose
to high temperatures, as they may explode.
14 Leaks from battery cells can occur under extreme conditions. If the liquid gets
on the skin wash immediately with soap and water. If the liquid gets into the
eyes, flush them immediately with clean water for a minimum of 10 minutes
and seek medical attention.
15 Do not use with any opening blocked; keep openings free of dust, lint, hair and
anything that may interfere with the brushes.
16 Keep hair, clothing, fingers, and all parts of body clear of moving parts.
17 Do not pick up anything that is flammable, burning or smoking.
18 Use extra care when cleaning on stairs.
FOR HOUSEHOLD USE ONLY
6:0DQXDOLQGG 

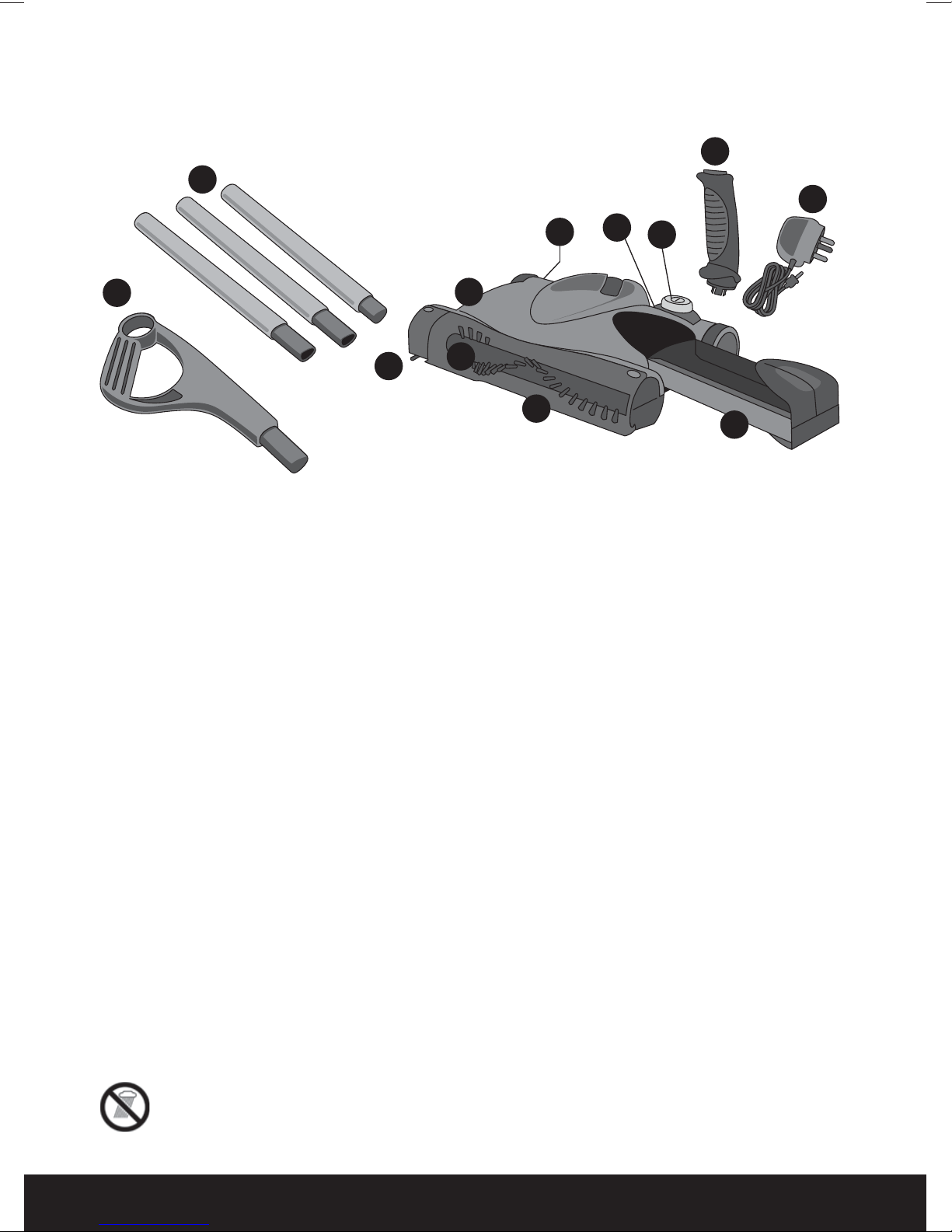

Unpacking: Part Location
1
2
5
3
8
9
4
11
7
6
12
Do not use in rain or leave outdoors whilst raining.
1Main Unit
2Brush Bar
3 Front Visor
4 Dust Tray
5 Edge Wheel
6Upper Handle
7 Handle Tubes
8 Lower Handle*
9Charging Adaptor*
10 Charging Jack
11 LED Indicator
12 ON/OFF button
helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk
4
Technical specification
Unit operating cycle with full battery up to 60 minutes (dependent on floor surface)
Battery type 4.8V DC 1.3Ah
Charging period for fully discharged battery 16 hours
Battery charger output 10.0V DC, 150mA
Battery charger model KA23D100015033K
Sound level 75dB(A)
Weight 1.3Kg
WARNING: Only use a replacement battery as supplied by the manufacturer.
WARNING: Only use the charger provided with the product. Using another charger
may damage the product and battery.
*will be packed inside 4Dust Tray
10
6:0DQXDOLQGG 

Assembly
1Fit the Lower Handle onto the Main Unit, ensuring the handle faces forward.
The clips on the Lower Handle push into the hole in the pivot joint on the Main
Unit. This will require some force to push together. Then push the handle upright.
2Push the 3 Handle Tubes and the Upper Handle firmly together.
Note: the tube with the smallest end should be at the bottom. Press the tubes
against a non-marking floor to ensure they are fully connected. Then push the
assembled handle into the Lower Handle.
helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk 5
smallest end at
the bottom
6:0DQXDOLQGG 

Battery Charging & Recharging
helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk
6

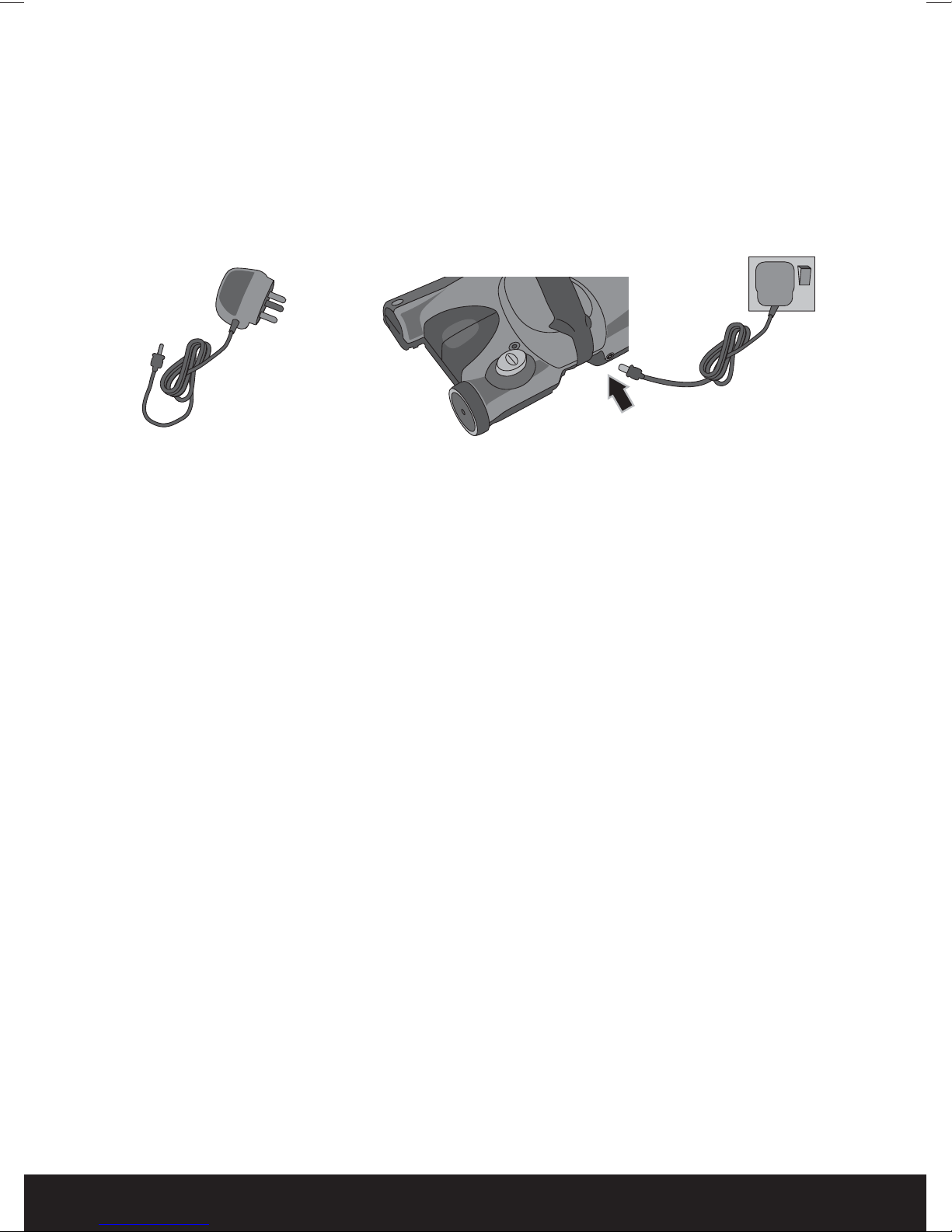

1Connect the Charging Adaptor to the Charging Jack on the rear of the Main
Unit, and then plug into an electrical outlet. The LED illuminates GREEN when
the charger is connected.
The LED does not flash or change colour when the unit is fully charged.
The unit will only re-charge when the unit is switched off.
2Charge the unit for at least 16 hours. Do not charge the product for longer
than 16 hours.
WARNING: Only use the charger provided with the product. Using another charger
may damage the product and battery.
WARNING: Never run the battery empty and then put the product away without
switching it off - deep discharge can damage the battery.
Do not attempt to use the charger with any other product nor attempt
to charge this product with any other charger as this will invalidate your
guarantee.
To maintain peak performance of your cordless sweeper, it is
recommended that the unit be fully discharged, then completely recharged
at least once a month.
6:0DQXDOLQGG 

Operation
helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk 7

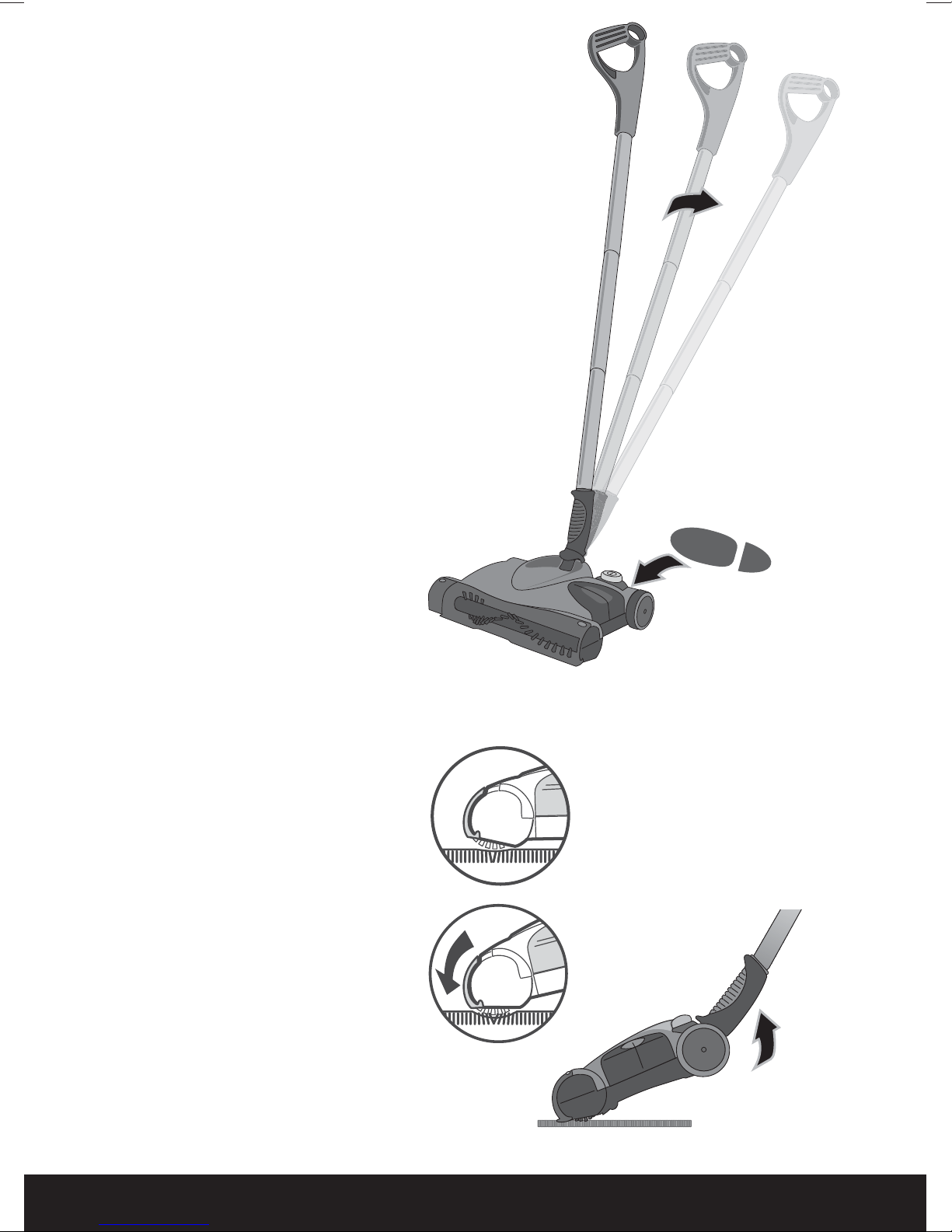

Parking & Release
of Main Handle
1The Handles and Tubes
park upright for storage.
2To release for use, press
on the top of the sweeper
with your foot while
pulling back on the Handle.
3Push the ON/OFF button
to operate the unit. The
LED will light green. To
turn the sweeper off, push
the ON/OFF button again.
Floor Cleaning
1For normal cleaning push
the sweeper flat over the floor.
2For deeper cleaning and
carpet grooming, lift the
Handle to lower the brush
bar into the carpet.
6:0DQXDOLQGG 

Operation
helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk
8
Handheld Operation
1For handheld operation,
remove the main handle
(Upper Handle and
Telescopic Tubes).
2The Lower Handle can be
used to push and steer the
sweeper, or folded forward
and locked into position.
Stair Cleaning
1When cleaning stairs, the front
Visor can be removed to allow
the front surfaces of the stair
to be cleaned.
2To remove the Visor pull
forward from the lower edge.
3With the Visor removed,
use only backward strokes.
Carrying
To avoid spilling dirt from the
Dust Tray do not carry the product
‘nose down’.
helpline 01905 345891 email support@
greytechnology.co.uk web www.gte-
chonline.co.uk
6:0DQXDOLQGG 

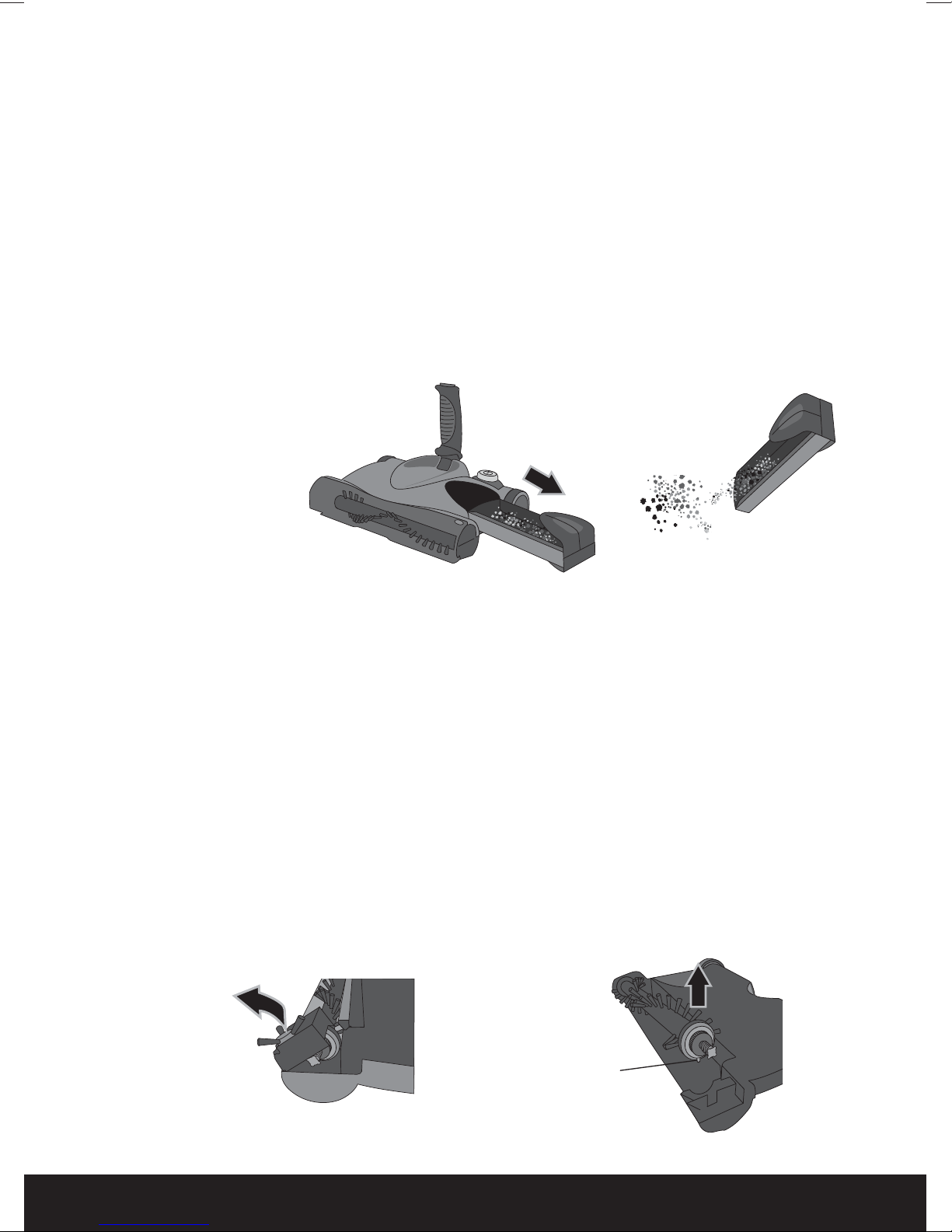

Emptying the Dust Tray
Brush Bar & Edge Wheel Removal
helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk 9
The Brush Bar and Edge Wheel can be removed for cleaning or replacement.
1Push the latch and un-hook the Edge Wheel Cover from the front of the unit.
2Slide the belt off the end of the Brush Bar drive gear.
3Lift the end of the Brush Bar, then slide out of the unit.
4The Edge Wheel Brush can be pushed out of the cover.
5Remove any hair, fibre and dust from the Edge Wheel and Brush Bar.
6Replace the Brush Bar by fitting the shaft into the bearing in the housing, then engage
the end with the drive gear into the unit. Note: peg to relocate into unit.
7Refit the belt onto the drive gear.
8Hook the Edge Wheel Cover back onto the unit and push into place until the latch
is securely engaged.
Note: peg
to relocate
into unit.
To achieve the best performance, empty the Dust Tray after each use.
1To remove the Dust Tray, grip the clear window and the bottom of the tray and pull
it out from the side of the unit. Note: Make sure the sweeper is not turned on
whilst the Dust Tray is removed.
2Empty the Dust Tray, and replace by sliding all the way back into the unit.
The Dust Tray can be cleaned with a damp cloth, but make sure it is completely dry
before replacing in the sweeper.
Replacement Brush Bars and Edge Wheels can be purchased through the
helpline, or by visiting www.gtechonline.co.uk
6:0DQXDOLQGG 

Battery Pack Removal & Replacement
helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk
10
The battery pack is removable and replaceable
At the end of the product’s or battery’s life the battery should be removed for
disposal and recycling. Only a technically competent person should undertake
battery removal and replacement. If uncertain as to how to replace your battery
pack, we suggest you take your unit to a reputable small appliance service
technician to have this service performed.
Follow these steps for battery removal or replacement:
1Switch off the product and ensure the Charger is disconnected.
2Remove the Telescopic Tubes and Dust Tray.
3Turn the unit over, being careful not to switch the product on.
4Using a #1 Phillips screwdriver unscrew the battery cover.
5Carefully lift the battery out.
6Slide the plastic cover off the black (-) cable connector.
7Push the latch on the connector and pull the connector off the battery contact.
8Repeat for the red (+) cable connector.
9Push the cable connectors onto the new battery contacts, ensuring they are
securely fitted.
10 Slide the plastic covers back over the connectors.
11 Replace the battery into the compartment and refit the battery cover and screw.
WARNING: NEVER touch both the metal battery contacts at the same time
with any metal objects as this may create sparks that can cause small burns.
WARNING: NEVER use the unit in a partially assembled state.
Replacement batteries can be purchased from Grey Technology:
Tel: [phone] www.gtechonline.co.uk
ONLY USE A REPLACEMENT BATTERY AS SUPPLIED BY MANUFACTURER
Underside
of Sweeper
Screw
Battery Connector
Cable
Connector
Cable
Connector
Latch
Connector
Cover
Battery Cover
6:0DQXDOLQGG 

Care & Maintenance
Environment & Product Recycling
helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk 11
WARNING: Do not accidentally turn the unit on while cleaning it.
Each week clean the product with a dry cloth, including the chamber in which the Dust Tray
fits, and remove hair and fibre build up from the Brush Bar and Edge Wheel.
1Don’t use abrasive materials to clean the product or immerse it in water.
2Don’t pick up liquids or use on wet floors.
3Don’t use on concrete, Tarmacadam or other rough surfaces.
4Don’t pick up pieces of string or fabrics with the unit.
5Don’t clean rug tassels or frayed carpets with the unit.
If The Product Is Not Working Properly:
1Empty the Dust Tray.
2Remove any build-up of hair or fibre from the Brush Bar and Edge Wheel.
3Fully discharge the product (run until battery is flat) and then recharge for 16 hours.
4Telephone the Gtech Helpline on: 01905 345891.
The symbol indicates that this product is covered by legislation for waste
electrical and electronic products (EN2002/96/EC)
When the sweeper has reached the end of its life, it and the NiMH battery it contains should
not be disposed of with general household waste. The battery should be removed from the
sweeper and both should then be disposed of properly at a recognised recycling facility.
Call your local council, civic amenity site, or recycling centre for
information on the disposal and recycling of electrical products.
Alternatively visit www.recycle-more.co.uk for advice on
recycling and to find your nearest recycling facilities.
If the product needs to be repaired or replaced only use parts which are approved by
the manufacturer.
For further help, technical advice, or to order spare or replacement parts
contact the Gtech Customer Services Helpline.
Tel: [phone] email: [e-mail]
6:0DQXDOLQGG 

Warranty Information

Grey Technology has provided the SW04 Cordless Floor Cleaner with a
12 month guarantee.
In Guarantee:
Please retain your receipt as proof of purchase. In the rare and unfortunate event
of your Gtech product being faulty, please accept our apologies and we will aim to
remedy the problem as fast as possible once brought to our attention. However please
be aware that due to Company Policy, Grey Technology can only repair or replace all or
part of the product if proof of purchase is provided and the claim is made within
12 months of the purchase date.
If your product is within the 12 months warranty period you should either return this product
with its receipt to the retailers where the product was purchased or if a simple part or advice
is required ring the Gtech Helpline where we will be more than happy to assist.
Note: Gtech cannot refund any monies if the product was brought from a third party.
Note: The battery is a consumable item and is not covered by this guarantee.
We would like to remind our customers that the Gtech guarantee does not cover any
unauthorised repairs and will be annulled:
1if the product has been damaged due to incorrect use or maintenance.
2if any part is modified or replaced or if it is used in any way that is not
recommended by Gtech.
3if it is used with any parts not produced or not recommended by Gtech.
4if it is used for purposes other than those specified by Gtech.
If after reading the manual and following the instructions you are sure that the product
is defective please call the Gtech Helpline on [phone]. A Customer
Service Advisor will be available to deal with any problems you have with our product.
To assist them please be ready with the product, a detailed description of the problem,
and your proof of purchase.
Out of Guarantee:
If your Gtech product is over 12 months old and you need any parts or advice then
please contact our Helpline. Parts will be sent out usually within 3 weeks of request.
WARNING: Only use the charger supplied with the product.
Using another charger may damage the product and the
battery and will invalidate your guarantee.
helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk
6:0DQXDOLQGG 
