GUANGDONG EAST POWER EA-IVS6000 Series User manual

EA-IVS6000 user manual
Page 1of 15 GUANGDONG EAST POWER CO.,LTD

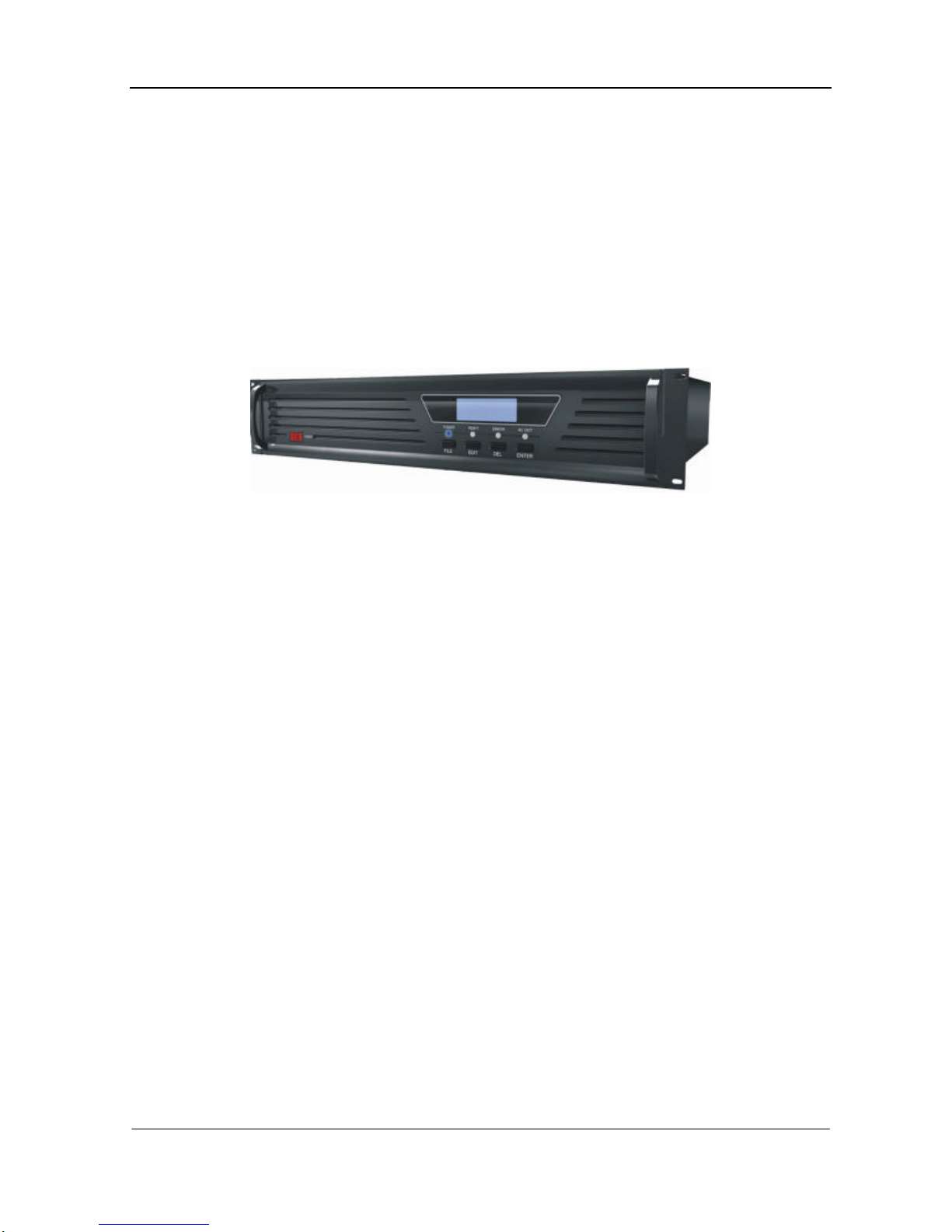

EA-IVS6000 Series Sine-Wave Inverter
USER MANUAL

EA-IVS6000 user manual
Page 2of 15 GUANGDONG EAST POWER CO.,LTD
INDEX
I、EA-IVS6000 Series Model Notes……………………………………3
II、EA-IVS6000 Series Model table……………………………………4
III、EA-IVS6000 Series Model Functions………………….……………5
IV、EA-IVS6000 Series Model Technical Specifications….……….………7
V、EA-IVS6000 Series Model Use Method………………………………8
VI、EA-IVS6000 Series Maintenance Information……………….………9
VII、EA-IVS6000 Series LCD Information……………….………11
VIII、EA-IVS6000 Series Model Mechanical Information….……………11
IX、Attached Accessories…………………………..……………………15

EA-IVS6000 user manual
Page 3of 15 GUANGDONG EAST POWER CO.,LTD
IMPORTANT SAFETY NOTES
lPlease keep this manual for future use.
lPlease read this manual carefully at the first time, and install, operation and maintain as per
uthe manual instructions.
lAC input voltage of the series is 220V/50Hz, DC input voltage
12VDC/24VDC/48VDC/110VDC/220VDC,please connect as per the instructions, avoiding
the possible damage.
lPlease turn off the inverter and disconnected all cables before moving.
lFor avoiding the damage and hurt to people and inverter, please don’t open cover by
yourself.
lDo not use it with overload which can effect inverter life.
lPlease put the inverter in the dry place, at least 10cm away from the wall.
lProtecting from direct sunlight, rain and moisture.
lPlease put it far away from fire and high temperature.
lPlease do not put things on the top of inverter.
lPlease contact dealer or manufacturer service center for any problem, do not open the cover
avoiding any further damage and risk.
Warning
Ｔｈｅ ｐｒｏｄｕｃｔ ｃａｎ ｂｅ ｅｆｆｅｃｔｅｄ ｂｙ ｔｈｅ ｒａｄｉｏ ｕｎｄｅｒ ｃｅｒｔａｉｎ
ｃｉｒｃｕｍｓｔａｎｃｅｓ， ｆｕｒｔｈｅｒ ｐｒｏｔｅｃｔｉｏｎ ｅｑｕｉｐｍｅｎｔ ｉｓ ｎｅｅｄｅｄ．

EA-IVS6000 user manual
Page 4of 15 GUANGDONG EAST POWER CO.,LTD
I. EA-IVS6000 Series Model Notes:
SET XX/220-XXXX L/W
W…………Desk Type
L………..19 Inch Rach Type
XXXX…….Power (VA)
220……..AC Output Voltage
XX……….DC Input Voltage
SET……..SETEC Company
II. EA-IVS6000 Series Model Table
Chart1：EA-IVS6000 Series Table
EA 12 Series EA 24 Series EA 48 Series EA 110Series EA 220 Series
EA12/220-500L
EA24/220-500L
EA48/220-500L
EA110/220-500L
EA220/220-500L
500VA EA12/220-500W
EA24/220-500W
EA48/220-500W
EA110/220-500W
EA220/220-500W
EA12/220-1000L
EA24/220-1000L
EA48/220-1000L
EA110/220-1000L
EA220/220-1000L
1000VA
EA12/220-1000W
EA24/220-1000W
EA48/220-1000W
EA110/220-1000W
EA220/220-1000W
EA24/220-2000L
EA48/220-2000L
EA110/220-2000L
EA220/220-2000L
2000VA
WITHOUT EA24/220-2000W
EA48/220-2000W
EA110/220-2000W
EA220/220-2000W
EA24/220-3000L
EA48/220-3000L
EA110/220-3000L
EA220/220-3000L
3000VA
WITHOUT EA24/220-3000W
EA48/220-3000W
EA110/220-3000W
EA220/220-3000W
EA48/220-4000L
EA110/220-4000L
EA220/220-4000L
4000VA
WITHOUT WITHOUT EA48/220-4000W
EA110/220-4000W
EA220/220-4000W
EA48/220-5000L
EA110/220-5000L
EA220/220-5000L
5000VA
WITHOUT WITHOUT EA48/220-5000W
EA110/220-5000W
EA220/220-5000W
EA48/220-6000L
EA110/220-6000L
EA220/220-6000L
6000VA
WITHOUT WITHOUT EA48/220-6000W
EA110/220-6000W
EA220/220-6000W

EA-IVS6000 user manual
Page 5of 15 GUANGDONG EAST POWER CO.,LTD
III. EA-IVS6000 Series Functions
With the development of information and network technology, the new generation DC-AC power
supply, sine-wave inverter, are widely used in telecom, mobile, air field, banking, office, industry,
hospitals, military and research fields. By using battery as DC input, and sine-wave AC output
after inverter, the output voltage and frequency of Sine-wave inverter are very steady and can work
continuously, avoiding the problems of power break, voltage unsteady, noise and lightning
invasion. With the sine-wave inverter can guarantee the utility and equipment reliable work and
system safety.
Sine-wave Inverter is a kind of DC-AC power supply, the output wave is pure sine-wave by
SPWM technology, with the features of fast reaction, low wave distortion, output voltage and
frequency steady. This inverter is also equipped with the protections of over DC input, low voltage,
over AC output, overload, circuit shortage and internal over heat, these can guarantee good
performance, working reliability and other technical specifications.
Sine-Wave inverter is designed based on center control system to meet the power supply
requirements of computer and other terminals, mainly applying for:
lVarious managing equipment of digital communication system, including terminal, monitor
and cashier equipment.
lServer, intelligent platform of information network system, power system and instrument.
lSuitable for system which has main power of DC and require AC power system.
Features of Inverter:
a) With micro-CPU control, EA-IVS6000 Series inverter is an intelligence model
product, good designing and reliability are the advantages.
b) EA-IVS6000 series inverter is adopting SPWM technology, with the output of
stabilized voltage and frequency, pure sine-wave.
c) EA-IVS6000 series inverter has good compatibility, built-in by-pass switch, high
overload feature for reliable and continuous power supply.
d) EA-IVS6000 series inverter can be AC power type and DC power type:
AC power type means the city power supply is main when the city power is normal,
when citypower is off, inverter comes into work state.
DC power type means the inverter power supply is main when the city power is
normal, when inverter power is off, city power comes into work state automatically.
e) With the excellent designing, EA-IVS6000 series inverter can be auto switched to
bypass on the running state, its easy to maintain and replace the battery without
effecting load power supply.
f) In case there is battery voltage high/low or overload, the overload warning shutdown
output, when battery voltage recovers normal, battery voltage recovers; power supply

EA-IVS6000 user manual
Page 6of 15 GUANGDONG EAST POWER CO.,LTD
output will auto recovers in 50 seconds after overload off. This function is very
suitable for the communication station in which there is no person on duty.
g) EA-IVS6000 series inverter can support network communication system, power
working state can be monitored by the supervision software.
h) EA-IVS6000 series inverter provides with two dry connectors which can be used for
DC input fault checking and AC output problem warning.
Figure1：Inverter Function Diagram

EA-IVS6000 user manual
Page 7of 15 GUANGDONG EAST POWER CO.,LTD
IV. EA-IVS6000 Series Model Technical Specifications
Chart2：EA-IVS6000 Series Model Technical Specifications
Technical Sspecifications 500VA
1000VA
2000VA
3000VA
4000VA
5000VA
6000VA
Input Voltage（Vdc）
See chart3
Input current（A）See chart3
Input range of
Voltage（Vdc）See chart3
DC INPUT
Reverse Noise Current
=10%
Bypass Volt（Vac）165V-285V
Input Current（A）2.3 4.5 9.1 13.6 18.2 22.7 27.3AC Bypass
Transfer Time（ms）=5ms
Rated Capacity（VA）
500VA
1000VA
2000VA
3000VA
4000VA
5000VA
6000VA
Output Power（W）400W
800W 1600W
2400W
3200W 3500W
4200W
Voltage and Frequency
220Vac，50HZ
Output Current（A）1.8 3.6 7.2 10.8 14.5 16 19.1
Voltage Precision（V）
220±1.5%
Frequency Precision
（Hz）50±0.1%
Output Pure Sine Wave
Wave Distortion
（THD）
（Resistant Load）=3%
Dynamic Reaction
Time
（Load 0??100%）
5%
Power Factor（PF）0.8/0.7/0.6
Overload 220%，30 sec
Inversion Efficiency
（80% Resistant Load）
=85%
AC OUTPUT
Transfer Time（ms）=5ms
Isolation（IN/OUT）1500Vac，1minute
Noise（1米） =40dB
Temperature -25℃~+50℃
Humidity 0~90%
ENVIRONMENT
Sea Level（m）=2000
LCD See VII
SHOW LED line、inverter、battery、Output Load
Desk Type
（D×W×H）（ mm）See Chart5MECHANICAL
19 Inch Rack Type
（D×W×H）（ mm）See Chart5

EA-IVS6000 user manual
Page 8of 15 GUANGDONG EAST POWER CO.,LTD
Weight（Kg）See Chart5
Protection Function Input Low/High Voltage；Output Overload/Shortage；
Reversed Input Connecting Protection
Chart3：EA-IVS6000 Series Model INPUT VOLT、Current、Efficiency(+/-0.5~1V)
EA12 Series EA24 Series EA48 Series EA110Series EA220 Series
Input
volt
（Vdc）
12V 24V 48V 110V220V
Normal Volt
9.8V—14.5V
Normal Volt
20V—30V
Normal Volt
40V—59V
Normal Volt
90V—132V
Normal Volt
190V—265V
Input
range of
DC
（Vdc）
Start Volt
11V—13V
Start Volt
22V—28V
Start Volt
45.5V—57V
Start Volt
94V—127V
Start Volt
207V—260V
500VA 40 500VA 20 500VA 9.8 500VA 4.3 500VA 2.2
1000VA 76 1000VA 38 1000VA 19 1000VA 8.3 1000VA 4.2
1500VA 57 1500VA 28.5 1500VA 12.5 1500VA 6.3
2000VA 76 2000VA 38 2000VA 16.6 2000VA 8.3
Input
Current
（A）
3000VA 57 3000VA 24.9 3000VA 12.4
V. EA-IVS6000 Series Model Use Method
lInstallation
1. Open the package and check accessories ( 1-pc AC Input Cable and 1 Manual )
2. Choose a clean and ventilation area.
3. Make sure DC voltage and battery voltage are inverter required.
4. Check the power Positive and Negative line.
5. Connecting Positive Cable with the terminal DC48V“+” on the back panel，and negative Cable with
the “-”.
6. Connecting AC input L/N/G with AC Input terminals L/N/G.( AC Ground must be connected into
ground area )
7. Connecting load cables with AC output terminals L/N/G.
lStart
a) Make sure that input DC and AC output cables are right connected.
b) Turn on DC input switch.
c) Put the start switch on“I”，inverter comes into the state of self-inspection, showing inverter is on.
Notes: Self-inspection------Before the output is delivered, the inverter will check the related parts and system
state. When the all meters of inverter is in normal, the inverter will be in working status of power supply and
inversion. This checking takes about 10 seconds, indication LED lights from left to right two times during this
period.
lShutdown
Put the start switch on“O”，all LED light and becomes dark, inverter is shutdown.

EA-IVS6000 user manual
Page 9of 15 GUANGDONG EAST POWER CO.,LTD

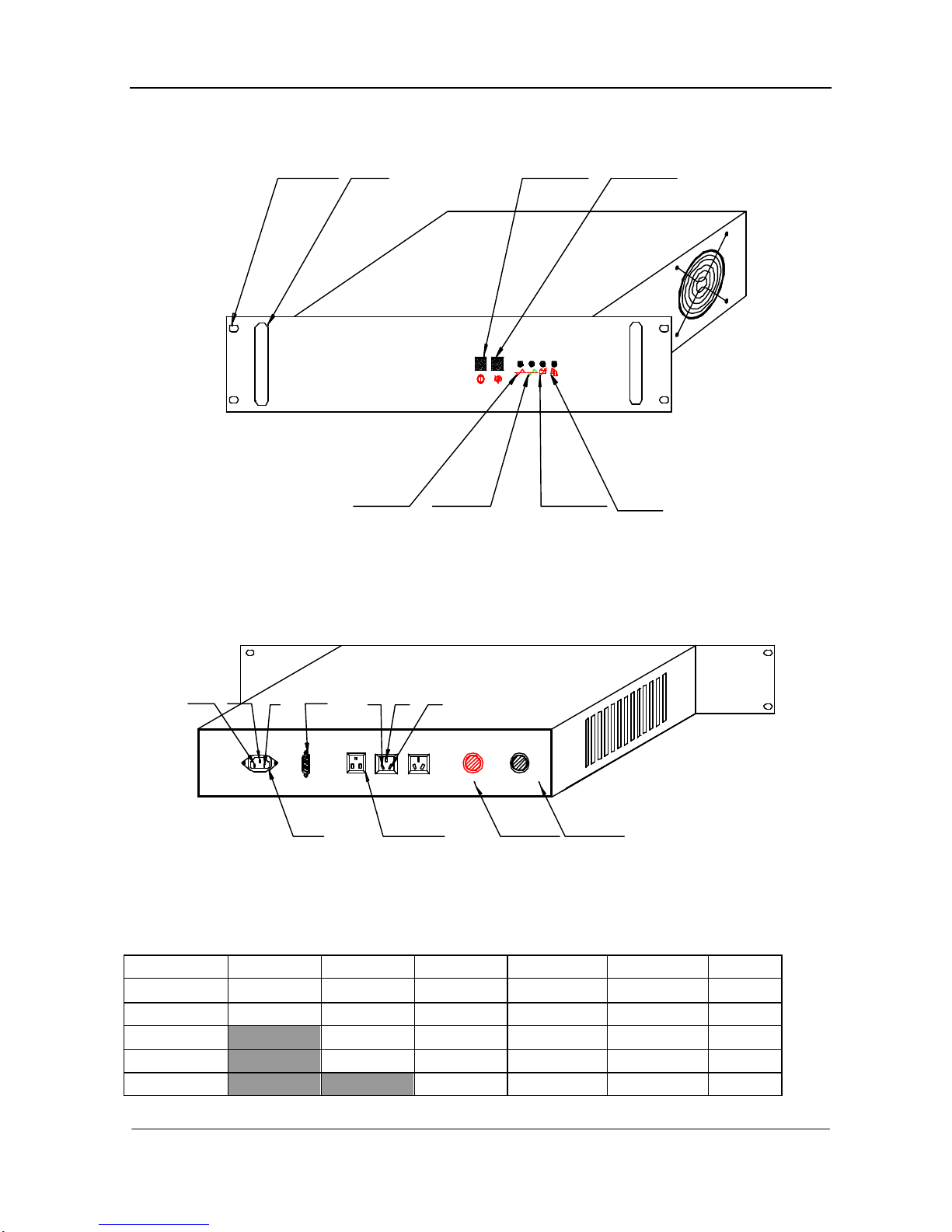

VI. EA-IVS6000 Series Maintenance Information
lfigures
ON/OFF button-- （SWITCH）
Beeper ON/OFF-- （BUZ）
“Bypss output”LED，green；
“Inverter”LED，blue；
“Battery Fault”LED，red；
“Load fault”LED，red；

EA-IVS6000 user manual
Page 10 of 15 GUANGDONG EAST POWER CO.,LTD
Chart5：LED Lights and Indication
Status
Item Output Out Type
Power
Green
Inver.
Blue
Battery
Red
Load
Red
1Self Test Yes Inversi
on or
Power
On? ?On?
?On?
?On?
Yes Yes
2Battery Fault No No Dark On Blink ×
3Power Normal Yes Power
Light Dark Dark Dark
4Power to Inversion Yes Inversi
on Dark Light Dark Dark
5DC Voltage Low Yes( Lower
than start
voltage)
Power/
Inversi
on
Dark Blink Dark Dark
6DC Start Voltage
Low No No Blink Blink Blink Blink
Yes Yes
7DC input voltage
High No No Blink Dark Dark Blink
Yes Yes
8Inversion Output
Fault No No Dark Blink Blink Dark
9Overload Warning
City Power Supply
Off /
3 Min. No Light Dark Dark Light
10 Overload Warning
Inversion State Off / 30S No Dark Light Dark Light
11 Overload Shutdown
No No Dark Dark Blink Light
12 Shortage Shutdown No No Light Light Blink Light
Yes Yes
13 Inversion Wave
Fault No No Blink Blink Blink Dark
14 DC ff Yes Yes Light Dark Blink Blink
Notes：“?”shows that the LED lights in order,“×”shows no light.
１） For protecting battery, inverter can only start when battery voltage in within the Starting
Voltage .After entering into working state, inverter can work normally as the battery voltage is
within Working Voltage .
2）When battery voltage reduced to Starting Voltage there is a voltage warning, when the voltage goes
lower than Working Voltage inverter will shutdown.

EA-IVS6000 user manual
Page 11 of 15 GUANGDONG EAST POWER CO.,LTD

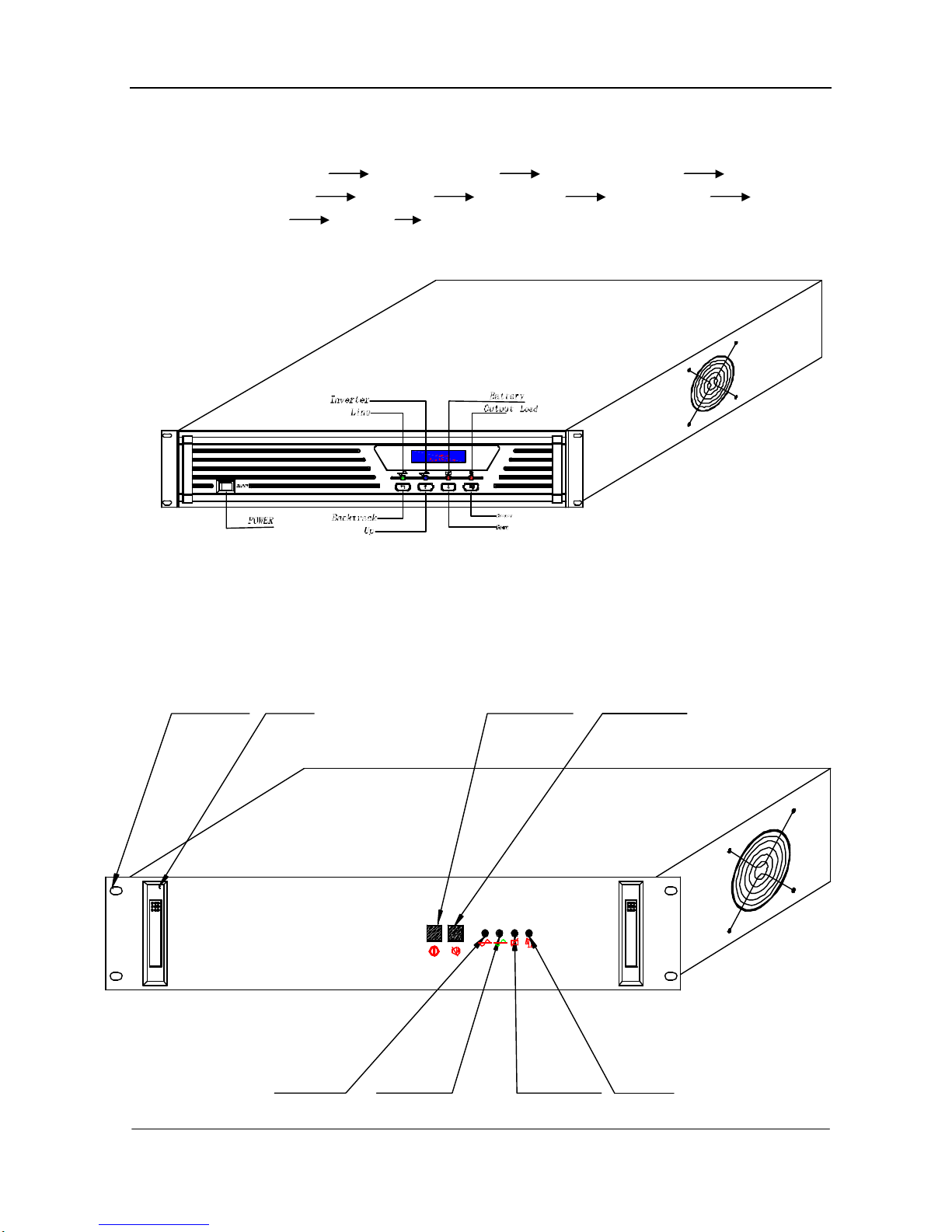

VII. EA-IVS6000 Series LCD Information
DC InputVoltage Output Voltage Output Current Output Power
Output Frequency Load Rate Line Voltage Line Frequency
Temperature Language backtrack(Inverter Pure Sine Wave)
VIII. EA-IVS6000 Series Model Mechanical Information
Figure2：500VA、1000VA、1500VA、2000VA (front)
Ｕｎｉｔｉｌｙ Ｏｋ
ｈａｎｄｌｅｓ
ｆｉｘｉｎｇ ｈｏｌｅｓ
Ｂａｔｔｅｒｙ ｆａｕｌｔ
Ｉｎｖｅｒｔｅｒ Ｏｋ
ＯＮ／ＯＦＦ ｂｕｔｔｏｎ
Ｏｖｅｒ Ｌｏａｄ
Ｂｅｅｐｅｒ ＯＮ／ＯＦＦ

EA-IVS6000 user manual
Page 12 of 15 GUANGDONG EAST POWER CO.,LTD
figure3：500VA、1000VA、1500VA、2000VA---Socket Type (rear)
ＡＣ ＯＵＴ
ＡＣ ＩＮ ＡＣ ＯＵＴ ＡＣ ＯＵＴ ＲＳ２３２
ＲＥＭＯＴＥ／ＣＯＮＴＲＯＬ ＋ＤＣ ＩＮ －
ＮＥＬＮ Ｅ Ｌ ＲＳ２３２
Ｆａｎ
ＤＣ ＩＮ（－）ＤＣ ＩＮ（＋）ＡＣ ＯＵＴ（３）
ＡＣ ＩＮ
figure4：500VA、1000VA、1500VA、2000VA---Bus bar connect Type（rear）
ＡＣ ＩＮ ＲＳ２３２
ＲＥＭＯＴＥ／ＣＯＮＴＲＯＬ ＡＣ ＯＵＴ ＡＣ ＯＵＴ
Ｎ Ｅ ＬＲＳ２３２ Ｎ Ｅ Ｌ
Ｆａｎ
ＡＣ ＯＵＴ（２）
ＡＣ ＩＮ

EA-IVS6000 user manual
Page 13 of 15 GUANGDONG EAST POWER CO.,LTD
figure5：3000VA(front)
ＯＮ／ＯＦＦ Ｂｕｔｔｏｎ
ｈａｎｄｌｅｓ
ｆｉｘｉｎｇ ｈｏｌｅｓ
Ｕｎｉｔｉｌｙ Ｏｋ Ｉｎｖｅｒｔｅｒ Ｏｋ Ｂａｔｔｅｒｙ ｆａｕｌｔ Ｏｖｅｒ Ｌｏａｄ
Ｂｅｅｐｅｒ ＯＮ／ＯＦＦ
figure6：3000VA(rear)
ＲＳ２３２
ＲＳ２３２
ＲＥＭＯＴＥ／ＣＯＮＴＲＯＬ
ＤＣ ＩＮ－＋
风扇
ＡＣ ＩＮ／ＯＵＴ ＢＵＳ ＢＡＲ
ＤＣ ＩＮ ＢＲＥＡＫ
FAN

EA-IVS6000 user manual
Page 14 of 15 GUANGDONG EAST POWER CO.,LTD
figure7：500VA(front)
Ｕｎｉｔｉｌｙ Ｏｋ Ｉｎｖｅｒｔｅｒ Ｏｋ Ｂａｔｔｅｒｙ ｆａｕｌｔ Ｏｖｅｒ Ｌｏａｄ
ｆｉｘｉｎｇ ｈｏｌｅｓ ｈａｎｄｌｅｓ ＯＮ／ＯＦＦ ｂｕｔｔｏｎ Ｂｅｅｐｅｒ ＯＮ／ＯＦＦ
figure8：500VA(rear)
ＡＣ ＯＵＴ
ＡＣ ＩＮ ＲＳ２３２
ＲＥＭＯＴＥ／ＣＯＮＴＲＯＬ ＡＣ ＯＵＴ ＡＣ ＯＵＴ ＋ＤＣ ＩＮ －
ＮＮ Ｅ Ｌ
ＤＣ ＩＮ（－）ＤＣ ＩＮ（＋）
ＡＣ ＩＮ ＡＣ ＯＵＴ（３）
ＥＬＲＳ２３２
Chart5：Mechanical information
Model EA12 Series
EA24 Series
EA48 Series
EA220 Series
EA220 Series
Weight
500VA A，BA，BA，BA，BA，B5Kg
1000VA CBBBB7Kg
2000VA CBBB8kg
3000VA CCCC11Kg
4000VA CCC12Kg

EA-IVS6000 user manual
Page 15 of 15 GUANGDONG EAST POWER CO.,LTD
5000VA CCC13Kg
6000VA CCC14Kg
1KVA tower DDDDD8 Kg
2KVA tower EDDD9 Kg
3000VA tower
EEEE12Kg
4000VA tower
EEE13Kg
5000VA tower
EEE15Kg
6000VA tower
EEE16Kg
A：482（W）×88（H）×250（D）mm
B：482（W）×88（H）×300（D）mm
C：482（W）×88（H）×380（D）mm
D：175（W）×275（H）×452（D）mm
E：222（W）×328（H）×452（D）mm
IX. Attached Accessories
1. 1-pc cable for AC input. (3000VA is not included)；
2. 1-pc of User Manual
