Guangzhou Bosma Technology WT001 Series User manual

CLOUD SMART THERMOMETER
USER MANUAL
【
【【
【Product Name】
】】
】
Cloud Smart Thermometer
【
【【
【Model】
】】
】
WT001 Series
【
【【
【Specifications】
】】
】
1.
1.1.
1. Measuring
Measuring Measuring
Measuring S
SS
Specifications
pecificationspecifications
pecifications
(1) Range：25.0℃～40.0℃
(2) Accuracy：±0.1℃ at 36.0～40.0℃, ±0.2℃ at other temperature range
(3) Unit：℃ or ℉
2.
2.2.
2. Battery
BatteryBattery
Battery
Button battery CR2025
3.
3.3.
3. Operation
Operation Operation
Operation Distance
DistanceDistance
Distance
Fifteen meters in a barrier-free environment
4.
4.4.
4. M
MM
Mechanical
echanicalechanical
echanical S
SS
Specifications
pecificationspecifications
pecifications
(1)Weight：6.0g
(2)Dimension：49.5*35.0*6.5mm
5.
5.5.
5. IP Rating
IP RatingIP Rating
IP Rating
IPx6: Support washing
6.
6.6.
6. Operation Specifications
Operation SpecificationsOperation Specifications
Operation Specifications
1、 Working current：0.65mA
2、 Working voltage：3V
7.
7.7.
7. Operation Condit
Operation ConditOperation Condit
Operation Conditions
ionsions
ions
The temperature of the operation environment should be 0℃～+ 50℃, the humidity
should be 15%～85%(non-condensing) and barometric pressure should be 860hPa～
1060hPa,and avoiding long-term operation at high temperature, humid or direct
sunlight environment.
【
【【
【Operation Principle】
】】
】
Firstly, the thermistor which is at top of the measuring part works as a temperature
transmitter. Secondly, while the target temperature changes, the value of the

thermistor will change with it. Meanwhile, Bluetooth chip will calibrate and deal
with the value of the circuit thermistor, the Bluetooth chip will transmit the
temperature data and changing curve to mobile device for display through Bluetooth
connection.
【
【【
【Main Structure】
】】
】
The Smart Thermometer is mainly composed of a host, temperature probe, battery and
medical stickers (while temperature probe is composed of a sensor ring and a sensor).
Product composition is as follow:
【
【【
【Accessories】
】】
】
Bottom shell Sensor ring + Sensor NTC plate Battery cover
Surface shell Button PCB Two battery shrapnel NTC Battery CR2025

1. Parts
【
【【
【Instructions of Accessories, Consumables Replacement Cycle and Method】
】】
】
(1)Medical stickers*10, Decals*1, after running out of the accessories, please
purchase the accessories at our online store. Detailed installation guidance
please refer to ‘Wearing description’.
(2)For CR2025 button battery, when the device shows low battery capacity, please
replace the battery according to the manual operation guidelines. Detailed
installation guidelines please refer to ‘Upload Battery’.
【
【【
【Features
FeaturesFeatures
Features】
】】
】
Support 24 hours continuously monitoring of temperature change (data measured
every 4 seconds), shown as temperature curve drawing.
 With high accuracy, auto high temperature alert, prompt actions on health risks,
easy for you to work and sleep without worries.
 Perfect waterproof design.
 Small and easy to use, with only 6.5mm of thickness
Low power consumption Bluetooth wireless transmission. With iOS or Android App
for smart temperature measuring.
Specialized App design for parents, easy to use.
Data storage by cloud service, continue saving human temperature data(Remote
monitor function after registration and log-in)
Smart power supply management with low power-consumption, auto turn off when
lower than human temperature
History data saved long as 24days, while data exceeds this time be saved to cloud.

Support platforms of iOS 6.0 or above, Android 4.3 or above, support devices
including smart phones, Pads, TVs
Auto alert through voice and message when real-time temperature exceeds the
self-defined temperature.
Bluetooth anti-loss function
Support remote connection and multi-user sharing.
【
【【
【Intended Use
Intended UseIntended Use
Intended Use】
】】
】
For human body temperature measuring used by family and medical institutions.
【
【【
【Installation Guid
Installation GuidInstallation Guid
Installation Guidelines
elineselines
elines】
】】
】
1. Please scan QR code below to download the software according to relative OS:
iOS
Android
2. Upload Battery

3、Build Connection
4、Wearing Description
【
【【
【App Instructions】
】】
】
Example: Android devices

1.
1. 1.
1. BT connection
BT connectionBT connection
BT connection
(1) Connection
•For first connection, please directly click ‘Connect’→ ‘Device Connect’
•If not first time connection, please follow steps as below：
(2) BT search page
After click‘Device Connect’, there would be a device search page, search relative
device and build the connection.
Notice: The initial name of the thermometer is ‘Bosma Therm.’，please confirm the
right device according to the mac address under the device name.
(3)BT connection success page
After successful connection, the page will show a Bluetooth connection logo at
‘connected’status, the battery level, connection time, and the ID, mac address.
User can confirm whether connection is with right device according to mac address.
User can also modify the device name by clicking the thumb on the right. Click the

left corner to return to homepage. Check out the temperature value and the curves,
or click the ‘Fullscreen’ to check out the temperature curves.
2.Remote Connections
Guidelines：
•To use the remote connection, please login first. Details of User Sign up/Log
in please refer to Point5.
•Remote connection requests two smart phones to use simultaneously, one smart
phone with connected Bluetooth sends out the remote connection invitation,
meanwhile the other smart phone builds the remote connection.
Logged users with Bluetooth connected smart phones can send out invitations to other
users, so other users can conduct data remote monitoring, details as below
•Remote connection invitation: Click the share button showed below to user
invitation page, after the invitation code generated, send the code to other
users that request remote connection.

•Remote connection: On first page, user click‘Connect’ → ’new connect’
→’Remote’, enter the remote connection page and join the remote connection
by input the invitation code. After successfully join the remote connection,
directly join the remote connection with no need to input invitation code.
•Remote management: Logged users with Bluetooth connected smart phones enter the
‘Remote Manager’, manage the admission of remote connection. ‘Open
connection’ is on in default. Other devices can join by input invitation code.
If it’s shut off, other devices could not join the connection. The list is
users that have joined the connection with no need to input invitation code.
You could delete the list as you want. If user is deleted from the list, he/she
would need invitation code to join again.
3.
3. 3.
3. High
HighHigh
High Temperature Al
Temperature AlTemperature Al
Temperature Alert
ertert
ert

(1). Alert temperature setting
Click the ‘Lowest’ ‘Highest’to set the alert temperature on first page.
(2). Alert page
When temperature exceeds the setting highest temperature, the alert page will pop
up, user can slide the bottom page to turn the alert off. On the temperature curve,
the temperature values that exceeds the alert temperature will be showed in red.
4.
4.4.
4.Temperature History
Temperature HistoryTemperature History
Temperature History
Click the bottom ‘History temp’, click the date icon to check the previous
temperature curve.
5.
5.5.
5.Login
LoginLogin
Login/
//
/Sign up
Sign upSign up
Sign up

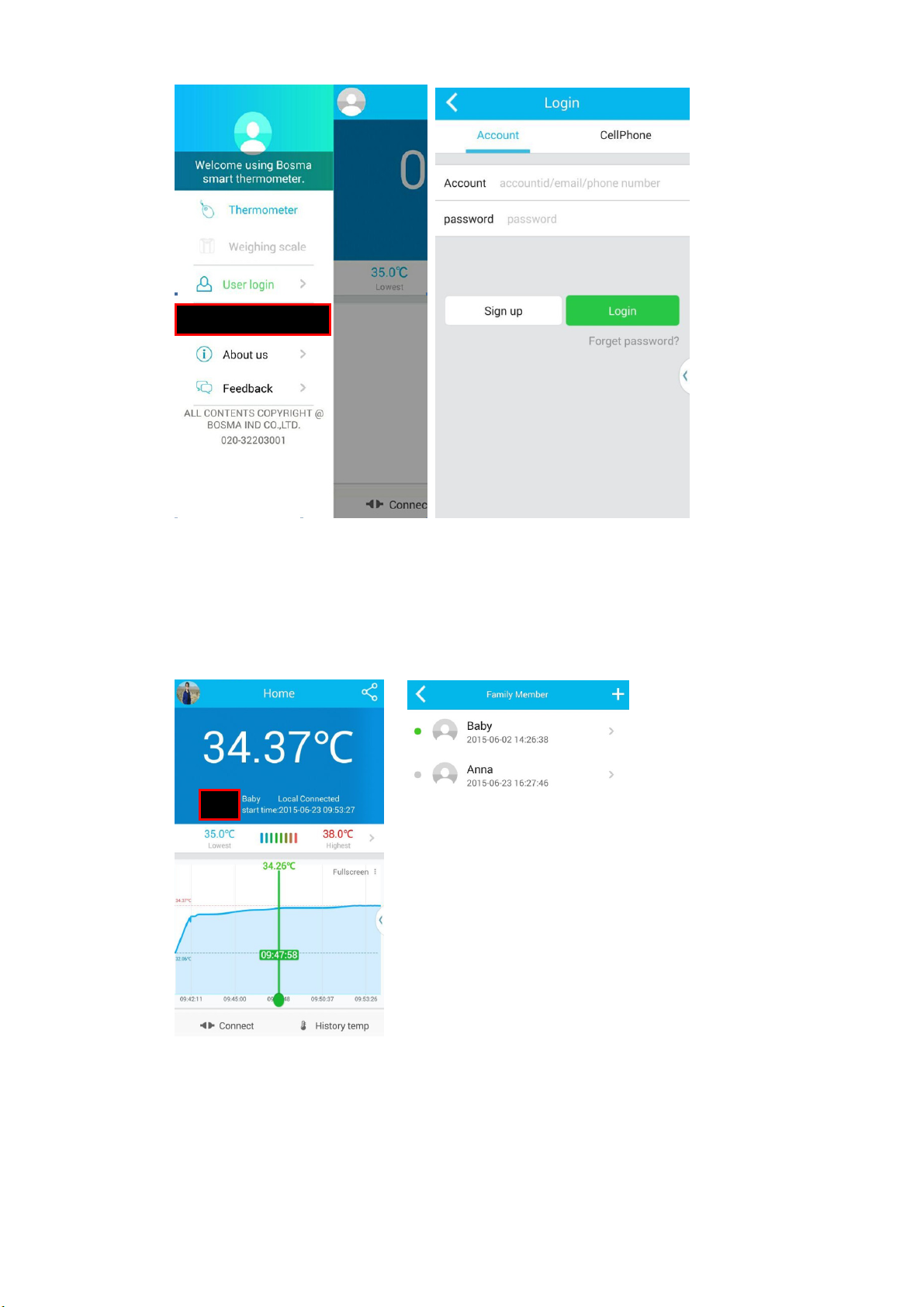

On first page, click the avatar on above left corner to enter sidebar, click ‘login’
to enter login page, if you haven’t got an account yet, please click the ‘Sign
up’ to get a new account.

6.
6. 6.
6. Switch/
Switch/Switch/
Switch/A
AA
Add/
dd/dd/
dd/M
MM
Modify/
odify/odify/
odify/D
DD
Delete
eleteelete
elete f
ff
family
amilyamily
amily m
mm
members
embersembers
embers
Notice: Only logged users with Bluetooth connected smart phones can conduct this
step. Click ‘Switch’button to enter family member page.
•On the family member list, the member with green light spot is the monitoring member, you
can click other members to switch.
•Click ‘+’ beside the ‘family member’ to add family members.
•Click the right little arrow to modify family member info.
•Long press on family member to delete.
