Guangzhou Robustel RAC7000 User manual

RAC7000
Android Industrial Personal Computer
Smart Control System
User Guide
Guangzhou Robustel LTD
www.robustel.com

Robustel RAC7000 Android IPC User Guide
RT_UG_RAC7000_v.1.0.0 Aug. 14, 2018 2/31
About This Document
This document provides hardware and software information of the RAC7000 android IPC.
Copyright© 2018 Guangzhou Robustel LTD
All rights reserved.
Trademarks and Permissions
is the trademark of Guangzhou Robustel LTD. All other trademarks and trade names mentioned
in this document are the property of their respective owners.
Disclaimer
No part of this document may be reproduced in any form without the written permission of the copyright owner.
The contents of this document are subject to change without notice due to continued progress in methodology,
design and manufacturing. Robustel shall have no liability for any error or damage of any kind resulting from the use
of this document.
Technical Support
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Web: www.robustel.com

Robustel RAC7000 Android IPC User Guide
RT_UG_RAC7000_v.1.0.0 Aug. 14, 2018 3/31
Important Notice
Due to the nature of wireless communications, transmission and reception of data can never be guaranteed. Data
may be delayed, corrupted (i.e., have errors) or be totally lost. Although significant delays or losses of data are rare
when wireless devices such as the Android IPC is used in a normal manner with a well-constructed network, the
Android IPC should not be used in situations where failure to transmit or receive data could result in damage of any
kind to the user or any other party, including but not limited to personal injury, death, or loss of property. Robustel
accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received
using the computer, or for failure of the computer to transmit or receive such data.
Safety Precautions
General
The Android IPC generates radio frequency (RF) power. When using the Android IPC, care must be taken on
safety issues related to RF interference as well as regulations of RF equipment.
Do not use your Android IPC in aircraft, hospitals, petrol stations or in places where using cellular products is
prohibited.
Be sure that the Android IPC will not be interfering with nearby equipment. For example: pacemakers or
medical equipment. The antenna of the Android IPC should be away from computers, office equipment, home
appliance, etc.
An external antenna must be connected to the Android IPC for proper operation. Only uses approved antenna
with the Android IPC. Please contact authorized distributor on finding an approved antenna.
Always keep the antenna with minimum safety distance of 20 cm or more from the human body. Do not put the
antenna inside metallic box, containers, etc.
RF exposure statements
1. For mobile devices without co-location (the transmitting antenna is installed or located more than 20cm
away from the body of user and nearby person)
Note: Some airlines may permit the use of cellular phones while the aircraft is on the ground and the door is open.
Android IPC may be used at this time.
Using the Android IPC in Vehicle
Check for any regulation or law authorizing the use of cellular devices in vehicle in your country before installing
the Android IPC.
The driver or operator of any vehicle should not operate the Android IPC while driving.
Install the Android IPC by qualified personnel. Consult your vehicle distributor for any possible interference of
electronic parts by the Android IPC.
The Android IPC should be connected to the vehicle’s supply system by using a fuse-protected terminal in the
vehicle’s fuse box.
Be careful when the Android IPC is powered by the vehicle’s main battery. The battery may be drained after
extended period.
Protecting Your Android IPC
To ensure error-free usage, please install and operate your Android IPC with care. Do remember the following:
Do not expose the Android IPC to extreme conditions such as high humidity / rain, high temperature, direct
sunlight, caustic / harsh chemicals, dust, or water.
Do not try to disassemble or modify the Android IPC. There is no user serviceable part inside and the warranty
would be void.

Robustel RAC7000 Android IPC User Guide
RT_UG_RAC7000_v.1.0.0 Aug. 14, 2018 4/31
Do not drop, hit or shake the Android IPC. Do not use the Android IPC under extreme vibrating conditions.
Do not pull the antenna or power supply cable. Attach/detach by holding the connector.
Connect the Android IPC only according to the instruction manual. Failure to do it will void the warranty.
In case of a problem, please contact an authorized distributor.

Robustel RAC7000 Android IPC User Guide
RT_UG_RAC7000_v.1.0.0 Aug. 14, 2018 5/31
Regulatory and Type Approval Information
Table 1: Directives
2013/56/EC
Directive 2013/56/EU of the European Parliament and of the Council of 10 February 2013
on the restriction of the use of certain hazardous substances in electrical and
electronic equipment (RoHS)
2012/19/EU
Directive 2012/19/EU the European Parliament and of the Council
of 4 July 2012 on waste electrical and electronic equipment (WEEE)
Table 2: Standards of the Ministry of Information Industry of the People’s Republic of China
SJ/T
11363-2006
“Requirements for Concentration Limits for Certain Hazardous Substances in Electronic
Information Products” (2006-06).
SJ/T
11364-2006
“Marking for Control of Pollution Caused by Electronic Information Products”
(2006-06).
According to the “Chinese Administration on the Control of Pollution caused
by Electronic Information Products” (ACPEIP) the EPUP, i.e., Environmental
Protection Use Period, of this product is 20 years as per the symbol shown here, unless otherwise
marked. The EPUP is valid only as long as the product is operated within the operating limits
described in the Hardware Interface Description.
Please see Table 3 for an overview of toxic or hazardous substances or elements that might be
contained in product parts in concentrations above the limits defined by SJ/T 11363-2006.
Table 3: Toxic or Hazardous Substances or Elements with Defined Concentration Limits
Name of the Part
Hazardous Substances
(Pb)
(Hg)
(Cd)
(Cr (VI) )
(PBB)
(PBDE)
Metal parts
o
o
o
o
o
o
Circuit modules
x
o
o
o
o
o
Cables and cable assemblies
o
o
o
o
o
o
Plastic and polymeric parts
o
o
o
o
o
o
o:
Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is
below the limit requirement in SJ/T11363-2006.
x:
Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials for this
part might exceed the limit requirement in SJ/T11363-2006.

Robustel RAC7000 Android IPC User Guide
RT_UG_RAC7000_v.1.0.0 Aug. 14, 2018 6/31
Document History
Updates between document versions are cumulative. Therefore, the latest document version contains all updates
made to previous versions.
Date
Firmware Version
Document Version
Change Description
Aug. 14, 2018
1.0.0
v.1.0.0
Initial release

Robustel RAC7000 Android IPC User Guide
RT_UG_RAC7000_v.1.0.0 Aug. 14, 2018 7/31
Contents
Contents .............................................................................................................................................................. 7
Chapter 1 Product Description ........................................................................................................................ 8
1.1 Product Overview....................................................................................................................................... 8
1.2 Package Contents ....................................................................................................................................... 9
1.3 Specifications ........................................................................................................................................... 10

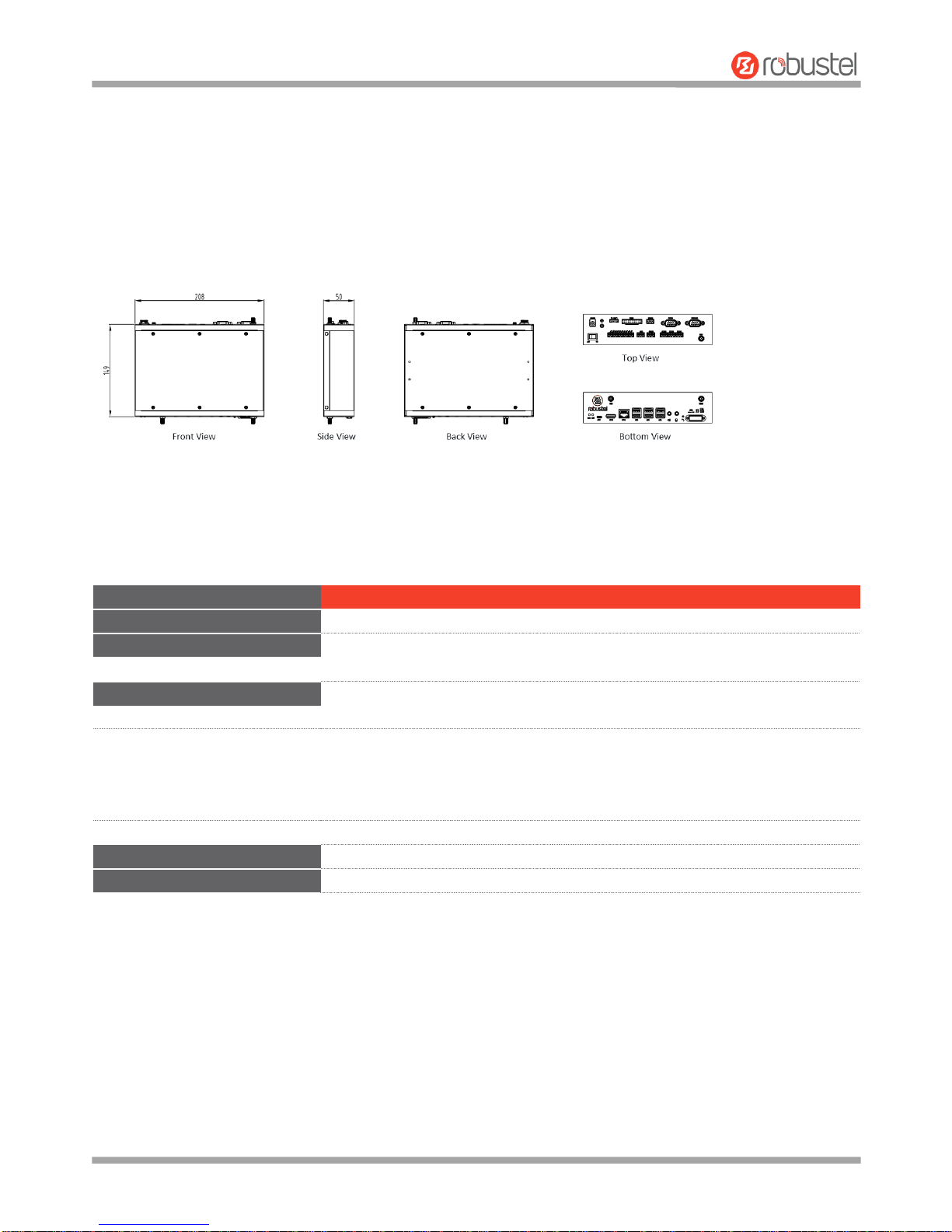

1.4 Dimension ................................................................................................................................................ 12
1.5 Ordering Information ............................................................................................................................... 12
Chapter 2 Hardware Function ....................................................................................................................... 13

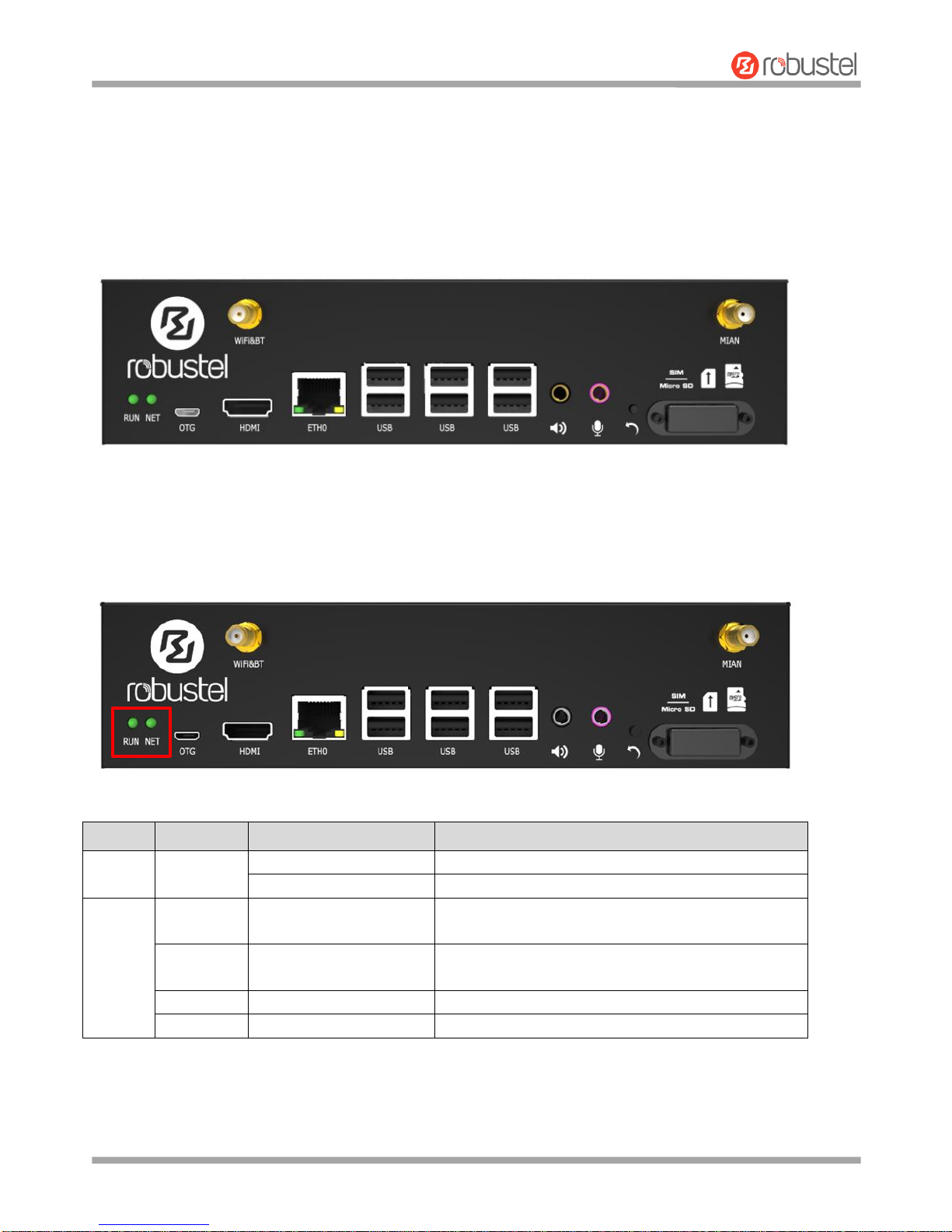

2.1 Front View ................................................................................................................................................13
2.1.1 System Operation Status Indicators ....................................................................................................... 13

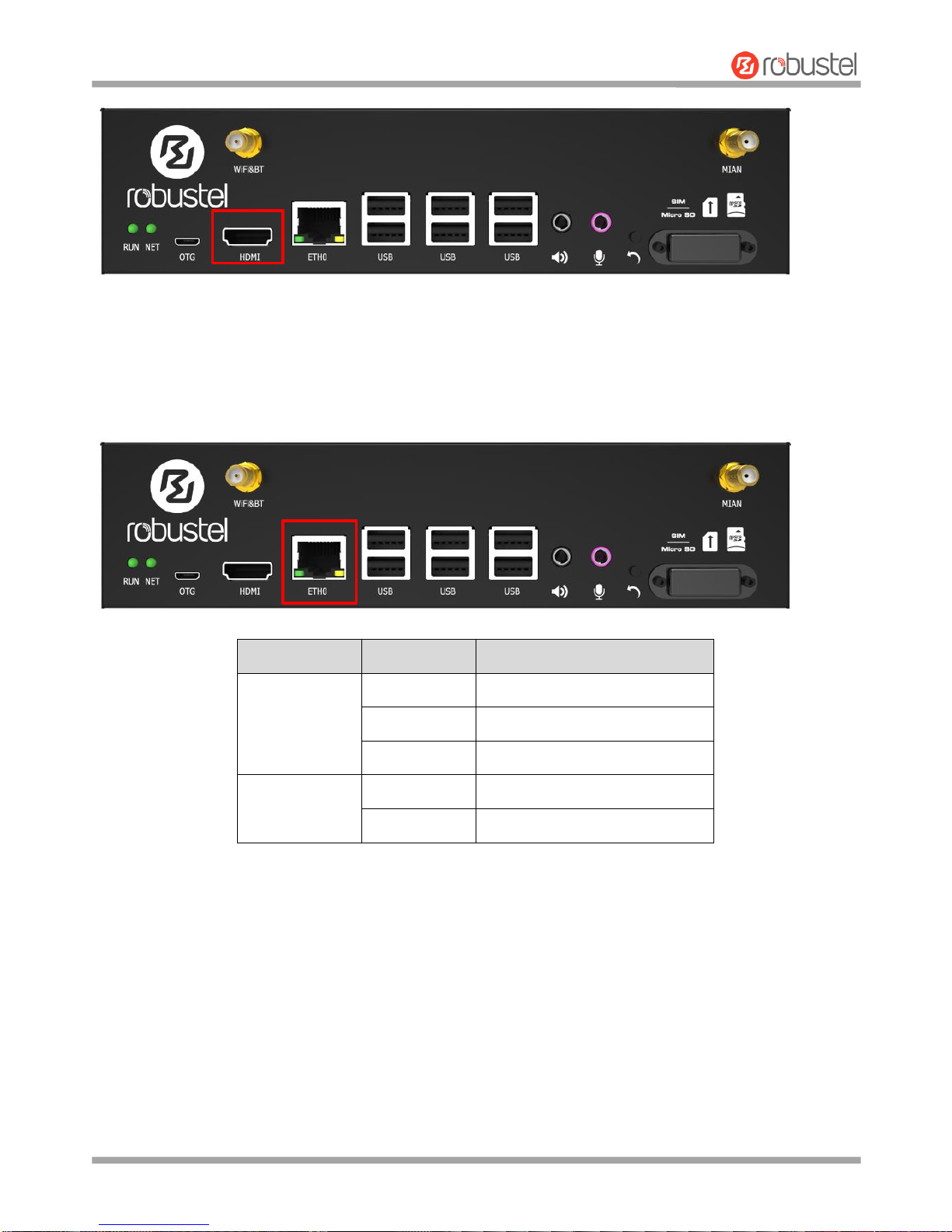

2.1.2 HDMI Interface Definition......................................................................................................................13
2.1.3 Ethernet Interface Definition .................................................................................................................14

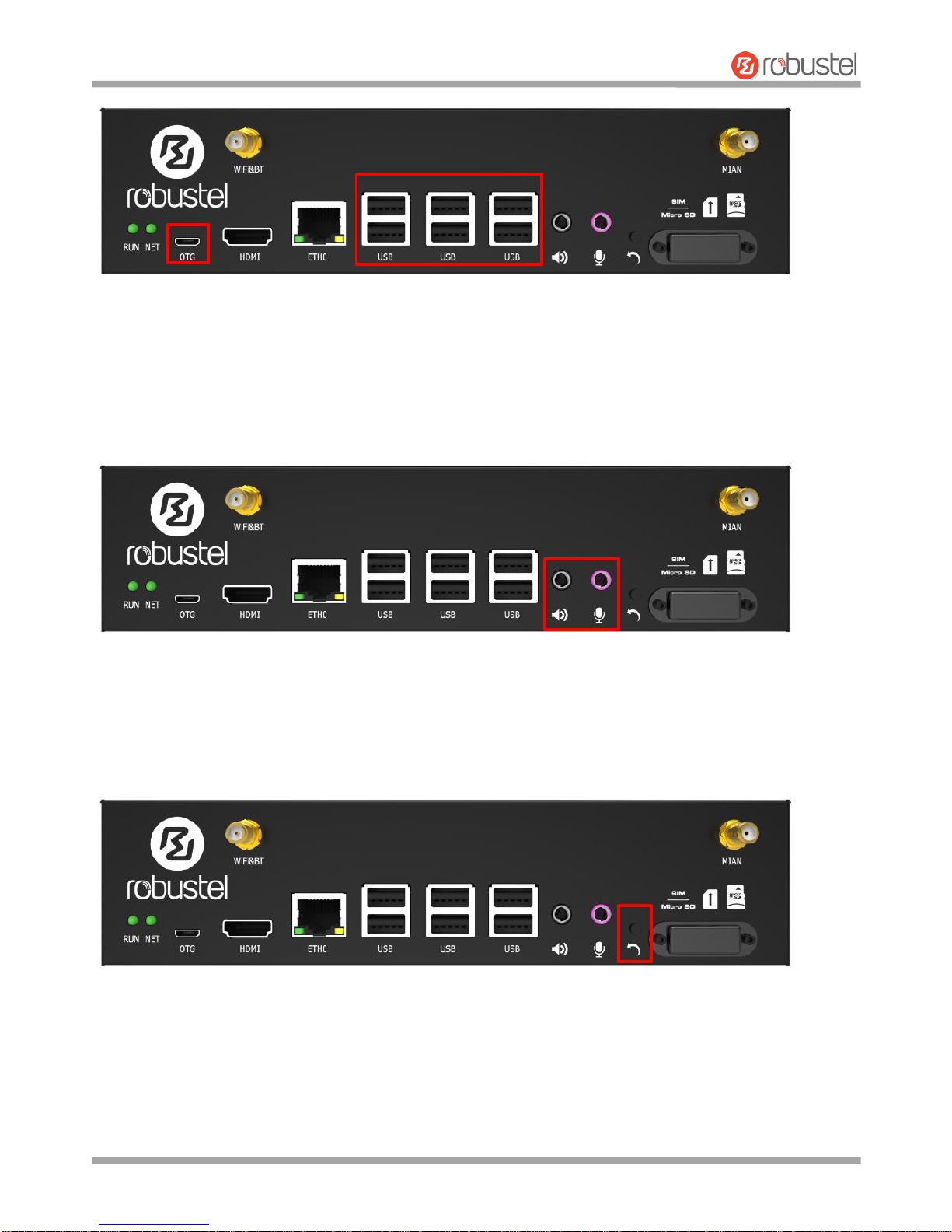

2.1.4 USB Interface.......................................................................................................................................... 14
2.1.5 Headphone & Microphone Connector Definition..................................................................................15
2.1.6 Return Button......................................................................................................................................... 15
2.1.7 SIM Card/Micro SD Card ........................................................................................................................15
2.1.8 Attach External Antenna (SMA Type)..................................................................................................... 16
2.2 Back View .................................................................................................................................................17

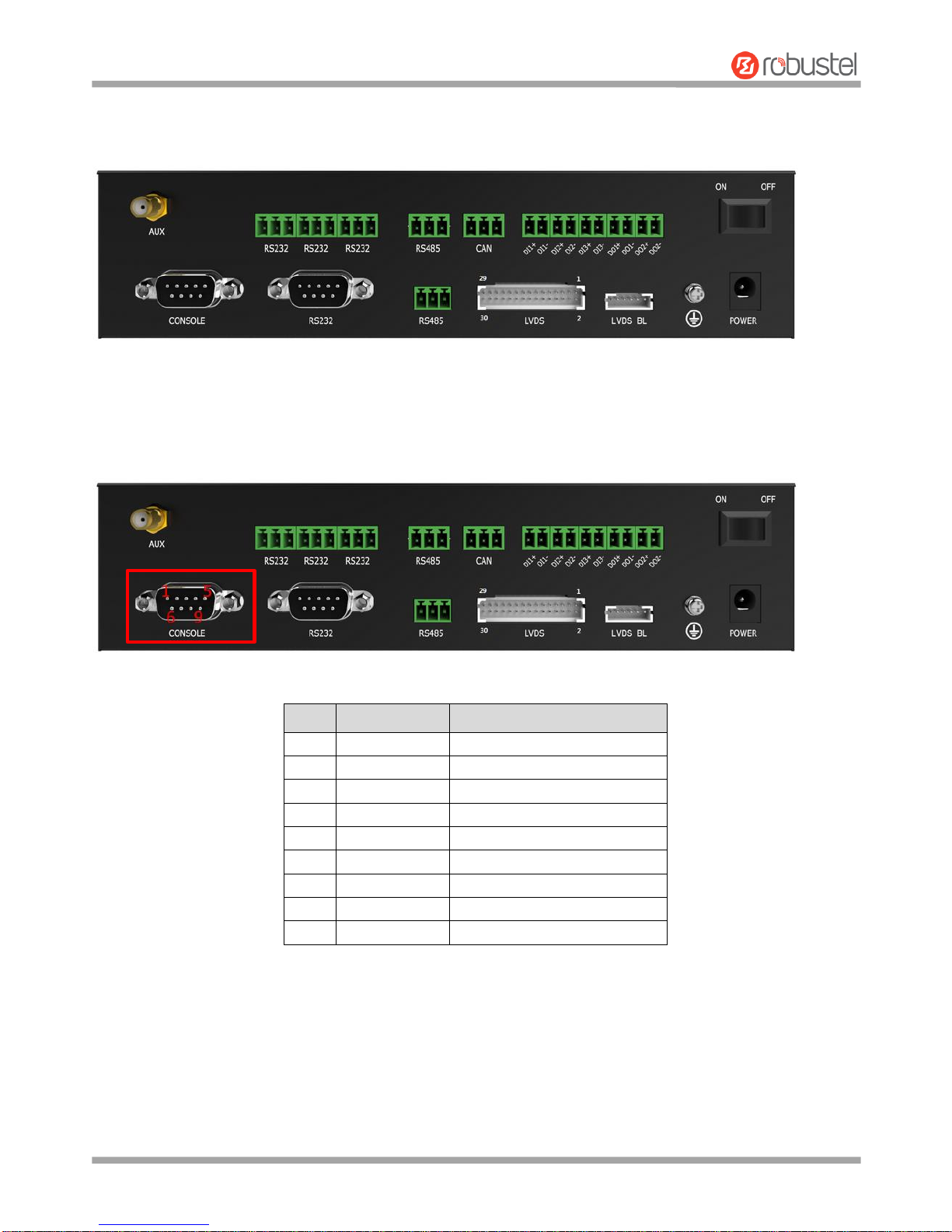

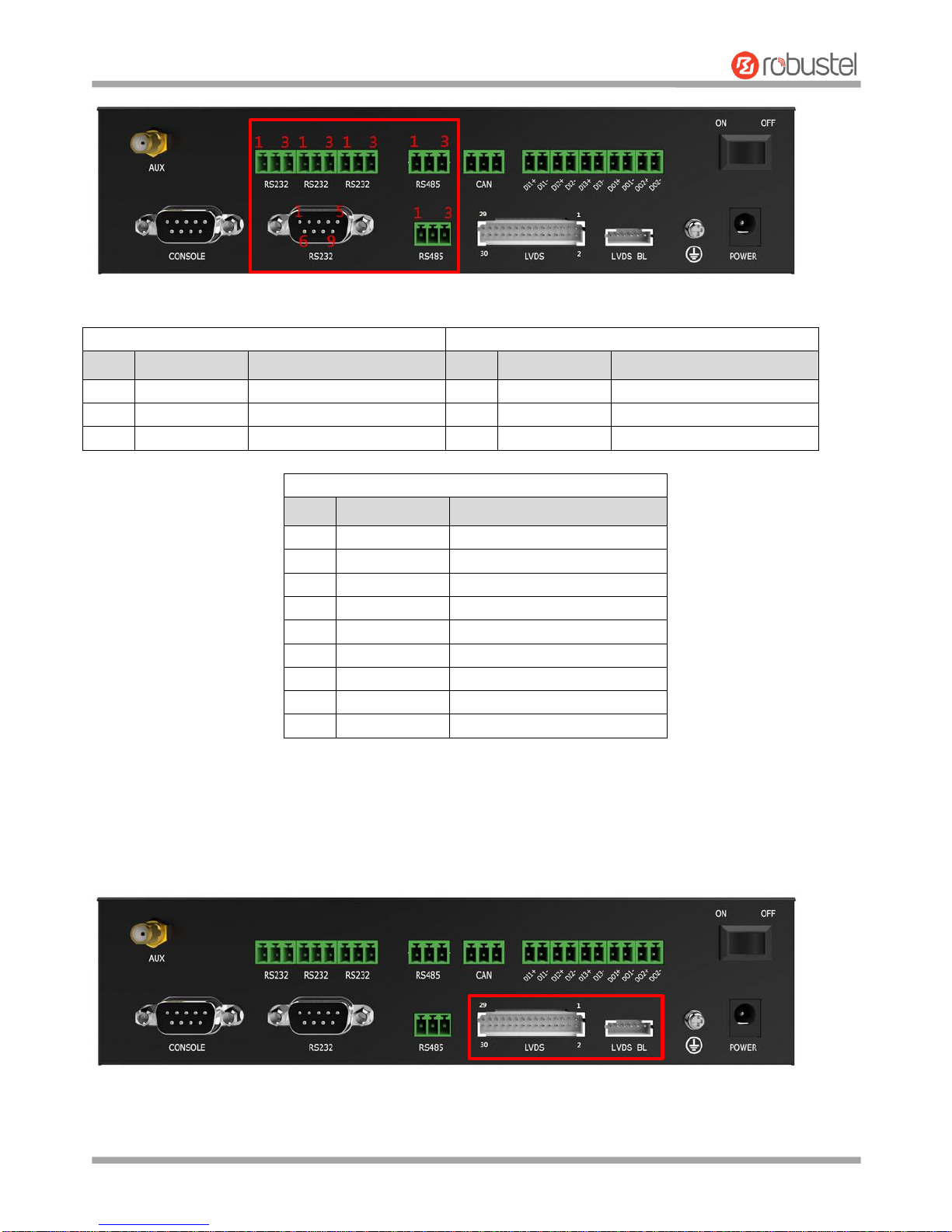

2.2.1 CONSOLE Definition ...............................................................................................................................17
2.2.2. Serial Port Definition ............................................................................................................................. 17

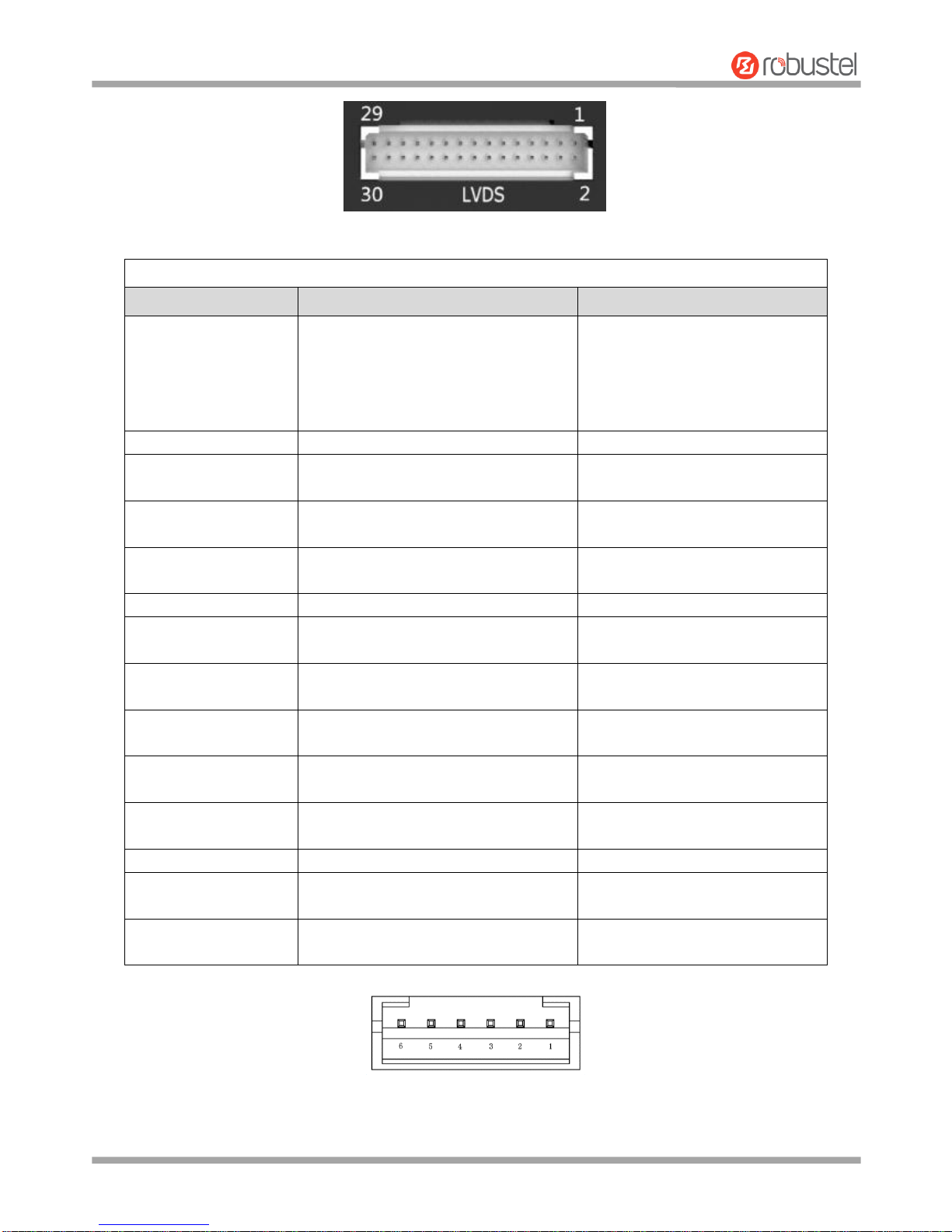

2.2.3 LVDS Interface Definition .......................................................................................................................18
2.2.4 CAN Interface Definition ........................................................................................................................ 20
2.2.5 DI/DO Interface Definition .....................................................................................................................20
2.2.6 Grounding Industrial Control Computer ................................................................................................21
2.2.7 Power Supply.......................................................................................................................................... 21
2.3 Install Industrial Control Computer..........................................................................................................22
Chapter 3 Software Function......................................................................................................................... 23
3.1 WIFI and Network ....................................................................................................................................23
3.1.1 WLAN ..................................................................................................................................................... 23
3.1.2 Mobile Network .....................................................................................................................................24
3.1.3 Ethernet .................................................................................................................................................25
3.1.4 LAN.........................................................................................................................................................25
3.2 Indication Function................................................................................................................................... 25
3.2.1 Display Port & Resolution....................................................................................................................... 25
3.2.2 System Navigation & Notification Bar....................................................................................................26
3.2.3 Brightness Adjusting...............................................................................................................................26
3.2.4 Switch Landscape or Portrait ................................................................................................................. 26
3.3 Back Up & Reset .......................................................................................................................................27
3.4 ADB Debugging......................................................................................................................................... 28
3.5 Upgrade Silently .......................................................................................................................................28
3.6 System Update .........................................................................................................................................28
Glossary............................................................................................................................................................. 30

Robustel RAC7000 Android IPC User Guide
RT_UG_RAC7000_v.1.0.0 Aug. 14, 2018 8/31
Chapter 1 Product Description
1.1 Product Overview
Designed with ARM® Cortex™-A9 core and Android operating system, Robustel RAC7000 Android IPC is a smart
industrial control device with high-performance, high-reliability and high-stability. It supports Android 4.4/6.0
operating environment and powerful system function, and provides users with convenient interactive service
between human and the computer. By means of OpenGLES2.0 and OpenVG™1.1 hardware accelerator and full-HD
1080P video codecs, RAC7000 provides users with a smooth and powerful video experience of multimedia playback.
RAC7000 supports Netcom 3G/4G real-time communication. In addition, it has wireless transmit function, rich
peripheral interfaces and reliable management system which can access a variety of external devices such as card
readers, printers, POS machines, LCD screens, etc., to meet different application scenarios.
Dual/Quad-core Cortex-A9 processor architecture
Supporting OpenGLES2.0 and OpenVG™1.1, 2D and 3D graphics acceleration
Android 4.4/6.0 system
1080P HD full-screen video decoding
Hiding status bar and navigation key
Specified applications for full-screen auto-run and auto-failover recovery
3G/4G cellular network for fast auto dialing
3G/4G network link self-detection and self-maintenance mechanism for abnormally fast auto recovery
APN adaptive dialing
Expansion of SD card for large storage
RTC clock synchronization
Support program automatically awaken when power on and the screen never be locked
Support to pre-install App
Supporting Android system for self-development and application installation
HDMI, LVDS and double-screen display
Supporting Android Debug Bridge port command
Support 3.5mm speak and mic standard port output

Robustel RAC7000 Android IPC User Guide
RT_UG_RAC7000_v.1.0.0 Aug. 14, 2018 9/31
WiFi and Bluetooth connections
Expansion of SD card for large storage
Supporting double-row pin expansion board, rich peripheral interfaces including serial port, Ethernet, USB,
audio, and video for access requirements of different machines
Supporting hardware watchdog
1.2 Package Contents
Before installing your RAC7000 Android IPC, verify the kit contents as follows.
Note: The following pictures are for illustration purposes only, not based on their actual sizes.
1 x Robustel RAC7000 Android IPC (the image is only for reference)

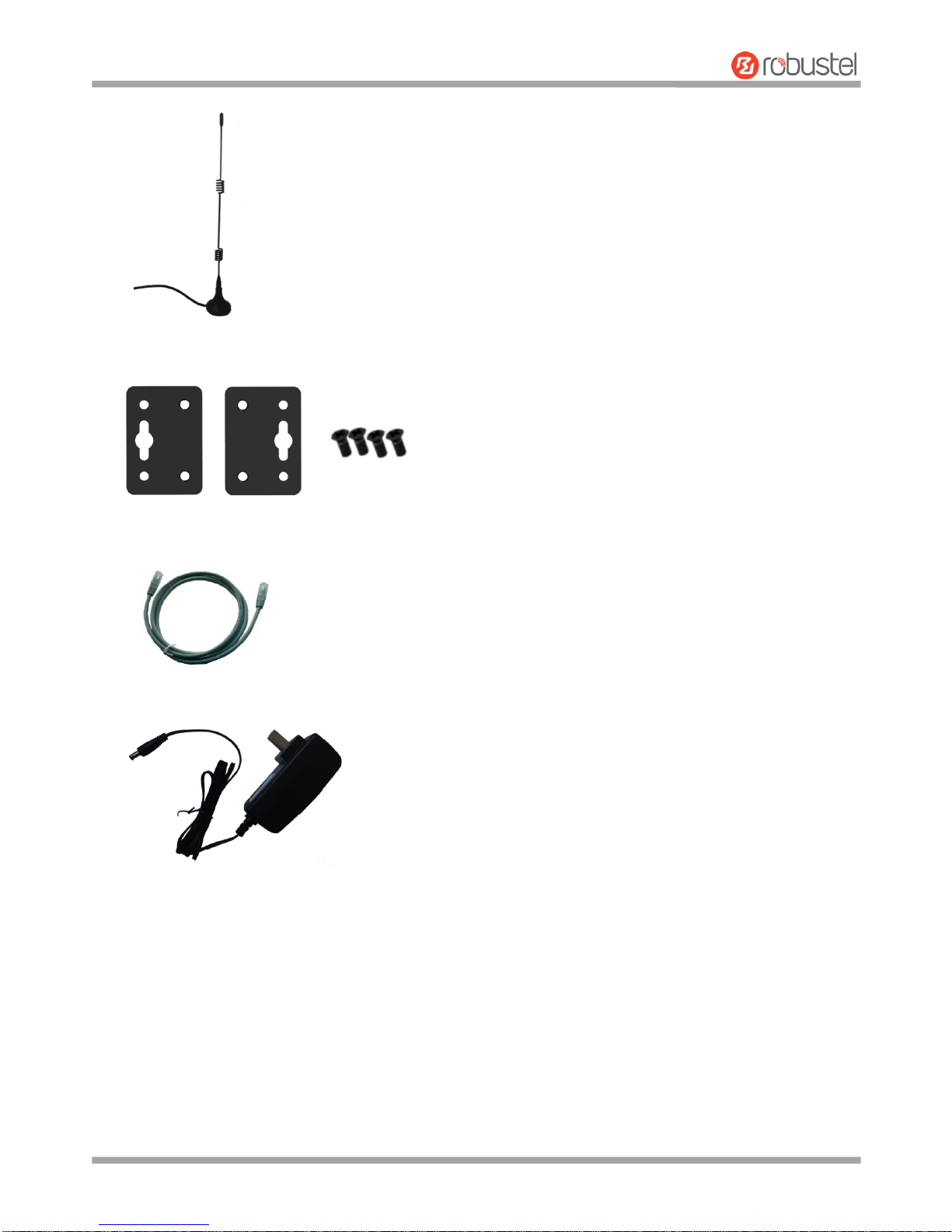

Optional Accessories (sold separately)
3G/4G SMA cellular network antenna
RP-SMA WiFi antenna

Robustel RAC7000 Android IPC User Guide
RT_UG_RAC7000_v.1.0.0 Aug. 14, 2018 10/31
Wall mounting installation kit
Network cable
AC/DC power adapter (12V DC, 3 A; EU/US/UK/AU plug optional)
1.3 Specifications
Core
CPU: Dual/Quad-core Cortex-A9 1.0 GHz
RAM: 2GB DDR3
Flash: 8GB EMMC

Robustel RAC7000 Android IPC User Guide
RT_UG_RAC7000_v.1.0.0 Aug. 14, 2018 11/31
Cellular Interface
Number of antennas: 2 (MAIN + AUX)
Connector: SMA female
SIM slot: 1 (3.0V/1.8V)
Standards: GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/
TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE
Display Interface
1 x double-row pin LVDS interface with resolution up to 1920 x 1080P, 12V backlight optional
1 x HDMI 1.4 Type A interface with resolution up to 1920 x 1080P
WIFI & Bluetooth Interface
Number of antennas: 1
Connector: RP-SMA male
Standard: 802.11a/b/g/n, BT4.0, supporting AP and Client modes
Frequency band: 2.412 - 2.485 GHz (2.4 GHz ISM band)
Security: Open, WPA, WPA2, WEP
Encryption: AES, TKIP, WEP64
Data speed: 150 Mbps
Daughter Board
Number of ports: 1
Type: 2 x 15-pin double row pin
Device Interface
Ethernet interface: 1 x 10/100 Mbps; can be configured to LAN/WAN port
Serial port: 5 x RS-232 (DB9 + 3 x 3-pin terminal) + 2 x RS-485 3-pin terminal
USB port: 6 x USB 2.0 host +1 x Micro USB otg
GPIO: 2 x DI + 3 x DO
Audio Interface
Earphone: 1 x 3.5 mm SPK connector
Microphone: 1 x 3.5 mm MIC connector
Speaker: 1 x 4 Pin 2.0 pitch male socket, supporting dual track, 4 Ω5 W
Others
SIM card: 1 x Standard SIM slot
SD card: 1 x Micro SD slot
Buttons: 1x return soft-touch button, 1 x power switch
LED indicators: RUN/NET
Battery: RTC button cell available for 5 years
Power Supply and Consumption
Connector: DC female seat
Input voltage: 12V DC

Robustel RAC7000 Android IPC User Guide
RT_UG_RAC7000_v.1.0.0 Aug. 14, 2018 12/31
Power consumption: Idle: 350mA @ + 12V DC
Maximum: 4.5A @ + 12V DC
1.4 Dimension
1.5 Ordering Information
Model
RAC7000-4L
Display Screen Interface Type
HDMI + LVDS
Air Interface
GSM/GPRS/EDGE/ WCDMA /HSDPA/HSUPA/HSPA+/ TD-SCDMA/CDMA (CDMA
1X/EVDO)/UMTS/FDD LTE/TDD LTE
Frequency Bands
FDD LTE B1/B2/B3/B4/B5/B7/B8/B20
TDD LTE B38/B39/B40/B41
4G*
3G
UMTS B1
CDMA(CDMA1X/EVDO) BC0
TD-SCDMA B34/B39
HSDPA/HSUPA/HSPA+: B1/B2/B5/B8
2G
GSM/GPRS/EDGE: 850/900/1800/1900 MHz
Operating Environment
-20 to +70 °C
Relative Humidity
5 to 95% RH
*For more information about 4G frequency bands in different countries, please contact your Robustel sales representative.
Note: LVDS is optional, but the device with LVDS cannot meet the demand of CE certification.

Robustel RAC7000 Android IPC User Guide
RT_UG_RAC7000_v.1.0.0 Aug. 14, 2018 13/31
Chapter 2 Hardware Function
2.1 Front View
2-1 Hardware Front View Interface Diagram
2.1.1 System Operation Status Indicators
Device board has RUN and NET two indicators.
2-1-1 Status Indicators Diagram
Name
Color
Status
Description
RUN
Green
Blinking
System is running
Off
System logs out
NET
Green
Solid
Connect to the cellular network and the signal is
strong
Yellow
Solid
Connect to the cellular network and the signal is in
middle
Red
Solid
Connect to the cellular network and the signal is weak
Off
Disconnect to the cellular network
2.1.2 HDMI Interface Definition
HDMI1.4 standard Type A interface with resolution up to 1920 x 1080P.

Robustel RAC7000 Android IPC User Guide
RT_UG_RAC7000_v.1.0.0 Aug. 14, 2018 14/31
2-1-2 HDMI Interface Diagram
2.1.3 Ethernet Interface Definition
One Ethernet interface with two LED indicators, the yellow indicator indicates the rate of link connection, and the
green one indicates the validity of link/data. The details can refer to the following table.
2-1-3 Ethernet Interface Diagram
Indicator
Status
Description
Link/Data
validity indicator
Solid
Connection is built
Blinking
Data is being transmitted
Off
Disconnect
Rate indicator
Solid
100 Mbps mode
Off
10 Mbps mode
2.1.4 USB Interface
6 USB2.0 HOST (Type-A) functional interfaces, supporting U disk, USB mouse/keyboard, USB touch screen, USB
camera and other regular USB devices.
One USB2.0 OTG (Micro) interface is used for firmware programming by default.

Robustel RAC7000 Android IPC User Guide
RT_UG_RAC7000_v.1.0.0 Aug. 14, 2018 15/31
2-1-4 USB Interface Diagram
2.1.5 Headphone & Microphone Connector Definition
Both headphone and microphone use 3 segment 3.5 mm female audio jacks. The jack signal definition as shown
below. The headphone supports left and right channel stereo audio output, and the microphone supports single
channel input.
2-1-5 Headphone & Microphone Jacks Diagram
2.1.6 Return Button
The diameter of the return button is 3.5 mm. Press the button slightly and the contents on the screen will return to
the previous interface.
2-1-5 Return Button Diagram
2.1.7 SIM Card/Micro SD Card
RAC7000 has one self-elastic standard SIM slot and one self-elastic Micro SD slot.

Robustel RAC7000 Android IPC User Guide
RT_UG_RAC7000_v.1.0.0 Aug. 14, 2018 16/31
2-1-7 SIM Card/Micro SD Card Diagram
Insert SIM card/Micro SD card
1. Confirm power has been disconnected;
2. Insert SIM card/Micro SD, pressing with fingers until hearing a sound;
Remove SIM card/Micro SD card
1. Confirm power has been disconnected;
2. Press SIM card/Micro SD card until hearing a sound, and take the card after the card is being ejected;
Note:
1. Recommended torque for mounting is 1.0 N.m, and the maximum allowed is 1.2 N.m.
2. Please use the specialized M2M SIM card/Micro SD card when the device is working in the extreme temperature.
Because the regular card often disconnects when works in a harsh environment.
3. Do not touch the metal on the card, to preventing information loss or damage.
4. Do not bend or scratch card.
5. Keep card away from magnetic.
6. Must disconnect power before insert or remove the card.
2.1.8 Attach External Antenna (SMA Type)
Attach an external RP-SMA antenna to the device’s WIFI&BT antenna connector and twist tightly. Make sure the
antenna should support 2.4 GHz and with 50 Ohm impedance. Attach an external SMA antenna to device’s MAIN and
AUX antenna connector and twist tightly. Make sure the antenna within the corresponding cellular network
frequency band range and with 50 Ohm impedance.
Note: Recommended torque for mounting is 0.35 N.m.
RP-SMA female is used for connecting WLAN
SMA male is used for connecting cellular network

Robustel RAC7000 Android IPC User Guide
RT_UG_RAC7000_v.1.0.0 Aug. 14, 2018 17/31
2.2 Back View
2-2 Diagram of Back View Hardware Interface
2.2.1 CONSOLE Definition
Use a standard DB9 male connector and three-wire serial interface.
2-2-1 CONSOLE Diagram
PIN
Signal Name
Description
1
-
-
2
RXD
Device receives data
3
TXD
Device sends data
4
-
-
5
GND
Signal ground
6
-
-
7
-
-
8
-
-
9
-
-
2.2.2 Serial Port Definition
Use 5 x 3.0 mm pitch phoenix connector and 1 x standard DB9 male RS232 connector.

Robustel RAC7000 Android IPC User Guide
RT_UG_RAC7000_v.1.0.0 Aug. 14, 2018 18/31
2-2-2 Serial Port Diagram
RS485
RS232_3pin
PIN
Signal Name
Description
PIN
Signal Name
Description
1
GND
Signal ground
1
GND
Signal ground
2
A
RS485 data line +
2
TXD
Device sends data
3
B
RS485 data line -
3
RXD
Device receives data
RS232_DB9
PIN
Signal Name
Description
1
-
-
2
RXD
Device receives data
3
TXD
Device sends data
4
-
-
5
GND
Signal ground
6
-
-
7
-
-
8
-
-
9
-
-
2.2.3 LVDS Interface Definition
LVDS signal interface of RAC7000 is plug-type 2 x 15 pin pitch 2.0 mm socket; backlight interface is plug-type 1x 6 pin
pitch 2.0 mm socket; voltage selected interface is 2 x 3 Pin pitch 2.0 mm pin header.
Definitions of LVDS signal interface, backlight interface, and voltage selected interface are as the following:
2-2-3 LVDS Interface Diagram

Robustel RAC7000 Android IPC User Guide
RT_UG_RAC7000_v.1.0.0 Aug. 14, 2018 19/31
2-2-3-1 LVDS Interface Diagram
Definition of LVDS Signal Interface PIN
PIN
Signal Name
Description
PIN 1~PIN 3
LVDS_PW
LVDS logic drive power; voltage is
selected according to the display
screen and configured by the
jumper on JP3 pin. The default
configure voltage is 3.3 V.
PIN 4~PIN 6
GND
Power ground pin
PIN 7~PIN 8
LVDS0_Tx0_N ~LVDS0_Tx0_P
LVDS0_Tx0 negative and positive
pair
PIN 9~PIN 10
LVDS0_Tx1_N ~LVDS0_Tx1_P
LVDS0_Tx1 negative and positive
pair
PIN 11~PIN 12
LVDS0_Tx2_N ~LVDS0_Tx2_P
LVDS0_Tx2 negative and positive
pair
PIN 13~PIN 14
GND
Power ground pin
PIN 15~PIN 16
LVDS0_CLK_N ~LVDS0_CLK_P
LVDS0 clock negative and positive
pair
PIN 17~PIN 18
LVDS0_Tx3_N ~LVDS0_Tx3_P
LVDS0_Tx3 negative and positive
pair
PIN 19~PIN 20
LVDS1_Tx0_N ~LVDS1_Tx0_P
LVDS1_Tx0 negative and positive
pair
PIN 21~PIN 22
LVDS1_Tx1_N ~LVDS1_Tx1_P
LVDS1_Tx1 negative and positive
pair
PIN 23~PIN 24
LVDS1_Tx2_N ~LVDS1_Tx2_P
LVDS1_Tx2 negative and positive
pair
PIN 25~PIN 26
GND
Power ground pin
PIN 27~PIN 28
LVDS1_CLK_N ~LVDS1_CLK_P
LVDS1 clock negative and positive
pair
PIN 29~PIN 30
LVDS1_Tx3_N ~LVDS1_Tx3_P
LVDS1_Tx3 negative and positive
pair
2-2-3-2 LVDS Backlight Interface Diagram

Robustel RAC7000 Android IPC User Guide
RT_UG_RAC7000_v.1.0.0 Aug. 14, 2018 20/31
LVDS BL
PIN
Signal Name
Description
1~2
12V
LVDS backlight power
positive pin
3
EN
LVDS backlight enabled pin
4
PWM
LVDS backlight brightness
control pin
5~6
GND
Ground pin
2.2.4 CAN Interface Definition
2-2-4 CAN Interface Diagram
PIN
Signal Name
Description
1
GND
Signal ground
2
CAN_H
CAN-High wire
3
CAN_L
CAN-Low wire
2.2.5 DI/DO Interface Definition
3.5 mm pitch Phoenix terminal, 3 x DI and 2 x DO wet node. The maximum voltage is 30V and the maximum current
is 10mA.
2-2-5 DI/DO Interface Diagram
PIN
Signal Name
Description
PIN1~PIN2
DI1+ ~DI1-
The positive and negative end of DI1
data input wire
