Guardian Equipment AP600-220-3LC Technical Document

Guardian Equipment
1140 N North Branch
Chicago, IL 60642
312 447 8100 telephone
312 447 8101 facsimile
gesafety.com
rev 0112 / © 2012 Guardian Equipment
Operation and Maintenance Guide:
Eyewash/Drench Hose Units
Drench Hose Units
Guardian Equipment is the world’s leading manufacturer of emergency eyewash and shower technology and related products for
use in industrial facilities, commercial institutions, and many other applications where eye and body protection is a concern. As such,
Guardian drench hose units and dual purpose eyewash/drench hose units have been installed in thousands of facilities over the past
thirty years. These units are relied upon to instantly flush the user’s eyes, face or body should a chemical spill occur.
Like all Guardian products, our eyewash/drench hose and drench hose units are designed, engineered and manufactured for reliable
performance and exceptional durability. However, like all of our products, they must be installed correctly, operated properly,
inspected regularly and maintained periodically to assure that they will be available when needed. Guardian has developed this
Installation, Operation and Maintenance Guide to assist users and facilities maintenance personnel in these activities.
Eyewash/Drench Hose Units
Drench Hose Units
Installation, Operation and Maintenance Guide:
IOM-DH-010
Guardian Equipment
1140 N North Branch
Chicago, IL 60642
312 447 8100 telephone
312 447 8101 facsimile
gesafety.com
10
rev 0112 / © 2012 Guardian Equipment
AP600-220-3LC Squeeze Valve with Locking Clip (Old Style). 3/8” NPT Female Outlet.
AP600-240LC Squeeze Valve with Locking Clip (New Style). 3/8” NPT Female Outlet.
Note: Prior to 2002, Guardian manufactured the AP600-220-3 squeeze valve. This valve had an integral (non-removable)
valve seat. In 2002, Guardian replaced this valve with the AP600-240 valve with a replaceable stainless steel valve seat. All
eyewash/drench hose units and drench hose units manufactured after 2002 utilize the AP600-240 squeeze valve.
Note: Prior to 2002, Guardian manufactured the AP600-220-3 squeeze valve. This valve had an integral (non-removable)
valve seat. In 2002, Guardian replaced this valve with the AP600-240 valve with a replaceable stainless steel valve seat. All
eyewash/drench hose units and drench hose units manufactured after 2002 utilize the AP600-240 squeeze valve.
ITEM PART NO. DESCRIPTION
1600-240LC Valve Body
2600-250R Valve Seat O-Ring (pkg of 6)
3600-249R Valve Seat (pkg of 6)
4600-228R Valve Plunger O-Ring (pkg of 6)
5600-241R Valve Plunger (pkg of 6)
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9 10
ITEM PART NO. DESCRIPTION
1600-220-3LC Valve Body
2600-228R Valve Plunger O-Ring (pkg of 6)
3600-221R Valve Plunger (pkg of 6)
4550-064R Valve Disc Screw (pkg of 6)
5BNV040R Valve Disc (pkg of 6)
ITEM PART NO. DESCRIPTION
6600-242R Valve Disc Holder (pkg of 6)
7600-223A-R Spring (pkg of 6)
8600-224R Bonnet O-Ring (pkg of 6)
9600-225R Valve Bonnet (pkg of 6)
ITEM PART NO. DESCRIPTION
6BNV040R Valve Disc (pkg of 6)
7600-242R Valve Disc Holder (pkg of 6)
8600-243A-R Spring (pkg of 6)
9600-244R Bonnet O-Ring (pkg of 6)
10 600-245R Valve Bonnet (pkg of 6)
RK600-220
Repair Kit for Squeeze Valve (Old Style)
RK600-240
Repair Kit for Squeeze Valve (New Style)

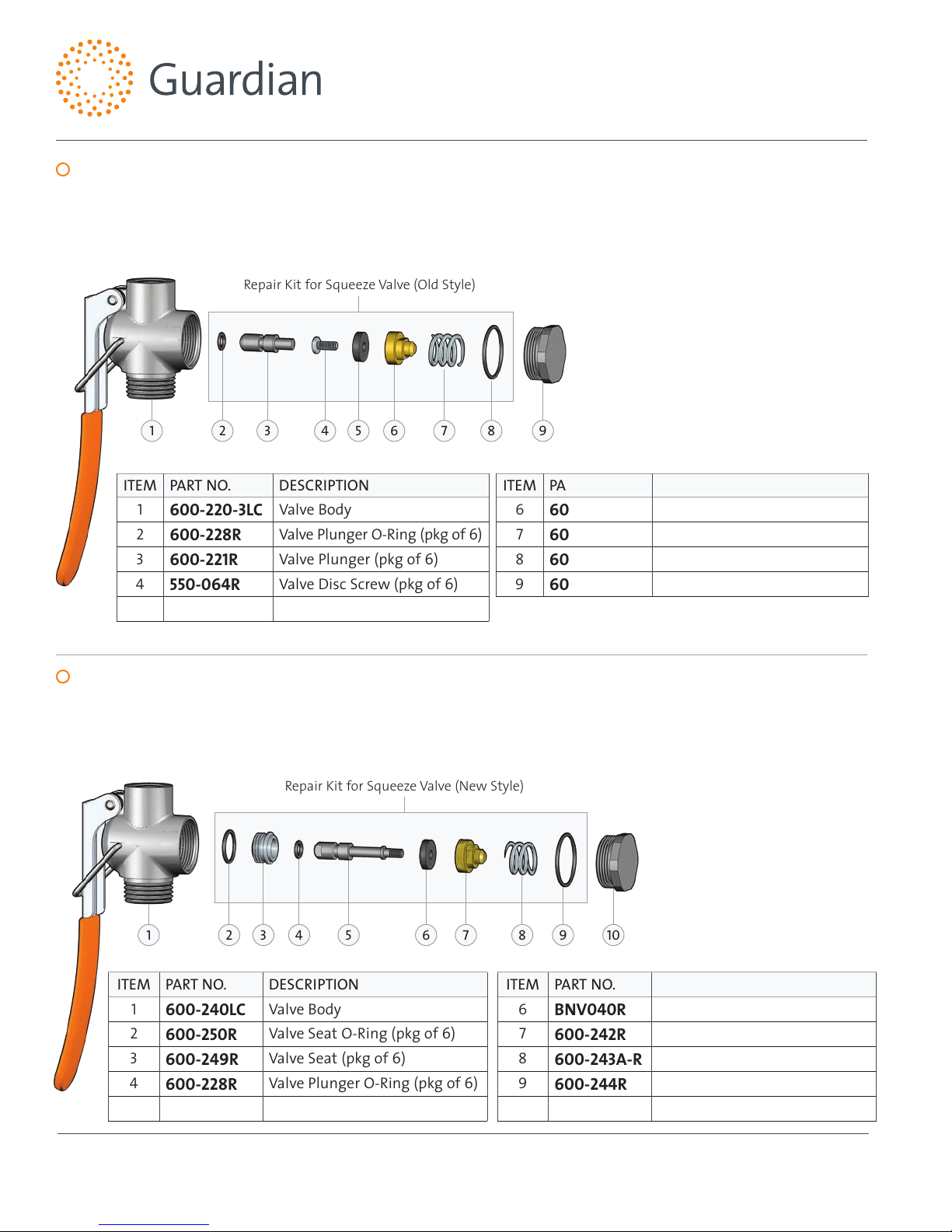

Squeeze Valve Components
Guardian Equipment
1140 N North Branch
Chicago, IL 60642
312 447 8100 telephone
312 447 8101 facsimile
gesafety.com 11
rev 0112 / © 2012 Guardian Equipment
250-010G
8 1/2” x 11” plastic sign
AP150-084
Wall Bracket for
Eyewash/Drench Hose Units
250-006G
8 1/2” x 11” plastic sign
AP350-011G
Molded nylon deck flange for
eyewash/drench hose and drench
hose units. 1" IPS mounting shank.
350-007
Molded nylon handle for
eyewash/drench hose and
drench hose units.
AP350-100-096
8 ft. reinforced PVC hose for eyewash/
drench hose and drench hose unts.
3/8” NPT male swivel inlet,
3/8” NPT male outlet.
150-062A
Wall Hook for
Drench Hose Units
AP150-051C
Wall Bracket for
Eyewash/Drench Hose Units
AP150-003A
45 degree panel flange for eyewash/
drench hose and drench hose units.
3/4” IPS mounting shank.
Eyewash/Drench Hose and
Drench Hose Components
Guardian Equipment
1140 N North Branch
Chicago, IL 60642
312 447 8100 telephone
312 447 8101 facsimile
gesafety.com
12
rev 0112 / © 2012 Guardian Equipment
IOM-DH-010
AP470-001
GS-Plus™ Spray Head.
1 1/2” Diameter.
1/4” NPT female inlet.
AP470-002ORG-R
1 1/2” Diameter Spray
Cover with “Flip Top”
Dust Cover (pkg of 2)
470-004R
1 1/8” Diameter Foam
Filter (pkg of 6)
470-001R
GS-Plus Spray Head
Body (pkg of 6)
470-005R
1.6 Gallon Per Minute
Flow Control
(pkg of 6)
AP470-021
FS-Plus™ Spray Head.
2 1/8” Diameter.
1/4” NPT female inlet.
AP470-022RG-R
2 1/8” Diameter Spray
Cover with “Flip Top”
Dust Cover (pkg of 2)
470-024R
1 3/4” Diameter Foam
Filter (pkg of 6)
470-021R
FS-Plus Spray Head
Body (pkg of 6)
470-025R
3.2 Gallon Per Minute
Flow Control (pkg of 6)
GS-Plus™ Spray Head FS-Plus™ Spray Head
Spray Heads
