LATITUDE
Communicator
LATITUDE
Communicator
front cover.fm Page 1 Wednesday, November 24, 2004 10:20 AM

Table of Contents 1
356173-003 Rhythm Assistant, Patient mnl, UK/US GR FR SP IT
Draft - 12/2/04
Table of Contents
LATITUDE Patient Management . . . . . . . . . . . . . . . . . . . . . . 3
Patient Website . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Clinician Website . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
The LATITUDE Communicator . . . . . . . . . . . . . . . . . . . . . . . 5
Items You Should Receive. . . . . . . . . . . . . . . . . . . . . . . . 6
When to Use Your Communicator . . . . . . . . . . . . . . . . . . . . . 7
When Not to Use Your Communicator . . . . . . . . . . . . . . . . . 7
Important Safety Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Identifying Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Buttons and Indicator Lights . . . . . . . . . . . . . . . . . . . . . 10
Non-adjustable Antenna . . . . . . . . . . . . . . . . . . . . . . . . 11
Voice Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Where to Place for Your Communicator . . . . . . . . . . . . . . . 11
How to Connect Your Communicator . . . . . . . . . . . . . . . . . 12
How to Use the Communicator . . . . . . . . . . . . . . . . . . . . . . 15
Responding to Action Button Alert Lights . . . . . . . . . . . 16
Changing the Volume of Voice Messages . . . . . . . . . . . 16
What to Do if the Electrical Power is Interrupted . . . . . . 18
What to do if the Screen is Black . . . . . . . . . . . . . . . . . . 18
Using the Communicator for the First Time . . . . . . . . . . 18
Menu Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Main Menu Screen . . . . . . . . . . . . . . . . . . . . . . . . . 20

2Table of Contents
356173-003 Rhythm Assistant, Patient mnl, UK/US GR FR SP IT
Draft - 12/2/04
Options Menu Screen . . . . . . . . . . . . . . . . . . . . . . . 21
Answering Health Related Questions . . . . . . . . . . . . . . 22
Viewing Your Latest Readings. . . . . . . . . . . . . . . . . . . . 23
Setting the Time Zone . . . . . . . . . . . . . . . . . . . . . . . . . . 23
How to set the time zone . . . . . . . . . . . . . . . . . . . . . 23
Using the Check Communicator Option. . . . . . . . . . . . . 24
Install/Set Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
View Test Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Interrogating Your Implanted Device . . . . . . . . . . . . . . . 25
Traveling with the Communicator . . . . . . . . . . . . . . . . . . . . 27
Communicator Use of the Telephone System . . . . . . . . . . . 27
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Cleaning the Communicator . . . . . . . . . . . . . . . . . . . . . 29
Returning the Communicator . . . . . . . . . . . . . . . . . . . . . 29
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Safety, EMC and FCC Compliance Standards. . . . . . . . . . 32
Explanation of Product and Label Symbols . . . . . . . . . . . . . 34
Explanation of Shipping Box Symbols . . . . . . . . . . . . . . . . . 35

LATITUDE Patient Management 3
356173-003 Rhythm Assistant, Patient mnl, UK/US GR FR SP IT D
raft
Draft - 12/2/04
LATITUDE Patient Management
LATITUDEPatient Management is a remote monitoring system that
provides implant device data to both clinicians and cardiac device
patients that formerly required an office visit. LATITUDE Patient
Management provides clinicians anytime, anywhere access to the
status of your implanted device data.
A key component of the system is the LATITUDE Communicator, an
easy-to-use in-home monitoring device for patients. The
Communicator uses advanced medical monitoring technology to
automatically gather and send implanted device data to the
LATITUDE secure database through a standard telephone line.
The LATITUDE Patient Management system employs multiple levels
of security and encryption methods to protect patients' personal
medical information.
BodyClean.fm Page 3 Thursday, December 2, 2004 3:27 PM

4LATITUDE Patient Management
356173-003 Rhythm Assistant, Patient mnl, UK/US GR FR SP IT
Draft - 12/2/04
Patient Website
Patients can view information about their implanted device and
condition from a personalized patient website by using an internet-
connected personal computer. The patient website also provides
access to a wide range of cardiac related health information. Patients
must register and have approval by their clinic to gain access to the
password-protected patient website. The patient website is located
at: www.latitude.guidant.com.
CAUTION: Personal information provided on the patient website is
not intended to replace professional medical care. If you are not
feeling well, call your physician.
Clinician Website
The clinician website uses the power of the internet to provide
doctors and clinicians with a convenient and secure way to obtain
and analyze a patient’s implanted device and health-related
information. The website provides advanced analysis and trending
tools aimed at improving patient care.
Only your physician and medical personnel authorized by your
physician have access rights to your medical data by logging on to
the password-protected clinician website.
BodyClean.fm Page 4 Thursday, December 2, 2004 3:27 PM

The LATITUDE Communicator 5
356173-003 Rhythm Assistant, Patient mnl, UK/US GR FR SP IT D
raft
Draft - 12/2/04
The LATITUDE Communicator
The LATITUDE Communicator is an in-home monitoring system that
communicates with your implanted Guidant device. The
Communicator provides an easy-to-use system that you can use
from the comfort of your home, saving you a trip to your physician’s
office. While use of the Communicator does not eliminate the need
for in-office visits that may be scheduled by your physician, it can
minimize routine follow-up visits.
The Communicator automatically reads implanted device information
at times specified by the patient's physician. The Communicator
does not reprogram or change any functions of the patient's
implanted device. Only the patient's clinician can do this during an
office visit.
The Communicator can also collect information from an optional
LATITUDE weight scale or blood pressure monitor (if prescribed by
your physician). These specially designed devices may be
prescribed by your physician to provide additional information in
monitoring the health of the patient. Refer to the
LATITUDE Weight
Scale and Blood Pressure Monitor Patient’s Manual
that is included
with these devices.
Read the instructions in this manual thoroughly before using
the Communicator.
!
BodyClean.fm Page 5 Thursday, December 2, 2004 3:27 PM

6The LATITUDE Communicator
356173-003 Rhythm Assistant, Patient mnl, UK/US GR FR SP IT
Draft - 12/2/04
Please keep this manual for future reference.
Items You Should Receive
The following items are included with the Communicator:
• Communicator unit with attached antenna
• Communicator telephone cord
• AC power adapter
• Documentation box
•
Communicator Setup Guide
• Communicator Patient’s Manual
• Communicator Setup Video (DVD and VHS formats)
You can store this manual, along with your
other LATITUDE Patient Management
documents, in the documentation box that
was shipped with your Communicator.
BodyClean.fm Page 6 Thursday, December 2, 2004 3:27 PM

When to Use Your Communicator 7
356173-003 Rhythm Assistant, Patient mnl, UK/US GR FR SP IT D
raft
Draft - 12/2/04
When to Use Your Communicator
The Communicator performs many functions automatically on a
regular schedule. Other functions require you to respond to
messages, follow instructions, and answer questions displayed on
the screen and announced over the speaker.
Use the Communicator as instructed by your physician or clinician.
The Communicator’s Action button will light or flash whenever there
are messages or instructions you need to follow. Check daily to see if
the Action button is lit or flashing.
When Not to Use Your Communicator
The Communicator is designed to work only with the implanted
device of the patient for whom it was prescribed. It will not work with
other patients’ implanted devices and should be used only as
authorized by the prescribing physician.
Ask your physician if you have questions about any risks. Refer to
your handbook for your implanted device for more information.
BodyClean.fm Page 7 Thursday, December 2, 2004 3:27 PM

8Important Safety Notes
356173-003 Rhythm Assistant, Patient mnl, UK/US GR FR SP IT
Draft - 12/2/04
Important Safety Notes
• The Communicator monitors your implanted device and sends
this information to the LATITUDE Patient Management secure
database, which provides access to your information by your
authorized physician(s). Therefore, it is very important that the
Communicator remain plugged into the power outlet and
telephone line.
• Your Communicator is designed to be used in the continental
Unites States, Alaska, and Hawaii.
BodyClean.fm Page 8 Thursday, December 2, 2004 3:27 PM

Identifying Parts 9
356173-003 Rhythm Assistant, Patient mnl, UK/US GR FR SP IT D
raft
Draft - 12/2/04
Identifying Parts
Non-adjustable Antenna
Action Button
Interrogation
Button (blue)
Power On
Indicator
LCD Screen
Menu Selection
Buttons (4)
Volume Control
Speaker
To Telephone
Wall Jack
To Telephone
Power
Input
Volume
Down
Volume
Up
BodyClean.fm Page 9 Thursday, December 2, 2004 3:27 PM

10 Identifying Parts
356173-003 Rhythm Assistant, Patient mnl, UK/US GR FR SP IT
Draft - 12/2/04
Buttons and Indicator Lights
Button/Light Color Meaning
Action
Button
White light Answer health questions. Indicates that you
need to answer a set of personal health
questions. Refer to “Answering Health Related
Questions” on page 22.
Yellow light Respond to system alert. Indicates some type of
system problem. Respond to the information
displayed on the screen.
Red light Respond to urgent alert. Indicates the
Communicator read a fault error from your
implanted device. Call the Guidant Patient
Services number on the screen as soon as
possible and report the error code on the
screen. Then press the menu button next to the
OK text.
Interrogation
Button
Blue Used by patient to initiate an interrogation of
their implanted device. Refer to “Interrogating
Your Implanted Device” on page 25 before using
this button.
Menu
Selection
Buttons (4)
Gray Used to submit appropriate responses to
messages appearing on the display.
Power On Green light Indicates the Communicator has power
connected.
BodyClean.fm Page 10 Thursday, December 2, 2004 3:27 PM

Voice Messages 11
356173-003 Rhythm Assistant, Patient mnl, UK/US GR FR SP IT D
raft
Draft - 12/2/04
Non-adjustable Antenna
The antenna on the Communicator is used to communicate with your
implanted device using radio frequency signals.
CAUTION: The antenna does not pivot or extend. Do not attempt to
bend or adjust the antenna. Do not pick the Communicator up by
the antenna or handle it in a manner that could damage the
antenna.
Voice Messages
The Communicator uses voice messages to reinforce screen
messages and assist patients with visual impairments. Each voice
message corresponds to the text message or instruction on the
screen. The volume of these messages can be controlled as
described in “Changing the Volume of Voice Messages” on page 16.
Where to Place for Your Communicator
Where to place your Communicator:
• within 8 ft. of where you sleep
• where you can sit and see the screen comfortably
• near an AC electrical outlet
• near a telephone wall jack
The Communicator may typically be placed on a night stand or
dresser top in the patient’s bedroom.
BodyClean.fm Page 11 Thursday, December 2, 2004 3:27 PM

12 How to Connect Your Communicator
356173-003 Rhythm Assistant, Patient mnl, UK/US GR FR SP IT
Draft - 12/2/04
How to Connect Your Communicator
Complete the steps below to connect and install the Communicator.
These instructions also appear in the
LATITUDE Patient
Management Communicator Setup Guide
.
1
1. Find the Communicator
telephone cord that came
with the Communicator and
plug one end into the jack
labeled on the back of
the Communicator.
2. Plug the other end of the cord
into the telephone jack on the
wall of your room.
Communicator Telephone Cord
2
BodyClean.fm Page 12 Thursday, December 2, 2004 3:27 PM

How to Connect Your Communicator 13
356173-003 Rhythm Assistant, Patient mnl, UK/US GR FR SP IT D
raft
Draft - 12/2/04
3. If you also wish to use a
telephone with this wall jack,
you may plug your telephone into
the jack labeled on the
back of the Communicator. 3
Connecting a
telephone is optional
4
5
4. Insert the power supply plug into
the jack on the back of
the Communicator.
5. Plug the power supply into an
electrical outlet.
BodyClean.fm Page 13 Thursday, December 2, 2004 3:27 PM

14 How to Connect Your Communicator
356173-003 Rhythm Assistant, Patient mnl, UK/US GR FR SP IT
Draft - 12/2/04
7. The installation of the Communicator is now complete.
Instructions should appear on the screen.
Important: Your Communicator should remain connected to the
power outlet and telephone line.
8. Complete the instructions shown on the Communicator screen as
described in “Using the Communicator for the First Time” on
page 18.

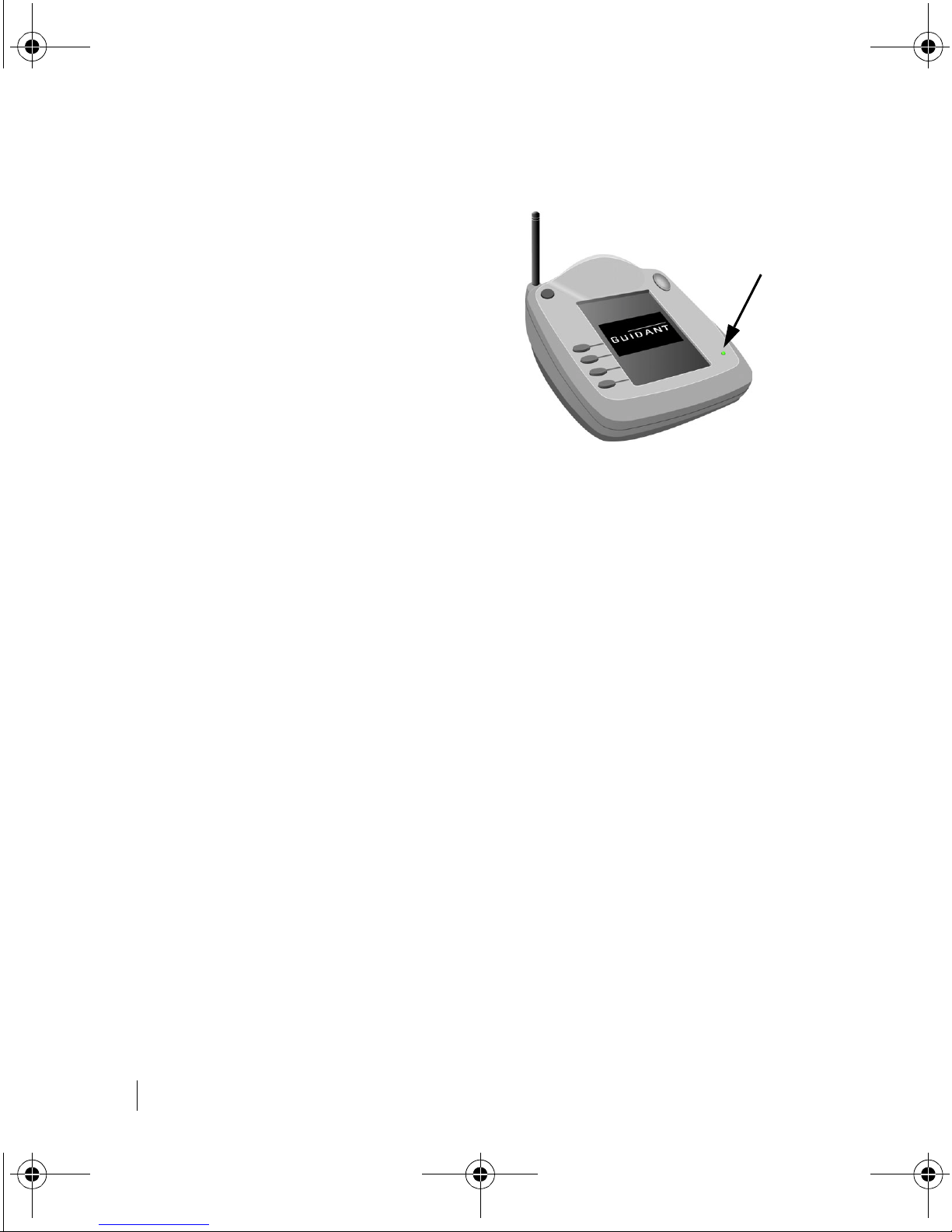

6. Make sure the AC power light on
the Communicator is illuminated.
The green light indicates that the
Communicator is connected to
AC power. (If the green light is
not illuminated, check that both
ends of the AC adapter cord are
plugged in firmly.)
AC Power Light
(green)
BodyClean.fm Page 14 Thursday, December 2, 2004 3:27 PM

How to Use the Communicator 15
356173-003 Rhythm Assistant, Patient mnl, UK/US GR FR SP IT D
raft
Draft - 12/2/04
How to Use the Communicator
The Communicator provides step-by-step instructions that are
displayed on the screen and announced over the speaker. The
information in this section describes use of the buttons and lights in
addition to instructions for performing menu items and options that
are displayed on the screen.
CAUTIONS:
• The Communicator may not communicate with your implanted
device if you are too close to some household appliances. You
should be at least 36 inches (3 ft) away from televisions, VCRs,
and personal computers when you are using the Communicator.
• Cellular phones will not affect your Communicator.
BodyClean.fm Page 15 Thursday, December 2, 2004 3:27 PM

16 How to Use the Communicator
356173-003 Rhythm Assistant, Patient mnl, UK/US GR FR SP IT
Draft - 12/2/04
Responding to Action Button Alert Lights
Action button alert lights serve to notify you that some sort of action
needs to be taken. The colors and meanings of each light are
described in the table on page 10.
If the Communicator screen is dim when one of the colored lights
turns on, the light will flash to attract your attention. Press the Action
button to brighten the screen and view the alert message.The light
will stop flashing but will remain lit. Respond to the alert message
and press a menu button next to the appropriate text, such as OK or
Continue. The light will then turn off. Please respond to alert
messages as soon as possible.
Important: You should write down any telephone numbers or error
codes that appear in alert messages before selecting OK or
Continue, as doing so causes the Communicator to display a
different screen and the alert message will no longer appear.
Changing the Volume of Voice Messages
You can change the volume of the voice messages by using the
volume control (page 9) on the right-side of the Communicator. You
can increase or decrease the volume of the voice messages or turn
the volume off if you don’t want to hear the messages.
BodyClean.fm Page 16 Thursday, December 2, 2004 3:27 PM

How to Use the Communicator 17
356173-003 Rhythm Assistant, Patient mnl, UK/US GR FR SP IT D
raft
Draft - 12/2/04
When you press and hold the up or down volume control, you will
hear the current message or an audible tone at the next volume level
and each following level until the highest/lowest volume is reached.
To increase the volume: push the volume up control
To decrease the volume: push the volume down control
To turn messages off: press and hold the volume down control
until you can no longer hear a tone or
voice
BodyClean.fm Page 17 Thursday, December 2, 2004 3:27 PM

18 How to Use the Communicator
356173-003 Rhythm Assistant, Patient mnl, UK/US GR FR SP IT
Draft - 12/2/04
What to Do if the Electrical Power is Interrupted
The Communicator has internal memory that stores all important
setup information in case the electric power is interrupted or the AC
power adapter is unplugged. This information is stored for up to
seven days.
A message appears when power is restored to the Communicator
asking if you want to check the installation. If the Communicator has
been moved, select Yes and follow the check installation instructions.
You can select No if the Communicator wasn’t moved and the power
was out for only a short time.
What to do if the Screen is Black
The Communicator screen will dim and go black after the
Communicator has not been used for 10 minutes. If the screen is
black, press the Action button to turn the screen on. Check for a
message or instruction on the top of the screen.
One of the alert lights may also flash when the Communicator is not
being used and the screen is black. Refer to “Responding to Action
Button Alert Lights” on page 16 for additional information.
Using the Communicator for the First Time
The Communicator is programmed to display a series of instructions
to step you through a personalized setup process. This process
needs to be performed after the Communicator is installed to make
sure the Communicator is connected correctly and that it can
BodyClean.fm Page 18 Thursday, December 2, 2004 3:27 PM

How to Use the Communicator 19
356173-003 Rhythm Assistant, Patient mnl, UK/US GR FR SP IT D
raft
Draft - 12/2/04
communicate with your implanted device, make a telephone call to
the LATITUDE secure database, and receive signals from the
optional weight scale and blood pressure devices.
The setup process may also need to be performed if the
Communicator was powered off (or moved), to make sure everything
is functioning properly.

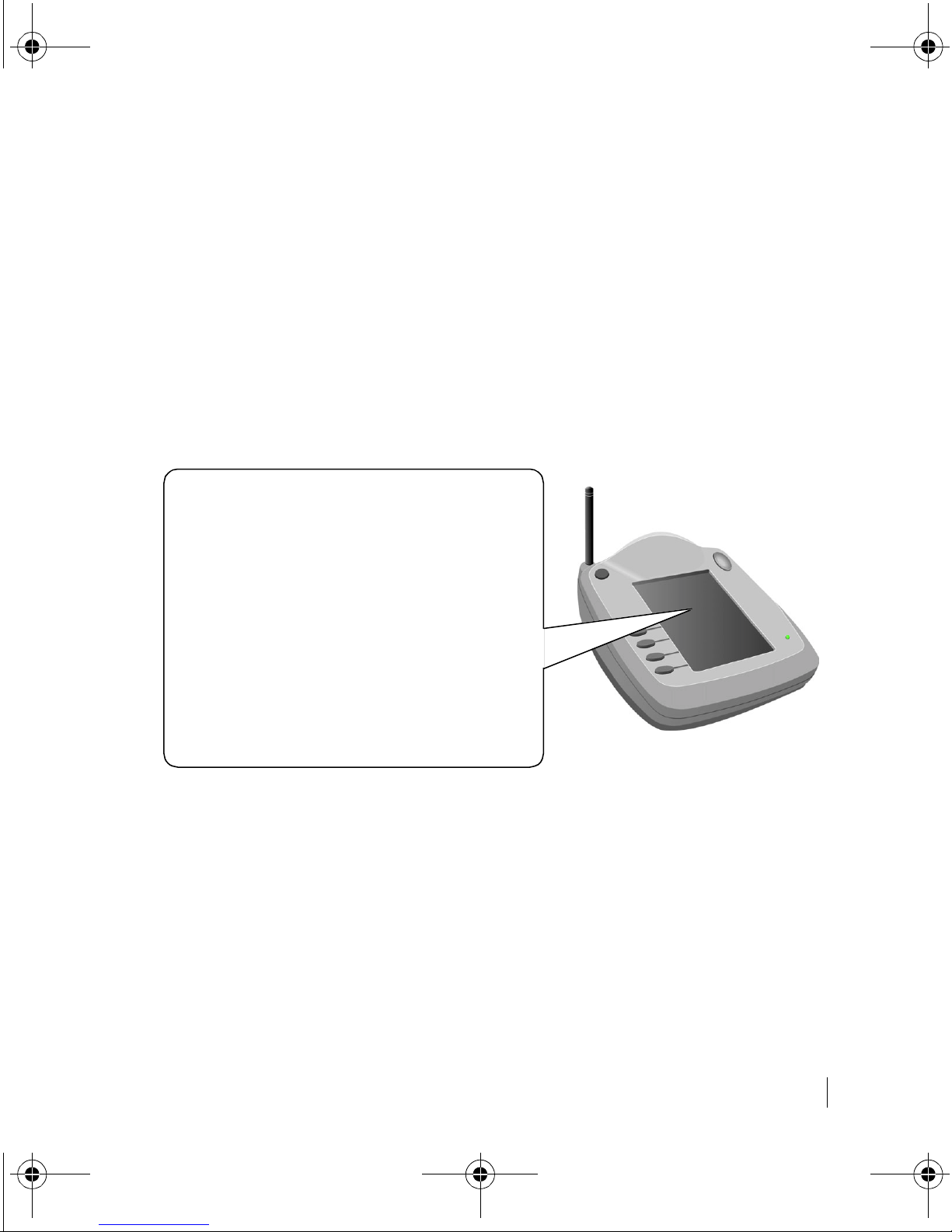

A. When you first connect and install the Communicator, you
should see a message similar to the one on following screen.
B. Press the button next to the Begin text and follow the remaining
instructions on the screen.
The Communicator will continue to display and read all the
remaining setup instructions, including placing a telephone call to
the secure database and interrogating your implanted device.
You will be led through
some activities to make
sure the Communicator is
installed properly.
Please press the button
next to the word Begin.
Begin
BodyClean.fm Page 19 Thursday, December 2, 2004 3:27 PM
