Guldmann Evocare 553000 User manual

© Guldmann GB/US-11/2018 • # 553211_5
GB/US ....Free-standing rail system, adjustable
Vers. 5.00

2
© Guldmann GB/US-11/2018 • # 553211_5 © Guldmann GB/US-11/2018 • # 553211_5
Free-standing rail systems, adjustable
Item no:
553000
556000
556297
1.00 .........Purpose and use ..............................................3
1.01 .........Manufacturer ..................................................3
1.02 .........Intended use and description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.03 .........Important precautions ...........................................3
1.04 .........Hoists made by other manufacturers................................3
1.05 .........Unpacking ....................................................4
1.06 .........Setting up the system ...........................................5
2.00 .........Description of functions ........................................9
2.01 .........Operation .....................................................9
2.02 .........Length and height adjustment ....................................9
3.00 .........Demounting and transportation .................................9
3.01 .........Demounting the system ..........................................9
3.02 .........Transporting the system ........................................10
4.00 .........Maintenance and storage ......................................10
4.01 .........Cleaning.....................................................10
4.02 .........Storage .....................................................10
4.03 .........Maintenance .................................................10
5.00 .........Service and life span..........................................10
5.01 .........Life span ....................................................10
5.02 .........Safety/service inspections .......................................11
5.03 .........Troubleshooting ...............................................11
6.00 .........Technical specications .......................................12
7.00 .........EC-Declaration of conformity ...................................12
8.00 .........Environmental policy statement - V. Guldmann A/S ................13
. . . . . . . . . . . . . USA and countries outside the EU ..............................14
A. ...........Users guide ..................................................14
B. ..........WARRANTY..................................................14

3
© Guldmann GB/US-11/2018 • # 553211_5 © Guldmann GB/US-11/2018 • # 553211_5
1.00 Purpose and use
1.01 Manufacturer
V. Guldmann A/S
Graham Bells Vej 21-23A
DK-8200 Aarhus N
Tel. + 45 8741 3100
Fax + 45 8741 3131
1.02 Intended use and description
The free-standing rail system together with the GH1 hoist shall be used for
transferring an elderly or a disabled person; e.g. in private homes.
The free-standing rail system is a portable rail system which can be set up
practically anywhere and requires no mounting on walls, ceiling or oors.
The free-standing rail system is length and height adjustable.
1.03 Important precautions
Read the entire user manual prior to setting up and starting to use the free-
standing rail system.
The free-standing system can be set up and taken down by one person only.
The maximum load of 255 kg must not be exceeded.
In case of damage to the free-standing rail system, the operation of it should
be discontinued immediately.
The free-standing rail system should be set up on a plane surface.
The end stops have to be properly installed and locked with spring pins, and
the 2 yellow thumb screws on the top brackets have to be properly tightened
before the system must be used.
The free-standing rail system must not be used for any other purpose than
that stated in this user manual; that is, neither as a playground or a swing
device.
1.04 Hoists made by other manufacturers
Guldmann is not liable for defects or accidents caused by the application of
hoists/lifting modules made by other manufacturers.

4
c





d
a
b
© Guldmann GB/US-11/2018 • # 553211_5 © Guldmann GB/US-11/2018 • # 553211_5
1.05 Unpacking
Inspection before unpacking
If the packaging is damaged upon receipt, the components of the free-
standing rail system should be carefully checked for noticeable imperfections,
defects or aws.
If damage is suspected, the free-standing system should not be assembled or
taken into use until the system has been approved by qualied service staff
or the Guldmann Service Team.

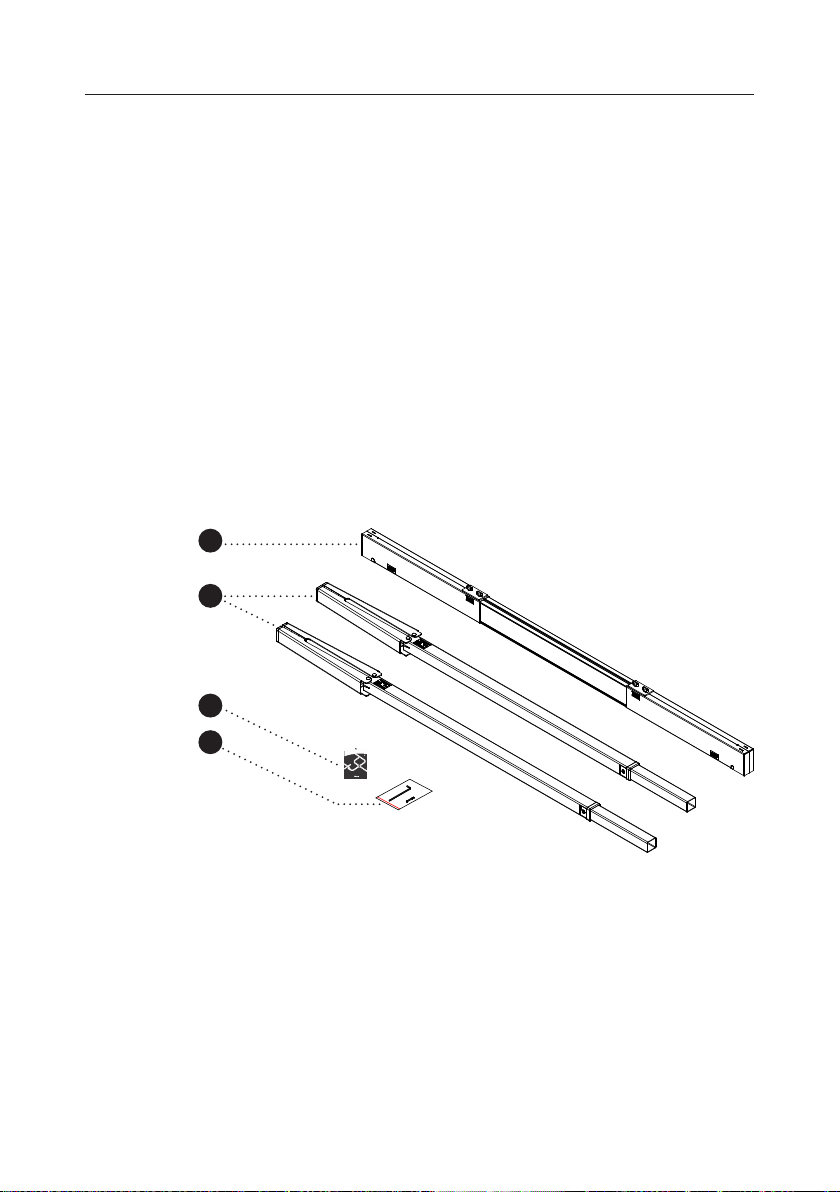

Unpacking
Unpack the 3 boxes, consisting of:
a. Top bracket and rail module (1 pcs.)
b. Vertical pole module (2 pcs.)
c. User manual
d. 5mm Allen key

5
Fig. 1
Fig. 3
Fig. 2
Fig. 4

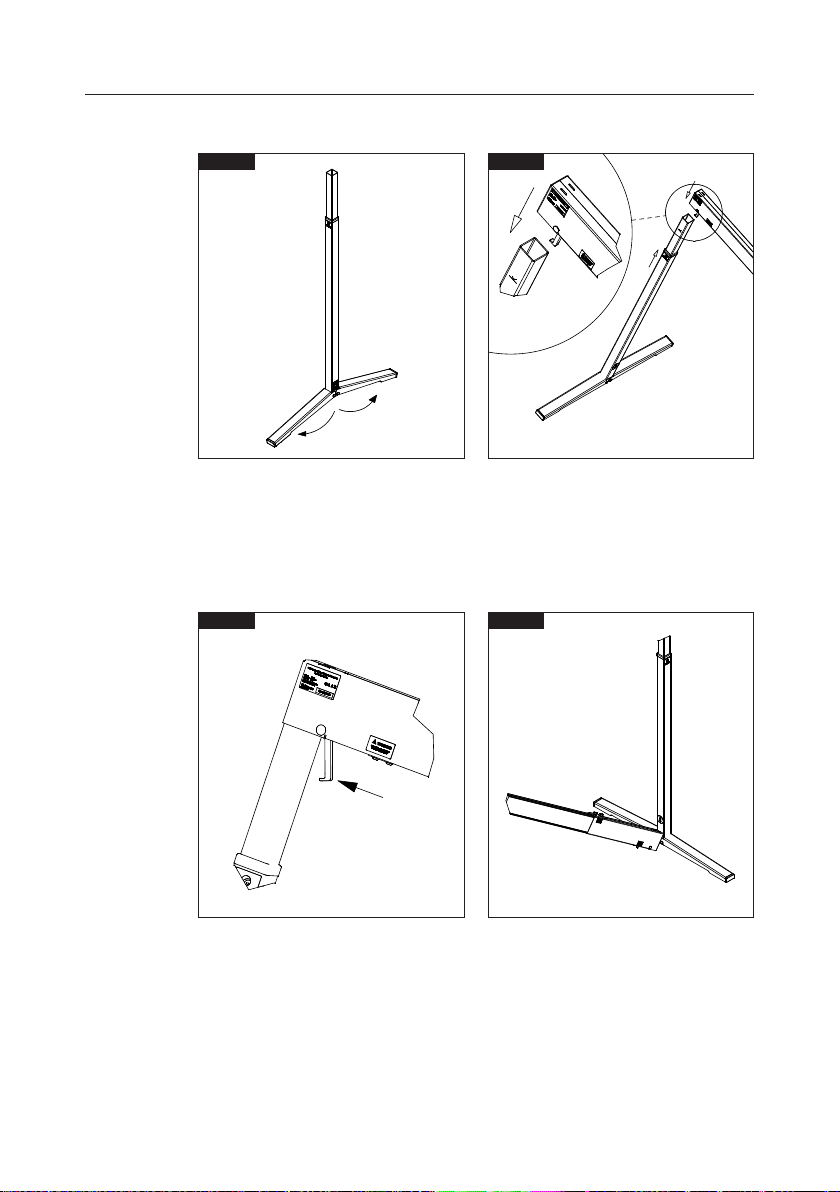

Raise one vertical pole module. Lift the top bracket and rail module
and mount it on top of the vertical pole
module. The top bracket must be ush
with the mark on the vertical pole.
Lock the top bracket to the vertical
pole with the locking arm.
Raise the second vertical pole module.
© Guldmann GB/US-11/2018 • # 553211_5 © Guldmann GB/US-11/2018 • # 553211_5
1.06 Setting up the system

6
Fig. 5
Fig. 7
Fig. 6
Fig. 8
Lift the top bracket and rail module
and mount it on top of the vertical
pole. Lock with the locking arm.
Lock the rail to the top bracket
module with the 2 yellow thumb
screws.
Before inserting the GH1 hoist
loosen the 2 yellow thumb screws
and remove the end stop.
Insert the GH1 hoist in the free-stan-
ding rail system.
© Guldmann GB/US-11/2018 • # 553211_5 © Guldmann GB/US-11/2018 • # 553211_5

7
Fig. 9
Fig. 11
Fig. 10
Fig. 12

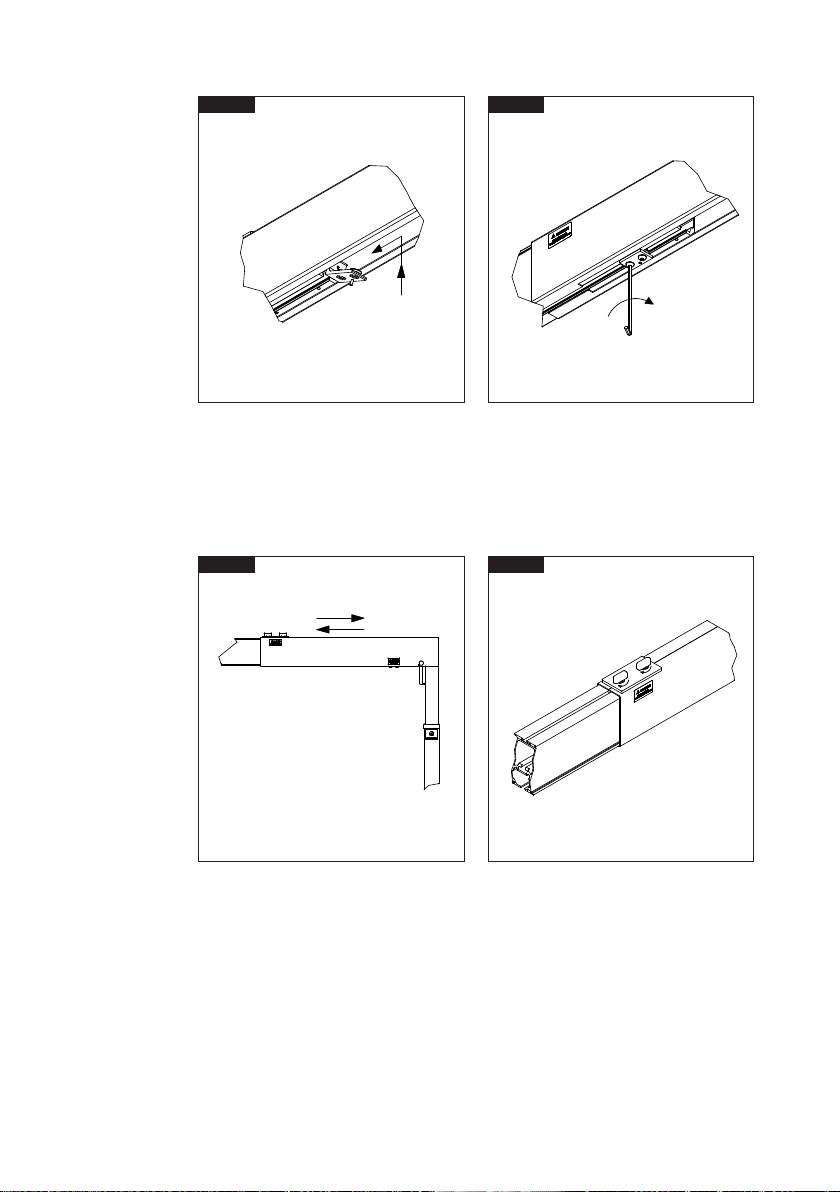

Mount the end stop again and make
sure that the spring pin is positioned
in the pre-drilled hole.
Tighten the end stop.
In order to adjust the free-standing
rail system to the specic room size:
loosen the 2 yellow thumb screws, and
push/pull the top brackets at the rail.
Tighten afterwards the 2 yellow
thumb screws at each top bracket.
© Guldmann GB/US-11/2018 • # 553211_5 © Guldmann GB/US-11/2018 • # 553211_5

8
Fig. 13
Fig. 15
Fig. 14

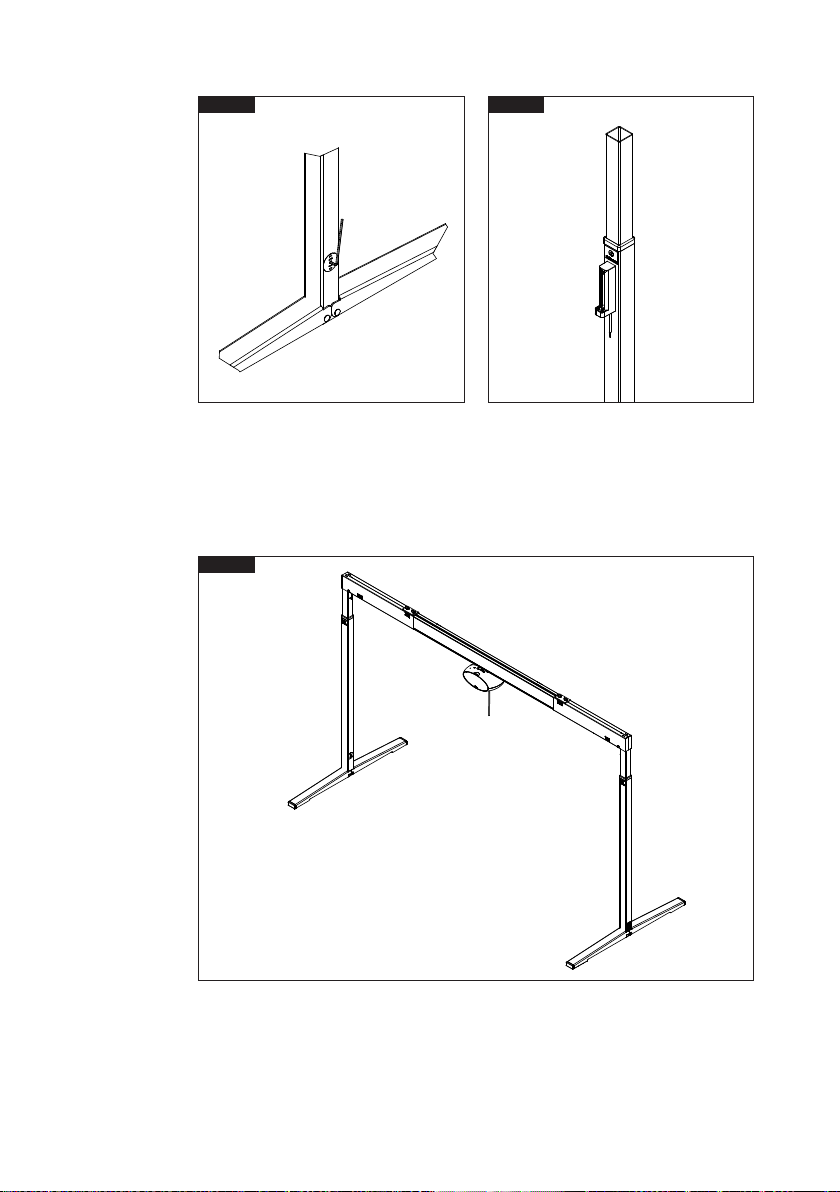

Adjust the height by inserting the
accompanying 5 mm Allen key in the
height adjustment socket at the side
of the vertical poles. Make sure that
top bracket and rail module is level.
Fix the recharging dock on the ver-
tical pole just below the Guldmann
logo with the enclosed Velcro.
The free-standing rail system is now ready for use
© Guldmann GB/US-11/2018 • # 553211_5 © Guldmann GB/US-11/2018 • # 553211_5

9
© Guldmann GB/US-11/2018 • # 553211_5 © Guldmann GB/US-11/2018 • # 553211_5
2.00 Description of functions
2.01 Operation
The free-standing rail system, adjustable, is a portable system that, once
installed, does not require any further operation.

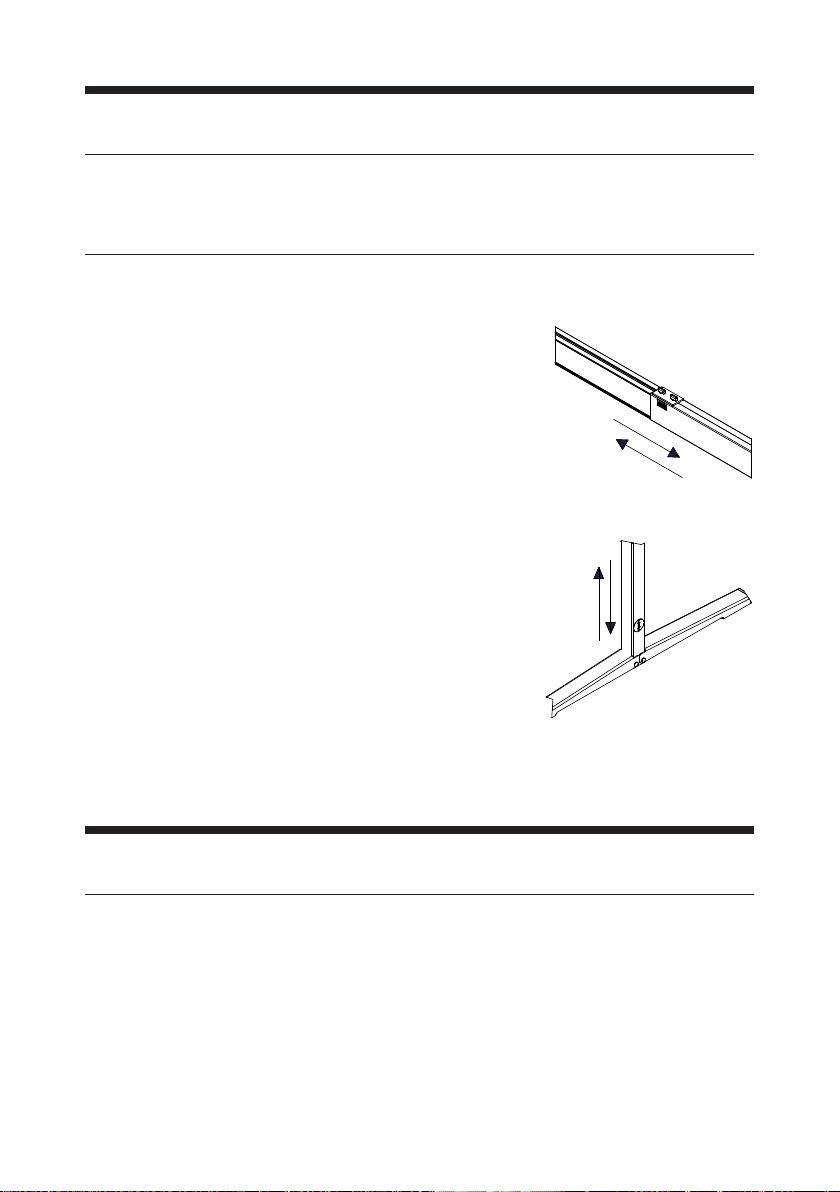

2.02 Length and height adjustment
Length adjustment
(when the system is in the lowest position):
• Set up the system (see 1.06).
• Loosen the 2 yellow thumb screws on the
top of the brackets manually.
• Pull the rail out of the top brackets until
the required length has been reached
• Tighten the 2 yellow thumb screws on
the top of the brackets manually after the
adjustment is nished.
Height adjustment:
• Set up the system (see 1.06).
• Insert the accompanying 5 mm Allen key
or a power drill with 5 mm bit in the height
adjustment socket at the side of the ver-
tical pole.
Adjust each pole to the required height
and afterwards adjust the system until the
top bracket and rail module is level.
Note:
If a power drill is used, start in low gear and
do not adjust the vertical pole to maximum or minimum height.
3.00 Demounting and transportation
3.01 Demounting the system
Lower the system to the lowest position.
Demount the free-standing rail system in the reverse order of the mounting
(see 1.06).
It may be necessary push the top bracket upwards in order to separate it from
the Vertical pole module.
Important:
Before taking down the free-standing rail system, the hoist must be taken out
or secured by means of the end stops.

10
© Guldmann GB/US-11/2018 • # 553211_5 © Guldmann GB/US-11/2018 • # 553211_5
3.02 Transporting the system
As a minimum, the free-standing rail system should be taken apart so that the
vertical pole modules are separated from the top brackets and rail (see 3.01).
During transportation, Guldmann recommends that system, after it has been
demounted, is always transported in the Guldmann Bag carrier portable, item
No. 553225.
4.00 Maintenance and storage
4.01 Cleaning
Clean the free-standing system with a damp cloth using ordinary household
detergents. Chemicals or an autoclave must not be used when cleaning the
free-standing rail system.
4.02 Storage
The free-standing rail system should be stored in a room where the humidity
does not exceed 70%. The system free-standing rail system must not be
stored in bathrooms or the like.
4.03 Maintenance
Check regularly that the system is stable.
5.00 Service and life span
5.01 Life span
The Free-standing rail system, adjustable, has an expected life span of 15
years, on the condition of correct use and correct service inspections
(see 5.02).
Spare parts drawings can be obtained from the manufacturer or supplier.

11
© Guldmann GB/US-11/2018 • # 553211_5 © Guldmann GB/US-11/2018 • # 553211_5
5.02 Safety/service inspections
In accordance with international standard EN/ISO 10535 “Hoist for the
transfer of disabled persons – Requirements and test methods” an inspection
should be performed on the hoist at least once a year.
Guldmann recommends that regular safety/service inspection is performed at
least once a year with regard to the pattern of usage.
Safety/service inspections of the products must be performed by a qualied
service technician or the Guldmann Service Team. In connection with the
purchase Guldmann may offer a service agreement for this inspection.
During the safety/service inspection a report must be prepared on what was
checked and replaced. Parts that are worn or defective must be replaced with
new parts from Guldmann. Spare parts drawings and documentation can be
obtained from the manufacturer or supplier.
Documentation/checklist regarding safety/service inspection can be
obtained from the manufacturer or supplier.
5.03 Troubleshooting
1. The system is not stable
• Check that the feet is mounted correctly
• Check the Vertical poles have been pushed securely in the Top bracket
• Check that the top brackets are tightened
• Check that the top brackets have been positioned correctly
• Check the top brackets for defects or deformities?
• Check that the Yellow thumb screws are tightened
2. The vertical height adjustment is not working
Check carefully with a 5mm Allen key that the system is not stuck in the far
end position.
If the top part of the Vertical pole is not moving when turning the 5mm Allen
key, stop using the system and contact the distributor or the manufacturer.

12
© Guldmann GB/US-11/2018 • # 553211_5 © Guldmann GB/US-11/2018 • # 553211_5
6.00 Technical specications
Free-standing rail system, 2,0 m
Dimensions min. (HxW) .............................2020 x 2220 mm
Dimensions in extended pos. max. (HxW) ..............2820 x 3390 mm
Maximum lifting capacity ....................................255 kg
Total weight without hoist:
Free-standing rail system ...................................49,5 kg
Vertical pole, each .........................................13,5 kg
Top brackets and rail .......................................22,5 kg
Free-standing rail system, 2,5 m
Dimensions min. (HxW) .............................2020 x 2720 mm
Dimensions in extended pos. max. (HxW) ..............2820 x 3890 mm
Maximum lifting capacity ....................................255 kg
Total weight without hoist:
Free-standing rail system ...................................52,0 kg
Vertical pole, each .........................................13,5 kg
Top brackets and rail .......................................25,0 kg
Free-standing rail system, 3,0 m
Dimensions min. (HxW) .............................2020 x 3220 mm
Dimensions in extended pos. max. (HxW) ..............2820 x 4390 mm
Maximum lifting capacity ....................................255 kg
Total weight without hoist:
Free-standing rail system ...................................54,5 kg
Vertical pole, each .........................................13,5 kg
Top brackets and rail .......................................27,5 kg
Materials
Rails and posts : ............................... Anodized aluminium
Feet : ......................................Powder varnished steel
Brackets: ...................................Powder varnished steel
7.00 EC-Declaration of conformity
The products are manufactured in compliance with the Council Directive
93/42/EEC of 14 June 1993 – with amendments, as medical device class 1.

13
© Guldmann GB/US-11/2018 • # 553211_5 © Guldmann GB/US-11/2018 • # 553211_5
8.00 Environmental policy statement - V. Guldmann A/S
Guldmann is continuously working towards ensuring that the company’s
impact on the environment, locally and globally, is reduced to a minimum.
It is Guldmann’s goal to:
• Comply with the current environmental legislation (e.g. WEEE and REACH
directives)
• Ensure that we, at the widest possible range, use RoHS compliant materials
and components
• Ensure that our products do not have an unnecessary negative impact on the
environment regarding use, recirculation or disposal
• Ensure that our products contribute to a positive working environment in the
places they are utilised
Inspections are made annually by the Department for Nature and Environ-
ment from the Municipality of Aarhus using the Danish Environmental Protec-
tion Act, section 42 as a reference.

14
© Guldmann GB/US-11/2018 • # 553211_5 © Guldmann GB/US-11/2018 • # 553211_5
USA and countries outside the EU
A. Users guide
Before using the product, read the entire operation manual
including warranty.
B. WARRANTY
Guldmann warrants its equipment is free from material defects under normal
use, and will perform substantially in accordance with the specications set
forth in documentation provided with the equipment.
This express warranty shall be in effect for one year from the date of original
purchase and installation (the “Warranty Period”). If a valid claim is made
during the Warranty Period for malfunction or equipment defect, Guldmann will
repair or replace the equipment at no additional cost to you. Guldmann retains
sole discretion as to whether the equipment will be repaired or replaced.
This warranty shall be null and void if the equipment is operated and main-
tained in any manner inconsistent with its intended use or the instructions
provided with the product. Further, in order for the warranty to remain in effect
for the full Warranty Period, all service to the equipment must be provided
by a Guldmann designated technician. Any parts or components repaired or
replaced by a Guldmann designated technician will be guaranteed for the
remainder of the Warranty Period.
The warranty does not cover any part of the equipment which has been sub-
ject to damage or abuse by the user or others. The warranty does not cover
any part of the equipment which has been altered or changed in any way by
the user or others. Guldmann does not warrant that the lifting device functions
will meet your requirements, be uninterrupted or error free.
The warranty set forth is in lieu of all other express and implied warranties,
whether oral, written or implied, and the remedies set forth above are your
sole and exclusive remedies. Only an authorized ofcer of Guldmann may
make modications to this warranty, or additional warranties binding on Guld-
mann. Accordingly, additional statements such as advertising or presentati-
ons, whether oral or written, do not constitute warranties by Guldmann.
Service or Repair
Contact Guldmann Repair for an authorization to return any defective item
during the Warranty Period. You will be provided with a return authorization
number and address for returning the item for warranty service or replace-
ment. Do not return items to Guldmann under warranty without receiving a
Return Authorization Number.
If mailing the item, pack it carefully in a sturdy carton to prevent damage. Include
your Return Authorization Number, a brief description of the problem and your
return address and phone number. Guldmann does not assume the risk of loss
or damage while in transit, so it is recommended you insure the package.

15
© Guldmann GB/US-11/2018 • # 553211_5 © Guldmann GB/US-11/2018 • # 553211_5

V. Guldmann A/S
Corporate Ofce:
Tlf. [phone]
Fax [phone]
[email protected]
www.guldmann.dk
Guldmann Inc.
Tel. [phone]
Tel. [phone]
Fax [phone]
[email protected]
www.guldmann.net
© Guldmann GB/US-11/2018 • # 553211_5
