Guldmann GL5 User manual

GB/US ....GL5 mobile lifter
User manual - vers. 3.00
© Guldmann GB/US-1996/09/2016 • # 554400_3
© Guldmann GB/US-1996/09/2016 • # 554400_3

2
© Guldmann GB/US-1996/09/2016 • # 554400_3
© Guldmann GB/US-1996/09/2016 • # 554400_3
GL5 mobile lifter
Item nos:
5550xx
1.00 .........Manufacturer .................................................3
2.00 .........Intended use .................................................3
2.01 .........Where to use GL5 .............................................3
2.02 ........Warning ......................................................4
2.03 .........Important .....................................................4
3.00 .........Denitions ...................................................5
3.01 .........Accessories for the lifter .........................................5
4.00 .........Unpacking and preparation of the lifter ...........................6
4.01 ........Checklist before use ............................................7
4.02 .........Charging and installing battery ....................................7
4.03 ........Charging procedure .............................................8
5.00 .........Operation ....................................................9
5.01 ........Indicator lamps and audio signals .................................10
5.02 ........Safety functions ...............................................11
6.00 ........Use of Mobile lifter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
6.01 ........How to use the Sling ...........................................12
6.02 .........Method of cleaning and disinfection ...............................15
7.00 ........Troubleshooting..............................................15
8.00 ........Service and lifespan ..........................................16
8.01 .........Service check of the mobile lifter – All-round ........................17
8.02 .........Owners daily maintenance ......................................18
9.00 ........Transportation and storage ....................................18
10.00 .......Technical specications .......................................19
11.00 ........Product conguration table ....................................21
12.00 ........Labelling ....................................................22
13.00 .......EC-Declaration of conformity ...................................25
14.00 ........Environmental policy statement - V. Guldmann A/S ................25
. . . . . . . . . . . . . USA and countries outside the EU ..............................26
A. ...........Users guide ..................................................26
B. ..........WARRANTY..................................................26

3
© Guldmann GB/US-1996/09/2016 • # 554400_3
© Guldmann GB/US-1996/09/2016 • # 554400_3
1.00 Manufacturer
V. Guldmann A/S.
Graham Bells Vej 21-23A
DK - 8200 Aarhus N
Tlf. +45 8741 3100
Fax. +45 8741 3131
2.00 Intended use
The Guldmann mobile lifter GL5 is an all-round lifter which covers the needs
of hospitals, nursing homes, institutions and private homes.
It can be used indoor whenever elderly and handicapped people have to be
lifted or moved. The lifter is equipped with Guldmann lifting hanger or with
another suitable hanger. Accessories consist of Guldmann lifting slings in
various sizes and models.
When the mobile lifter is used the assumption is that:
• The lifter will be operated by a qualied person.
• The mobile lifter is moved at a maximum speed corresponding to normal
walking speed.
• The Guldmann mobile lifter is used with Guldmann lifting slings.
Guldmann cannot be held responsible for any faults or accidents that may
occur due to incorrect positioning of the lifting sling, nor for inadequate atten-
tion paid by the helper. We strongly recommend assessment of the user
before every lift.
2.01 Where to use GL5
GL5 is designed to be used indoors whenever the user needs to be lifted or
moved on a level surface.
• The lifter is designed so its legs can t under beds, around chairs / wheel-
chairs
• The lifter can be used in wet areas. However, it must not be exposed to
splash water.
• The lifter is designed to be used with multiple users. When moving the lifter to
another user / ward / room, perform normal hygienic disinfection.

4
© Guldmann GB/US-1996/09/2016 • # 554400_3
© Guldmann GB/US-1996/09/2016 • # 554400_3
2.02 Warning
Read the user manual fully before using the lifter to familiarize yourself with
the controls and safety features on the lifter.
• Do not exceed the maximum load.
• Use the lifter to lift a person only.
• Use the lifter on an even and level surface only.
• Only use a lifting hanger approved for use with the lifter.
• Don’t lift/turn the lifting hanger in vertical direction during the mounting of the
straps of the sling.
• When adjusting the legs of the lifter make sure that no persons stand close to
the legs due to the risk of being jammed.
• Do not run the lifter into persons or objects.
• Exchange of lifting motor/actuator according to the manufacturer’s instructions.
See service chapter
• In case of damage, do not use the lifter until authorized by qualied service
staff or the Guldmann service team.
• Do not use the lifter in areas where it can be splashed with water.
• Risk of entrapment between the top of the lifting actuator and lifting arm.
• Risk of entrapment between the legs and the chassis when adjusting the
legs.
2.03 Important
• Always plan your lift before commencing.
• Only use slings that are designed to be used with the mobile lifter.
• Never use slings that are damaged, frayed or have unreadable labels.
• Check to make sure the user does not exceed the safe working load of the
lifter.
• For safety reasons we DO NOT recommend transporting users through Stan-
dard door frames.
• Caution must be exercised

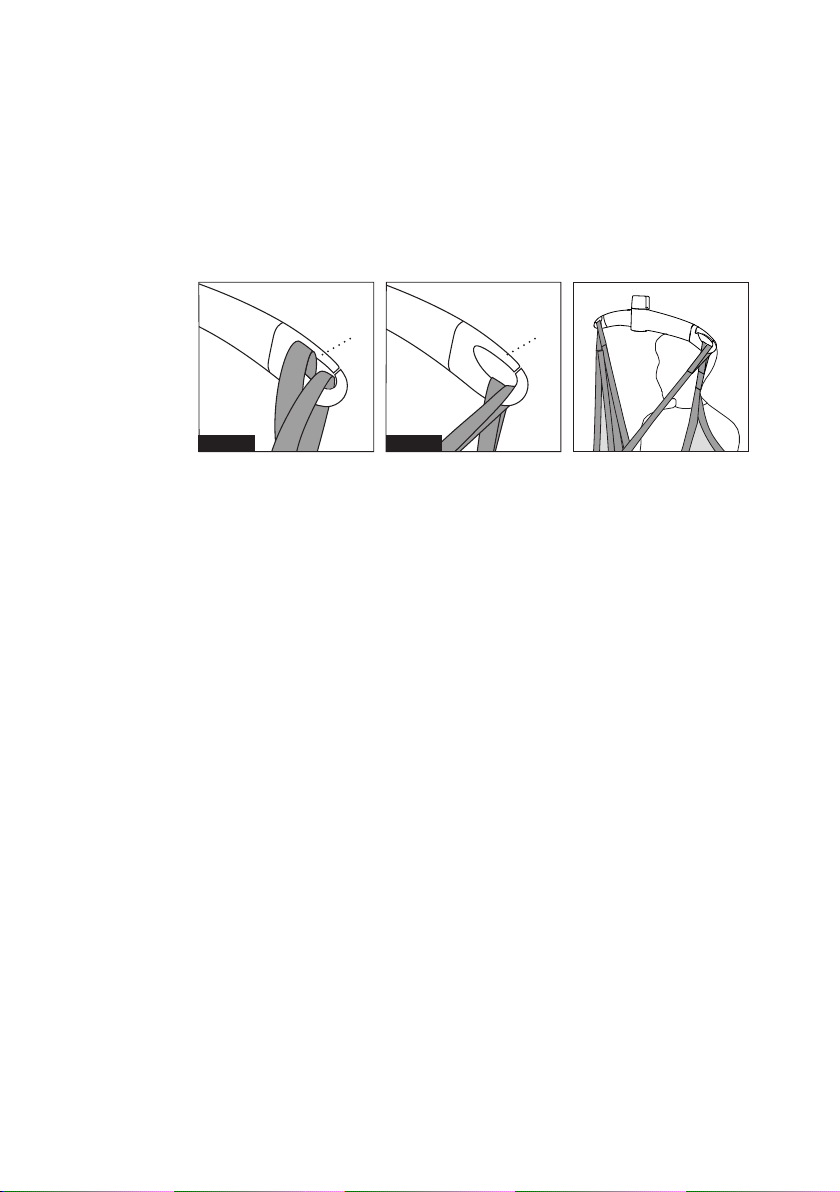

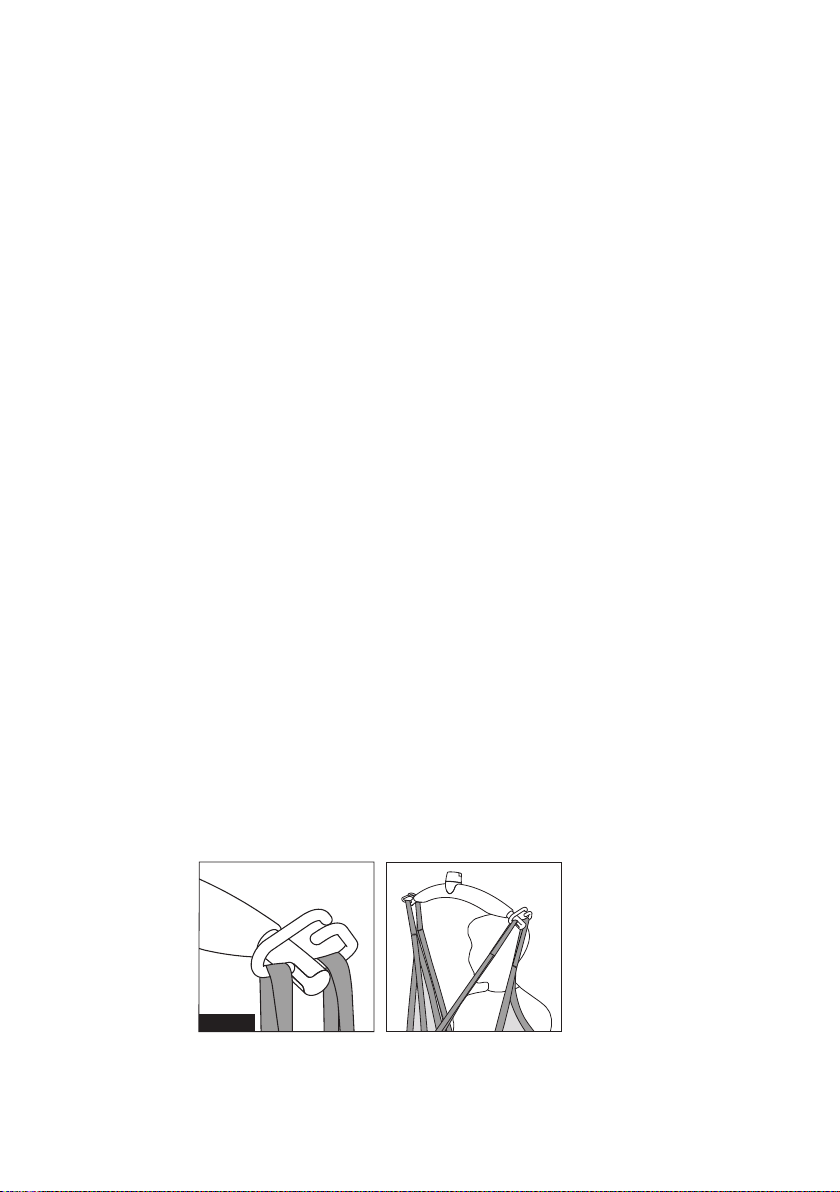

Fig. 1 Fig. 2

5
© Guldmann GB/US-1996/09/2016 • # 554400_3
© Guldmann GB/US-1996/09/2016 • # 554400_3
3.00 Denitions
1. Sling attachment hooks
2. Lifting boom
3. Battery
4. Electronic control box
5. Hand control
6. Emergency stop
7. Emergency lowering
electrical
8. Emergency lowering
manual (option)
9. Push handle
10. Power supply
11. Lifting actuator
12. Chassis leg
13. Brake/release
3.01 Accessories for the lifter
Lifting slings
Ask for special brochure from supplier or manufacturer.
2
3
5
4
6
9
10
11
12
13
1
8

6
© Guldmann GB/US-1996/09/2016 • # 554400_3
© Guldmann GB/US-1996/09/2016 • # 554400_3
4.00 Unpacking and preparation of the lifter
Visual check of lifter
If the packaging is damaged on receipt, each part of the lifter must be careful-
ly examined for visible defects or deciencies. In case of suspected damage,
do not use the lifter until authorized by qualied service staff or the Guldmann
Service Team.

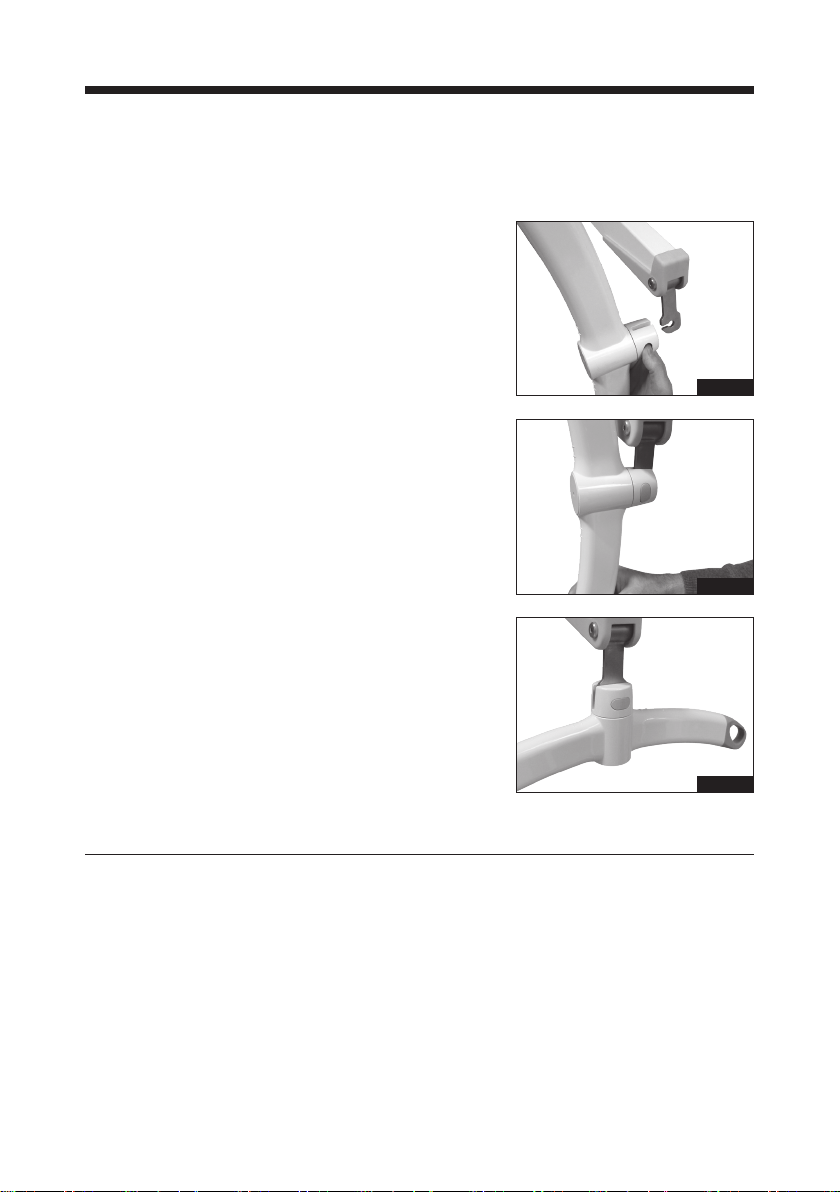

Assembling mast/chassis – electrical
Loosen screw tted to mast. Position the mast
in the base. When mast is in as far as it will
go, tighten screw using an M5 Allen key. To
dismantle, remove screw to pull mast out of
base. Retighten screw in mast.
Mounting of connectors for motors and
hand control
Fit connectors for width adjustment motor in
the mast and hand control in the control box.
Fitting actuator
Fasten the actuator using the attached bush-
ing and screw with nut.
Tighten screw and nut with a 17 mm spanners,
and put on the nut protector.
Bush and bolt for top of lifting actuator
L1 = 55 mm
L2 = 42 mm
Bush and bolt for bottom of lifting actuator
L3 = 50 mm
L4 = 39 mm
L1 L2
L3 L4

7
© Guldmann GB/US-1996/09/2016 • # 554400_3
© Guldmann GB/US-1996/09/2016 • # 554400_3
Batteries
The batteries supplied with the lifter are not fully charged on delivery. Before
use, therefore, the lifter must be charged up. A full charge, which takes about
5 hours, is recommended.
4.01 Checklist before use
• The lifter must be off charge.
• Check the lifter is lifting and lowering and the legs are opening and closing, if
you hear the audio warning (a beeping sound) DO NOT USE THE LIFTER –
it needs to be charged.
• Check that the green light located on the control box is illuminated when the
lifter is activated.
• Check that the emergency stop and lowering is working.
• Make sure the lifter is running freely.
• Check the slings for damage or fraying.
Once you have tted the sling (see section 6.01 - How to use the sling) you
are ready to lift.
With the user in a seated position
• If the user is in a wheelchair or commode chair the brakes must be applied.
• Open the lifter’s chassis leg width adjustment to allow access around the
chair.
Working with the Mobile lifter
Always maintain a good working posture when applying the sling or working
with the lifter. When moving a person use the push handle and walk with the
lifter keeping the load as close as possible to your body. NEVER pull or twist
at arm’s length, this can cause injury to the helper.
4.02 Charging and installing battery
Before use, the battery needs to be fully
charged. See charging procedure.

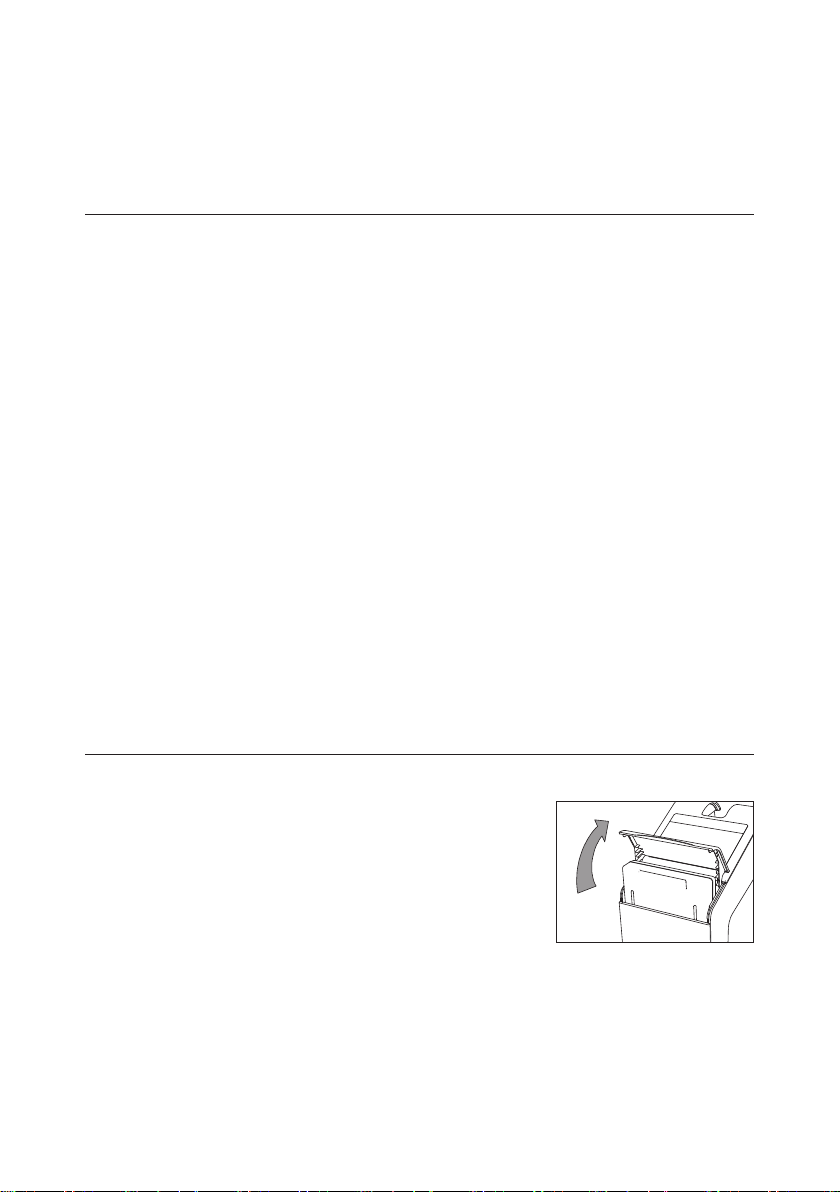

Unpack the battery from its packaging and
locate into battery compartment by opening
the lid and sliding it into position.

8
© Guldmann GB/US-1996/09/2016 • # 554400_3
© Guldmann GB/US-1996/09/2016 • # 554400_3
4.03 Charging procedure
Recharge lifter every night or when it is not in use. This maintains the batte-
ries and ensures a long life span.
Only use power supply provided by Guldmann.
Recharging
• Recharge by plugging the power supply lead
into the wall socket
• Recharging should be carried out when the
yellow or red LED is illuminated
• When the yellow LED illuminates there are
approx. 10 lifts remaining
• When the red LED illuminates and the audio
warning sounds, it is only possible to lower the
patient
• The power supply will turn off automatically
when lifter is fully recharged
• Recharging must not take place in wet rooms/
bathrooms
• Maximum recharging time is approx. 5 hours.
Alternative charging procedure
Remove the battery and place it on a dry surface. Connect power supply plug
to mains.
Now insert the male connector into battery.
Note:
Please be sure that main power is switched off during connection of power
supply and battery.

9
© Guldmann GB/US-1996/09/2016 • # 554400_3
© Guldmann GB/US-1996/09/2016 • # 554400_3
5.00 Operation
To lift/lower and adjustment of chassis leg in/out
• To lift the patient press UP arrow and to lower
the patient press DOWN arrow on the hand
control or the control box.
• On GL5 mobile lifter the leg spread width
adjustment of the chassis is operated via the
sideways arrows on the hand control or the
control panel on the control box.
• Use maximum width setting when lifting to/
from wide chairs, or as necessary when lifting
to/ from bed, toilet and oor.
• The hand control is designed to be parked on
the retainer between the control box and the
lifting actuator, for easy access when handling
patient.
• When maneuvering the lifter the chassis legs
must be in the closed narrow position.

10
© Guldmann GB/US-1996/09/2016 • # 554400_3
© Guldmann GB/US-1996/09/2016 • # 554400_3
5.01 Indicator lamps and audio signals
Status Indicator lamps Audio signals Possible GL5 signals
Up Down Leg spread Emergency
down
Off-stand by Off
All OK Green x x x x
Low battery Yellow x x x x
Critically low Battery Red Beeps at button
activation
x
Fault on lifter Yellow x x x x
Over load Beeps at button
activation
x x
Lifetime actuator will
exceed in 1.000 lifts
Yellow x x x x
Lifetime actuator
exceeded
Yellow ashes Beeps at button
activation
x x x x
Green light
Yellow light
Red ligth
Yellow service light

11
© Guldmann GB/US-1996/09/2016 • # 554400_3
© Guldmann GB/US-1996/09/2016 • # 554400_3
5.02 Safety functions
Only use the emergency stop button and emergency lowering functions in
emergencies.If it has been necessary to apply the emergency/safety functions
due to an error on the lifter, the supplier must be contacted prior to using the
lifter again.
Activating the emergency stop function
Should the lifter not respond to the func-
tions selected on the hand control when it is
in motion, press emergency stop. When the
emergency stop function is applied, the lifter
ceases to function. Switch the lifter on again
by turning the emergency stop button in the
direction of the arrow until it springs up.
Activating the emergency lowering function
If the lifter fails to lower, activate the following:
1. Press the emergency lowering button on the
control box display, if the lifting boom does not
lower
2. Turn the red knob in the direction of the arrow
(option)
Use of brakes
The rear castors are tted with brakes. Apply
the brake by stepping on the lower kick pedel.
To release the brake, kick the top part of the
kick pedal.
Only apply the brakes if the user is pushing
the lifter away.

12
© Guldmann GB/US-1996/09/2016 • # 554400_3
© Guldmann GB/US-1996/09/2016 • # 554400_3
6.00 Use of Mobile lifter
Lifting hanger
The lifting hanger can be mounted on the mobile lifter without the use of any
tools.
1. Hold the lifting hanger in the right hand
and press the yellow button using the
thumb as shown. The slot on the lifting
hanger’s top cover must face up. (g. 1).
2. Insert the lifting hanger in the slot on the
side of the lifting hanger’s top cover. (g. 2).
3. Check that the yellow button has returned
to its locked position by checking that it is
ush with the cover of the lifting hanger
and that the strap attachment can rotate
freely. (g. 3).
6.01 How to use the Sling
Use slings with 4-6 lifting straps designed for tting on Guldmann lifting han-
ger as shown in the sling manual.
The Lifter can be positioned under a bed. It can be moved through normal doors.
The lifter can be used in wet areas, but must not be exposed to splash water.
The lifter is protected against corrosion (9.00).
The lifter can be used for multiple users. When moving the lifter to another
user, perform normal hygienic disinfection.
Fig. 1
Fig. 3
Fig. 2

13
© Guldmann GB/US-1996/09/2016 • # 554400_3
© Guldmann GB/US-1996/09/2016 • # 554400_3
Lifting to and from a sitting position
When lifting from e.g. a wheelchair, move the lifter towards the person to be
lifted. Lifting boom and lifting hanger should be level with the chest and posi-
tioned above the middle of the thigh.
Position the lifting hanger parallel to the user’s shoulders. Now t the lifting
sling to the lifting hanger. For instructions on how to t the sling, see the sec-
tion entitled “Fitting the lifting sling”.
Lifting to and from a lying position in bed
Position lifting boom and lifting hanger right over the bed. Now pull the lifter
back until the lifting boom and lifting hanger are positioned above the center
of the person to be lifted. The lifting hanger and lifting boom should be paral-
lel with the person’s shoulders. Now t the lifting sling to the lifting hanger.
For instructions on how to t the sling, see section entitled “Fitting the lifting
sling”.
Working with the mobile lifter
To obtain a correct working posture when moving the lifter, the caregiver
should always, by placing one leg in front of the other, push the lifter in a for-
ward motion thus utilizing his/her body weight.
Turning the lifter should be carried out by two persons, otherwise, stand
alongside the lifter and push on the side of the mast thereby minimizing the
center of rotation. It is a good idea to make the heaviest point of the lifter the
center of rotation. If there is limited space, you can use your foot to push on
the chassis of the lifter in the direction you wish to turn.
Hook the top set of straps (from the back) to the hooks facing the user. Hook
the lower set of straps (from the legs) to the hooks facing away from the user.
GH lifting hanger, 4 attachment points
Caution!
Be careful when attaching the lifting sling’s straps on the hooks. Check
that the straps have been correctly placed in the lifting hanger’s hooks.
When pressing the up button on the hand control to lift the user, check
again that all straps remain correctly placed in the lifting hanger’s
hooks (Fig. 1).
Fig. 1

14
© Guldmann GB/US-1996/09/2016 • # 554400_3
© Guldmann GB/US-1996/09/2016 • # 554400_3
GH Lifting hanger
Caution!
Be careful when attaching the lifting sling on the hooks. Check that the
straps have been pulled completely through the rubber safety catch
(A) and into place in the lifting hanger’s hooks. When pressing the up
button to lift the user, check again that all the straps remain correctly
placed in the lifting hanger’s hooks (g. 1a and g. 1b).
Fig. 1a Fig. 1b
AA
From a chair, wheelchair or other sitting positions
Place lifting sling behind user’s back e.g. between the back of the chair and
the user’s back.
The center band of the lifting sling should follow the user’s spine. As for the
slings type Active, the strap showing the size of the sling should be opposite
the spine. Bring the leg straps along the outer thigh and then under the thigh
between the back of the knee and the hip.
Now cross the leg straps in front of the user.
All four straps are now ready to be mounted onto the lifting hanger.
Lying position in bed, on a mattress or on the oor
Turn the user on his side. Place the high back sling so that its upper edge
is ush with the top of the user’s head. Put the sling on the user so that the
center band follows the spine. Turn the user on his back and pull the sling
out. Bring the leg straps under the thigh and cross them over.
All four straps are now ready to be mounted onto the lifting hanger.
If in doubt about how to use the sling, please contact your supplier.
Guldmann cannot be held responsible for any faults or accidents that may
occur due to incorrect positioning of the lifting hanger, or for reasons of inade-
quate attention paid by helpers or the user.

15
© Guldmann GB/US-1996/09/2016 • # 554400_3
© Guldmann GB/US-1996/09/2016 • # 554400_3
6.02 Method of cleaning and disinfection
Cleaning
We recommend that any parts of the mobile lifter that users/helper may come
in contact with are cleaned with Novadan Des Wipes, Novadan Disinfect O or
similar disinfection product.
Novadan Des Wipes:
Use a disposable wipe for cleaning and disinfection of all types of surfaces,
machines and instruments in the healthcare sector.
NB: Do never clean the lifter with strong acid, base or alcohol. Never clean
the lifter in an autoclave machine.
7.00 Troubleshooting
Error:
Lifter does not react to input from the buttons on the hand control.
1. Does the green or yellow LED illuminate on the lifter when the control
buttons on the hand control are activated?
Yes see point 6.
No no light visible – see point 2.
No only red light visible – see point 3.
No yellow service light visible or audible “Beep”– see “indicator and audio
signals matrix”
2. Is the battery installed in the lifter?
Yes see point 4.
No install a fully charged battery.
3. Is a battery with sufcient charge installed in the lifter?
No install a fully charged battery.
4. Is the emergency stop activated?
Yes turn emergency stop in the direction of the arrow to allow it to release
and press any button on the hand control.
No see point 5
5. Is the connector for the hand control tted in the lifter, and is the lifter
reacting to the buttons located on the control box?
Yes replace hand control
No t connector

16
© Guldmann GB/US-1996/09/2016 • # 554400_3
© Guldmann GB/US-1996/09/2016 • # 554400_3
6. Are the connectors for the lifting motor and/or leg adjustment motor
tted?
Yes see point 5
No t connector
Contact the Guldmann Service Team if the fault cannot be found and
corrected.
8.00 Service and lifespan
According to the international standard EN/ISO 10535 “Lifter for the transfer
of disabled persons - Requirements and test methods” a safety inspection of
the lifter must be performed at least once a year.
The lifter has an expected life span of 15
years. The lifespan is estimated on the basis
of correct use, cleaning and maintenance, plus
annual service and maintenance carried out by
qualied service engineers of the Guldmann
Service Team. At the end of the expected lifes-
pan, the lifter must then be assessed by qua-
lied service staff as to the lifters future use.
The lifespan of the lifting actuator is determined
by how regular the lifter is used.
Guldmann mobile lifter has intelligent monitoring of the usage pattern. The
control box monitors the numbers of lifts, weight being lifted and duration of
the lifts. The service light on the control panel will then indicate when the lif-
ting actuator needs replacing. This means that the life span of the actuator is
dependent on the usage pattern of the lifter.
The lifespan of the lifting actuator - examples
Lifts/day User weight – 85 kg/187 lbs. User weight – 120 kg/243 lbs.
Lifespan lifting actuator Lifespan lifting actuator
5 17 years 15 years
20 4.5 years 4 years
The lifter is controlled by a microprocessor PC board which can be damaged
if it is being touched without the necessary precautions. Therefore the electro-
nics must only be serviced by qualied Guldmann Team.
Spare parts lists and drawings are available from manufacturer or supplier.

17
© Guldmann GB/US-1996/09/2016 • # 554400_3
© Guldmann GB/US-1996/09/2016 • # 554400_3
8.01 Service check of the mobile lifter – All-round
During the inspection a service report shall be made, describing what has
been checked and exchanged.
Worn or defective parts shall be replaced by new spare parts from V. Guld-
mann A/S.
1 Visual check of the product
• Check the product for wear and tear
• Check the product for any deformity
• Check that the product does not show any other deciencies.
2 Lifting motor/actuator
• Check the lifting motor/actuator for visible outer damage and leaking oil
as well as any abnormal sound during operation.
• According to the manufacturer’s instructions the lifting motor/actuator
shall be exchanged after 11.000 cycles or at least every 5 years.
3 Test of the product, as during normal use
• Check all functions on the product, with and without load, (Ie. Up, down, for-
ward, backward, out and in).
• Check the emergency lowering is operational.
• Check the emergency stop is operational.
• Check the charging indicator is operational.
4 Check the electrical condition of the products
• Check the batteries and measure the:
• Input/Voltage
• Output/Voltage
• Check electrical functions and signals
• Check all wirings for errors and defects
• Check wire lead-ins
• Check all possible conections, plugs etc.
5 Check the mechanical condition of the product
• Clean the product for dirt and other impurities
• Inspect and evaluate the vital parts of the product
• Exchange defective and worn parts of the product
• Check and tighten all moving parts
• Grease the product.
6 Point 3 is carried out one more time as a control function
7 Have new errors or problems arisen in point 7?
• If new problems have arisen, go back to point 3
• If no problems have arisen, nish the inspection.
8 When a service inspection including service work or exchange of com-
ponents has taken place, the nal check should comprise a weight test
with the product’s nominal load.

18
© Guldmann GB/US-1996/09/2016 • # 554400_3
© Guldmann GB/US-1996/09/2016 • # 554400_3
8.02 Owners daily maintenance
The owners’ daily maintenance consists of general cleaning.
9.00 Transportation and storage
The lifter can be dismantled for transport and storage.
1. Remove the electrical cable to the base from the con-
nection plug on the mast.
2. Loosen the knob and lift the mast from the base.
How to pack the lifter for transport
Guldmann recommends that the dismantled lifter is always transported in its
original packaging.
Storage of mobile lifter
The mobile lifter should be stored in a dry room, where the humidity does not
exceed 70%. The mobile lifter must never be stored in bathrooms and similar
areas.
Always activate emergency stop when the mobile lifter is put on storage.
How to prevent/avoid corrosion
The mobile lifter should not be stored/remain in damp surroundings for long
periods of time. Water vapor might liquefy into water on the mobile lifter, thus
causing corrosion/rust in bearings as well as in the tubular steel frame.
The mobile lifter should not be exposed to sudden cold or warmth. This
means that one should not take a cold mobile lifter into a hot bathroom. In
swimming baths and bathrooms where strong gases may be present, the
mobile lifter is particularly exposed to corrosion and should always be remo-
ved from such places after use.

19
© Guldmann GB/US-1996/09/2016 • # 554400_3
© Guldmann GB/US-1996/09/2016 • # 554400_3
10.00 Technical specications
A.....................69 mm *
B....................143 mm *
C...................2013 mm *
D...................1370 mm *
E....................229 mm
F....................518 mm
G...................1382 mm
H min/max ........664/1967 mm *
I min/max .........456/1759 mm *
J min/max .........530/1300 mm
K min/max ........695/1410 mm
L....................120 mm
M...................1090 mm
* If wheels Ø 80 mm are used,
deduct 25 mm
E
F
G
D
I
H
C
A
B
J
K
M
700
L

20
© Guldmann GB/US-1996/09/2016 • # 554400_3
© Guldmann GB/US-1996/09/2016 • # 554400_3
Functions
Lifting capacity, max: ...................................155/205 kg
Operation
Lift: ....................................................Electric
Width adjustment: .........................................Electric
Pushbuttons - max.: ........................................ 3.3 N
Weight
Totally: ................................................... 46 kg
Chassis: .................................................22 kg
Mast and lifting boom incl. control box & battery: . . . . . . . . . . . . . . . . . . 25 kg
Charger + handcontrol........................................1 kg
Turning radius
Turning radius : .........................................1460 mm
Safety Features
Battery protection for insufcient voltage: . . . . . . . . . . . . . . . Yes, disconnects
Electrical parts
On/off: .............................................Automatically
Power supply for charging
Input: ..............................100-240Vac, 47-63Hz, 0.6-0.4A
Output: .............................................36V, 0.83A
Battery, replaceable NiMH: .............................. 24V /4.5 Ah
Charging time: ......................................Max. 5 hours
Consumption/power of actuator: ..........................24V, max 8A
Duty Cycle: ......................Max 10%, max. 2 min on, 18 min off.
Class of tightness
Mobile lifter: .............................................. IP 30
Hand control: ............................................. IP 44
Power supply: ............................................. IP 20
Labelling
The product is manufactured in compliance with the Council Directive
93/42/EEC of June 14th 1993, including amendments, as medical device
class 1.
Classied
Acc. to ISO 9999: ........................................12 36 03
Other manuals for GL5
1
Table of contents
Other Guldmann Personal Care Product manuals
Popular Personal Care Product manuals by other brands

PRE LABS
PRE LABS PALLATON Owner's manual & warranty information

EasyStand
EasyStand Glider Medium owner's manual

Withings
Withings BPM Connect instruction manual

Essence
Essence Care@Home Halo Emergency Pendant Plus user guide

medi
medi Genumedi Instructions for use

Tomed
Tomed SomnoGuard SP Soft quick start guide

Morphy Richards
Morphy Richards SG22041 brochure

Foreo
Foreo UFO 2 Online manual

Carre Technologies
Carre Technologies HEXOSKIN Classic user guide

Waterpik
Waterpik waterflosser Cordless Advanced 2.0 WP-582 quick start guide

UNITED ORTHO
UNITED ORTHO Step-thru NoVel Fitting instructions

AENO
AENO DI1 quick start guide
