Guntamatic PRO Series User manual

Woodchip boiler
PRO
Operating Instructions/System Log Book PRO-A-00-00-00-01-BADE
DE-B30-012-V02-1013-V3.0

PRO Operating Instructions
2
Information on this documentation
Read through this documentation carefully.
It is intended as a reference document and contains important
information on the design, safety, operation, maintenance and
care of your heating system.
We are always looking to improve our products and
documentation. Any ideas and suggestions you may have will
be gratefully received.
GUNTAMATIC Heiztechnik GmbH
Bruck 7
A-4722 PEUERBACH
Tel: [phone] / 2441-0
Fax: [phone] / 3031
E-mail: [e-mail]
It is important that you pay particular
attention to the safety issues highlighted in
the text by these symbols.
The entire contents of this document are the property of
GUNTAMATIC and therefore protected by copyright.
Reproduction of any kind, communication to third parties by
any means or use for purposes other than those intended
without the written consent of the owner is prohibited.
Subject to printing errors and technical amendments.

PRO Operating Instructions
3
Contents Page
1 Introduction..........................................................5
1.1 Brief description 5
1.2 Type approval 5
1.3 Further information 5
2 Important notes....................................................6
2.1 Intended use 6
2.2 Operating the heating system 6
2.3 Guarantee and liability 6
2.4 Safety instructions 7
3 System components..........................................11
3.1 Cutaway diagram of PRO 11
4 Safety systems...................................................12
5 Description of control panel .............................14
6 Overview of menu and levels............................15
6.0 Information level 16
6.1 House level 17
6.1.1 Boiler enabling 17
6.1.2 Programme 17
6.1.3 User level 18
6.1.3.1 User menu 18
6.1.3.2 Thermal Store Pump HP0 menu 19
6.1.3.3 Network System menu 19
6.1.3.4 Heating Circuit menu 19
6.1.3.5 Hot Water menu 20
Supplementary Hot Water menu 20
6.1.3.6 Feeder Pump menu 20
Charging Pump menu 20
6.1.3.7 Boiler cascade menu 21
6.1.4 Service level 21
6.1.4.1 Service menu Reset Data 22
6.1.4.2 Service menu Commissioning 22
6.1.4.3 Service menu HP0 Parameters 23
6.1.4.4 Service menu System Settings 24
6.1.4.5 Service menu Network System Parameters 25
6.1.4.6 Service menu Heating Circuit Parameters 25
6.1.4.7 Service menu Hot Water Parameters 26
Service menu Supplementary Hot Water Parameters26
6.1.4.8 Service menu Feeder Pump Parameters 26
Service menu Charging Pump Parameters 26
6.1.4.9 Service menu Return Mixer Valve Parameters 26

PRO Operating Instructions
4
Contents Page
7 User settings......................................................27
7.1 Activating a heating programme 27
7.2 Deactivating a heating programme 28
7.3 Programming heating times 29
7.3.1 Programming en bloc 29
7.4 Changing the heating characteristic 30
7.5 Changing the hot water temperature 31
7.6 Analogue room stat 32
7.7 Digital room controller 32
8 Operating the heating system ..........................33
8.1 Starting up/Shutting down the system 33
8.2 Heating system checks 33
8.3 Fuel quality 34
8.4 Fuels 35
8.4.1 Woodchips 35
8.4.2 Pellets 36
8.5 Filling/refilling the fuel store 37
8.6 Combustion air supply 38
8.7 Emptying the ash 39
9 Cleaning/Care.....................................................40
9.1 Cleaning the fuel store 41
9.2 Interim cleaning 41
9.3 Complete cleaning 42
9.4 Cleaning at end of heating season 42
10 Rectifying faults.................................................43
11 Information messages/Fault codes..................44
12 Replacing fuses .................................................46
13 Log book.............................................................47
13.1 Weekly visual inspection 48
13.2 Monthly checks 48
13.3 Servicing 48

PRO Operating Instructions
5
1 Introduction PRO-01-00-00-00-02-BADE
You have made an excellent choice with the purchase of your
GUNTAMATIC boiler.
It is a product of many years' experience in boiler-making and
it is our sincere wish that your heating system provides you
with many years of satisfaction.
These instructions are intended as a guide to operation and
maintenance. Even the best boiler cannot operate effectively
without proper care and maintenance, so please read through
these instructions carefully and have your appliance
commissioned by an engineer authorised by GUNTAMATIC.
Most importantly, you should follow the safety instructions in
Section 2.
1.1 Brief description
The PRO is a modern biomass boiler. The fuel is fed to the
boiler from a fuel storeroom by an auger-type conveyor with
fuel agitator.
1.2 Type approval
The boiler is designed in accordance with Class 3 to EN 303-5
and the agreement of the Austrian Federal States according to
Art. 15a BVG relating to safety measures for small combustion
heating systems and energy saving. The original type
approval certificates are available for inspection at the
manufacturer's offices.
1.3 Further information
The documentation consists of the following documents:
Installation instructions
Planning and installation instructions
Wiring diagram
Operating instructions
If you have any questions, please consult our Customer
Support.

PRO Operating Instructions
6
2 Important notes PRO-02-00-00-00-01-BADE
Your boiler has been designed and produced in accordance
with the latest technical advances and all applicable safety
regulations. Nevertheless incorrect operation, the use of
unapproved fuels or the failure to carry out necessary
maintenance and repairs can result in personal injury or
damage to property. You will avoid dangerous situations by
only using the boiler for the purpose for which it was designed
and by operating, cleaning and maintaining it correctly. Only
start up the heating system when it is in perfectly safe working
order.
2.1 Intended use
The boiler is designed for heating central heating water and
for use as a central heating boiler.
2.2 Operating the heating system
The heating system may only be operated and cleaned by
demonstrably trained persons (as per check-list). Children,
unauthorised persons or persons with a mental impairment
may only enter the boiler room under the supervision of an
authorised person. When unsupervised, the boiler room/fuel
store must be locked and the key kept in a place where it is
inaccessible to such persons.
2.3 Guarantee and liability
Guarantee and liability claims for personal injury and/or
property damage are inadmissible if they are attributable to
one or more of the following causes:
use of the boiler for purposes other than that intended
failure to follow the instructions, guidance and safety
precautions given in the documentation
incorrect commissioning, operation, maintenance or
repair of the boiler
operation of the boiler when safety systems are
inoperative
unauthorised modifications
Caution: Do not use the boiler to burn rubbish!
Burning rubbish will cause extensive
corrosion and consequently a drastic
reduction in the service life of the boiler.
Caution: even if the opposite is requested, servicing
and repair work may only be carried out by
authorised specialists.

PRO Operating Instructions
7
2.4 Safety instructions
To prevent accidents, small children should not be allowed
into the boiler room or the fuel storeroom. Please follow the
safety instructions below. By doing so, you will protect yourself
and prevent damage to your heating system.
Power switch
Mains plug
Repair work
In an emergency: In the event of electric shock, disconnect
the power supply immediately.
Administer first aid. Call the duty doctor.
Fault rectification
Unauthorised modifications
Note: The power switch must remain switched on at
all times and may only be switched off when
the system is not in operation.
Danger: Risk of fatal injury from electric shock.
The mains power supply is brought to the
boiler via the plug marked Mains. That plug
and other components of the system remain
live even when the Power switch on the
control panel is switched off.
Danger: Repair work may only be carried out
by authorised technicians.
Touching live electrical components can
cause fatal injury.
Even when the Power switch is OFF some
components of the system are still live.
Therefore, when carrying out repair work it is
imperative that the power supply to the
heating system is completely disconnected by
means of the "mains plug" or a circuit
breaker.
Note: If faults occur, the causes must first be
eliminated on the basis of the information
message on the display (F0...) before
resuming operation by means of the Quit
button.
Note: Do not make any unplanned changes to the
settings or any modifications to the heating
system.
Loss of guarantee entitlement

PRO Operating Instructions
8
Servicing work
Emptying ash
Boiler cleaning
Flue gas fan
Gaskets
In an emergency: Take the person affected into the
open air immediately. Call the duty doctor.
Air supply
Note: If there is more than one boiler in the same room, a
greater supply of fresh air must be provided.
Note: Service the boiler regularly or make use of
our Customer Service.
Danger: Glowing embers can cause fires.
The ash should only be removed from the
boiler or stored in non-combustible
containers.
Caution: Touching hot components can
cause skin burns.
The boiler must only be cleaned when it is
cold (flue gas temperature < 50°C)
Danger: Risk of injury from rotating parts.
The fan must only be removed when it is
disconnected from the power supply
(unplugged).
Danger: Risk of gas poisoning.
It is possible that flue gas could escape if
gaskets are damaged.
Have defective gaskets replaced by an
authorised technician.
Danger: Risk of suffocation
Inadequate air supply can be fatal.
Make sure there is an adequate supply of air.

PRO Operating Instructions
9
Flue draught regulator
Safety clearances
Entering the fuel storeroom
Filling the storeroom
Danger: Risk of detonation.
A flue draught regulator with a pressure surge
compensator is an essential requirement.
Danger: Fire risk.
Do not store any flammable items in the close
vicinity of the boiler.
Follow the local regulations.
Danger: Risk of injury!
Only enter the store room when the
system is switched off. Always shut off
the power supply before entering.
Affix a sign to the storeroom door.
Keep the storeroom doors locked.
Danger: Combustible gases in storeroom!
When filling the fuel storeroom from a
tanker truck or using a pressure-filling
system, it is imperative that the boiler is
shut down.
If this rule is ignored, flammable and
poisonous gases can be drawn into the
storeroom.

PRO Operating Instructions
10
Protection against freezing
Emergency fire extinguishing system
Fire extinguisher
Note: Anti-freeze function.
The system can only perform its freezing
prevention function if sufficient fuel is
available and there are no faults.
Note: Provide a fire extinguisher.
There must be a fire extinguisher placed
immediately outside the boiler room door.
Note: Contact our Customer Service.
If the emergency fire extinguishing system
has been triggered, it is always due to a fault
in the heating system.

PRO Operating Instructions
11
3 System components PRO-03-00-00-00-01-BADE
3.1 Cutaway diagram of PRO
1.) Stepped grate –primary air
2.) Domed swirl chamber
3.) Photosensor
4.) Inspection cover
5.) Helix baffles
6.) Heat exchanger
7.) Flue draught fan
8.) Automatic cleaning mechanism
9.) Flue pipe
10.) Oxygen sensor
11.) Flue gas sensor
12.) Grate motor
13.) Ash collecting device
14.) Menu-based touch-screen controller
15.) LED status indicator

PRO Operating Instructions
12
4 Safety systems PRO-04-00-00-00-01-BADE
To prevent the boiler overheating, the controller reduces the
heat output in certain situations. If the boiler still threatens to
overheat, the controller responds according to a set of defined
safety levels.
Safety level 1 10°C above specified temperature
The drive motor stops the fuel feed system and the flue
draught fan shuts down.
Safety level 2 Boiler temperature over 95°C
All heating pumps and the cylinder charging pump are
switched on to carry heat away from the boiler.
Safety level 3 Boiler temperature over 100°C
The STL (safety temperature limiter) trips and switches all
boiler control functions off while the pumps continue to run.
The system remains switched off even if the boiler
temperature drops back below 90°C. The system must not be
started up again until any faults have been rectified and the
boiler has been checked.
Power failure The controller, the flue draught fan and all pumps switch off
due to lack of electricity if there is a power cut. The glowing
fuel bed on the grate continues burn with the natural draught
of the flue. As this operating mode is not ideal, a larger
amount of ash collects on the grate as well. As soon as the
electricity supply is restored, the controller takes control of the
heating system again.
Outer casing door open
The drive motors stop feeding the boiler with fuel
The flue draught fan switches to maximum extraction speed
If the outer casing door is closed again within 60 seconds,
combustion is continued
On the stoker duct The stoker duct and feeder box are designed to be completely
air-tight as far as the fire safety flap. That means that any
burn-back is extinguished by lack of air. The fire safety flap is
tested and approved as a burn-back prevention device. A
positioner motor opens and closes the flap. Fuel delivery does
not start until the flap is completely open. If the event of a fault
or a power failure, the flap closes automatically of its own
accord. When the boiler is in operation, the controller prevents
burn-back into the stoker auger by replenishing the fuel. In
addition, a sensor monitors the temperature in the vicinity of
the stoker auger. In that way, burning fuel is continually
pushed back out of the auger duct. This burn-back prevention
system always functions unless the electricity supply to the
boiler system is cut off.

PRO Operating Instructions
13
On the fuel store outfeed unit Required in all countries
In addition, between the end of the fuel outfeed unit and the
burn-back prevention device there is a sprinkler unit that is
used instead of the temperature monitor with fuel stores with
a capacity not exceeding 50 m³ and is triggered at 55°C.
When the sprinkler is triggered, the sloping outfeed auger
enclosure –which also serves as a burn-back inhibiting device
–is completely flooded. The quantity of water required to do
so is at least 20 litres. If the temperature drops back below
55°C, the flooding is stopped.
Overfill prevention The overfill prevention function is triggered by the fill level
sensor in the fuel chute or the contact switch on the overfill
prevention cover. If the fill level sensor trips, the auger A1
stops and the auger G1 continues running. If the sensor
remains on for longer than 10min, the overfill fault is
generated. If the overfill prevention cover switch trips, the
auger A1 is stopped after 3 seconds and the overfill fault
registered immediately.
Fuel stores > 50 m³ Requirement in Austria
A temperature monitor connected to a warning device must be
installed in the fuel storeroom at the point where the fuel
conveyor exits the fuel store and enters the boiler room. A
visual and audible warning device must be triggered when the
temperature exceeds 70°C.
Manually operated fire extinguishing facility
This fire extinguishing facility is for the purpose of combating a
fire seated in the fuel storeroom in the area of the outfeed unit
and is manually actuated. It consists of conduit piping with a
minimum size of DN 20 and is to be fitted in the fuel storeroom
immediately above the fuel conveyor close to its exit point
through the wall or ceiling and positioned so as to obtain the
maximum possible fire extinguishing effect. The conduit piping
is to be connected directly to a pressurised water supply and
provided with a stop tap located in the boiler room. That tap
must be identified by a sign carrying the inscription "Fuel
storeroom fire extinguisher". The design of the fire
extinguishing facility must be such that it cannot be damaged
by the delivery of fuel into the fuel store or by the fuel outfeed
equipment.
Note: The sprinkler system must be connected
on all systems regardless of local
regulations.

PRO Operating Instructions
14
5 Description of control panel PRO-05-00-00-00-01-BADE
The appliance has a large touch-screen control panel with a
menu-based interface. All settings can be entered by pressing
the "buttons" on the touch screen. Information messages and
fault indications are displayed on the screen.

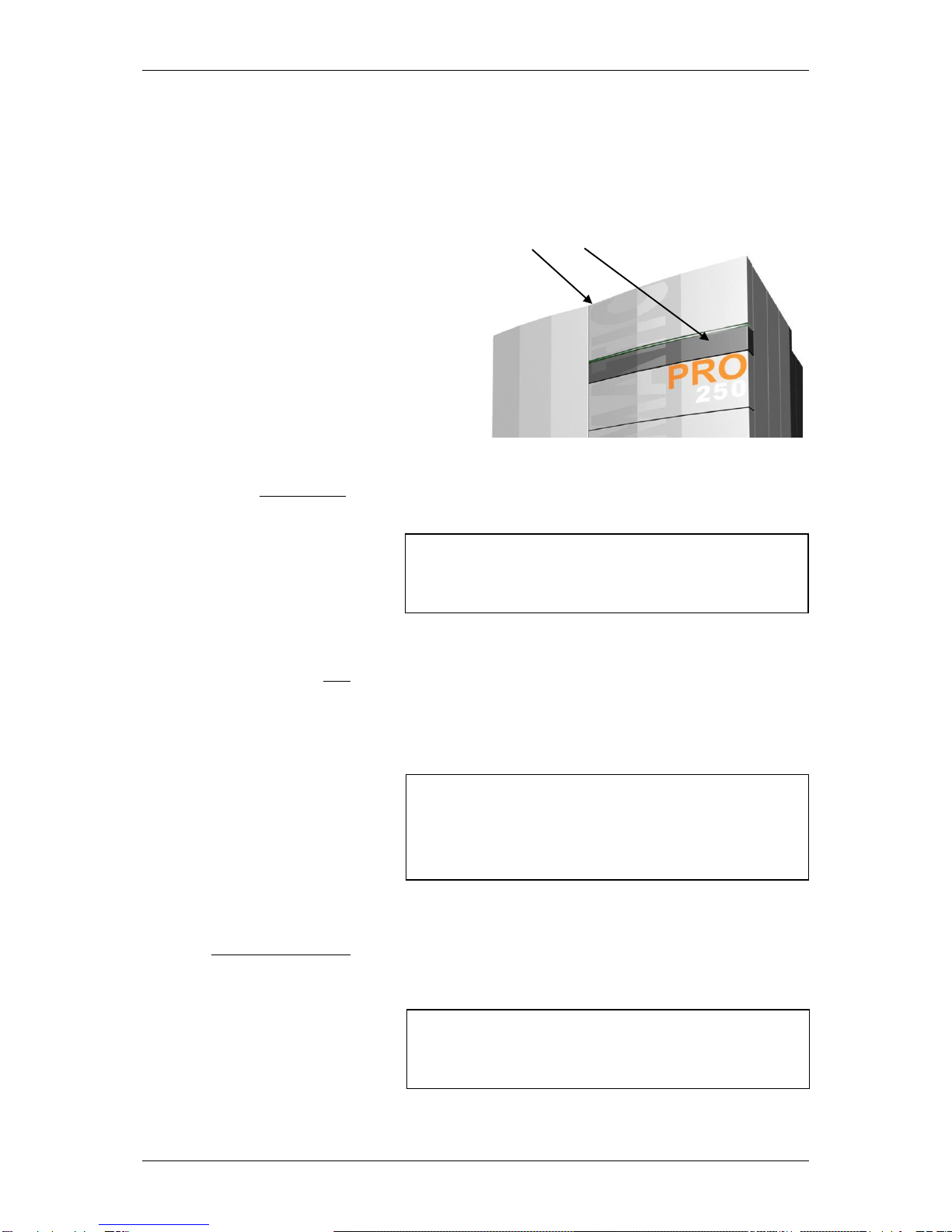

1-2 3
Power switch (1) Normally remains permanently switched on. The power switch
may only be switched off when the system is not in operation.
STL (2) The safety temperature limiter (STL) trips if the system
overheats → heating by the appliance is suspended.
If the STL has tripped, identify and eliminate the cause and
then press in the STL button as far as it will go using a
suitable object.
Touch-screen display (3) Pressing lightly with your fingertip on the relevant buttons on
the display opens the various programme levels and menus
where you can make changes to the settings.
Note: When carrying out repairs or servicing work,
the system must also be fully isolated from
the mains by unplugging the power lead.
Note: The system must not be started up again
until any faults have been rectified and the
boiler has been checked. If necessary, a
heating engineer must be called in.
Note: Never use sharp objects such as ball-point
pens or the like to operate the touch screen.

PRO Operating Instructions
15
6 Overview of menu and levels PRO-06-00-00-00-01-BADE
Fault screen
Status info
Boiler info
MK Controller 0
info
MK Controller 1
info
MK Controller 2
info
Thermal store HP0
info
User Level
▲
Boiler enabling
Service level
Information level
Parameters menu
▼
Programme
▼
▼
User Level
Service level
CODE
User menu
Programme level
Parameters menu
CODE
Reset data
Heating circuit 0
▼
Boiler parameters
Fault list
Heating circuit 1
▲
Off
House level
Test program
Heating circuit 2
Normal
Commissioning
Heating circuit 3
Hot water
HC0 parameters
Heating circuit 4
Heating
HC1 parameters
Heating circuit 5
Low
HC2 parameters
Heating circuit 6
Low until
HC3 parameters
Heating circuit 7
Recharge HW
HC4 parameters
Heating circuit 8
Manual
HC5 parameters
DHW 0
Grate cleaning
HC6 parameters
DHW 1
HC7 parameters
DHW 2
Note:
Menus shown with a dashed border only appear if
activated on the Commissioning menu.
Changes to the settings on the Service and
Parameters levels may only be made with the
agreement of GUNTAMATIC.
HC8 parameters
Th/store pump HP0
DHW0 Parameters
Boiler cascade
DHW1 Parameters
User menu
DHW2 Parameters
Detail View
HP0 parameters
Date/Time
System settings
Layout of touch-screen display
Header Scroll bar Scroll buttons
Symbols Select button

PRO Operating Instructions
16
6.0 Information level
The scroll buttons are used to navigate up or down through the menus.
Touching the House button on the display opens the House Level menu.
1) Note: Only shown if the function Network System Controller or Heating Circuit Controller has been activated.
Only one of the functions Network System Controller or Heating Circuit Controller can be programmed.
The two functions cannot be used simultaneously on the same boiler.
2) Only temperatures from the top and bottom thermal store sensors are shown on the Info Level.
(If 5-sensor thermal store management is activated, the temperatures from the thermal store middle sensors are shown in Detail View.)
Fault screen → highest priority
Plain-English fault messages are displayed and saved
Fault is acknowledged by pressing Quit button
1)
Information level → Only shown if the programme "Low until" has been activated
Disappears after the set time has elapsed
Can be prematurely deactivated by pressing Quit button
Info Level –Status
Shows boiler temperature
Shows boiler operating mode
Shows selected programme
Shows boiler output
1)
Shows outside temperature → Figure in brackets = average temperature
Info Level –Boiler
Shows flue gas temperature
Shows CO2 level
Shows efficiency
Shows time in hours until ash warning is triggered
Shows fuel setting
1)
Info Level –Network system controller → (NSC)
Shows domestic hot water temperature and operating mode for cylinder 0
Shows operating mode for network system 0 → Pumped network system
Shows operating mode for network system 1 → Pumped or mixer-valve network system
Shows operating mode for network system 2 →Pumped or mixer-valve network system
1)
Info Level –Heating circuit controller 0 → (HCC 0)
Shows domestic hot water temperature and operating mode for cylinder 0
Shows operating mode for heating circuit 0 → Pumped heating circuit
Shows operating mode for heating circuit 1 → Pumped or mixer-valve heating circuit
Shows operating mode for heating circuit 2 → Pumped or mixer-valve heating circuit
1)
▼
Info Level –Heating circuit controller 1 → (HCC 1)
1)
▼
Info Level –Heating circuit controller 2 → (HCC 2)
2)
Information –Thermal store → (HP0)
Shows thermal store temperature at top
Shows thermal store temperature at bottom
Shows thermal store pump operating mode
Shows charging programme

PRO Operating Instructions
17
6.1 House level
Pressing the buttons on the left-hand side opens the various menus.
Touching the Info button returns you to the Info Level menu.
6.1.1 Boiler enabling
Setting Boiler enabling to Off shuts down the boiler.
Network systems or Heating circuits continue to run.
3) Options → AUTO Boiler enabling dependent on enabling switch 22/23 on the boiler circuit board
(Enabling switch closed > Burner active on demand, heating circuit controller active)
(Enabling switch open > Burner off, heating circuit controller active)
→ OFF Boiler not enabled regardless of enabling switch 22/23 on the boiler circuit board
(Enabling switch closed > Burner off, heating circuit controller active)
(Enabling switch open > Burner off, heating circuit controller active)
6.1.2 Programme
Pressing the buttons on the left-hand side opens the programme.
4) The anti-freeze function is only active in OFF mode.
5) Other programme buttons are only visible if network system or heating circuit controller is activated.

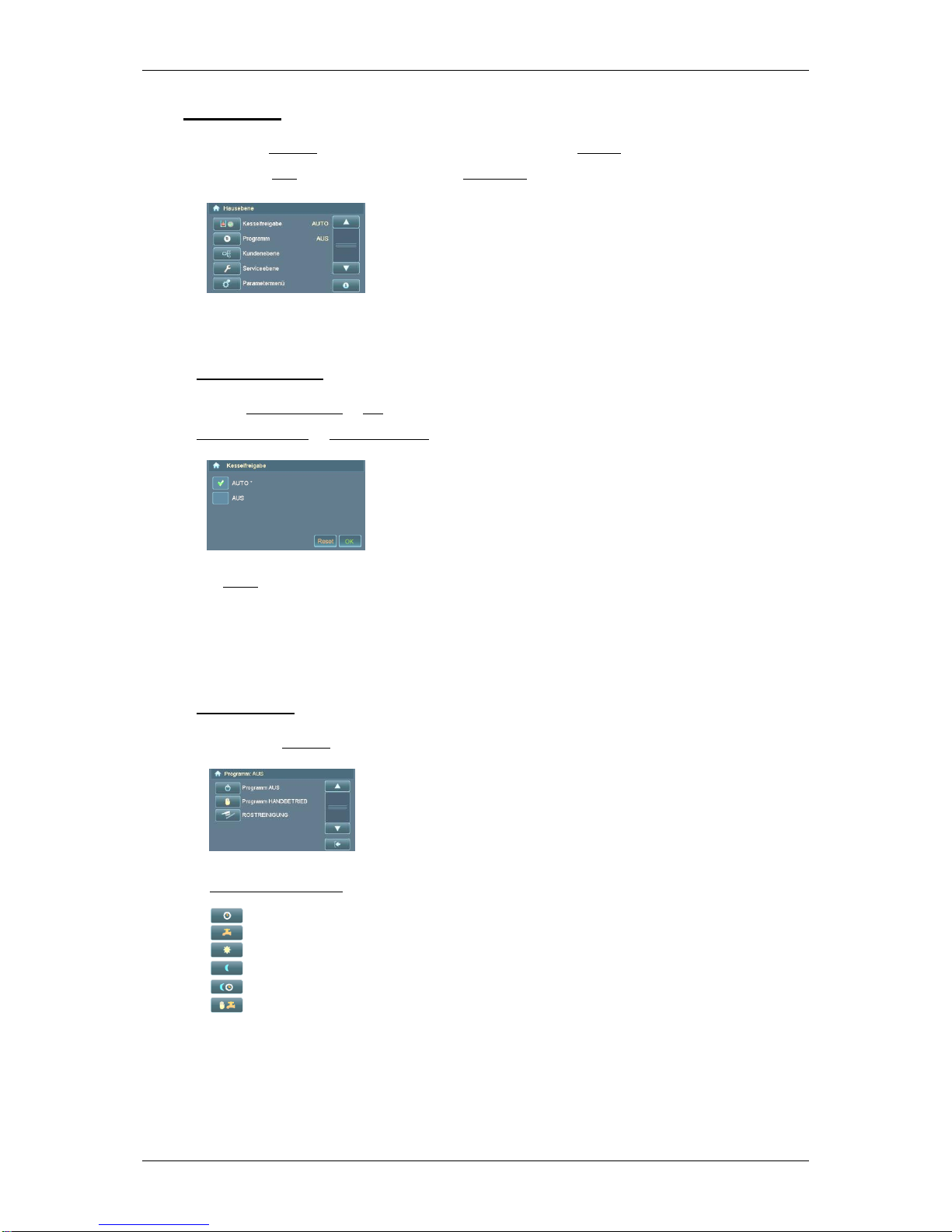

Boiler enabling
See Section 6.1.1
Programme
See Section 6.1.2
User Level
See Section 6.1.3
Service level → CODE required
See Section 6.1.4
Parameters menu → CODE required
See Section 6.1.5
3)
Facility for setting boiler enabling
3)
4)
Heating and hot water switched off → Anti-freeze function active
Heating mode without network system or heating circuit controller activated
Manually switches on stepped grate for cleaning purposes
Other function buttons:
5)
→ NORMAL programme
Heating and hot water mode (DHW as per timer prog.)
5)
→ HOT WATER programme
Hot water on as per summer DHW timer programme
5)
→ HEATING programme
Heating mode day and night (DHW as per timer programme)
5)
→ LOW programme
Low-temperature mode day and night (DHW as per timer
programme)
5)
→ LOW UNTIL programme
Low-temp. mode until a specified time (DHW as per timer prog.)
5)
→ RECHARGE HOT WATER programme
Water heating outside programmed charging times (max. duration
90min)

PRO Operating Instructions
18
6.1.3 User Level
The number of menus depends on the configuration.
6) Note: Only one of the functions Network System Controller or Heating Circuit Controller can be programmed.
The two functions cannot be used simultaneously on the same boiler.
7) Functions are only displayed if external heating circuit controller is activated.
6.1.3.1 User menu
The number of functions depends on the configuration.
8) After the ash container has been emptied (box or auto ash extraction system) it has to be confirmed on the Ash Emptied menu
by pressing the buttons YES and OK.
9) Options: Pellets 1 Quality ENplus A1 (standard quality)
Pellets 2 Quality ENplus A2
Woodchips 1 Soft wood (W > 25% - low quality)
Woodchips 2 Mixed soft and hard wood (W > 15-30% - standard quality)
Woodchips 3 Hard wood (W < 15% - high quality)

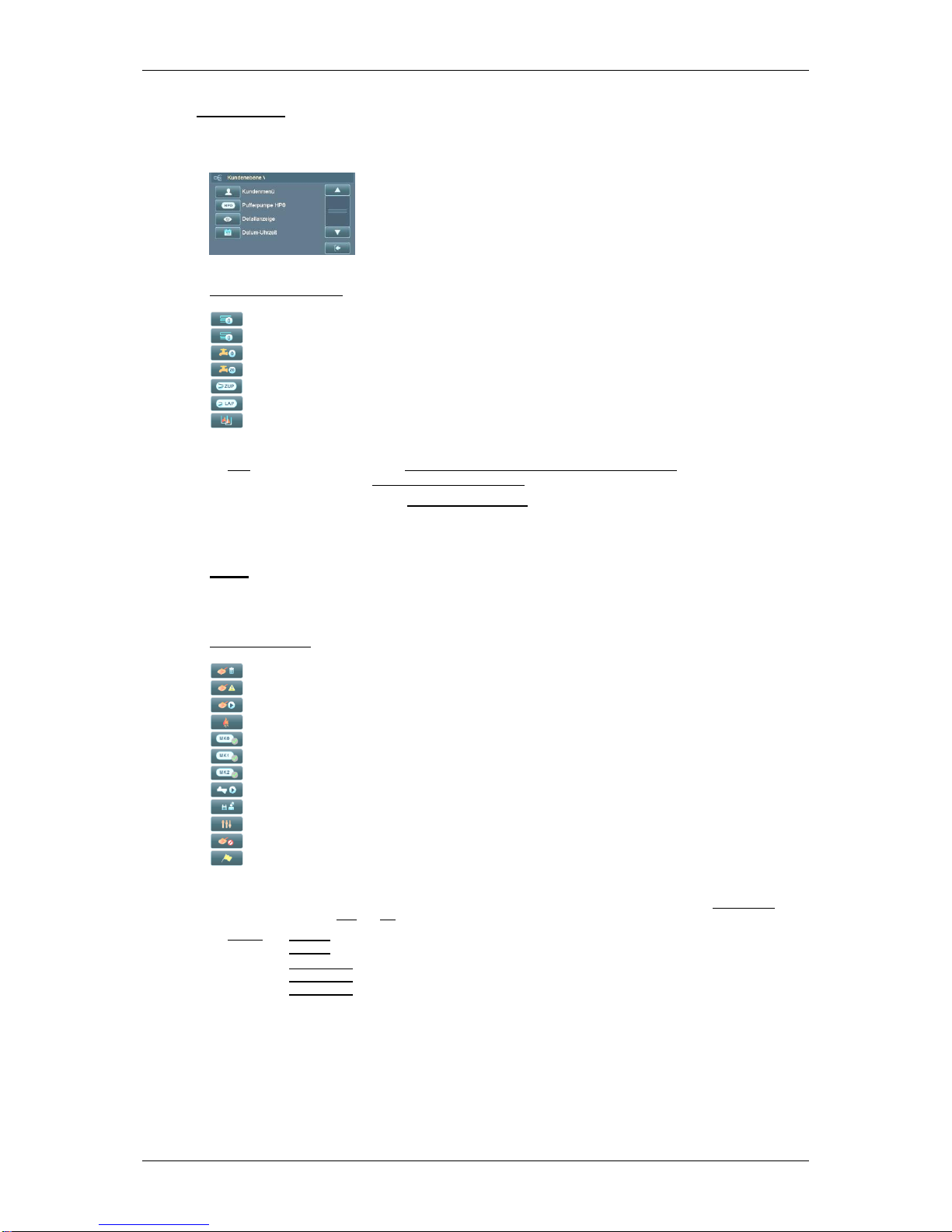

User menu → User settings
See Section 6.1.3.1
Thermal store pump HP0 menu
See Section 6.1.3.2
Detail View menu
Date/Time menu
Other function buttons:
6)
→ Network System 0-2 menu
See Section 6.1.3.3
6)
→ Network System 0-8 menu
See Section 6.1.3.4
→ DHW Cylinder 0-2 menus
See Section 6.1.3.5
7)
→ Supplementary DHW Cylinder 0-2 menu
See Section 6.1.3.5
7)
→ Feeder Pump 0-2 menu
See Section 6.1.3.6
7)
→ Charging Pump 0-2 menu
See Section 6.1.3.6
→ Boiler Cascade menu
See Section 6.1.3.7
Function buttons:
8)
→ Ash Emptied function
→ Ash Warning function → Time interval until ash warning appears (adjustable)
→ De-ashing function → For manually starting de-ashing
9)
→ Fuel parameters
→ Enable HCC 0 function → Only affects the district heating function
→ Enable HCC 1 function → Only affects the district heating function
→ Enable HCC 2 function → Only affects the district heating function
→ Fill Auger function → Sequence is not automatically switched off!
→ Flue Gas Testing function → Controller set to FGT Test/CO2 Test
→ Outfeed Auger function → For switching between A1a/b - Activated in System Settings
→ De-ashing Lockout function
→ Language function

PRO Operating Instructions
19
6.1.3.2 Thermal store pump HP0 menu
10) Thermal store only charged during charging times enabled on menu
11) Linear boiler output reduction if the set medium output limit is exceeded
6.1.3.3 Network System menu
6.1.3.4 Heating Circuit menu
12) Options → Auto Network system/Heating circuit is switched ON/OFF according to demand and timer programme.
→ Off The network system/heating circuit is switched off.
→ Constant The network system/heating circuit pump runs continuously; with mixer-valve network systems/heating
circuits, the mixer valve is not operated
13) Modulation to daytime required temperature is only possible in conjunction with a room stat or room controller; raising or
lowering the required temperature shifts the heating curve up or down accordingly.
14) Modulation to night-time required temperature is only possible in conjunction with a room stat or room controller; in addition, the
outside temperature must be below that set in menu option Night OFF OT (hysteresis 2°C)
15) Options → 0%No room effect programmed
→ 25% Modulation of room temperature based 25% on room temperature and 75% on outside temperature.
→ 50% …
→ T 1°C If the required room temperature is exceeded by 1°C the heating circuit pump is switched off.
→ T 2°C …
16) A higher heating characteristic figure produces a higher required flow temperature at the same outside temperature
17) If the temperature drops below the set temperature during the low-temperature phase, the boiler heats to the required night-time
temperature.
18) The set outside temperature is exceeded during the heating phase, the heating circuit is switched off.
Function buttons:
→ Pump Mode function
10)
→ Thermal store timer programme parameters
→ Thermal store required temp. → effective for thermal store top sensor (T3)
→ Thermal store min temp. → effective for thermal store top sensor (T3)
→ Thermal store min charge
11)
→ Medium output limit parameters
Function buttons:
12)
→ Pump Mode function
→ Timer programme parameters Facility for setting heating and low-temperature times
→ Daytime base point parameters
→ Night-time base point parameters
16)
→ Heating curve parameters
17)
→ Night OFF OT function
18)
→ OT Off function
Function buttons:
12)
→ Pump Mode function
→ Timer programme parameters Facility for setting heating and low-temperature times
13)
→ Daytime required temp parameter
14)
→ Night-time required temp parameter
15)
→ Room effect parameter
16)
→ Heating curve parameters
17)
→ Night OFF OT function
18)
→ OT Off function

PRO Operating Instructions
20
6.1.3.5 Hot Water menu
Supplementary Hot Water
19) Options → Auto The pump is switched ON/OFF according to demand and timer programme
→ Off The pump is switched off
→ Constant The pump runs continuously
20) All charging times programmed in the DHW timer programme are active when the programme is set to NORMAL.
21) All charging times programmed in the Summer DHW timer programme are active when the programme is set to HOT WATER.
22) Options → No During charging of DHW cylinder, network systems/heating circuits can be enabled.
→ Yes During charging of DHW cylinder, network systems/heating circuits cannot be enabled.
6.1.3.6 Feeder Pump menu
Charging pump
23) Options → Auto The pump is switched ON/OFF according to demand
→ Off The pump is switched off
→ Constant The pump runs continuously
24) Options → Full The thermal store is fully charged
Charging switches off when the required thermal store temperature at T3 is reached and also the
required thermal store temperature minus the parameter TSbtm-Boff (-10°C) is reached at T2
→ Part The thermal store is partially charged
Charging switches off when the required thermal store temperature is reached at T3 (= parameter
TS top-B Off)
25) Thermal store only charged during the charging times enabled
Function buttons:
19)
→ Pump Mode function
20)
→ DHW timer programme parameters
21)
→ Summer DHW timer programme parameters
→ DHW required temp parameter
22)
→ DHW priority parameter
→ Recharge DHW function → Maximum duration 90 minutes
Function buttons:
23)
→ Pump Mode function
24)
→ Charging programme parameters
25)
→ Timer programme parameters
→ Thermal store required temp. → effective for thermal store top sensor (T3)
→ Thermal store min temp. → effective for thermal store top sensor (T3)
