SAFETY INSTRUCTIONS
5
SAFETY INSTRUCTIONS
This chapter contains important safety
instructions that you must follow during
operation and storage. Read the following before
any operation to ensure your safety and to keep
the instrument in the best possible condition.

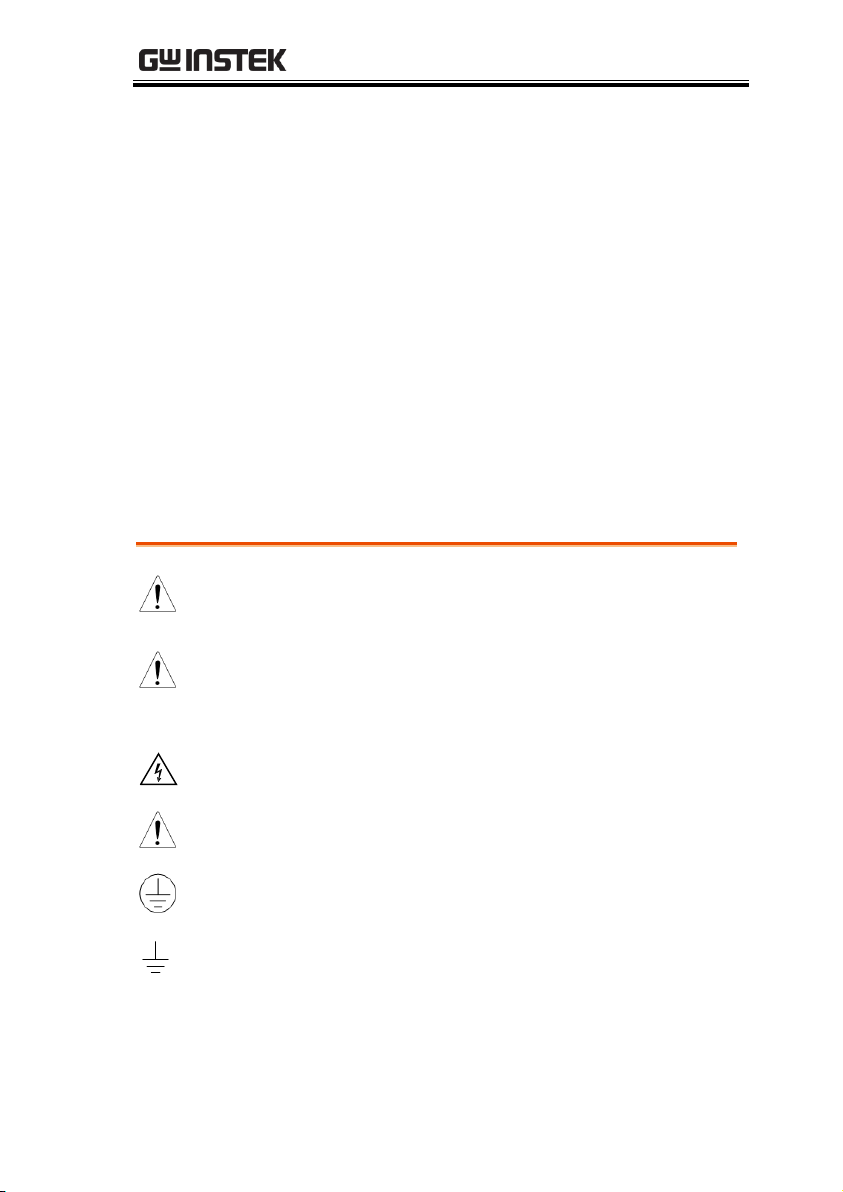

Safety Symbols
These safety symbols may appear in this manual or on the
instrument.
WARNING
Warning: Identifies conditions or practices that
could result in injury or loss of life.
CAUTION
Caution: Identifies conditions or practices that
could result in damage to the GPM-8213
or to other properties.
DANGER High Voltage
Attention Refer to the Manual
Protective Conductor Terminal
Earth (ground) Terminal

GPM-8213 User Manual
6
Do not dispose electronic equipment as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased.

SAFETY INSTRUCTIONS
7
Safety Guidelines
General Guideline
CAUTION
Make sure that the voltage input level does not
exceed DC848V/AC600V.
Make sure the current input level does not
exceed 20A.
Do not place any heavy object on the
instrument.
Avoid severe impact or rough handling that can
lead to damaging the instrument.
Do not discharge static electricity to the
instrument.
Use only mating connectors, not bare wires, for
the terminals.
Do not block or obstruct the cooling fan vent
opening.
Do not perform measurement at the source of a
low-voltage installation or at building
installations (Note below).
Do not disassemble the instrument unless you
are qualified as service personnel.
Make sure that the COM terminal to earth is
limited to 300Vpk.
Remove all test leads before disconnecting the
mains power cord from the socket.
If the equipment is used in a manner not
specified by the manufacturer, the protection
provided by the equipment may be impaired.
The device should be placed in a place where
the plug connected to it can be removed easily.

GPM-8213 User Manual
8
(Note) EN 61010-1:2010 specifies the measurement categories and
their requirements as follows. The GPM-8213 falls under category II
300V.
Measurement category IV is for measurement performed at the
source of low-voltage installation.
Measurement category III is for measurement performed in the
building installation.
Measurement category II is for measurement performed on the
circuits directly connected to the low voltage installation.
Power Supply
WARNING
AC Input voltage: 100-240 VAC 50/60Hz
The power supply voltage should not fluctuate
more than 10%.
Connect the protective grounding conductor of
the AC power cord to an earth ground, to avoid
electrical shock.
Cleaning the
Instrument
Disconnect the power cord before cleaning.
Use a soft cloth dampened in a solution of mild
detergent and water. Do not spray any liquid.
Do not use chemicals containing harsh material
such as benzene, toluene, xylene, and acetone.
Operation
Environment
Location: Indoor, no direct sunlight, dust free,
almost non-conductive pollution (Note below)
Temperature: 0°C to 40°C
Humidity: < 30°C: < 80%RH(non-condensing);
30°C~40°C:<70%RH(non-condensing);
>40°C: <50%RH (non-condensing)
Altitude: <2000m

SAFETY INSTRUCTIONS
9
(Note) EN 61010-1:2010 specifies the pollution degrees and their
requirements as follows. The GPM-8213 falls under degree 2.
Pollution refers to “addition of foreign matter, solid, liquid, or
gaseous (ionized gases), that may produce a reduction of
dielectric strength or surface resistivity”.
Pollution degree 1: No pollution or only dry, non-conductive
pollution occurs. The pollution has no influence.
Pollution degree 2: Normally only non-conductive pollution
occurs. Occasionally, however, a temporary conductivity caused
by condensation must be expected.
Pollution degree 3: Conductive pollution occurs, or dry, non-
conductive pollution occurs which becomes conductive due to
condensation which is expected. In such conditions, equipment
is normally protected against exposure to direct sunlight,
precipitation, and full wind pressure, but neither temperature
nor humidity is controlled.
Storage
environment
Location: Indoor
Temperature: -40°C to 70°C
Humidity: <90%RH(non-condensing)
Disposal
Do not dispose this instrument as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased. Please make sure
discarded electrical waste is properly recycled to
reduce environmental impact.

GPM-8213 User Manual
10
Power cord for the United Kingdom
When using the unit in the United Kingdom, make sure the power
cord meets the following safety instructions.
NOTE: This lead/appliance must only be wired by competent persons
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in this lead are coloured in accordance with the
following code:
Green/ Yellow:
Earth
Blue:
Neutral
Brown:
Live (Phase)
As the colours of the wires in main leads may not correspond with
the coloured marking identified in your plug/appliance, proceed
as follows:
The wire which is coloured Green & Yellow must be connected to
the Earth terminal marked with either the letter E, the earth symbol
or coloured Green/Green & Yellow.
The wire which is coloured Blue must be connected to the terminal
which is marked with the letter N or coloured Blue or Black.
The wire which is coloured Brown must be connected to the
terminal marked with the letter L or P or coloured Brown or Red.
If in doubt, consult the instructions provided with the equipment
or contact the supplier.
This cable/appliance should be protected by a suitably rated and
approved HBC mains fuse: refer to the rating information on the
equipment and/or user instructions for details. As a guide, a cable
of 0.75mm2should be protected by a 3A or 5A fuse. Larger
conductors would normally require 13A types, depending on the
connection method used.
Any exposed wiring from a cable, plug or connection that is
engaged in a live socket is extremely hazardous. If a cable or plug is
deemed hazardous, turn off the mains power and remove the cable,
any fuses and fuse assemblies. All hazardous wiring must be
immediately destroyed and replaced in accordance to the above
standard.

GETTING STARTED
11
GETTING STARTED
This chapter describes the GPM-8213 in a nutshell,
including accessories, package contents, its main
features and front / rear panel introduction.
Characteristics ..........................................................12
Accessories................................................................. 15
Package Contents....................................................... 16
Appearance...............................................................17
Front Panel ................................................................. 17
Display Overview........................................................ 21
Rear Panel................................................................... 24
Set Up ......................................................................26
Tilting the Stand......................................................... 26
Power Up.................................................................... 27
Connect the wires to the GPM-8213 ......................... 28

GPM-8213 User Manual
12
Characteristics
The GPM-8213 is a high-precision, programmable power meter for
using in standby measuring the device with low power such as
switching power supplies, transformers, power supplies, adapter
and other devices. It equips with a color TFT-LCD screen which is
very convenient for reading the measurement results. The GPM-
8213 has become a reliable power measurement instruments
because of its simple operation, excellent performance and
automatic measurement interface.
Operation
Press the buttons on the front panel to easily
turn on the GPM-8213 measurement function.
All settings and measurements results are
displayed on the TFT-LCD screen panel for easy
use of each function.
Standard display mode: 2 main measurement
results and 6 secondary measurement results are
displayed in this screen.
Simple display mode: 4 major measurement
results are displayed in this screen.

GETTING STARTED
13
Performance
6 selectable voltage ranges available from 15V to
300V with 0.1% of reading + 0.1% of range.
12 selectable current ranges available from 5mA
to 20A with 0.1% of reading + 0.1% of range.
It can even measure the voltage of abnormal
wave of CF 3. The half-range CF is up to 6.
It can even measure the current of abnormal
wave of CF 3. The half-range CF is up to 6.
Test terminals in the front panel.
Total harmonic distortion measurement.
Features
Full five-digit measurement.
Voltage measurement range: 15V ~ 600V or
automatic switching
Current measurement range: 5mA ~ 20A or
automatic switching
Maximum accuracy of 0.1% of reading + 0.1% of
range
2 main measurement readings and 6 minor
measurement readings are displayed in the
screen of standard display mode.
4 main measurement readings are displayed in
the screen of simple display mode.
Added stand-alone display of total harmonic
distortion measurement function (13 steps)
Test bandwidth of voltage and current: DC ~
6kHz.
Added W-h power time integrator function
Selectable boot settings (Previous / Default)
Interface
Standard interface: USB / RS232 / LAN
Optional interface: GPIB

GPM-8213 User Manual
14
Application
It can be applied to production test such as
power supplies, transformers, motors, electrical
equipment and other equipment with low
standby power.
It can be applied to power measurement
conforms to IEC 62301
It can be applied to assess the power
consumption of product design.

GETTING STARTED
15
Accessories
Standard Accessories
Part number
Description
82PM-82130Ex1
User Manual CD
82DM-83421Mx1
Safety Instruction Sheet
Region dependent
Power Cord
GTL-209
Test leads: 2x red, 2x black
Optional Accessories
Part number
Description
GPM-001
Test Fixture
GTL-232
RS232C cable
GTL-246
USB cable
GTL-248
GPIB cable
GRA-422
Rack Adapter Panel (19”, 2U)
Option
Name
Description
Opt.01
GPIB (Factory installed)

GPM-8213 User Manual
16
Package Contents
Check the contents before using the instrument.
Opening the box
Contents
(single unit)
Main unit
Test leads (red x2,
black x2)
Power cord x1 (region
dependent)
User manual CD
Safety instruction
sheet

GETTING STARTED
1
17
Appearance
Front Panel



 



POWER
INTEGRATOR
  
CURRENT VOLTAGE
I
 

I
V
V
 

CAT II 300V

GPM-8213

Power Switch
POWER
Turns On
or Off the main
power. For the power up sequence,
see page
27.
Current
,
Voltage
Terminals
CURRENT VOLTAGE
I
 

I
V
V
 

CAT II 300V
Current input:
I+ and I
–
terminals
; Voltage
input: V+
and V-
terminals.

GPM-8213 User Manual
1
18
Note
If the measurement power supply has
positive and negative
electrode,
please
connect
+ to the positive
electrode of
power supply
and - to the negative
electrode of power supply.
Warning
The m
aximum measurable
current and
voltage
are 600 V and 10A for
voltage
and current
terminals of the front
panel
of the GPM-8213. Do not
input
exceeded
voltage and current,
otherwise it will burn the device.
Function keys
 

V
-Range key,
up/down arrow keys
and Enter key
can be used together
to select
a voltage range or auto
range
measurement mode.
See page
30
.
 

I
-Range key,
up/down arrow keys
and Enter key
can be used together
to select
a current range or auto
range
measurement mode.
See page
30
.

GETTING STARTED
1
19

Press this button to
display the
maximum
measurement reading.
See page 51.

Press this key to select measure
mode
(DC/AC/AC+DC)
. See page
52.

Press this key to e
nter the
measurement settings menu
. See
page 34.

Press this key to
switch
window and
stop
refreshing. See page 52.

 
INTEGRATOR
ġ
Use the left and right arrow
keys to select Integrator
mode
, and press Enter
button
to enter the time
integrator
function.
See page
53
. ġ


Press this key to toggle to key lock.
In
Remote
control mode, press this
button to
switch to local mode.
See
page
52.
Confirm button

This button is used to e
nter the
menu, confirm the settings
and
switch
between
the standard display
mode and
simple
display mode (no
function table and
display icon)
. See
page 52.

GPM-8213 User Manual
2
20
Cancel (Exit)
button

Press this button to c
ancel the
current setting
. T
he cursor returns to
the default position or return to the
previous menu according to the
situation. See page 52.
Arrow Keys
ġ
This for arrow keys are used
to e
dit the parameters,
browse the menu system
and
select the parameter
range.
