GW Instek GDS-207 User manual

Compact Digital Storage
Oscilloscope & Digital Multimeter
GDS-200 & GDS-300 Series
QUICK START GUIDE
GW INSTEK PART NO. 82DS-22000MA1
ISO-9001 CERTIFIED MANUFACTURER

This manual contains proprietary information, which is
protected by copyright. All rights are reserved. No part
of this manual may be photocopied, reproduced or
translated to another language without prior written
consent of Good Will Corporation.
The information in this manual was correct at the time
of printing. However, Good Will continues to improve
its products and therefore reserves the right to change
the specifications, equipment, and maintenance
procedures at any time without notice.
Good Will Instrument Co., Ltd. No. 7-1, Jhongsing Rd., Tucheng
Dist., New Taipei City 236, Taiwan.

SAFETY INSTRUCTIONS
This section contains the basic safety symbols that may
appear on the accompanying User Manual CD or on the
instrument. For detailed safety instructions and
precautions, please see the Safety Instructions chapter
in the user manual CD.
Safety Symbols
These safety symbols may appear in the user manual or
on the instrument.
Warning
Warning: Identifies conditions or
practices that could result in injury or
loss of life.
Caution
Caution: Identifies conditions or
practices that could result in damage
to the instrument or to other
properties.
DANGER High Voltage
Attention Refer to the Manual
Do not dispose electronic equipment
as unsorted municipal waste. Please
use a separate collection facility or
contact the supplier from which this
instrument was purchased.
Battery Caution
The internal battery is not user-
replaceable. Please return the unit back
to your local dealer for assistance. For
battery details, see the user manual.

Power Cord for the United Kingdom
When using the instrument in the United Kingdom,
make sure the power cord meets the following safety
instructions.
NOTE: This lead/appliance must only be wired by
competent persons.
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in this lead are coloured in
accordance with the following code:
Green/ Yellow:
Earth
Blue:
Neutral
Brown:
Live (Phase)
As the colours of the wires in main leads may not correspond with
the coloured marking identified in your plug/appliance, proceed as
follows:
The wire which is coloured Green & Yellow must be connected to
the Earth terminal marked with either the letter E, the earth symbol
or coloured Green/Green & Yellow.
The wire which is coloured Blue must be connected to the terminal
which is marked with the letter N or coloured Blue or Black.
The wire which is coloured Brown must be connected to the terminal
marked with the letter L or P or coloured Brown or Red.
If in doubt, consult the instructions provided with the equipment or
contact the supplier.
This cable/appliance should be protected by a suitably rated and
approved HBC mains fuse: refer to the rating information on the
equipment and/or user instructions for details. As a guide, a cable of
0.75mm2should be protected by a 3A or 5A fuse. Larger conductors
would normally require 13A types, depending on the connection
method used.
Any exposed wiring from a cable, plug or connection that is engaged
in a live socket is extremely hazardous. If a cable or plug is deemed
hazardous, turn off the mains power and remove the cable, any
fuses and fuse assemblies. All hazardous wiring must be
immediately destroyed and replaced in accordance to the above
standard.

GETTING STARTED
The Getting started chapter introduces the series lineup,
main features, appearance, and set up procedure.
Series Lineup
There are 6 models in the series, divided by DSO
bandwidth, DSO memory depth and DMM digit
resolution.
Model Name
Bandwidth
Memory
Depth
DMM
Resolution
Temp.
Meas.
GDS-207
70MHz
1M
points
per
channel
3½
No
GDS-210
100MHz
GDS-220
200MHz
GDS-307
70MHz
5M
points
per
channel
4½
Yes
GDS-310
100MHz
GDS-320
200MHz
Performance
•1 G Sa/s sampling rate max
•70/100/200MHz bandwidth
•Acquisition memory: 1Mpts (GDS-
200), 5Mpts (GDS-300)
•Max 300Vrms(CAT II, DSO);
600V(CAT II) or 300V(CAT III) for
DMM
•30,000 waveforms can be replayed

Features
•Simultaneous DMM and DSO
operation
•Portrait and landscape modes
•Large 800 x 480 TFT panel and
capacitive touch panel
•7.4V/6100mAH battery for up to 4
hours operation
•Support for differential probes
•Handy APPs - EE calculator, chip
resistance calculator, attenuation
calculator
•Shielded BNC terminals
•DSO Features
•X-Y mode
•Go/No Go
•36 automatic measurement functions
•Trend plot
•Edge, Alt, Video and Pulse trigger
functions
•FFT, FFTrms, +, -, /, * math functions
•Replay function
•DMM Features
•50,000 counts
•DCV, DCA, ACV, ACA, R, Diode,
Continuity, Temperature
•Fuse protection for the current ports
Interface
•Mini-B USB device port

Package Contents and Accessories
Standard Accessories
Item
Part Number
User Manual CD
82DS-2200E01
Quick Start Guide (this document)
82DS-22000M01
100MHz passive probe; for GDS-
207 /307, GDS-210 /310
GTP-100A-4
200MHz passive probe; for GDS-
220 /320
GTP-200A-4
Multimeter test lead x2
GTL-207
Soft carrying case (large)
GSC-010
Protection bag (small)
GSC-011
Wrist strap
GWS-001
Optional Accessories
Item
Part Number
Dual-channel differential probe,
Only for GDS-200/300
GDP-040D
Type A - Mini-B USB cable
GTL-253
Vertical calibration cable
GCL-001
Download
Item
Part Number
USB driver
dso_vpo.inf

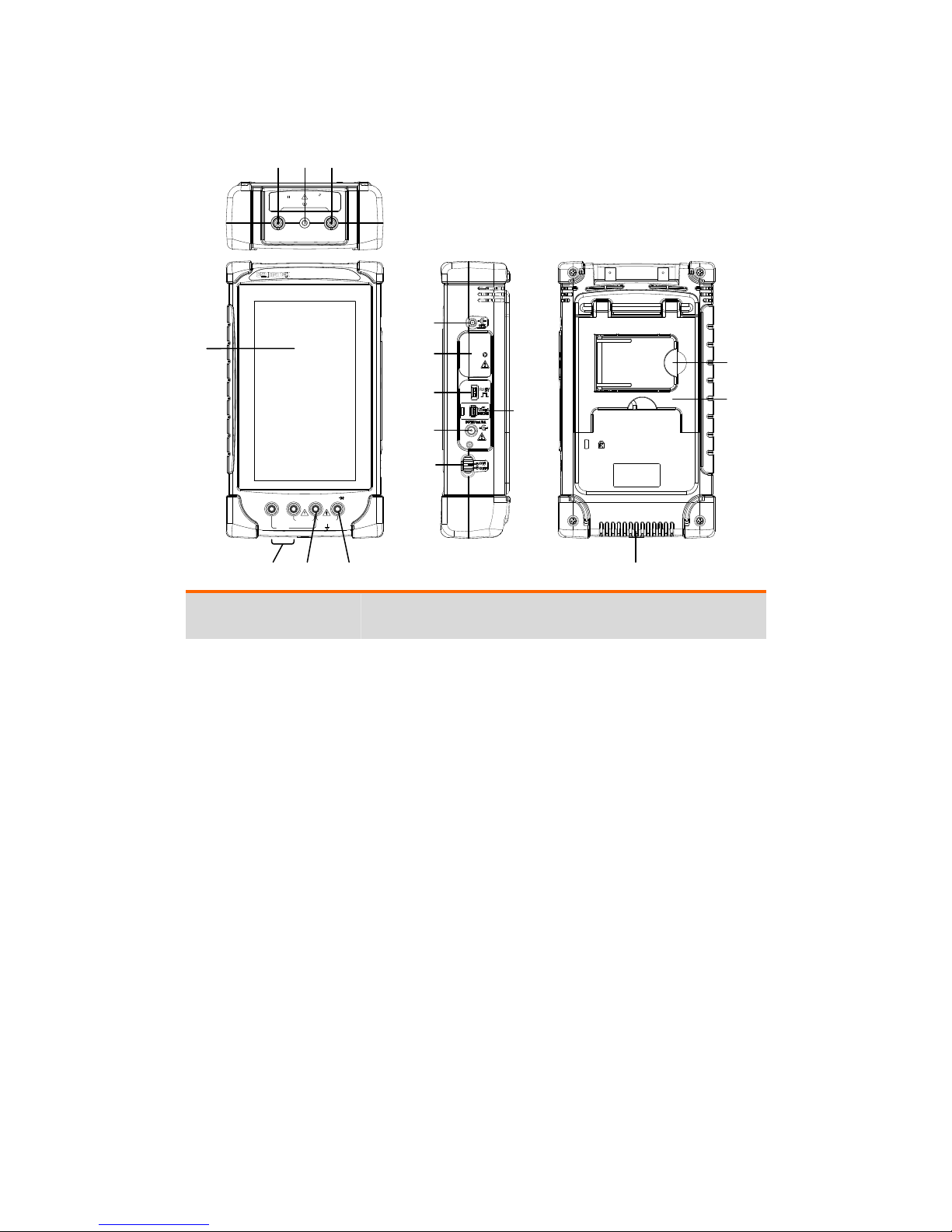

Panel Overview
VW COMA mA
GDS-220 Digital Storage Oscilloscope
200 MHz 1GSa/s
FUSED
10A MAX
FUSED
CAT II600mA MAX 600V
CAT III 300V
4
5
1
12
6
8
MW16.5pF
300Vrms MAX.
1
1 2
CAT 300V
3 2
7
9
10
11 13
14
15
16
Description
1. Channel 1 BNC input
2. Channel 2 BNC input
3. Tapped hole for
options
4. 800 x 480 TFT screen,
cap. touch panel
5. A and mA range
DMM ports
6. Com port
7. Voltage, resistance
and diode port
8. External power port
for optional extras
9. Internal Use Port.
Restricted use
10. Calibration port:
2Vpp, 1kHz, square
wave
11. 12V DC input
12. Power switch
13. Mini-B USB device
port
14. Horizontal stand
15. Vertical stand

Display Overview
10
15
13
542
14
17
1
3 6 7 8
11
12
16 18 19 20 21
9
Note: Background color has been inverted for clarity.
Description
1. Drop down menu
2. Trigger frequency
3. Trigger status
4. Date and Time
5. Memory bar
6. Horizontal position
7. Acquisition mode
8. Trigger level
9. Battery Indicator
10. Horizontal position
indicator
11. Gesture control icon
12. Trigger level
indicator
13. Channel indicators
14. Vertical scale
15. Horizontal scale
16. Trigger mode
17. Measurement/DMM
key
18. Hardcopy key
19. Run Mode keys
20. Single trigger
21. Autoset

Setting up the Oscilloscope
This section describes how to set up the oscilloscope
properly including setting the stand, power up and
basic touch gestures.

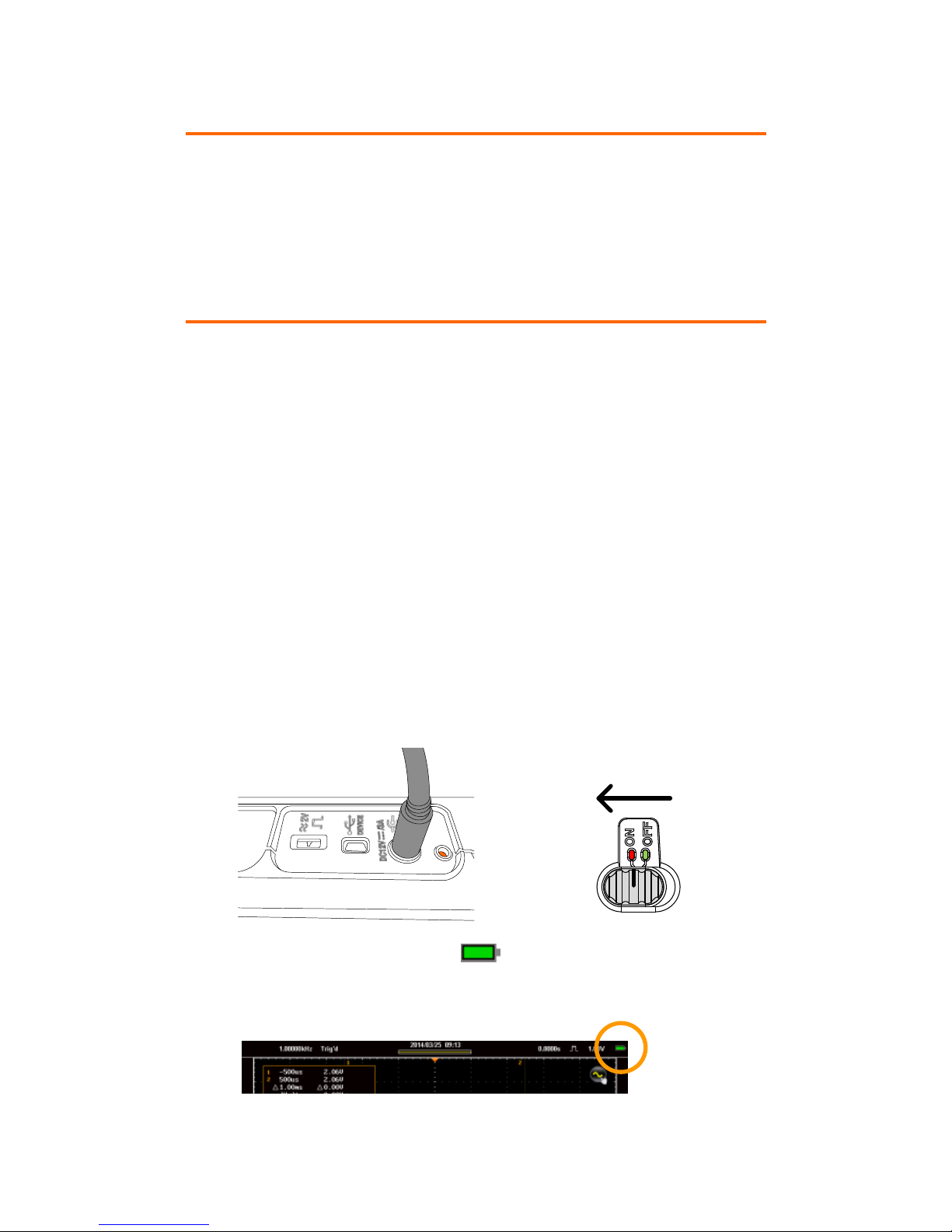

Power Up
Before the unit is powered up for the first time, it is
recommended that the unit is first fully charged.
1. Plug the AC-DC power pack into the mains
outlet.
2. Connect the 12V plug into the 12V socket on the
interface panel. The unit will begin charging. An
orange battery indicator light indicates charging,
while green indicates charged.
3. Slide the power switch to the ON position,
located on the interface panel.
4. The unit will turn on in a short while.
Battery
indicator
5. The battery indicator is shown on the top
right-hand corner of the main display.

Tilting the Stand
The GDS-200/300 has two adjustable tabs on the rear
panel that can be used to position the instrument into
two preset orientations.
Horizontal
Vertical
Pull this catch
Pull
this
catch
Portrait and Landscape Mode
1. Tap the top of the screen to access the Menu tray.
2. Press the icon to toggle between horizontal
and vertical view.
Default Settings
1. Tap the top of the screen to access the Menu tray.
2. Press the icon to load the default settings.
Orientation
Default
settings

Basic Operation
This section will go over all of the basic touch gestures
that are available using the default settings. Please see
the user manual for comprehensive explanations.
Channel/Ref/Math Waveform Selection
To select the active waveform, tap the desired channel,
math or reference indicator.
When selected, the icon will become a solid triangle.
Selected
waveform

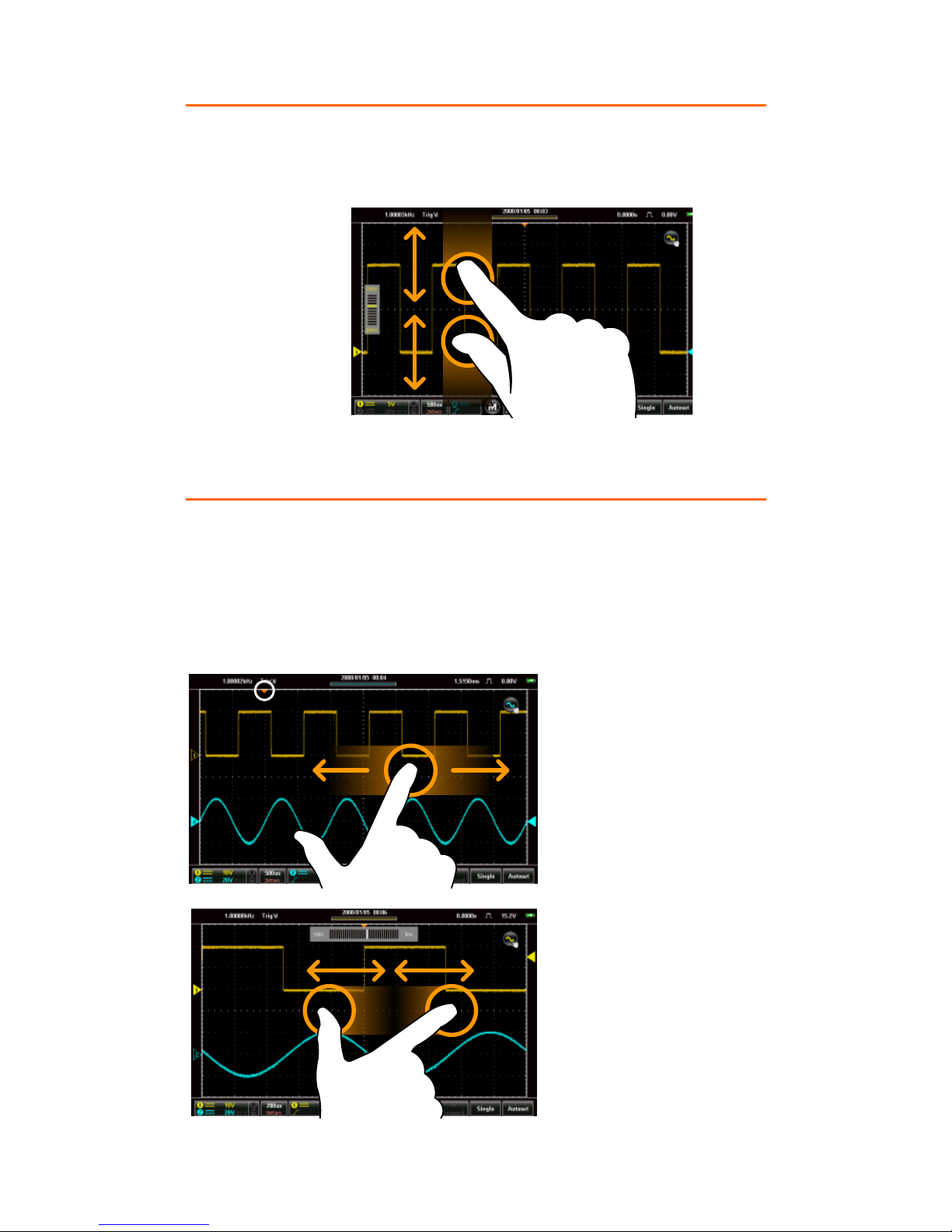

Vertical Position of Selected Waveform
Swipe the screen vertically to set the vertical position
of the selected waveform.
Tapping the upper or lower part of the screen will also
increase/decrease the vertical position.

Vertical Scale
Pinch in/out vertically to set the vertical scale of the
selected waveform.
Scale Indicator
Vertical Scale
Horizontal Position and Scale
Swipe the screen horizontally to set the horizontal
position of the displayed waveforms.
Pinch in/out horizontally to set the horizontal scale of
the display.
Horizontal
position indicator
Horizontal Position
Horizontal
indicator
Horizontal
Scale

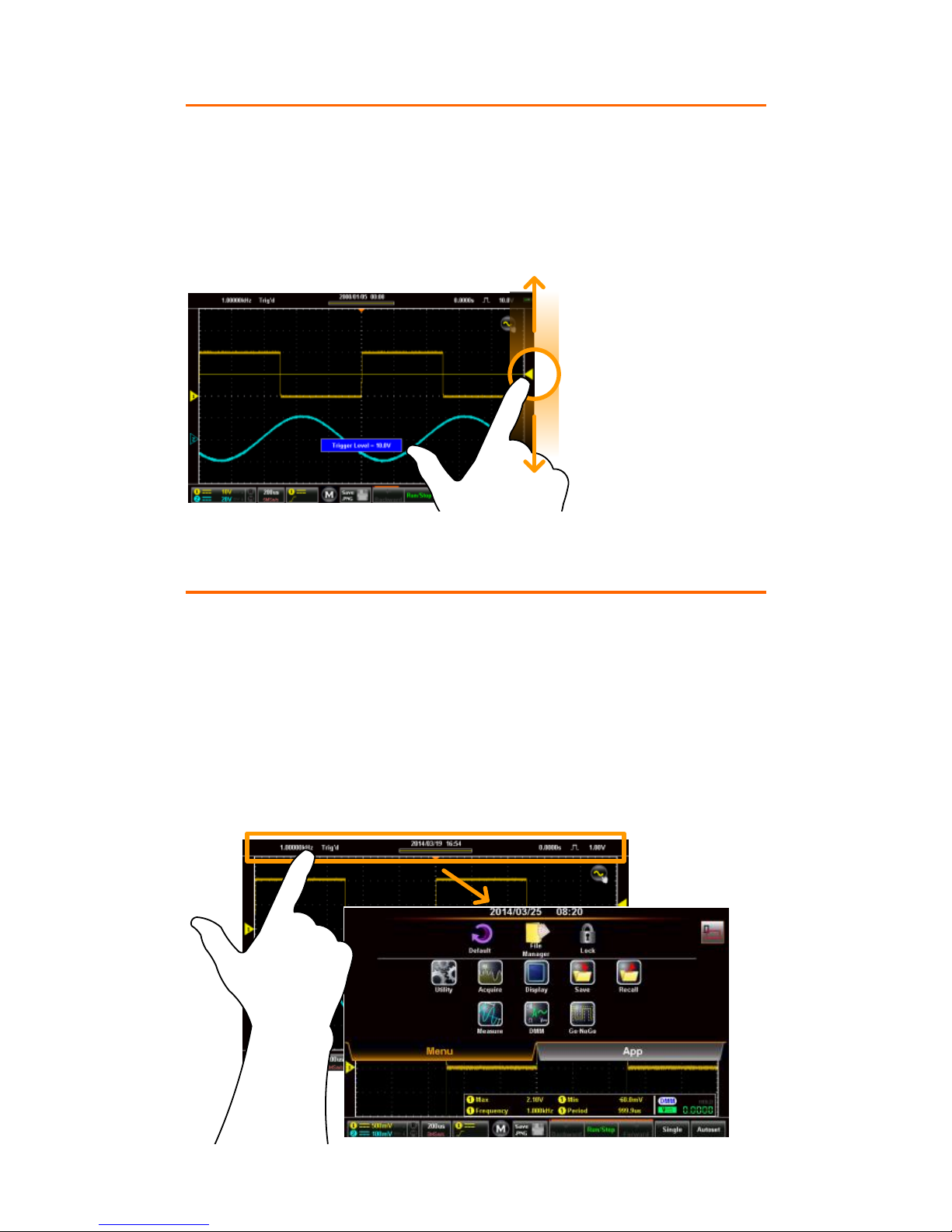

Trigger Source and Trigger Level
Tap on the trigger level indicator to toggle between
trigger sources.
Swipe the screen to the right of the grid to set the
trigger level with the currently selected source.
Trigger
Level
Toggle trigger source
Drop Down Menu
The Drop Down menu contains the Menu tray and the
App tray. The Menu tray includes the
Horizontal/Vertical orientation key, Default settings,
Utility menu, Display and Acquisition, Automatic
measurement menu, Go-NoGo, Save, Recall, Panel
Lock and File utilities.
Tap Drop Down menu area to access the Menu or App
tray

SPECIFICATIONS
The specifications apply when the oscilloscope is
powered on for at least 30 minutes under +20°C-+30°C.
Scope Specifications
Vertical
Channel
2 (BNC-Shield)
Input Impedance
1MΩ
Maximum Input
CATII 300VRMs
Input Coupling
AC, DC, GND
Bandwidth
DC-70/100/200MHz (-3dB)
Rise Time
<5ns / 3.5ns / 1.75ns approx.
Sensitivity
2mV/div-10V/div (1-2-5
increments)
Accuracy
±(3% x Readout + 0.1 div +
1mV)
Bandwidth Limit
20MHz(-3dB)
Polarity
Normal, Invert
Offset Position Range
2mV/div-50mV/div : ±0.4V
100mV/div-500mV/div : ±4V
1V/div-5V/div : ±40V
10V/div : ±300V
Signal Acquisition
Realtime Sample Rate
1GSa/s
Memory Depth
5M points per channel (GDS-
307/310/320)
1M points per channel (GDS-
207/210/220)
Acquisition Mode
Average: 2-256 waveforms
Peak detect: 10ns
sin(x)/x or ET
Replay wfms.
30,000 wfms

Trigger
Source
Ch1 or Ch2
Trigger Mode
Auto, Normal, Single, Force
Trigger Type
Edge, Pulse width, Video,
Alternative
Trigger Holdoff
10ns - 10s
Coupling
AC, DC, LFR, HFR, NR
Sensitivity
DC - 25MHz: approx. 0.5div or
5mV
25MHz - 70/100/200MHz:
approx. 1.5div or 15mV
Horizontal
Range
5ns-100s/Div (1-2-5
increments)
Roll
100ms/div - 100s/div
Pre-Trigger
10 div max.
Post-Trigger
1,000 div max (depend on time
base)
Accuracy
±20ppm over any > 1ms time
interval
X-Y Mode
Phase Shift
±3° at 100kHz
Cursors and Measurement
Cursors
Voltage difference between
cursors(△V), time difference
between cursors(△T),
frequency measure(1/△T)
Auto-measurement
36 sets
Auto-counter
6 digits. Range: 2Hz to rated
bandwidth
Autoset
Available
Probe Compensation
2V, 1kHz, 50% Duty cycle

Miscellaneous
Multi-language Menu
Available
On-line Help
Available
Time and Clock
Available
Battery
Battery Power
Li-polymer 6100mA/hr, 7.4V
(Built-in)
Charge Time
2.0 hour (75%)
Operation Time
4.1 hours, depending on the
operating conditions.
Interface
USB
USB Device (Isolated)
Internal Flash Disk
120MB
Display
Type
7 Inch
Display Resolution
480 x 800
Display Orientation
Landscape and Portrait
Backlight Control
Manual adjustable & ECO
mode
Touch Panel
Capacitive
Power Adapter
Line Voltage
AC 100V-240V, 47-63Hz,
Power Consumption 40W
DC Output
12V/3A, double shielded wire
cable
Dimensions and Weight
Weight
1.5kg
Dimensions
HxWxD(mm) 240.2mm x
136.0mm x 59.7 mm

DMM Specifications
Basic
Reading
50,000 counts, 4½ digits (GDS-
307/310/320)
3½ digits (GDS-207/210/220)
Voltage Input
CAT II 600VRMS, CAT III
300VRMS
DC Voltage
Range
50mV, 500mV, 5V, 50V, 500V,
1000V, 6 ranges
Accuracy
GDS-307/310/320: 50mV,
500mV, 5V, 50V, 500V ±(0.05%
+ 5 digits), 1000V ±(0.1% + 5
digits)
GDS-207/210/220: 50mV,
500mV, 5V, 50V, 500V, 1000V
±(0.1% + 5 digits)
Input Impedance
10MΩ
DC Current
Range
50mA, 500mA, 10A, 3 ranges
Accuracy
GDS-307/310/320: 50mA -
500mA, 2 Ranges, ±(0.1% + 5
digits), 10A ±(0.5% + 1 digits)
GDS-207/210/220: 50mA -
500mA, 10A 3 Ranges, ±(0.5%
+ 1 digits)
AC Voltage
Range
50mV, 500mV, 5V, 50V, 700V
5 ranges
Accuracy
50mV, 500mV, 5V, 50V, 700V
±(1.5% + 15 digits) at 50Hz-
1kHz

AC Current*
Range
50mA, 500mA, 10A 3 ranges
Accuracy
50mA, 500mA, ±(1.5% + 15
digits) at 50Hz-1kHz; 10A ±(3%
+ 15 digits) at 50Hz - 1kHz
* Measure range: >10mA
Resistance*
Range
500Ω, 5kΩ, 50kΩ, 500kΩ, 5MΩ,
5 range
Accuracy
500Ω, 5kΩ, 50kΩ, 500kΩ ±(0.3%
+ 3 digits); 5MΩ ± (0.5% + 5
digits)
* Measure range: 50Ωto 5MΩ
Diode Test
Maximum forward voltage
1.5V, Open voltage 2.8V
Temperature (Thermocouple)*
Range
-50°C - + 1000°C
Resolution
0.1°C
Thermocouple
B, E, J, K, N, R, S, T
* Specifications do not include probe accuracy.
Temperature specifications only apply to the GDS-
307/310/320.
Continuity Beeper
< 15 Ω
Diode Test
Functions
Auto Range, Max, Min, Hold,
Trend plot

EC Declaration of Conformity
We
GOOD WILL INSTRUMENT CO., LTD.
No.7-1, Jhongsing Rd., Tucheng Dist., New Taipei City 236,
Taiwan
GOOD WILL INSTRUMENT (SUZHOU) CO., LTD.
No. 69, Lushan Road, Suzhou New District Jiangsu, China
declares that the below mentioned product
GDS-207, GDS-210, GDS-220, GDS-307, GDS-310,
GDS-320
Are herewith confirmed to comply with the requirements set
out in the Council Directive on the Approximation of the Law
of Member States relating to Electromagnetic Compatibility
(2004/108/EC) and Low Voltage Equipment Directive
(2006/95/EC). For the evaluation regarding the
Electromagnetic Compatibility and Low Voltage Equipment
Directive, the following standards were applied:
◎EMC 
EN 61326-1 :
EN 61326-2-1:
EN 61326-2-2:
Electrical equipment for measurement, control and
laboratory use –– EMC requirements (2013)
Conducted & Radiated Emission
EN 55011: 2009+A1: 2010
Electrostatic Discharge
EN 61000-4-2: 2009
Current Harmonics
EN 61000-3-2: 2006+A1: 2009+A2:
2009
Radiated Immunity
EN 61000-4-3: 2006+A1: 2008
+A2: 2010
Voltage Fluctuations
EN 61000-3-3: 2008
Electrical Fast Transients
EN 61000-4-4: 2012
-------------------------
Surge Immunity
EN 61000-4-5: 2006
-------------------------
Conducted Susceptibility
EN 61000-4-6: 2009
-------------------------
Power Frequency Magnetic Field
EN 61000-4-8: 2010
-------------------------
Voltage Dip/ Interruption
EN 61000-4-11: 2004
◎Safety
Low Voltage Equipment Directive 2006/95/EEC
Safety Requirements: EN 61010-1: 2010 (Third Edition); EN 61010-0-030:
2010 (First Edition); EN 61010-2-033: 2012 (First Edition)
