GW Instek GDM-9060 Series User manual

Excel Add-In
GDM-9060/9061 Series
GDM-9060/9061 Series Excel Add-In Manual
VERSION NO. 1.00
ISO-9001 CERTIFIED MANUFACTURER

This manual contains proprietary information, which is protected by
copyrights. All rights are reserved. No part of this manual may be
photocopied, reproduced or translated to another language without
prior written consent of Good Will company.
The information in this manual was correct at the time of printing.
However, Good Will continues to improve products and reserves
the right to change specifications, equipment, and maintenance
procedures at any time without notice.
Good Will Instrument Co., Ltd.
No. 7-1, Jhongsing Rd., Tucheng Dist., New Taipei City 236, Taiwan.

Table of Contents
3
TABLE OF CONTENTS
INTRODUCTION ........................................................................4
Overview ................................................................................................. 4
SETUP..........................................................................................5
Connecting to GDM-9060/9061 ............................................................ 5
Installation.............................................................................................. 7
Uninstallation ......................................................................................... 8
Configuration........................................................................................ 10
DATA LOGGING REMOTE CONTROL ..................................... 13
View Add-In Software Version.............................................................. 21

GDM-9060/9061 Series Excel Add-In Manual
4
INTRODUCTION
This manual is suitable for any of the GDM-9060/9061 Series DMMs
(GDM-9060/9061). This manual is to be used with all versions of Excel from
2003 onwards with Windows PCs (Windows XP, Windows 7/8/10: 32 bit or
64 bit). Please note that Macros must be enabled for the Add-In to function.
The GDM-9060/9061 Excel AddIn software is an Add-In for Microsoft
Excel. The Add-In allows you to log measurements from the DMM and to
plot the resulting data as a graph or a histogram using the built-in Excel
graphing functions.
Overview
About Icon Save/Load
Multimeter Settings Setup/Run Logging
Worksheet
Run/Pause/
Stop
Setup
Multimeter
Connect to
Multimeter
Connect to Multimeter: Clicking this icon will allow you to establish a
connection to the DMM.
Save/Load Multimeter Settings: Clicking this icon will let you save or
load settings to/from the multimeter.
Setup Multimeter: Clicking this icon will allow you to choose the
measurement function, range and rate to use for the data logging.
Setup/Run Logging Worksheet: Clicking this icon will allow you to setup
the data logging and graphing functions for the software.
Run/Pause/Stop: These control keys will allow you to run, pause and stop
data logging.
About: The about icon will display the software version.

SETUP
5
SETUP
Connecting to GDM-9060/9061
The GDM-9060/9061 can connect to the software using either the USB CDC
or the USB TMC interface. Functionally there is no difference in which
interface is chosen to interface with the PC.

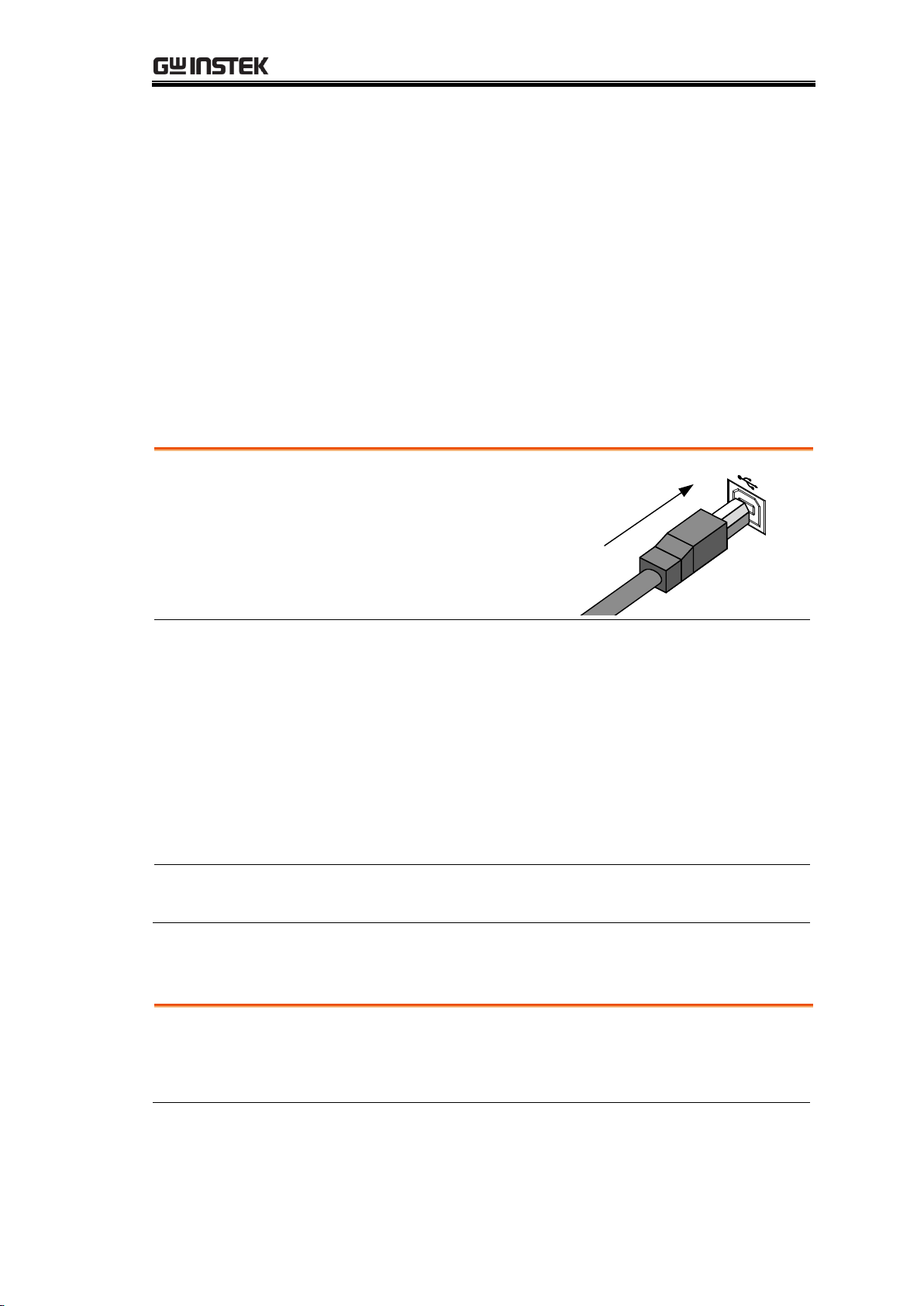

Connection
1. Connect the rear panel
USB B port on the
DMM to a USB port
on the PC using a Type
A to Type B USB
cable.
C
AL
I
BR
A
T
I
ON
U
S
E
ON
L
Y
Configure the
DMM
1. Press Menu button.
2. Go to Interface tab.
3. Further go to the field of Interface.
4. Select USB option for interface.
5. Go to the field of Protocol.
6. Set the interface to either USBCDC or USBTMC.
7. Press Exit Menu to confirm the settings and exit.
Note
The baud rate does not need to be set when either USB
CDC or USB TMC interface is used.
Alternatively, the RS232 connection is the easiest way to use the add-in
software with the GDM-9060/9061 as no drivers are required.
Connection
1. Connect the rear panel RS232 port on the DMM to
a RS232 port on the PC using a RS232 crossover
cable.

GDM-9060/9061 Series Excel Add-In Manual
6
Configure the
DMM
1. Press Menu button.
2. Go to Interface tab.
3. Further go to the field of Interface.
4. Select RS232 option for interface.
5. Go to the field of BaudRate.
6. Set the desired baud rate for RS232.
7. Press Exit Menu to confirm the settings and exit.

SETUP
7
Installation
Up to three items need to be installed, the USB driver (not needed if using the
RS232 interface), the GDM-9060/9061 Series Excel Addin Software and the
NI VISA Run-Time.
Installing the USB
driver
1. Connect the DMM to the PC using the supplied
USB TypeA to TypeB cable (GTL-246).
2. The Windows Found New Hardware Wizard will
detect the DMM as a new device and ask for the
device driver.
Choose to locate the driver manually.
Direct the Wizard to the USB_DRIVER directory
on the User Manual CD, or download the USB
driver from the GW Instek Website.
3. Follow the instructions on the Hardware Wizard to
finish the installation.
Installing the
Excel Add-In
1. On the User Manual CD, go to the Excel Add-in
subdirectory under the Software directory and
execute the Setup.exe file.
2. If the Microsoft User Account Control Shield
appears, allow the setup file to be executed.
3. Follow the InstallShield Wizard to install the
GDM-9060/9061 Excel Addin.
Installing the NI
VISA Run-Time
1. The NI VISA Run-Time must be installed to use the
Excel Add-in software. This is available on the NI
website,
http://www.ni.com/download/ni-visa-run-time-eng
ine-5.4/4231/en/.
2. Please follow the instructions on the NI website for
installation details.

GDM-9060/9061 Series Excel Add-In Manual
8
Uninstallation
Follow the procedures described in this section when the Excel Add-In or one
of the USB drivers needs to be updated or removed.

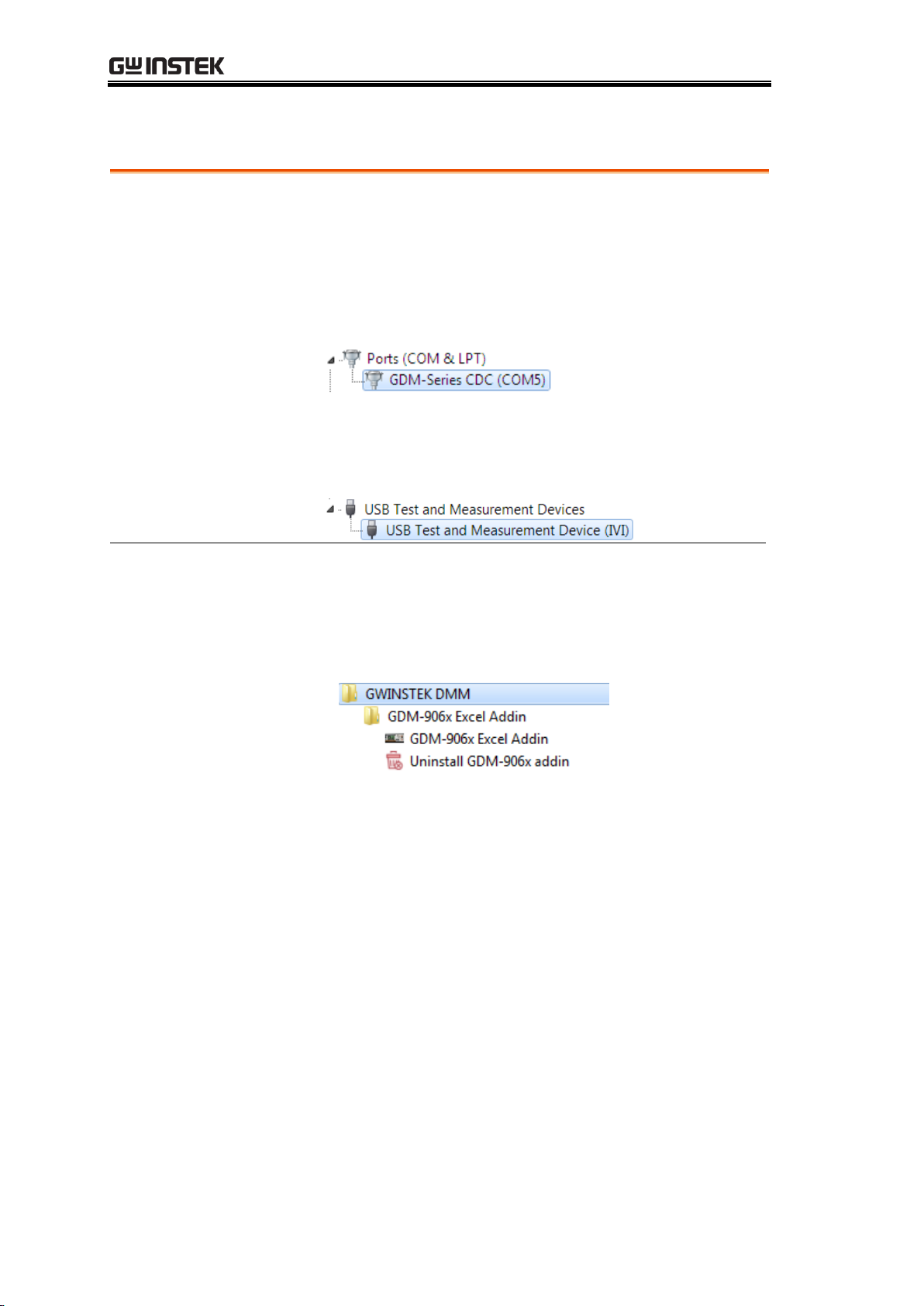

Uninstalling the
USB driver
To update or remove the USB driver, it must be
uninstalled from the Windows Device Manager.
1. Launch Device Manager from the Start menu.
StartControl PanelDevice Manager
(Windows XP, Windows 7/8/10: 32 bit or 64 bit)
2. For CDC driver: Double-click Ports (COM &
LPT). Right-click GDM- Series CDC (COMXX)
and choose the Uninstall option.
For TMC driver: Double-click Test and
Measurement Devices. Right-click Test and
Measurement Device (IVI) and choose the
Uninstall option.

SETUP
9

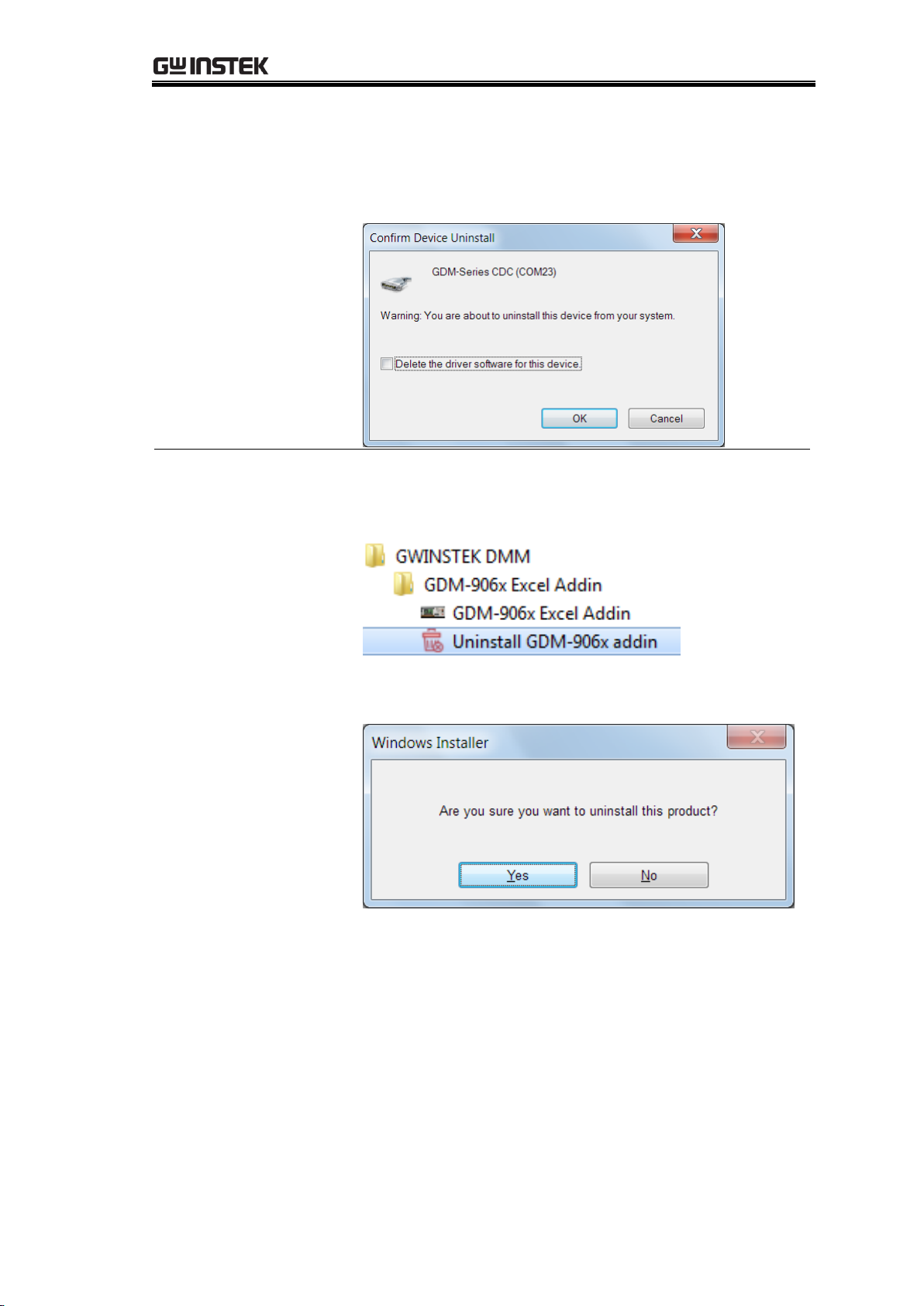

3. Select Delete the driver software for this device,
then press the OK button. The driver will uninstall
automatically.
Uninstalling the
Excel Add-In
1. From the Windows Start menu select the
Start All Programs GWINSTEK DMM 
2. Select Yes to uninstall the product.
3. The Uninstaller will automatically finish the
uninstallation.

GDM-9060/9061 Series Excel Add-In Manual
10
Configuration
Configure the PC
1. To make sure the DMM is recognized by the PC,
open the Device Manager (Start Control
Panel (System) Device Manager.
2. For RS232/CDC connections, check which COM
port the device is assigned to and make note of it.
3. For TMC connections, check to make sure the
DMM is recognized in the Test and Measurement
node.
Configure the
Add-In
1. From the Windows Start menu select:
Start All Programs GWINSTEK DMM
GDM-906x Excel Addin GDM-906x
Excel Addin

SETUP
11
2. Opening GDM-906x Excel Addin will
automatically launch an Excel Spreadsheet.
If asked by Windows to enable Macros, choose
Enable Macros.
3. For Excel 2007 and above: Go to the Add-Ins tab
in the Ribbon UI.
For older versions such as Excel 2003: Go to the
Tools menu and select the Add-Ins option.
4. The Add-In will be shown in a custom tool bar.
5. Click on the Connect to Multimeter icon.

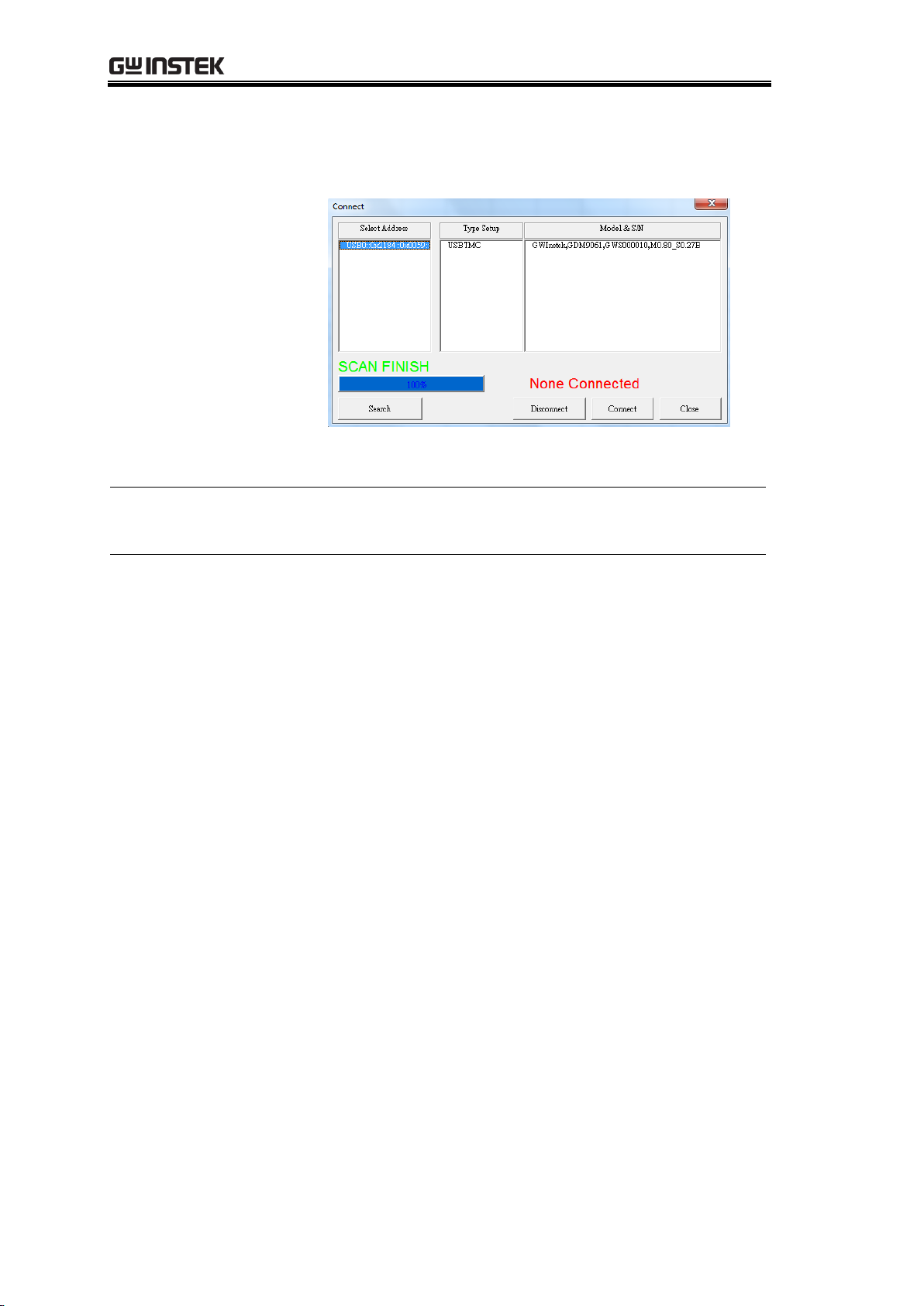

6. In the Connect window that appears, click Search
to scan for the DMM.
7. After the DMM has been detected, click on your
DMM in the Select Address window. A number
of devices may be returned. If the model name
and serial number of your device are not returned,
click the Search key again.
8. Press Connect.

GDM-9060/9061 Series Excel Add-In Manual
12
9. The Splash screen will close automatically after the
connection is successful.
10. Move on to the Data Logging Remote Control
chapter.
Disconnect
Press Disconnect to end the remote control
session.
Cancel and Exit
Press Close to exit from the Connection window
without connecting or disconnecting.

DATA LOGGING REMOTE CONTROL
13
DATA LOGGING
REMOTE CONTROL
Establish remote
connection
Follow the procedures for connection and
configuration on page 5 and page 10.
Setup
1. Press the Setup Multimeter icon.
2. The Set Up Multimeter window appears.
3. Choose a measurement item.
4. Choose the measurement range for DC Voltage,
DC Current, AC Voltage, AC Current, Resistance
(2W), Resistance (4W), Diode, Capacitance,
Frequency and Period.
Choose the sensor and referenceR for
TEMP-4WRTD.
Choose the sensor type and resolution for
TEMP-TC.
5. Press OK to confirm the settings and exit.
6. Press Exit to discard the settings and exit.

GDM-9060/9061 Series Excel Add-In Manual
14
Save/Recall Load
Settings
1. Press the Save/Load Multimeter Settings icon.
2. The Save/Load Multimeter Settings panel appears.
3. Choose to Load Multimeter Settings from File
or Save Multimeter Settings to File.
If saving a file, choose a directory and filename.
Click Save to save the file. The file will be saved as
XXXXX.DMM.
After a few moments, if the save was successful a
message “Save File OK!” will appear. Click OK.
If loading a file, choose a previously saved setup
and click Open. A message “Load File OK!” will
appear if the setup is loaded successfully. Click OK.
The panel will close automatically after
saving/loading settings.

DATA LOGGING REMOTE CONTROL
15
Setup
Data Logging

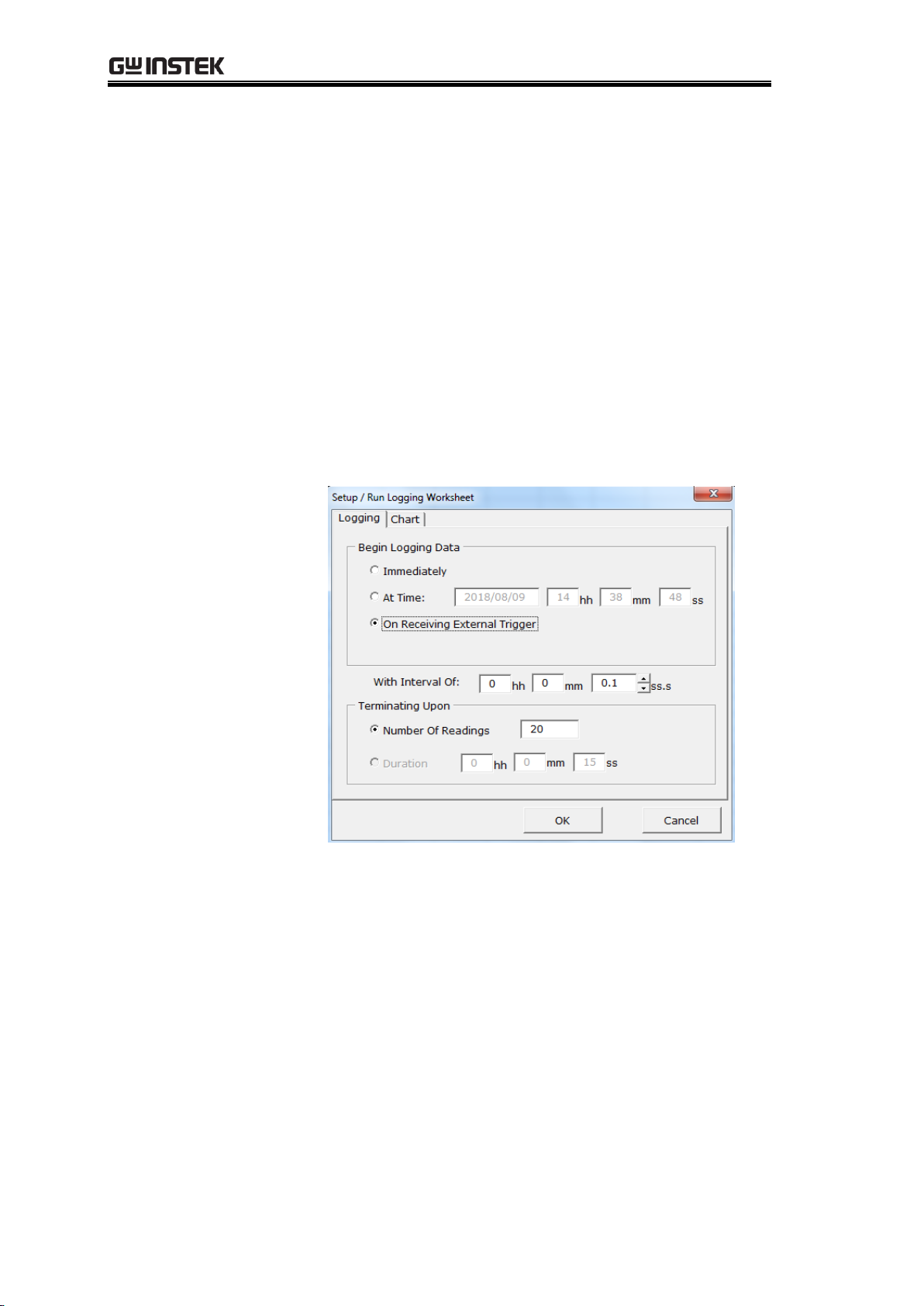

1. Press the Record Setup Start icon. This icon will
only be available after a measurement has been
selected with the Setup Multimeter icon (page 13).
2. Choose the Logging tab.
3. Set the logging start time in Begin Logging Data
panel.
Immediately: Choose this option to begin
logging measurements as soon as the “Play”
icon is pressed. (see page 19 for details)
At Time: This option allows you to choose
the exact time that the logging will start.
The start date, hour, minute and second can
be chosen respectively.
On Receiving External Trigger: This
option will only start logging after the TRIG
key is pressed on the DMM front panel or
pin 5 on the Digital I/O port is triggered.

GDM-9060/9061 Series Excel Add-In Manual
16
4. To select the logging interval, configure the With
Interval Of option. This option can set how often
the DMM will trigger, down to the number of
hours, minutes and seconds between each
measurement.
5. Use the Terminating Upon panel to set when to
stop the data logging.
Number of Readings: Configures the
logger to stop after a set amount of
measurements.
Duration: Sets the logger to stop logging
measurements after a set amount of time or
number of readings.

DATA LOGGING REMOTE CONTROL
17

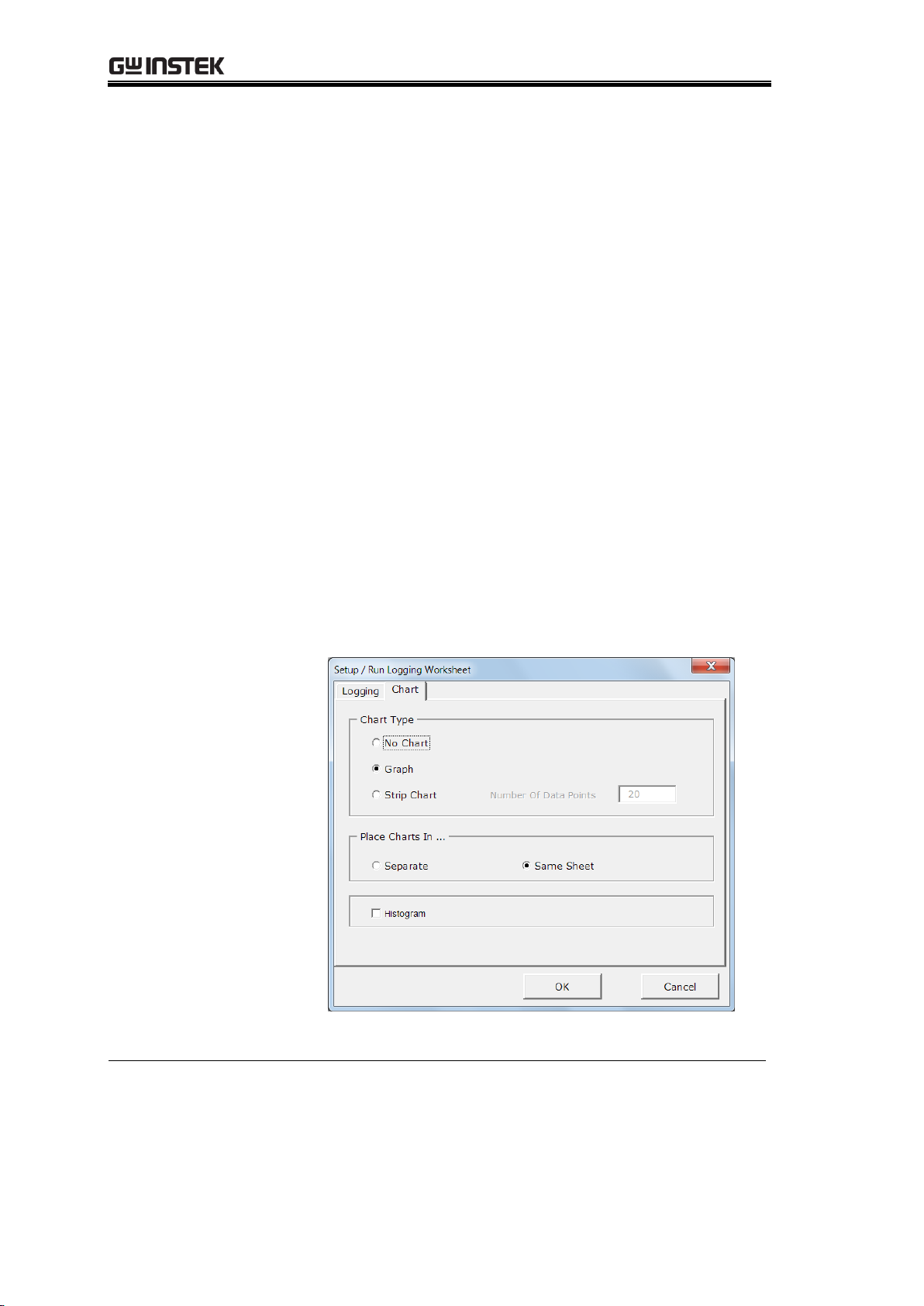

6. By default the measurements are not plotted. Press
the Chart tab to edit the chart behavior.
The Chart Type panel selects which type of graph,
if any, to plot.
No Chart: This option will disable plotting
a graph. This is the default option.
Graph: This will plot each point in a graph
as soon as it is logged.
Strip Chart: This option creates a graph
that allows you to view detailed sections of
the graph using Excel Format controls.
Number of Data Points: This option
allows you to specify the number of data
points to graph. This number cannot exceed
1000.

GDM-9060/9061 Series Excel Add-In Manual
18
7. Use the Place Charts In… panel to draw the
chart in the same Excel sheet or to plot the graph
in a new Excel sheet.
Separate: Places charts in a new sheet each
time logging is started.
Same Sheet: Places charts in the same sheet
as the logging data.
8. The Histogram option will open a new sheet and
perform statistical analysis on the logged data in
real-time so that a histogram can be created. The
average, median, standard deviation as well as
minimum and maximum values will also be
calculated.
This option will disable the graphing option
mentioned above.
The number of bins for the data (and thus
the interval) is determined automatically by
the software. This can be changed after data
logging has stopped.
9. Press the OK button to save the settings and exit.

DATA LOGGING REMOTE CONTROL
19
Starting Data
Logging
1. After the data logging setup has been completed,
the Run, Pause and Stop icons will become
available. The icons are colored orange when they
are available.
To start measurement, press the Run icon.
Measurements will automatically start to be logged.
If the Chart or Histogram options were selected,
then they will also be plotted as the data is logged.
Press the Pause icon to pause logging. Press
the Run icon again to resume.
Press the Stop Icon to stop data logging
prematurely.
Each time you use the data logging function,
a new sheet will be created for the data and
for the histogram data, if the Histogram
option is enabled.
Note that the other icons are now disabled
until logging has finished or is stopped.
StopRun
Pause

GDM-9060/9061 Series Excel Add-In Manual
20
Chart Example
Data statisticsExcel Add-In icons
Logged
data
Chart
Histogram Example
Data statistics
Excel Add-In icons
Logged
data Histogram
