GW Instek PSB-1400L User manual

Multi-Range DC Power Supply
PSB-1000 Series
USER MANUAL
GW INSTEK PART NO. 82SB-1800UM01
ISO-9001 CERTIFIED MANUFACTURER
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

SAFETY INSTRUCTIONS
3
Table of Contents
SAFETY INSTRUCTIONS ................................................... 5
GETTING STARTED ........................................................... 9
PSB-1000 Series Overview.................... 11
Appearance .......................................... 15
Theory of Operation ............................. 29
OPERATION .................................................................... 41
Set Up.................................................. 43
Basic Operation ................................... 65
Advanced Settings ............................... 77
Power On Configuration ...................... 86
Parallel/Series Operation ..................... 98
File Operations .................................. 118
Sequence Function............................. 127
Trigger Input & Output ...................... 138
EXTERNAL CONTROL ....................................................143
Analog Control ................................... 144
Remote Monitoring ............................ 161
COMMUNICATION INTERFACE .....................................166
Interface Configuration ...................... 167
FAQ ...............................................................................187
APPENDIX .....................................................................188
PSB-1000 Default Settings ................. 188
PSB-1000 Specifications..................... 190
PSB-1000 Dimensions ........................ 200
Declaration of Conformity .................. 201
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

PSB-1000 Series User Manual
4
INDEX............................................................................202
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

SAFETY INSTRUCTIONS
5
SAFETY INSTRUCTIONS
This chapter contains important safety
instructions that you must follow during
operation and storage. Read the following before
any operation to ensure your safety and to keep
the instrument in the best possible condition.
Safety Symbols
These safety symbols may appear in this manual or on the
instrument.
WARNING
Warning: Identifies conditions or practices that
could result in injury or loss of life.
CAUTION
Caution: Identifies conditions or practices that
could result in damage to the PSB-1000 or to other
properties.
DANGER High Voltage
Attention Refer to the Manual
Protective Conductor Terminal
Earth (ground) Terminal
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

PSB-1000 Series User Manual
6
Do not dispose electronic equipment as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased.
Safety Guidelines
General
Guideline
CAUTION
Do not place any heavy object on the PSB-1000.
Avoid severe impact or rough handling that
leads to damaging the PSB-1000.
Do not discharge static electricity to the PSB-
1000.
Use only mating connectors, not bare wires, for
the terminals.
Do not block the cooling fan opening.
Do not disassemble the PSB-1000 unless you are
qualified.
(Measurement categories) EN 61010-1:2010 specifies the
measurement categories and their requirements as follows. The
PSB-1000 doesn’t fall under category II, III or IV.
Measurement category IV is for measurement performed at the
source of low-voltage installation.
Measurement category III is for measurement performed in the
building installation.
Measurement category II is for measurement performed on the
circuits directly connected to the low voltage installation.
0 is for measurements performed on circuits not directly
connected to Mains.
Power Supply
WARNING
AC Input voltage range: 100Vac to 240Vac
Frequency: 47Hz-63Hz
To avoid electrical shock connect the protective
grounding conductor of the AC power cord to
an earth ground.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

SAFETY INSTRUCTIONS
7
Cleaning the PSB-
1000
Disconnect the power cord before cleaning.
Use a soft cloth dampened in a solution of mild
detergent and water. Do not spray any liquid.
Do not use chemicals containing harsh material
such as benzene, toluene, xylene, and acetone.
Operation
Environment
Location: Indoor, no direct sunlight, dust free,
almost non-conductive pollution (Note below)
Relative Humidity: 20%- 85%, no condensation
Altitude: Maximum 2000m
Temperature: 0°C to 40°C
(Pollution Degree) EN 61010-1:2010 specifies the pollution degrees
and their requirements as follows. The PSB-1000 falls under degree
2.
Pollution refers to “addition of foreign matter, solid, liquid, or
gaseous (ionized gases), that may produce a reduction of dielectric
strength or surface resistivity”.
Pollution degree 1: No pollution or only dry, non-conductive
pollution occurs. The pollution has no influence.
Pollution degree 2: Normally only non-conductive pollution
occurs. Occasionally, however, a temporary conductivity caused
by condensation must be expected.
Pollution degree 3: Conductive pollution occurs, or dry, non-
conductive pollution occurs which becomes conductive due to
condensation which is expected. In such conditions, equipment
is normally protected against exposure to direct sunlight,
precipitation, and full wind pressure, but neither temperature
nor humidity is controlled.
Storage
environment
Location: Indoor
Temperature: -25°C to 70°C
Relative Humidity: ≤90%, no condensation
Disposal
Do not dispose this instrument as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased. Please make sure
discarded electrical waste is properly recycled to
reduce environmental impact.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

PSB-1000 Series User Manual
8
Power cord for the United Kingdom
When using the instrument in the United Kingdom, make sure the
power cord meets the following safety instructions.
NOTE: This lead/appliance must only be wired by competent persons
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in this lead are coloured in accordance with the
following code:
Green/ Yellow:
Earth
Blue:
Neutral
Brown:
Live (Phase)
As the colours of the wires in main leads may not correspond with
the coloured marking identified in your plug/appliance, proceed
as follows:
The wire which is coloured Green & Yellow must be connected to
the Earth terminal marked with either the letter E, the earth symbol
or coloured Green/Green & Yellow.
The wire which is coloured Blue must be connected to the terminal
which is marked with the letter N or coloured Blue or Black.
The wire which is coloured Brown must be connected to the
terminal marked with the letter L or P or coloured Brown or Red.
If in doubt, consult the instructions provided with the equipment
or contact the supplier.
This cable/appliance should be protected by a suitably rated and
approved HBC mains fuse: refer to the rating information on the
equipment and/or user instructions for details. As a guide, a cable
of 0.75mm2should be protected by a 3A or 5A fuse. Larger
conductors would normally require 13A types, depending on the
connection method used.
Any exposed wiring from a cable, plug or connection that is
engaged in a live socket is extremely hazardous. If a cable or plug is
deemed hazardous, turn off the mains power and remove the cable,
any fuses and fuse assemblies. All hazardous wiring must be
immediately destroyed and replaced in accordance to the above
standard.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

GETTING STARTED
9
GETTING STARTED
This chapter describes the power source in a
nutshell, including its main features and front /
rear panel introduction.
PSB-1000 Series Overview ............................................... 11
Series lineup.............................................................................................................. 11
Main Features........................................................................................................... 12
Accessories................................................................................................................13
Appearance ..................................................................... 15
Front Panel ...............................................................................................................15
Rear Panel (PSB-1800L/M)....................................................................................18
Rear Panel (PSB-1400L/M)....................................................................................18
Status Bar Icons ....................................................................................................... 21
Menu Reference .......................................................................................................23
Theory of Operation ........................................................ 29
Operating Area Description................................................................................... 29
CC and CV Mode .................................................................................................... 30
Slew Rate................................................................................................................... 32
Bleeder Control........................................................................................................32
Internal Resistance................................................................................................... 33
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

PSB-1000 Series User Manual
10
Alarms ....................................................................................................................... 34
Considerations.......................................................................................................... 36
Grounding ................................................................................................................ 39
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

GETTING STARTED
11
PSB-1000 Series Overview
Series lineup
The PSB-1000 Series consists of 4 models: PSB-1400L, PSB-1400M,
PSB-1800L, and PSB-1800M. Note that throughout the user manual,
the term “PSB-1000” refers to all the models in the PSB-1000 Series
lineup, unless stated otherwise.
Model name
Output Voltage
Output Current
Output Power
PSB-1400L
40
40
400
PSB-1400M
160
10
400
PSB-1800L
40
80
800
PSB-1800M
160
20
800
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

PSB-1000 Series User Manual
12
Main Features
Performance
Maximum output voltage of 160V
Maximum output current of 80A
Features
OVP, OCP and OTP protection
Low AC input protection
Sequence function
Large 3.5 inch LCD panel
100V - 240V power inlet
Multi-range output power
Bleeder circuit ON/OFF setting
CV, CC priority start function
Internal resistance setting function
Parallel master/slave operation with active
current sharing
Remote sensing to compensate for voltage drop
in load leads
Analog output programming and monitoring
Interface
Ethernet port
USB host
USB CDC
GPIB (optional)
External Control I/O
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

GETTING STARTED
13
Accessories
Standard
Accessories
Part number
Description
CD ROM
User manual,
programming manual
Power cord
PSW-009
Output terminal cover
GTL-240
Type A - B USB Cable
PSB-106
Basic Accessory Kit:
M4 terminal screws and
washers x2, M8
terminal bolts, nuts and
washers x2, Analog
control protection
dummy x1, analog
control lock level x2,
short bar x1.
Optional
Accessories
Part number
Description
PSW-001
Analog remote control
connector kit:
Socket x 1pc
Pins x 10pcs
Protection cover x 1 set
Chassis connection wire
x 1
PSW-002
Simple IDC
tool
PSW-003
Contact
removal tool
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

PSB-1000 Series User Manual
14
PSB-101
Cable for 2 units of PSB-
1000 units in parallel mode
connection
PSB-102
Cable for 3 units of PSB-
1000 units in parallel mode
connection
PSB-103
Cable for 4 units of PSB-
1000 units in parallel mode
connection
PSB-104
Cable for 2 units of PSB-
1000 units in series mode
connection
PSB-105
GPIB card
GRA-418-J
Rack-mount adapter(JIS)
GRA-418-E
Rack-mount adapter(EIA)
GTL-123
Test leads: 1x red, 1x black
Download
Name
Description
gw_psb1k.inf
USB driver
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

GETTING STARTED
15
Appearance
Front Panel
0 - 160V , 10A
S S
F 1 F 2 F 3 F 4 F 5
PSB-1400M 0 - 160V / 0 - 10A , 400W
Multi-Range DC Power Supply
Main FUNC FileUtility
0
1
4
7
2
5
8
3
6
9
Voltage
Clear
Enter Lock
Output
Current
OVP
OCP
Local
CLR PROT. Unlock
: Long Push
Power switch
LCD Display
Menu keys: Main/Local,
FUNC, Utility, File
Scroll wheel
Sense -
Arrow keys
Enter key
Lock/unlock
Output
F1~F5 soft-keys
USB A port - Terminal
Ground terminal + Terminal
Sense +
Number pad
Voltage, Current, OVP/
CLR PROT, OCP keys
Item
Description
Power Switch
Turns on the mains power.
Front Panel
Output Terminals
0 - 160V , 10A
S S
S
Positive sense terminal
Positive terminal
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

PSB-1000 Series User Manual
16
0 - 160V , 10A
Ground terminal
Negative terminal
S
Negative sense terminal
USB A Port
The USB port is used for data
transfer, loading test scripts etc.
LCD Screen
Displays the voltage/current
settings, measurement readings
and menu systems.
Function Keys
F 1 F 2 F 3 F 4 F 5
Assigned to the soft-keys
displayed on the bottom of the
screen.
Main Key
Main
Local
Returns operation to the main
operation screen.
Local Key
Pressing the Main/Local key will
also return the unit to local mode
from remote control mode.
FUNC Key
FUNC
Enters the Function menu. The
function menu contains Power On
Configuration settings, Memory
settings, Voltage trigger settings
and the Sequence menu.
Utility Key
Utility
Enters the Utility menu. The utility
menu contains a number of system
settings.
File Key
File
Pressing the file key allows you to
copy, rename and delete files.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

GETTING STARTED
17
Voltage
Voltage
Sets the constant voltage level.
Current
Current
Sets the constant current level.
OVP
OVP
CLR PROT.
Sets the over voltage protection
level.
CLR PROT
(Long press)
Holding the OVP key will clear
any tripped protection functions.
OCP
OCP
Sets the over current protection
level.
Scroll Wheel &
Arrow Keys
Both the scroll wheel and arrow
keys are used to navigate menu
items, pages or for
incrementing/decrementing
parameter values.
Enter
Enter
Used to confirm settings and
menu items.
Lock Key/ Unlock
Key
Unlock
Lock
Locks the front panel keys to
prevent accidentally changing
panel settings.
Note: The output can still be
turned off when the key lock in
active.
Unlock Key
(Long press)
Disables the key lock.
Output Key
Output
Turns the output on or off.
Clear Key
Clear
Clears entries that are made in the
number entry dialogs.
Number Pad
7
4
1
0
8
5
2
Clear
3
6
9
Used to enter values.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

PSB-1000 Series User Manual
18
Rear Panel (PSB-1800L/M)
TRIG IN
TRIG OUT
LAN
100 240V
1100VA MAX.
AC
47 63Hz
GPIB
SER. NO. LB
VOLT TRIG
LANVOLT TRIG
TRIG OUT
TRIG IN
Line input GPIB Option
USB BJ1 ConnectorRear panel terminals
Fans
Rear Panel (PSB-1400L/M)
TRIG IN
TRIG OUT
LAN
100 240V
550VA MAX.
AC
47 63Hz
GPIB
SER. NO. LB
VOLT TRIG
LANVOLT TRIG
TRIG OUT
TRIG IN
Line input GPIB Option
USB BJ1 ConnectorRear panel terminals
Fan
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

GETTING STARTED
19
Line Voltage
Input
Voltage Input: 100 - 240 VAC
Line frequency: 47 - 63Hz (1100VA
MAX)
Rear panel
terminals
The rear panel terminals contain the positive and
negative output terminals, the voltage sense
terminals and the ground terminal.
J1 Connector
The J1 Connector is used
for external voltage,
current control or for
parallel/series control.
TRIG IN
TRIG IN
Used to receive a signal from an
external device.
Apply either a negative-going or a
positive-going pulse to the trigger
input pin.
TRIG OUT
TRIG OUT
Used to send a signal to an external
device.
The polarity of the trigger output
can also be configured.
VOLT TRIG
VOLT TRIG
Outputs a signal according to the
Voltage Trigger settings in the
Function menu.
The polarity of the voltage trigger
can also be configured.
LAN
LAN
The Ethernet port is used for remote
control and digital monitoring from
a PC.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

PSB-1000 Series User Manual
20

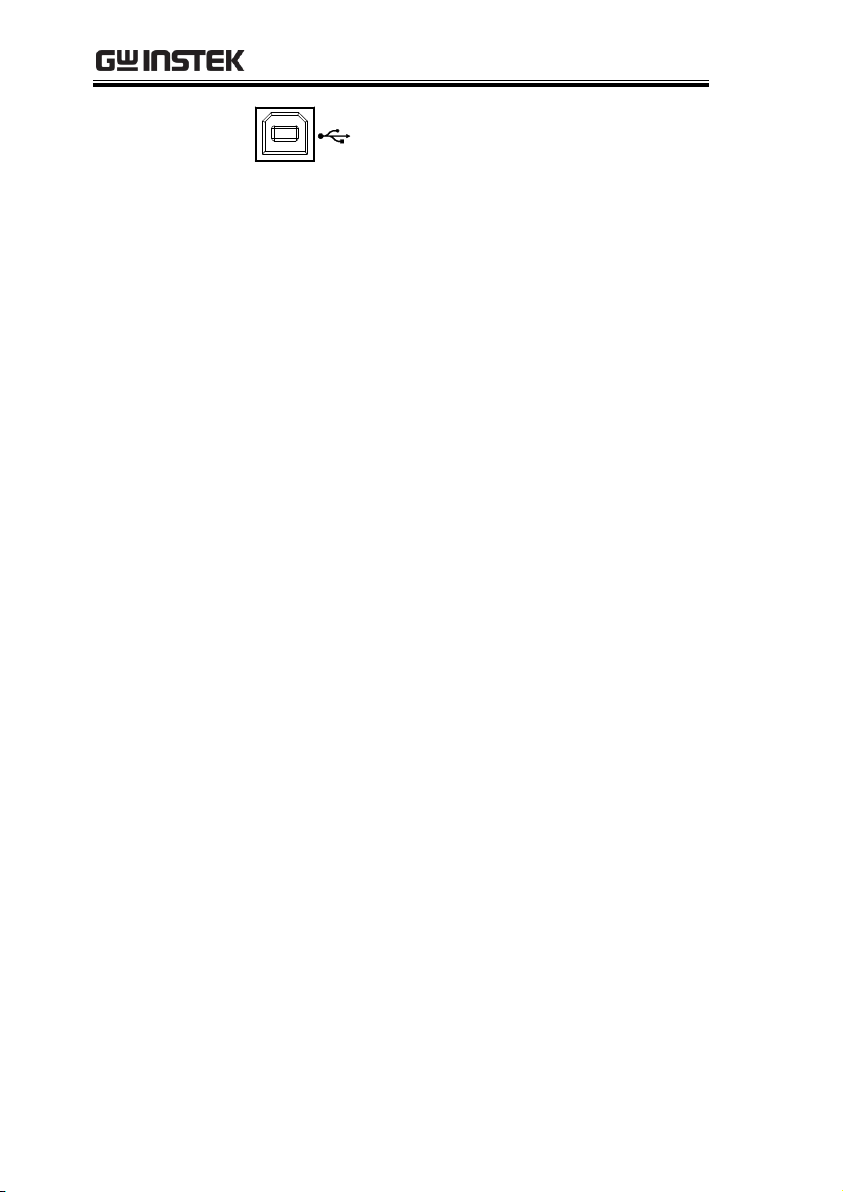

USB-B
The USB-B port is used for remote
control.
GPIB Option
Optional GPIB communication card (PSB-105).
FAN
Temperature controlled fan.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

GETTING STARTED
21
Status Bar Icons
Status bar
Indicates if the output is
OFF.
An alarm icon will appear
on the status bar when one
of the protection functions
is tripped.
Indicates that the output
is in CV mode.
Indicates that the output
is in CC mode.
(Remote sense fail)
Indicates a problem with
the remote sense
connection.
Indicates that the output
is operating at 105% of
rated power (constant
power mode).
(Power fail) Indicates that
the external shutdown pin
was tripped.
Indicates that the unit is
in remote mode.
Indicates that the
instrument has hardware
errors.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]
