Gymstick STR-WB40 User manual

GYMSTICK WEIGHT BENCH 30
WITH 40 KG BARBELL SET
(STR-WB40)
OWNER’S MANUAL
(ENGLISH)

INDEX
SAFETY INSTRUCTIONS page 1
HARDWARE LIST page 2-3
ASSEMBLY STEPS page 4-19
EXPLODED DRAWING page 20
PARTS LIST page 21
IMPLIED WARRANTY page 22

WARNING
To reduce the risk of serious injury, read the following safety instructions before using the EVERLAST
POWER TRAINING BENCH
IMPORTANT : THIS UNIT IS INTENDED FOR HOUSEHOLD USE ONLY
1. Use the EVERLAST POWER TRAINING BENCH only on a level surface.
2. Keep children and pets away from this equipment at all times.
3. The EVERLAST POWER TRAINING BENCH should not be used by persons weighing more than
110Kgs
4. The EVERLAST POWER TRAINING BENCH should be used by only one person at a time.
5. Be careful to maintain your balance while using, mounting, dismounting, folding, unfolding or
assembling the EVERLAST POWER TRAINING BENCH Loss of balance may result in a fall and serious
bodily injury
6. Use the EVERLAST POWER TRAINING BENCH only as described in the manual.
7. Do not attempt to adjust the back rest while you are on the bench.
8. Before using this equipment to exercise, always do stretching exercises to properly warm up.
9. Always make sure all bolts and nuts are tightened prior to each use.
10. If dizziness, nausea, chest pains, or any other abnormal symptoms are experienced while using this
equipment, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY
WARNING
Before starting any exercise or conditioning program you should consult with your personal physician
to see if you require a complete physical exam.
This is especially important if you are over the age of 35, have never exercised before, are pregnant or
suffer from any illness.
SAFETY INSTRUCTIONS
EG1

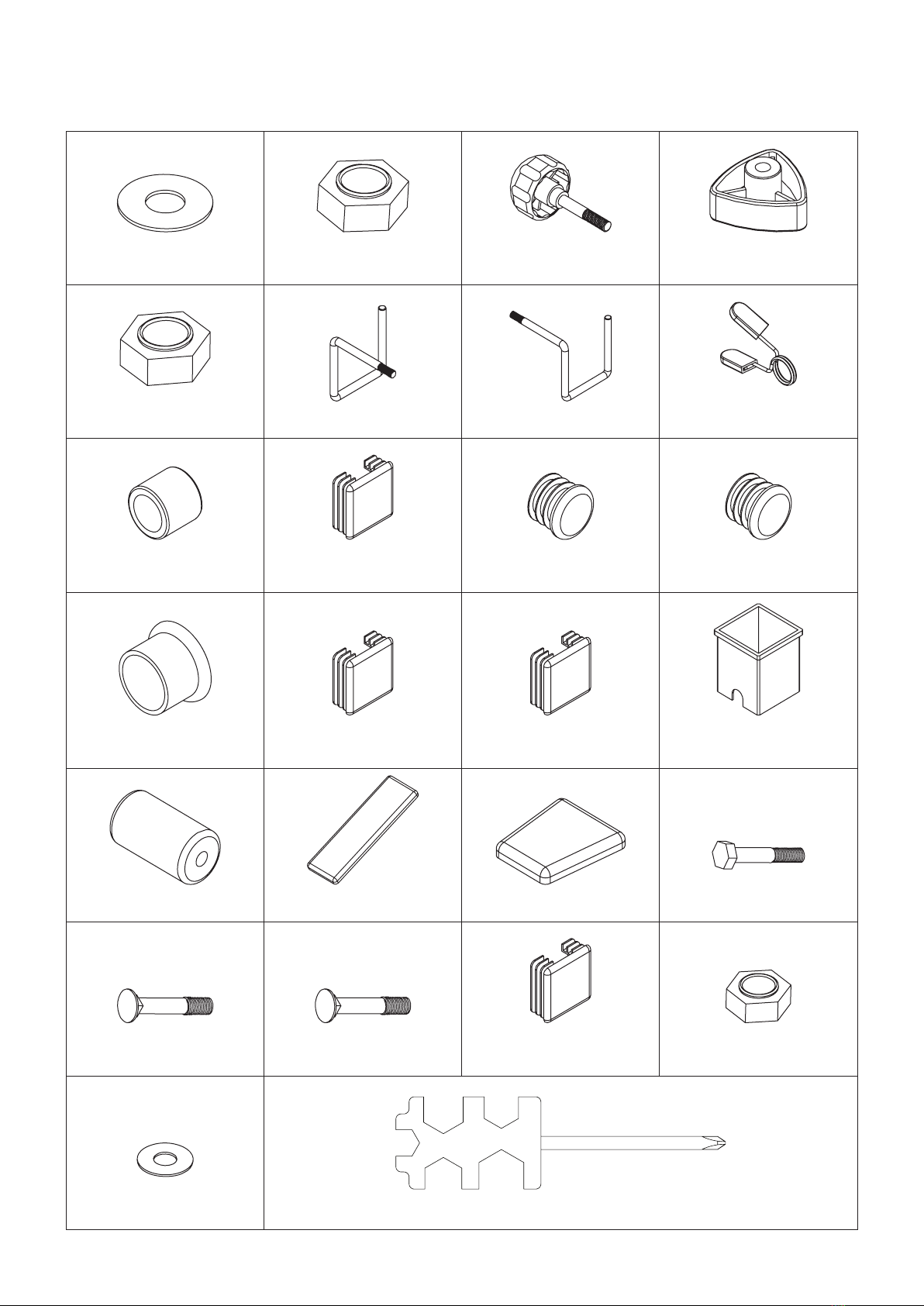

HARDWARE LIST
WB40-01
Rear Stabilizer
1pc
WB40-02
Upright
2pcs
WB40-03
Cross Support
1pc
WB40-04
Main Frame
1pc
WB40-05
Front Stabilizer
1pc
WB40-06
Leg Extension Upright
1pc
WB40-07
Leg Extension Support
1pc
WB40-08
Leg Extension
1pc
WB40-09
Foam Roller Post
3pcs
WB40-10
Backrest Adjustment Rod
1pc
WB40-11
Backrest Support
2pcs
WB40-12
Seat Backrest
1pc
WB40-13
Stabilizer Bracket
2pcs
WB40-14
Weight Disc Post
1pc
WB40-15
Bolt (M6 x 14mm)
2pc
WB40-16
Bolt (M6 x 40mm)
4pcs
WB40-17
Carriage Bolt
(M8 x 50mm)
8pcs
WB40-18
Carriage Bolt
(M8 x 55mm)
1pc
WB40-19
Carriage Bolt
(M8 x 90mm)
1pc
WB40-20
Hex Bolt
(M10 x 60mm)
1pc
WB40-21
Hex Bolt
(M10 x 130mm)
1pc
WB40-22
Flat Washer (M6)
6pcs
WB40-23
Flat Washer (M8)
15pcs
WB40-24
Spring Washer (M8)
2pcs
EG2

WB40-25
Flat Washer (M10)
8pcs
WB40-26
Nylon Locknut (M8)
13pcs
WB40-27
Locking Knob (Male M8)
1pc
WB40-28
Locking Knob (Female M8)
2pcs
WB40-29
Nylon Locknut (M10)
4pcs
WB40-30L
Safety Hook (Left side) 1pc
WB40-30R
Safety Hook (Right Side) 1pc
WB40-31
Spring Collar
1pc
WB40-32
Backrest Support Bushing
2pcs
WB40-33
Square End Cap (25mm)
4pcs
WB40-34
Round End Cap (ø19mm)
8pcs
WB40-35
Round End Cap (ø25mm)
1pc
WB40-36
Round End Over Cap
(ø25mm) 1pc
WB40-37
Square End Cap (32mm)
2pcs
WB40-38
Square End Cap (38mm)
6pcs
WB40-39
Square lnternal
Bushing (38mm) 1pc
WB40-40
Foam Roller 6pcs
WB40-41
Backrest 1pc
WB40-42
Sest 1pc
WB40-43
Hex Bolt (M10 x 55mm)
2pcs
WB40-44
Carriage Bolt (M8 x 85mm)
2pcs
WB40-45
Carriage Bolt (M8 x 45mm)
3pcs
WB40-46
Square End Cap (33.4mm)
5pcs
WB40-47
Locknut (M6)
2pcs
WB40-48
Washer (M6)
2pcs WB40-49 Tool 2pcs
HARDWARE LIST
EG3

COMPLETE EACH STAGE IN ORDER BEFORE ADVANCING ON TO THE NEXT.
ASSEMBLE WITH NUTS AND BOLTS LOOSE AT FIRST.
TIGHTEN ALL BOLTS AND NUTS AFTER COMPLETING ALL ASSEMBLY STEPS.

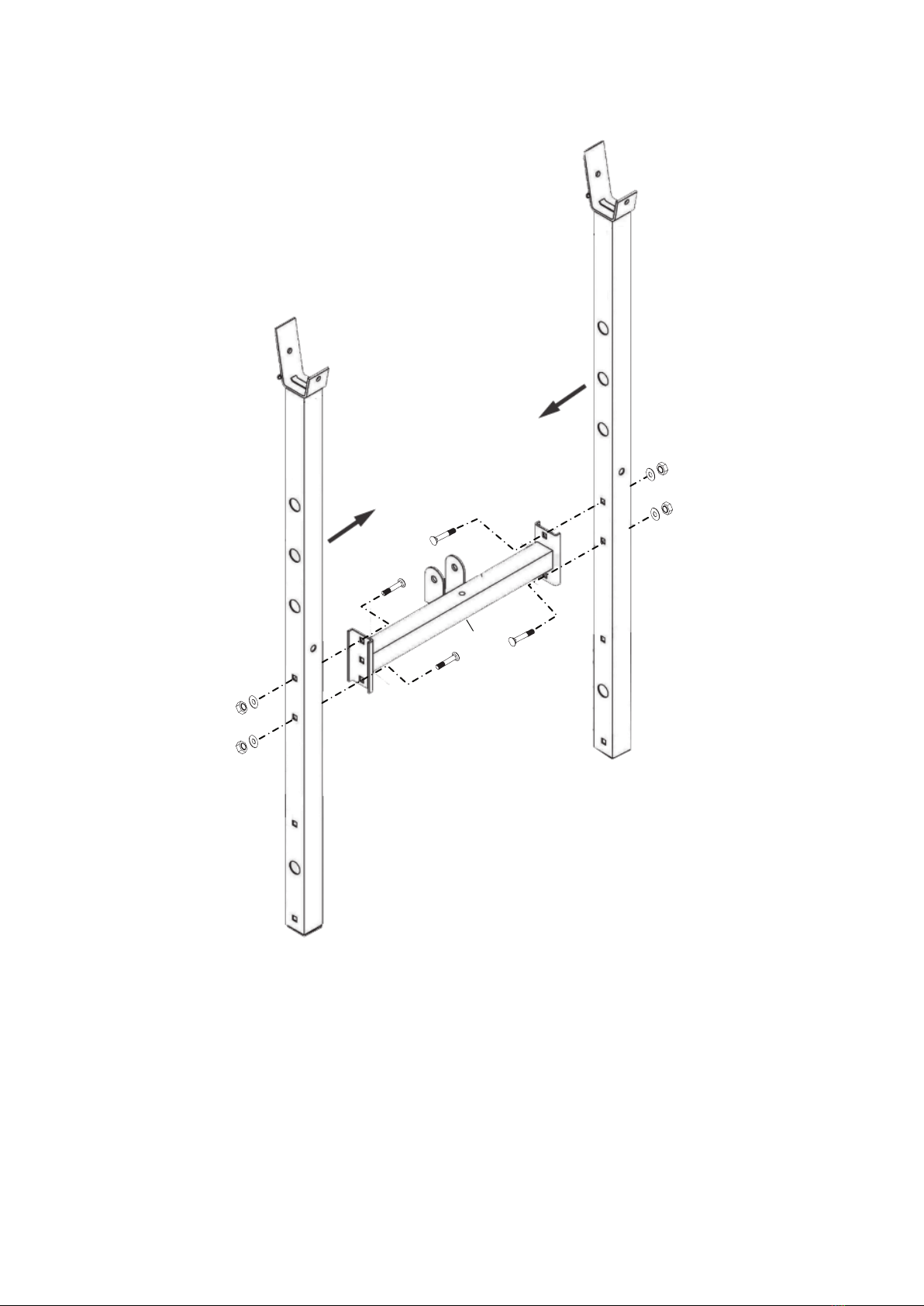

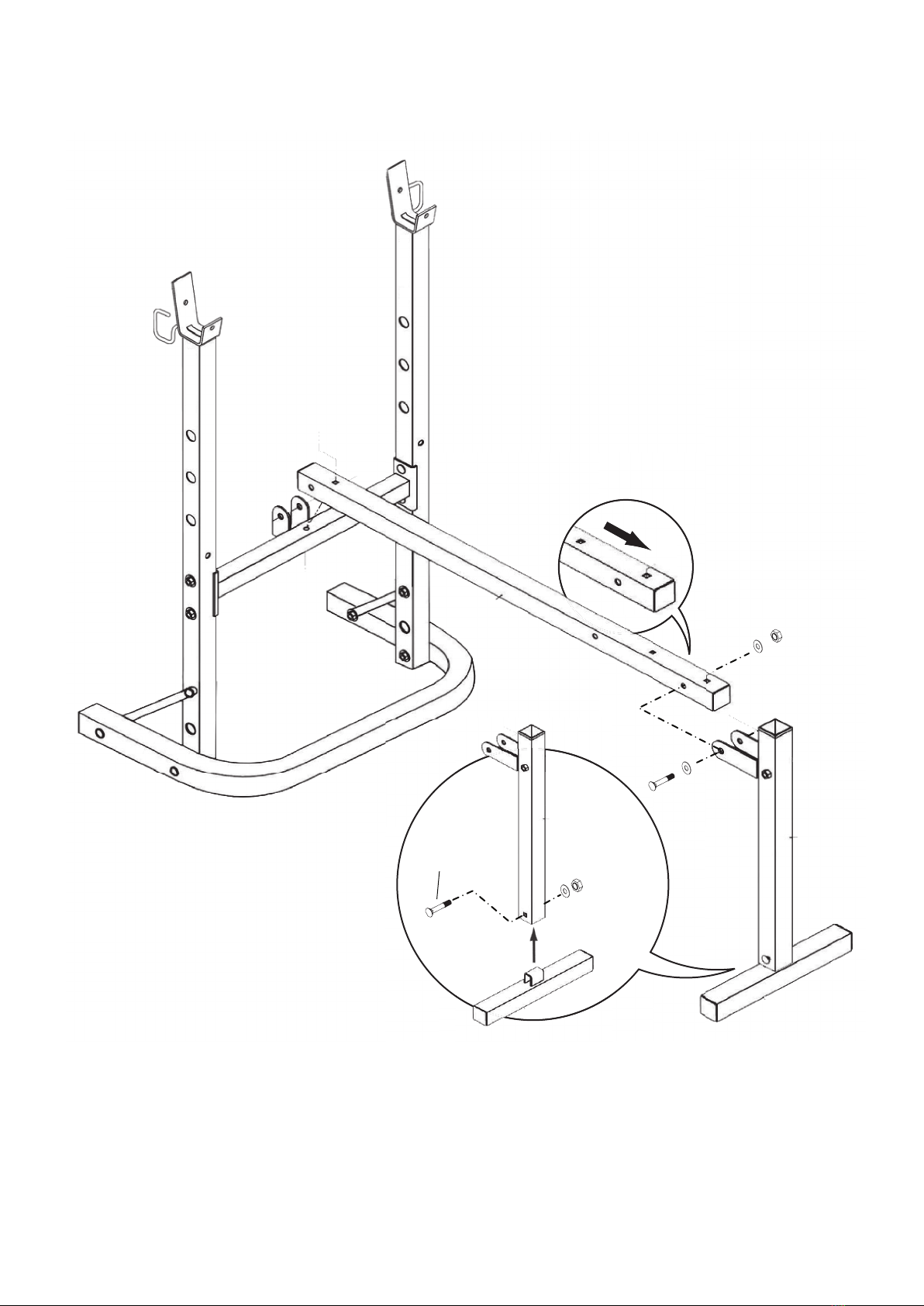

STEP 1
• Connect both Uprights (2) to the Cross Support (3) using four M8 x 50mm Carriage Bolts (17)
fitted from the inside as per illustration, four M8 Flat Washers (23) and four M8 Nylock Nuts (26).
No. Description Q’ty
WB40-17
Carriage Bolt (M8 x 50mm)
4
WB40-23
Flat Washer (M8)
4
WB40-26
Nylock Nut (M8)
4
ASSEMBLY STEPS
EG4

2
2
3
26
23
26
23
17
17
17
17
23
26
23
26
ASSEMBLY STEPS
EG5

No. Description Q’ty
WB40-17
Carriage Bolt (M8 x 50mm)
2
WB40-23
Flat Washer (M8)
6
WB40-26
Nylock Nut (M8)
6
WB40-30R
Safety Hook
1
WB40-30L
Safety Hook
1
WB40-44
Carriage Bolt (M8 x 85mm)
2
WB40-45
Carriage Bolt (M8x45mm)
2
WB40-47
Nylock Nut (M6)
2
WB40-48 Washer (M6) 2

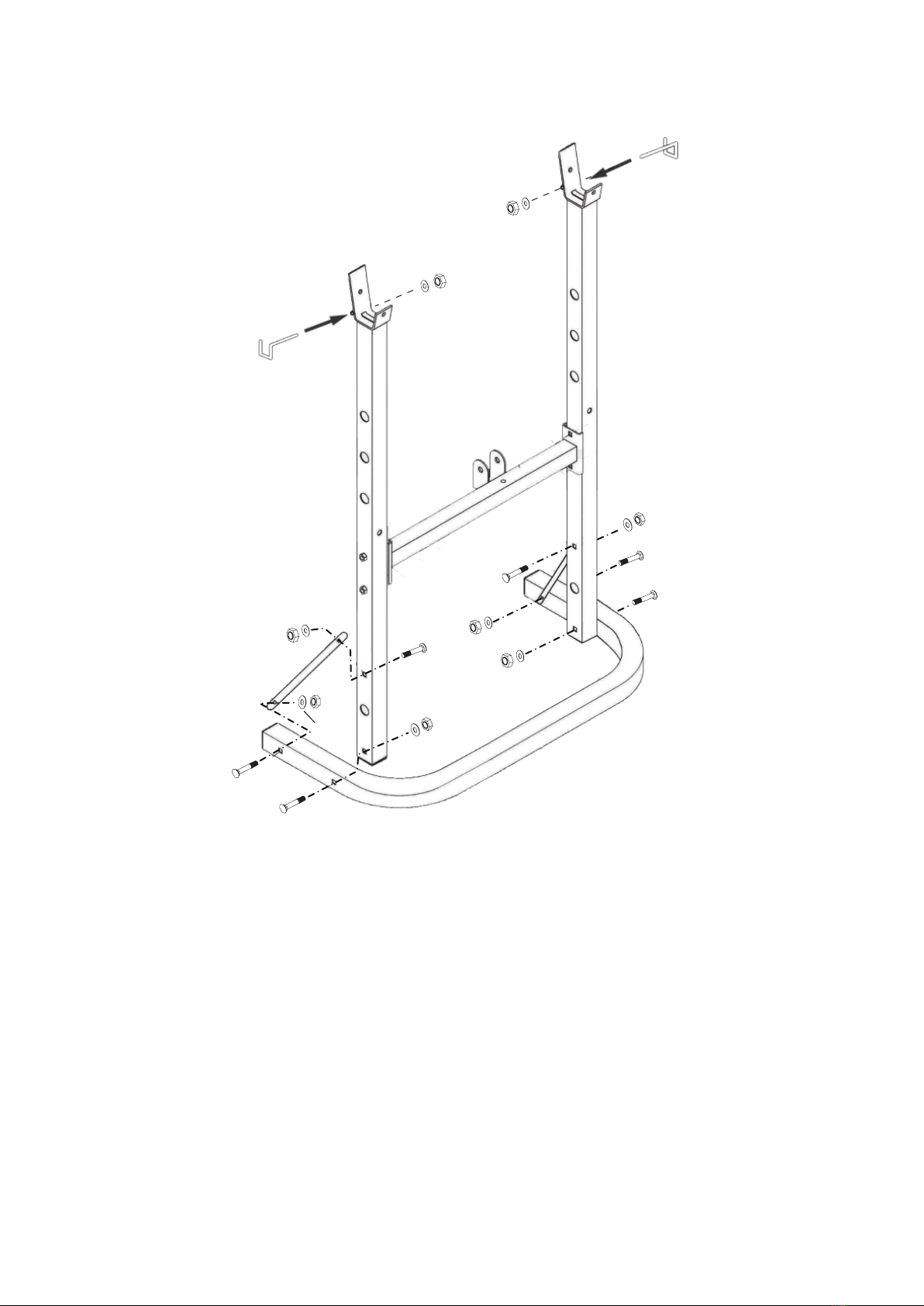

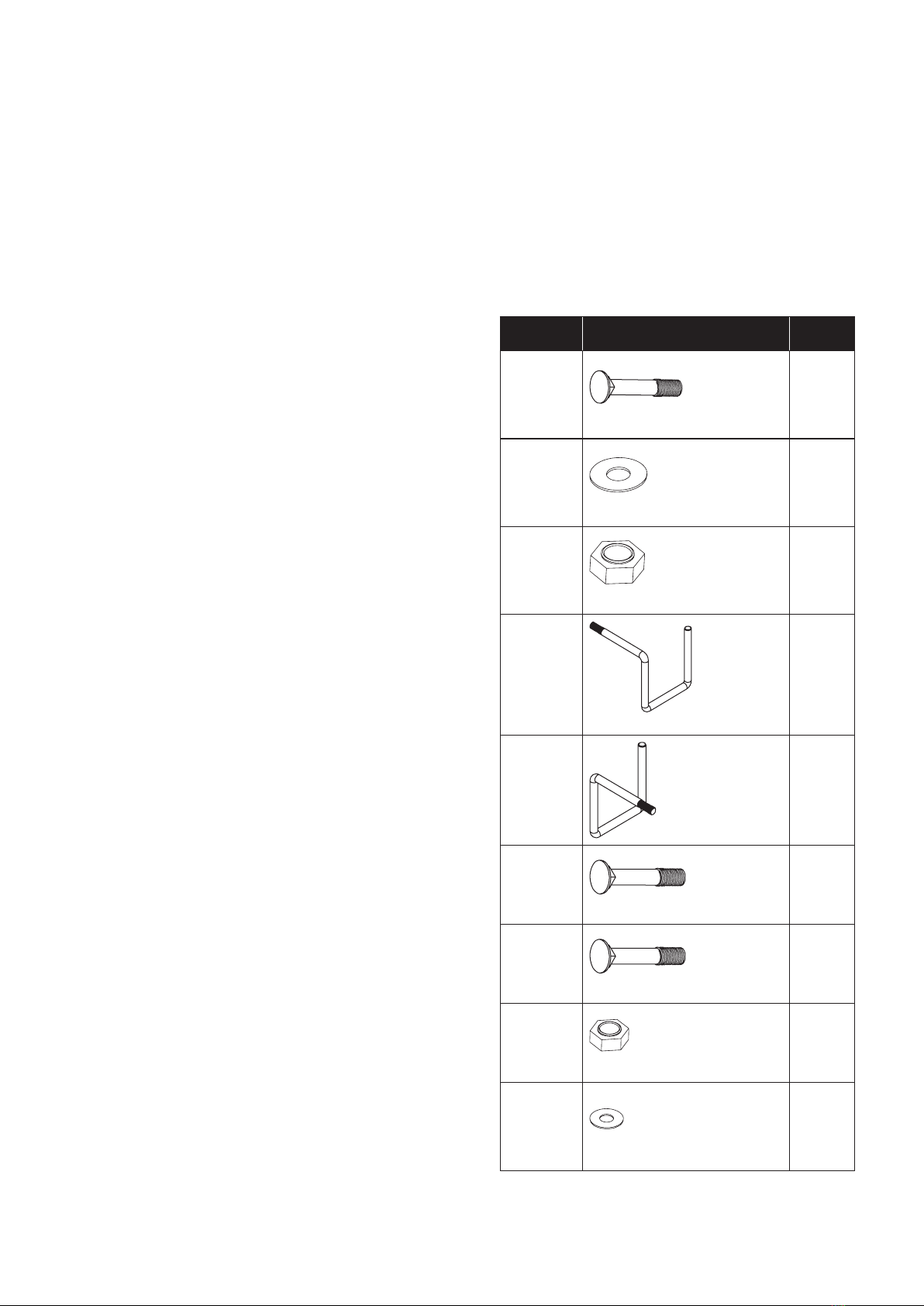

STEP 2
• Place both Uprights (2) on the inside of the Rear Stabilizer (1) and secure in place using
M8x85mm Carriage Bolts (44) fitted from the outside, M8 Flat Washers (23) and M8 Nylock
Nuts (26).
• Now attach both Stabilizer Brackets (13) to the inside of the Rear Stabilizer (1) and to the
outside of both Uprights (2) using M8x50mm Carriage Bolts (17), and M8x45mm Carriage
Bolts (45), four M8 Flat Washers (23) and four M8 Nylock Nuts (26).
• Attach the Safety Hook (30L & 30R) to the both
Uprights (2). Using two Washers (48) and two
Nylock Nuts (47). As shown.
ASSEMBLY STEPS
EG6

26
1
2
2
3
17
17
23
26
23
26
26
23
23 26 23
26 23
44
44
45
45
13
30R
30L
4748
47
48
ASSEMBLY STEPS
EG7

ASSEMBLY STEPS

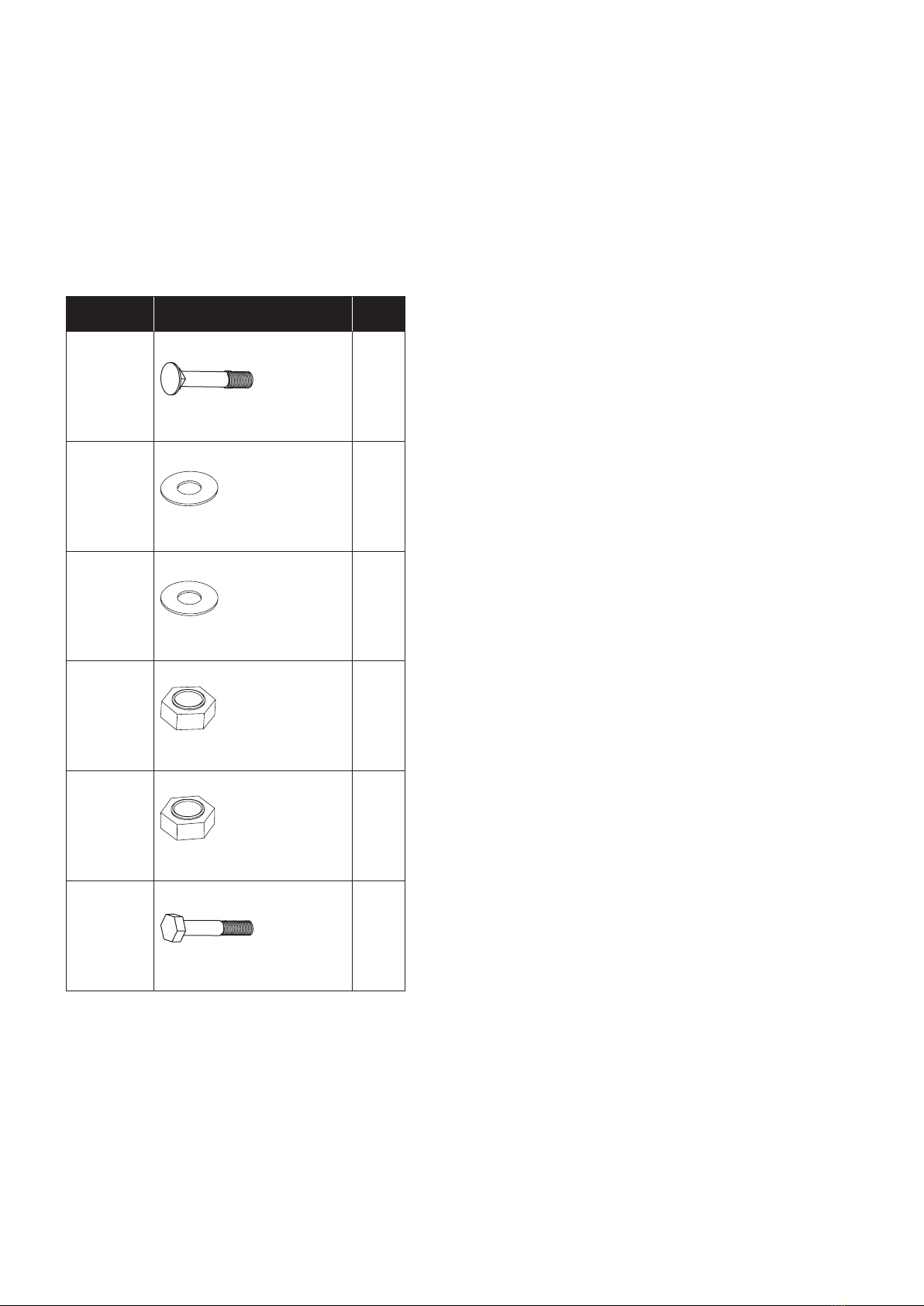

STEP 3
• Fit the Front Stabiliser (5) to the Leg Extension Upright (6) and secure with an M8x50mm
Carriage Bolt (17), an M8 Flat Washer (23) and an M8 Nylock Nut (26).
• Connect the assembled Leg Extension Upright (6) to the front of the Main Frame (4) using an
M10x55mm Hex Head Bolt (43), two M10 Flat Washers (25) and an M10 Nylock Nut (29) bolted
from the side.
No. Description Q’ty
WB40-17
Carriage Bolt (M8 x 50mm)
1
WB40-23
Flat Washer (M8)
1
WB40-25
Flat Washer (M10)
2
WB40-26
Nylock Nut (M8)
1
WB40-29
Nylock Nut (M10)
1
WB40-43
Hex Bolt (M10 x 55mm)
1
EG8

6
5
26
23
17
6
25
25
29
43
4
NOTE :
Be sure seat hole of MAIN
FRAME (4) toward front.
ASSEMBLY STEPS
EG9

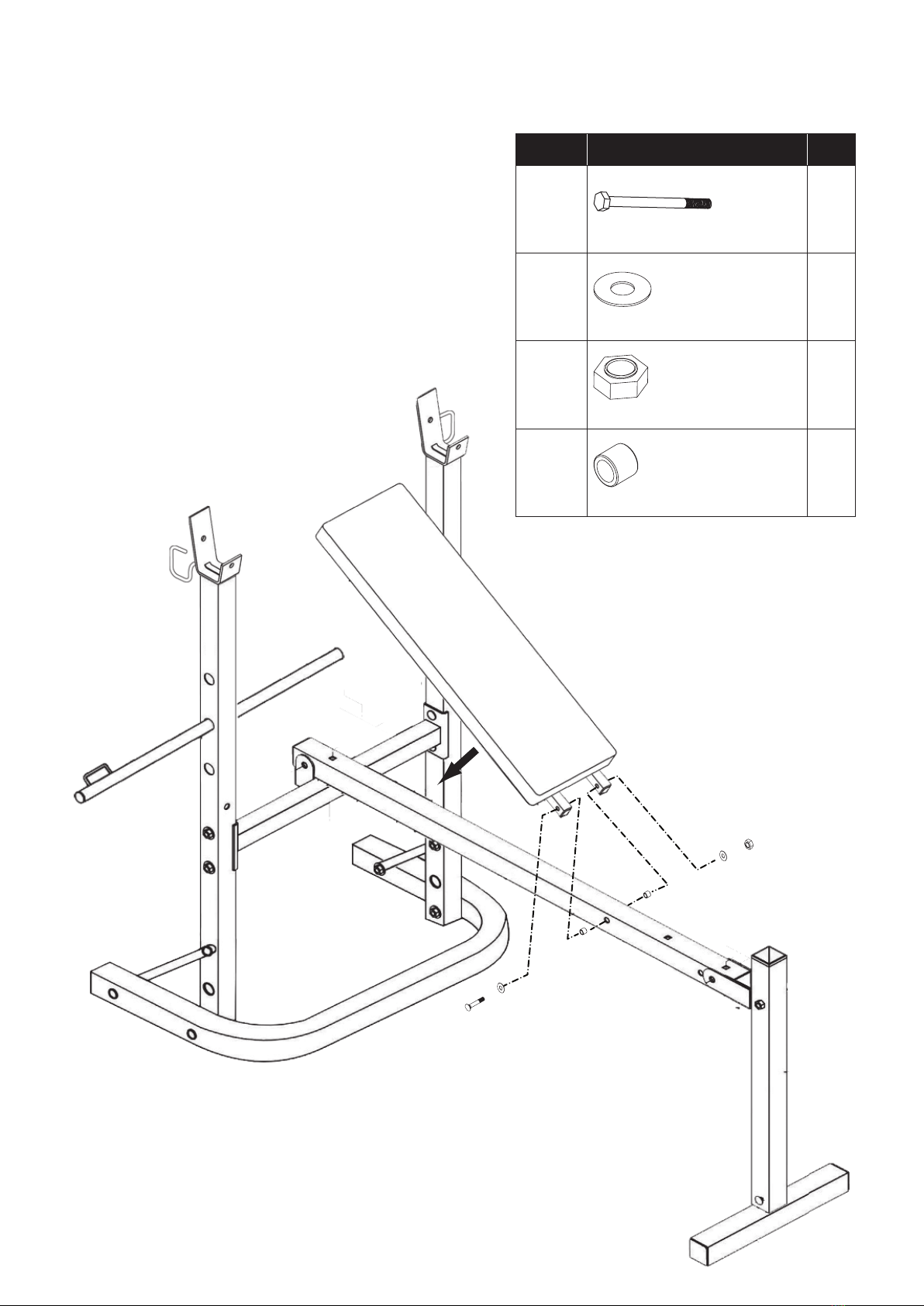

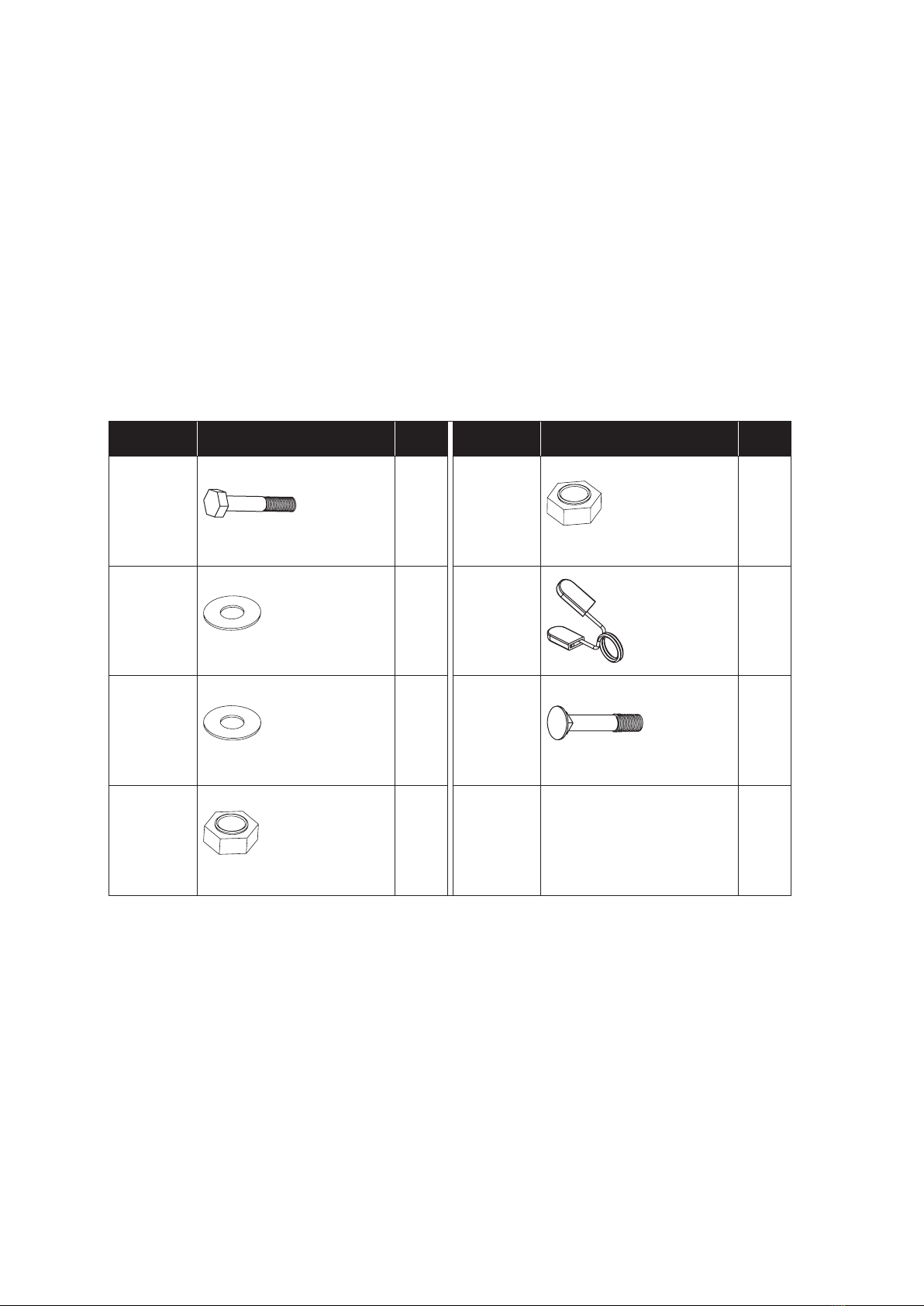

STEP 4
• Place an M8x55mm Carriage Bolt (18) in the UPPER hole and secure in position using an M8 Flat
Washer (23), an M8 Spring Washer (24) and an M8 Locking Knob (Female) (28). Tighten securely
to lock the frame in position.
• Connect the rear of the Main Frame (4) to the Cross Bar (3) using an M10x55mm Hex Head Bolt
(43), two M10 Flat Washers (25) and an M10 Nylock Nut (29) bolted from the side.
• Place an M8x90mm Carriage Bolt (19) in the upper hole and secure in position using an M8 Flat
Washer (23), an M8 Spring Washer (24) and M8 Locking Knob (Female) (28). Tighten securely to
lock the Main Frame (4) in position.
ASSEMBLY STEPS
No. Description Q’ty No. Description Q’ty
WB40-18
Carriage Bolt (M8 x 55mm)
1 WB40-25
Flat Washer (M10)
2
WB40-19
Carriage Bolt (M8 x 90mm)
1 WB40-28
Locking Knob (Female M8)
2
WB40-23
Flat Washer (M8)
2 WB40-29
Nylock Nut (M10)
1
WB40-24
Spring Washer (M8)
2 WB40-43
Hex Bolt (M10 x 55mm)
1
EG10

23
4
2
2
318
24
28
23
19
24
28
25
25 29
43
ASSEMBLY STEPS
EG11

11
11
22
16
41
22
16
22
16
22
16
STEP 5
• Fit the Backrest Supports (11) to the Backrest (41) using four M6x40mm Bolts (16) and four M6
Flat Washers (22).
ASSEMBLY STEPS
No. Description Q’ty
WB40-16
Bolt (M6 x 40mm)
4
WB40-22
Flat Washer (M6)
4
EG12

25
25
32
21
29
4
41
10
32
ASSEMBLY STEPS
No. Description Q’ty
WB40-21 Hex Bolt (M10 x 130mm) 1
WB40-25
Flat Washer (M10)
2
WB40-29
Nylock Nut (M10)
1
WB40-32
Backrest Support Bushing
2
STEP 6
• Connect the assembled Backrest (41) to the
Main Frame (4) using the fittings in the following
sequence. An M10x130mm Hex Bolt (21), an
M10 Flat Washer (25) and an Backrest Support
Bushing (32) on one side then an Backrest
Support Bushing (32) on the other side of Main
Frame (4), an M10 Flat Washer (25) and an M10
Nylock Nut (29). Tighten securely
to remove all free-play but take
care NOT to overtighten.
• Insert Backrest Adjustment Rod
(10) to assembled Upright (2).
EG13

ASSEMBLY STEPS
STEP 7
• Remove the pre-fitted Seat Bracket (12) from the Seat (42). Fit the Seat Bracket (12) to the Main
Frame using an M8 x 50mm Carriage Bolt (17). An M8 Flat Washer (23) and an M8 Nylock Nut
(26) tightening securely.
• Fit the Seat (42) to this Seat Bracket (12) using the previously removed two M6x14mm Bolts
(15) and two M6 Flat Washers (22).
• The Backrest can be adjusted into 4 positions for convenient use. (Flat and 3 Inlcine Positions).
Please ensure that Backrest Adjustment Rod (10) is positioned UNDER the Backrest Supports
and is secured into place in any one of the 3 adjustment holes in the Uprights before use.
No. Description Q’ty
WB40-15
Bolt (M6 x 14mm)
2
WB40-17
Carriage Bolt (M8 x 50mm)
1
WB40-22
Flat Washer (M6)
2
WB40-23
Flat Washer (M8)
1
WB40-26
Nylock Nut (M8)
1
EG14

26
23
17
22
12
15
22
15
42
10
4
ASSEMBLY STEPS
EG15

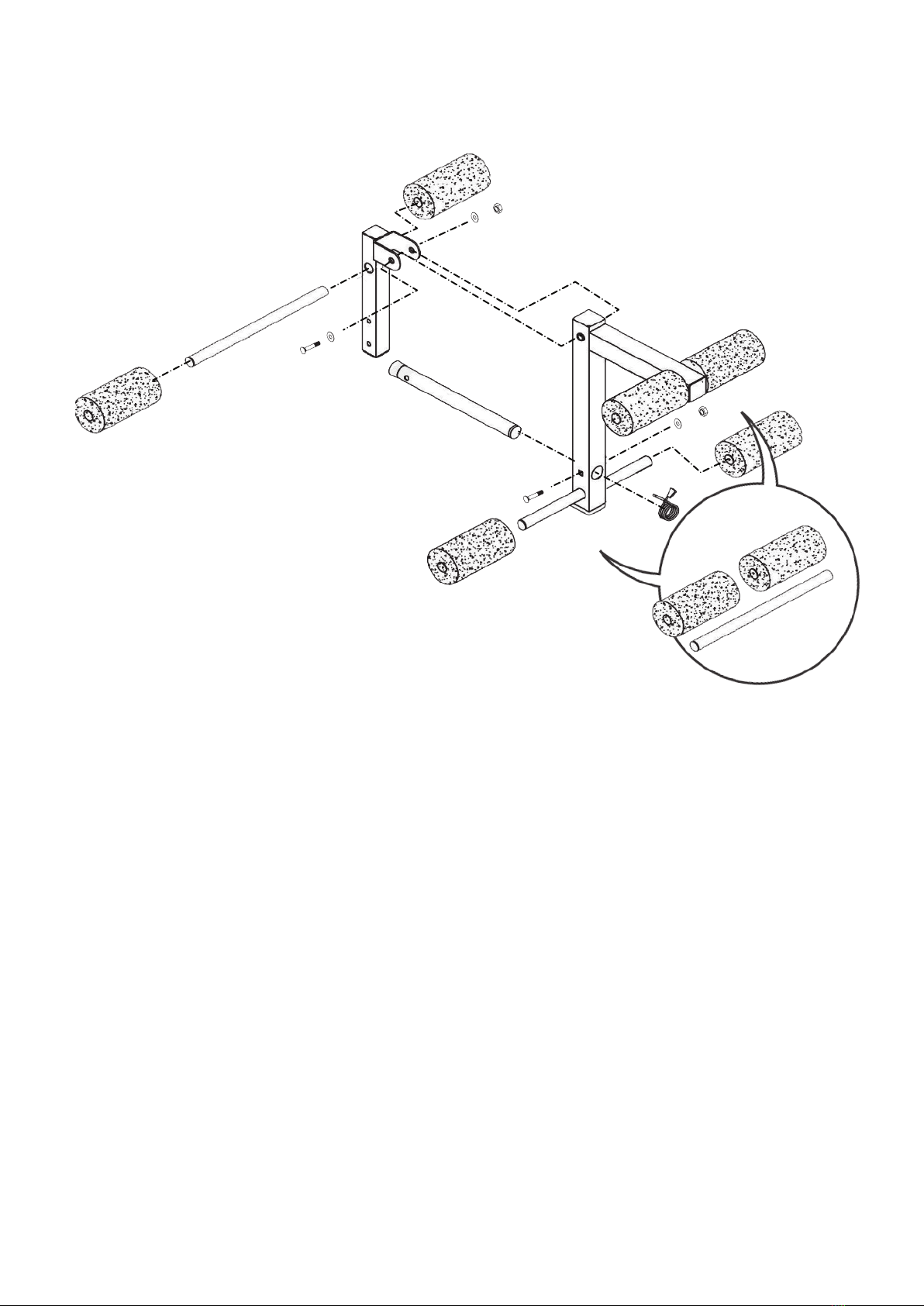

STEP 8
• Assemble the Leg Extension (8) to the Leg Extension Support (7) using an M10x60mm Hex
Bolt (20), two M10 Flat Washers (25) and an M10 Nylock Nut (29) bolted from the side.
• Fit the Leg Extension Weight Disc Post (14) to the Leg Extension using an M8x48mm Carriage
Bolt (45), an M8 Flat Washer (23) and an M8 Nylock Nut (26). Tighten securely and fit Spring
Collar (31) by squeezing the 2 rubber pads together and sliding over end of Weight Disc Post
(14).
• Slide a Foam Roller (40) onto one end of a Foam Roller Post (9) and fit into position on the Leg
Extension (8) and Leg Extension Support (7). Slide the remaining Foam Roller (40) onto the
Foam Roller Post (9).
ASSEMBLY STEPS
No. Description Q’ty No. Description Q’ty
WB40-20
Hex Bolt (M10 x 60mm)
1 WB40-29
Nylock Nut (M10)
1
WB40-23
Flat Washer (M8)
1 WB40-31
Spring Collar
1
WB40-25
Flat Washer (M10)
2 WB40-45
Carriage Bolt (M8 x 45mm)
1
WB40-26
Nylock Nut (M8)
1
EG16

26
45
20
14
7
31
8
40
40
40
9
40
40
40
9
23
29
25
25
ASSEMBLY STEPS
EG17

7
27
6

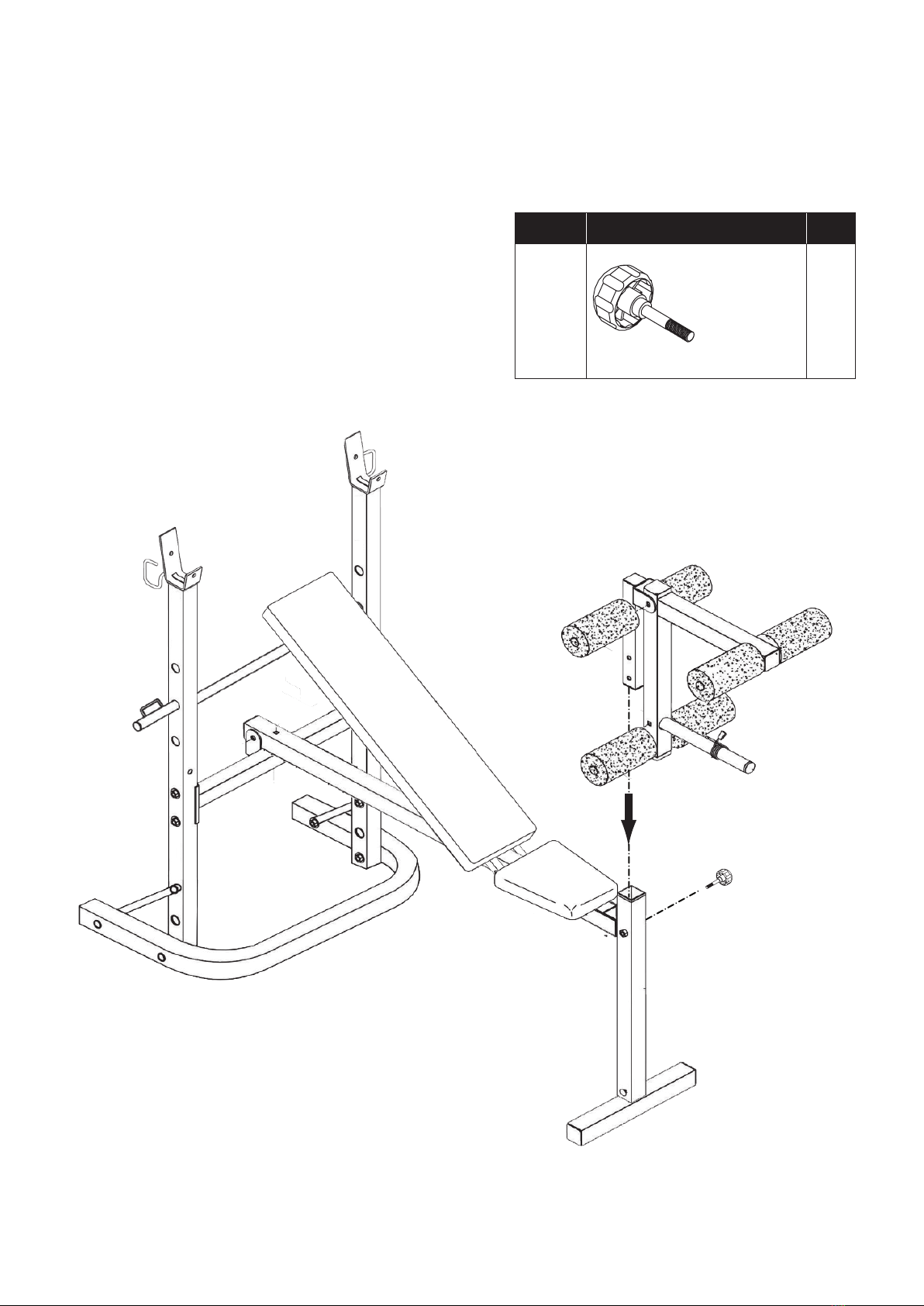

STEP 9
• Fit Leg Extension Support (7) into the leg extension on upright to any one of 3 position and
lock in position using the M8 Locking Knob (27).
NOW GO BACK OVER AND TIGHTEN ALL
NUTS AND BOLTS.
ASSEMBLY STEPS
No. Description Q’ty
WB40-27
Locking Knob (M8)
1
EG18
