GYS POWER PACK 520 User manual

SAFETY INSTRUCTIONS
This manual includes guidelines on the operation of your device
and the precautions to follow for your own safety. Ensure it
is read carefully before rst use and keep it handy for future
reference. This device should only be used for charging and
/ or power supply within the limits indicated on the device
and in the manual. The safety instructions must be followed.
In case of improper or unsafe use, the manufacturer cannot
be held responsible
Device suitable for indoor use only. Do not expose to rain or
excessive moisture.
This device may be used by children from age 8 and by
persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge, provided that they are
under supervision or have been told how to use the device
safely and are aware of the potential risks. Children must
not use the device as a plaything. Cleaning and servicing
tasks may not be carried out by children unless they are
supervised.
Do not use for charging non-rechargeable batteries.
Do not operate the device with a damaged power supply
cord or a damaged mains plug.
Do not use the device if the charging cable appears to be
damaged or assembled incorrectly in order to avoid any
risk of short circuiting the battery.
Never charge a frozen or damaged battery.
Do not cover the device.
Do not place the device near a re or subject it to heat or to
longterm temperatures exceeding 50°C
Do not obstruct the cooling vents. Refer to the installation
section before operating the machine.
The automatic mode of operation and usage restrictions are
explained below in these operating instructions.
Connection:
Class II device (for the charger).
Maintenance:
• Service should be performed by a qualied person
• Warning! Always remove the power plug from the USB
input socket before carrying out any work on the device.
8
POWER PACK 520 EN
Translation of the original instructions

• Under no circumstances should solvents or other aggressive
cleaning agents be used.
• Clean the device
• Do not attempt to open the product as there is a risk of
electrical danger.
Regulations
• The device complies with European Directive.
• The certicate of compliance is available on our website.
• EAC conformity mark (Eurasian Economic Commission)
• Equipment in compliance with British requirements.
The British Declaration of Conformity is available on our
website (see home page).
• Equipment in conformity with Moroccan standards
• The declaration Cم(CMIM) of conformity is available on
our website (see cover page).
Disposal:
• This product should be disposed of at an appropriate
recycling facility. Do not dispose of in domestic waste.
• The battery must be removed from the device before the
latter is discarded.
• The device must absolutely be disconnected from the
power supply network before removing the battery.
PRODUCT DESCRIPTION
The POWER PACK 520 is a portable power station suitable for home emergency power, outdoor travel, emergency
interventions or eld work. It is equipped with an internal battery (Lithium-Ion Polymer) with a capacity of 518 Wh
(20 Ah) allowing to supply all types of devices operating at 5 / 9 / 12 / 15 / 20 Vdc as well as 230 Vac thanks to its
internal inverter.
INTERFACE (FIG. 1)
1ON / OFF button
2LCD display
3DC input 24 V / 2.5 A
4AC output activation button
5Dual output 230 Vac / 50 Hz / 500 W (EU/US/AU compatible)
6DC output activation button
7Cigarette lighter output 12 Vdc
8Dual DC output (Jack socket)
9USB output activation button
10 USB Type-C input / output
11 USB Quick Charge 3.0 output (5 V / 3 A)
12 USB output (5 V / 3.1 A max)
13 LED button
14 LED
9
POWER PACK 520 EN
Translation of the original instructions

ACCESSORIES
15 USB cable
16 Mains charger
TECHNICAL SPECIFICATIONS
Capacity 20 Ah / 518 Wh
Size (L x W x H) 264 x 234 x 163 mm
Weight 5.14 kg
Internal battery technology Lithium-Ion Polymer Battery (7 cells)
Input DC input 24 V / 2.5 A - PV / solar panels - car charger 11 V - 30 V
Wall adapter 100 V - 240 V, 50/60 Hz, 1.2 A max
USB Ports 5 V / 3 A, 9 V / 3 A, 12 V / 3 A, 15 V / 3 A, 20 V / 2.25 A
Charging time 9.5 h with 24 V /2.5 A adapter; 9.5 h with 60 W solar panels
16 h with car charger; 12.5 h with 45 W USB adapter
5.5 h with DC input and USB Type-C adapter simultaneously
"Output voltage plug
Cigarette lighter" 11.5 V ~ 12.5 V / 12 A total (single port 10 A max)
USB Quick Charge 5 V / 3 A, 9 V / 2 A, 12 V / 1.5 A
Dual USB output 5 V / 3.1 A total (single port 2.4 A max)
Dual AC output 230 V / 50 Hz / 500 W (PSW - Pure Sine Wave)
Battery indicator LCD display
Charge temperature 0°C  50°C (32°F  122°F)
Discharge temperature -20°C  50 °C (-4°F  122°F)
Service life 1000 charging cycles
Protections Short-circuit protection, overcurrent protection, overvoltage protection, undervoltage
protection, overload protection, temperature protection.

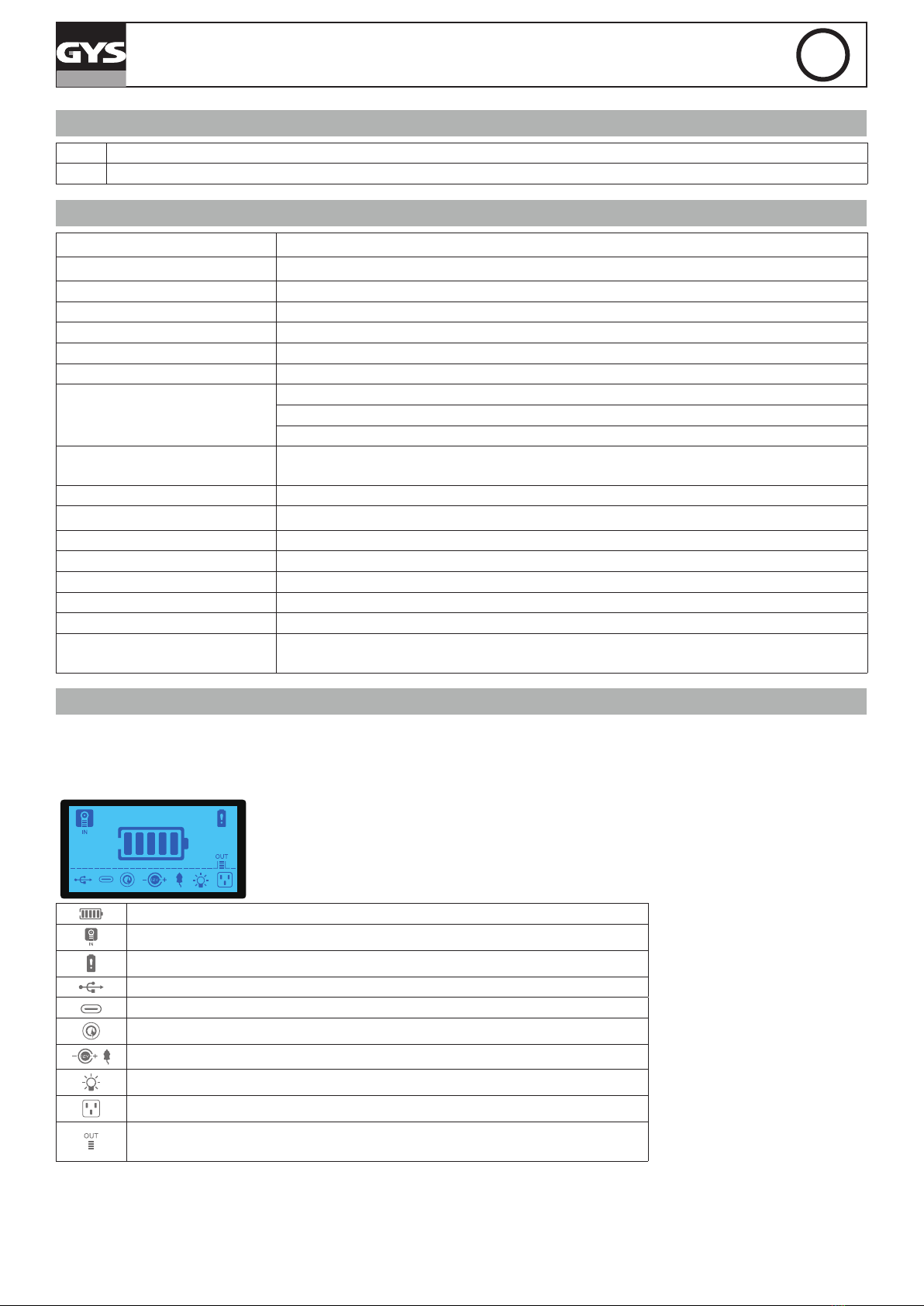

LCD ILLUMINATED DISPLAY
The LED display shows the internal battery capacity as well as the inputs and outputs used on the POWER PACK
520. Press button (1), the LCD display will light up. In case all outputs are inactive: after 10 seconds of inactivity, the
backlight will turn o. After 30 seconds of inactivity, the display will turn o. The POWER PACK 520 will automatically
switch to standby.
State of charge of the battery
In charge
Error
Active USB outputs
USB-C output active
Active USB outputs
Active 12 Vdc outputs
LED on
AC output open
The POWER PACK 520 is active. It is discharged because there is a consu-
mer on one of its outlets and cannot go into standby mode.
10
POWER PACK 520 EN
Translation of the original instructions

OPERATION OF THE DIFFERENT SUPPLY MODES
Switch on the POWER PACK 520 by pressing the On / O button (1). The display will light up.
1 / Use of 230 Vac outputs
3. Press button (4) to activate the AC outputs (5), the icon lights up on the LCD screen.
4. Connect the desired device to one of the AC sockets (5).
5. Press the button (4) again to deactivate the outputs (5).
The total consumption of all devices connected to the POWER PACK 520 must be less than its maximum
capacity of 500 W.
2 / Use of 12 VdC outputs
1. Press button (6) to activate the DC outputs, the icon will appear on the LCD screen.
2. Connect the desired device to one of the 12V output ports (8) or to the cigarette lighter socket (7).
3. Press button (6) again to deactivate the DC outputs.
3 / Utilisation des sorties USB
1. Press button (9) to activate the USB outputs. Icons and will appear on the LCD display.
2. Connect the desired device to the corresponding USB port :
(10) USB Type-C The icon appears on the screen.
(11) USB Quick Charge 3.0 (5 V / 3 A) The and icons appears on the screen.
(12) USB (5 V / 3.1 A max)
3. Press button (9) again to deactivate the USB outputs.
To switch o the POWER PACK 520 :
- press and hold down the On / O button (1) (> 2 s)
- disable all outputs and wait 30 seconds, the POWER PACK 520 will automatically switch to standby.
Interface specications and voltage standards are not the same in dierent countries. Before
use, carefully check whether the product specications are in accordance with the specica-
tions for use of electrical equipment, otherwise it may lead to dangerous situations.
The POWER PACK has overload protection. If an AC device requires more power than the
nominal power of the POWER PACK 520 (500 W), it will not activate.
USE OF LEDS
1. Switch on the device by pressing the button (1).
2. Press button (14) for a long press (> 2 s). The LED lights up in standard mode. The icon appears on the display.
3. Press button (14). The LED lights up in 'SOS' mode.
4. Press button (14) again. The LED lights up in 'Flash' mode.
5. A further long press (>2 s) switches the LED o.
CHARGING THE POWER PACK 520
When the product is charging normally, the and icons blink on the LCD display.
There are several ways to recharge the POWER PACK 520:
1 / Use the mains charger supplied
1. Plug the charger port (3.5 mm) into the DC 24 V input (3) of the POWER PACK 520.
2. Connect the other end of the charger to a 230 V mains socket.
3. Allow the POWER PACK 520 to recharge and then disconnect it from the power supply by performing the reverse
procedure.
11
POWER PACK 520 EN
Translation of the original instructions

2 / Use both DC 24 V / 2.5 A (3) and USB Type-C (10) inputs.
The POWER PACK 520 must only be charged by its charger.
1. Plug the charger cable into the corresponding input of the POWER PACK 520 : (3) or (10).
2. Connect the other end of the cable to the power source that will perform the charge.
3. Allow the POWER PACK 520 to charge and then disconnect it by performing the reverse operation.
For faster charging, both inputs can operate simultaneously with two dierent power sources.
3 / Using solar panels
The POWER PACK 520 has its own MPPT controller. It is therefore unnecessary to add one between the
station and the solar panel.
The DC 24 V / 2.5 A input (3) can accommodate the energy from a solar panel
(80 W max - < 30 V no-load) .
1. Place the solar panel in direct sunlight without exposing the POWER PACK 520 to direct sunlight or moisture.
2. Connect the 3.5 mm output of the solar panel to the DC 24 V input port.
3. Allow the POWER PACK 520 to recharge and then disconnect it from the power supply.
4 / Using a car charger
1. Connect the car charger cable to the DC 24 V / 2.5 A input (3).
2. Plug the other end of the car charger cable into the car's 12 V cigarette lighter socket.
In case of failure, the icon corresponding to the input or output being used will ash on
the LCD display.
WARRANTY
The warranty covers faulty workmanship for 2 years from the date of purchase (parts and labour).
The warranty does not cover:
• Transit damage.
• Normal wear of parts (eg. : cables, clamps, etc..).
• Damages due to misuse (power supply error, dropping of equipment, disassembling).
• Environment related failures (pollution, rust, dust).
In case of failure, return the unit to your distributor together with:
- The proof of purchase (receipt etc ...)
- A description of the fault reported
