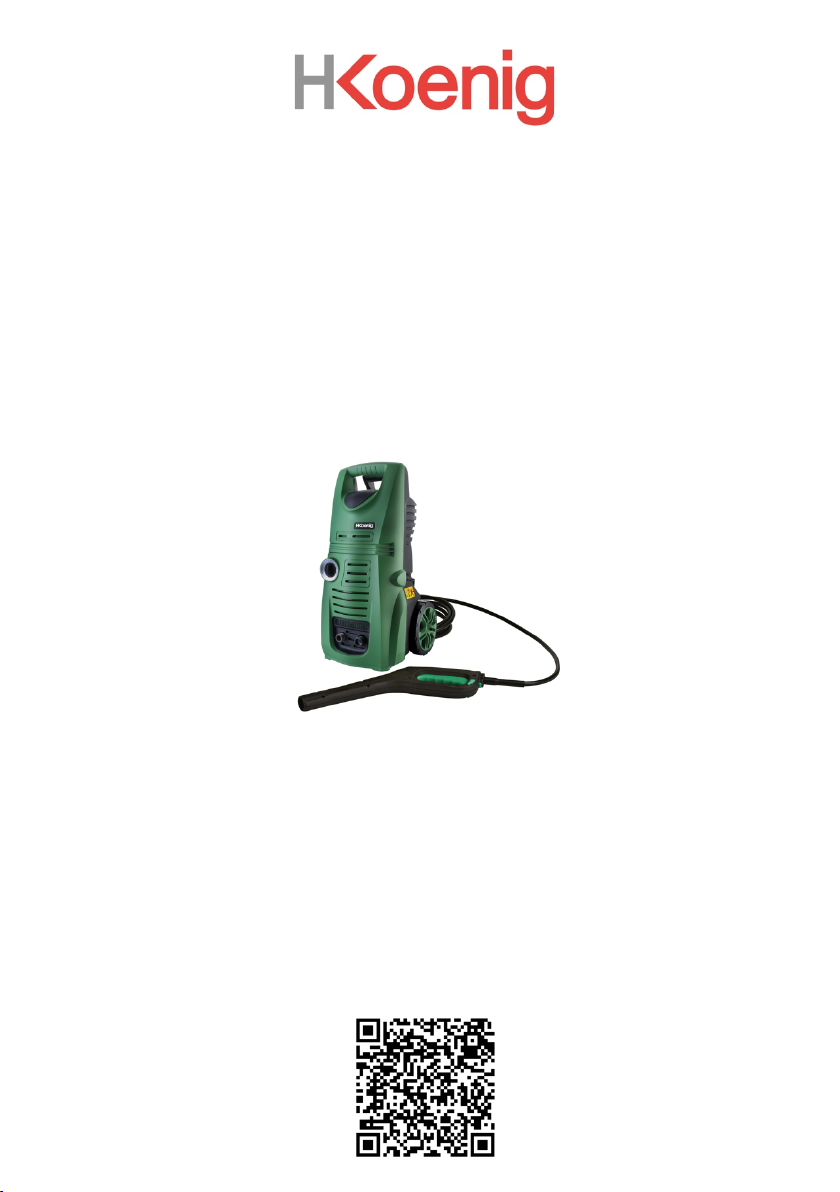

H.Koenig HWP5 User manual

Instruction manual
Manuel d’utilisation
Benutzerhandbuch
Gebruiksaanwijzing
Manual de usuario
Manuale d’uso
Manual do usuário
HIGH-PRESSURE WASHER
NETTOYEUR HAUTE PRESSION
HOCHDRUCKREINIGER
HOGEDRUKREINIGER
LAVADORA DE ALTA PRESIÓN
IDROPULITRICE AD ALTA PRESSIONE

!"#
ENGLISH
Spare parts are subject to the
specific model. The right of
modification is reserved.
Illustration of appliance
14
20 1. water supply connector
2. high pressure hose
16
3. water outlet
!$
4.water inlet
!%
5.ON/OFF switch 6.
transport handle
7.detergent tank
8.power cord
!&
9.wheels 10.
trigger gun
11.spray lance
12.safety lock
13. hose lock
14. trigger handle holder
15.trigger handle locker
16. retractable rod
17.detergent suction pipe
18. filter
19. detergent tank lock
20. spray lance holder
#
#
#
#
#
#
#
#
#
!!#
!'#
!(#
!)#

A
B
C
D
E
F
G
H
I
J
K
L
M

Contents
Illustration of appliance 1
General instruction 3
Safety instruction 4
Operation 5
Maintenance & care 7
Troubleshooting 8
Storage 9
Technical specification 9
Schematic drawing 9
Dear customers,
DO NOT use your high-pressure washer before reading this manual!
General instruction
This high-pressure washer is designed
for domestic use only:
1. to clean cars, motorbikes, caravans,
bicycles.
2. to clean patios, fences, garden
walls, pathways, driveways and
house facades, particularly useful
for cleaning blocked driveway.
3. to remove of algae and moss from
roofs, brickwork and guttering.
4. to clean garden tools and machinery,
furniture and barbecues.
5. to clean hygienic of animal pens and

their surrounding area.
6. With accessories, replacement parts
and detergents approved by factory.
Observe the instructions provided
with these detergents.
The packing material can be
recycled. Please do not place the
packaging into the ordinary refuse for
disposal, but arrange for the proper
recycling.
Old appliances contain valuable
materials that can be recycled.
Please arrange for the proper
recycling of old appliances. Please
dispose your old appliances using
appropriate collection systems.
Read symbols in the operating
instructions
Danger: immediate danger that can
cause severe injury or even death.
Warning: possible hazardous situation
that could lead to severe injury or even
death. Caution: possible hazardous
situation that could lead to mild injury
to persons or damage to property.

The high-pressure washer may not be
directed at persons, animals, live
electrical equipment or at the
appliance itself. Protect the appliance
against frost

Safety instruction
Danger
1. Never touch the mains plug and the
socket with wet hands.
2. The appliance must not be used if
the power cord or important parts of
the appliance, e.g. high pressure
hoses, trigger gun or safety devices
are damaged. Please arrange for it to
be replaced immediately by an
authorized repair agent or a skilled
electrician.
3. The appliance may not be used in
areas where a risk of explosion is
present. 4.The high pressure washer
must not be directed at other persons
or directed by the user at him/herself
to clean clothing or footwear.
5.If the appliance is used in hazardous
areas (e.g. filling stations) all of the
safety provisions and operating
instructions detailed in this manual
must be observed. 6.Never use the
appliance to clean objects containing

hazardous substances.
7. Vehicle tyres or tyre valves are
susceptible to damage from the high
pressure washer and may burst. The
first indication of this is a
discoloration of the tyre. Damaged
vehicle tyres/tyre valves are highly
dangerous. Ensure that a distance of
at least 30 cm is observed when
cleaning with the washer.
8. Risk of explosion. Do not spray
flammable liquids. Never draw in
fluids containing solvents or
undiluted acids. This includes petrol,
paint thinner and heating oil. The
spray mist thus generated is highly
inflammable, explosive and
poisonous. Do not use acetone,
undiluted acids or solvents as they
are damaging to the materials from
which is the appliance is made.

Warning
1. The mains plug and the coupling of
an extension cable must be
watertight and must never lay in the
water.
2. Unsuitable extension cables can be
hazardous. Only use extension
cables outdoors which have been
approved for this purpose and
labeled with a sufficient cable cross-
section: 1- 10m: 1.5mm2 10-30m:
2.5mm2
3. Always fully unroll electrical cables.
4. High pressure hoses, fixtures and
couplings are important for the safety
of the appliance. Only use high
pressure hoses, fixtures and
couplings recommended by the
manufacturer.
5. This appliance is not intended for
use by persons with reduced physical,
sensory or mental capabilities. The
appliance must not be operated by
children or persons who have not

been instructed accordingly. Children
should be supervised to prevent them
from playing with the appliance.
6. The operator must use the
appliance correctly. When working
with the appliance, he must consider
the local conditions and pay due care
and attention to other persons, in
particular children who are nearby.
7. This appliance may be used by
children of at least 8 years of age, as
long as they are supervised and have
been given instructions about using
the appliance safely and are fully
aware of the dangers involved.
8. Cleaning and maintenance should
not be carried out by children unless
they are at least 8 years of age and are
supervised by an adult.
9. Keep the appliance and its power
cord out of reach of children under 8
years of age.
10. When using electrical
equipment, safety precautions must
always be taken to prevent the risk of

fire, electric shock and/or injury in the
event of misuse.
11. Make sure that the voltage
rating on the typeplate corresponds to
your main voltage of your installation.
If this is not the case, contact the
dealer and do not connect the unit.
12. Never leave the unit
unattended while in operation.
13. The device must not be used if
it has been dropped, it obvious signs
of damage are visible or if it has leaks.
14. Please keep this document at
hand and give it to the future owner in
case of transfer of your device.
15. Do not operate this appliance if
it has a damaged cord or plug, if it is
not working properly or if it has been
damaged or dropped. If the supply
cord is damaged, it must be replaced
by the manufacturer or its service
agent or a similarly qualified person in
order to avoid a hazard.

Caution
1. Do not use the machine if the
persons nearby do not wear safety
protection device.
2. Wearing protective clothing and
safety goggles to protect against
splash back containing water or dirt.
3. Create stability for the appliance
prior to all work on or with the
appliance to prevent accidents or
damage. The stability of the
appliance is warranted when it is
placed on to an even surface.
4. For safety reasons, we
recommend that you operate the
appliance only via an earth-leakage
circuit breaker (max. 30mA).
5. Make sure that the power cord or
extension cables are not damaged
by running over, pinching, dragging
or similar. Protect the power cable
from heat, oil, and sharp edges.
6. Never leave the appliance
unattended when it is in operation.

Operation
Special accessories expand the possibilities of using your
appliance. Please contact the dealer for further information.
Illustrate accessories before start-up.
1.Install coupling for water connection (pic A).
Screw the coupling to the water connection on the appliance.
2.Install high pressure hose (pic B. pic K).
Insert the high pressure hose tightly in to coupling on the
appliance, it will lock in audibly. Note: make sure the connection
nipple is aligned correctly. Check the secure connection by
pulling on the high pressure hose.
3. Install the storage of trigger gun (pic C).
Insert the storage of trigger gun and push down all the way
4. Install spray lance (pic F).
Push the spray lance into the trigger gun and fasten it by turning
it through 90 degree.
Water supply
Impurities in the water can damage the high pressure pump and
accessories. All high pressure washer (except hot water system)
use the cold water. The suitable water temperature is 5℃to
60℃.
Water supply from mains
Observe regulations of water supply
For connection values, use fibre-reinforced water hose (not
included) with a standard coupling, normally the length is 5m,
connect the water hose to the appliance and water supply.
1. Open the water tap
2. Unlock the lever on the trigger gun 3.Pull on the lever of
the trigger gun
4.Turn on the appliance (pic G ON: open OFF: close)
Start up
Dry runs lasting longer than two minutes lead to damages to the high
pressure pump. If the appliance does not build up pressure within
two minutes, switch it off and proceed as instructed in the
Chapter “Troubleshooting”.
The trigger gun is subjected to recoil force when the water
washer is discharged. Make sure that you have a firm footing and

are also holding the trigger gun and spray lance firmly.
The spray lance has two main settings stream and fan for easy
cleaning (pic H).
Caution
Prior to cleaning, make sure that the high pressure washer is
placed safely on level ground. Wear protective goggles and
protective clothing during the cleaning process. Notes: Release
the lever of the trigger gun, the device will switch off again. High
pressure washer remains in the system.
Working with detergent.
Use detergent when cleaning. Remove the lid from the detergent
bottle and press the detergent bottle into detergent (pic E).
Notes: The device is under low pressure when using detergent and
pulling out spray lance.
Release the lever on the trigger gun, lock the lever on the trigger
gun, insert the
spray lance into trigger gun when interrupting operation.
Notes: The device is under low pressure when using detergent and
pulling out spray lance.
Release the lever on the trigger gun, lock the lever on the trigger
gun, insert the spray lance into trigger gun when interrupting
operation.( as pic Q)

Finish operation
1. Turn off tap.
2. Press the lever on the trigger gun to release any remaining
pressure and water in the system.
3. Pull out the mains plug.
4. Store the water hose and high pressure hose.
Maintenance and care
Turn off the appliance and remove the
mains plug prior to any care and
maintenance work. Prior to longer
periods of storage, pull out the filter (18)
in the detergent bottle and clean under
running water. Pull out the filter in the
water connection and clean under
running water (pic J). Use the needle to
clean the residue (pic M).
In winter, please do not put the
machine outside without draining the
water to avoid the damage to the
machine. Just put it in a room with
frost prevention.

Troubleshooting
Symptom
Cause
Recommended
action
Appliance is not
running
1.Machine not plugged in
2.Defective socket
3.Defective extension cable
4.Incorrect mains voltage
5.Switch off
6.Fuse has blown
1. Plug in machine
2.Try another socket
3.Try another
extension cable
Check voltage
correctly
4. Turn on switch
6.Replace fuse
Pump stop
working
Lack of water lead to high
temperature
check water flow
quantity
-put the hose in the 10
bottle (per minute)
Fluctuating
pressure
1. Spray lance blocked
2. Pump is sucking air
3. Impurities in pump
1. 1. Clean lance with
needle
2. Check that hoses
and connections are
airtight 3.Contact
the dealer
Appliance does
not reach
operation
pressure
1. Spray lance blocked or
worn
2. Short supply of water
3.Hose kinked 4.Filter
blocked
5.Hose blocked
1. Clean or change
spray lance
2. Check inlet flow
rate
3. 3.Straighten out
hose
4. 4.Clean filter
5. Clean hose
Trigger gun can
be used
Trigger gun is locked
Unlock trigger gun
safety
Machine often
starts and stops
by itself
1. Safety valve worn out
2.Pump,high pressure
hose, trigger gun is
leaking
1.Contact the nearest
service center
2.Contact the nearest
service center

The content in this instruction manual (include accessories)
is kept the final modifying and explanation rights
Appliance is leaking
Slight leakage from the appliance pump is normal. If the
leakage increases contract the authorized customer
service.
Transport instruction
Mind the weight of appliance during moving. Put the appliance
a level ground. Pull out the telescopic rod (Max. length 410mm,
as pic D)to move the appliance.
Storage
1.Place the appliance on a level ground 2.Disconnect
trigger gun and high pressure hose 3.Disconnect
high pressure hose with outlet 4.Put the trigger gun
into the trigger gun holder 5.Wind back power cord
and high pressure
Please store the machine properly especially during winter
Technical specification
Working temp!5-50 °C
Voltage!AC 220V
Weight!7.6Kg
Power!1700W
Length!294mm
Max.pressure !12.0Mpa
Width!293mm
Flow rate!380L/H
Height!548mm
Max.tap water !0 .4Mpa
Working pressure !8.0Mpa
Water temperature !0~40 °C

Schematic drawing
Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin - 77290 Mitry
Mory - France www.hkoenig.com - [email protected] -
[e-mail] - Tél: [phone]
!"#$%&'()$*
I~
+)()$*
,-.-/&()$*
012234*
56&(/"*78)$%-9*
/9)'#:*
"#$%%&'$
(&)*$
;<=;>>*5?@!,A*
P !$&BB9#*"-8C9#*

FRANÇAIS
Les pièces de rechange sont spécifiques au modèle. Sous réserve de
modifications.
Illustration de l’appareil
1. Raccord d’eau
2.Tuyau haute pression
3. Sortie d’eau
4.Entrée d’eau
5.Interrupteur
6.Poignée de transport
7.Réservoir de détergent
8.Câble d’alimentation
9.Roues
10.Pistolet
11.Lance
12.Verrouillage de sécurité
13. Verrouillage du tuyau
14.Support du pistolet
15.Verrouillage du pistolet
16.Tige télescopique
17.Tuyau d’aspiration du détergent
18.Filtre
19.Verrouillage du réservoir de
détergent
20.Support de la lance
*#
"#
$#
%#
+#
)#
(#
&#
!#
!!#
!'#
!(#
!)#

A
B
C
D
E
F
G
H
I
J
K
2
1
B
A
L
C
M
