h/p/cosmos®parawalk®

original instruction for use

h/p/cosmos®model names

development, production, sales &service

h/p/cosmos®parawalk®2,44m

h/p/cosmos®parawalk®3m

h/p/cosmos®parawalk®4m

h/p/cosmos®parawalk®5m

h/p/cosmos®sports &medical gmbh

Am Sportplatz 8

DE 83365 Nussdorf-Traunstein

Germany

phone +49 86 69 86 42 0

fax +49 86 69 86 42 49

[email protected]

www.h-p-cosmos.com

version

version 1.1, revision 06.07.2016

order-no.: [cos14310pw-v1.1_hpc-en]

file: \\quasarf\erp$\article\cos14310pw-v1_1_hpc-en\20160706_cos14310pw-v1.1_hpc-en_instruction_for_use_h-p-cosmos_parawalk.doc

These instructions for use are only valid for the original configuration of the first delivery of this device. Changes of the

system configuration or retrofittings of additional equipment or accessories can result in invalidity of these instructions for

use. In case of alterations of the device or the additional equipment, the latest version of these instructions for use or the

corresponding additional information should be always considered.

The latest version of the instructions for use is always available in PDF version on the h/p/cosmos website:

http://www.h-p-cosmos.com/en/company/downloads.htm

NIt is strictly forbidden to perform any amendments of the technical design, technical specifications, labelling

and configurations of this device and the accessories connected to it.

NAny amendments, unauthorized, poor or lack of service / maintenance will result in loss of manufacturer’s

liability and warranty.

file: \\quasarf\erp$\article\cos14310pw-v1_1_hpc-en\20160706_cos14310pw-v1.1_hpc-en_instruction_for_use_h-p-cosmos_parawalk.doc

Dear customer,

we would like to express our gratitude for putting your trust in us, in deciding for this top of the range equipment.

Since 1988 h/p/cosmos®has been developing and manufacturing running machines, systems and accessories for

applications in sports, rehabilitation, medicine, diagnostics and science. When it comes to technology, ergonomy, design and

safety, we have set extremely high standards for ourselves.

With the h/p/cosmos®parawalk®we want to make your work easier and give you and your patients the chance to achieve

your therapy results in a faster and more comfortable way.

If proper notice is taken to the safety regulations, the operation of your h/p/cosmos®device is almost without any risk. The

neglect of the safety regulations could result in dangerous situations and serious accidents. Therefore please read the

directions for use and the danger precautions before taking the device into operation.

Some simple maintenance and monitoring (no repair work!), as described, can easily be done or even has to be done by

yourself. All kinds of installation and repair work and most maintenance work are to be performed only by trained and

authorized technicians who have been certified by h/p/cosmos. The following symbols will indicate which work can be done

by the customer and which work has to be done by authorized technicians only:

The customer/user should perform this maintenance and monitoring work. Some safety checks or monitoring

have to be performed on daily basis. It is not expedient to contract certified technicians for such maintenance

work. However, where it is practical, all maintenance and monitoring work marked with this symbol can also

be performed by certified technicians.

All installation, maintenance, repair and monitoring work marked with this symbol must only be performed by

trained and authorized technicians who have been certified by h/p/cosmos. Customers / users must not

perform these kinds of tasks and work.

We recommend calling our competent service team or entering into a maintenance contract for a routine service at an

interval of 6 or 12 months for standard machines and standard applications. A form for registration of your institution and

device is included in the delivery. In order to be able to supply you with the latest technical information and service, it is

important for you to fill out the form. Therefore please fill out the form for registration immediately and send it back via fax,

email or mail.

These directions for use as a firm part of the delivery have to be accessible to the user at any time. It has been written with

great care. Should you, however, still find any details which do not correspond with your device, please notify to us so we

can correct any mistakes as soon as possible.

We wish you a lot of fun and success while exercising and working with your h/p/cosmos®parwalk®.

Franz Harrer

President & CEO

h/p/cosmos sports & medical gmbh

content

file: \\quasarf\erp$\article\cos14310pw-v1_1_hpc-en\20160706_cos14310pw-v1.1_hpc-en_instruction_for_use_h-p-cosmos_parawalk.doc

1Model overview............................................................................................................................................................... 6

2Introduction .................................................................................................................................................................... 7

2.1 Description ....................................................................................................................................................................... 7

3Intended and forbidden use .......................................................................................................................................... 8

3.1 Intended use..................................................................................................................................................................... 8

3.2 Forbidden use .................................................................................................................................................................. 8

4Safety notes, warnings, precautions............................................................................................................................ 9

4.1 General............................................................................................................................................................................. 9

4.2 Preparation of the patient / user ....................................................................................................................................... 9

4.3 Preparation of the device ............................................................................................................................................... 10

4.4 During exercise .............................................................................................................................................................. 10

4.5 Machine care.................................................................................................................................................................. 10

5Operation ...................................................................................................................................................................... 11

5.1 Adjustment of the bar handrails...................................................................................................................................... 11

6Service........................................................................................................................................................................... 13

6.1 Safety notes, warnings, precautions .............................................................................................................................. 13

7Installation ......................................................................................................................................................... 15

7.1 Unpacking and packaging .............................................................................................................................................. 15

7.2 Transport ........................................................................................................................................................................ 15

7.3 Storage........................................................................................................................................................................... 15

7.4 Environmental requirements / room configuration.......................................................................................................... 15

7.5 Installation h/p/cosmos parawalk®.................................................................................................................................. 16

7.6 Work steps ..................................................................................................................................................................... 18

7.7 Installation checklist and instruction of the user ............................................................................................................. 22

8Maintenance and safety inspections ..................................................................................................... 23

8.1 Preventive maintenance ............................................................................................................................ 23

8.2 Immediate maintenance ..................................................................................................................................... 23

8.3 Regular inspections / examinations ..................................................................................................................... 24

8.4 Hygiene and cleansing .......................................................................................................................................... 24

8.5 Spare parts & consumables ........................................................................................................................................... 24

content

file: \\quasarf\erp$\article\cos14310pw-v1_1_hpc-en\20160706_cos14310pw-v1.1_hpc-en_instruction_for_use_h-p-cosmos_parawalk.doc

9Technical data .............................................................................................................................................................. 25

9.1 h/p/cosmos parawalk®.................................................................................................................................................... 25

9.2 Economic life time .......................................................................................................................................................... 25

10 Disposal ........................................................................................................................................................................ 26

11 Appendix 1: Protocols ................................................................................................................................................. 27

11.1 Instruction protocol, checklist ......................................................................................................................................... 27

11.2 Instruction protocol, signatures ...................................................................................................................................... 28

12 Appendix 2: Symbols................................................................................................................................................... 29

13 Contact .......................................................................................................................................................................... 30

modeloverview

file: \\quasarf\erp$\article\cos14310pw-v1_1_hpc-en\20160706_cos14310pw-v1.1_hpc-en_instruction_for_use_h-p-cosmos_parawalk.doc

1Model overview

The h/p/cosmos®parawalk®is available in different lengths.

medical device

h/p/cosmos®parawalk®2,44m

h/p/cosmos®parawalk®3m

h/p/cosmos®parawalk®4m

h/p/cosmos®parawalk®5m

introduction

file: \\quasarf\erp$\article\cos14310pw-v1_1_hpc-en\20160706_cos14310pw-v1.1_hpc-en_instruction_for_use_h-p-cosmos_parawalk.doc

2Introduction

2.1 Description

easy and continuous adjustment with gas spring support

Whether in the gym, in the corridor or as a separate training system - walking

bars are the ideal complement to the available treatments. The individual

settings for height, width and angle of the handrails are crucial for best results,

and they have to be quickly and easily adjusted during a busy working day.

push the button

The h/p/cosmos parawalk®has integrated gas piston height adjustment.

Adjusting the height is child's play - even with just one hand. The width and

angle of the hand rails can be adjusted quickly by lifting the locking lever,

pushing the adjustment button for setting the height and after adjustment

locking the lever again - that's it.

reproducible settings with integrated scale

Once you have found the perfect setting for a patient you will want use this at

the next visit straight away. Therefore, the pillars of the h/p/cosmos parawalk®

have an integrated reading scale. With the help of the scale you can exactly

determine the current position and reproduce simply at the next training

session.

intended &forbidden use

file: \\quasarf\erp$\article\cos14310pw-v1_1_hpc-en\20160706_cos14310pw-v1.1_hpc-en_instruction_for_use_h-p-cosmos_parawalk.doc

3Intended and forbidden use

The intended use, discussed in the following, can be performed with any h/p/cosmos parawalk®system.

3.1 Intended use

Nrehabilitation

Nmobilization training

Ngait training and therapy

Nrecreational fitness training

3.2 Forbidden use

NDo not modify the system and do not connect to other equipment which is not explicitly declared as

compatible by all involved manufactures.

NThe system must not be used without carefully trained specialist staff and without the staff having been

instructed on the safety regulations.

NThe subject must interrupt the training immediately if he/she starts feeling sick or dizzy and should see a

doctor.

NSubjects with cardiac pacemakers or any kind of physical restriction must see a doctor before using the

system and ask for permission.

NIn the event of any detected and/or assumed malfunctions and/or defects or unreadable safety warning

labels, the device has to be taken out of operation, clearly marked as such and disabled. The supplier and

authorized service personnel have to be informed in writing.

NUnder no circumstances should a subject/patient or other user be overloaded or overstressed.

NAll prohibitions in the chapter “4 Safety notes, warnings, precautions".

NThe h/p/cosmos parawalk exercise machine is no gymnastic equipment in harmonisation of the norm

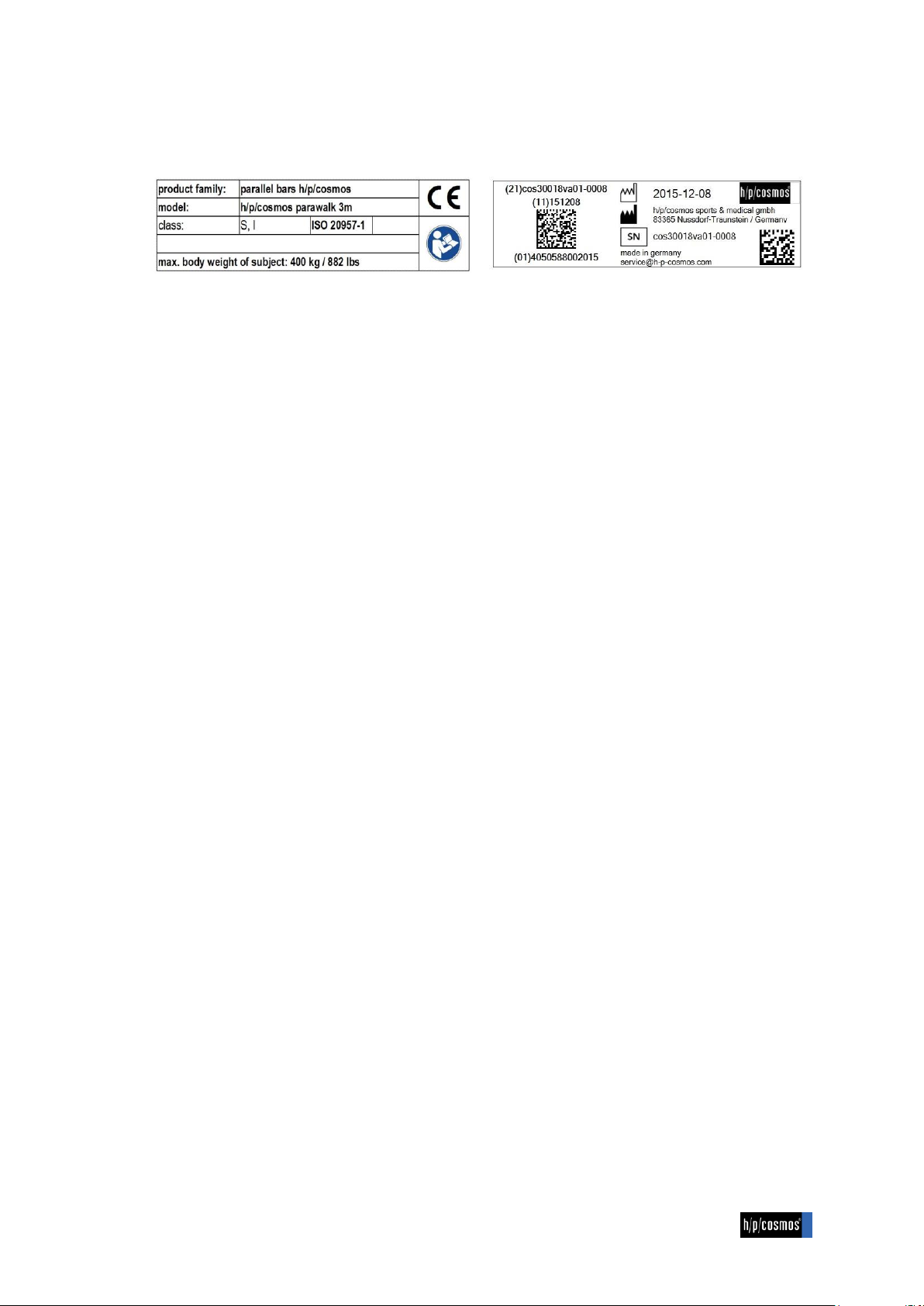

DIN EN 913. The handrails are not designed for more than maximum loads of subjects as described at the

identification label.

NOther use than the explicitly mentioned intended use.

safety notes, warnings, precautions

file: \\quasarf\erp$\article\cos14310pw-v1_1_hpc-en\20160706_cos14310pw-v1.1_hpc-en_instruction_for_use_h-p-cosmos_parawalk.doc

4Safety notes, warnings, precautions

4.1 General

Important notes, warnings and precautions are marked with this sign. It also reminds you of

concerns which have to be considered for measurements and connection with other devices.

NThese instructions for use

Nare part of the device and must always be accessible for every user.

Nhave to be read carefully before using the device.

Nhave to be observed and followed exactly for appropriate operation and safety.

NAny other use than that explicitly listed in the field of application is prohibited.

NAll regulations and prohibitions are to be followed.

NThe safety notes, warnings and precautions of this device and it’s accessory

Nhave to be read especially careful before using or maintaining the device.

Nhave to be pointed out to every user.

Nhave to be displayed within sight of the device.

NPay special attention to all maintenance and service instructions and the safety notes, warnings and precautions in

chapter “6 Service”.

NThis device must only be used

Nin medical facilities.

Nunder permanent supervision of medical staff.

Nafter careful instruction by authorized service personnel.

NAll lubrication material or parts of this device are to be kept away from children and animals and should neither be

drunk nor eaten.

NSafety, reliability, function and accuracy can only be achieved if installation, commissioning, instruction, extension,

alteration, recommended preventive maintenance, safety checks and repair are performed by authorized staff.

NIn the event that a user connects standard components to support, diagnose or appraise in terms of in-house

production according to the MPG (German Medical Devices Act), he creates a system and therefore has to

perform and verify a simplified conformity validation process.

Disregard of intended and forbidden use, safety notes, warnings and precautions, unauthorized or

lack of maintenance and / or regular safety checks may lead to injuries or even death and / or can

damage the device and will result in loss of any liability and warranty.

4.2 Preparation of the patient / user

NIt is strongly recommended to consult a doctor before using an exercise device.

NSubjects with a cardiac pacemaker or those who suffer from any kind of physical restriction must see their doctor

and get permission before using the exercise device.

NAnimals are not allowed to use the device and must not go too near (4 m distance).

NIt is prohibited to use the device under the influence of alcohol, drugs and/or anaesthetics.

safety notes, warnings, precautions

file: \\quasarf\erp$\article\cos14310pw-v1_1_hpc-en\20160706_cos14310pw-v1.1_hpc-en_instruction_for_use_h-p-cosmos_parawalk.doc

4.3 Preparation of the device

NAll wear and tear parts of the system are to be changed immediately in case of damage.

NCheck the device before every use optically. In case of any damage the device has to be taken out of function until

the device is repaired.

NBefore using the device, fix all four clamp levers.

4.4 During exercise

NThe h/p/cosmos parawalk must only be used under permanent supervision of medical staff.

NNever set too high loads if the health and the condition of the subject/patient do not permit and a medical doctor

has not authorized these loads. Disregard may cause injuries and dangerous health problems or even death.

Under no circumstances should the test person/subject/patient be overloaded.

NThe subject must interrupt training immediately if he/she starts feeling sick, dizzy or feels pain. The patient should

consult his/her doctor in this case.

NTake special care for your fingers around the gas pistons.

4.5 Machine care

In case of any detected and/or assumed malfunctions, defects or unreadable safety labels, the

device must be left immediately. The device must be marked as “out of order”. The supplier and

authorised service personnel are to be informed in writing immediately.

NAll wear and tear parts are to be replaced at least every two years or earlier if necessary due to first sign of wear

and/or damage.

operation

file: \\quasarf\erp$\article\cos14310pw-v1_1_hpc-en\20160706_cos14310pw-v1.1_hpc-en_instruction_for_use_h-p-cosmos_parawalk.doc

5Operation

5.1 Adjustment of the bar handrails

No.

Illustration

Description

NRelease the locking lever at the handrail by lifting up the lever

Locking lever

NAdjust the bar handrail to the desired height by pressing the

push button and moving the handrail up- or downwards.

Push button

NMove the bars horizontally to adjust the requested width.

operation

file: \\quasarf\erp$\article\cos14310pw-v1_1_hpc-en\20160706_cos14310pw-v1.1_hpc-en_instruction_for_use_h-p-cosmos_parawalk.doc

NLock the four locking lever after positioning the bar handrails by

pushing the lever down.

NTo obtain reproducibility you have to determine the individually

optimal adjustments (see scaling at the gas pressure cylinders)

for each testing person and note it down appropriately (e.g. in a

patient file). We have deliberately refrained from giving you

standard settings for particular heights, because the adjustment

can widely differ according to the posture and the individual

situation of the testing person.

service

file: \\quasarf\erp$\article\cos14310pw-v1_1_hpc-en\20160706_cos14310pw-v1.1_hpc-en_instruction_for_use_h-p-cosmos_parawalk.doc

6Service

Some simple maintenance and monitoring (no repair work!), as described, can easily be done or even have to be done by

yourself. All kind of installation and repair work as well as most maintenance work is to be carried out only by trained and

authorized technicians who have been certified by h/p/cosmos. The following symbols will indicate which work can be done

by the customer and which work has to be done by authorized technicians:

The customer / user should perform this maintenance and monitoring work. Some safety checks or

monitoring (for examples of harnesses and ropes, running belt condition and position, etc.) have to be

performed on a daily basis. For this reason it is not practical to contract certified technicians for such tasks.

However, where it is practical, all maintenance and monitoring work marked with this symbol can also be

performed by certified technicians.

All installation, maintenance, repairs and monitoring work indicated with this symbol must only be

performed by trained, authorized technicians who have been certified by h/p/cosmos. Customers/users

must not perform these kinds of tasks.

We recommend calling our competent service team or entering into a maintenance contract for a routine service at an

interval of 6 or 12 months for standard machines and standard applications. A form for registration of your institution and

device is included in the delivery. In order to be able to supply you with the latest technical information and service, it is

important for you to fill out the form for registration immediately and send it back.

6.1 Safety notes, warnings, precautions

6.1.1 Room conditions

Nh/p/cosmos®devices must not be used outdoor and/or in environmental conditions other than those specified in

the chapters “Technical data” and “Environmental requirements / room configuration”.

NThe installation room has to meet the requirements of DIN and VDE installation directives.

NNever install the device in a flammable or volatile location. This may cause explosion or fire.

6.1.2 Transport and Installation

NThe manufacturer does not assume liability for any damage, complaints or missing parts which are not reported

immediately upon delivery on the packing list/delivery note.

NIn order to ensure proper installation and safety, the manufacturer, an authorised service crew or an authorised

dealer must always transport and install the devices.

NFailure to comply with the conditions listed in these instructions for use and listed in the instructions for use of

other respective devices which may be used in connection with this device, failure of performing recommended

maintenance and safety inspection intervals, unauthorized maintenance or amendments of the design and/or

performance and/or specifications and/or labelling of the devices shall absolve h/p/cosmos sports & medical gmbh

from any responsibility for the safety, reliability and performance of this equipment.

NAll lubrication material and all other parts should be kept away from children and animals.

NDo not modify the device and do not connect to other equipment which is not explicitly declared compatible by all

involved manufacturers.

NOnly connect accessories that are confirmed as compatible by all manufacturers.

NDo not put packing plastic bags, plastic foils or other materials within reach of children as suffocation may result.

service

file: \\quasarf\erp$\article\cos14310pw-v1_1_hpc-en\20160706_cos14310pw-v1.1_hpc-en_instruction_for_use_h-p-cosmos_parawalk.doc

6.1.3 Maintenance and safety inspections

NMaintenance and repair of the devices (also opening of the device) have to be performed by service engineers

authorized and certified by h/p/cosmos, preferably within the scope of a maintenance contract. The installation by

unqualified personnel may cause damages or injury due to a malfunction. Never disassemble, repair, or modify the

device yourself.

NIn case of any detected and/or assumed malfunction and/or defects and/or unreadable safety labels, the device is

to be disengaged immediately. The device is to be marked and secured against operation. The supplier and

authorized service personnel have to be informed in writing immediately.

installation

file: \\quasarf\erp$\article\cos14310pw-v1_1_hpc-en\20160706_cos14310pw-v1.1_hpc-en_instruction_for_use_h-p-cosmos_parawalk.doc

7Installation

7.1 Unpacking and packaging

When receiving the device in a crate or unpacked, make sure the device, the accessories and the packaging is not

damaged. If you discover any damage or missing parts make a note on the packing-list / delivery note of the carrier.

Inform h/p/cosmos and your dealer immediately in writing about any damage or missing parts.

The manufacturer does not assume liability for any damage, complaints or missing parts which are

not reported immediately upon delivery on the packing list/delivery note.

Before unpacking the machine and accessories, read the instructions on the crate. Pay special attention to small parts,

so that you do not dispose them or any instructions with the packaging. Within Germany, most devices are delivered

and assembled by h/p/cosmos directly or by an authorised forwarder. If delivered by h/p/cosmos, the packaging will be

removed and recycled.

If the device is delivered by a carrier, you can recycle the packaging yourself or send it back to the manufacturer

(transportation to be paid by the customer).

7.2 Transport

Some of the components are heavy in weight!

Please notice that the installation must be done by h/p/cosmos authorized technicians.

7.3 Storage

Store the devices at a temperature of –20° ... + 50° C.

7.4 Environmental requirements / room configuration

The device should be protected from high humidity.

Temperature: + 10° ... + 40°C

Relative humidity: 30 ... 70 % (non condensing!)

Air pressure: 700 ... 1060 mbar

Maximum operating altitude: approx. 10,000 feet (3000 m), without pressurization

installation

file: \\quasarf\erp$\article\cos14310pw-v1_1_hpc-en\20160706_cos14310pw-v1.1_hpc-en_instruction_for_use_h-p-cosmos_parawalk.doc

7.5 Installation h/p/cosmos parawalk®

installation

file: \\quasarf\erp$\article\cos14310pw-v1_1_hpc-en\20160706_cos14310pw-v1.1_hpc-en_instruction_for_use_h-p-cosmos_parawalk.doc

7.5.1 Identification of the device

Name plate

UDI label

7.5.2 Tools and material required

NDrawing and parts list as shown above.

NAllen wrench size 5

NAllen wrench size 4

7.5.3 Time / personnel needed

Time needed for the entire assembling, 2 persons, approximately 90 minutes.

7.5.4 Work preparation

Check all parts delivered by h/p/cosmos®

Clean intended space and floor

installation

file: \\quasarf\erp$\article\cos14310pw-v1_1_hpc-en\20160706_cos14310pw-v1.1_hpc-en_instruction_for_use_h-p-cosmos_parawalk.doc

7.6 Work steps

No.

Illustration

Description

NLay down connectors (Pos.50)

NAdd pillar brackets (Pos. 60) with tap holes

to the outside

NAdd bottom frames (Pos. 20 + 40)

installation

file: \\quasarf\erp$\article\cos14310pw-v1_1_hpc-en\20160706_cos14310pw-v1.1_hpc-en_instruction_for_use_h-p-cosmos_parawalk.doc

NAdd bottom frames (Pos. 10 + 30)

NFix base frame with cheese-head screws

(M8x25)

NAdd setscrews (do not turn in too far)

NPut pillars in brackets

NTurn levers to the outside

NFix setscrews

NPut plastic rings on pillar arm

NStick handrail trough plastic ring and pillar

arm

NFix handrail with washer and screw

Plastic ring

installation

file: \\quasarf\erp$\article\cos14310pw-v1_1_hpc-en\20160706_cos14310pw-v1.1_hpc-en_instruction_for_use_h-p-cosmos_parawalk.doc

NAdd first wooden plate (if included)

NAdd wooden dowels (if included)

10.

NAdd second wooden plate carefully (if

included)

NClose holes with plastic caps

NCheck if all screws are tight and device is

safe to use

This manual suits for next models

Table of contents

Popular Mobility Aid manuals by other brands

Lifestyle

Lifestyle 400 LBS manual

BEA

BEA LPR36 Series manual

Guardian

Guardian Garnet User instruction manual & warranty

Permobil

Permobil BodiLink Head Support Operation manual

Invacare

Invacare Growth Bracket Installation and operating instructions

AREBOS

AREBOS AR-HE-RL42012 Original user manual

Rehabmart

Rehabmart CE 1250 instructions

MDH

MDH Vitea Care AMBONA Instructions for use

Invacare

Invacare Escort user manual

HOMCOM

HOMCOM 712-050 Assembly & instruction manual

CareCo

CareCo proLite VISAGE user manual

Acre

Acre Carbon Series user manual

Molift

Molift EvoSling FlexiStrap user manual

Decon wheel

Decon wheel MED3099 Assembly instructions

NRS Healthcare

NRS Healthcare M01278 User instructions

Stander

Stander 8150 Assembly instructions

HEPRO

HEPRO Gripo user manual

WheelzAhead

WheelzAhead TRACK 3.0 user manual

h/p/cosmos parawalk 2,44m Service manual

Popular Mobility Aid manuals by other brands
