H3C ANT-5010Y Yagi User manual

i
Contents
H3C ANT-5010Y Yagi antenna installation guide ··································································································· 1
Technical specifications····················································································································································1
Safety precautions·····························································································································································3
Installation guidelines ·······················································································································································4
Choosing a mounting location ········································································································································4
Mounting the antenna ······················································································································································4
Tools and accessories required ······························································································································4
Mounting the antenna on a mast····························································································································4
Recommended cable················································································································································5

Manual Version:5PW100-20120627
1
H3C ANT-5010Y Yagi antenna installation
guide
Technical specifications
The ANT-5010Y Yagi antenna is designed for use in outdoor environments. It is connected to the 5-GHz
antenna port on an H3C indoor or outdoor AP through an N-type connector.

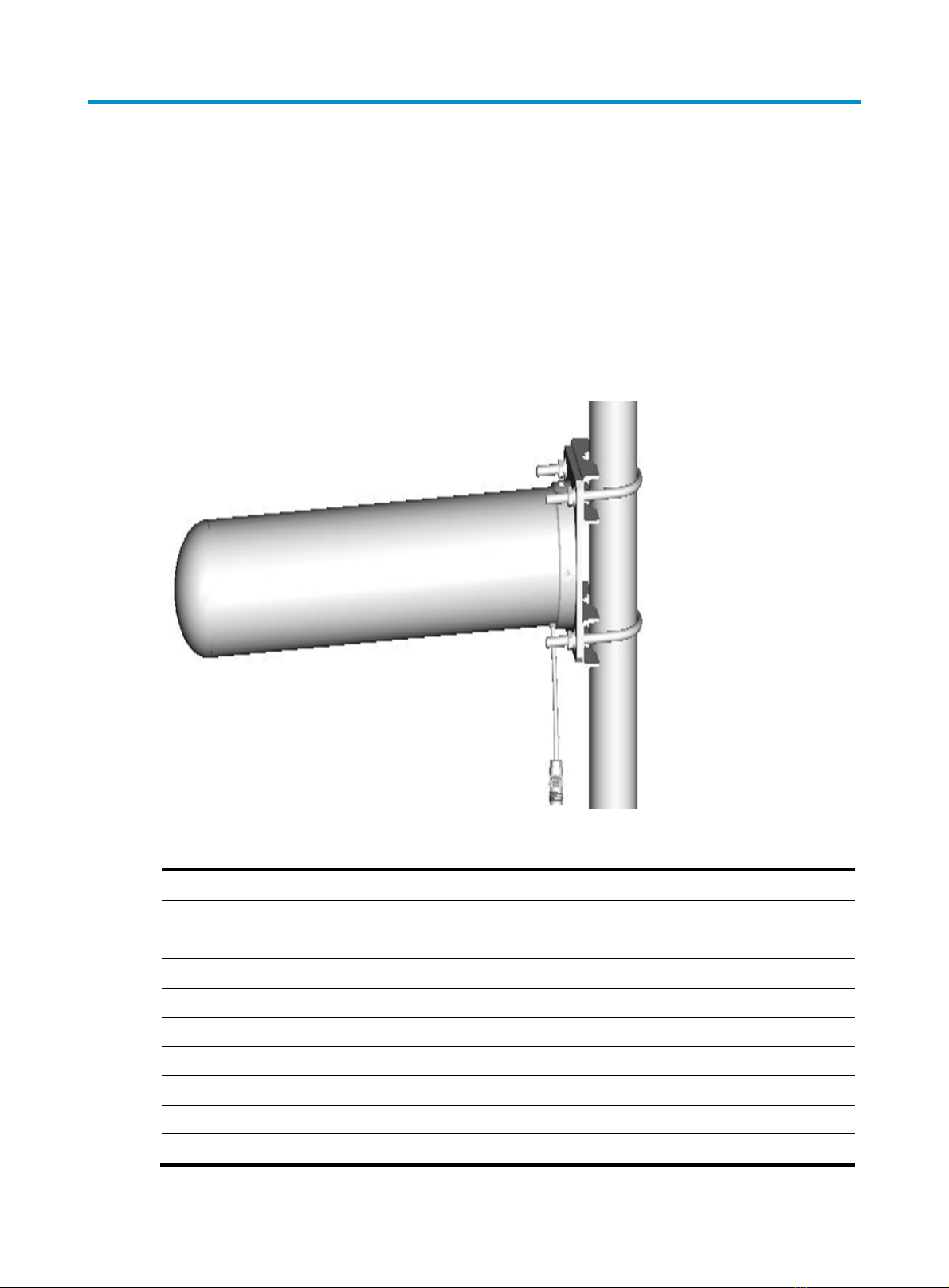

Figure 1 Antenna view
Table 1 Technical specifications
Antenna type ANT-5010Y
Operating frequency range 5725 MHz to 5850 MHz
Peak gain 10 ± 1 dBi
Front and Back Ratio ≥15 dB
Horizontal beamwidth 45 ± 3 degrees
Vertical beamwidth 40 ± 3 degrees
Voltage standing wave ratio (VSWR) < 1.5
Impedance 50 Ω
Polarization type Vertical
Max. power 100 W

Manual Version:5PW100-20120627
2
Connector N-Female
Lightening protection DC grounding
Dimensions 80 mm (3.15 in) in diameter and 215 mm (8.46 in) in length
Weight 0.33 kg (0.73 lb)
Operating temperature –40°C to +60°C (–40°F to +140°F)
Mast diameter 40 to 50 mm (1.57 to 1.97 in)
Wind Resistance 60 km (37.28 miles)/h
Installation Mast mounting

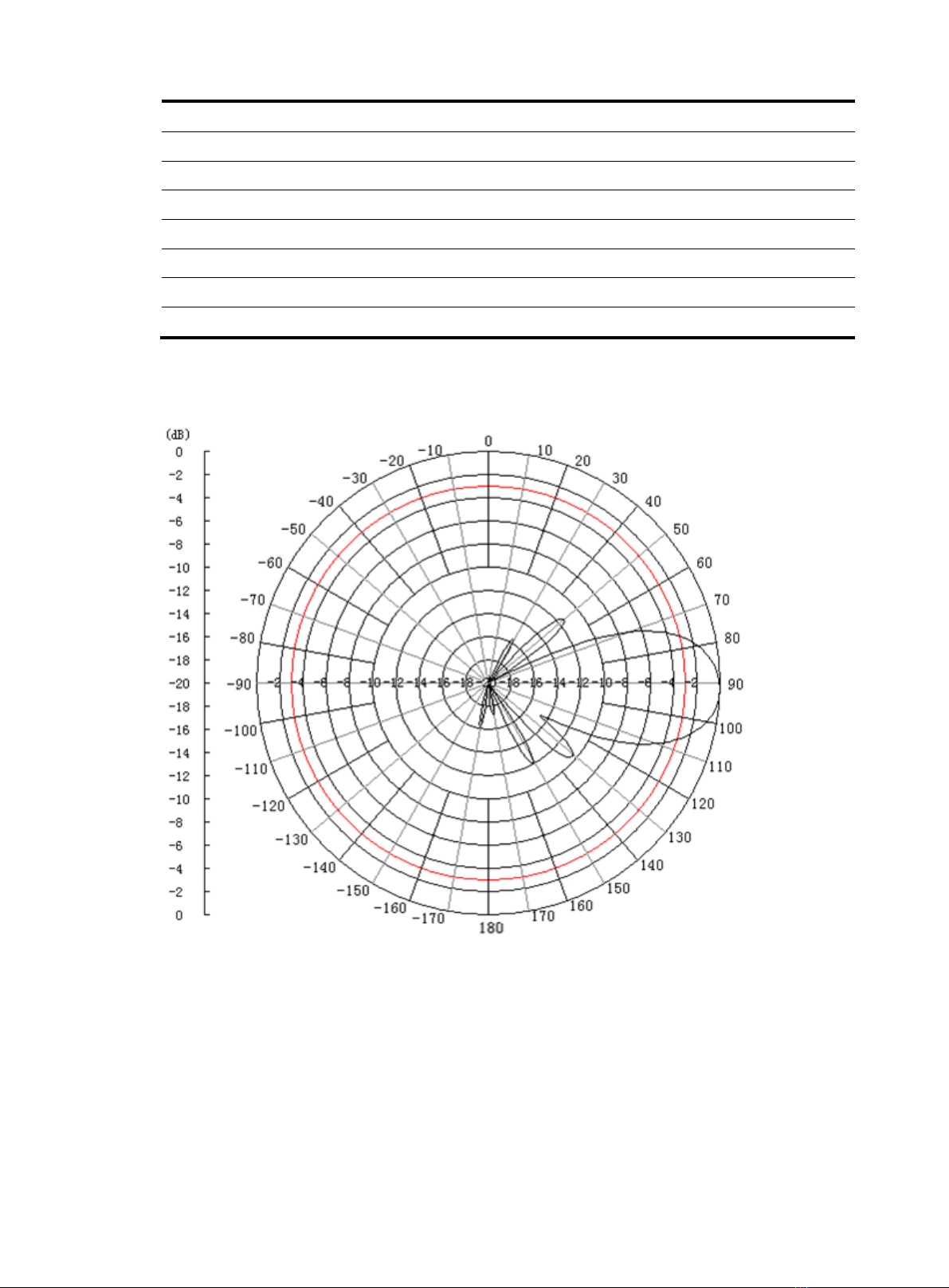

Figure 2 and Figure 3 show the horizontal and vertical radiation patterns.
Figure 2 Horizontal pattern

Manual Version:5PW100-20120627
3

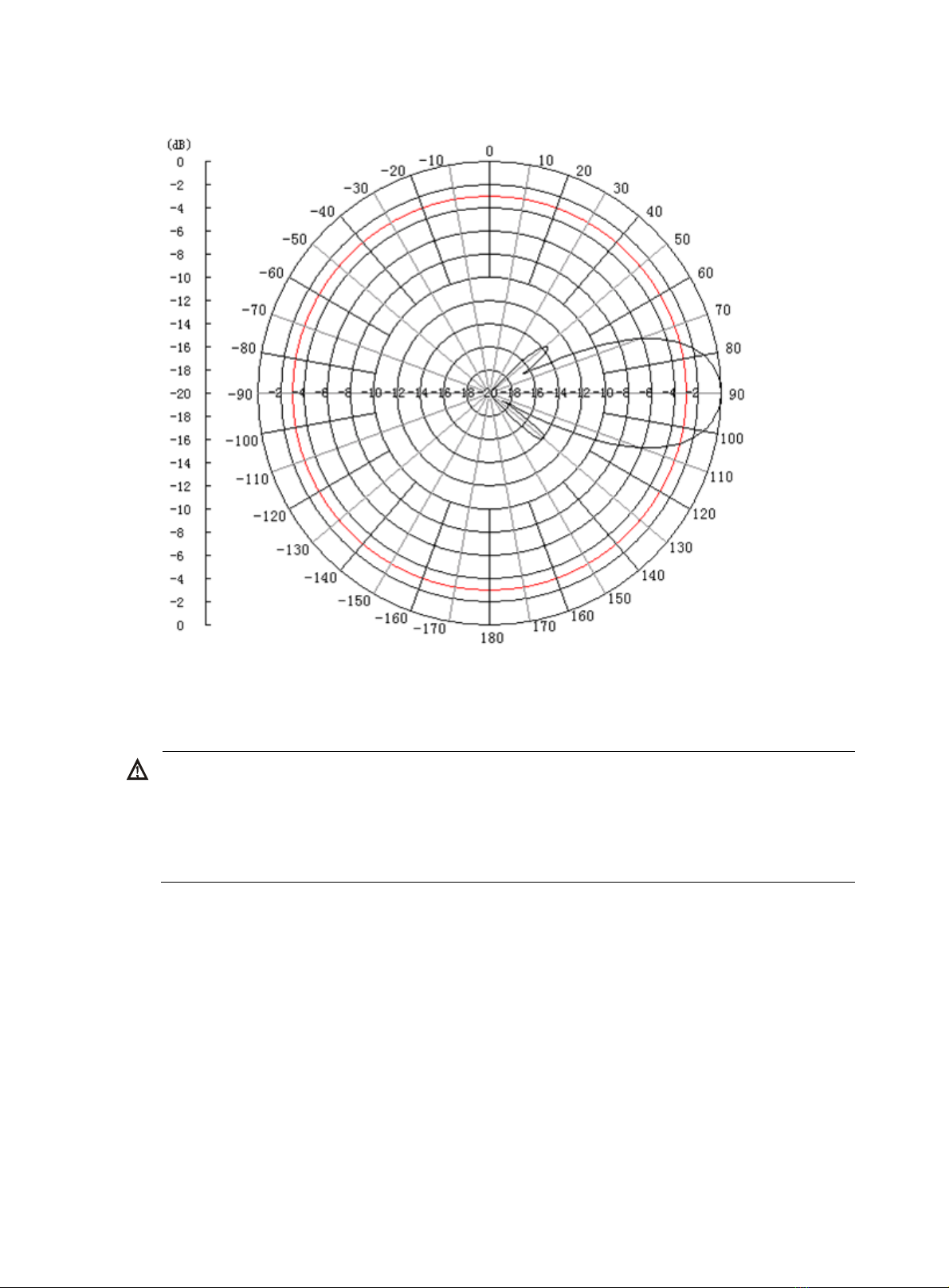

Figure 3 Vertical pattern
Safety precautions
W
ARNING!
•Installing antennas is dangerous. For your safety, follow the installation directions.
•Keep the antenna away from power source, street lamps, distribution box, or other places that may
cause electrical shock.
•Do not touch any power lines for your safety.
•Keep safety in mind when you select your installation site. Keep the antenna away from electric
power lines and other lines.
•Do not work alone when you install the antenna.
•If you need to raise the mast, work with other people to avoid bodily injury.
•Do not use a metal ladder. Do not work on a wet or windy day. Dress properly, for example, shoes
with rubber soles. Wear rubber gloves.
•If the antenna, antenna cable, or any other installation accessory drops, get away from it to avoid
bodily injury.
•If an accident, for example, electrical shock, occurs with the power lines, immediately call for
qualified emergency help.

Manual Version:5PW100-20120627
4
Installation guidelines
•Make sure the M6 hex nuts are tightened.
•Once the antenna is fastened, its orientation cannot be adjusted. Make sure the drain hole in the
antenna faces downward.
•Attach a spring washer between a flat washer and an M6 hex nut.
•A backing plate has been attached to the antenna base.
•H3C recommends that you use a mast with a diameter of 40 to 50 mm (1.57 to 1.97 in).
Choosing a mounting location
Keep the antenna away from metal obstructions such as heating and air-conditioning ducts. Typically, the
higher an antenna is above the ground, the better it performs. If possible, use a cable as short as possible
to connect the antenna and AP.
Mounting the antenna
You can mount the ANT-5010Y Yagi antenna on a mast. The installation accessories are provided
(installation tools are user supplied). If you intend to mount your antenna on another surface, you must
provide the appropriate installation accessories.
Tools and accessories required
•Provided with the antenna:
{Two mounting brackets
{Two U-bolts
{Four flat washers with an inner diameter of 6 mm (0.24 in)
{Four spring washers with an inner diameter of 6 mm (0.24 in)
{Four M6 hex nuts with an inner diameter of 6 mm (0.24 in)
•User-supplied:
{One adjustable wrench
{One pencil
{One mast with a diameter of 40 to 50 mm (1.57 to 1.97 in)
Mounting the antenna on a mast
1. Place a U-bolt around the mast, and pass the U-bolt through the installation holes on the mounting
bracket. See Figure 4.
2. Thread the U-bolt through the mounting holes in the backing plate of the antenna and adjust the
horizontal direction of the antenna.
Figure 5 shows the sizes of the backing plate and U-bolts.
3. Attach a flat washer and a spring washer, and then start an M6 hex nut on each end of the U-bolt.
4. Repeat steps 1 through 3 to attach the other U-bolt to the mounting brackets.
5. Fasten the four M6 hex nuts with an adjustable wrench until the antenna is secured in place.

Manual Version:5PW100-20120627
5

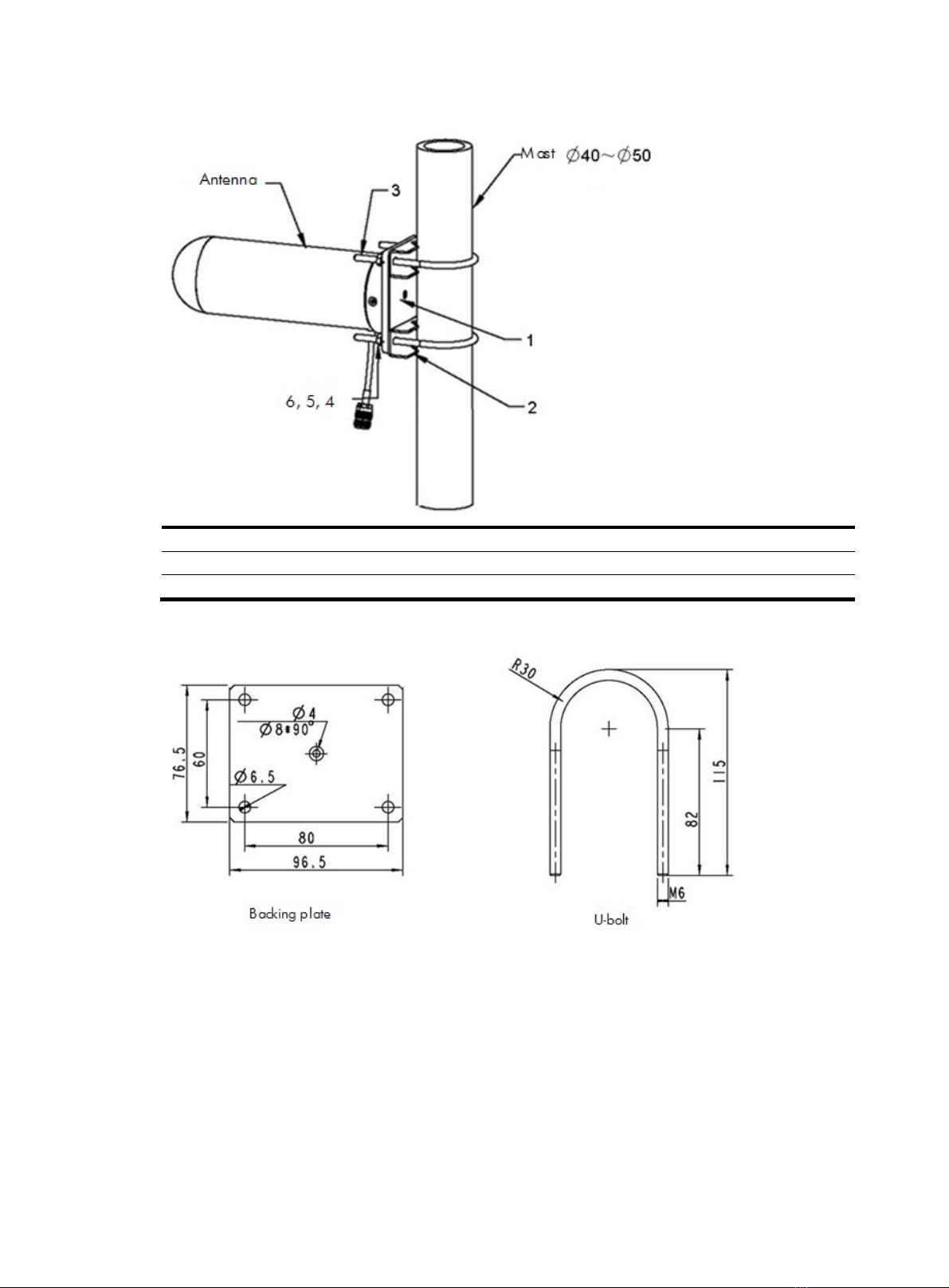

Figure 4 Mounting the antenna on a mast
(1) Backing plate (2) Mounting bracket
(3) U-bolt (4) Flat washer
(5) Sprin
g
washer (6) M6 hex nut
Figure 5 Backing plate and U-bolt sizes (mm)
Recommended cable
H3C recommends that you use a high-quality, low-loss cable with the antenna. Coaxial cable loses
efficiency as the frequency increases, causing signal loss. Keep the cable as short as possible because
cable length also causes signal loss (the longer the run, the greater the loss).
