Haberl Electronic 1E0671-1 MCR2.9 User manual

1E0671-1 MCR2.9
1E0671 LCM
User Manual
Version 1.00
29.4.2015
HABERL ELECTRONIC
Kochstraße 2
94424 Arnstorf
[phone]
[e-mail]

User Manual
Artikel: 1E0671-1 Seite 1von 9
Bezeichnung: MCR 2.9
Druckdatum: 06.05.15 Ersteller : 1E0671-1 MCR2.9 user manual
Erstelldatum: Version: Doku Nr.: 3D032-
Inhalt
Introduction................................................................................................................................................3
Specifications .............................................................................................................................................4
General Specifications..........................................................................................................................4
RFID Specifications:...............................................................................................................................4
Pin Assigment.........................................................................................................................................5
FCC Compliance.........................................................................................................................................6
Precautions of Use....................................................................................................................................7
Technical Assistance.................................................................................................................................8

User Manual
Artikel: 1E0671-1 Seite 2von 9
Bezeichnung: MCR 2.9
Druckdatum: 06.05.15 Ersteller : 1E0671-1 MCR2.9 user manual
Erstelldatum: Version: Doku Nr.: 3D032-
This document and its contents are proprietary to haberl electronic GmbH & Co. KG and are
intended solely for the contractual use of its customer in connection with the use of the product(s)
described herein and for no other purpose. This document and its contents shall not be used or
distributed for any other purpose and/or otherwise communicated, disclosed, or reproduced in any
way whatsoever without the prior written consent of haberl electronic.
The instructions in this document must be strictly and explicitly followed by qualified and properly
trained personnel in order to ensure the proper and safe use of the product(s) described herein. All
of the contents of this document must be fully read and understood prior to using such product(s).
FAILURE TO COMPLETELY READ AND EXPLICITLY FOLLOW ALL OF THE INSTRUCTIONS CONTAINED
HEREIN MAY RESULT IN DAMAGE TO THE PRODUCT(S), INJURY TO PERSONS, INCLUDING TO USERS
OR OTHERS, AND DAMAGE TO OTHER PROPERTY.
HABERL ELECTRONIC DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE IMPROPER USE OF
THE PRODUCT(S) DESCRIBED HEREIN (INCLUDING PARTS THEREOF OR SOFTWARE) OR ANY USE OF
SUCH PRODUCT(S) OUTSIDE THE SCOPE OF THE EXPRESS WRITTEN LICENSES OR PERMISSIONS
GRANTED BY HABERL ELECTRONIC IN CONNECTION WITH CUSTOMERʹS ACQUISITION OF SUCH
PRODUCT(S).
© 20153 haberl electronic GmbH & Co. KG , All rights reserved.

User Manual
Artikel: 1E0671-1 Seite 3von 9
Bezeichnung: MCR 2.9
Druckdatum: 06.05.15 Ersteller : 1E0671-1 MCR2.9 user manual
Erstelldatum: Version: Doku Nr.: 3D032-
Introduction
The MCR2.9 and the LCM is a compact module designed for use with the Carsharing System of BMW
vehicles.
It will be used for short range reading of high and low frequency (HF and LF) tags to identify the
Carsharing user. Another function of the reader is, when the car is not used, that the mounted LEDs
shows the status of the car (booked, available).
The module consists of a radio module and a printed loop antenna and a coil for both RFID-
frequencies, an LIN and CAN interface, IR-proximity sensor for wakeup, a microcontroller as host
processor and the LEDs as indicator of the vehicle condition
There are 2 versions
1E0671: LCM with a can interface (LIN is not connected to the cable)
1E0671-1: MCR2.9 with a LIN interface (CAN is not connected to the cable)

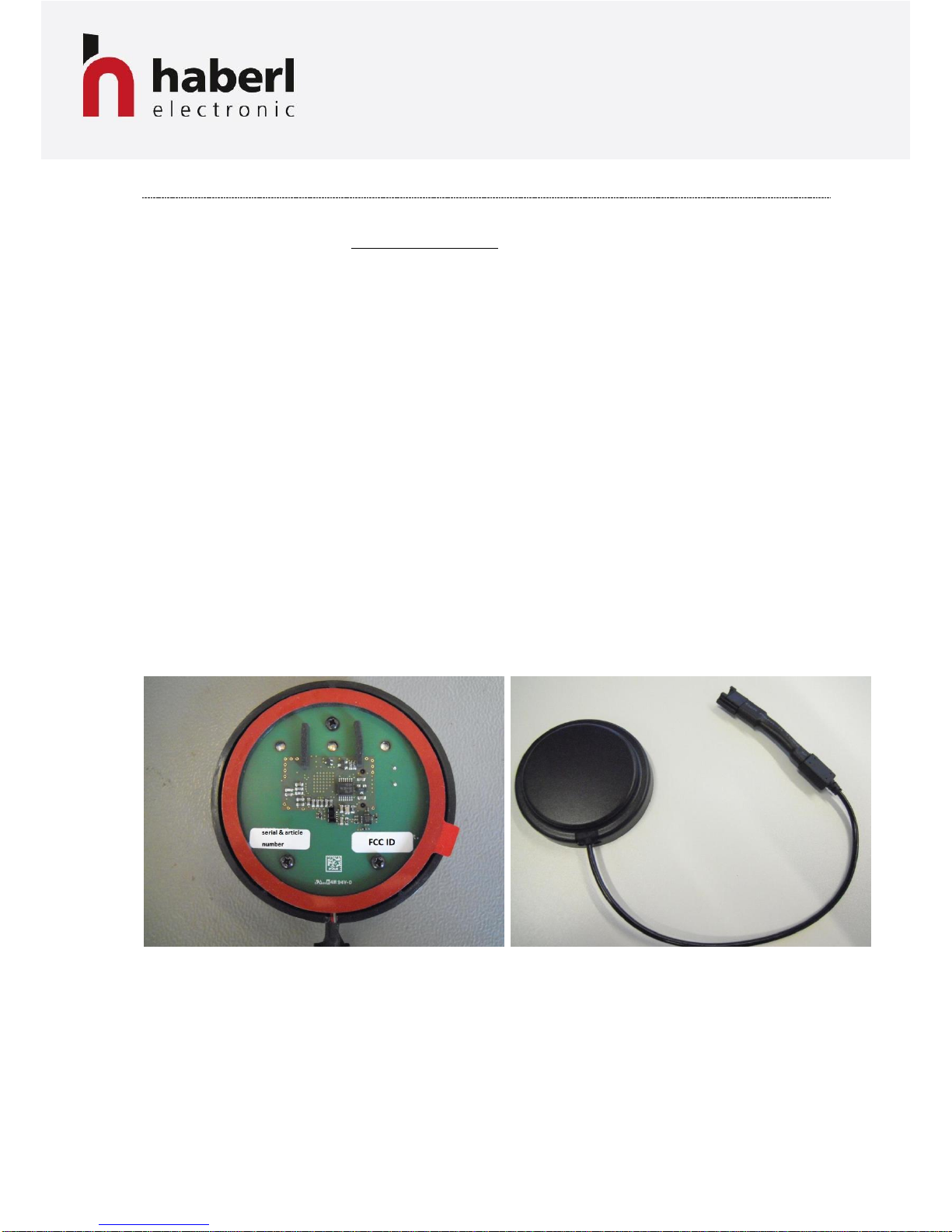

Figure 1 - front view MCR 2.9
Figure 2 –back view MCR2.9

User Manual
Artikel: 1E0671-1 Seite 4von 9
Bezeichnung: MCR 2.9
Druckdatum: 06.05.15 Ersteller : 1E0671-1 MCR2.9 user manual
Erstelldatum: Version: Doku Nr.: 3D032-
Specifications
General Specifications
Height: 19mm
Diameter: 78mm
Weight: 61g
Electrical rating:
Input Voltage: 9-18V DC
Input Current: 120mA
Operating temperature: -40°C to +85°C
Storage temperature: -30°C to +70°C
Relative Humidity: 5% to 95% non-condensing
Host Interface: LIN, High Speed CAN
RFID Specifications:
Frequency range: 125 KHz and 13,56 MHz
Protocols supported:
125 KHz: HITAG 1,2,S
13,56 MHz: Legic,ISO14443 A/B, Sony Felica, HID, ISO15693
Read range
1
(typical maximum)
125 KHz: up to 70mm
13,56 MHz: up to 80mm
1
Read and write range varies based on tag performance and environmental conditions.

User Manual
Artikel: 1E0671-1 Seite 5von 9
Bezeichnung: MCR 2.9
Druckdatum: 06.05.15 Ersteller : 1E0671-1 MCR2.9 user manual
Erstelldatum: Version: Doku Nr.: 3D032-
Pin Assigment
1E0671-1 MCR2.9 with LIN Interface
PIN Description
1 GND
2 LIN-Bus
3 Vbat_out
4 Vbat_in
1E0671 MCR2.9 with CAN Interface = LCM
PIN Description
1 GND
2 Vbat
3 not connected
4 not connected
5 CAN-H
6 CAN L

User Manual
Artikel: 1E0671-1 Seite 6von 9
Bezeichnung: MCR 2.9
Druckdatum: 06.05.15 Ersteller : 1E0671-1 MCR2.9 user manual
Erstelldatum: Version: Doku Nr.: 3D032-
FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
Note:
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Device Labeling:
The Label contains FCC ID: 2AELV-1E0671-1

User Manual
Artikel: 1E0671-1 Seite 7von 9
Bezeichnung: MCR 2.9
Druckdatum: 06.05.15 Ersteller : 1E0671-1 MCR2.9 user manual
Erstelldatum: Version: Doku Nr.: 3D032-
Precautions of Use
Avoid using the RFID Reader in the presence of strong electomagnetic waves.
The RFID Reader supplies power to the card or tag using an electromagnetic wave to communicate
with the card or tag. The presence of strong electromagnetic waves affects communication between
the RFID Reader and card or tag, causing reduced access area or inability to access the card. Test the
RFID Reader using the actual power source in the installation location environment before use.
Keep precision devices that might be affected by electromagnetic waves away from the RFID
Reader.
Because the RFID Reader constantly emits an electromagnetic wave of about 125 KHz and 13.56
MHz, placing precision devices that might be affected by electromagnetic waves near the reader can
cause malfunction or failure of the devices. When operating the reader, keep precision devices away
from the RFID Reader. If such precision devices must be located near the RFID Reader, shield the
precision devices with a metal cover and test the devices to check for any influence.
Avoid using multiple RFID Readers in proximity to each other.
The RFID Reader supplies power to the card or tag using an electromagnetic wave to communicate
with the card or tag and constantly emits an electromagnetic wave of about 125 KHz and 13.56 MHz.
Using multiple readers in proximity to each other causes interference, interrupts communication
between the card and reader, and prevents access to the card.
Safety Information
To maintain compliance with the FCC RF exposure guidelines, install and operate this equipment
with a minimum distance of 20 cm between the radiator and your body.
Use only with the supplied antenna. Unauthorized antenna, modification, or attachments can
damage the transmitter and violate FCC regulations.

User Manual
Artikel: 1E0671-1 Seite 8von 9
Bezeichnung: MCR 2.9
Druckdatum: 06.05.15 Ersteller : 1E0671-1 MCR2.9 user manual
Erstelldatum: Version: Doku Nr.: 3D032-
Technical Assistance
Haberl electronic general contact information:
Haberl electronic GmbH & Co. KG
Kochstrasse 2
D-94424 Arnstorf
Tel. [phone]
Fax: [phone]
Email: [e-mail]
