Habitat Radius RADI-SB3-AW18-A User manual

Assembly Instructions - Please keep for future reference
Dimensions
Important – Please read these instructions before assembly
If you need help or have damaged or missing parts, email:
customer[email protected]o.uk or call: 0344 499 4686
Radius 3 Door Sideboard
Width - 130cm
Depth- 49cm
Height - 86cm
1 2 1
RADI-SB3-AW18-A

Safety and Care Advice
Important – Please read these instructions fully before starting assembly
If for any reason you should have
problems with your Habitat product,
please contact the store from which
you purchased it.
Please retain your receipt as proof of
purchase.
If you have any comments or
suggestions regarding this product,
assembly instructions or service
received, please contact the store or
Habitat Head Office via its website:
www.habitat.co.uk
or write directly to: Habitat Retail Ltd.
489-499 Avebury Boulevard,
Milton Keynes MK9 2NW
General information
Check you have all the
components and tools listed on the
front cover and pages 3 - 4.
Remove all fittings from the plastic
bags and separate them into their
groups.
Keep children and animals away
from the work area, small parts
could choke if swallowed.
Make sure you have enough space
to layout the parts before starting.
Do not stand or put weight on the
product, this could cause damage.
Assemble the item as close to its
final position (in the same room) as
possible.
Do not place furniture directly in
front of radiators, fires or any other
source of heat.
Parts of the assembly
will be easier with 2
people.
Assemble on a soft level surface
to avoid damaging the unit or your
floor.
We do not
recommend the
use of power drill/
drivers for inserting
screws, as this c ould
damage the unit. Only use hand
screwdrivers.
Dispose of all packaging carefully
and responsibly.
Take care when moving furniture -
dragging it across the oor will
loosen and damage the joints.
Always lift and move.
General care and maintenance
Cleaning and care
1 2

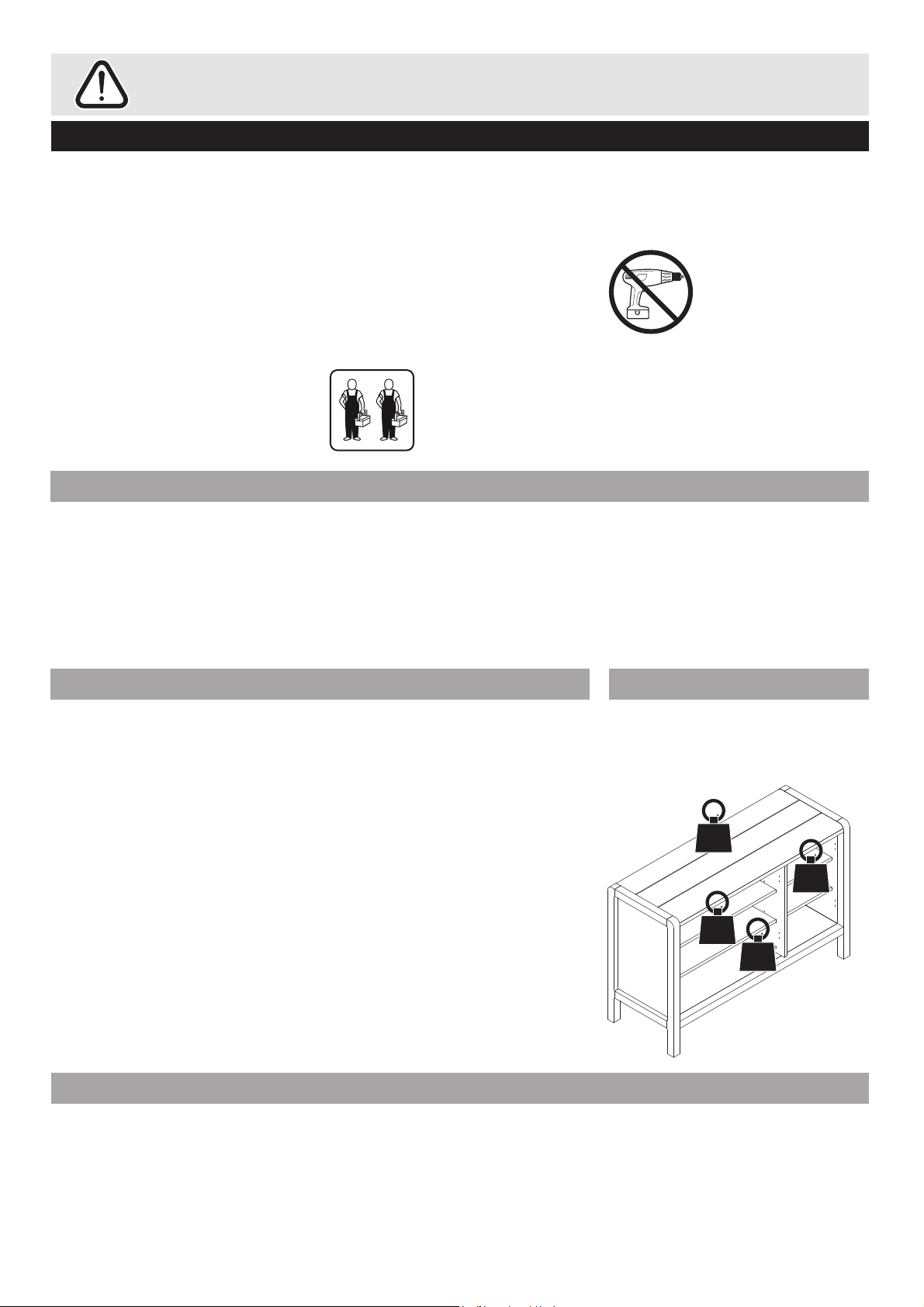

Important: Recommended
maximum load shown below
Maximum weight limit
2
From time to time check that there
are no loose ttings.
Tighten as necessary.
Avoid exposing your furniture to direct
and prolonged periods of sunlight and
heat sources as fading and
cracking may occur.
Take care to prevent sharp objects
e.g. toys, buckles and heels from
coming into contact with your
furniture, and avoid contact with
chemicals e.g. cosmetics or hair
products which may permanently
mark the surface.
Dust regularly with a clean dry cloth.
Wipe up any spills immediately with a damp cloth and then dry
the surface with a clean dry duster.
Repeat this procedure for periodic cleaning.
Remove stubborn stains with a weak washing up liquid solution
and a damp cloth and dry after with a clean cloth.
The use of furniture polish or spray is not necessary or recommended.
Never use abrasive or corrosive cleaning agents.
Always use place mats and coasters to protect the surface
from moisture and heat.
Max.
10kg
Max.
10kg
Max.
10kg
Max.
50kg

BC Note: There are ‘Batch Code’ lables where shown on the indicated items, these should beretained.
Components - Panels
Please check you have all the panels listed below
If you need help or have damaged or missing parts, email:
customerservic [email protected] o.uk or call:
0344 499 4686
3
2/3
1/3
3/3
Please check you have all the panels listed below
Please check you have all the panels listed below
1
2
3
4
5
6
6
7
7
8
9
9
10

Please check you have all the fixings listed below
Note: The quantities below are the correct amount to complete the assembly. In some
cases more fittings may be supplied than are required.
Components - Fittings
A
Ruler - To help correctly identify thefixings
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 11 0 115 120
105
If you need help or have damaged or missing parts, email:
customerservic [email protected] o.uk or call:0344 499 4686
4
B
x 8 moon washer 8
C
metric hex nut xx 8
D
x 6wooden dowel
E
x 1wrench
threaded bolt
x 4metric feet x 2screw x 4mounting plate
F
G
x 16shelf support
HI-1
x 4hinge
J
x 2screw
K
x 2
metal plate
L
Fittings pack contained in pack 1/3
I-2
x 2hinge
x4cam lock
M
x4cam
N
x 4felt feet pads
O
x 3screw
P
x 4
mounting
plate x 2

5
Assembly Instructions
Step 1
Step 2
Ex2
1
1
OK
1
Ax8 Dx4
Fx4
Nx2
4
2
1

6
Assembly Instructions
Step 3
Step 4
11
Nx2
11
I-2x2 Hx6
Mx4
3
5

7
Assembly Instructions
Step 5
Step 6
1 2 1
Bx4 Cx4
2
3
4
5
3
4
5
1 2 1
Lx1

8
Assembly Instructions
Step 7
Step 8
1 2 1
4
35
2
10
1 2 1
Bx4 Cx4
4
2
5
3
1
This product is supplied with felt feet pads for use on hard oors
Ox4
Lx1

9
Assembly Instructions
Step 9
11
Px3
Step 10
3
2
10
11
Gx16
3
1
4
2
6
6
7
7

10
Assembly Instructions
Step 11
Step 12
11
I-1x4
I-2x2
8
9
9
I-2
I-2
I-1
I-1
I-1
I-1
8
9
9
1
3
6
6
7
2

11
Assembly Instructions
Step 13
∅8
In order to prevent overturning this product must be used with the wall attachment devices provided.
Serious or fatal crushing injuries can occur from furniture tipping over. To help prevent topple over :-
• Use the wall attachment devices provided
• Never allow children to climb or hang on furniture
• Do not overload the shelves beyond maximum recommended loading.
• Place heaviest items in the lower drawers or shelves.
• Unless specically designed to accommodate, do not set TV's or other heavy objects on top of this product
Attachment devices are provided with your product, however you will need to source suitable
xings for your wall type. If in doubt consult a qualied trades person.
Always ensure that the wall to be drilled into is free from hidden electrical wires, water and gas pipes.
WARNING !
Jx2
Kx2

Important note:
Types of walls
Care &
Maintenance
No.1“General Purpose” wall plug
No.6 “Shield Anchor” wall plug Heavy
loads
No.3 “Cavity Fixing” wall plug
No.4 “Cavity Fixing-Heavy Duty” wall
plug
No.5 “Hammer Fixing” wall plug
No.2 “Plasterboard” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
a specialist fitting in this case. For light
loads, general purpose wall plugs can be
used.
For use with heavier loads such as TV &
HiFi speakers and satelite dishes etc.
For use with plasterboard partitions or
hollow wooden doors.
For use when fitting or supporting heavy
loads such as shelving, wall cabinets and
coat racks.
For use with walls stuck with plasterboard.
The hammer fixing allows it to be fixed
to the wall rather than the plasterboard.
Always check the fixing is secure to the
retaining wall.
For use when attaching light loads on to
plasterboard partitions.
Safety: Always check the fitting and
location to ensure your safety in and
around the home.
Fitting: From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
You can use one of the following types of wall plug if your walls are made
of brick, breeze block, concrete, stone or wood.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic tiles.
Ensure wall plugs are inserted beyond the thickness of the ceramic
tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well fitted and are a tight fit in the
drilled hole.
Wall Fixings: Make sure that the screws and wall plugs being used are suitable
for supporting your unit. Consult a qualified tradesperson if you are
unsure.
- because of the variety of
dierent wall types, Habitat
cannot provide you with the
exact fixings you will need to
fix this product to the wall.
You must first identify the
type of wall you intend to fix
product onto and then contact
your local hardware store to
get the appropriate fixings.
A Guide to- Wall Mounting & Fixings
